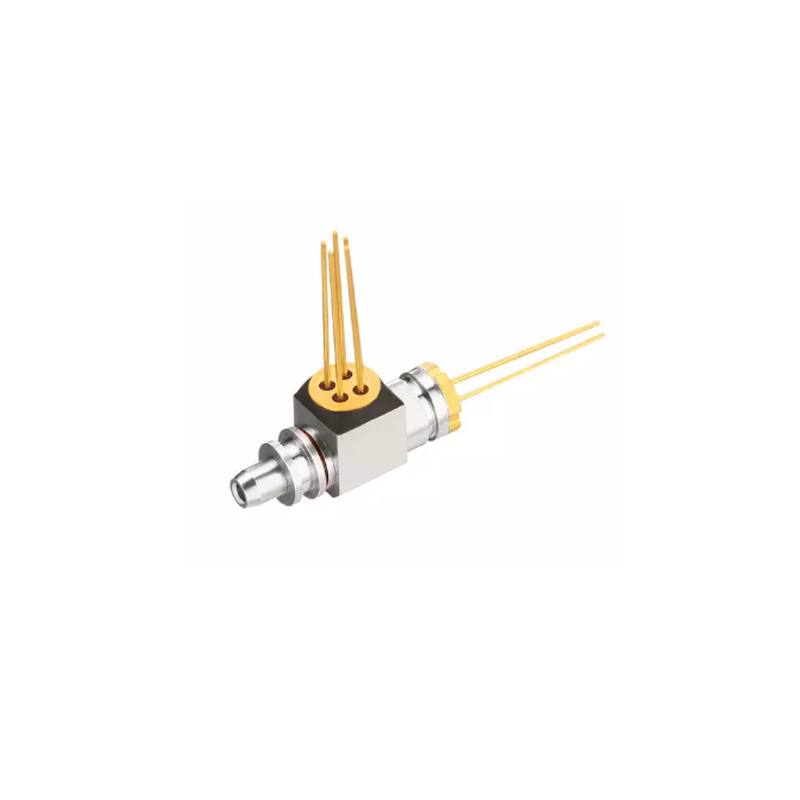

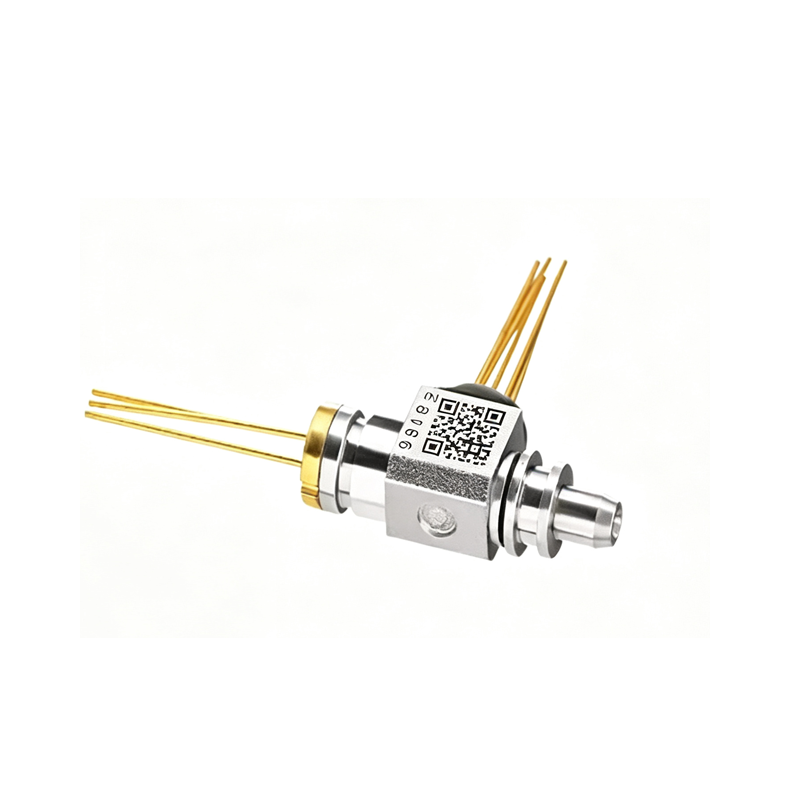

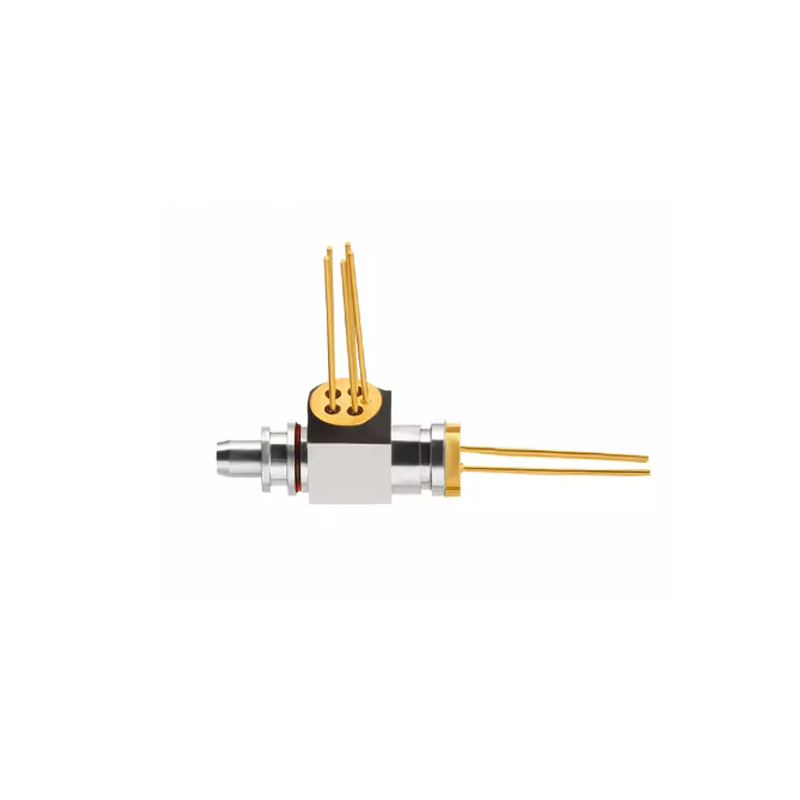

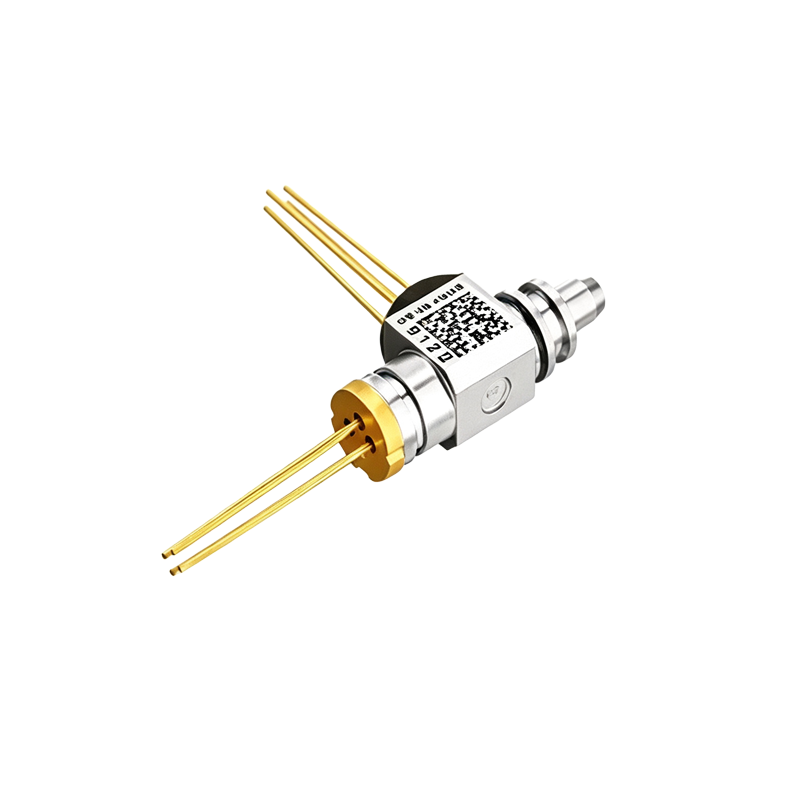

HYTOPTODEVICE 10G BOSA 1270/1330nm | 10km-60km Bi-Di LC Receptacle Bidirectional Optical Subassembly Support OEM/ODM
HYTOPTODEVICE introduces the premium 10G BOSA (Bi-Directional Optical Sub-Assembly), specifically engineered for high-bandwidth 10G Ethernet and Fiber Channel applications. Utilizing 1270nm/1330nm wavelengths, this component allows for robust 10Gbps bi-directional data transmission over a single-mode fiber, effectively doubling your fiber capacity.
The 10G BOSA is built with a high-speed DFB laser and a high-sensitivity PIN-TIA (or APD for 60km), integrated into a precision-crafted LC Receptacle. We provide a excellent "Customization" service, ensuring the components fits your specific PCB layout and mechanical housing requirements,including product parameters.
Key Features:
• Data Rate: Optimized for 10Gbps (compatible with SFP+ and XFP).
• Transmission Distance: Flexible options including 10km, 20km, 40km, and 60km.
• Wavelength: 1270nm TX/1330nm RX or 1330nm TX/1270nm RX.
• Reliability: Excellent EMI/ESD protection and high optical isolation.
• Full Customization: Supports bespoke pin lengths, pin definitions, and housing materials.

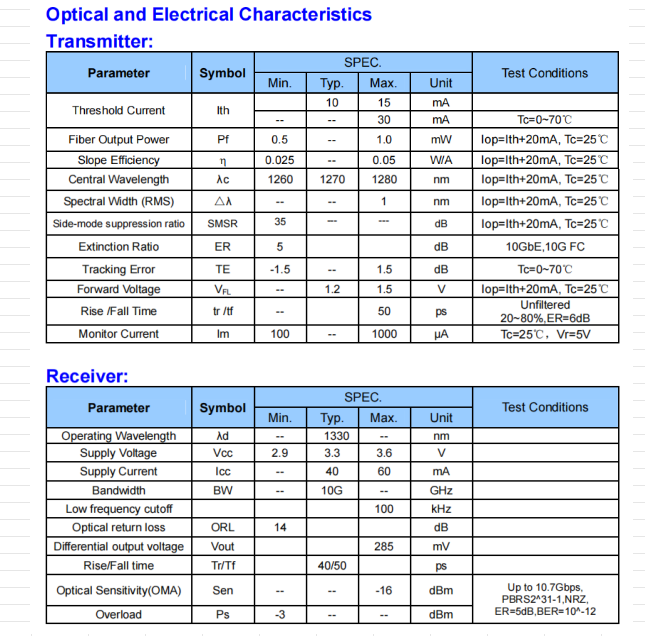

Product Parameters
| PN |
LX21611-00 |
Vendor Name |
HYTOPTODEVICE |
| Operating Wavelength |
1270/1330nm |
Data Rate |
10G |
| Package Series |
Receptacle |
Supply Voltage |
3.3V |
| Connector |
LC |
Fiber Type |
SMF |
| Housing |
Metal |
Receiver Sensitivity |
≤-16dBm |
| Laser Type |
DFB |
Application |
SFF/SFP transceiver,
Gigabit Ethernet |
Application Scenarios
-
10G BiDi SFP+ Transceiver Manufacturing: The core optical engine for high-speed single-fiber modules.
-
5G Wireless Backhaul: Critical for high-bandwidth data transport between 5G base stations.
-
Data Center Interconnect (DCI): High-density, cost-effective fiber solutions for modern data centers.
-
FTTH/Smart City Infrastructure: Supporting 10G-PON and high-speed broadband deployments.
FAQ for 1.25G BOSA Optical Components
Q1: What are the storage requirements for this BOSA?
A:HYTOPTODEVICE optical component has a safe storage temperature range of -40°C to +85°C, ensuring the photo diode remains stable during long-distance transit or non-operating periods.
Q2:
How do you ensures the stability of the 1270/1330nm wavelengths at 60km? A: For 60km reaches, we use high-power DFB lasers and high-sensitivity APD receivers. Combined with our precision optical alignment technology, we guarantee stable performance and low Bit Error Rate (BER) even over long distances.
Q3:
Do you offer Industrial Temperature (-40°C to +85°C) versions for 10G BOSA?
A: Yes,As a professional optical devices manufacturer, We provide both Commercial (0~70°C) and Industrial Grade (-40~85°C) Bosa for 10G. Our industrial versions undergo rigorous thermal aging tests to ensure high performance in outdoor environments.
Q4:Can HYTOPTODEVICE customize the BOSA pinout for our own PCB?
A: Yes. Our professional engineering team specializes in 10G BOSA designs. Based on your technical drawings or samples, we will adjust the pin directions and lengths, pin circle diameters, and electrical characteristics to ensure 100% compatibility,meet customer' demands.
Q5:: Can HYTOPTODEVICE provide custom pin configurations?
A:Yes，our R&D team has specilized in optical communication & networks for 15+ years.offering various optical components for customers around the world. We understand that different PCB designs require specific pin lengths or layouts. We provide full
ODM services to match your technical drawings or original samples perfectly.
Q6:Do you provide optical component samples for testing?
A:To ensure our compact optical devices meet customer project requirements and provide a better customer experience to our excellent customers, we support samples for testing and welcome customer feedback at any time, with responses provided within 24 hours.contact us now!
Q7:Do HYTOPTODEVICE provide overseas technical support for optical devices?
A:Yes,We have a highly experienced after-sales technical team for customers around the w
orld, provide various technical support in 24 hours.Please feel free to contact us if any questions.
Q8:What were HYTOPTODEVICE application for optical components?
A:China optical transceiver manufacturer HYTOPTODEVICE offers lasers diode for digital, analogue, CWDM and supervisory channel applications with premium reliablity and excellent service.
Quality Assurance：Why Choose HYTOPTODEVICE?
Finding a professional & reliable optical components supplier is key to maintaining your supply chain.
-
Quality Assured: 100% optical and electrical testing before shipment, fully compliant with RoHS and international standards.
-
Rapid Prototyping: Fast turnaround for custom samples to help you accelerate your time-to-market.
- Expert OEM/ODM Capability: We don't just sell parts; we provide solutions. Whether it's a unique mechanical fit or a specific optical parameter, we build to your specs.
- Mass Production & Quick Lead Times: Our automated production lines ensure high yield and consistent quality, with fast shipping for both samples and bulk orders.
Quality Certification & Compliance：
At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical subassembly manufacturing to final inspection, our processes ensure global compliance and reliability.
We adhere to rigorous standards for our optical componets and network solutions:
-
ISO 9001: Certified quality management and production consistency.
-
CE & FCC: Fully compliant for seamless Global Market Access.
-
RoHS: Committed to environmental responsibility and hazardous material control.
-
Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.
Certified Quality. Global Standards. Guaranteed Performance.
Scope of Application
HYTOPTODEVICE specializes in precision-engineered lasers for digital, analog, CWDM, and supervisory channel applications. Our product portfolio includes high-density BOSA optimized for SFP+ optical transceivers, alongside a comprehensive range of FTTx devices. Engineered for versatility, our solutions are widely implemented across a diverse range of industries, from telecommunications to industrial automation.
