Welcome back! In our previous article, we explained how to correctly pair SFP BiDi Transceivers. But what happens when you've paired them, and the link still won't come up? In this video, we're moving from theory to practice, covering the most common issues and how to solve them
Why Your Link is Down and How to Fix It
一、The Pairing Problem About Bidirectional Sfp Module

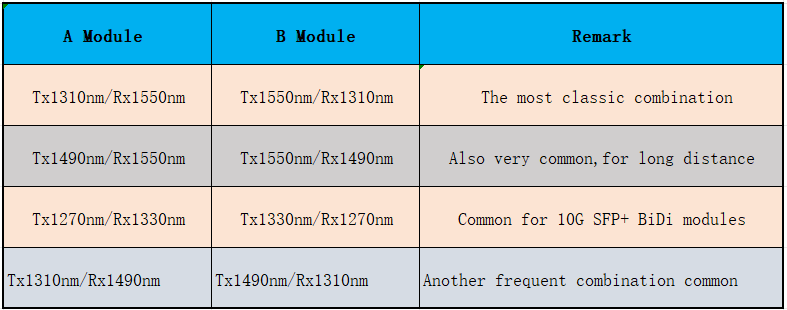

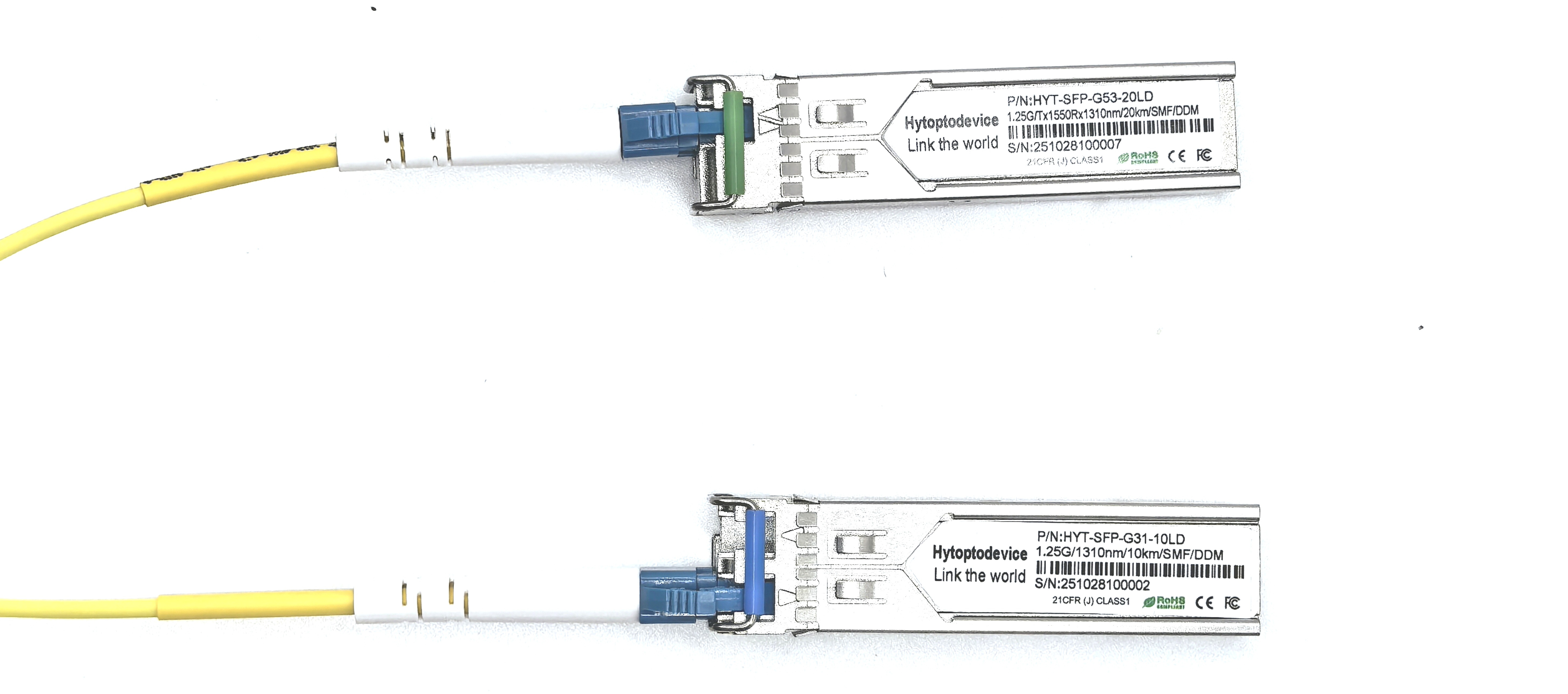

First Check: Are the wavelengths correctly paired?Verify you have an "A" and "B" module, as follows:
二、Fiber Intermittent Connection or No Link
Check that the fiber connector is securely plugged in and the fiber patch cable is undamaged.
(1)Connection: "First, ensure the fiber patch cable is securely seated. You should hear a faint click."
· (2)Cleaning: "Second, and this is crucial, check for contamination! A dirty connector is a prime culprit. Use a fiber inspection microscope and clean the end faces of bidi sfp module properly with a cleaning pen or cassette.

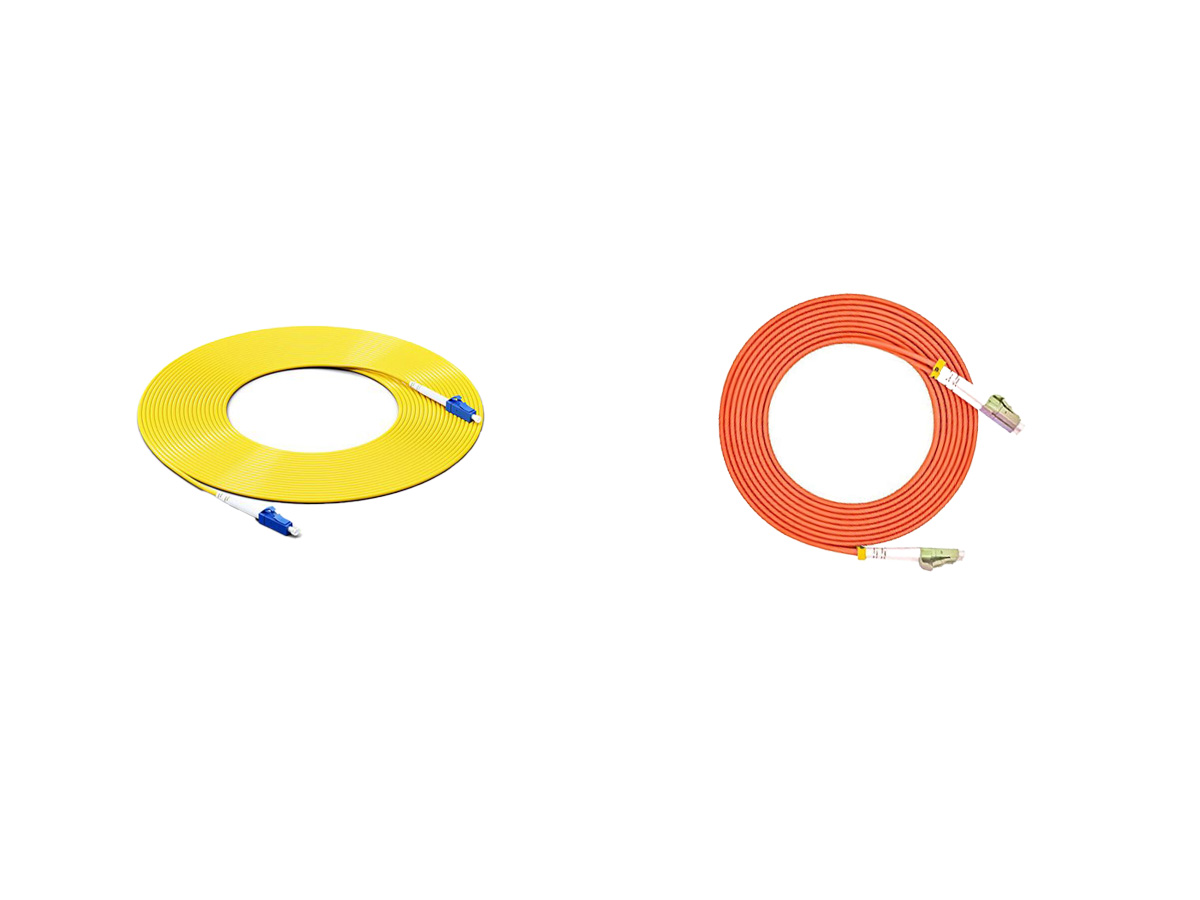

(3)Fiber Type: "Third, double-check you are using Single-Mode Fiber throughout your link."
三、BiDi Transceivers and Switch Compatibility
Check for switch compatibility. Some switch vendors restrict the use of third-party sfp transceivers.
Try reseating the bidi sfp transceiver. If that fails, check for vendor compatibility issues. Some switches require coded fiber optical transceivers."
· "Use the Digital Diagnostic Monitoring (DDM/DOM) data from your switch's CLI to check the module's health—look at temperature, voltage, and optical power."
四、Mix a BiDi Module with a Standard Duplex Module
A SFP BiDi transceiver is physically and fundamentally incompatible with a standard Dual-Fiber SFP transceiver
五、SFP BIDI Transceivers Performance and Stability
Check the optical power Issues and overheating of SFP BiDi Modules
The received optical power might be outside the optimal range. It could be too low (from a long distance or high loss) or too high (from a too-short distance)."
· "Use an optical power meter to measure. The power must be between the Receiver Sensitivity and Saturation Power levels specified in the datasheet."
In poor ventilation, modules can overheat, causing instability. Ensure your equipment room has adequate airflow."
六、How to Distinguish Between "A" and "B" Ends?
Read the Label: This is the most reliable method. The Tx and Rx wavelengths are printed on the label.
Read the Pull Ring Color: Some manufacturers use a blue pull-tab for one end (e.g., 1310nm-Tx) and a green tab for the other (e.g., 1550nm-Tx), but this is not a universal standard. Always trust the label.
