Choosing between CWDM and DWDM for high‑speed networks comes down to three factors: laser technology, data rate, and reach. At HYTOPTODEVICE, we engineer both CWDM and DWDM optical modules for performance, reliability, and multi‑vendor compatibility. This guide explains how the laser inside—whether FP, DFB, or EML—defines what your WDM solution can achieve.
Table of Contents 一、The Heart of the Module: Laser Technology Explained 二、CWDM vs DWDM: The Technology Selection Matrix 三、Seamless Multi-Vendor Compatibility 四、Conclusion & Recommendation from HYTOPTODEVICE 一、The Heart of the Module: Laser Technology Explained

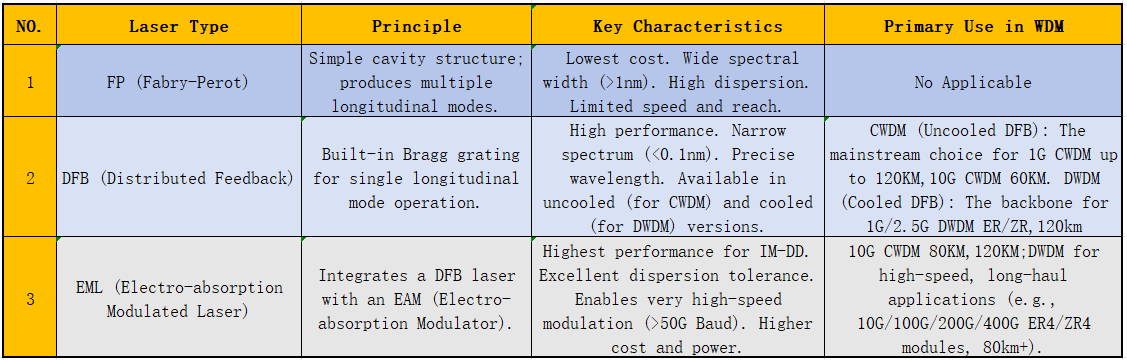

The laser diode is the core engine of any optical transceiver. The choice between FP, DFB, and EL lasers creates a fundamental trade-off between cost, performance, and reach.
二、CWDM vs DWDM: The Technology Selection Matrix
In the field of optical communications, CWDM and DWDM optical modules are the two core wavelength-division multiplexing technologies that address fiber resource bottlenecks and enhance network capacity. Like different lane management schemes on a highway, they are deployed at various network layers and scenarios, collectively forming the backbone of modern high-speed data transmission.
The following is a comparative analysis of their specific applications.
Your application's required data rate and transmission distance automatically guide the choice between CWDM/DWDM and the underlying laser technology.
Scenario 1: Cost-Optimized, Short-to-Mid Reach (CWDM Domain)
· Typical Use Case: Metro access, 5G fronthaul, enterprise campus, fiber relief.
· Technology Choice: CWDM Optical Modules using Uncooled DFB Lasers.
· Why? The 20nm channel spacing is forgiving. Uncooled DFB lasers are stable enough within this range, offering the perfect balance of good performance (10G/25G), sufficient reach (up to 80km), and low cost/power consumption. FP lasers may be used only for lowest-tier, short-reach links.

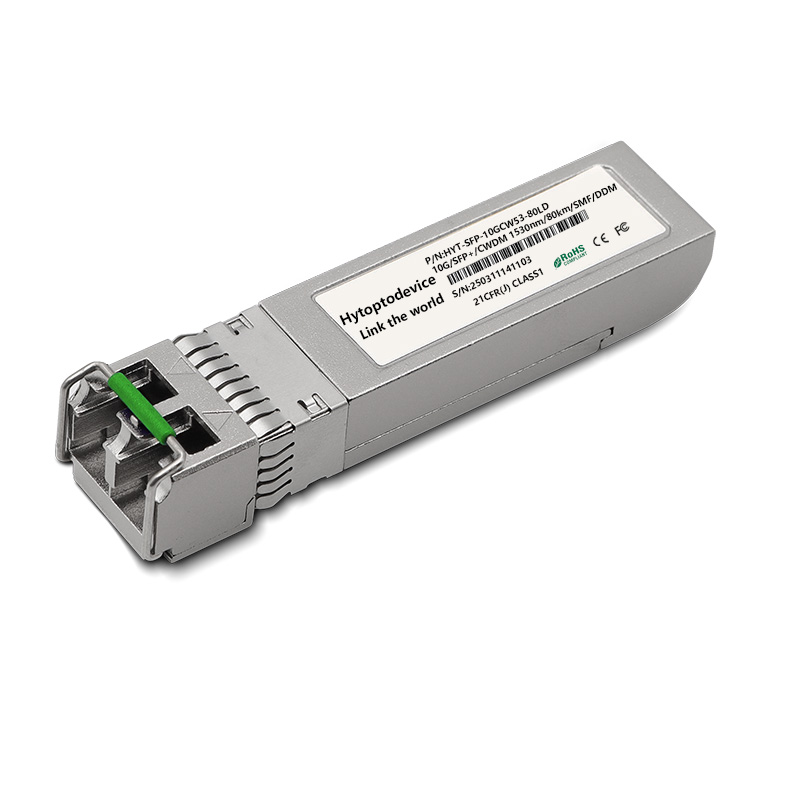

· HYTOPTODEVICE SOLUTION: Our 10G CWDM SFP+ and 25G CWDM SFP28 modules are built with high-quality uncooled DFB lasers, providing a robust and economical solution for capacity expansion.
Scenario 2: High-Capacity, Long-Haul & Ultra-Long-Haul (DWDM Domain)
· Typical Use Case: Data Center Interconnect (DCI), core/backbone networks, cross-country links.
· Technology Choice: DWDM Optical Modules using Cooled DFB or EML Lasers.
· Why? The dense channel spacing (0.8nm/0.4nm) demands absolute wavelength stability.
1. For 10G/25G to 100G (up to 120km): Cooled DFB lasers with TEC control are the standard, reliable workhorse.
2. For 100G/200G/400G+ (80km to 120km+): EML technology becomes essential. The integrated modulator handles high-speed signals with superior performance, enabling 100G ER4/200G ER4/400G ER4 standards.
· HYTOPTODEVICE SOLUTION: We offer a full portfolio from DWDM SFP+ (cooled DFB) to advanced 100G/400G DWDM QSFP28/QSFP-DD modules (using EML or coherent technology), designed for maximum reach and density.
三、Seamless Multi-Vendor CompatibilityA key concern for network operators is ensuring third-party optics work flawlessly in their OEM equipment. HYTOPTODEVICE TECHNOLOGY designs its CWDM and DWDM transceivers to be fully MSA-compliant and rigorously tested for full compatibility with major networking platforms.
Our modules are programmed to work seamlessly with switches and routers from:
· Cisco
· Arista Networks
· Juniper Networks
· Brocade
· Hewlett Packard Enterprise (HPE/Aruba)
· Huawei Technologies
· MikroTik
· H3C
Examples of our compatible form factors:
· Cisco-Compatible: CWDM-SFP10G-XXXX DWDM-SFP10G-XXXX
· Juniper-Compatible: EX-SFP-10GE-CWEXX SFPP-10G-DWXX
· Brocade-Compatible: XBR-SFP10GXXXX-XX 10G-SFPP-ZRD-XXXX
· Generic MSA: Our modules can be customized with required vendor codes, ensuring plug-and-play operation and eliminating vendor lock-in.
四、Conclusion & Recommendation from HYTOPTODEVICEChoosing the right WDM technology is a strategic decision:
· Choose CWDM with Uncooled DFB when your priority is cost-effectiveness, lower power, and simplicity for distances up to 80km.
· Choose DWDM with Cooled DFB/EML when you need maximized fiber capacity, long-haul transmission, and future-proof scalability.
Why Partner with HYTOPTODEVICE TECHNOLOGY?
1. Technical Expertise: We don't just sell modules; we provide the guidance in this article to help you select the optimal laser and architecture for your project.
2. End-to-End Portfolio: From CWDM SFP to 800G coherent DWDM, we are your one-stop shop.
3. Guaranteed Compatibility: Our optics are certified to work with Cisco, Arista, Juniper, HPE, Huawei, and more.
4. Cost Savings: Achieve significant savings versus OEM optics without compromising on quality or performance.
Ready to optimize your network with the right WDM solution?
Contact the HYTOPTODEVICE TECHNOLOGY team todayfor a free consultation, detailed compatibility matrix, and a competitive quote tailored to your specific network gear and requirements.
