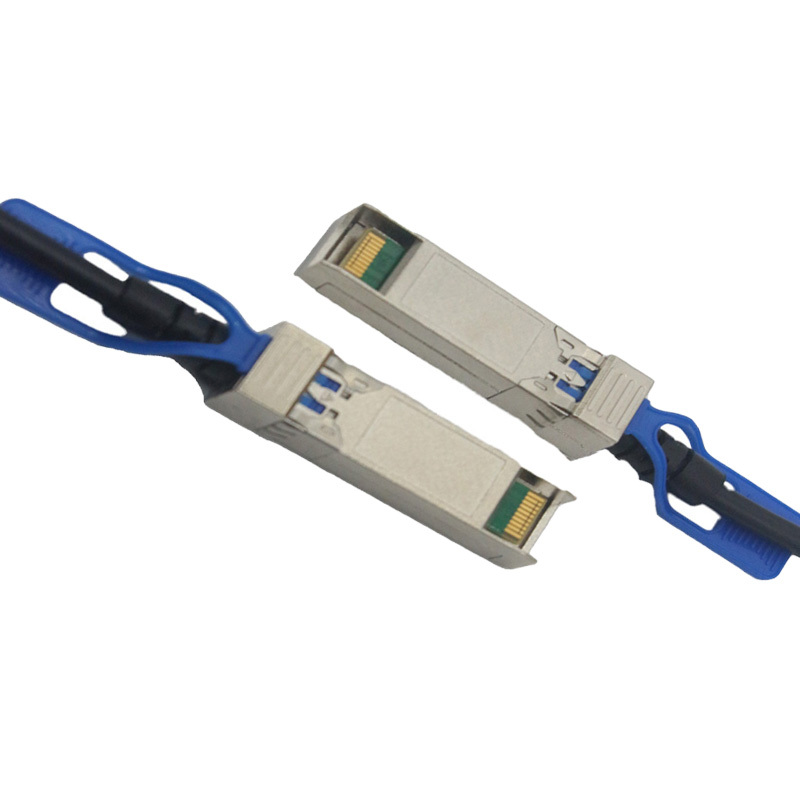

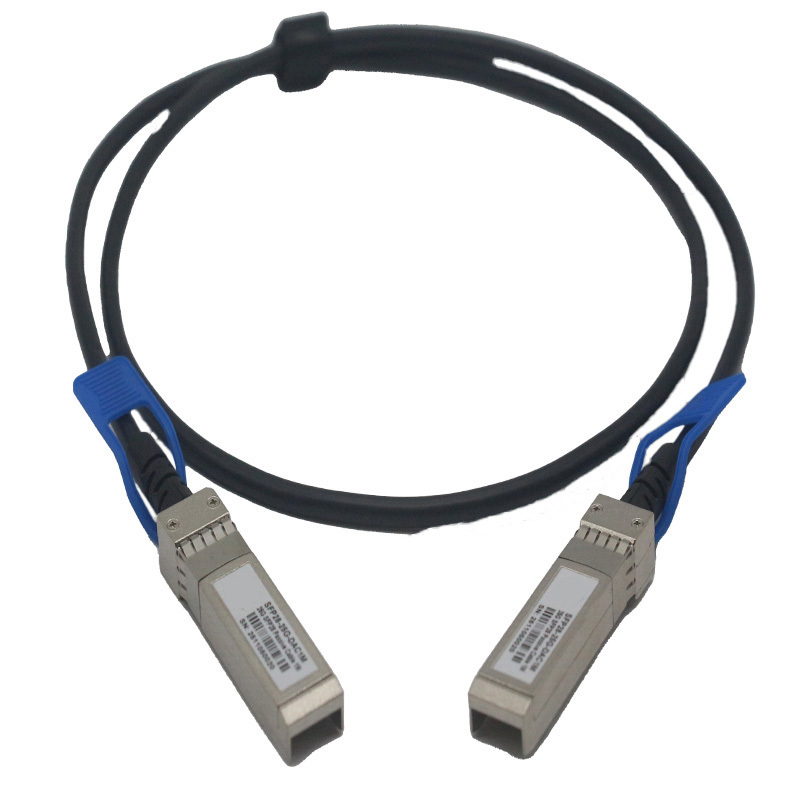

NVIDIA(Mellanox) MCP2M00‑A00A Compatible 25G SFP28 DAC Cable 0.5m | Low‑Latency Passive 25G SFP28 DAC CABLE Bulk Wholesale HYTOPTODEVICE
Produce Overview
HYTOPTODEVICE 25G SFP28‑to‑SFP28 passive DAC cable acts as a direct drop‑in replacement for NVIDIA(Mellanox) MCP2M00‑A00A. Built in compliance with 25GBASE‑CR, SFF‑8402 MSA and IEEE 802.3by standards, this 0.5m /1.6ft passive twinax copper cable delivers 25.78125Gbps ultra‑low‑latency transmission for short intra‑rack connections, featuring zero‑power consumption, excellent signal integrity and hot‑swap capabilityNVIDIA.
Pre‑programmed with NVIDIA‑Mellanox‑optimized EEPROM signature, it achieves alarm‑free plug‑and‑play operation on NVIDIA Spectrum switches and ConnectX‑series NIC adapters. This short‑length passive assembly requires no FEC for stable link performance. HYTOPTODEVICE supplies factory spot stock, sample trial orders and OEM customization for wholesalers, distributors and system integrators deploying low‑latency HPC, RoCE and cloud data‑center fabrics based on NVIDIA hardware.
Key Product Parameters
| NVIDIA(Mellanox) Compatible |
MCP2M00-A00A |
Vendor Name |
HYTOPTODEVICE |
| Connector |
SFP28 to SFP28 |
Max Data Rate |
25Gbps |
| Cable Length |
50Cm (1.6ft) |
Wire AWG |
AWG 30 |
| Cable Type |
Passive Twinax |
Power Consumption |
≤0.5W |
| Media |
Copper |
Operation Temperature |
0~ 70 °C (32 to 158°F) |
| Jacket Material |
PVC(OFNR) |
Protocols |
IEEE 802.3, SFP28 MSA, SFF-8402, Infiniband, EIA 364-1000 |
| Minimum Bend Radius |
21.25mm |
Application |
25G Ethernet, Data Center, 5G Wireless |
For detailed technical specifications, please refer to the Datasheet
Usage Guidelines & Best Practices
-
Mandatory Port Setting: Host SFP28 port must enable 25GBASE mode; link negotiation failure will happen if forced to optical mode.
-
Cabling Requirements: Do not exceed the minimum 21mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.
-
Port Installation Standard: Works only with standard SFP28 25G ports; cannot be inserted into SFP or XFP slots. Disable the host’s third-party transceiver lock policy in advance if required.
-
Maintenance Specification: Hot‑swap supported, grip the pull tab instead of pulling the cable body during plug/unplug to prevent internal conductor damage.
- Testing & Storage: Run sample validation on target hardware before large bulk deployment; store spare cables in dry, dust‑free and anti‑static packaging.
For detailed operation instructions, please refer to the User Guide.
Full Compatibility List & Supported Devices
1. Validated Nvidia(Mellanox) Hardware & Firmware
This cable is pre‑loaded with NVIDIA‑Mellanox‑specific EEPROM, supporting zero‑warning plug‑and‑play under ONYX / Cumulus Linux firmware. Every unit undergoes target‑hardware validation before shipment:
NVIDIA Spectrum Ethernet Switches
• SN2410, SN2700, SN2200 leaf‑spine data‑center switches
• SN2100, SN3700 high‑density multi‑rate fabric switches
NVIDIA ConnectX Series 25G SFP28 NIC / CNA Adapters
• ConnectX‑4 Lx, ConnectX‑5, ConnectX‑5 Ex, ConnectX‑6 Lx 25G Ethernet adapters
• MCX4121A, MCX512A, MCX631102AN‑ADAT and other SFP28‑based PCIe network cards
Universal Compatibility: All NVIDIA‑Mellanox hardware equipped with native SFP28 ports supporting 25GBASE‑CR passive copper specification.
2. Multi-Brand Cross Interoperability
Built on universal MSA open standards, this SFP28 DAC cable can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and Fortinet, for mixed-vendor rack stacking and server fabric expansion.
3. Free Value-Added Services
-
Custom firmware for multi-device compatibility
-
Support sample testing before bulk orders for project pre-verification
-
Private-label customization and professional deployment guidanc
-
Strict batch consistency quality control
- Free custom EEPROM programming for special and legacy network environments
- Free EEPROM rewriting (Tools Included) with 24/7 Tech Support
Primary Application Scenarios
• Ultra‑short intra‑rack 25G links between NVIDIA Spectrum ToR switches and ConnectX‑equipped servers
• Low‑latency HPC, RoCE v2 and hyper‑converged cluster fabric connections
• Compact rack‑unit‑to‑unit cabling for high‑density compute nodes
• Cost‑saving drop‑in replacement for NVIDIA‑Mellanox network hardware upgrade projects
• Bulk stock procurement for distributors, resellers and system integrators
Connectivity Solutions(Applications)
1. 25G to 25G Direct Link for Switch-Switch
2. 25G to 25G Direct Link for Switch-NIC
The Core Feature
1. Cost-Effective Ultra-Short Connectivity
Using twinax copper, the 25gb SFP28 Passive DAC replaces a fiber pair and two optical transceivers, significantly cutting interconnect cost for short-reach links — plug-and-play, no modules required.

2. Ultra-Low Power, Maximum Energy Efficiency
The passive 25g SFP28 passive DAC cable draws lower power consumption, reducing heat and energy costs in dense racks, while delivering a cost-effective, high-speed and low-latency 25G link for short-reach connections — within a rack or across adjacent racks.

3.Host-Device Tested for Proven Interoperability
Every SFP28 passive twinax copper cable is rigorously tested for compatibility in the target switch environment, so you can deploy with confidence — no surprises, no downtime. Not sure it fits?
Compatibility Video available upon request.
4. 100% Individually Tested for Peak Performance
Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our
Test Center.

FAQ
Q1:Is this 25G SFP28 cable natively backward compatible with 10G SFP+ ports? A:Although SFP28 and SFP+ connectors are physically identical, standard SFP28 25G DAC is programmed as high-speed devices. Most ports that support only 10G cannot recognize 25G-coded cables due to a mismatch in EEPROM identifiers. Most Dell S-Series 25G ports support dual-speed operation at 10G and 25G.
Q2:How far can I run a SFP28 25G DAC cable?A:Because DAC cables are made of dual-core copper wire, they are relatively heavy and experience signal attenuation at a faster rate than fiber optic cables; therefore, the actual transmission distance for SFP28 25G DAC cable is limited to 7 meters or less.
Q3:What is the power consumption of this passive SFP28 25G DAC compared to 25G SR optics? A: HYTOPTODEVICE passive 25G DAC consumes near zero power (≤0.5W) and generates no heat. By comparison, a pair of 25G SR fiber optical transceivers consumes approximately 1.5W to 2.0W of power. For a rack containing 48 servers, switching to the HYTOPTODEVICE 25G DAC can save nearly 100W of power and significantly reduce the cooling load.
Q4:Will this 25G cable cause an "Unsupported Transceiver" error in HPE switches?A:No. DAC Manufacturer China HYTOPTODEVICE uses precise HPE EEPROM coding. Your device will recognize this 25g sfp28 cable as a genuine HPE 844471-B21, ensuring 100% compatibility.
Q5:Does 25G SFP28 DAC use Multi-mode or Single-mode fiber?A:Neither. The DAC(Direct-Attach Copper) is a copper cable. using a twinaxial copper architecture (Twinax) to transmit electrical signals directly, no light signals.There are not lasers or optical glass in DAC cable, it is much cheaper than fiber optics.
Q6:Where to buy 25G SFP28 DAC cable?A:There are many factories that produce and sell passive DAC, but DAC manufacturer china HYTOPTODEVICE is the excellent provider: a source factory, fully controllable process, reliable performance, 100% compatible, sufficient inventory, fast delivery.
Q7:Is 25G SFP28 DAC hot-swappable?A:HYTOPTODEVICE SFP28 25G DAC is hot-pluggable, hot Pluggable SFP28 Compliant.you can plug or unplug the passive DAC, while the device is powered on without damaging the hardware.
Q8:who makes the best 25G SFP28 DAC cable?A: Transceiver Manufacturer China HYTOPTODEVICE is the excellent provider.Sorce factory,reliable quality, 100% compatibiltiy.fast delivery and quick response.HYTOPTODEVICE send a tool that allows you to re-program the compatibility of your cables yourself.
Q9:What is the difference between 24AWG and 26AWG for a 5-meter 25G SFP28 DAC cable?A: The main difference lies in signal integrity. 24 AWG cables have a larger cross-sectional area, which significantly reduces resistance. For a 5-meter SFP+ copper cable, the eye diagram of a 24 AWG cable is “clearer” than that of a 26 AWG cable, thereby providing better electromagnetic interference shielding and more stable performance in high-density, high-interference data center environments.
Q10:What is the difference between "Passive" and "Active" DAC?There are distinct differences between Passive and Active DAC.The Passive DAC has no signal amplification. its lengths is under 7m. With zero power consumptions,it cost is cheaper. The Active DAC contains a chip to boost the signal. Used for slightly longer copper runs (up to 10m-15m) and is generally thinner/more flexible.
Q11:Can I plug a 25G DAC into a 10G SFP port?A:No. SFP28 (25G) ports can often accept 10G transceivers, but a 10G SFP port cannot scale up to recognize a 25G DAC cable. You should Make sure the cable speed matches the port with the lowest rated speed.
