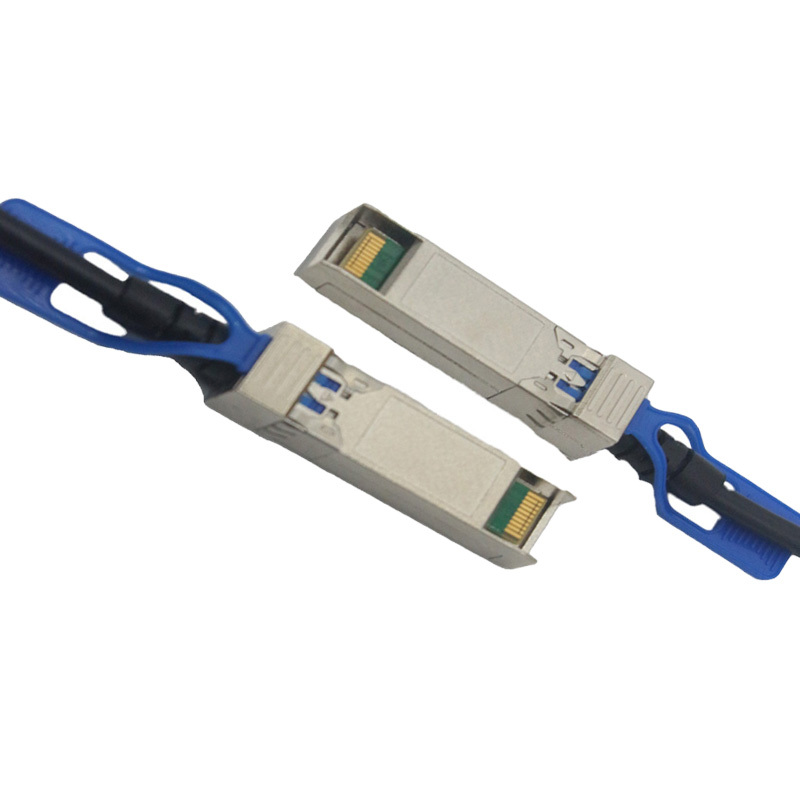

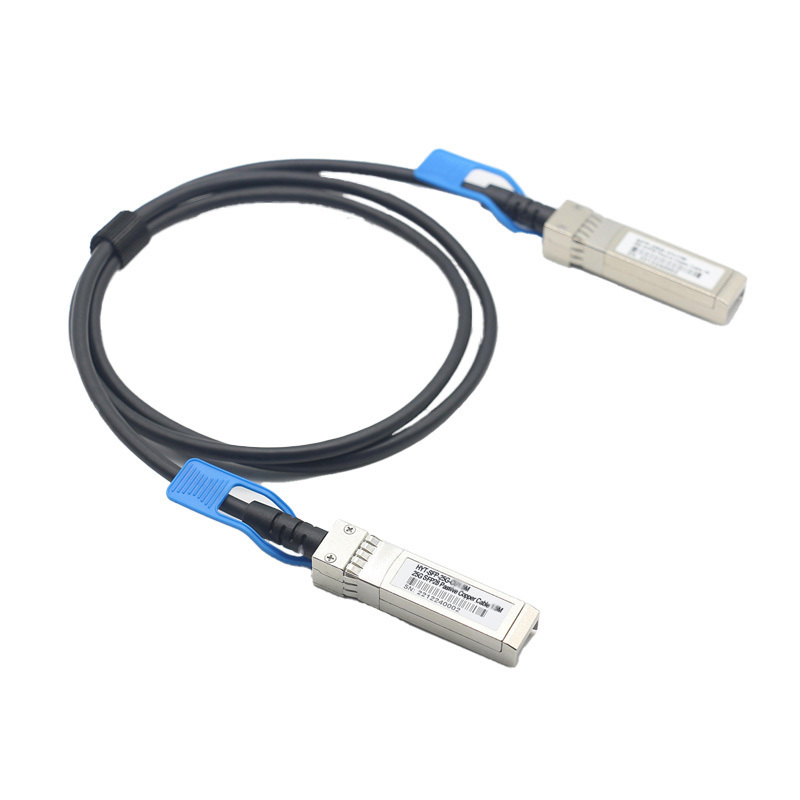

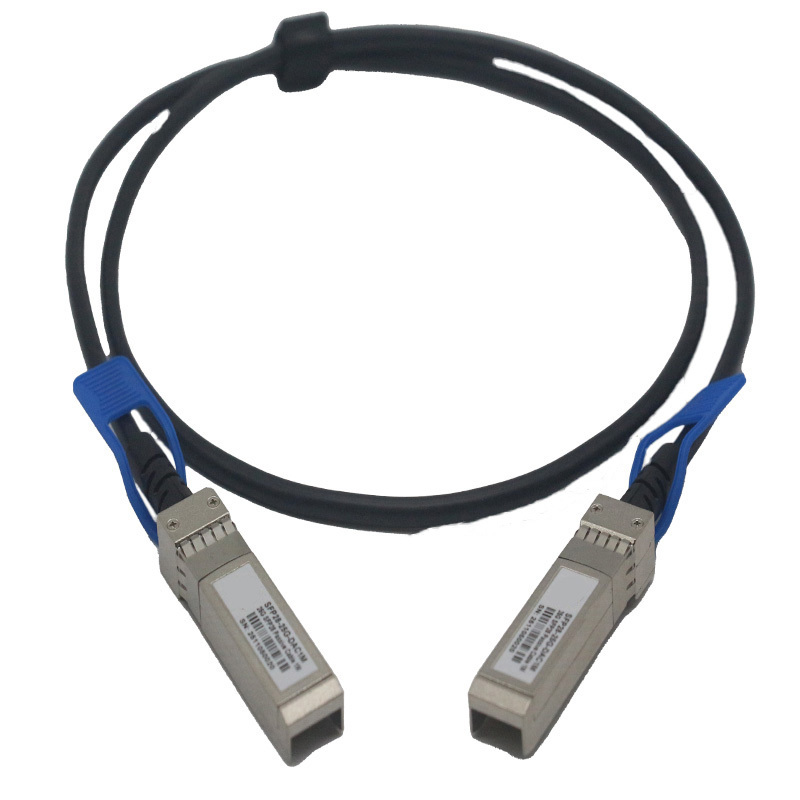

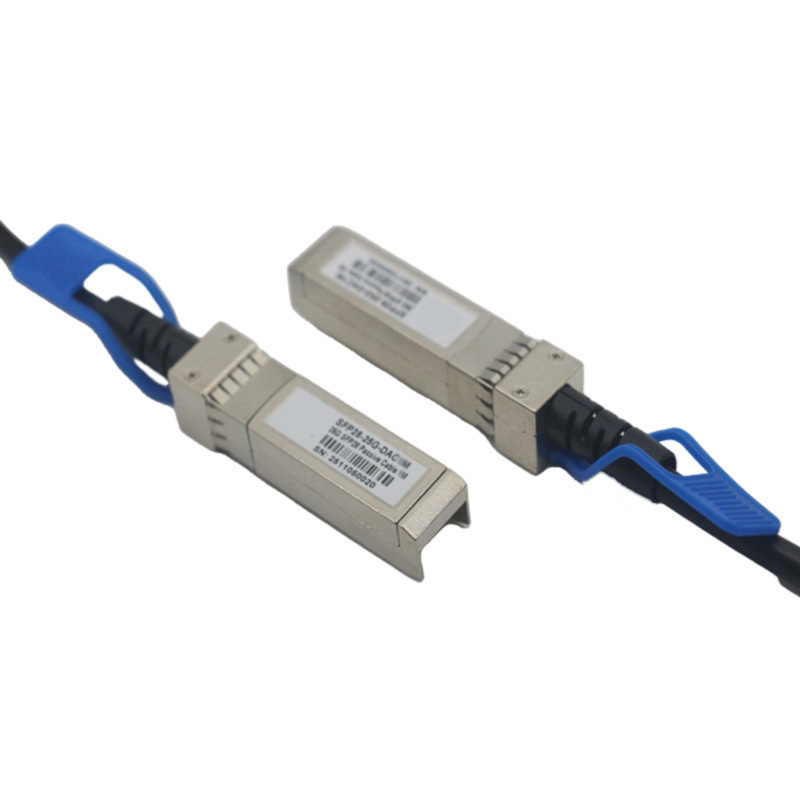

 NVIDIA(Mellanox) MCP2M00-A002 Compatible 25G SFP28 to SFP28 Passive DAC Cable 2m (7ft) | 20GBASE-CR Direct Attach Copper Twinax Cable | HYTOPTODEVICE

HYTOPTODEVICE is a trusted factory supplier for bulk purchase of passive DAC twinax cables. This 2m 25GBASE-CR Cisco compatible 25G SFP28 passive DAC cable supports stable 25G transmission rate, SFP28 form factor, validated Cisco compatibility and short intra-rack transmission distance. Buy 25G SFP28 DAC cable for Cisco data center leaf-spine networking.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco SFP-H25G-CU2M
2 Arista Networks CAB-S-S-25G-2M
3 Dell DAC-SFP-25G-2M
4 H3C  SFP-25G-D-CAB-2M-A
5 Juniper JNP-25G-DAC-2M
6 NVIDIA(Mellanox) MCP2M00-A002
Description

NVIDIA Mellanox MCP2M00-A002 Compatible 25G SFP28 Passive DAC Cable 2m | HYTOPTODEVICE

Product Overview


HYTOPTODEVICE 2m passive dac cable is a drop-in replacement for NVIDIA(Mellanox) MCP2M00-A002. It follows 25GBASE-CR, SFF-8402 and IEEE 802.3by standards to deliver steady 25.78125Gbps short-distance intra-rack links with standard SFP28 form factor. This passive direct attach copper twinax cable draws zero power and supports hot swap. We preload NVIDIA Mellanox matched EEPROM signatures to avoid transceiver warning logs on ConnectX series adapters. Available for quick purchase, sample verification and OEM service for distributors and system integrators.

Key Product Parameters

 NVIDIA(Mellanox)  Compatible  MCP2M00-A002   Vendor Name HYTOPTODEVICE
Connector SFP28 to SFP28 Max Data Rate 25Gbps
Cable Length 2m (7ft) Wire AWG AWG 30
Cable Type Passive Twinax Power Consumption ≤0.5W
Media Copper Operation Temperature 0~ 70 °C (32 to 158°F)
Jacket Material PVC(OFNR) Protocols IEEE 802.3, SFP28 MSA, SFF-8402, Infiniband, EIA 364-1000
Minimum Bend Radius 21mm Application 25G Ethernet, Data Center, 5G Wireless

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Mandatory Port Setting: Host SFP28 port must enable 25GBASE mode; link negotiation failure will happen if forced to optical mode.

  • Cabling Requirements: Do not exceed the minimum 21mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.

  • Port Installation Standard: Works only with standard SFP28  25G ports; cannot be inserted into SFP or XFP slots. Disable the host’s third-party transceiver lock policy in advance if required.

  • Maintenance Specification: Hot‑swap supported, grip the pull tab instead of pulling the cable body during plug/unplug to prevent internal conductor damage.

  • Testing & Storage: Run sample validation on target hardware before large bulk deployment; store spare cables in dry, dust‑free and anti‑static packaging.
  • Operating Environment: This commercial-grade cable operates reliably within 0℃‑70℃; avoid installation beside high-heat power modules.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated NVIDIA(Mellanox) Hardware & Firmware

The HYTOPTODEVICE MCP2M00-A002 25g sfp28 dac cable is 100% verified for:

  • NVIDIA Spectrum Switches: SN2010, SN2100, SN2410, SN2700, SN3700, and SN4000 series (25G ports).

  • NVIDIA ConnectX NICs: ConnectX-4 Lx, ConnectX-5, ConnectX-6 Dx, and ConnectX-7 Lx (SFP28 models).

  • NVIDIA BlueField DPUs: Reliable 25G links for BlueField-2 and BlueField-3 Data Processing Units.

  • Operating Systems: Fully supported in MLNX-OS, Onyx, Cumulus Linux, SONiC, and Microsoft Azure Stack HCI.

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this 25G SFP28 Passive DAC cable can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and Fortinet, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios
  • AI Cluster Interconnects: Providing the low-latency 25Gbps backbone for management and data traffic in GPU-accelerated environments.

  • ToR Server Aggregation: The 2m length allows for flexible routing from servers at the bottom of a 42U rack to a Spectrum switch at the top.

  • High-Frequency Trading (HFT): Passive copper construction ensures deterministic, ultra-low latency—critical for time-sensitive financial apps.

  • Hyper-Converged Infrastructure (HCI): Perfect for Nutanix or VMware vSAN nodes utilizing NVIDIA 25G networking.


Connectivity Solutions(Applications)

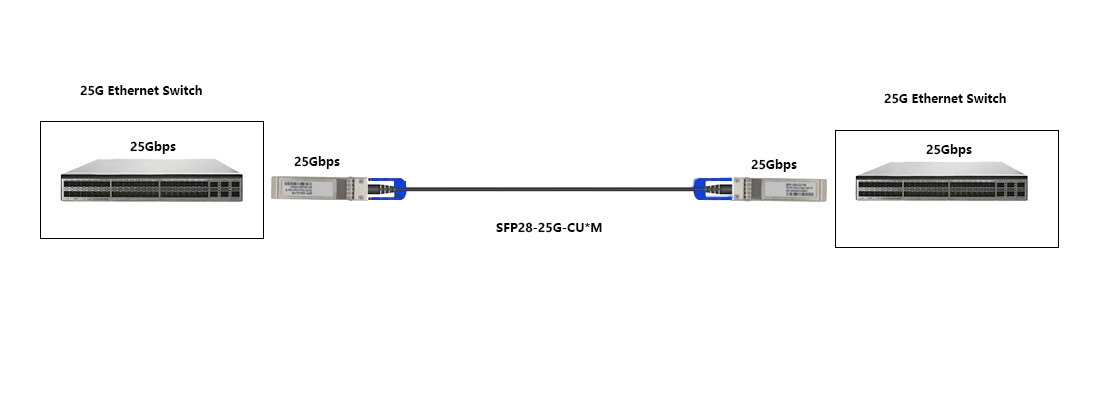

1. 25G to 25G Direct Link for Switch-Switch
25g sfp28 passive dac cable for switch to switch

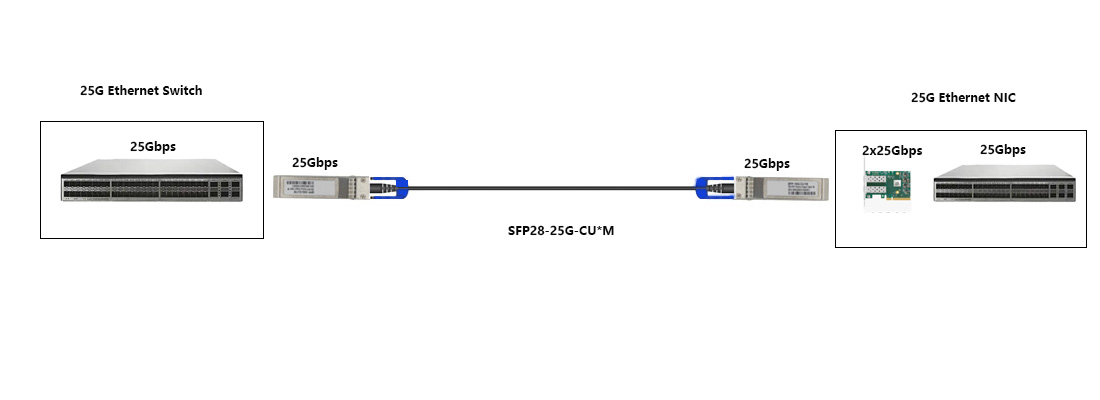

2. 25G to 25G Direct Link for Switch-NIC
hytoptodevice 25g sfp28 passive copper twinax cable for switch to NIC
The Core Feature

1. Cost-Effective Ultra-Short Connectivity

Using twinax copper, the 25gb SFP28 Passive DAC replaces a fiber pair and two optical transceivers, significantly cutting interconnect cost for short-reach links — plug-and-play, no modules required.

HYTOPTODEVICE bulk factory wholesale 25G SFP28 DAC cable

2. Ultra-Low Power, Maximum Energy Efficiency

The 25g SFP28 passive DAC cable draws lower power consumption, reducing heat and energy costs in dense racks, while delivering a cost-effective, high-speed and low-latency 25G link for short-reach connections — within a rack or across adjacent racks.

bulk factory wholesale 25G SFP28 DAC cable WITH LOW power from hytoptodevice

3.Host-Device Tested for Proven Interoperability

Every SFP28 passive twinax copper cable is rigorously tested for compatibility in the target switch environment, so you can deploy with confidence — no surprises, no downtime. Not sure it fits? Compatibility Video available upon request.

compatible 25g sfp28 direct attach copper cable for data center

4. 100% Individually Tested for Peak Performance

Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our Test Center.

HYTOPTODEVICE 25G sfp28  dac cable with comprehensive factory testing stable performance for  platforms bulk wholesale orders


FAQ

Q1: Can this NVIDIA compatible passive dac cable sustain full 25G line rate on ConnectX adapters? A: Yes, this HYTOPTODEVICE passive dac cable supports full 25.78125Gbps line rate. It is pre-programmed with Mellanox EEPROM and validated under MLNX_OFED for stable 25GBASE-CR links, no FEC required for 2m.

Q2: What is the maximum reliable transmission distance of this 25G SFP28 passive dac cable? A: The rated maximum reach for 25G SFP28 passive dac cable is 5 meters. This 2m variant stays well within the copper signal loss budget for NVIDIA same-rack HPC deployments.

Q3: Can this passive dac cable build cross-vendor links between NVIDIA ConnectX NIC and Arista / Dell switches? A: Cross-brand interoperability works reliably with unified 25GBASE-CR and matched FEC configuration. This passive dac cable follows MSA standards for mixed-vendor RDMA fabrics.

Q4: What form factor difference separates SFP28 passive dac cable from older SFP+ DAC? A: SFP28 form factor supports up to 25G signaling while SFP+ maxes out at 10G. This passive dac cable uses SFP28 housing to match modern NVIDIA 25G NIC and switch ports.

Q5: What link issues occur if deploying this passive dac cable beyond the 5m transmission limit? A: 25G twinax copper suffers heavy signal attenuation over longer runs. Length over 5m triggers CRC errors and RDMA timeouts; longer spans need fiber optical links.

Q6: Which workloads gain the most latency benefit from this passive dac cable paired with NVIDIA adapters? A: RDMA, NVMe-oF storage, AI training and HPC clusters benefit most. This HYTOPTODEVICE passive dac cable delivers ultra-low latency for these NVIDIA workloads.

Q7: Can this 2m passive dac cable create direct point-to-point links between two GPU servers with ConnectX cards? A: Direct server-to-server interconnection is fully supported after correct port configuration. This passive dac cable works great for RDMA replication and cluster sync inside a single rack.

Q8: How does AWG wire gauge affect signal performance for 2m passive dac cable deployments? A: 30AWG delivers flexible routing for 2m runs; 26AWG provides better insertion loss margin near 5m. This cable uses 30AWG twinax optimized for NVIDIA GPU rack layout.

Q9: Will MLNX_OFED or Spectrum ONYX firmware upgrades break detection of this passive dac cable? A: MSA-compliant passive dac cable remains compatible after standard firmware updates. The preloaded Mellanox EEPROM profile maintains stable recognition on mainstream releases.

Q10: When should AOC fiber replace passive dac cable in NVIDIA HPC fabric design? A: Choose active optical cables when links cross racks or exceed 5 meters. Passive dac cable is the zero-power, low-cost choice for short intra-rack 25G RDMA connections.

Q11: How much latency reduction can passive dac cable achieve versus fiber transceivers on NVIDIA HPC nodes? A: Passive dac cable cuts roughly 30–60ns latency by removing optical-electrical conversion. This improvement is critical for RDMA and low-latency computing.

Q12: Can this SFP28 passive dac cable negotiate 25G rate on legacy 10G SFP+ ports of NVIDIA NICs? A: 25G speed cannot negotiate on SFP+ ports due to different electrical specs. Both ends require native SFP28 ports to run this passive dac cable at full 25G.

Q13: Can QSFP28 breakout 4×25G DAC substitute this SFP28 passive dac cable on NVIDIA SFP28 ports? A: Breakout DAC uses separate pinout and split logic. It cannot replace this standard point-to-point SFP28 passive dac cable.

Q14: What compatibility tests does HYTOPTODEVICE run for this NVIDIA passive dac cable before shipment? A: Each batch completes BER scanning, link bring-up and hot-swap validation on ConnectX and Spectrum hardware. Testing confirms EEPROM reading and stable 25G RDMA performance.

Q15: What deployment boundaries should buyers understand before bulk purchasing passive dac cable for NVIDIA clusters? A: Passive dac cable is designed only for short intra-rack copper links. It is not suitable for inter-row or long-distance cross-room transmission.


Packaging & Custom OEM Solutions
  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
