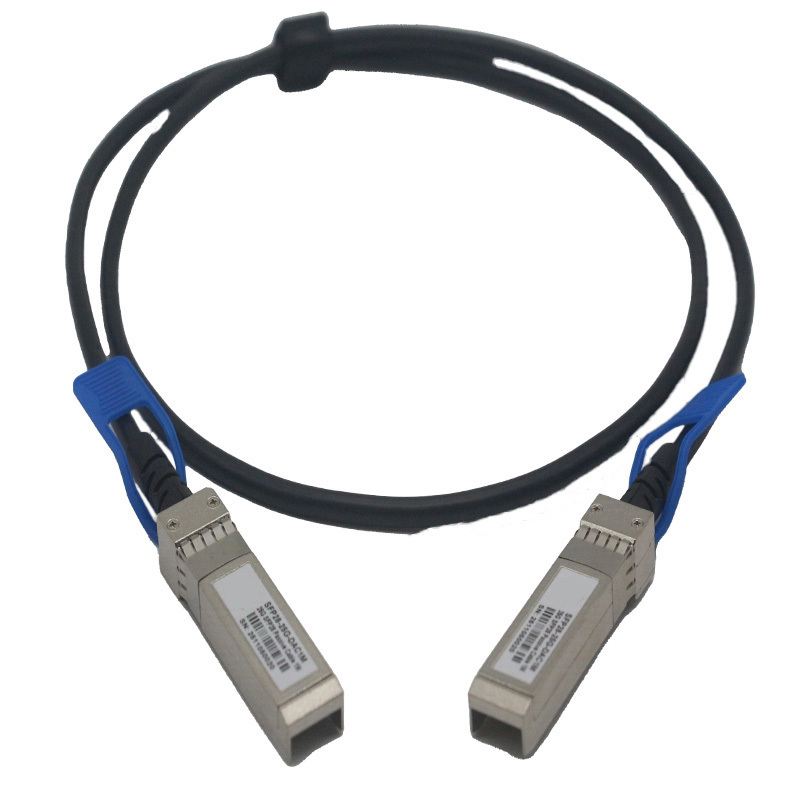

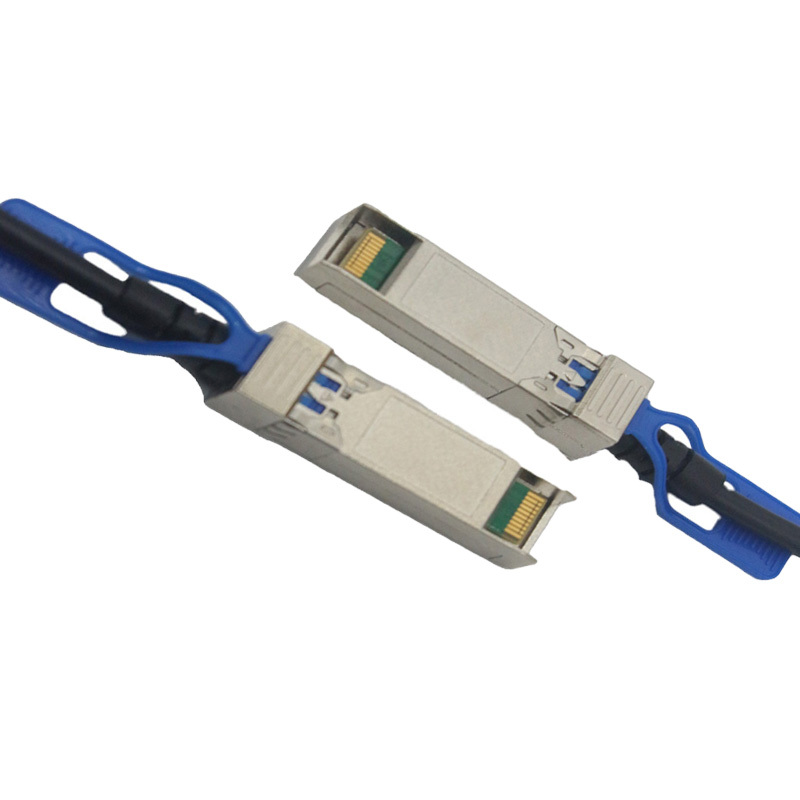

NVIDIA(Mellanox) MCP2M00-A001 Compatible 25G SFP28 Direct Attach Copper Cable 1m | Direct Attach Copper Cable Bulk Wholesale HYTOPTODEVICE
Product Overview
HYTOPTODEVICE 1m Direct Attach Copper Cable is drop‑in replacement for NVIDIA(Mellanox) MCP2M00-A001. Compliant with 25GBASE‑CR, SFF‑8402, IEEE 802.3by, delivers 25.78125Gbps intra‑rack transmission, zero‑power and hot‑swap supported. Pre‑loaded Mellanox‑matched EEPROM for alarm‑free plug‑and‑play under MLNX-OS and OFED, no mandatory FEC needed. In stock, sample & OEM options for manufacturer supplier factory, wholesaler, distributors, integrators.
Key Product Parameters
| NVIDIA(Mellanox) Compatible |
MCP2M00-A001 |
Vendor Name |
HYTOPTODEVICE |
| Connector |
SFP28 to SFP28 |
Max Data Rate |
25Gbps |
| Cable Length |
1m (3ft) |
Wire AWG |
AWG 30 |
| Cable Type |
Passive Twinax |
Power Consumption |
≤0.5W |
| Media |
Copper |
Operation Temperature |
0~ 70 °C (32 to 158°F) |
| Jacket Material |
PVC(OFNR) |
Protocols |
IEEE 802.3, SFP28 MSA, SFF-8402, Infiniband, EIA 364-1000 |
| Minimum Bend Radius |
21mm |
Application |
25G Ethernet, Data Center, 5G Wireless |
For detailed technical specifications, please refer to the Datasheet
Usage Guidelines & Best Practices
-
Mandatory Port Setting: Host SFP28 port must enable 25GBASE mode; link negotiation failure will happen if forced to optical mode.
-
Cabling Requirements: Do not exceed the minimum 21mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.
-
Port Installation Standard: Works only with standard SFP28 25G ports; cannot be inserted into SFP or XFP slots. Disable the host’s third-party transceiver lock policy in advance if required.
-
Maintenance Specification: Hot‑swap supported, grip the pull tab instead of pulling the cable body during plug/unplug to prevent internal conductor damage.
- Testing & Storage: Run sample validation on target hardware before large bulk deployment; store spare cables in dry, dust‑free and anti‑static packaging.
For detailed operation instructions, please refer to the User Guide.
Full Compatibility List & Supported Devices
1. Validated Mellanox Hardware & Firmware
Zero‑alarm plug‑and‑play under MLNX-OS / OFED:
- Mellanox SN2410, SN2700, SN3700 leaf-spine switches
- ConnectX-4 / ConnectX-5 SFP28 NIC adapters
- GPU servers for NVIDIA HPC & AI fabric deployments
Universal Compatibility: All NVIDIA/Mellanox hardware with native SFP28 ports supporting 25GBASE‑CR.
2. Multi-Brand Cross Interoperability
Built on universal MSA open standards, this 25G SFP28 DAC cable can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and Fortinet, for mixed-vendor rack stacking and server fabric expansion.
3. Free Value-Added Services
-
Custom firmware for multi-device compatibility
-
Support sample testing before bulk orders for project pre-verification
-
Private-label customization and professional deployment guidanc
-
Strict batch consistency quality control
- Free custom EEPROM programming for special and legacy network environments
- Free EEPROM rewriting (Tools Included) with 24/7 Tech Support
Primary Application Scenarios
• 1m intra‑rack GPU-server ToR links for NVIDIA HPC/AI clusters
• Low‑latency hyper‑converged and storage fabric connections
• Dense rack unit‑to‑unit cabling
• Cost‑saving Mellanox fabric upgrade replacement
• Bulk procurement for manufacturer supplier factory, wholesaler, distributors, integrators
Connectivity Solutions(Applications)
1. 25G to 25G Direct Link for Switch-Switch
2. 25G to 25G Direct Link for Switch-NIC
The Core Feature
1. Cost-Effective Ultra-Short Connectivity
Using twinax copper, the 25gb SFP28 Passive DAC replaces a fiber pair and two optical transceivers, significantly cutting interconnect cost for short-reach links — plug-and-play, no modules required.

2. Ultra-Low Power, Maximum Energy Efficiency
The passive 25g SFP28 passive DAC cable draws lower power consumption, reducing heat and energy costs in dense racks, while delivering a cost-effective, high-speed and low-latency 25G link for short-reach connections — within a rack or across adjacent racks.

3.Host-Device Tested for Proven Interoperability
Every SFP28 passive twinax copper cable is rigorously tested for compatibility in the target switch environment, so you can deploy with confidence — no surprises, no downtime. Not sure it fits?
Compatibility Video available upon request.
4. 100% Individually Tested for Peak Performance
Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our
Test Center.

FAQ
Q1:Is this 25G SFP28 cable natively backward compatible with 10G SFP+ ports? A:Although SFP28 and SFP+ connectors are physically identical, standard SFP28 25G DAC is programmed as high-speed devices. Most ports that support only 10G cannot recognize 25G-coded cables due to a mismatch in EEPROM identifiers. Most Dell S-Series 25G ports support dual-speed operation at 10G and 25G.
Q2:How far can I run a SFP28 25G DAC cable?A:Because DAC cables are made of dual-core copper wire, they are relatively heavy and experience signal attenuation at a faster rate than fiber optic cables; therefore, the actual transmission distance for SFP28 25G DAC cable is limited to 7 meters or less.
Q3:What is the power consumption of this passive SFP28 25G DAC compared to 25G SR optics? A: HYTOPTODEVICE passive 25G DAC consumes near zero power (≤0.5W) and generates no heat. By comparison, a pair of 25G SR fiber optical transceivers consumes approximately 1.5W to 2.0W of power. For a rack containing 48 servers, switching to the HYTOPTODEVICE 25G DAC can save nearly 100W of power and significantly reduce the cooling load.
Q4:Will this 25G cable cause an "Unsupported Transceiver" error in HPE switches?A:No. DAC Manufacturer China HYTOPTODEVICE uses precise HPE EEPROM coding. Your device will recognize this 25g sfp28 cable as a genuine HPE 844471-B21, ensuring 100% compatibility.
Q5:Does 25G SFP28 DAC use Multi-mode or Single-mode fiber?A:Neither. The DAC(Direct-Attach Copper) is a copper cable. using a twinaxial copper architecture (Twinax) to transmit electrical signals directly, no light signals.There are not lasers or optical glass in DAC cable, it is much cheaper than fiber optics.
Q6:Will this cable trigger "Unsupported Transceiver" alarms in Junos?A:No. HYTOPTODEVICE cables are pre-programmed and feature a genuine Juniper-specific EEPROM signature. Your switch will recognize the cable as a genuine Juniper JNP-25G-DAC-1M, ensuring zero CLI warnings and full diagnostic support.
Q7:Is 25G SFP28 DAC hot-swappable?A:HYTOPTODEVICE SFP28 25G DAC is hot-pluggable, hot Pluggable SFP28 Compliant.you can plug or unplug the passive DAC, while the device is powered on without damaging the hardware.
Q8:who makes the best 25G SFP28 DAC cable?A: Transceiver Manufacturer China HYTOPTODEVICE is the excellent provider.Sorce factory,reliable quality, 100% compatibiltiy.fast delivery and quick response.HYTOPTODEVICE send a tool that allows you to re-program the compatibility of your cables yourself.
Q9:Is 30AWG wire gauge enough for 25G at 1 meter?A: Yes,That is absolutely correct. For a transmission distance of 1 meter, 30 AWG cable strikes the optimal balance between flexibility (for easy cabling within Juniper racks) and signal integrity, exceeding the requirements for 25GbE copper links specified in the IEEE 802.3by standard.
Q10:What is the difference between "Passive" and "Active" DAC?There are distinct differences between Passive and Active DAC.The Passive DAC has no signal amplification. its lengths is under 7m. With zero power consumptions,it cost is cheaper. The Active DAC contains a chip to boost the signal. Used for slightly longer copper runs (up to 10m-15m) and is generally thinner/more flexible.
Q11:Can I plug a 25G DAC into a 10G SFP port?A:No. SFP28 (25G) ports can often accept 10G transceivers, but a 10G SFP port cannot scale up to recognize a 25G DAC cable. You should Make sure the cable speed matches the port with the lowest rated speed.
Q12: Can I cascade multiple Direct Attach Copper Cable segments to get longer reach?
A: No. Cascading passive twinax breaks signal integrity and triggers high bit errors. Direct port‑to‑port connection is required.
Q13: Why choose passive Direct Attach Copper Cable instead of SFP28 optical transceivers for short GPU rack links?
A: Passive twinax delivers better TCO: near‑zero power, no optical conversion latency and lower component cost. Fiber optics suit cross‑rack long‑distance links.
Q14: Does HYTOPTODEVICE run TDR and eye‑diagram sampling for each Direct Attach Copper Cable batch?
A: Not testing every single cable, but batch sampling plus Mellanox target platform validation, controlling impedance and link flapping risk for wholesale buyers.
Q15: Will this third‑party Direct Attach Copper Cable void NVIDIA OEM hardware warranty?
A: It will not auto‑void warranty. Warranty exclusion only applies when cable defects physically damage switch ports. HYTOPTODEVICE supplies test docs for distributors.
Packaging & Custom OEM Solutions
-
ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.
-
Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
- Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
- 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
- ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
- Ample stock, fast global DHL/FedEx shipping in 3–5 working days
- Free pre-sales engineering support for custom EEPROM & private label firmware
- Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order
“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia
Quality Certification & Compliance
At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.
We adhere to rigorous standards for our SFP modules and network solutions:
-
ISO 9001: Certified quality management and production consistency.
-
CE & FCC: Fully compliant for seamless Global Market Access.
-
RoHS: Committed to environmental responsibility and hazardous material control.
-
Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.
Certified Quality. Global Standards. Guaranteed Performance.

Rigorous Industrial Product Testing

100% 3rd Party Compatible

Partial Test Demonstration
