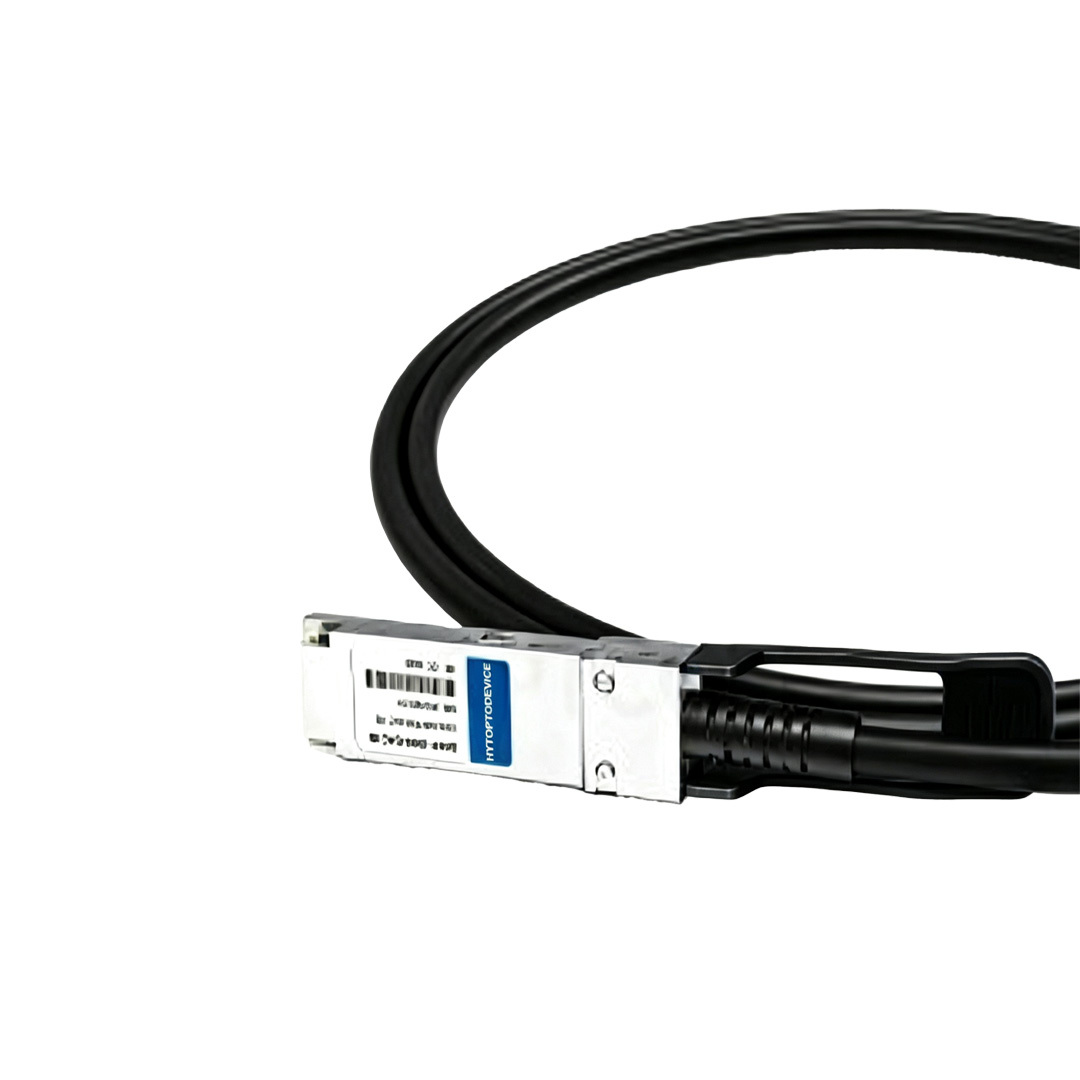

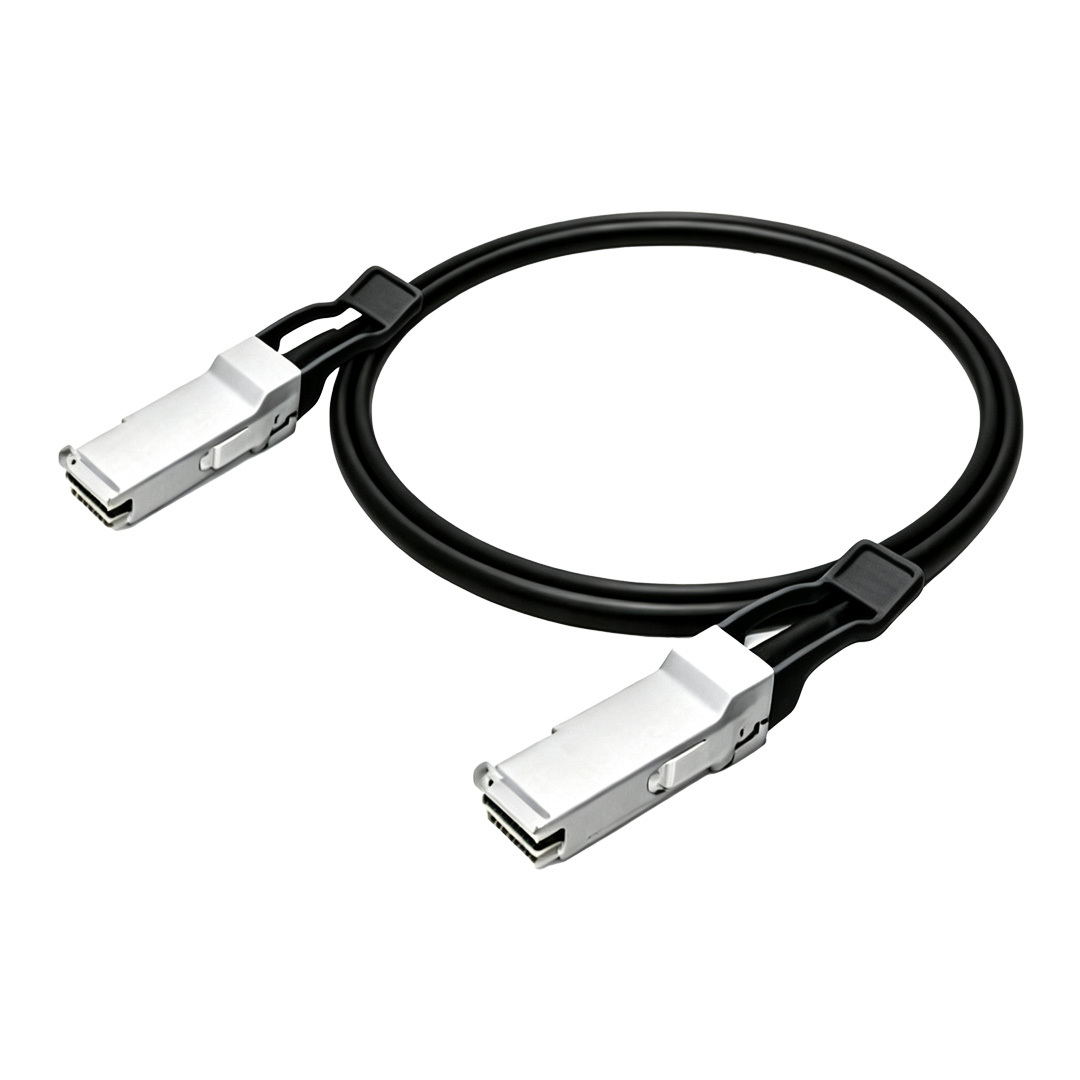

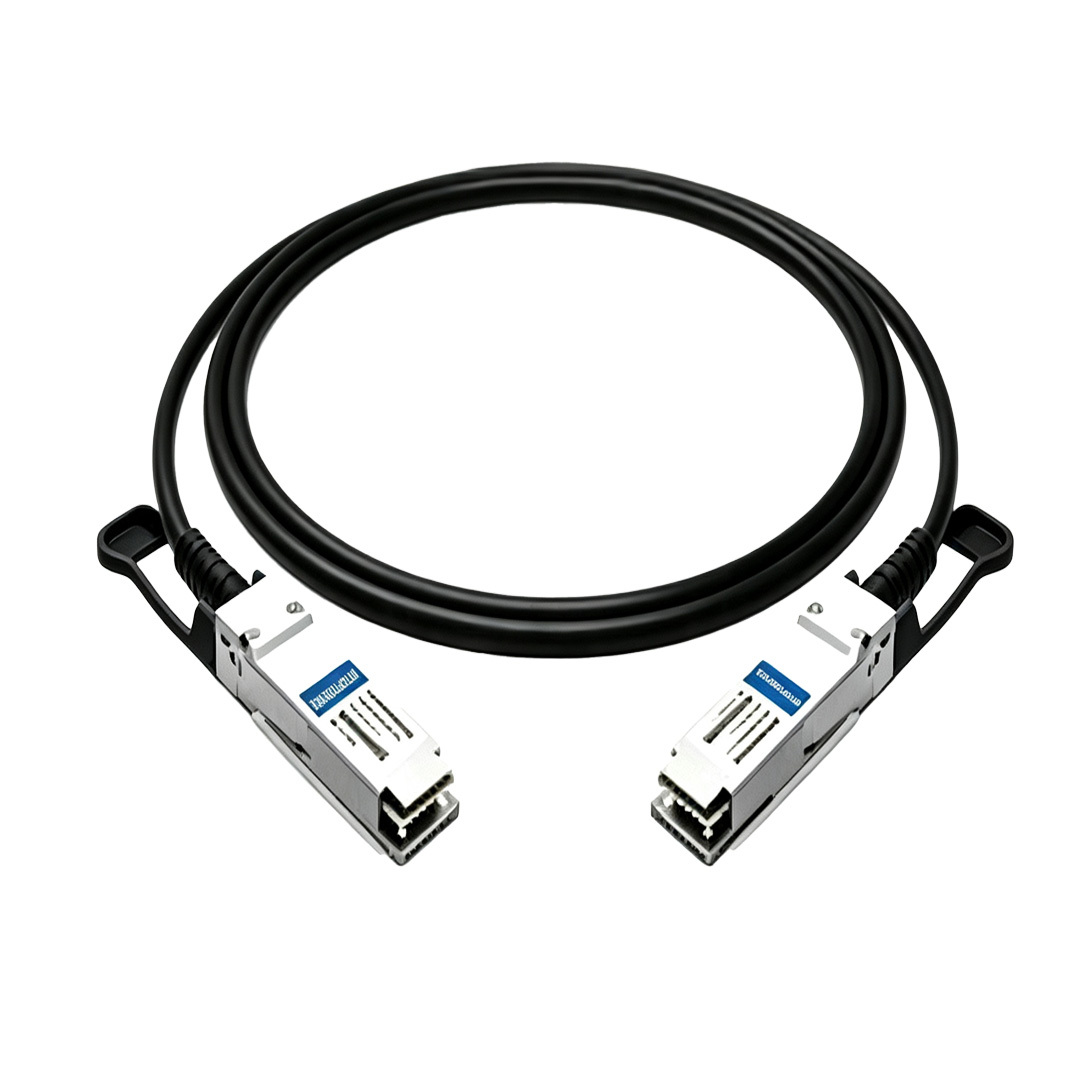

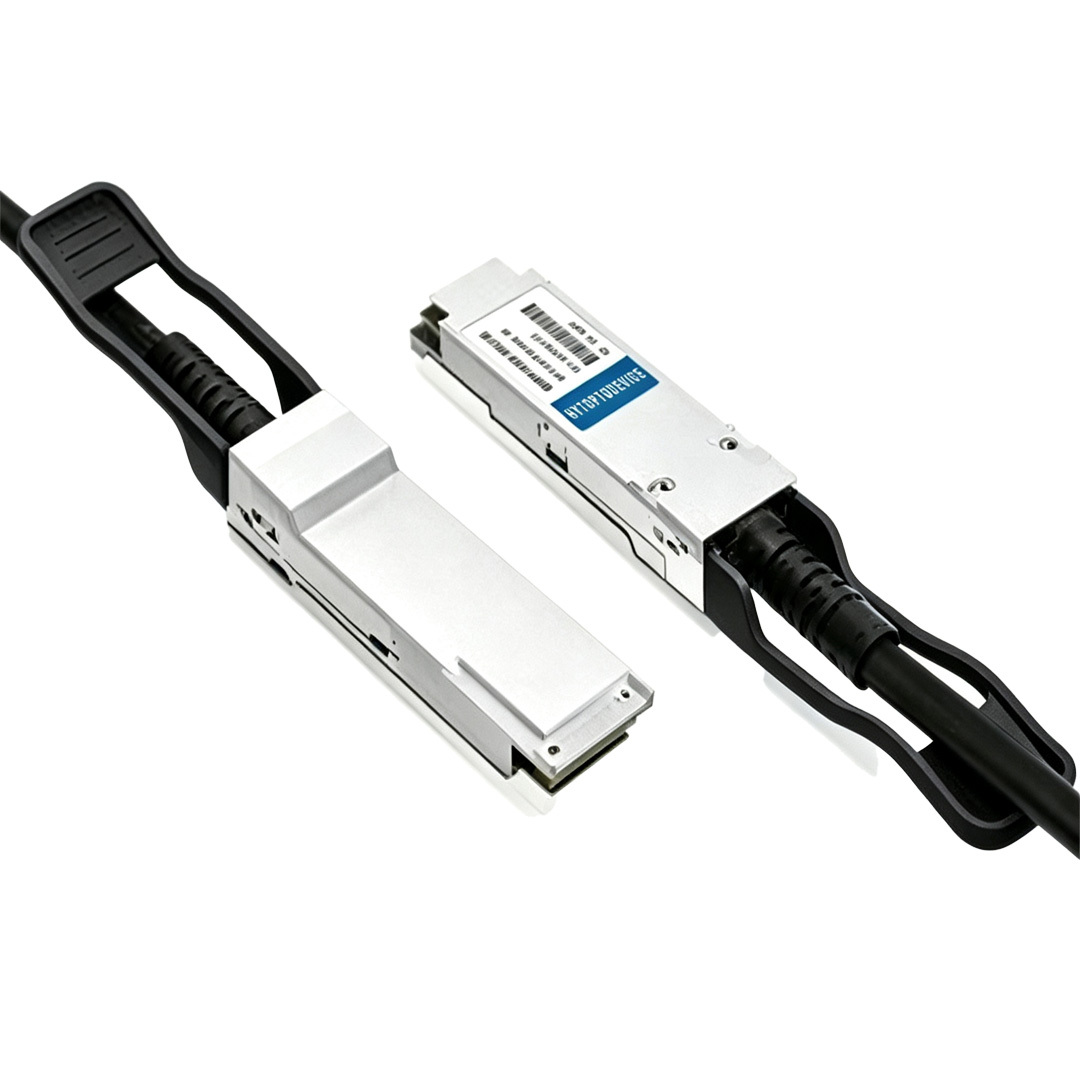

Juniper QFX-QSFP28-DAC-3M Compatible 3m (10ft) 100G QSFP28 Passive DAC Twinax Copper Cable | HYTOPTODEVICE

HYTOPTODEVICE factory supplier delivers reliable 100G QSFP28 passive dac twinax copper cable, featuring low power consumption, high-speed direct-attach and compact cabling. Built with premium low-loss twinax copper, this 3m Juniper QFX-QSFP28-DAC-3M compatible QSFP28 cable is pre-coded for Juniper Junos OS. Bulk order this high-performance DAC for low-latency intra-rack leaf-spine networking, HPC, AI clusters and low-risk 400G data center expansion.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-100G-CU3M
2 Arista Networks  CAB-Q-Q-100G-3M
3 Juniper QFX-QSFP28-DAC-3M
4 Brocade 100G-Q28-Q28-C-0301
5 Dell  DAC-Q28-100G-3M
6 Huawei QSFP28-100G-CU3M
Description

Juniper QFX-QSFP28-DAC-3M Compatible 3m (10ft) 100G QSFP28 Passive DAC Twinax Copper Cable | HYTOPTODEVICE

Product Overview

HYTOPTODEVICE 3m 100G QSFP28 passive dac twinax copper cable is a plug-and-play drop-in replacement for Juniper QFX-QSFP28-DAC-3M. Manufactured to SFF-8662 and IEEE 802.3bj MSA standards, it leverages premium low-loss twinax copper material to sustain stable 100GBASE-CR4 high-speed transmission between paired QSFP28 ports. This high-speed direct-attach cable stands out for low power consumption, high-speed direct-attach and compact cabling. Its passive design draws zero power, eliminates extra transceiver electronics, and the slim 30AWG twinax construction simplifies dense rack routing. It supports hot swap and ultra-low latency, ideal for leaf-spine fabrics, AI compute, HPC and storage networking. We keep sufficient stock of this 100G QSFP28 passive dac twinax copper cable for wholesalers, distributors and system integrators building Juniper Junos OS-based data center fabrics. Every cable is pre-programmed with Juniper-matched EEPROM signatures to eliminate unsupported transceiver warning logs. Sample testing, bulk orders and OEM private label services are available for Juniper solution partners.

Key Technical Specifications

Juniper Compatible
QFX-QSFP28-DAC-3M
Vendor Name HYTOPTODEVICE
Connector QSFP28 to QSFP28 Max Data Rate 100Gbps
Cable Length 3m (10ft) Wire AWG AWG 26
Cable Type Passive Twinax Power Consumption ≤0.5W
Media Copper Operation Temperature 0~ 70 °C (32 to 158°F)
Jacket Material PVC(OFNR) Protocols QSFP28 MSA, SFF-8662, IEEE 802.3
Minimum Bend Radius 50mm Application 100 Gigabit Ethernet

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Mandatory Port Setting: Host QSFP28 port must enable 100GBASE-CR4 mode; link negotiation failure will happen if forced to optical mode.

  • Cabling Requirements: Do not exceed the minimum 50mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.

  • Port Installation Standard: Works only with standard QSFP28 100G ports; cannot be inserted into SFP+ or XFP slots. Disable the host’s third-party transceiver lock policy in advance if required.

  • Maintenance Specification: Hot‑swap supported, grip the pull tab instead of pulling the cable body during plug/unplug to prevent internal conductor damage.

  • Testing & Storage: Run sample validation on target hardware before large bulk deployment; store spare cables in dry, dust‑free and anti‑static packaging.
  • Operating Environment: This commercial-grade cable operates reliably within 0℃‑70℃; avoid installation beside high-heat power modules.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Juniper Hardware & Firmware

  • Juniper QFX5100 series:QFX5100-48S-6Q, QFX5100-24S-6Q
  • Juniper QFX5110 / QFX5120 / QFX5130:QFX5110-48S-4C, QFX5120-48YM, QFX5130-48CM
  • Juniper QFX5200 / QFX5220:QFX5200-32C, QFX5220-32CD
  • Juniper QFX10000 chassis:QFX10002, QFX10008, QFX10016
  • Juniper ACX7000 series:ACX7024, ACX7100-32C, ACX7100-48L
  • Firmware:Junos OS 20.2R1, 21.4R1, 22.3R1, Junos OS Evolved 23.4R2

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this 100G QSFP28 passive copper twinax cable can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios
  • Upgrade and expand data center for 400G migration
  • Intra-rack leaf-spine 100G fabric interconnection
  • Short-range links between storage arrays and top-of-rack switches
  • Hyper-converged infrastructure and distributed storage backend cabling
  • Low latency 100G links for virtualization, AI compute and HPC racks
  • Bulk stock purchase for distributors and Juniper data center solution partners

Connectivity Solutions(Applications)

1. 100G to 100G Direct Link for Switch-Switch
HYTOPTODEVICE QSFP-100G-CU1M compatible  100G QSFP28 passive DAC copper twinax cable in stock for wholesale buyers


2. 100G to 100G Direct Link for Switch-NIC
 100G QSFP28 passive DAC copper twinax cable for data center integrators


3.
Upgrade Solution for 400G Data Center Network





The Core Feature

1. Cost-Effective Ultra-Short Connectivity

Using twinax copper, the 100G passive copper cable replaces a fiber pair and two optical transceivers, significantly cutting interconnect cost for short-reach links — plug-and-play, no modules required.

2. Ultra-Low Power, Maximum Energy Efficiency

The 100g qsfp28 passive copper twinax cable draws near-zero power, reducing heat and energy costs in dense racks, while delivering a cost-effective, low-latency 100G link for short-reach connections — within a rack or across adjacent racks.


3.Host-Device Tested for Proven Interoperability

Every 100g passive copper twinax cable is rigorously tested for compatibility in the target switch environment, so you can deploy with confidence — no surprises, no downtime. Not sure it fits? Compatibility Video available upon request.

hytoptodevice wholesale 40G QSFP+ twinax cable for data center

4. 100% Individually Tested for Peak Performance

Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our Test Center.

HYTOPTODEVICE  QSFP+ to QSFP+ 40g qsfp+ dac cable for switches

FAQ

Q1: How does 3-meter cable insertion loss affect auto-negotiation and link training on Juniper Junos OS? A: 3m remains within the 5m MSA loss budget for 100GBASE-CR4, yet longer copper brings higher insertion loss than shorter 1m/2m variants. HYTOPTODEVICE 100G QSFP28 passive dac twinax copper cable uses tightly controlled low-loss twinax to deliver reliable link training for QFX and ACX platforms.

Q2: What benefits make passive twinax DAC preferable over active retimer DAC for Juniper leaf-spine rack connections? A: Passive twinax contains no powered signal compensation chips and consumes zero watts, cutting power draw and component failure risk. Active DAC depends on built-in ICs that draw continuous power. HYTOPTODEVICE high-speed direct-attach DAC is built for stable short-reach 100G fabric links.

Q3: Can this compact 3m 100G QSFP28 passive dac twinax copper cable be deployed for cross-row rack interconnections? A: This 100G QSFP28 passive dac twinax copper cable is not designed for cross-row inter-rack connections. It works only for adjacent racks or ToR to EoR connections with total path length under 5m. Cross-row cabling often exceeds copper reach and increases EMI risk. HYTOPTODEVICE recommends AOC or fiber transceivers for cross-row or long-distance inter-rack cabling.

Q4: Under which circumstances should network architects select AOC instead of 3m passive twinax DAC in Juniper IP fabrics? A: Copper twinax has inherent frequency-dependent attenuation and EMI susceptibility. AOC converts electrical signals to light and removes copper distance limits. HYTOPTODEVICE supplies both low-power 100G QSFP28 passive dac twinax copper cable and matching AOC for mixed-distance fabric design.

Q5: Can repeated thermal cycling inside dense Juniper QFX switch enclosures gradually degrade twinax signal quality? A: Repeated temperature swings raise copper resistance and slowly reduce usable signal margin. HYTOPTODEVICE 100G QSFP28 passive dac twinax copper cable passes strict thermal cycling validation from 0°C to 70°C for consistent fabric performance.

Q6: Why do generic unprogrammed third-party DACs trigger transceiver mismatch alarms on Junos OS? A: Junos OS reads vendor EEPROM identifiers during port initialization. Mismatched signature data generates warning logs and may block link establishment. Each HYTOPTODEVICE 100G QSFP28 passive dac twinax copper cable is pre-flashed and validated for Juniper Junos OS to skip these compatibility alerts.

Q7: Can one single 100G QSFP28 passive dac twinax copper cable be coded for Juniper on one end and another vendor on the opposite connector? A: Our standard 100G QSFP28 passive dac twinax copper cable does not support asymmetric dual-brand EEPROM programming. Matching vendor signatures on both connectors are required for stable port handshake. Contact HYTOPTODEVICE sales for custom EEPROM development for multi-vendor fabrics.

Q8: What diagnostic readings can Junos OS pull from this passive 100G QSFP28 DAC twinax copper cable? A: Only standard MSA DOM parameters are available; Juniper proprietary telemetry channels do not function on chip-free passive copper assemblies. HYTOPTODEVICE preloads standard MSA DOM records so Junos can read cable identity and basic performance counters.

Q9: What latency difference can be observed between this 3m 100G QSFP28 passive dac twinax copper cable and fiber links on Juniper HPC clusters? A: Passive twinax DAC delivers marginally lower latency than fiber links. Electrical signals travel faster in solid copper twinax than light inside optical fiber, with typical latency gap below 1ns. Low-latency HYTOPTODEVICE high-speed direct-attach DAC suits latency-sensitive AI training and HPC workloads.

Q10: How effective is the full shielded twinax design at suppressing EMI near high-current power distribution cables? A: Complete copper shielding reduces induced electrical noise effectively, although copper media remains less immune than fiber when routed alongside power harnesses. HYTOPTODEVICE 100G QSFP28 passive dac twinax copper cable meets global EMC and EMI compliance requirements.

Q11: What error patterns signal slow signal degradation on a 3m low-loss 100G QSFP28 passive dac twinax copper cable? A: Degradation usually shows up as steadily climbing CRC error counters before sudden link drop. A compressed signal eye window triggers random bit flips logged as CRC faults. If these errors appear, verify the HYTOPTODEVICE 100G QSFP28 passive dac twinax copper cable follows rated length and bend guidelines.

Q12: What permanent mechanical damage occurs when bending this DAC tighter than the stated minimum bend radius? A: Bending below the 5× outer-diameter minimum bend radius permanently distorts differential twinax pairs, creating impedance discontinuities and recurring bit errors. Careful cable routing protects your HYTOPTODEVICE compact cabling DAC from invisible mechanical damage.

Q13: What airflow risks arise from bundling multiple 3m 100G QSFP28 passive dac twinax copper cables in one tray? A: Thick copper bundles block front-to-back airflow and trap heat around Juniper switch ports, raising component operating temperature. HYTOPTODEVICE uses slim 30AWG twinax to minimize bundle thickness and preserve airflow inside high-density racks.

Q14: Where does heat originate when running zero-power 100G QSFP28 passive dac twinax copper cable on QFX and ACX platforms? A: The passive DAC itself generates almost no heat due to zero-power operation. All thermal load comes from the host switch ASIC and QSFP28 port electronics, not the copper cable. HYTOPTODEVICE connector shells use thermally balanced plastic to support normal port cooling.

Q15: For Juniper 3-meter intra-rack leaf-spine AI and storage fabrics, why is passive twinax DAC preferred over AOC? A: It delivers low power consumption, compact cabling and lower hardware cost for runs under 5 meters without active electronics. HYTOPTODEVICE high-speed direct-attach DAC is a cost-effective option for dense Juniper leaf-spine, storage and AI rack deployments.

Q16: How do power consumption numbers compare for passive twinax DAC, active retimer DAC and matched 100G optical transceiver pairs? A: 100G QSFP28 passive dac twinax copper cable consumes 0W. Active retimer DAC draws roughly 1–2W per end, while a matched pair of optical transceivers normally consumes 3–6W total. Zero-power HYTOPTODEVICE 100G QSFP28 passive dac twinax copper cable cuts rack power draw and reduces overall data center TCO

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
