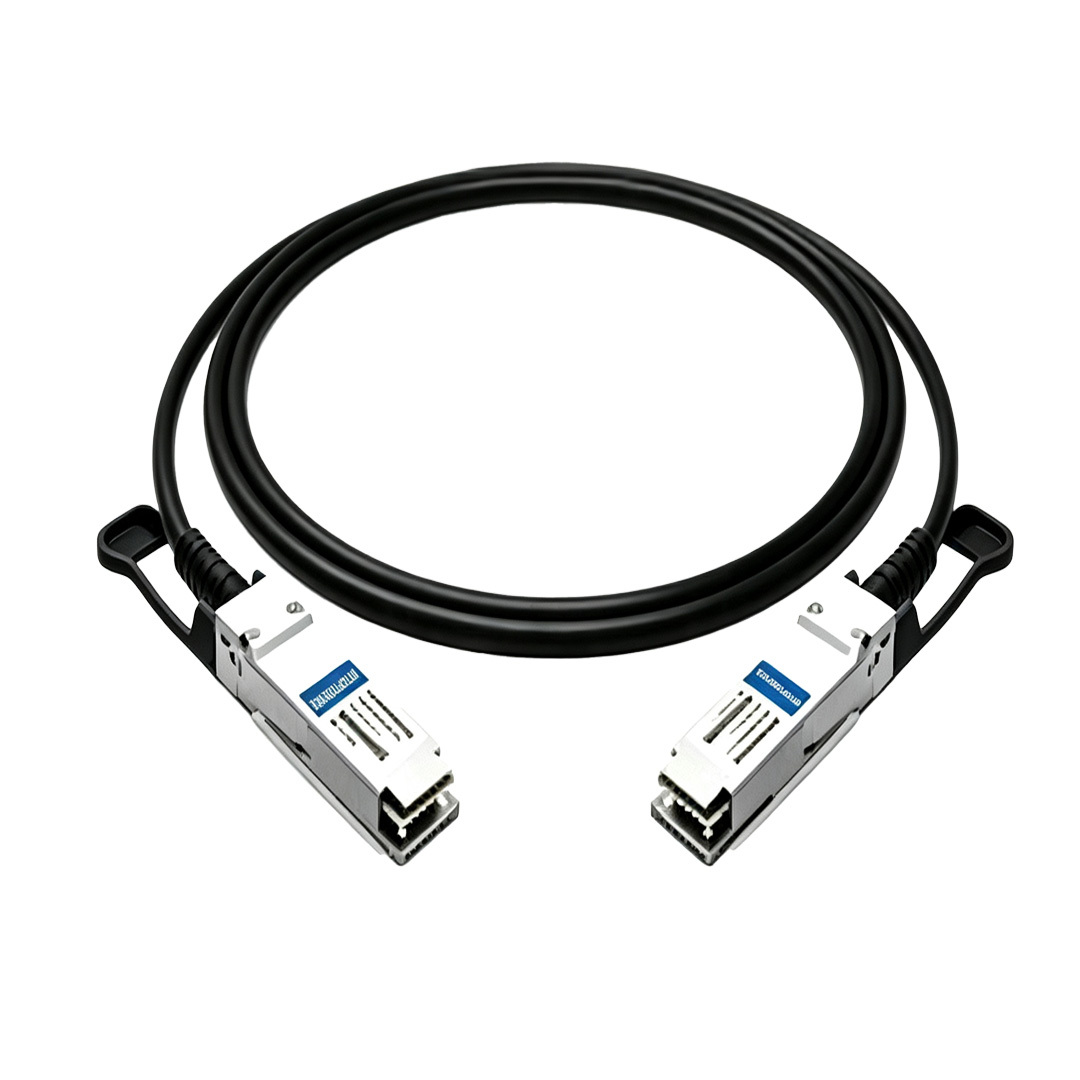

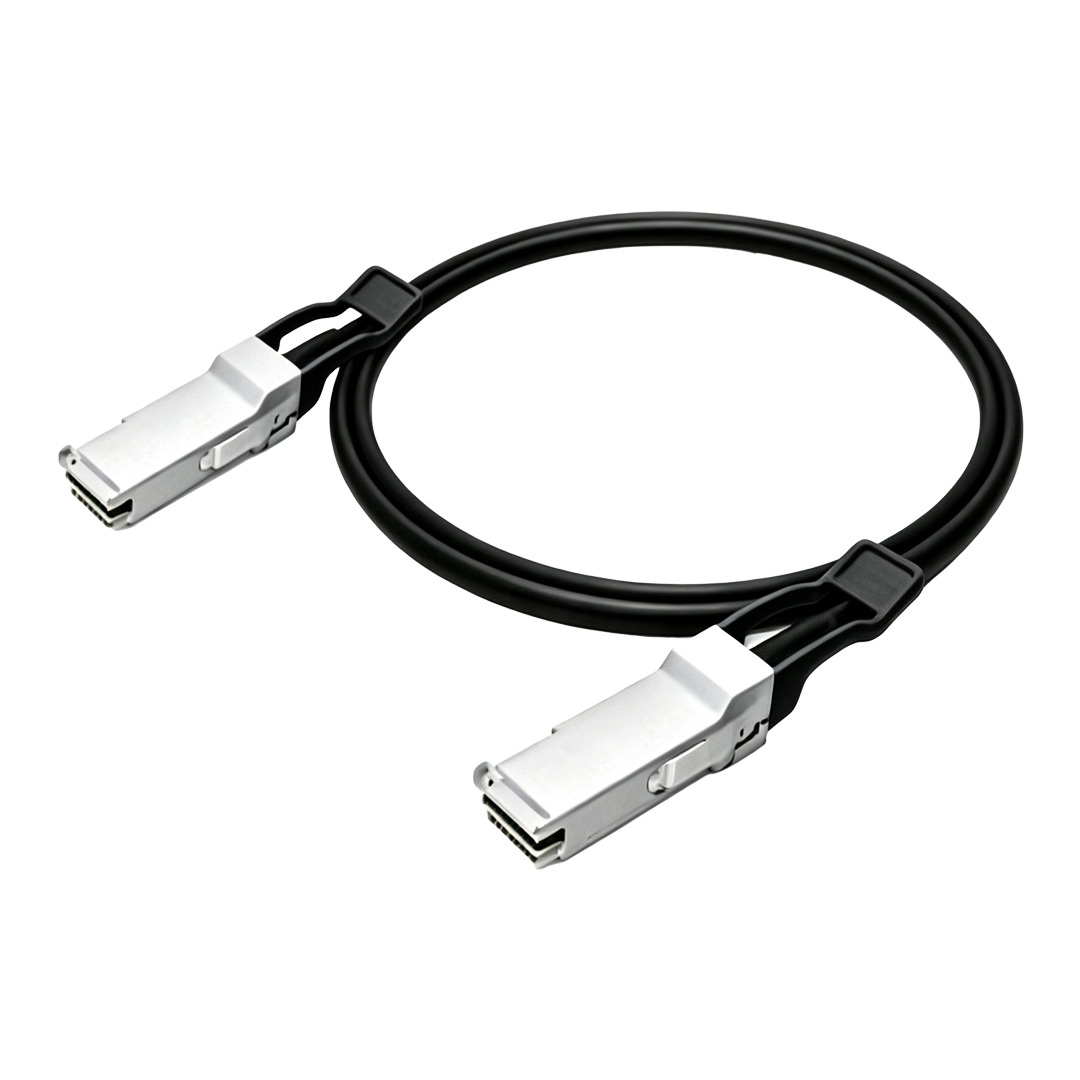

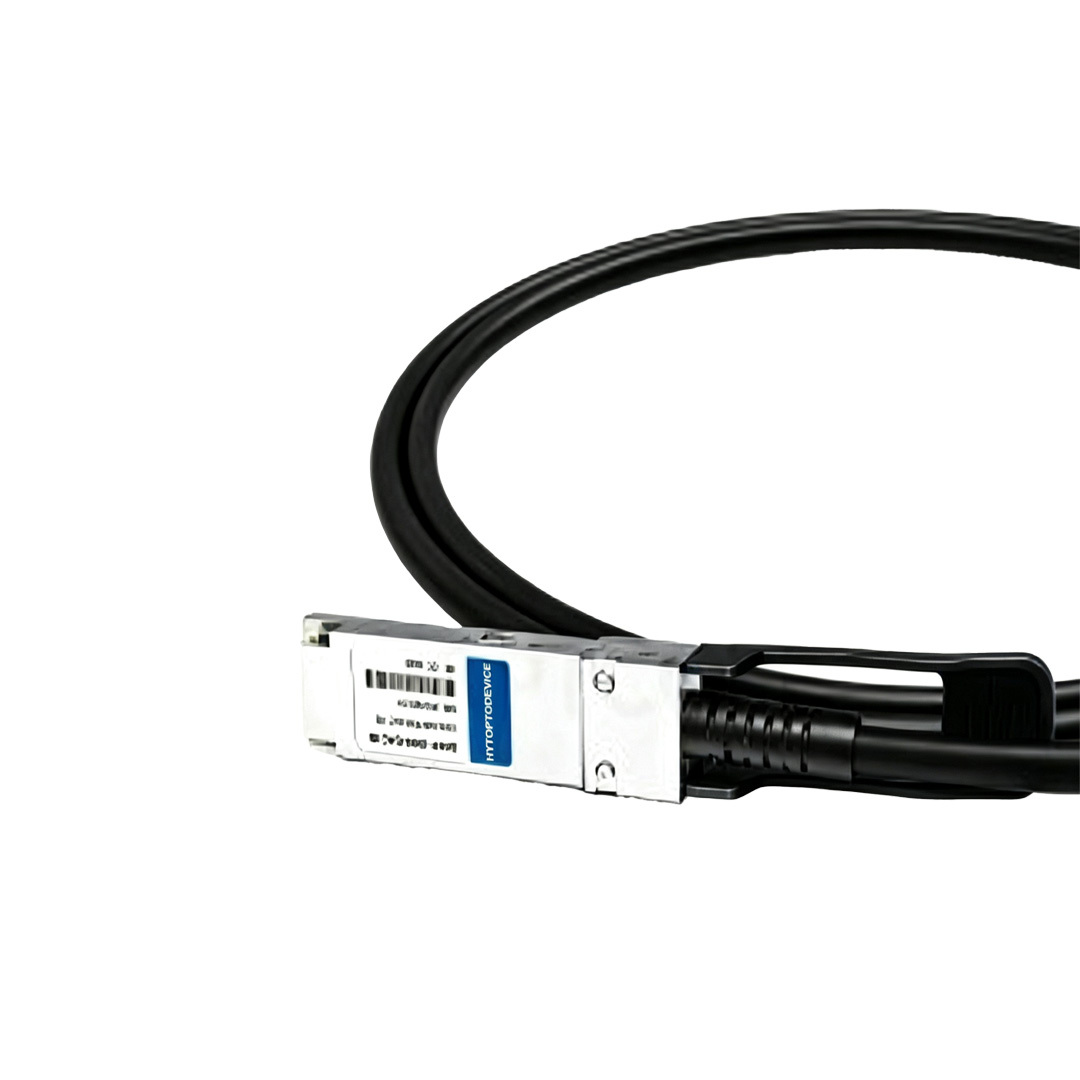

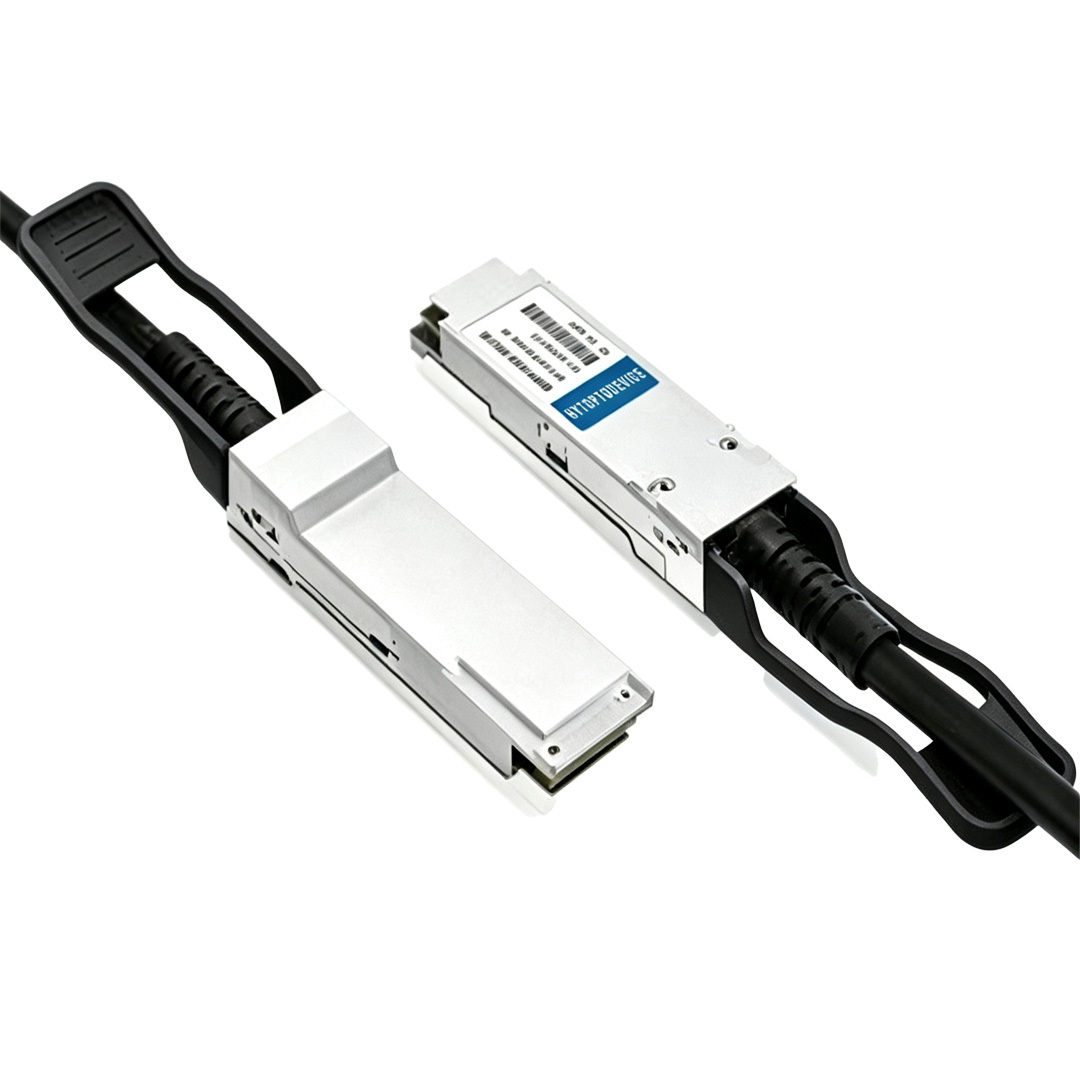

Juniper QFX-QSFP28-DAC-1M Compatible 1m (3ft) 100G QSFP28 Passive Direct Attach Copper(DAC) Cable | HYTOPTODEVICE

HYTOPTODEVICE professional factory provides reliable 100G QSFP28 passive direct attach copper dac cable with zero power draw and ultra-low latency. This 1m Juniper QFX-QSFP28-DAC-1M compatible QSFP28 twinax cable is pre-programmed for Juniper Junos OS. Bulk purchase this direct attach copper cable for leaf-spine fabrics, storage networking and intra-rack AI server interconnection.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-100G-CU1M
2 Arista Networks  CAB-Q-Q-100G-1M
3 Juniper QFX-QSFP28-DAC-1M
4 Brocade 100G-Q28-Q28-C-0101
5 Dell  DAC-Q28-100G-1M
6 Huawei QSFP28-100G-CU1M
7 H3C  QSFP-100G-D-CAB-1M
8 HPE BladeSystem  845404-B21
Description

Juniper QFX-QSFP28-DAC-1M  Compatible QSFP28 100G Direct Attach Copper Twinax Cable (1m, Passive, 30AWG)

Product Overview

The 100G QSFP28 DAC cable is Juniper compatible and equivalent to Juniper QFX-QSFP28-DAC-1M. It provides a highly cost-effective, short-distance 100 Gigabit link between QSFP28 ports. It is a Copper Twinax Cable ,designed for 100Gb/s high-speed interconnecting network applications. Ideal for data centers, high-performance computing, and enterprise core layers.

Key Technical Specifications

Juniper Compatible
 QFX-QSFP28-DAC-1M
Vendor Name HYTOPTODEVICE
Connector QSFP28 to QSFP28 Max Data Rate 100Gbps
Cable Length 1m (3ft) Wire AWG AWG 30
Cable Type Passive Twinax Power Consumption ≤0.5W
Media Copper Operation Temperature 0~ 70 °C (32 to 158°F)
Jacket Material PVC(OFNR) Protocols QSFP28 MSA, SFF-8662, IEEE 802.3
Minimum Bend Radius 35mm Application 100 Gigabit Ethernet

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Mandatory Port Setting: Host QSFP28 port must enable 100GBASE-CR4 mode; link negotiation failure will happen if forced to optical mode.

  • Cabling Requirements: Do not exceed the minimum 35mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.

  • Port Installation Standard: Works only with standard QSFP28 100G ports; cannot be inserted into SFP+ or XFP slots. Disable the host’s third-party transceiver lock policy in advance if required.

  • Maintenance Specification: Hot‑swap supported, grip the pull tab instead of pulling the cable body during plug/unplug to prevent internal conductor damage.

  • Testing & Storage: Run sample validation on target hardware before large bulk deployment; store spare cables in dry, dust‑free and anti‑static packaging.
  • Operating Environment: This commercial-grade cable operates reliably within 0℃‑70℃; avoid installation beside high-heat power modules.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Juniper Hardware & Firmware

  • Juniper QFX5200 series:QFX5200-32C, QFX5200-48Y
  • Juniper QFX5220 series:QFX5220-32CD, QFX5220-64D
  • Juniper QFX10002 series:QFX10002-60C, QFX10002-36Q, QFX10002-72Q
  • Juniper MX Universal Routing Platform:MX10003, MX10004, MX10008, MX10016 (100G QSFP28 line cards)
  • Juniper ACX7000 series:ACX7024, ACX7100-48L
  • Juniper Servers & NIC:QFX5120, PTX10003, PTX10004 with QSFP28 100G interface modules
  • Firmware:Junos OS 21.1R1, 22.1R1, 23.1R1;Junos OS Evolved 21.3R1, 22.3R1, 23.4R1

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this 100G QSFP28 passive copper twinax cable can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios
  • Juniper Junos leaf-spine 100G fabric intra-rack interconnection
  • Short links between storage arrays and Juniper top-of-rack switches
  • Direct replacement for original Juniper QFX-QSFP28-DAC-1M 100G QSFP28 passive direct attach copper dac cable
  • Hyper-converged infrastructure and distributed storage backend cabling
  • Low latency 100G links for virtualization clusters and AI compute racks
  • Stock replenishment purchase for IT distributors and Juniper data center solution partners
  • Upgrade and expand data center for 400G migration


Connectivity Solutions(Applications)

1. 100G to 100G Direct Link for Switch-Switch

HYTOPTODEVICE QSFP-100G-CU1M compatible  100G QSFP28 passive DAC copper twinax cable in stock for wholesale buyers


2. 100G to 100G Direct Link for Switch-NIC
 100G QSFP28 passive DAC copper twinax cable for data center integrators


3.
Upgrade Solution for 400G Data Center Network





The Core Feature

1. Cost-Effective Ultra-Short Connectivity

Using twinax copper, the 100G passive copper cable replaces a fiber pair and two optical transceivers, significantly cutting interconnect cost for short-reach links — plug-and-play, no modules required.

2. Ultra-Low Power, Maximum Energy Efficiency

The 100g qsfp28 passive copper twinax cable draws near-zero power, reducing heat and energy costs in dense racks, while delivering a cost-effective, low-latency 100G link for short-reach connections — within a rack or across adjacent racks.

QSFP+ form factor 40g qsfp+ dac cable with low power consumption

3.Host-Device Tested for Proven Interoperability

Every 100g passive copper twinax cable is rigorously tested for compatibility in the target switch environment, so you can deploy with confidence — no surprises, no downtime. Not sure it fits? Compatibility Video available upon request.

hytoptodevice wholesale 40G QSFP+ twinax cable for data center

4. 100% Individually Tested for Peak Performance

Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our Test Center.

HYTOPTODEVICE  QSFP+ to QSFP+ 40g qsfp+ dac cable for switches

FAQ

Q1: What electrical characteristics limit the maximum transmission reach of a 100G QSFP28 passive direct attach copper dac cable? A: Signal attenuation and controlled differential impedance set the distance limit for passive 100G DAC. HYTOPTODEVICE 100G QSFP28 passive direct attach copper dac cable follows MSA specifications and delivers stable links up to 5 meters inside racks.

Q2: How do signal processing circuits differentiate passive and active 100G direct attach copper DAC solutions? A: Passive DAC contains no signal-boosting electronics and maxes out at 5m, while active DAC embeds retimers and equalizers inside connectors to extend reach to 7m or 10m. HYTOPTODEVICE carries both variants so users select suitable cabling for their rack layout.

Q3: What network side effects will appear if I deploy a 100G passive direct attach copper dac cable beyond its rated length? A: Running past rated length leads to unstable links, CRC counters rising or sudden link drops. Copper signal loss accelerates quickly beyond the design threshold. Each HYTOPTODEVICE 100G QSFP28 passive direct attach copper dac cable has clear length marking to avoid misapplication.

Q4: Is 100G QSFP28 passive direct attach copper dac cable suitable for connecting hardware across different server rows? A: Passive 100G DAC is not recommended for cross-row cabling, as inter-row cabling commonly exceeds the 5m cap. AOC or fiber is the better option for row-to-row links; HYTOPTODEVICE passive DAC is built for compact intra-rack connections.

Q5: Can short 0.5m and 1m 100G QSFP28 passive direct attach copper dac cables trigger unwanted signal reflection? A: Properly impedance-matched short passive DAC avoids harmful signal reflection. HYTOPTODEVICE runs eye diagram testing for every batch of short 100G QSFP28 passive direct attach copper dac cable to lock in reliable signal integrity.

Q6: Will unencoded generic 100G QSFP28 DAC work plug-and-play on locked Juniper, Huawei or Cisco switching hardware? A: Generic uncoded DAC usually triggers transceiver unsupported alerts on vendor-locked platforms. HYTOPTODEVICE preloads EEPROM signatures matched for Junos, VRP and NX-OS to achieve plug-and-play operation.

Q7: What tools and software do I need to reflash EEPROM profiles for 100G direct attach copper DAC onsite? A: You need a dedicated EEPROM programmer plus supporting coding software for local reprogramming. HYTOPTODEVICE can supply the programmer kit, software and remote technical guidance. Most customers choose pre-coded cables to cut labor and prevent coding errors.

Q8: Does using third-party 100G QSFP28 passive direct attach copper dac cable automatically void Juniper hardware warranty? A: Most network OEMs will not void the entire switch warranty just for compatible third-party DAC, but failures caused by faulty cabling may be excluded. Fully tested HYTOPTODEVICE 100G DAC reduces this risk for enterprise buyers.

Q9: Why do Junos OS firmware updates sometimes break compatibility with third-party 100G DAC cables? A: Major firmware releases occasionally strengthen transceiver authentication rules, requiring updated EEPROM profiles from your cable supplier. HYTOPTODEVICE continuously updates our signature library to match new Junos builds.

Q10: What details should I share with the supplier to guarantee correct coding for my Juniper switch? A: Submit switch brand, exact model, running Junos firmware version and target OEM part number. Send these details to HYTOPTODEVICE, and we will pre-code your 100G QSFP28 passive direct attach copper dac cable before shipment.

Q11: What BER performance can I expect from factory validated 100G QSFP28 passive direct attach copper dac cable? A: HYTOPTODEVICE 100G QSFP28 passive direct attach copper dac cable keeps BER below 1×10⁻¹² under full load, meeting formal data center standards. Batch signal testing maintains low error rates for stable leaf-spine fabrics.

Q12: Why is this 100G QSFP28 passive direct attach copper dac cable incompatible with PAM4 modulation? A: This DAC is engineered for 25G NRZ lanes used in 100GBASE-CR4 and lacks the electrical response required for PAM4. HYTOPTODEVICE provides separate PAM4-capable cable options for 400G projects upon request.

Q13: What shielding construction minimizes crosstalk between high-speed lanes inside 100G direct attach copper DAC? A: Our 100G QSFP28 passive direct attach copper dac cable adopts individual foil shielding per twinax pair plus an outer braided shield. This dual shielding design suppresses crosstalk and EMI in dense high-speed racks.

Q14: Do active 100G direct attach copper DAC use retimer chips and carry higher failure probability? A: Active 100G DAC uses built-in retimer chips for signal recovery. Additional semiconductor components introduce more failure points than all-copper passive designs. HYTOPTODEVICE recommends passive DAC for short rack links for superior reliability.

Q15: What is the minimum safe bend radius requirement for your 100G QSFP28 passive direct attach copper dac cable? A: The minimum safe bend radius for HYTOPTODEVICE 100G QSFP28 passive direct attach copper dac cable is 35 mm. Bending tighter than this threshold damages internal conductors and raises bit error rates over time.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.
