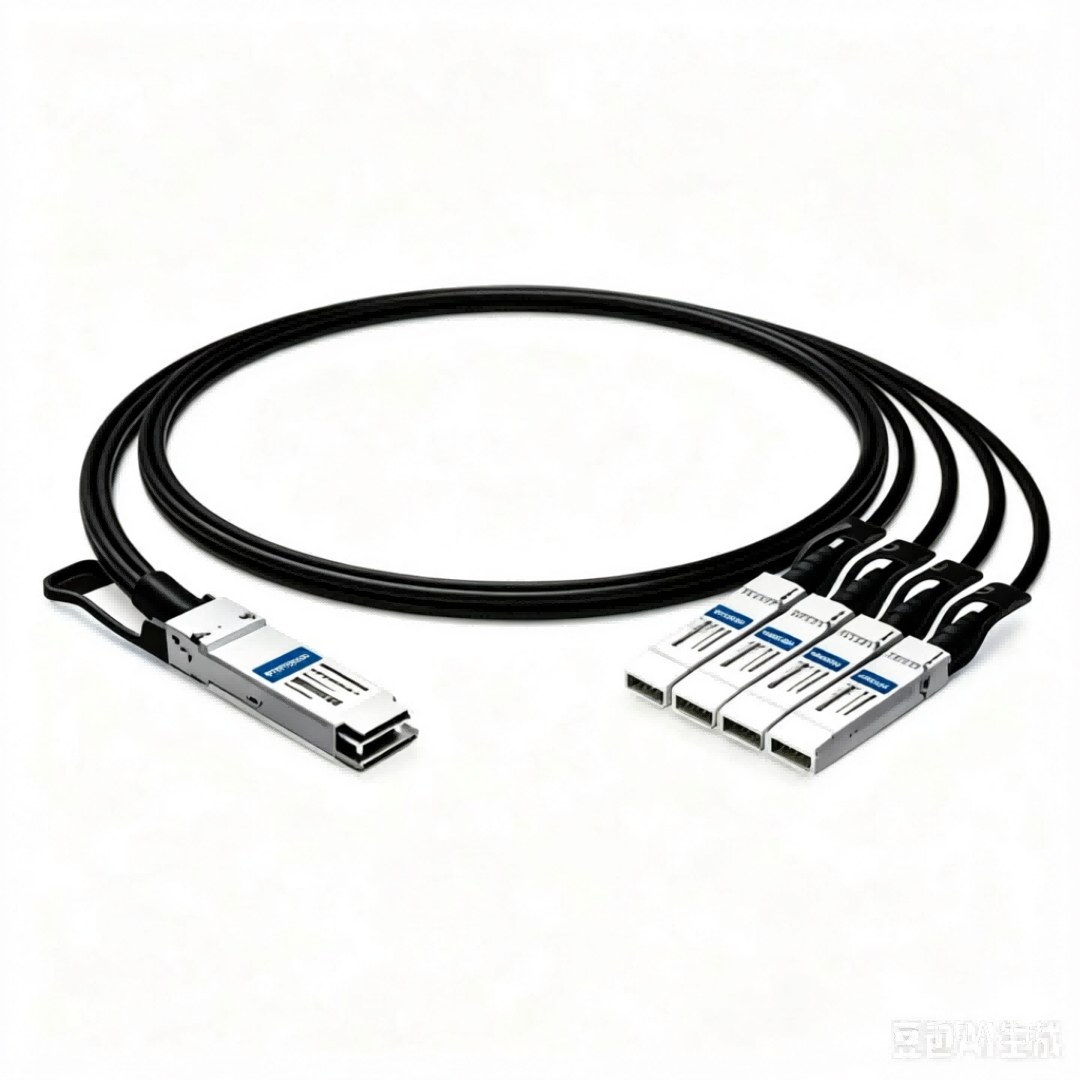

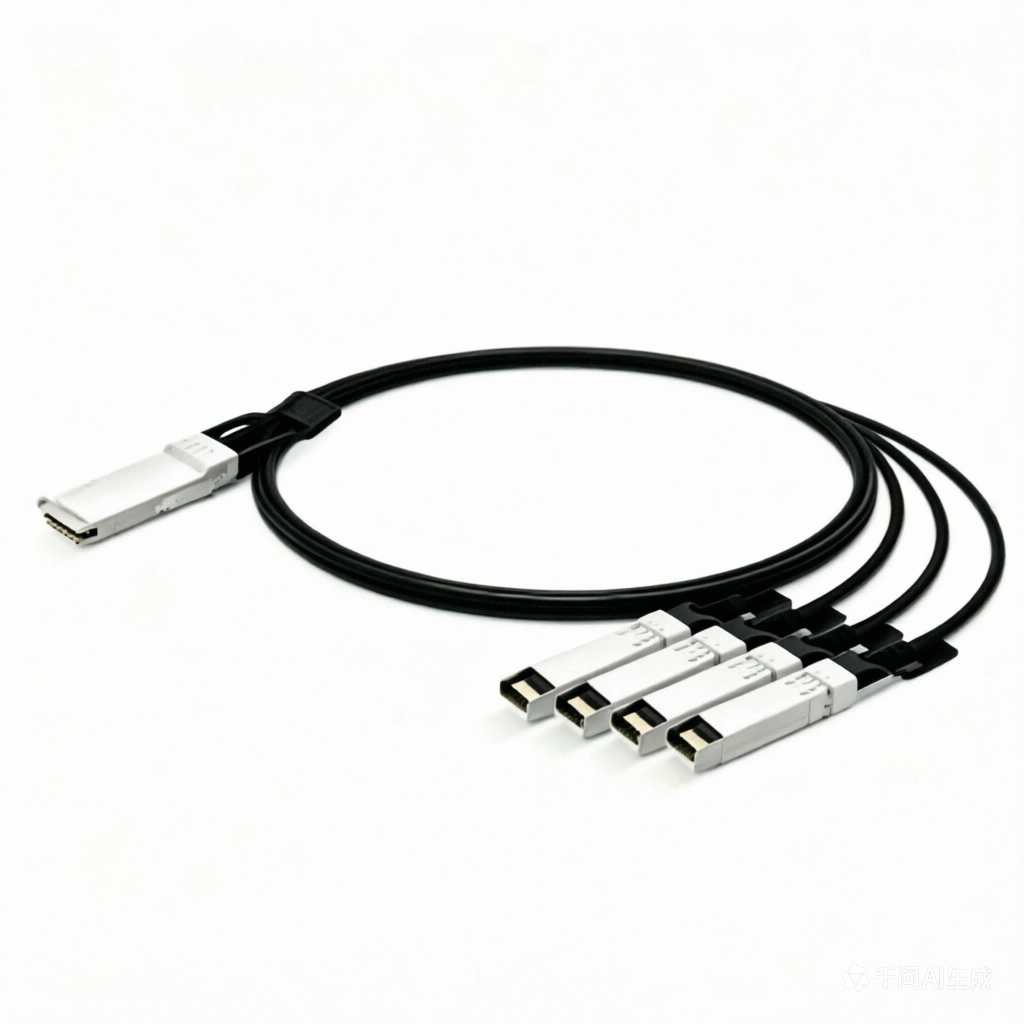

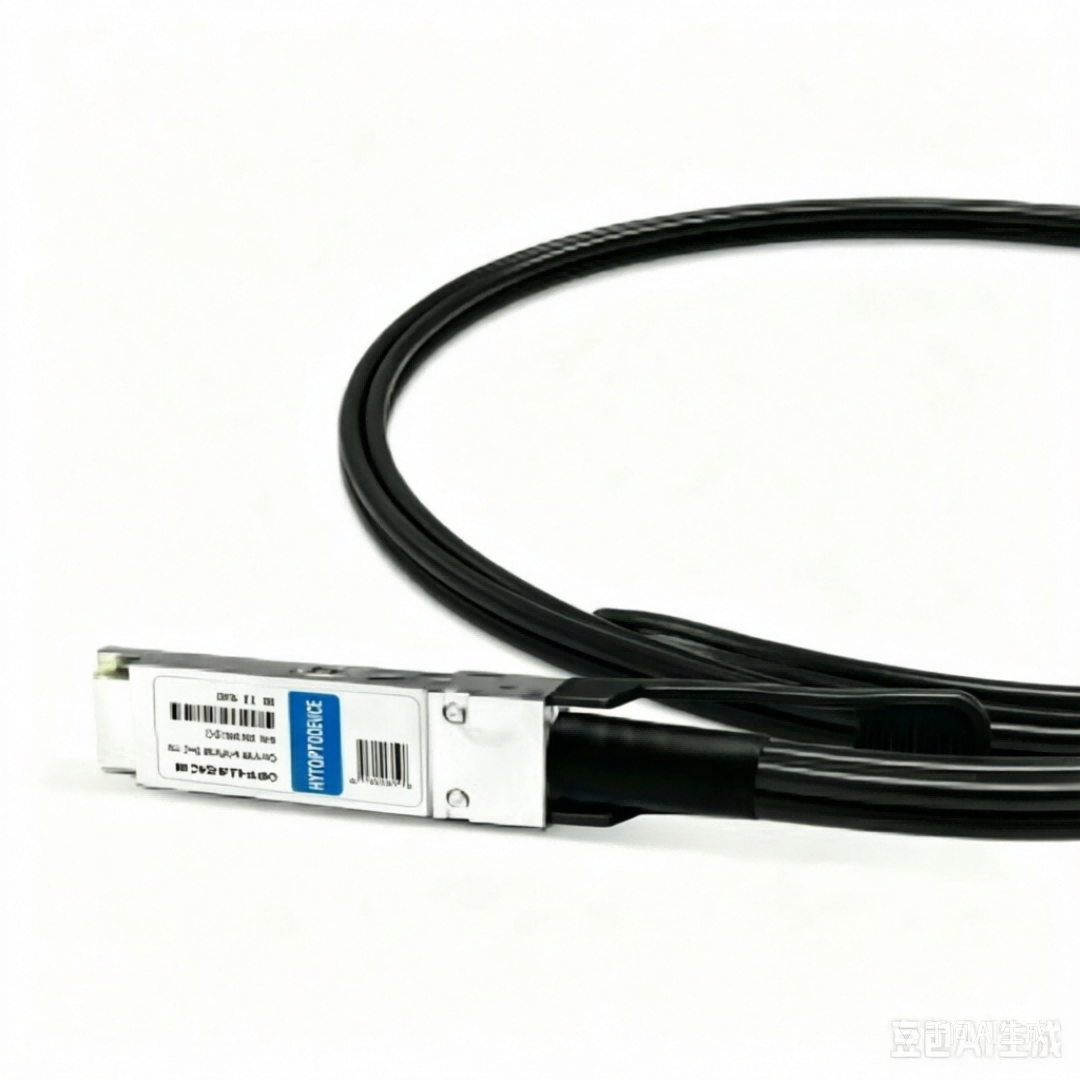

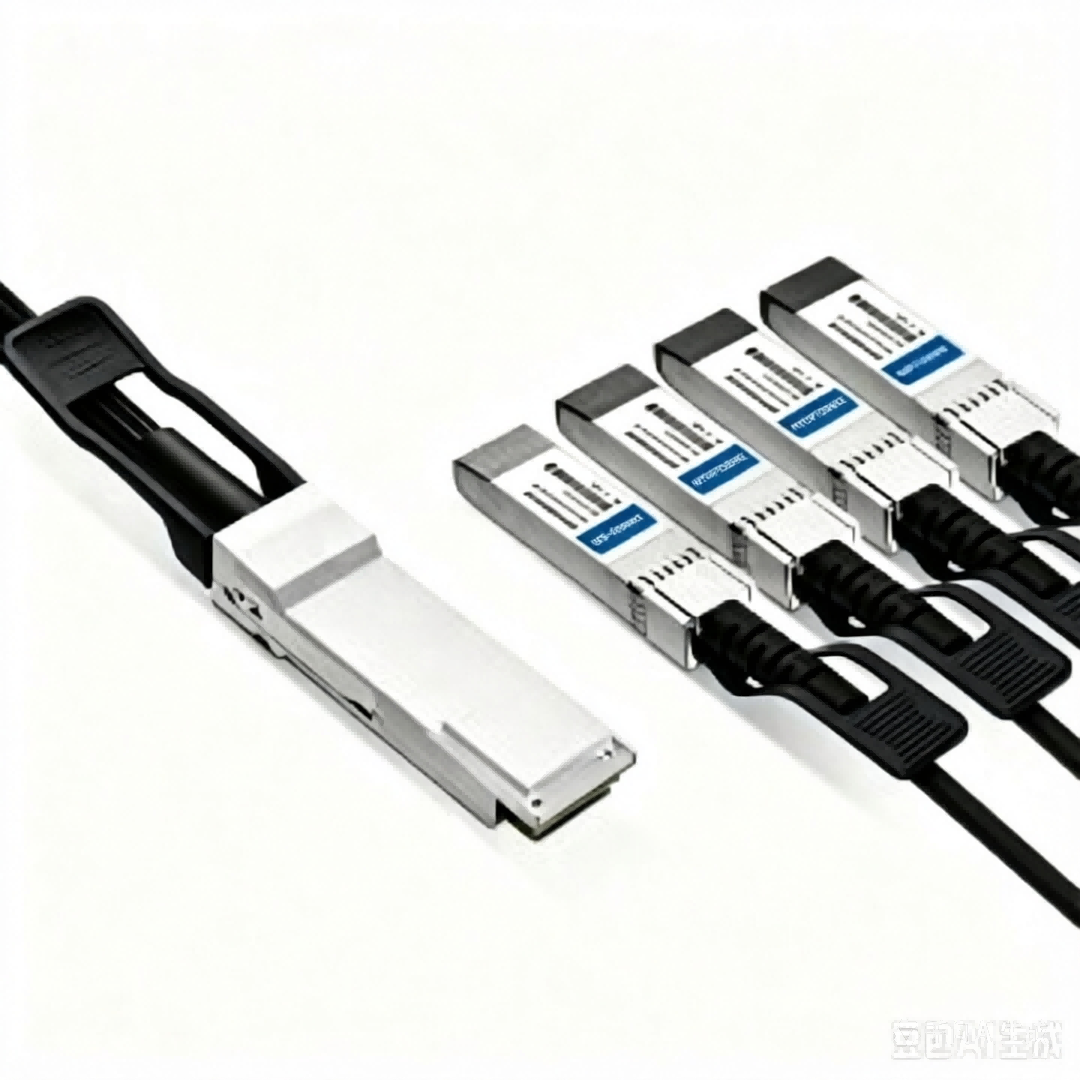

Juniper QFX-Q-S-DAC-5M Compatible 5m (16ft) 100G QSFP28 to Four 25G SFP28 Passive DAC Breakout Cable | HYTOPTODEVICE

Buy HYTOPTODEVICE 100G QSFP28 breakout passive DAC cable, 5m QFX-Q-S-DAC-5M equivalent, pre-coded EEPROM for Juniper Junos OS. In stock for fast delivery, factory direct price, bulk purchase available for distributors, resellers and system integrators.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-4SFP25-CU5M
2 Arista Networks  CAB-Q28-S28-5M
3 Brocade 100G-Q28-S28-C-0501
4 Huawei QSFP-4SFP25G-CU5M
5 Juniper QFX-Q-S-DAC-5M
Description

Juniper QFX-Q-S-DAC-5M Compatible 5m (16ft) 100G QSFP28 to Four 25G SFP28 Passive DAC Breakout Cable | HYTOPTODEVICE

Product Overview

HYTOPTODEVICE 5m 100G QSFP28 to four 25G SFP28 passive DAC breakout cable is a direct replacement for Juniper QFX-Q-S-DAC-5M. Built to SFF-8662 MSA specification, this passive breakout DAC adopts 26AWG balanced twinax copper, splitting one 100G QSFP28 port into four independent 25G SFP28 channels with zero power draw, supporting 100GBASE-CR4 breaking out to 4×25GBASE-CR links. It is hot-swappable and pre-programmed with Juniper validated EEPROM data for reliable recognition on Juniper Junos OS. It balances flexible routing and stable signal performance, widely used for Juniper QFX leaf-spine fabric port expansion, AI compute rack interconnection, HPC and storage networking, and data center hardware upgrade. HYTOPTODEVICE supports spot purchase, bulk wholesale, OEM private labeling, custom EEPROM programming and custom length service for this 100G breakout DAC cable.

Key Technical Specifications

Juniper Compatible
QFX-Q-S-DAC-5M
Vendor Name HYTOPTODEVICE
Connector QSFP28+ to 4 x SFP28 Max Data Rate 100Gbps
Cable Length 5m (16ft) Wire AWG AWG 26
Cable Type Passive Twinax Power Consumption ≤0.25W
Media Copper Operation Temperature 0~ 70 °C (32 to 158°F)
Jacket Material PVC(OFNR) Protocols IEEE 802.3, QSFP28 MSA, SFF-8665
Minimum Bend Radius 60mm Application 100G to 2x 25G Ethernet, Data Centers

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Mandatory Port Breakout Configuration: Ensure the host QSFP28 port supports channelization. Enable breakout mode (4x25G) via the switch CLI before connecting the cable.

  • Cabling Requirements: Do not exceed the minimum 50mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.

  • Port Installation Standard: Do not mix this breakout DAC with straight QSFP28 to QSFP28 DAC configuration.

  • Hot‑swap rule:Never pull or tug directly on the individual breakout legs. Always use the integrated pull-tab or bale latch when inserting or removing connectors.

  • Testing & Storage: Run sample validation on target hardware before large bulk deployment; store spare cables in dry, dust‑free and anti‑static packaging.
  • Operating Environment: 0‑70℃, indoor cabinet deployment only.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Juniper Hardware & Firmware

  • Juniper QFX5120, QFX5200, QFX5210, QFX5220 leaf and spine data center switches
  • Juniper QFX10002, QFX10008 high-capacity chassis switches
  • Servers fitted with 25G SFP28 NIC adapters for Juniper fabric deployment
  • Firmware: Junos OS 19.3R1 and newer

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this 100G QSFP28 to 4 x 25G SFP28 passive DAC breakout cable can interoperate with mainstream network brands including Arista, Intel, Juniper, Dell, NVIDIA Mellanox and IBM, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios

• Long-reach intra-row 100G uplink breakout to 4×25G server NIC connections
• Leaf-spine fabric port expansion for data center networks
• AI server rack interconnection requiring 5-meter copper cabling
• HPC and storage cluster medium-distance twinax cabling
• Data center hardware upgrade and network migration
• Stock supply for distributors, system builders and value-added resellers


Connectivity Solutions(Applications)

1. 100G to 4x25G Breakout Link for Switch-Switch
HYTOPTODEVICE 100G QSFP28 to 4x25G SFP28 breakout DAC cable FOR SWITCH TO SWITCH


2. 100G to 4x25G Breakout Link for Switch-NIC
HYTOPTODEVICE 100G breakout twinax cable for data center


The Core Feature


1.
Near-Zero Power, Full-Speed 100G

This 100G QSFP28 passive DAC breakout cable sips no extra energy, cutting heat and cost in crowded racks while keeping low-latency 100G for in-rack or adjacent-rack runs.

hytoptodevice 100G QSFP28 to 4 x 25G SFP28 passive dac breakout cable for data center

2.Host-Device Tested for Proven Interoperability

Every unit is link-up tested on real target switch models; ports come online on first install across major vendor gear, no field tuning or replacement loops. Not sure it fits? Compatibility Video available upon request.

hytoptodevice wholesale 100G QSFP28+ to 4 sfp28 breakout twinax cable for data center

3. 100% Individually Tested for Peak Performance

Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our Test Center.

HYTOPTODEVICE  100g QSFP28 to 4 x sfp28 passive breaktout  dac cable for switches

FAQ

Q1: Can I order this Juniper compatible breakout DAC for mixed-brand multi-vendor data center fabrics? A1: Yes, it works with breakout-enabled third-party switches. HYTOPTODEVICE custom programs the EEPROM on this passive breakout DAC to skip transceiver validation alerts when buyers deploy mixed-brand networks.

Q2: Will this QSFP28 breakout DAC plug into older Juniper QSFP+ switch ports? A2: No, this breakout DAC is built exclusively for QSFP28 interfaces. QSFP+ pin assignment and electrical characteristics differ and cannot sustain stable 4×25G breakout transmission.

Q3: If I buy this 100G breakout DAC, can its four tails link to 10G server NIC cards? A3: No, each breakout leg locks to native 25Gbps speed. This passive breakout DAC requires 25G SFP28 ports and does not support speed downshift for legacy 10G adapters.

Q4: Does Junos OS require specially coded breakout DAC cables to pass built-in transceiver checks? A4: Yes, Junos OS validates transceiver EEPROM signatures by default. HYTOPTODEVICE preloads Juniper matching EEPROM codes on this breakout DAC you purchase to avoid unsupported transceiver warnings.

Q5: When I place bulk orders, is it allowed to use different 25G SFP28 NIC brands on the four breakout outputs? A5: Yes, mixed-brand NICs are permitted as long as they follow MSA 25GBASE-CR standards. HYTOPTODEVICE runs cross-hardware compatibility testing so wholesale buyers receive stable performance.

Q6: What fixed data rate will each SFP28 breakout tail deliver after proper port breakout configuration? A6: Each breakout channel runs at a constant 25Gbps. This passive breakout DAC evenly divides the total 100G bandwidth across four independent 25G lanes.

Q7: What is the maximum reliable cable length for passive 25G breakout DAC twinax cables I can source for my rack layout? A7: The stable transmission limit for passive 25G twinax breakout design is 5 meters. HYTOPTODEVICE stocks this breakout DAC in 0.5m,1m,3m and 5m standard lengths for your selection.

Q8: What latency performance can I get using this 5m breakout DAC inside Juniper AI and HPC clusters? A8: Typical copper twinax latency is roughly 0.6 ns per meter. This passive breakout DAC contains no signal amplification chips, which makes it suitable for low-latency compute workloads.

Q9: What wire gauge (AWG) is used in this cable, and does it affect flexibility? A9: Common gauges range from 26AWG to 30AWG. Thinner gauges such as 30AWG deliver better flexibility for dense cable management, while 26AWG supports runs up to 3 meters, and 24AWG is required for stable 5-meter passive links. HYTOPTODEVICE supplies the correct AWG for every breakout DAC cable length you order.

Q10: Does this 25GBASE-CR passive breakout DAC support automatic speed negotiation with connected network hardware? A10: No, passive 25GBASE-CR twinax cables do not support auto-negotiation. You must manually lock both ends to fixed 25G speed once you receive and install this HYTOPTODEVICE breakout DAC.

Q11: What cabling rules should purchasers follow when routing this 5m breakout DAC inside dense Juniper QFX racks? A11: It offers good routing flexibility for tight rack spaces, but sharp tight bends are prohibited. Follow the 55mm minimum bend radius to protect the internal twinax conductors of this breakout DAC.

Q12: Are the four SFP28 breakout pigtails clearly marked to help my cabling team identify individual lanes? A12: Yes, each SFP28 tail carries permanent laser-etched lane marking. HYTOPTODEVICE marks every pigtail of this breakout DAC to simplify your cabling audit and fault troubleshooting.

Q13: Can this 5m Juniper breakout DAC connect network devices installed in two separate adjacent server racks? A13: Yes, it supports inter-rack connections within its full 5-meter working span. This breakout DAC is designed for in-row rack links instead of long cross-room or cross-building cabling.

Q14: Can bulk buyers request custom jacket colors for this Juniper QFX compatible breakout DAC? A14: Black jacket is our standard stock version. HYTOPTODEVICE accepts custom color requests when you place bulk orders of this breakout DAC to match your site’s color coding requirements.

Q15: Can I request non-standard custom lengths if the standard 0.5/1/3/5m sizes do not fit my data center layout? A15: Custom non-standard lengths are available for bulk procurement. Contact the HYTOPTODEVICE sales team for quotation and lead time when you buy custom-length breakout DAC cable.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
