Juniper QFX-Q-S-DAC-3M Compatible 3m(10ft) 100G QSFP28 to 4 x 25G SFP28 Passive DAC Breakout Cable Bulk Wholesale | HYTOPTODEVICE

Buy HYTOPTODEVICE passive direct attach copper breakout cable, 3m 100G QSFP28 to 4×25G SFP28 twinax, pre-coded EEPROM for Juniper Junos OS. Low latency, stable signal, bulk factory supply for distributors and system integrators.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-4SFP25-CU3M
2 Arista Networks  CAB-Q28-S28-3M
3 Brocade 100G-Q28-S28-C-0301
4 Huawei QSFP-4SFP25G-CU3M
5 Juniper QFX-Q-S-DAC-3M
6 Dell DAC-Q28-4SFP28-25G-3M
Description

Juniper QFX-Q-S-DAC-3M Compatible 3m(10ft) 100G QSFP28 to 4 x 25G SFP28 Passive DAC Breakout Cable Bulk Wholesale | HYTOPTODEVICE

Product Overview

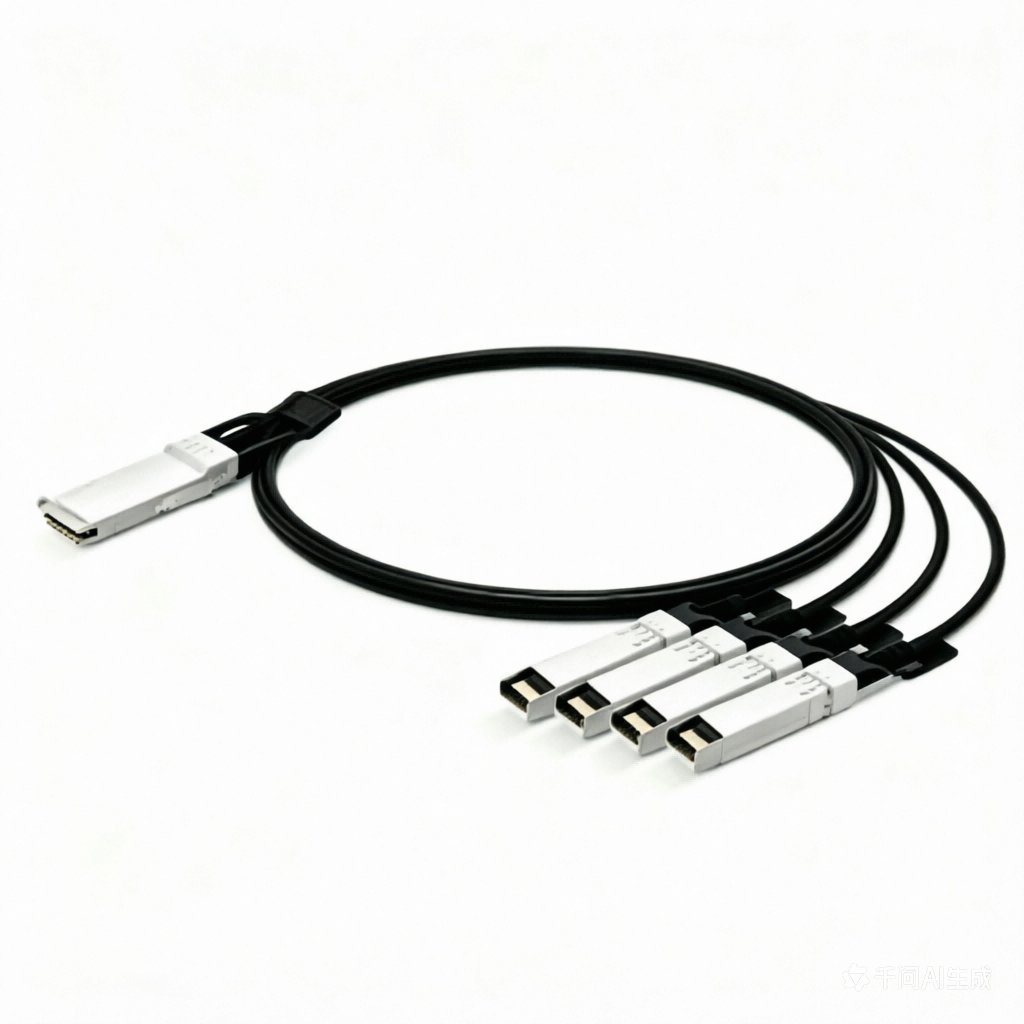

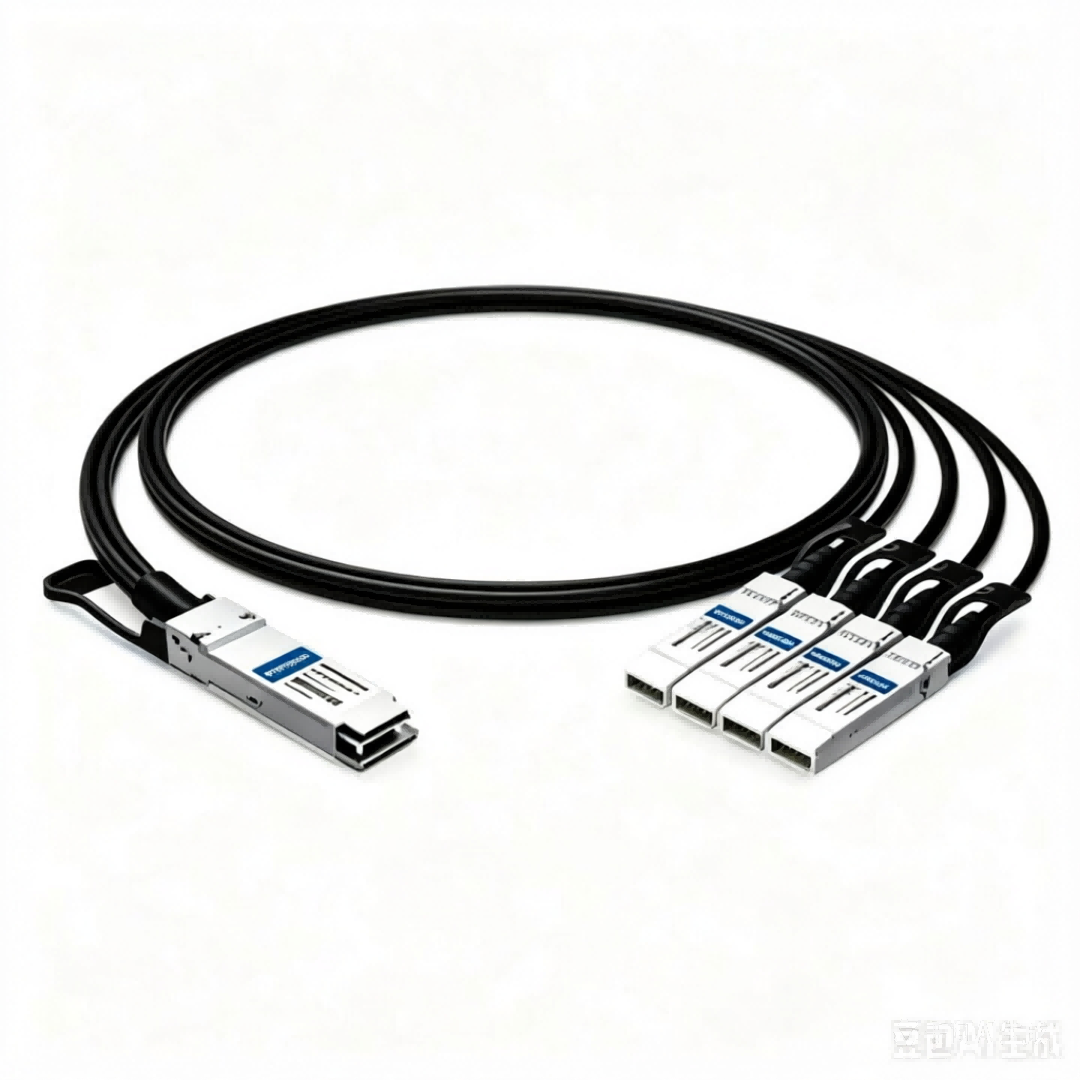

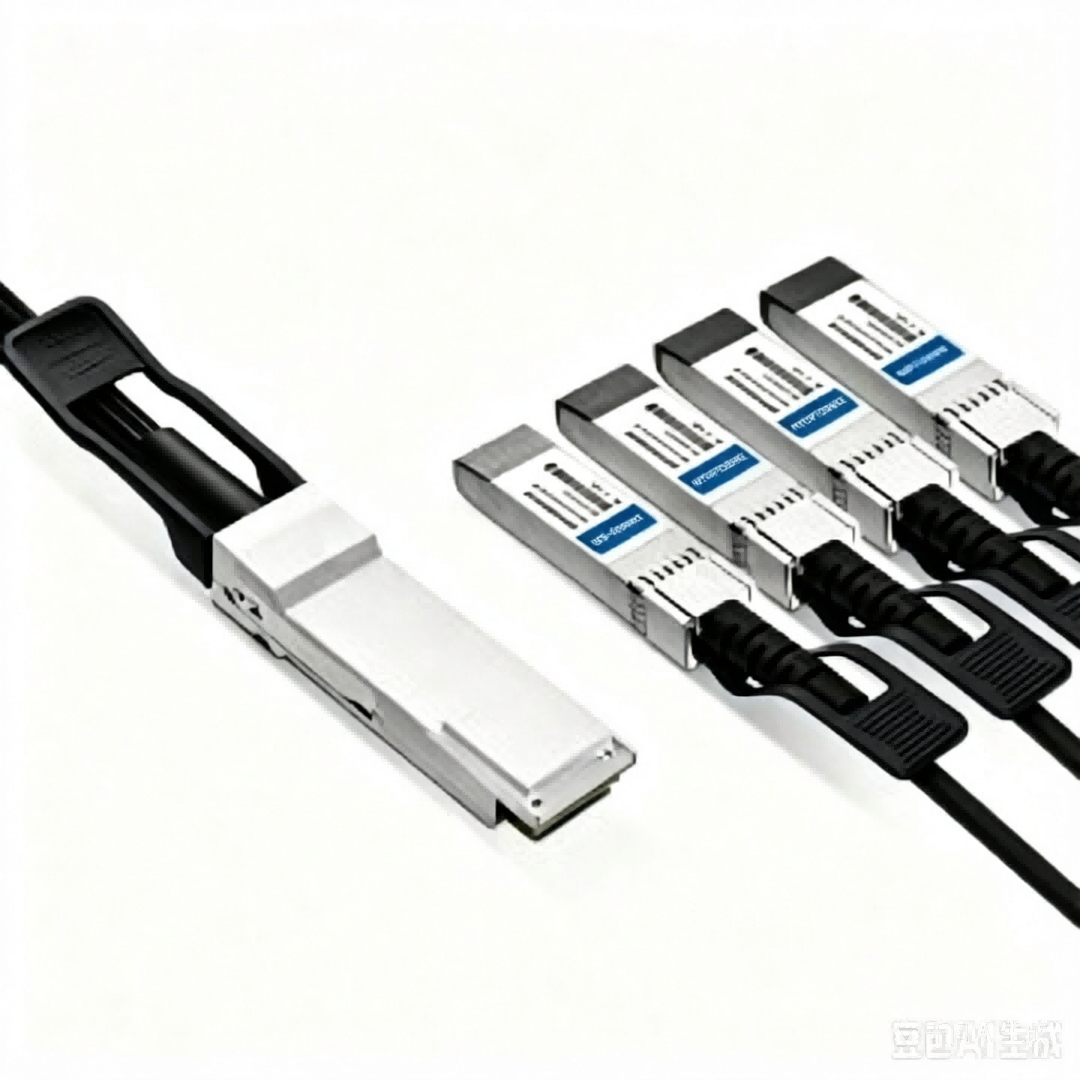

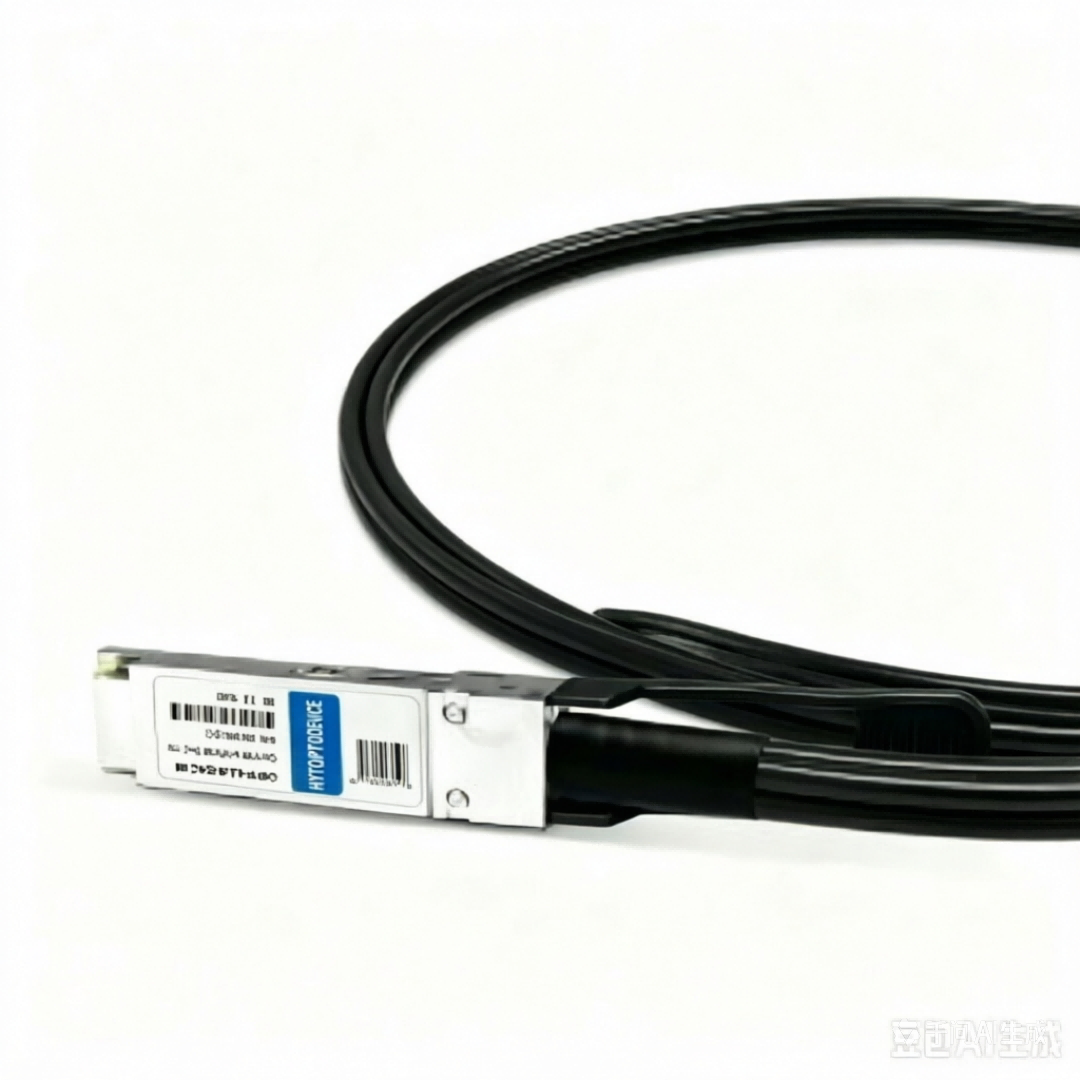

HYTOPTODEVICE 3m 100G QSFP28 to 4x25G SFP28 passive direct attach copper breakout cable is a drop-in replacement for Juniper QFX-Q-S-DAC-3M. Manufactured to SFF-8662 MSA standard, this passive direct attach copper breakout cable splits one 100G QSFP28 port into four independent 25G SFP28 links without power consumption.
Hot-pluggable and pre-flashed with Juniper-matched EEPROM for seamless breakout recognition under Junos OS. HYTOPTODEVICE supplies this passive direct attach copper breakout cable for Juniper leaf-spine fabric deployment, supporting bulk purchasing, OEM private labeling, custom EEPROM programming and custom length service.

Key Technical Specifications

Juniper Compatible
 QFX-Q-S-DAC-3M
Vendor Name HYTOPTODEVICE
Connector QSFP28+ to 4 x SFP28 Max Data Rate 100Gbps
Cable Length 3m (10ft) Wire AWG AWG 26
Cable Type Passive Twinax Power Consumption ≤0.25W
Media Copper Operation Temperature 0~ 70 °C (32 to 158°F)
Jacket Material PVC(OFNR) Protocols IEEE 802.3, QSFP28 MSA, SFF-8665
Minimum Bend Radius 50mm Application 100G to 2x 25G Ethernet, Data Centers

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Mandatory Port Breakout Configuration: Ensure the host QSFP28 port supports channelization. Enable breakout mode (4x25G) via the switch CLI before connecting the cable.

  • Cabling Requirements: Do not exceed the minimum 50mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.

  • Port Installation Standard: Do not mix this breakout DAC with straight QSFP28 to QSFP28 DAC configuration.

  • Hot‑swap rule:Never pull or tug directly on the individual breakout legs. Always use the integrated pull-tab or bale latch when inserting or removing connectors.

  • Testing & Storage: Run sample validation on target hardware before large bulk deployment; store spare cables in dry, dust‑free and anti‑static packaging.
  • Operating Environment: 0‑70℃, indoor cabinet deployment only.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Juniper Hardware & Firmware

  • Juniper QFX5120, QFX5130, QFX5200, QFX5210, QFX5220 QFX series data center switches
  • Juniper QFX10002, QFX10008, QFX10016 high-density core routing switches
  • Juniper PTX1000, PTX10002 packet transport routers
  • Juniper 25G SFP28 NIC equipped rack servers for storage, AI and compute clusters
  • Firmware: Junos OS 20.1R1+, Junos OS Evolved 21.3R1+

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this 100G QSFP28 to 4 x 25G SFP28 passive DAC breakout cable can interoperate with mainstream network brands including Arista, Intel, Juniper, Dell, NVIDIA Mellanox and IBM, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios

• Medium-distance intra-rack 100G uplink breakout to 4×25G server NIC links
• Leaf-spine data center fabric port density expansion
• AI computing server rack interconnection
• HPC and storage cluster medium-range copper cabling
• Data center hardware refresh and network migration
• Distributor stock preparation and system integration turnkey projects

Connectivity Solutions(Applications)

1. 100G to 4x25G Breakout Link for Switch-Switch
HYTOPTODEVICE 100G QSFP28 to 4x25G SFP28 breakout DAC cable FOR SWITCH TO SWITCH


2. 100G to 4x25G Breakout Link for Switch-NIC
HYTOPTODEVICE 100G breakout twinax cable for data center


The Core Feature


1.
Near-Zero Power, Full-Speed 100G

This 100G QSFP28 passive DAC breakout cable sips no extra energy, cutting heat and cost in crowded racks while keeping low-latency 100G for in-rack or adjacent-rack runs.

hytoptodevice 100G QSFP28 to 4 x 25G SFP28 passive dac breakout cable for data center

2.Host-Device Tested for Proven Interoperability

Every unit is link-up tested on real target switch models; ports come online on first install across major vendor gear, no field tuning or replacement loops. Not sure it fits? Compatibility Video available upon request.

hytoptodevice wholesale 100G QSFP28+ to 4 sfp28 breakout twinax cable for data center

3. 100% Individually Tested for Peak Performance

Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our Test Center.

HYTOPTODEVICE  100g QSFP28 to 4 x sfp28 passive breaktout  dac cable for switches

FAQ

Q1: Will this 100G breakout cable work with my Cisco switches and Juniper gear? A1: It is pre-validated for Juniper QFX platforms and interoperable with Cisco gear that enables breakout mode. HYTOPTODEVICE custom programs this passive direct attach copper breakout cable’s EEPROM to clear transceiver alarms in multi-vendor fabric setups.

Q2: Is this cable compatible with both QSFP28 and QSFP+ ports? A2: This passive direct attach copper breakout cable only fits QSFP28 interfaces. QSFP+ pinout and electrical characteristics differ, so stable communication cannot be established.

Q3: Can I use this cable to connect a 100G switch to four separate 10G switches? A3: This breakout cable runs 25G per lane, it requires SFP28 25G ports on the far end. It cannot negotiate down to 10G speed to link to 10G switch ports.

Q4: Do I need to buy specific brand-coded versions (e.g., Cisco-coded vs. HP-coded)? A4: Brand-specific coding is necessary for switches with vendor lock. HYTOPTODEVICE preloads matching firmware signatures into this passive direct attach copper breakout cable to avoid unsupported transceiver pop-ups.

Q5: Can I mix and match different brands of network cards on the SFP28 ends? A5: Cross-brand SFP28 NIC mixing is allowed if all adapters follow MSA 25GBASE-CR specs. HYTOPTODEVICE runs compatibility tests to guarantee consistent performance of this passive direct attach copper breakout cable.

Q6: What is the maximum supported data rate per channel? A6: Each individual channel runs at a fixed 25Gbps. This passive direct attach copper breakout cable divides one 100G QSFP28 port into four independent 25G data paths.

Q7: What is the maximum recommended cable length for passive copper twinax? A7: The reliable operating limit for this passive 25G twinax design is 5 meters. HYTOPTODEVICE supplies passive direct attach copper breakout cable in 0.5m, 1m, 3m and 5m standard lengths.

Q8: What is the typical latency of a copper twinax breakout cable? A8: Copper twinax latency averages roughly 0.6 ns per meter. This passive direct attach copper breakout cable has no signal processing chip, which suits low-latency Juniper HPC and AI networking.

Q9: What wire gauge (AWG) is used in this cable, and does it affect flexibility? A9: Common gauges range from 26AWG to 30AWG. Thinner gauges such as 30AWG deliver better flexibility for dense cable management, while 26AWG supports runs up to 3 meters, and 24AWG is required for stable 5-meter passive links. HYTOPTODEVICE supplies the correct AWG for every passive direct attach copper breakout cable length you order.

Q10: Does this cable support auto-negotiation? A10: 25GBASE-CR passive twinax does not support auto-negotiation. You have to manually lock both link ends to 25G fixed speed when deploying this HYTOPTODEVICE breakout cable.

Q11: How flexible is the cable? Can I bend it tightly inside a crowded rack? A11: It offers moderate flexibility for rack routing, yet sharp tight bends are prohibited. Stick to the 55mm minimum bend radius rule to prevent internal conductor damage to this passive direct attach copper breakout cable.

Q12: Are the SFP28 ends labeled clearly to show which channel is which (Lane 1 to 4)? A12: Yes, each SFP28 pigtail carries permanent laser marking for Lane 1 to Lane 4. HYTOPTODEVICE marks every breakout tail of this passive direct attach copper breakout cable to simplify cabling documentation.

Q13: Can I route this cable between different server racks? A13: It works for short inter-rack connections within its 3-meter total span. This passive direct attach copper breakout cable is designed for adjacent rack links instead of long-distance cabling across the data hall.

Q14: What color options are available for the cable jacket? A14: Black jacket is our standard offering. HYTOPTODEVICE can manufacture custom jacket colors on bulk orders of this passive direct attach copper breakout cable for your rack labeling scheme.

Q15: Can I get a custom length (e.g., 2.5 meters) instead of standard sizes? A15: Non-standard custom lengths are available for bulk orders. Reach out to HYTOPTODEVICE sales team for pricing and lead time of custom-length passive direct attach copper breakout cable.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order
