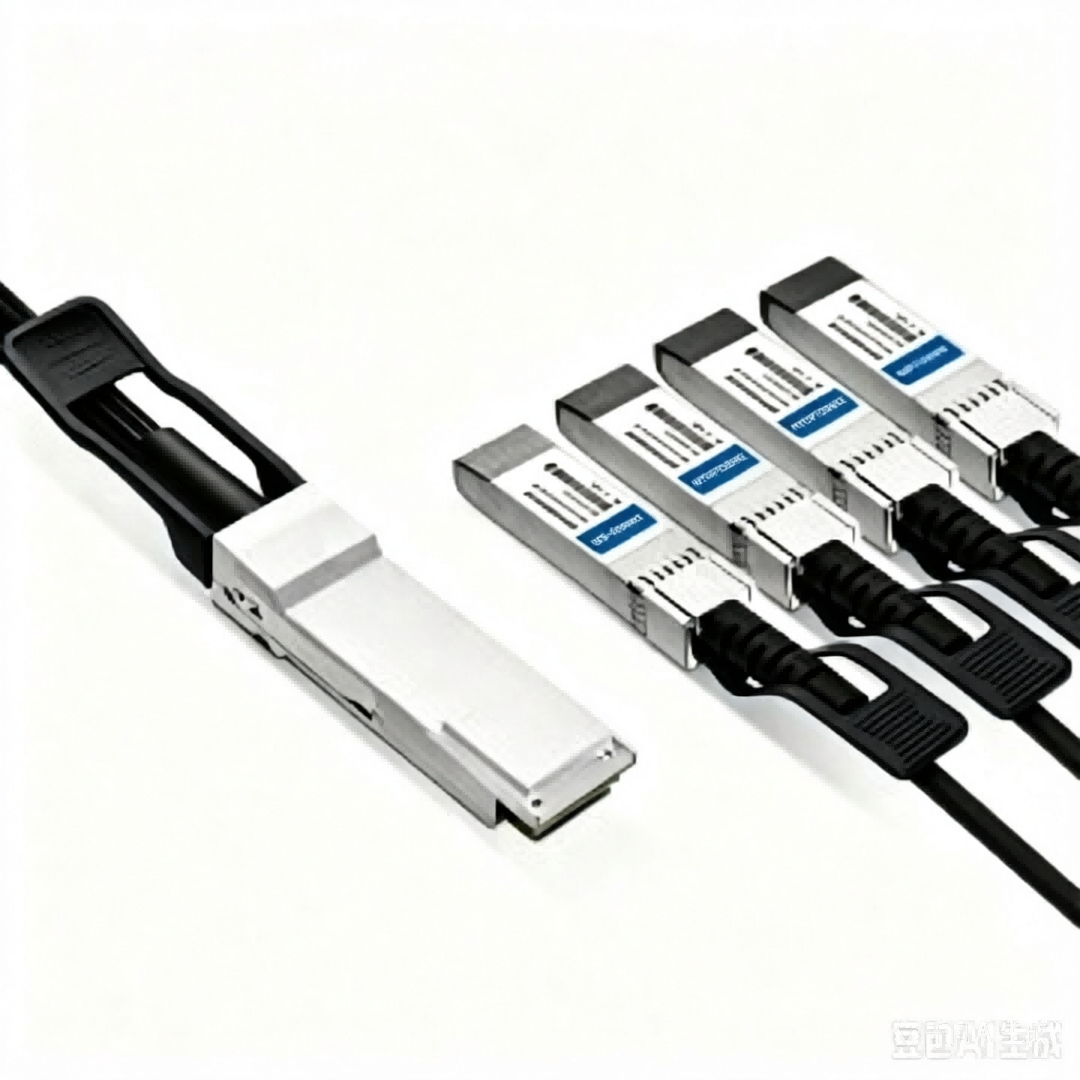

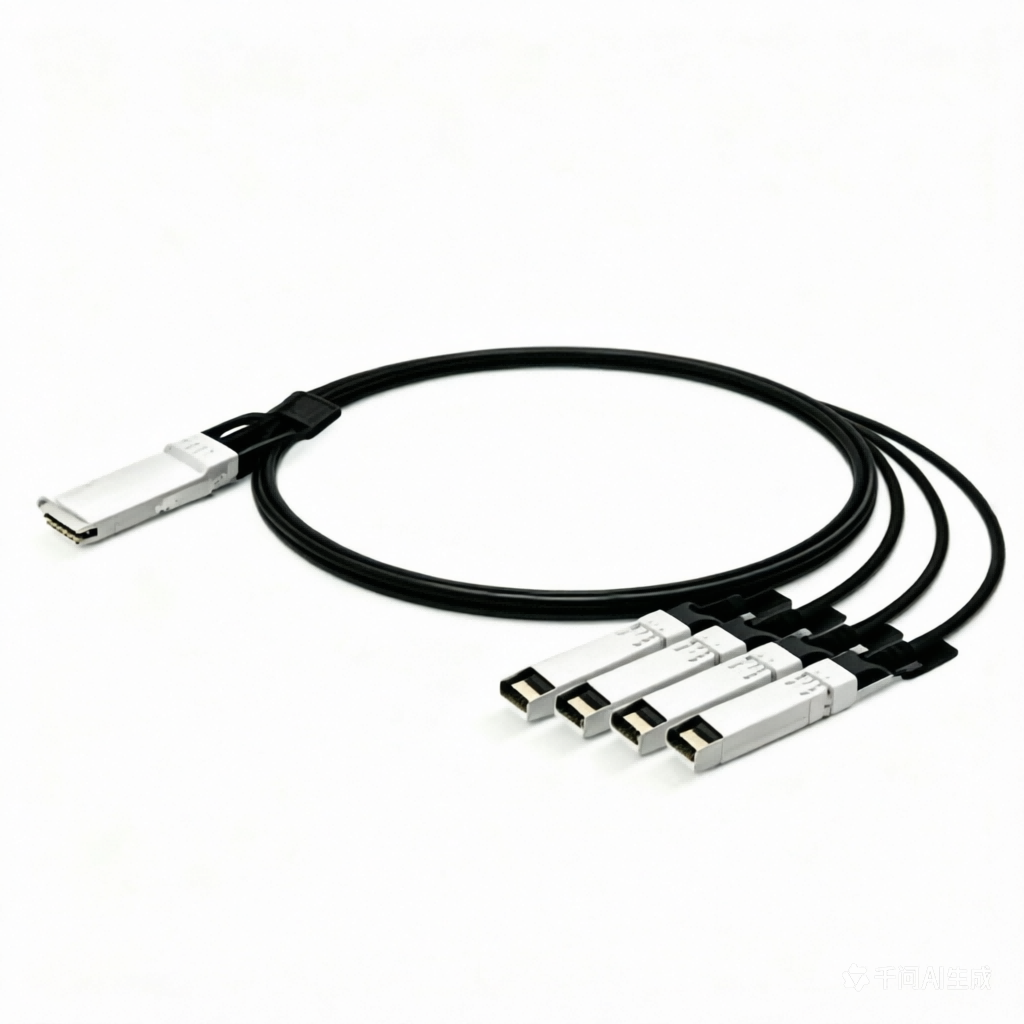

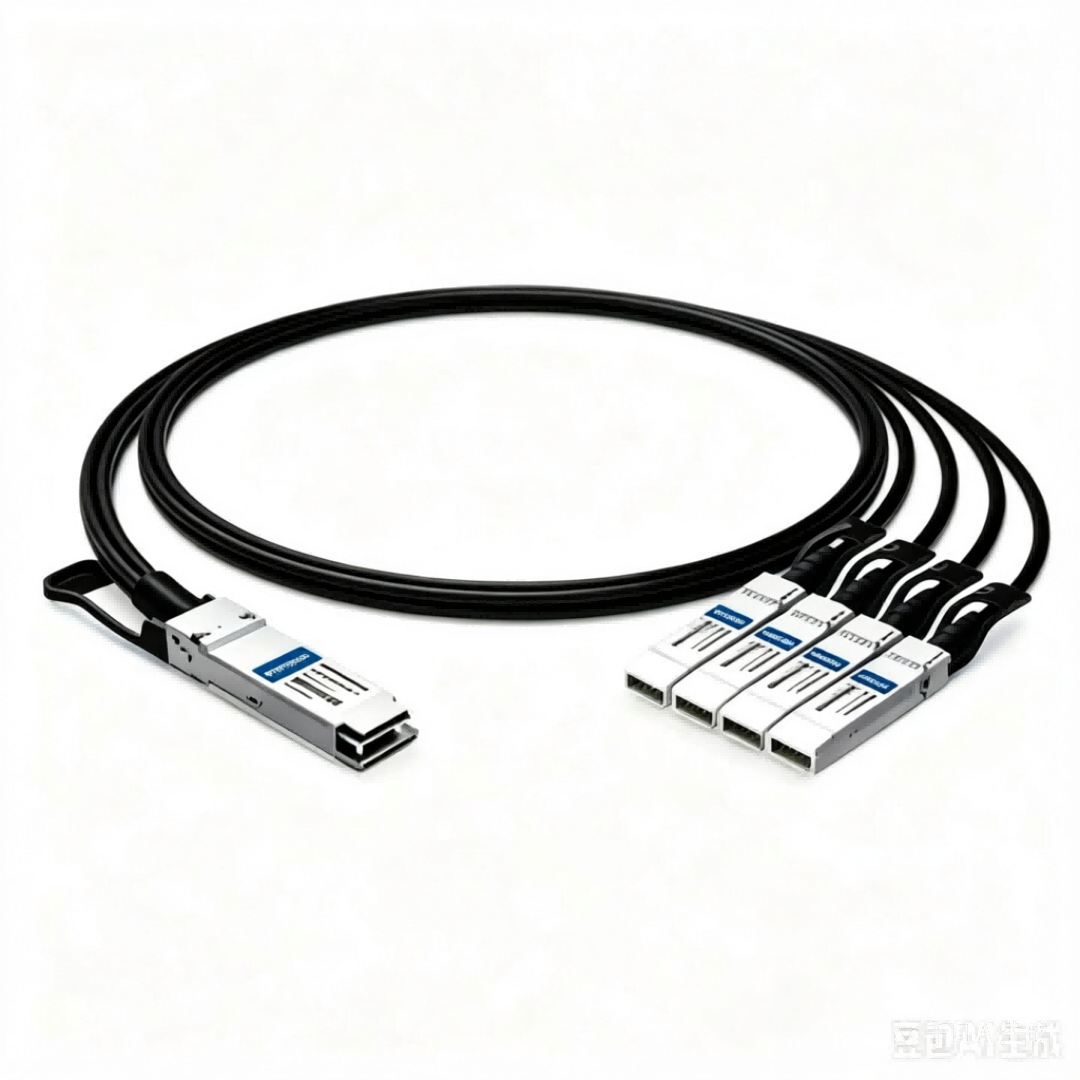

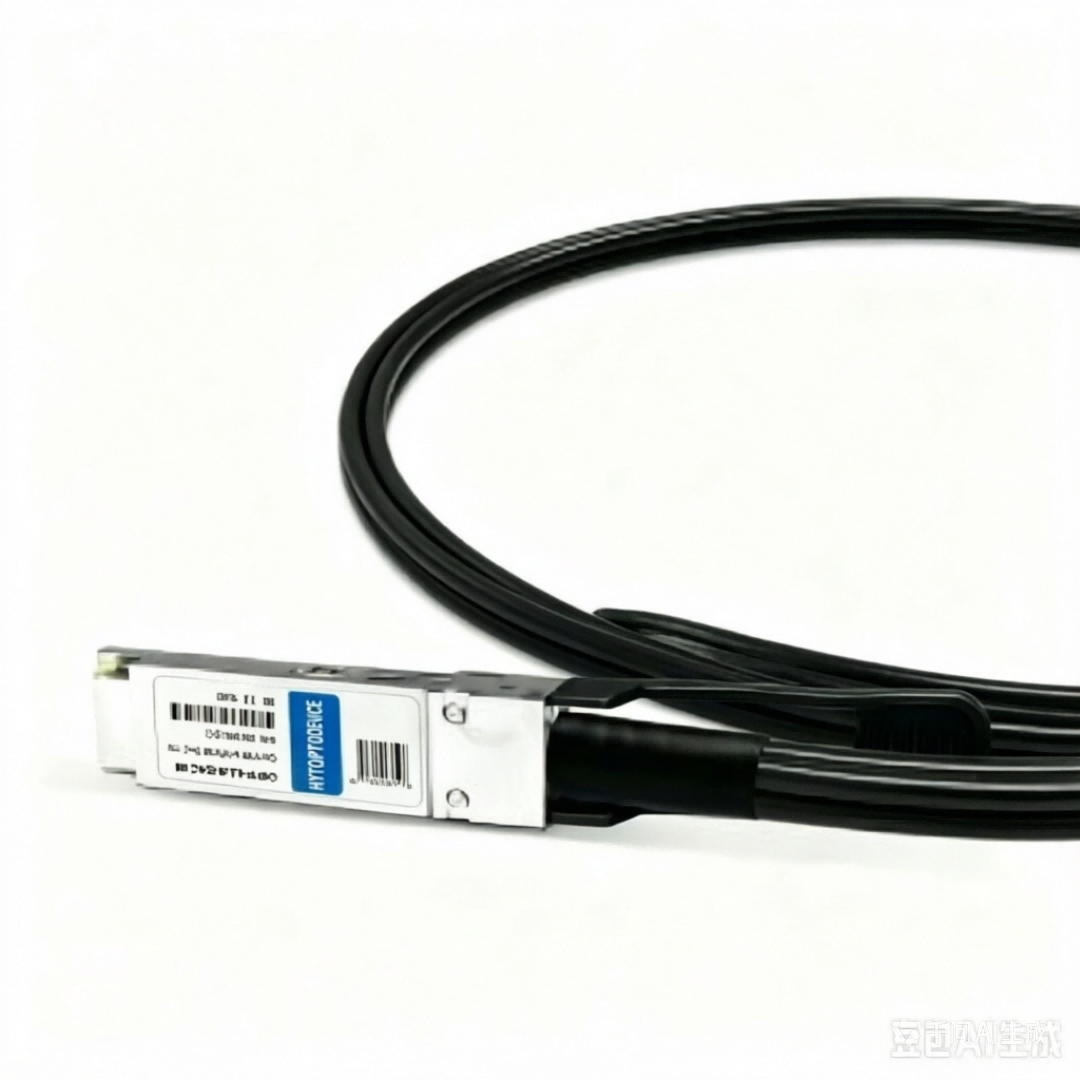

Juniper QFX-Q-S-DAC-1M Compatible 1m (3ft) 100G QSFP28 to Four 25G SFP28 DAC Breakout Cable | HYTOPTODEVICE

HYTOPTODEVICE factory supplier provides 100G QSFP28 DAC breakout cable, 1m twinax breakout assembly pre-programmed for Juniper Junos OS. Zero-power passive breakout cable, bulk supply for distributors, system integrators.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-4SFP25-CU1M
2 Arista Networks  CAB-Q28-S28-1M
3 Brocade 100G-Q28-S28-C-0101
4 Huawei QSFP-4SFP25G-CU1M
5 Juniper QFX-Q-S-DAC-1M
6 Dell DAC-Q28-4SFP28-25G-1M
Description

Juniper QFX-Q-S-DAC-1M Compatible 1m (3ft) 100G QSFP28 to Four 25G SFP28 DAC Breakout Cable | HYTOPTODEVICE

Product Overview

HYTOPTODEVICE 1m 100G QSFP28 to 4x25G SFP28 DAC breakout cable is plug-and-play replacement for Juniper QFX-Q-S-DAC-1M. Built to SFF-8662 MSA standards, It adopts passive twinax copper design to deliver stable links, mapping one 100G QSFP28 port into four independent 25G SFP28 interfaces with no extra power supply required.
Hot-swap supported and pre-flashed with Juniper matching EEPROM for breakout recognition. Ideal for leaf-spine port splitting, GPU server breakout and rack density upgrade. We provide bulk wholesale, OEM private labeling and batch signal integrity testing.

Key Technical Specifications

Juniper Compatible
QFX-Q-S-DAC-1M
Vendor Name HYTOPTODEVICE
Connector QSFP28+ to 4 x SFP28 Max Data Rate 100Gbps
Cable Length 1m (3ft) Wire AWG AWG 30
Cable Type Passive Twinax Power Consumption ≤0.25W
Media Copper Operation Temperature 0~ 70 °C (32 to 158°F)
Jacket Material PVC(OFNR) Protocols IEEE 802.3, QSFP28 MSA, SFF-8665
Minimum Bend Radius 25mm Application 100G to 2x 25G Ethernet, Data Centers

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Mandatory Port Breakout Configuration: Ensure the host QSFP28 port supports channelization. Enable breakout mode (4x25G) via the switch CLI before connecting the cable.

  • Cabling Requirements: Do not exceed the minimum 25mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.

  • Port Installation Standard: Do not mix this breakout DAC with straight QSFP28 to QSFP28 DAC configuration.

  • Hot‑swap rule:Never pull or tug directly on the individual breakout legs. Always use the integrated pull-tab or bale latch when inserting or removing connectors.

  • Testing & Storage: Run sample validation on target hardware before large bulk deployment; store spare cables in dry, dust‑free and anti‑static packaging.
  • Operating Environment: 0‑70℃, indoor cabinet deployment only.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Juniper Hardware & Firmware

  • Juniper QFX5120, QFX5110, QFX5200 series switches
  • Juniper QFX10002, QFX10008 fabric platforms
  • Juniper EX4650, EX4400 high-performance switches
  • Firmware:Junos OS 20.4, 21.1, 21.2, 22.1

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this 100G QSFP28 to 4 x 25G SFP28 passive breakout DAC cable can interoperate with mainstream network brands including Arista, Intel, Juniper, Dell, NVIDIA Mellanox and IBM, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios

• 100G port breakout to four 25G server uplinks
• Leaf-spine fabric port density expansion
• AI GPU rack intra-rack interconnection
• HPC cluster high-speed short-range links
• Data center hardware upgrade and migration
• Distributor stock and system integration projects

Connectivity Solutions(Applications)

1. 100G to 4x25G Breakout Link for Switch-Switch
HYTOPTODEVICE 100G QSFP28 to 4x25G SFP28 breakout DAC cable FOR SWITCH TO SWITCH


2. 100G to 4x25G Breakout Link for Switch-NIC
HYTOPTODEVICE 100G breakout twinax cable for data center


The Core Feature


1.
Near-Zero Power, Full-Speed 100G

This 100G QSFP28 passive breakout DAC sips no extra energy, cutting heat and cost in crowded racks while keeping low-latency 100G for in-rack or adjacent-rack runs.

hytoptodevice 100G passive breakout direct attach copper CABLE for data center

2.Host-Device Tested for Proven Interoperability

Every unit is link-up tested on real target switch models; ports come online on first install across major vendor gear, no field tuning or replacement loops. Not sure it fits? Compatibility Video available upon request.

hytoptodevice wholesale 100G QSFP28+ to 4 sfp28 breakout twinax cable for data center

3. 100% Individually Tested for Peak Performance

Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our Test Center.

HYTOPTODEVICE  100g QSFP28 to 4 x sfp28 passive breaktout  dac cable for switches

FAQ

Q1: What makes the "QFX-Q-S-DAC-1M" different from a standard 100G DAC cable? A1: The QFX-Q-S-DAC-1M is a breakout cable. it features a 100G QSFP28 connector on one end. the other end is four 25G SFP28 connector.

Q2: Can I use this DAC cable to connect a Juniper switch to a switch from another brand? A2: Yes, but you need a "dual-compatible" version where one end is coded for Juniper and the other end is coded for the other brand (e.g., Cisco, Dell, or HPE).

Q3:Is the QFX-Q-S-DAC-1M an active or passive cable? A: No, it's a passive breakout cable. It contains no active signal amplification circuitry, boasts extremely high reliability, excellent power consumption (almost 0W), and outstanding latency.

Q4: What is the maximum distance for the QFX-Q-S-DAC-1M? A4: Its maximum physical length is 1 meter (3.3 feet).it transports with a passive copper twinax cable.

Q5:Can I use this Juniper-coded DAC cable to connect a Juniper switch to a  Arista or Cisco switch?A5:If you use a standard Juniper-coded cable, the Arista/Cisco end might reject it due to vendor locking. For cross-vendor environments, it is highly recommended to order a Dual-Vendor Coded Cable (Juniper-coded on End A, and Arista/Cisco-coded on End B) to ensure seamless plug-and-play compatibility on both sides.

Q6: Can the four SFP28 ends be connected to switches from different vendors? A6: Yes, but it requires customized multi-vendor programming. For example, we can program the 100G end for a Huawei switch and the four 25G ends for Cisco or Dell server NICs. Please specify your requirements when ordering.

Q7:Will Juniper EOS recognize this cable as genuine? A7: Yes. Our compatible breakout cables are flashed with the authentic Juniper vendor profile. The switch will recognize it as a QFX-Q-S-DAC-1M.

Q8:Can I use this DAC cable to break out a 40G port into four 10G ports? A: No. This cable is specifically tuned and coded for 100G-to-4x25G applications. For 40G-to-10G setups, you must use a dedicated 40G breakout cable.

Q9: Will Juniper switches display a third-party warning flag with this cable? A9: No. Our compatible breakout cable is flashed with exact Juniper vendor cryptographic signatures. The  operating system will read it as an original Juniper QFX-Q-S-DAC-1M, ensuring clean port initialization.

Q10: What happens if I only plug in two or three of the 25G SFP28 ends? A10: The connected legs will work perfectly fine. The channels operate independently. The unused SFP28 ends can be left disconnected without affecting the traffic on the active legs.

Q11: What procurement savings can distributors gain by choosing this 100G QSFP28 DAC breakout cable instead of separate optical modules? A: Typically you can cut costs by 40%–70% compared to purchasing one 100G optical transceiver plus four 25G optical modules for short rack breakout. This 100G QSFP28 DAC breakout cable removes extra optical component expenses.

Q12: Which application fits this 100G QSFP28 DAC breakout cable better than fiber breakout assemblies? A: Select this 100G QSFP28 DAC breakout cable for intra-rack links ≤1m requiring ultra-low latency and zero power draw. Fiber breakout works better for longer distances or scenarios needing electrical isolation.

Q13: What warranty and RMA coverage applies to HYTOPTODEVICE Juniper QFX-Q-S-DAC-1M compatible 100G QSFP28 DAC breakout cable? A: HYTOPTODEVICE provides a 5-year warranty against manufacturing defects. If breakout recognition fails due to our EEPROM profile, free RMA replacement is available after troubleshooting confirmation.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
