| NO. | Brand | Compatible P/N | Remarks |
| 1 | Cisco | SFP-10G-T-100 | |
| 2 | Arista | SFP-10G-T -100 | |
| 3 | Brocade | 10G-SFPP-T100 | |
| 4 | Dell | GP-10GSFP-T100 | |
| 5 | Extreme Networks | 10340 | |
| 6 | H3C | SFP-XG-T100 | |
| 7 | HW | SFP-10G-T100 | |
| 8 | Intel | E10GSFPT100 | |
| 9 | Juniper | JNP-SFPP-10GE-T100 |

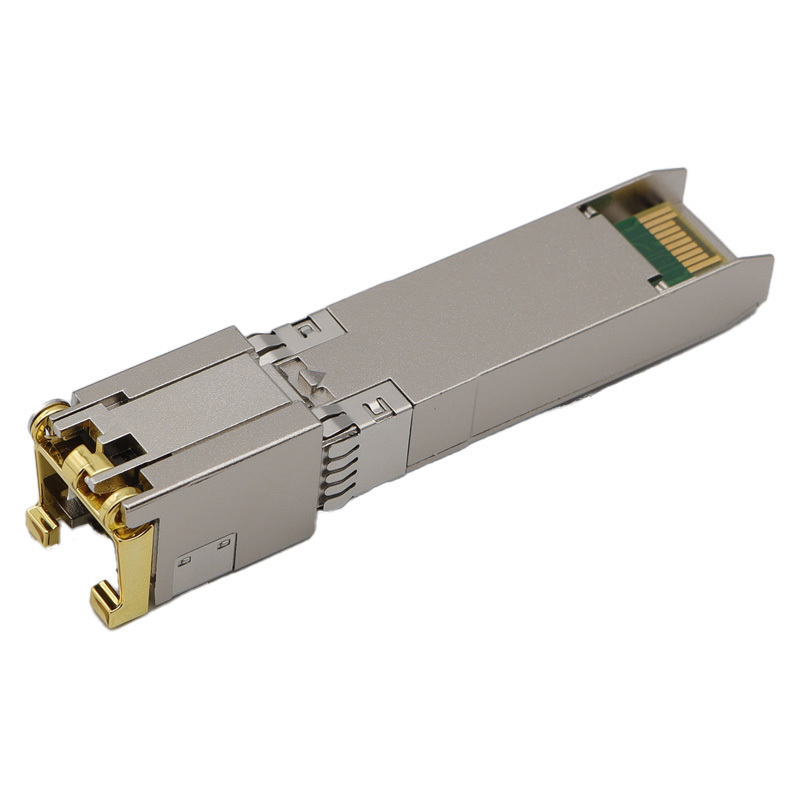

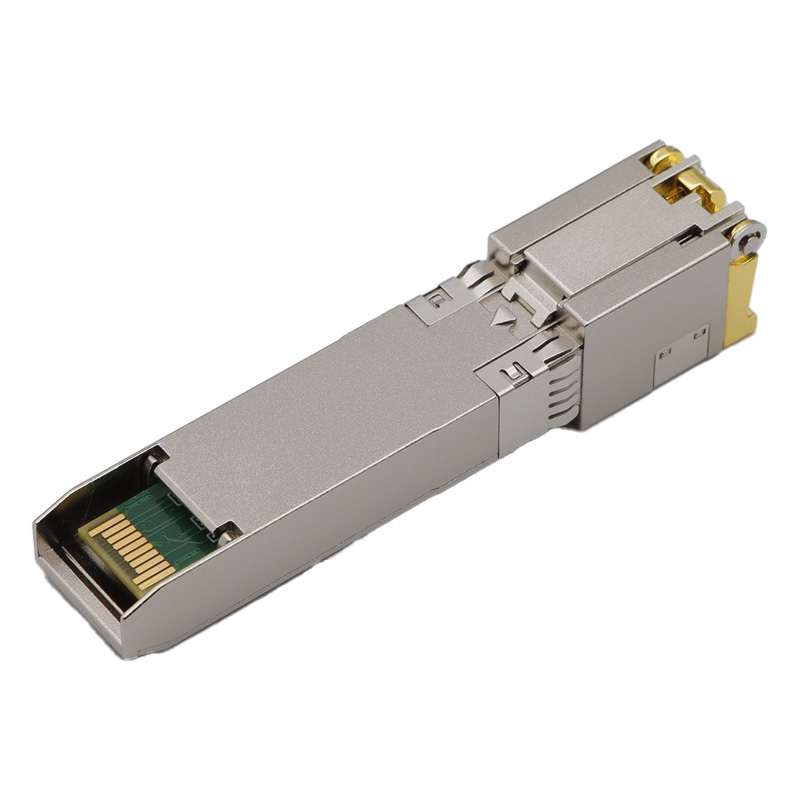

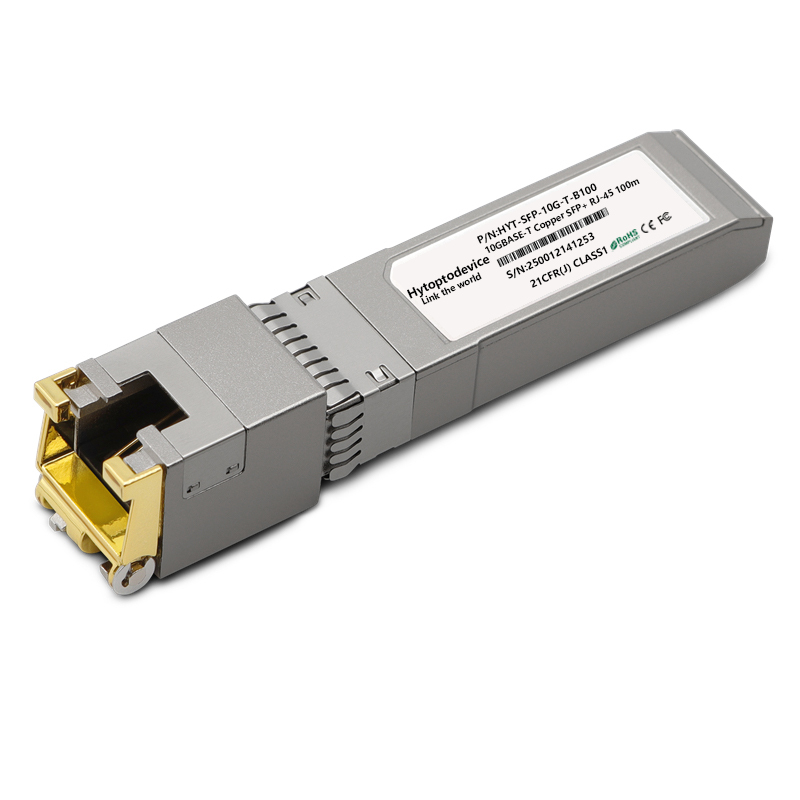

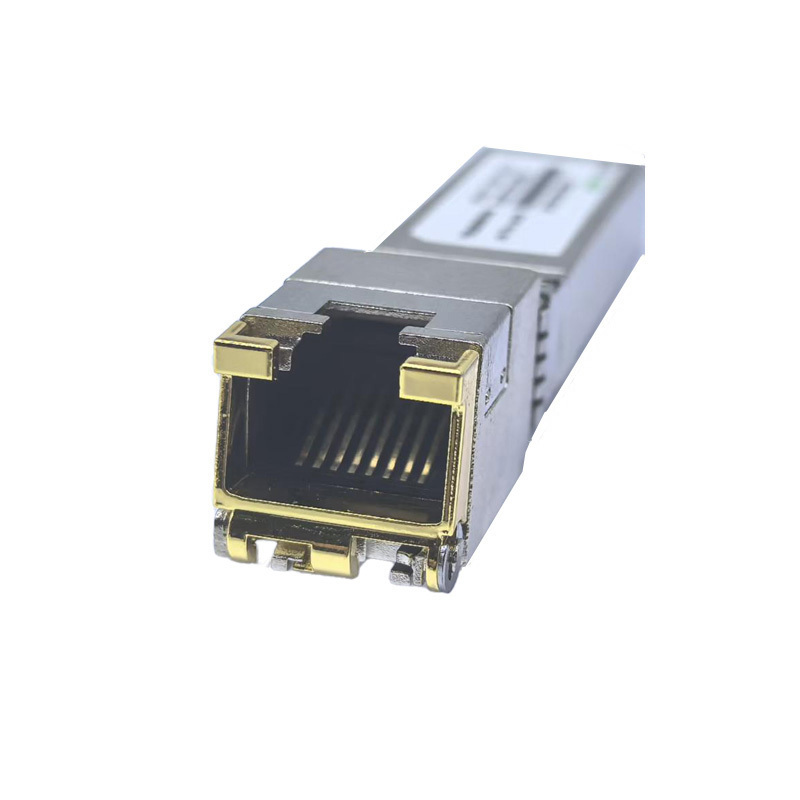

| Brocade Compatible | 10G-SFPP-T100 | Vendor Name | HYTOPTODEVICE |
| Form Factor | SFP+ | Data Rate | 10Gbps, 5Gbps, 2.5Gbps |
| Connector | RJ-45 | Cable Distance | 100m |
| Media | Copper | Cable Type | Cat6a/Cat7 |
| Max. Power Consumption | ≤2.0W | DDM Support | No |
| Protocols | IEEE 802.3-2012, IEEE 802.3az, SFP+ MSA, SFF-8432 | Operation Temperature | 0 to 70°C (32 to 158°F) |
To ensure optimal performance, device compatibility, and extended hardware lifespan, please follow these deployment best practices for your 10GBASE-T SFP+ RJ45 copper module:
Use Recommended Cabling: For maximum transmission distance up to 100 meters at 10Gbps, always use high-quality Cat6a or Cat7 shielded twisted pair (STP) cables. Standard Cat6 cables are limited to shorter distances (typically up to 30–55m) for 10G speeds.
Implement EMI Protection & Wiring: High-speed 10Gbps copper signals are highly sensitive to Electromagnetic Interference (EMI) and Alien Crosstalk. Always use shielded cables with fully grounded RJ45 connectors, and avoid running Ethernet cabling in parallel with high-voltage power lines or heavy electrical equipment.
Manage Thermal & Power Load: 10GBASE-T copper transceivers consume more power and generate higher heat than optical modules. Avoid installing multiple copper transceivers in adjacent ports; leave an empty slot between modules when possible to maintain optimal airflow and cooling.
Observe Proper Handling: Always handle the module by its sides or bail latch. Avoid touching the gold-finger contacts or applying excessive force when plugging the RJ45 cable to prevent physical or electrical damage.
Verify System Compatibility: Ensure your switch firmware is updated to support third-party or compatible transceivers. Allow 5–10 seconds after insertion for the switch OS (such as Juniper Junos) to auto-negotiate and recognize the module.
Follow Hot-Pluggable Protocols: While the module supports hot-swapping, it is recommended to insert the transceiver into the SFP+ port first, lock the bail latch, and then connect the network cable to avoid port signaling errors.
Following universal SFP+ MSA standards, the 10GBASE-T SFP+ RJ45 interconnects normally with Juniper, Huawei, Extreme, Intel, NVIDIA/Mellanox and other brand network hardware. Free EEPROM customization is available to eliminate unsupported transceiver alerts.
Standard / Open Platforms: Plug-and-play compatible out of the box with open-architecture hardware such as MikroTik, TP-Link, and Fortinet.
Vendor-Locked Platforms: We offer complimentary OEM firmware coding for strict or vendor-locked systems (e.g., Arista, Juniper, H3C, Huawei, Brocade, NVIDIA/Mellanox) prior to shipment—ensuring instant recognition and eliminating "unsupported transceiver" warnings.
The Core Features
FAQ
Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia
Quality Certification & Compliance
At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.
We adhere to rigorous standards for our SFP modules and network solutions:
ISO 9001: Certified quality management and production consistency.
CE & FCC: Fully compliant for seamless Global Market Access.
RoHS: Committed to environmental responsibility and hazardous material control.
Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.
Certified Quality. Global Standards. Guaranteed Performance.
