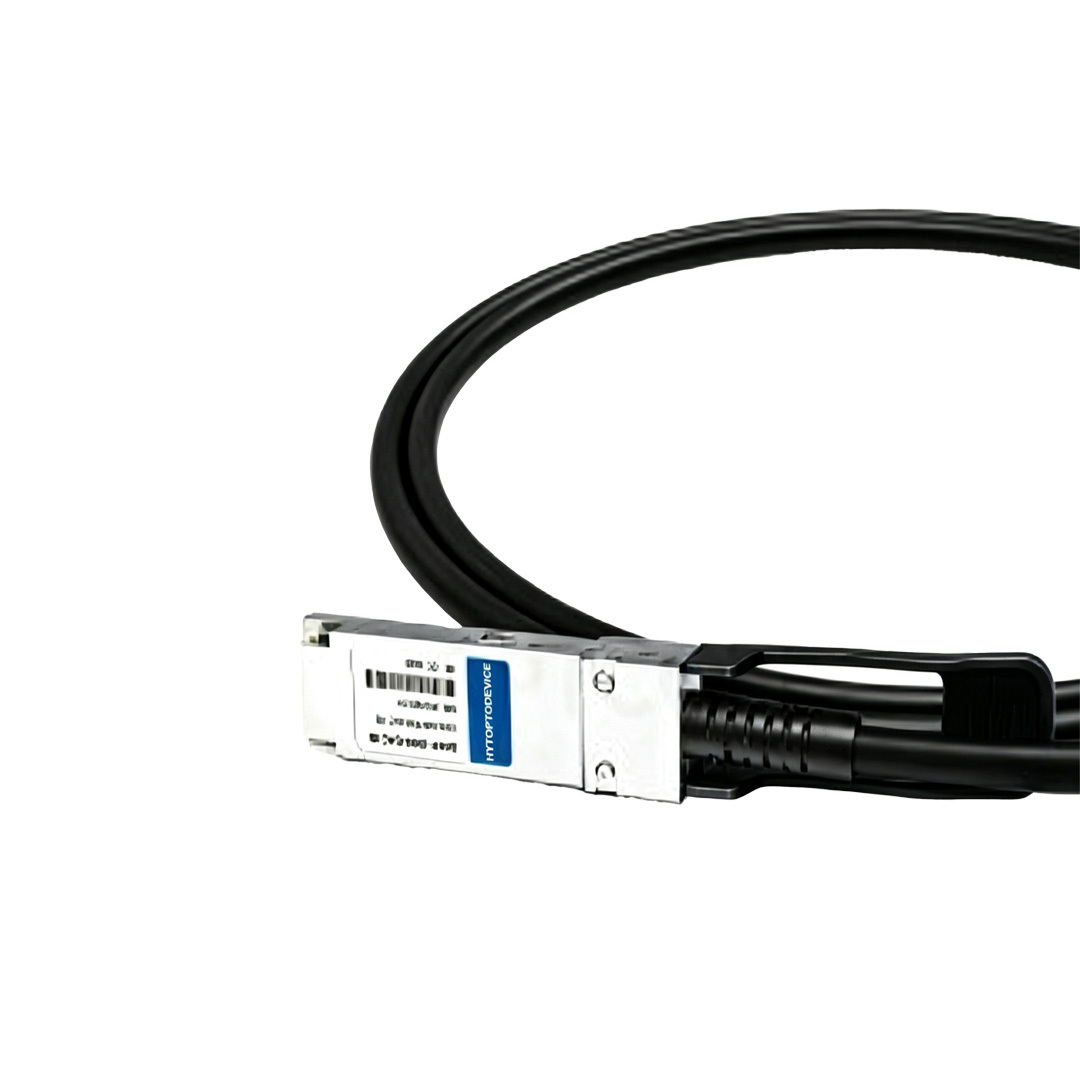

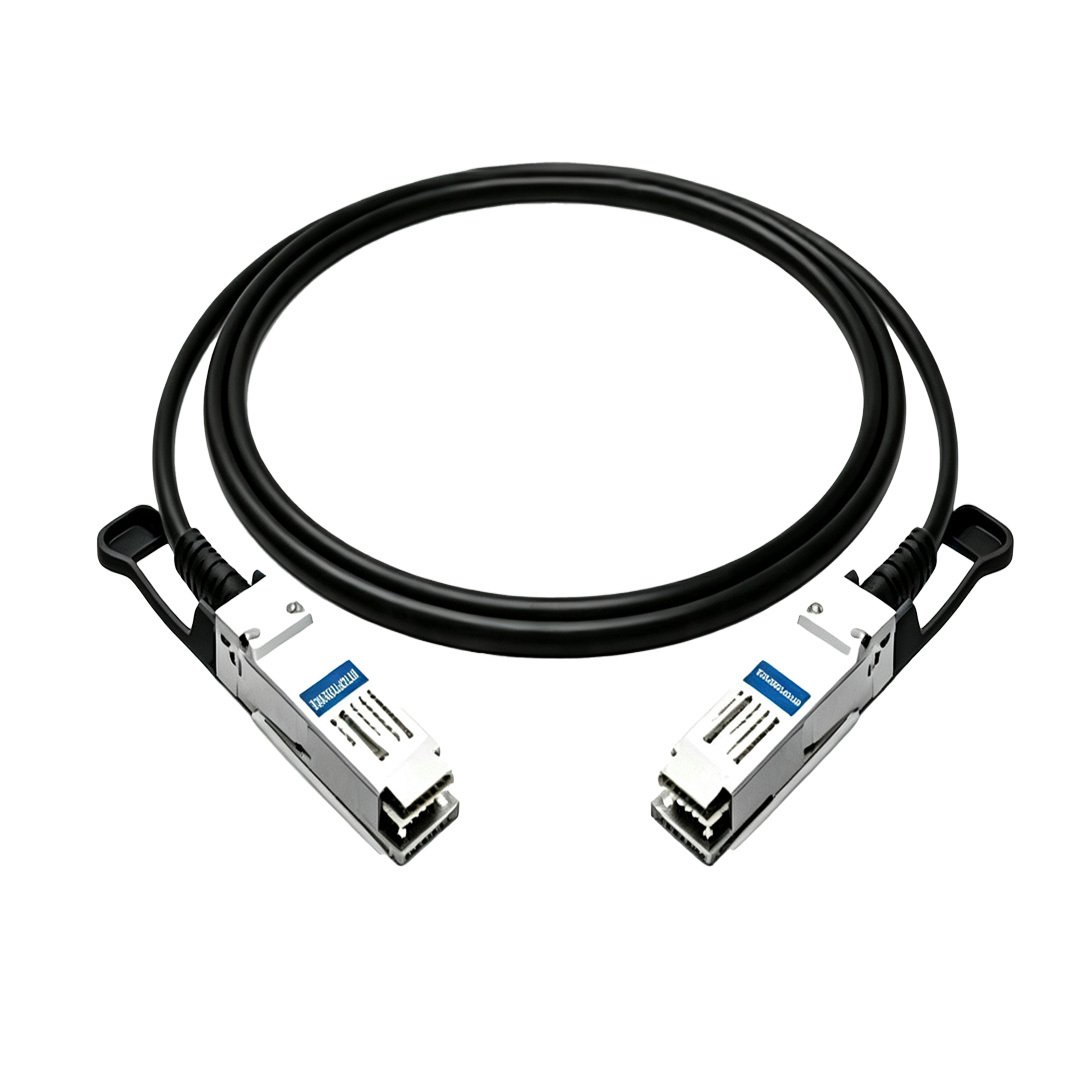

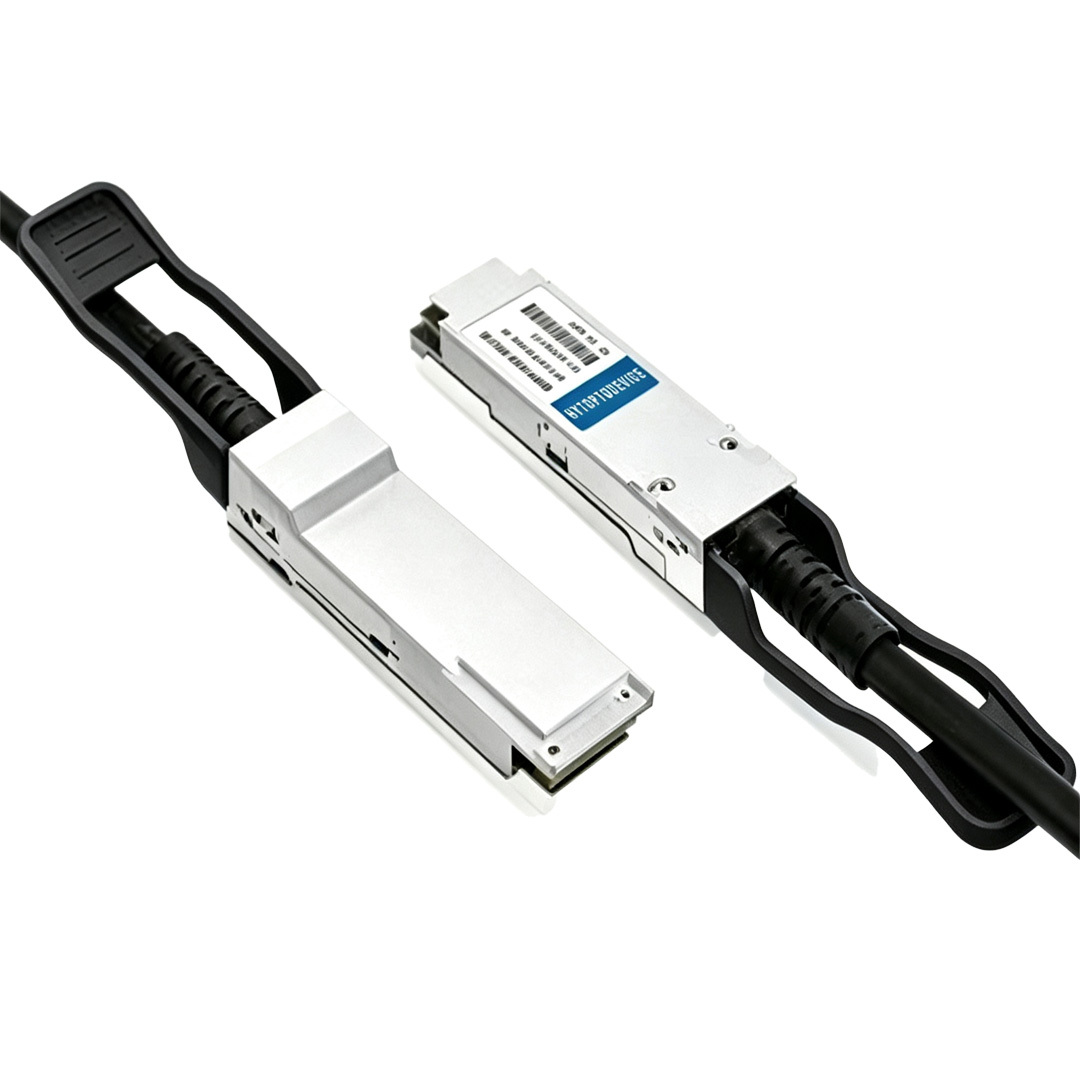

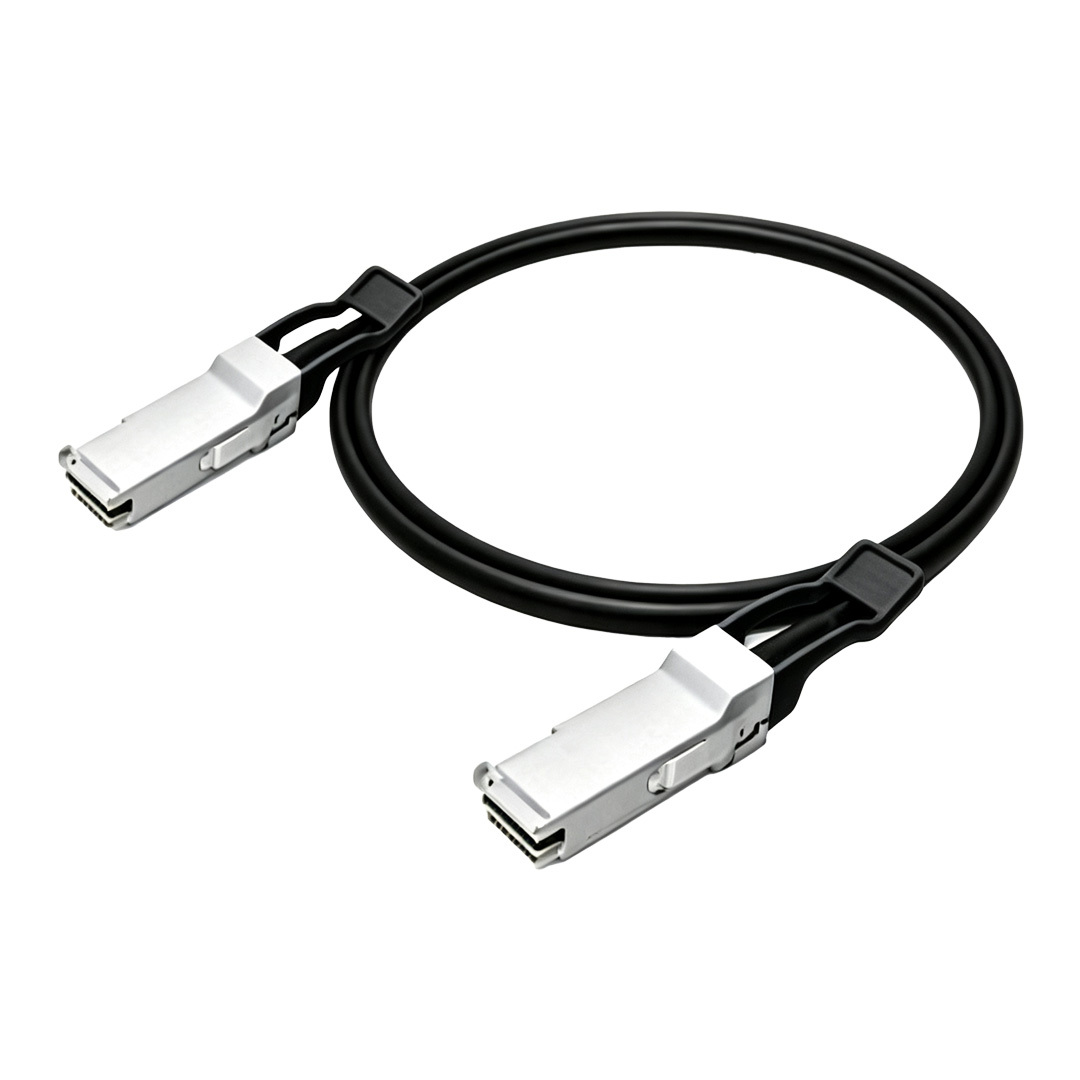

Huawei QSFP28-100G-CU3M Compatible 3m (10ft) 100G QSFP28 Passive DAC Copper Twinax Cable | HYTOPTODEVICE

HYTOPTODEVICE factory supplier delivers reliable 100G QSFP28 passive dac copper twinax cable, featuring low power consumption, high-speed direct-attach and compact cabling. Built with premium low-loss twinax copper, this 3m Huawei QSFP28-100G-CU3M compatible QSFP28 cable is pre-coded for Huawei VRP. Bulk order this high-performance DAC for low-latency intra-rack leaf-spine networking, HPC, AI clusters and low-risk 400G data center expansion.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-100G-CU3M
2 Arista Networks  CAB-Q-Q-100G-3M
3 Juniper QFX-QSFP28-DAC-3M
4 Brocade 100G-Q28-Q28-C-0301
5 Dell  DAC-Q28-100G-3M
6 Huawei QSFP28-100G-CU3M
Description

Huawei QSFP28-100G-CU3M Compatible 3m (10ft) 100G QSFP28  Passive DAC Copper Twinax Cable | HYTOPTODEVICE

Product Overview

HYTOPTODEVICE 3m 100G QSFP28 passive dac copper twinax cable is a plug-and-play drop-in replacement for Huawei QSFP28-100G-CU3M. Manufactured to SFF-8662 and IEEE 802.3bj MSA standards, it leverages premium low-loss twinax copper material to sustain stable 100GBASE-CR4 high-speed transmission between paired QSFP28 ports. This high-speed direct-attach cable stands out for low power consumption, high-speed direct-attach and compact cabling. Its passive design draws zero power, eliminates extra transceiver electronics, and the slim 30AWG twinax construction simplifies dense rack routing. It supports hot swap and ultra-low latency, ideal for leaf-spine fabrics, AI compute, HPC and storage networking. We keep sufficient stock of this 100G QSFP28 passive dac copper twinax cable for wholesalers, distributors and system integrators building Huawei VRP-based data center fabrics. Every cable is pre-programmed with Huawei-matched EEPROM signatures to eliminate unsupported transceiver warning logs. Sample testing, bulk orders and OEM private label services are available for Huawei solution partners.

Key Technical Specifications

Huawei Compatible
 QSFP28-100G-CU3M
Vendor Name HYTOPTODEVICE
Connector QSFP28 to QSFP28 Max Data Rate 100Gbps
Cable Length 3m (10ft) Wire AWG AWG 26
Cable Type Passive Twinax Power Consumption ≤0.5W
Media Copper Operation Temperature 0~ 70 °C (32 to 158°F)
Jacket Material PVC(OFNR) Protocols QSFP28 MSA, SFF-8662, IEEE 802.3
Minimum Bend Radius 50mm Application 100 Gigabit Ethernet

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Mandatory Port Setting: Host QSFP28 port must enable 100GBASE-CR4 mode; link negotiation failure will happen if forced to optical mode.

  • Cabling Requirements: Do not exceed the minimum 50mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.

  • Port Installation Standard: Works only with standard QSFP28 100G ports; cannot be inserted into SFP+ or XFP slots. Disable the host’s third-party transceiver lock policy in advance if required.

  • Maintenance Specification: Hot‑swap supported, grip the pull tab instead of pulling the cable body during plug/unplug to prevent internal conductor damage.

  • Testing & Storage: Run sample validation on target hardware before large bulk deployment; store spare cables in dry, dust‑free and anti‑static packaging.
  • Operating Environment: This commercial-grade cable operates reliably within 0℃‑70℃; avoid installation beside high-heat power modules.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Huawei Hardware & Firmware

  • Huawei CloudEngine CE6800 series:CE6855-48XS8CQ, CE6857-48S6CQ, CE6863-48S6CQ, CE6865-48S8CQ, CE6881-48S8CQ
  • Huawei CloudEngine CE8800 series:CE8850-64CQ-EI, CE8855-32CQ-EI, CE8865-4C, CE8875-24BQ8DQ
  • Huawei CloudEngine CE12700 series:CE12704, CE12708, CE12712 (100G QSFP28 line cards)
  • Huawei TaiShan Servers:TaiShan 2280, 5280, 2480 with SP570, SP580 QSFP28 100G NIC adapters
  • Firmware:Huawei VRP V800R021, V800R022, V800R023, V800R025

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this 100G QSFP28 passive copper twinax cable can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios
  • Upgrade and expand data center for 400G migration
  • Intra-rack leaf-spine 100G fabric interconnection
  • Short-range links between storage arrays and top-of-rack switches
  • Hyper-converged infrastructure and distributed storage backend cabling
  • Low latency 100G links for virtualization, AI compute and HPC racks
  • Bulk stock purchase for distributors and Huawei data center solution partners

Connectivity Solutions(Applications)

1. 100G to 100G Direct Link for Switch-Switch
HYTOPTODEVICE QSFP-100G-CU1M compatible  100G QSFP28 passive DAC copper twinax cable in stock for wholesale buyers


2. 100G to 100G Direct Link for Switch-NIC
 100G QSFP28 passive DAC copper twinax cable for data center integrators


3.
Upgrade Solution for 400G Data Center Network





The Core Feature

1. Cost-Effective Ultra-Short Connectivity

Using twinax copper, the 100G passive copper cable replaces a fiber pair and two optical transceivers, significantly cutting interconnect cost for short-reach links — plug-and-play, no modules required.

2. Ultra-Low Power, Maximum Energy Efficiency

The 100g qsfp28 passive copper twinax cable draws near-zero power, reducing heat and energy costs in dense racks, while delivering a cost-effective, low-latency 100G link for short-reach connections — within a rack or across adjacent racks.


3.Host-Device Tested for Proven Interoperability

Every 100g passive copper twinax cable is rigorously tested for compatibility in the target switch environment, so you can deploy with confidence — no surprises, no downtime. Not sure it fits? Compatibility Video available upon request.

hytoptodevice wholesale 40G QSFP+ twinax cable for data center

4. 100% Individually Tested for Peak Performance

Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our Test Center.

HYTOPTODEVICE  QSFP+ to QSFP+ 40g qsfp+ dac cable for switches

FAQ

Q1: How does 3-meter cable insertion loss affect link negotiation on Huawei CloudEngine VRP platforms? A: 3m stays within the 5-meter MSA loss budget for 100GBASE-CR4, but extra copper length brings higher insertion loss than shorter 1m/2m variants. HYTOPTODEVICE 100G QSFP28 passive dac copper twinax cable uses strictly screened low-loss twinax to guarantee stable link training on Huawei VRP.

Q2: Why select passive twinax DAC instead of active retimer DAC for fixed 3m ToR links on Huawei data center switches? A: Passive twinax has no powered signal compensation chips and consumes zero watts, lowering power cost and failure points. Active DAC relies on built-in ICs that draw continuous power. HYTOPTODEVICE high-speed direct-attach DAC is ideal for stable short-range leaf-spine connections.

Q3: Is this compact 3m 100G QSFP28 passive dac copper twinax cable suitable for cross-row rack interconnections? A: This 100G QSFP28 passive dac copper twinax cable is not engineered for cross-row inter-rack connections. It works only for adjacent racks or ToR to EoR connections with total path length under 5m. Cross-row cabling often exceeds reach limits and raises EMI exposure. HYTOPTODEVICE recommends AOC or fiber transceivers for cross-row or long-distance inter-rack cabling.

Q4: When should network architects choose AOC rather than 3m passive twinax DAC in Huawei cloud fabrics? A: Copper twinax is limited by frequency-related attenuation and EMI susceptibility. AOC converts electrical signals to light and breaks copper distance constraints. HYTOPTODEVICE supplies both low-power 100G QSFP28 passive dac copper twinax cable and matching AOC for mixed-distance fabric planning.

Q5: Can long-time high-temperature operation inside Huawei CE series switch cabinets gradually degrade twinax signal quality? A: Persistent high ambient temperature increases copper resistance and shrinks usable signal margin over time. HYTOPTODEVICE 100G QSFP28 passive dac copper twinax cable passes rigorous aging and thermal cycling tests from 0°C to 70°C for consistent cloud fabric performance.

Q6: What causes VRP to report unrecognized transceiver alarms for generic third-party 100G DAC cables? A: VRP reads built-in vendor EEPROM identifiers on port initialization. Mismatched identifier data triggers warning logs and may interrupt link establishment. Each HYTOPTODEVICE 100G QSFP28 passive dac copper twinax cable is pre-flashed and validated for Huawei VRP to avoid these compatibility alarms.

Q7: Can I get a single 100G QSFP28 passive dac copper twinax cable programmed for Huawei on one connector and another OEM on the opposite end? A: Our standard 100G QSFP28 passive dac copper twinax cable cannot support asymmetric dual-brand EEPROM coding. Matching vendor signatures on both ends are required for reliable port handshake. Contact the HYTOPTODEVICE sales team for custom EEPROM development for multi-vendor fabric deployments.

Q8: What diagnostic metrics can VRP retrieve from this passive 100G QSFP28 DAC copper twinax cable? A: Only standard MSA DOM parameters are available; Huawei exclusive proprietary telemetry functions do not work on chip-free passive copper assemblies. HYTOPTODEVICE preloads standard MSA DOM records so VRP can read cable identity and basic performance counters.

Q9: What latency difference can be measured between this 3m 100G QSFP28 passive dac copper twinax cable and fiber links on TaiShan HPC clusters? A: Passive twinax DAC delivers marginally lower latency than fiber links. Electrical signals travel faster in solid copper twinax than light inside optical fiber, with typical latency gap below 1ns. Low-latency HYTOPTODEVICE high-speed direct-attach DAC fits latency-sensitive AI training and HPC workloads.

Q10: How well does the fully shielded twinax construction suppress EMI noise near high-current power cables? A: Complete copper shielding effectively reduces induced electrical interference, though copper media remains less noise-resistant than fiber when routed alongside power harnesses. HYTOPTODEVICE 100G QSFP28 passive dac copper twinax cable complies with global EMC and EMI specifications.

Q11: What error trends indicate slow signal deterioration on a 3m low-loss 100G QSFP28 passive dac copper twinax cable? A: Performance degradation normally appears as steadily rising CRC error counters before unexpected link drop. A compressed signal eye window creates random bit flips logged as CRC faults. If these errors occur, verify the HYTOPTODEVICE 100G QSFP28 passive dac copper twinax cable follows rated length and bend guidelines.

Q12: What permanent harm will over-bending bring to differential twinax conductors inside this DAC? A: Bending tighter than the 5× outer-diameter minimum bend radius permanently distorts differential twinax pairs, creating impedance discontinuities and recurring bit errors. Careful cable routing protects your HYTOPTODEVICE compact cabling DAC from invisible mechanical damage.

Q13: What airflow challenges appear when bundling multiple 3m 100G QSFP28 passive dac copper twinax cables in a shared cable tray? A: Thick copper cable bundles block front-to-back airflow and trap heat around Huawei switch ports, raising component operating temperature. HYTOPTODEVICE adopts slim 30AWG twinax to reduce bundle thickness and preserve airflow in high-density rack layouts.

Q14: Where does heat come from when deploying zero-power 100G QSFP28 passive dac copper twinax cable on CloudEngine switches? A: The passive DAC itself generates almost no heat due to zero-power design. All thermal load originates from the host switch ASIC and QSFP28 port electronics, not the copper cable. HYTOPTODEVICE connector shells use thermally balanced plastic to support normal port cooling.

Q15: For Huawei 3-meter intra-rack leaf-spine AI and storage fabrics, why is passive twinax DAC preferred over AOC? A: It provides low power consumption, compact cabling and lower hardware cost for runs under 5 meters without active electronics. HYTOPTODEVICE high-speed direct-attach DAC is a cost-effective option for dense Huawei leaf-spine, storage and AI rack deployments.

Q16: How do power consumption figures compare for passive twinax DAC, active retimer DAC and matched pairs of 100G optical transceivers? A: 100G QSFP28 passive dac copper twinax cable consumes 0W. Active retimer DAC draws roughly 1–2W per end, while a matched pair of optical transceivers normally consumes 3–6W total. Zero-power HYTOPTODEVICE 100G QSFP28 passive dac copper twinax cable cuts rack power draw and reduces overall data center TCO.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.
