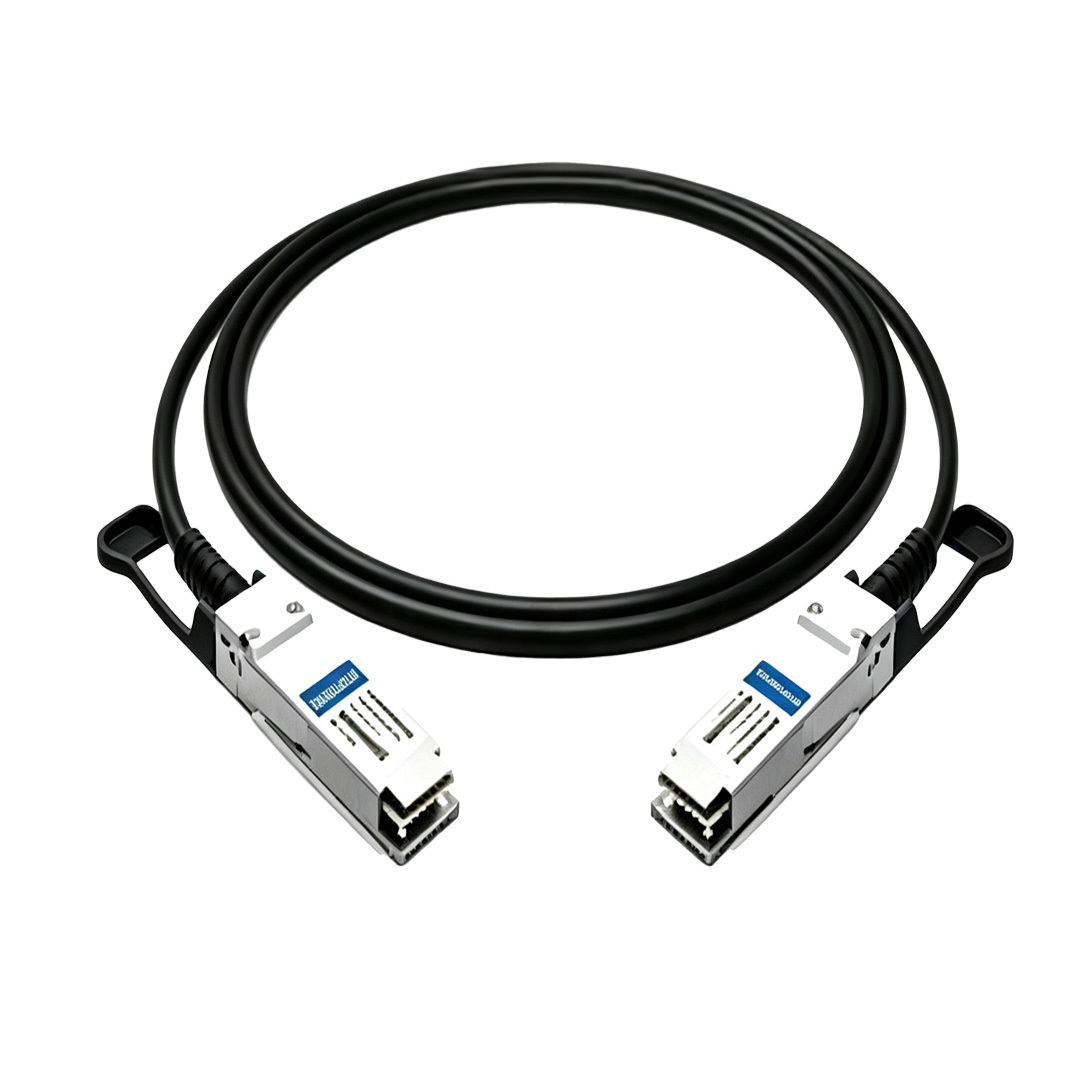

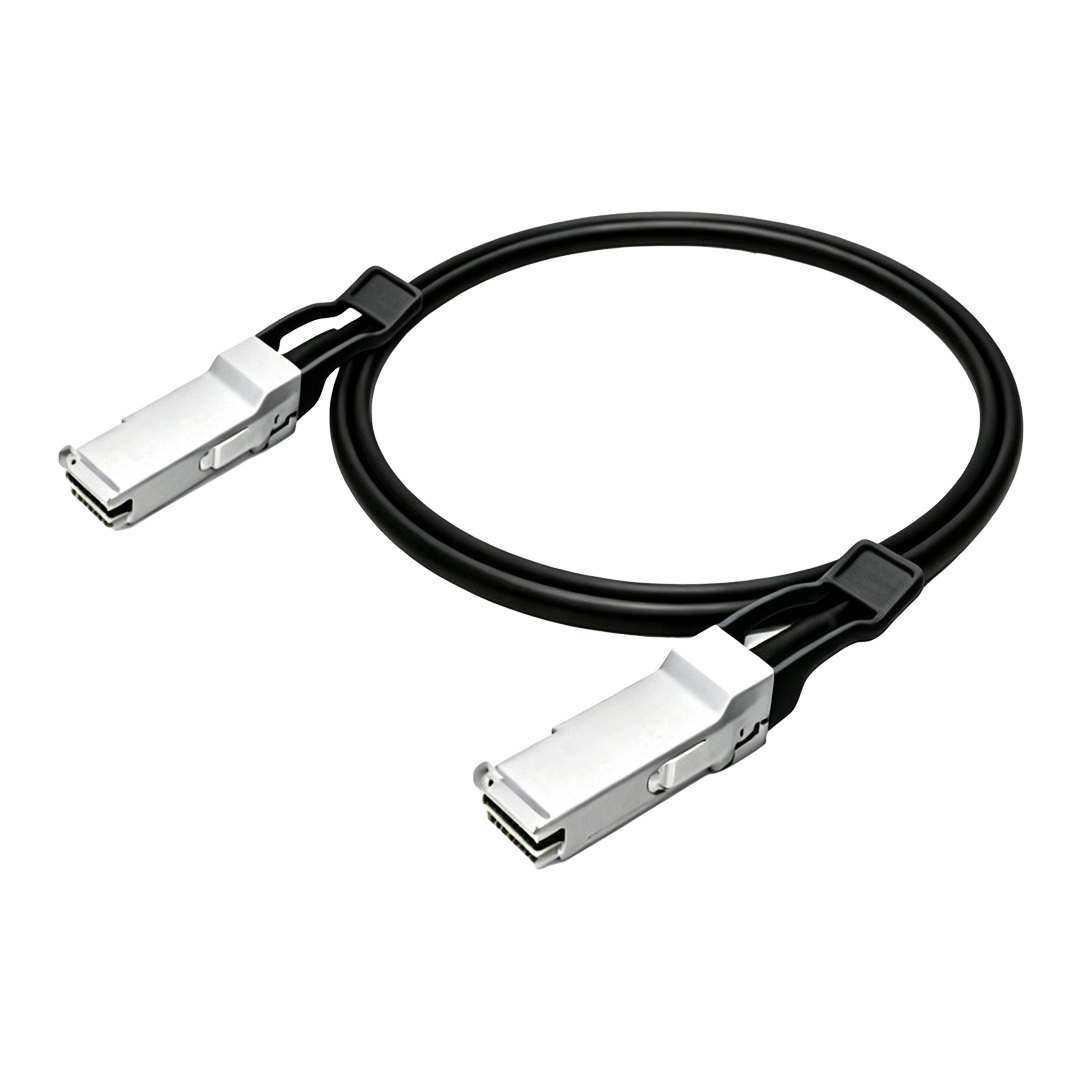

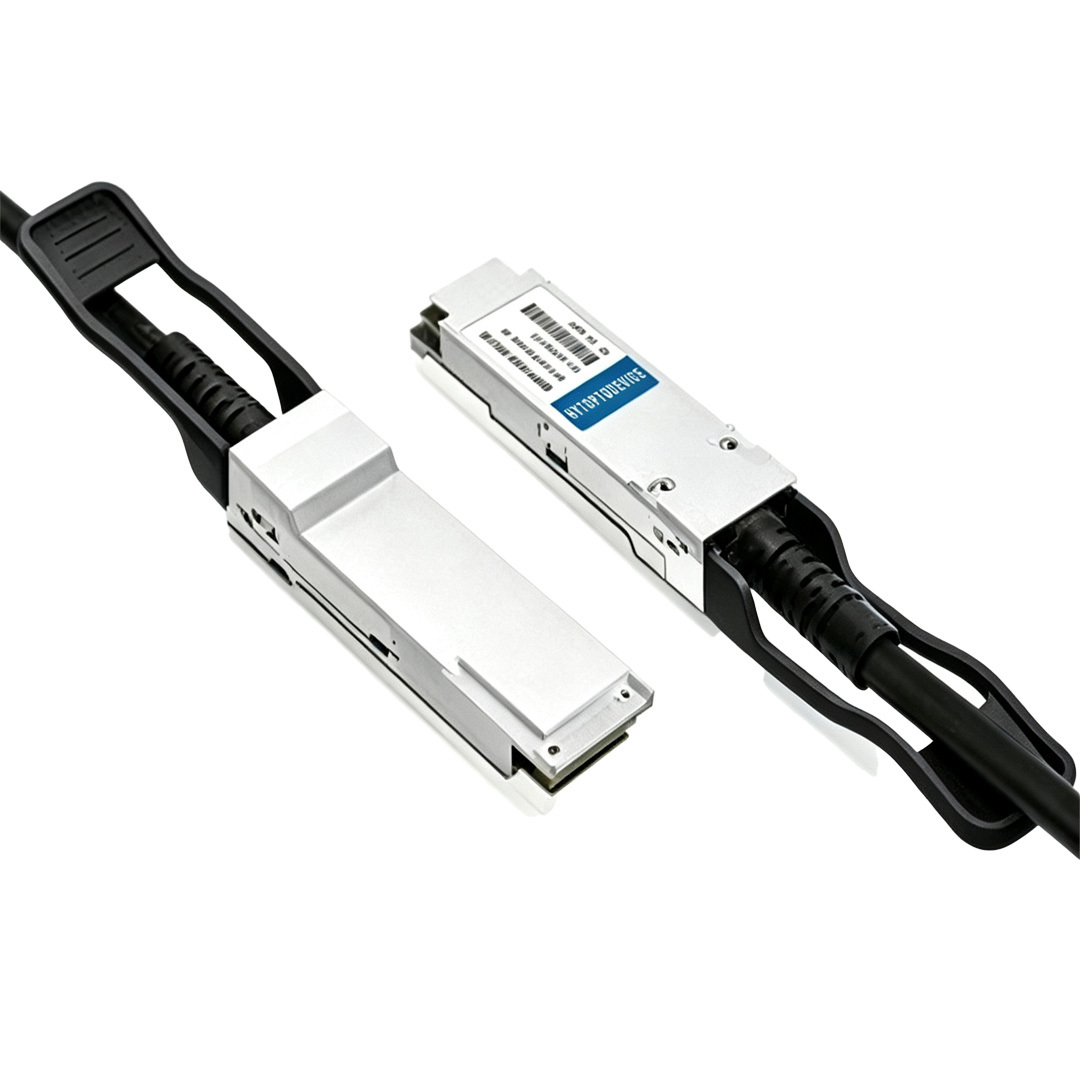

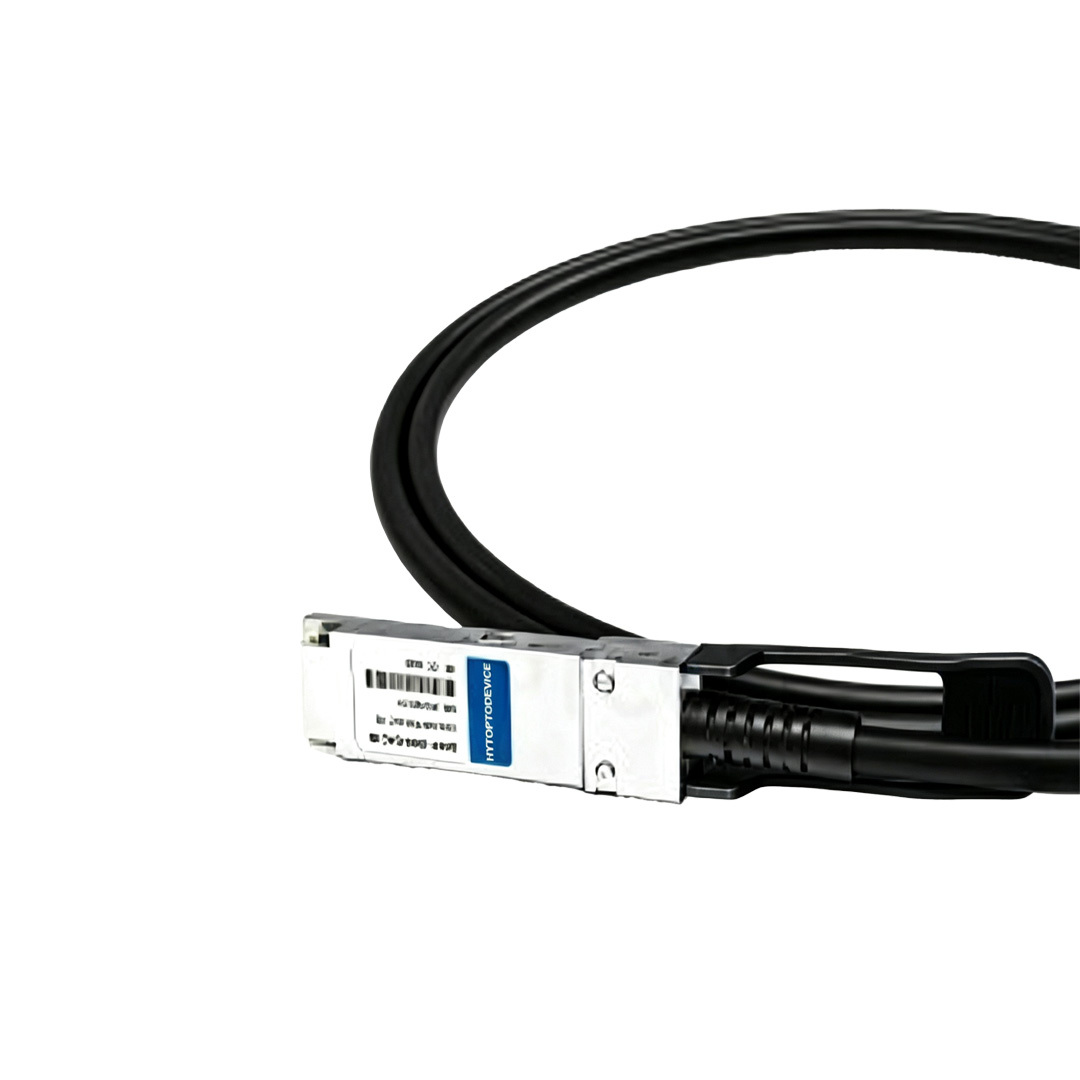

Huawei QSFP28-100G-CU2M Compatible 2m (7ft) 100G QSFP28 Direct Attach Copper(DAC) Passive Cable | HYTOPTODEVICE

HYTOPTODEVICE factory manufacturer supplies reliable 100G QSFP28 Passive direct attach copper cable with zero power draw and stable signal integrity. This 2m Huawei QSFP28-100G-CU2M compatible QSFP28 twinax cable is pre-coded for Huawei VRP OS. Bulk purchase this passive direct attach copper cable for low-latency intra-rack leaf-spine networking, storage links and low-risk 400G data center migration.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-100G-CU2M
2 Arista Networks  CAB-Q-Q-100G-2M
3 Juniper QFX-QSFP28-DAC-2M
4 Brocade 100G-Q28-Q28-C-0201
5 Dell  DAC-Q28-100G-2M
6 Huawei QSFP28-100G-CU2M
Description

Huawei QSFP28-100G-CU2M Compatible 2m (7ft) 100G QSFP28 Direct Attach Copper(DAC) Passive Cable | HYTOPTODEVICE

Product Overview

HYTOPTODEVICE 2m 100G QSFP28 passive direct attach copper cable is a plug-and-play replacement for Huawei QSFP28-100G-CU2M. Built to SFF-8662 and IEEE 802.3bj MSA standards, this twinax cable delivers consistent 100GBASE-CR4 bandwidth between paired QSFP28 ports. It features fully passive zero-power design, ultra-low latency and hot-swap capability to support non-disruptive maintenance for Huawei CloudEngine switch chassis.
We maintain sufficient inventory of this passive direct attach copper cable for wholesalers, distributors and system integrators building Huawei VRP-based data center fabrics. Every cable is pre-programmed with Huawei-matched EEPROM signatures to eliminate unsupported transceiver warning logs. Sample testing, bulk orders and OEM private label service are available for Huawei solution partners.

Key Technical Specifications

Huawei Compatible
 QSFP28-100G-CU2M
Vendor Name HYTOPTODEVICE
Connector QSFP28 to QSFP28 Max Data Rate 100Gbps
Cable Length 2m (7ft) Wire AWG AWG 30
Cable Type Passive Twinax Power Consumption ≤0.5W
Media Copper Operation Temperature 0~ 70 °C (32 to 158°F)
Jacket Material PVC(OFNR) Protocols QSFP28 MSA, SFF-8662, IEEE 802.3
Minimum Bend Radius 35mm Application 100 Gigabit Ethernet

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Mandatory Port Setting: Host QSFP28 port must enable 100GBASE-CR4 mode; link negotiation failure will happen if forced to optical mode.

  • Cabling Requirements: Do not exceed the minimum 35mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.

  • Port Installation Standard: Works only with standard QSFP28 100G ports; cannot be inserted into SFP+ or XFP slots. Disable the host’s third-party transceiver lock policy in advance if required.

  • Maintenance Specification: Hot‑swap supported, grip the pull tab instead of pulling the cable body during plug/unplug to prevent internal conductor damage.

  • Testing & Storage: Run sample validation on target hardware before large bulk deployment; store spare cables in dry, dust‑free and anti‑static packaging.
  • Operating Environment: This commercial-grade cable operates reliably within 0℃‑70℃; avoid installation beside high-heat power modules.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Huawei Hardware & Firmware

  • Huawei CloudEngine CE6800 series:CE6855-48XS8CQ, CE6857-48S6CQ, CE6863-48S6CQ, CE6865-48S8CQ, CE6881-48S8CQ
  • Huawei CloudEngine CE8800 series:CE8850-64CQ-EI, CE8855-32CQ-EI, CE8865-4C, CE8875-24BQ8DQ
  • Huawei CloudEngine CE12700 series:CE12704, CE12708, CE12712 (100G QSFP28 line cards)
  • Huawei TaiShan Servers:TaiShan 2280, 5280, 2480 with SP570, SP580 QSFP28 100G NIC adapters
  • Firmware:Huawei VRP V800R021, V800R022, V800R023, V800R025

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this 100G QSFP28 passive copper twinax cable can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios
  • Huawei VRP leaf-spine 100G fabric intra-rack interconnection
  • Short links between storage arrays and Huawei top-of-rack switches
  • Direct replacement for original Huawei QSFP28-100G-CU1M 100G QSFP28 passive dac cable
  • Hyper-converged infrastructure and distributed storage backend cabling
  • Low latency 100G links for virtualization clusters and AI compute racks
  • Stock replenishment purchase for IT distributors and Huawei data center solution partners
  • Upgrade and expand data center for 400G migration

Connectivity Solutions(Applications)

1. 100G to 100G Direct Link for Switch-Switch
HYTOPTODEVICE QSFP-100G-CU1M compatible  100G QSFP28 passive DAC copper twinax cable in stock for wholesale buyers


2. 100G to 100G Direct Link for Switch-NIC
 100G QSFP28 passive DAC copper twinax cable for data center integrators


3.
Upgrade Solution for 400G Data Center Network





The Core Feature

1. Cost-Effective Ultra-Short Connectivity

Using twinax copper, the 100G passive copper cable replaces a fiber pair and two optical transceivers, significantly cutting interconnect cost for short-reach links — plug-and-play, no modules required.

2. Ultra-Low Power, Maximum Energy Efficiency

The 100g qsfp28 passive copper twinax cable draws near-zero power, reducing heat and energy costs in dense racks, while delivering a cost-effective, low-latency 100G link for short-reach connections — within a rack or across adjacent racks.

QSFP+ form factor 40g qsfp+ dac cable with low power consumption

3.Host-Device Tested for Proven Interoperability

Every 100g passive copper twinax cable is rigorously tested for compatibility in the target switch environment, so you can deploy with confidence — no surprises, no downtime. Not sure it fits? Compatibility Video available upon request.

hytoptodevice wholesale 40G QSFP+ twinax cable for data center

4. 100% Individually Tested for Peak Performance

Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our Test Center.

HYTOPTODEVICE  QSFP+ to QSFP+ 40g qsfp+ dac cable for switches

FAQ

Q1: What is the maximum reliable operating length for standard passive direct attach copper cable at 100G? A: Standard passive direct attach copper cable follows MSA rules with a maximum reliable reach of 5 meters for 100GBASE-CR4. Beyond this distance, 25G per-lane signal loss exceeds receiver sensitivity limits. HYTOPTODEVICE passive direct attach copper cable lineup covers all standard lengths up to 5m; longer connections require active retimer DAC or fiber AOC.

Q2: Why does high-frequency signal attenuation get worse as passive direct attach copper cable length increases? A: Skin effect and dielectric loss grow sharply at 25G serial frequencies, which weakens signals on longer copper twinax. More length reduces the signal eye margin and lowers transmission stability. HYTOPTODEVICE passive direct attach copper cable adopts low-loss twinax material to keep attenuation within acceptable limits for its rated length.

Q3: Can I deploy passive direct attach copper cable for inter-rack cabling inside a data center? A: Passive direct attach copper cable is not suitable for most inter-rack deployments. They only work for adjacent racks or top-of-rack (ToR) to end-of-row (EoR) switches within close proximity (under 5 meters). Longer inter-rack runs often exceed the 5m passive DAC limit and bring extra crosstalk and EMI risk. HYTOPTODEVICE recommends AOC or fiber transceivers for cross-room or long-distance inter-rack data center connections.

Q4: Why do infrastructure engineers pick AOC over passive direct attach copper cable for links longer than 5 meters? A: Active optical cables break the copper attenuation limit and maintain stable connections over extended distances. Optical signals are immune to EMI and crosstalk, unlike copper twinax. HYTOPTODEVICE supplies both passive direct attach copper cable and matching AOC products to meet different reach requirements.

Q5: How does changing rack ambient temperature affect the usable signal reach of passive direct attach copper cable? A: Higher temperature raises copper resistance and amplifies signal attenuation, shrinking the available link margin. HYTOPTODEVICE passive direct attach copper cable passes thermal cycle testing from 0°C to 70°C to guarantee stable performance under typical data center thermal conditions.

Q6: What problems will occur when the EEPROM of a passive direct attach copper cable is mismatched with my Huawei switch? A: Incorrect EEPROM coding triggers unsupported transceiver alerts and may block link negotiation. Most enterprise switches verify vendor signature at startup. Every HYTOPTODEVICE passive direct attach copper cable is pre-coded and validated for Huawei VRP and other target platforms to avoid handshake failures.

Q7: Can one passive direct attach copper cable carry separate vendor EEPROM profiles on each end, such as Huawei on one side and another brand on the other? A: Our standard passive direct attach copper cable does not support dual dissimilar vendor coding on two ends. A unified vendor signature is required for stable port handshake. Contact the HYTOPTODEVICE sales team to discuss custom EEPROM engineering for special mixed-vendor fabric projects.

Q8: Does passive direct attach copper cable support vendor-exclusive telemetry and DOM monitoring on Huawei switches? A: Passive direct attach copper cable only supports basic MSA DOM readouts; proprietary vendor telemetry functions are unavailable. This copper assembly contains no optical laser or receiver chips. HYTOPTODEVICE preloads standard MSA DOM data so your Huawei VRP switch can read cable ID and baseline diagnostic information.

Q9: Is there a measurable latency gap between passive direct attach copper cable and fiber patch cords? A: Passive direct attach copper cable delivers slightly lower latency than fiber links. Electrical signals travel faster in copper than light in glass fiber, with the typical difference below 1 nanosecond. Low-latency HYTOPTODEVICE passive direct attach copper cable fits AI, HPC and low-latency leaf-spine deployments.

Q10: Can passive direct attach copper cable pick up EMI noise in high-density data center racks? A: Copper twinax is more susceptible to EMI than fiber, but full shielding can greatly suppress interference. Poor routing near high-current power cables may still introduce noise. HYTOPTODEVICE passive direct attach copper cable uses full shielded construction to meet global EMI compliance standards.

Q11: What symptoms show signal degradation on passive direct attach copper cable, and will it drop links instantly? A: Gradual signal degradation normally creates rising CRC error counters before full link loss. A shrinking signal eye window causes random bit flips that register as CRC faults. If CRC errors appear, confirm your HYTOPTODEVICE passive direct attach copper cable is used within rated length and bend specifications.

Q12: Will tight bending inside cable managers permanently damage the conductors inside passive direct attach copper cable? A: Bending below the minimum bend radius will deform internal twinax conductors and permanently hurt signal quality. This cable requires a minimum bend radius equal to 5 times its outer diameter. Careful routing protects your HYTOPTODEVICE passive direct attach copper cable from hidden mechanical damage and bit errors.

Q13: Can thick bundles of passive direct attach copper cable block airflow and cause thermal overheating for network hardware? A: Dense, tightly bundled copper cables can block front-to-back rack airflow and raise component temperatures. Copper retains more heat than thin fiber cabling. HYTOPTODEVICE uses slim 30AWG wire for passive direct attach copper cable to reduce bulk and preserve airflow in dense racks.

Q14: Do the connector shells of passive direct attach copper cable provide proper thermal dissipation? A: Passive direct attach copper cable has almost no active electronics inside connectors and generates negligible heat. Most heat comes from the host switch ASIC port, not the cable itself. HYTOPTODEVICE connector housings adopt thermally optimized plastic to support normal port cooling.

Q15: In which scenarios should I choose passive direct attach copper cable instead of 100G AOC? A: Select passive direct attach copper cable for short intra-rack runs under 5m to cut power consumption and deployment cost. It operates at zero power and simplifies installation work. HYTOPTODEVICE passive direct attach copper cable is the cost-effective option for short leaf-spine connections within a single rack.

Q16: What are the power consumption differences among passive direct attach copper cable, active DAC and optical transceiver links? A: Passive direct attach copper cable consumes 0W. Active retimer DAC draws roughly 1–2W per end, while a pair of optical transceivers usually consumes 3–6W total. Zero-power HYTOPTODEVICE passive direct attach copper cable reduces rack power load and lowers overall data center TCO.
