Huawei QSFP28-100G-CU1M Compatible 1m (3ft) 100G QSFP28 Passive DAC Cable | HYTOPTODEVICE

HYTOPTODEVICE trusted factory manufacturer supplies reliable 100G QSFP28 passive dac cable with zero power draw, ultra-low latency and neat compact routing. This 1m Huawei QSFP28-100G-CU1M compatible QSFP28 to QSFP28 direct attach twinax cable is pre-programmed for Huawei VRP platforms. Bulk order this 100G DAC cable for leaf-spine fabrics, storage networking and intra-rack AI server interconnection.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-100G-CU1M
2 Arista Networks  CAB-Q-Q-100G-1M
3 Juniper QFX-QSFP28-DAC-1M
4 Brocade 100G-Q28-Q28-C-0101
5 Dell  DAC-Q28-100G-1M
6 Huawei QSFP28-100G-CU1M
7 H3C  QSFP-100G-D-CAB-1M
8 HPE BladeSystem  845404-B21
Description

Huawei QSFP28-100G-CU1M Compatible 1m (3ft) 100G QSFP28 Passive DAC Cable | HYTOPTODEVICE

Product Overview

HYTOPTODEVICE 1m 100G QSFP28 passive dac cable is a drop-in replacement for Huawei QSFP28-100G-CU1M. Designed according to SFF-8662 and IEEE 802.3bj MSA standards, this twinax cable delivers stable 100GBASE-CR4 bandwidth between two QSFP28 ports. It features passive zero-power operation, ultra-low latency and hot-swap support for non-disruptive maintenance on Huawei switch chassis.
We maintain ready stock of this 100G QSFP28 passive dac cable for buyers, wholesalers and IT integrators deploying Huawei VRP data center fabrics. Every cable is preloaded with Huawei-matched EEPROM signatures to minimize unsupported transceiver alarms. Sampling, bulk procurement and OEM private labeling services are available for data center distributors and solution providers.

Key Technical Specifications

Huawei Compatible
 QSFP28-100G-CU1M
Vendor Name HYTOPTODEVICE
Connector QSFP28 to QSFP28 Max Data Rate 100Gbps
Cable Length 1m (3ft) Wire AWG AWG 30
Cable Type Passive Twinax Power Consumption ≤0.5W
Media Copper Operation Temperature 0~ 70 °C (32 to 158°F)
Jacket Material PVC(OFNR) Protocols QSFP28 MSA, SFF-8662, IEEE 802.3
Minimum Bend Radius 35mm Application 100 Gigabit Ethernet

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Mandatory Port Setting: Host QSFP28 port must enable 100GBASE-CR4 mode; link negotiation failure will happen if forced to optical mode.

  • Cabling Requirements: Do not exceed the minimum 35mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.

  • Port Installation Standard: Works only with standard QSFP28 100G ports; cannot be inserted into SFP+ or XFP slots. Disable the host’s third-party transceiver lock policy in advance if required.

  • Maintenance Specification: Hot‑swap supported, grip the pull tab instead of pulling the cable body during plug/unplug to prevent internal conductor damage.

  • Testing & Storage: Run sample validation on target hardware before large bulk deployment; store spare cables in dry, dust‑free and anti‑static packaging.
  • Operating Environment: This commercial-grade cable operates reliably within 0℃‑70℃; avoid installation beside high-heat power modules.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Huawei Hardware & Firmware

  • Huawei CloudEngine CE6800 series:CE6855-48XS8CQ, CE6857-48S6CQ, CE6863-48S6CQ, CE6865-48S8CQ, CE6881-48S8CQ
  • Huawei CloudEngine CE8800 series:CE8850-64CQ-EI, CE8855-32CQ-EI, CE8865-4C, CE8875-24BQ8DQ
  • Huawei CloudEngine CE12700 series:CE12704, CE12708, CE12712 (100G QSFP28 line cards)
  • Huawei TaiShan Servers:TaiShan 2280, 5280, 2480 with SP570, SP580 QSFP28 100G NIC adapters
  • Firmware:Huawei VRP V800R021, V800R022, V800R023, V800R025

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this 100G QSFP28 passive copper twinax cable can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios
  • Huawei VRP leaf-spine 100G fabric intra-rack interconnection
  • Short links between storage arrays and Huawei top-of-rack switches
  • Direct replacement for original Huawei QSFP28-100G-CU1M 100G QSFP28 passive dac cable
  • Hyper-converged infrastructure and distributed storage backend cabling
  • Low latency 100G links for virtualization clusters and AI compute racks
  • Stock replenishment purchase for IT distributors and Huawei data center solution partners

Connectivity Solutions(Applications)

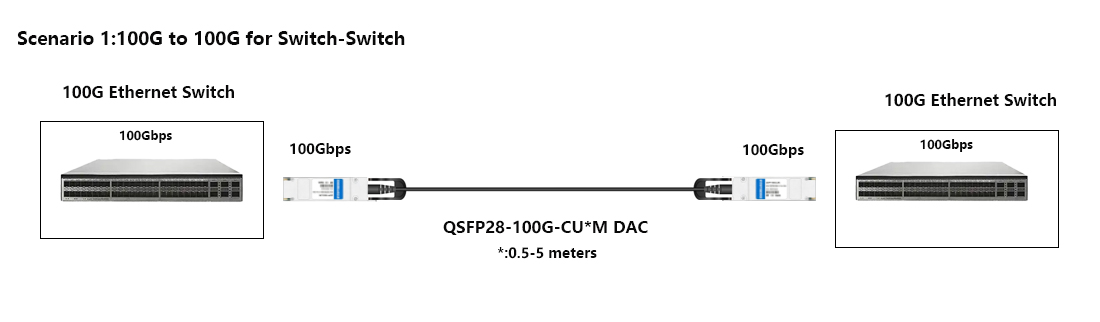

1. 100G to 100G Direct Link for Switch-Switch
HYTOPTODEVICE QSFP-100G-CU1M compatible  100G QSFP28 passive DAC copper twinax cable in stock for wholesale buyers

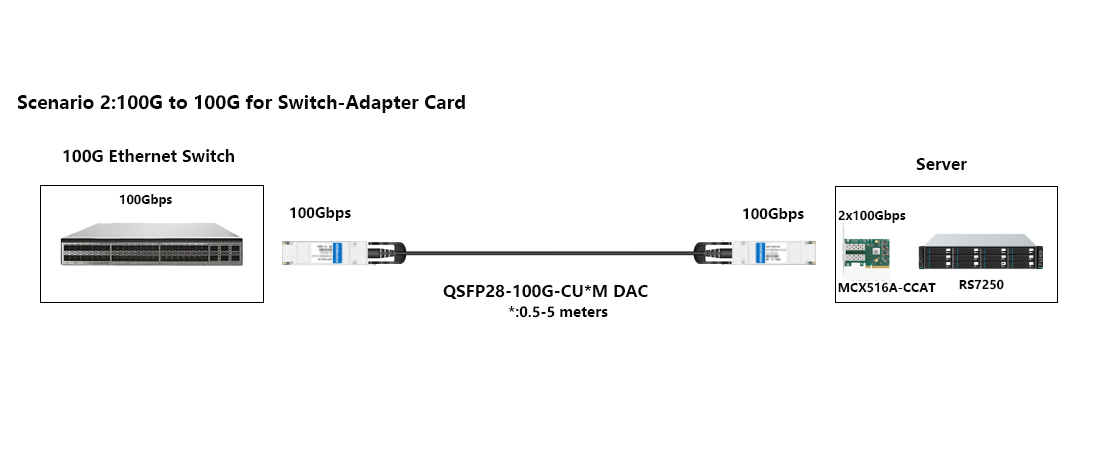

2. 100G to 100G Direct Link for Switch-NIC
 100G QSFP28 passive DAC copper twinax cable for data center integrators


3.
Upgrade Solution for 400G Data Center Network





The Core Feature

1. Cost-Effective Ultra-Short Connectivity

Using twinax copper, the 100G passive copper cable replaces a fiber pair and two optical transceivers, significantly cutting interconnect cost for short-reach links — plug-and-play, no modules required.

2. Ultra-Low Power, Maximum Energy Efficiency

The 100g qsfp28 passive copper twinax cable draws near-zero power, reducing heat and energy costs in dense racks, while delivering a cost-effective, low-latency 100G link for short-reach connections — within a rack or across adjacent racks.

QSFP+ form factor 40g qsfp+ dac cable with low power consumption

3.Host-Device Tested for Proven Interoperability

Every 100g passive copper twinax cable is rigorously tested for compatibility in the target switch environment, so you can deploy with confidence — no surprises, no downtime. Not sure it fits? Compatibility Video available upon request.

hytoptodevice wholesale 40G QSFP+ twinax cable for data center

4. 100% Individually Tested for Peak Performance

Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our Test Center.

HYTOPTODEVICE  QSFP+ to QSFP+ 40g qsfp+ dac cable for switches

FAQ

Q1: Which electrical parameters decide the maximum reach of a 100G QSFP28 passive dac cable? A: Signal attenuation and differential impedance matching define the maximum working distance of passive 100G DAC. HYTOPTODEVICE 100G QSFP28 passive dac cable complies with MSA standards and supports steady transmission up to 5 meters for intra-rack links.

Q2: What core differences in signal processing separate passive and active 100G QSFP28 DAC cables? A: Passive DAC has no built-in signal conditioning chips and caps at 5m, while active DAC integrates retimers and equalizers to extend reach to 7m or 10m. HYTOPTODEVICE supplies both variants so customers select suitable 100G QSFP28 DAC for their rack layout.

Q3: What network issues will occur when you run a 100G passive dac cable beyond its rated length? A: Exceeding rated length will trigger unstable links, CRC errors or unexpected link down. Copper signal attenuation rises rapidly past the design limit. All HYTOPTODEVICE 100G QSFP28 passive dac cable has clear length marking to prevent wrong deployment.

Q4: Is a 100G QSFP28 passive dac cable suitable for cross-row server-to-switch connections? A: Passive 100G DAC is not recommended for cross-row cabling as such runs normally exceed the 5m limit. AOC or fiber is better for inter-row runs; HYTOPTODEVICE passive DAC is optimized for short inside-rack connections.

Q5: Will short-length 100G QSFP28 passive dac cables like 0.5m and 1m create signal reflection risks? A: Well-calibrated short 100G passive DAC maintains consistent impedance and avoids harmful signal reflection. HYTOPTODEVICE performs eye diagram testing on each batch of short 100G QSFP28 passive dac cable to guarantee signal quality.

Q6: Can generic uncoded 100G QSFP28 DAC run plug-and-play on locked Huawei, Cisco or Arista switches? A: Unprogrammed generic DAC often triggers unsupported transceiver alarms on vendor-locked switching platforms. HYTOPTODEVICE preloads matching EEPROM signatures for Huawei VRP, Cisco NX-OS and Arista EOS for plug-and-play operation.

Q7: What hardware and software do I need if I want to re-program DAC EEPROM codes onsite myself? A: A dedicated EEPROM programmer and matching coding software are required for local rewriting. HYTOPTODEVICE can provide the programmer kit, software and remote guidance. Most purchasers prefer pre-coded cables to save time and avoid coding faults.

Q8: Will using third-party 100G QSFP28 passive dac cable automatically void my Huawei switch OEM warranty? A: Most OEM vendors will not invalidate the whole hardware warranty just for compatible third-party DAC, but damage caused by defective cabling may be excluded. Fully tested HYTOPTODEVICE 100G DAC reduces this risk for enterprise buyers.

Q9: Why do VRP firmware updates sometimes break compatibility with third-party 100G DAC cables? A: Major firmware releases occasionally tighten transceiver authentication rules, requiring updated EEPROM profiles from the cable supplier. HYTOPTODEVICE continuously updates our signature library to adapt to new VRP firmware builds.

Q10: What information should I send to the supplier to get correct EEPROM coding for my Huawei switch? A: Prepare switch brand, exact model, installed firmware version and target compatible part number. Share these details with HYTOPTODEVICE, and we will pre-code your 100G QSFP28 passive dac cable to fit your environment before shipment.

Q11: What typical BER performance can I get from factory validated 100G QSFP28 passive dac cables? A: HYTOPTODEVICE 100G QSFP28 passive dac cable achieves BER below 1×10⁻¹² under full bandwidth load, meeting standard data center requirements. Batch signal testing keeps low error rates for stable leaf-spine fabrics.

Q12: Why cannot this 100G QSFP28 passive dac cable support PAM4 modulation for newer high-speed links? A: This DAC is built for 25G NRZ lanes for 100GBASE-CR4 and lacks electrical characteristics for PAM4. HYTOPTODEVICE offers separate PAM4-capable cable options for 400G projects on request.

Q13: What shielding structure suppresses crosstalk between internal high-speed lanes of 100G DAC? A: Our 100G QSFP28 passive dac cable uses individual foil shielding for each twinax pair plus a full outer braided shield. This dual shielding design reduces crosstalk and EMI inside dense 100G server racks.

Q14: Do active 100G DAC cables adopt retimer chips and carry higher failure risk? A: Active 100G DAC uses built-in retimer chips for signal recovery; extra semiconductor components create more failure points than passive copper. HYTOPTODEVICE recommends passive DAC for short rack links for better reliability.

Q15: What is the minimum safe bend radius for your 100G QSFP28 passive dac cable? A: The minimum bend radius for HYTOPTODEVICE 100G QSFP28 passive dac cable is 35 mm. Bending tighter than this value damages internal conductors and raises bit error rates over long operation.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
