Huawei QSFP-4SFP25G-CU5M Compatible 5m (16ft) 100G QSFP28 Passive Breakout Direct Attach Copper DAC Twinax Cable | HYTOPTODEVICE

Purchase HYTOPTODEVICE Direct Attach Copper DAC Twinax Cable, 5m 100G QSFP28 to 4×25G SFP28 breakout twinax, pre-coded EEPROM for Huawei VRP8. Ready in stock, factory direct price, bulk purchase supported for distributors, resellers and system integrators.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-4SFP25-CU5M
2 Arista Networks  CAB-Q28-S28-5M
3 Brocade 100G-Q28-S28-C-0501
4 Huawei QSFP-4SFP25G-CU5M
5 Juniper QFX-Q-S-DAC-5M
Description

Huawei QSFP-4SFP25G-CU5M Compatible 5m (16ft) 100G QSFP28 Passive Breakout Direct Attach Copper DAC Twinax Cable | HYTOPTODEVICE

Product Overview

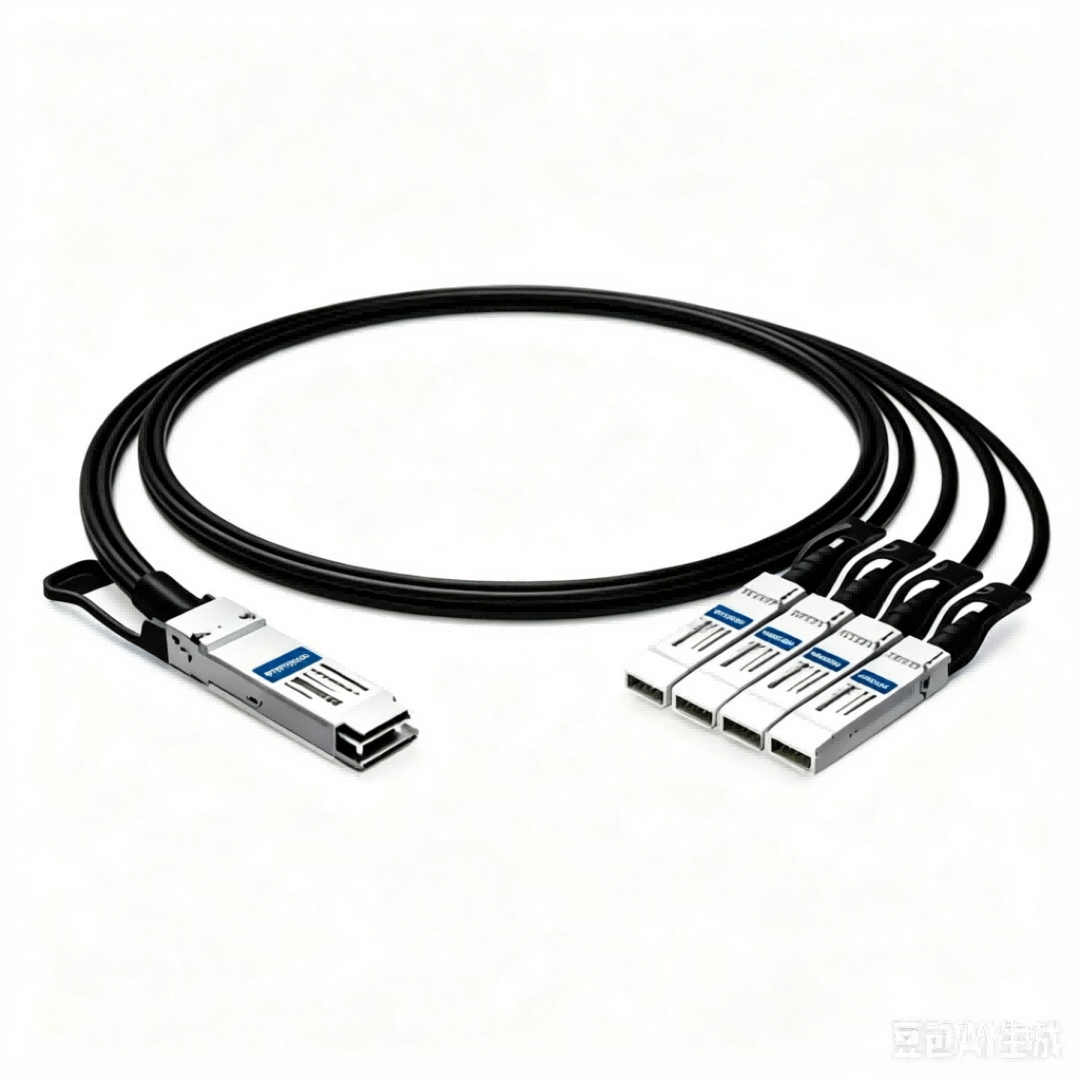

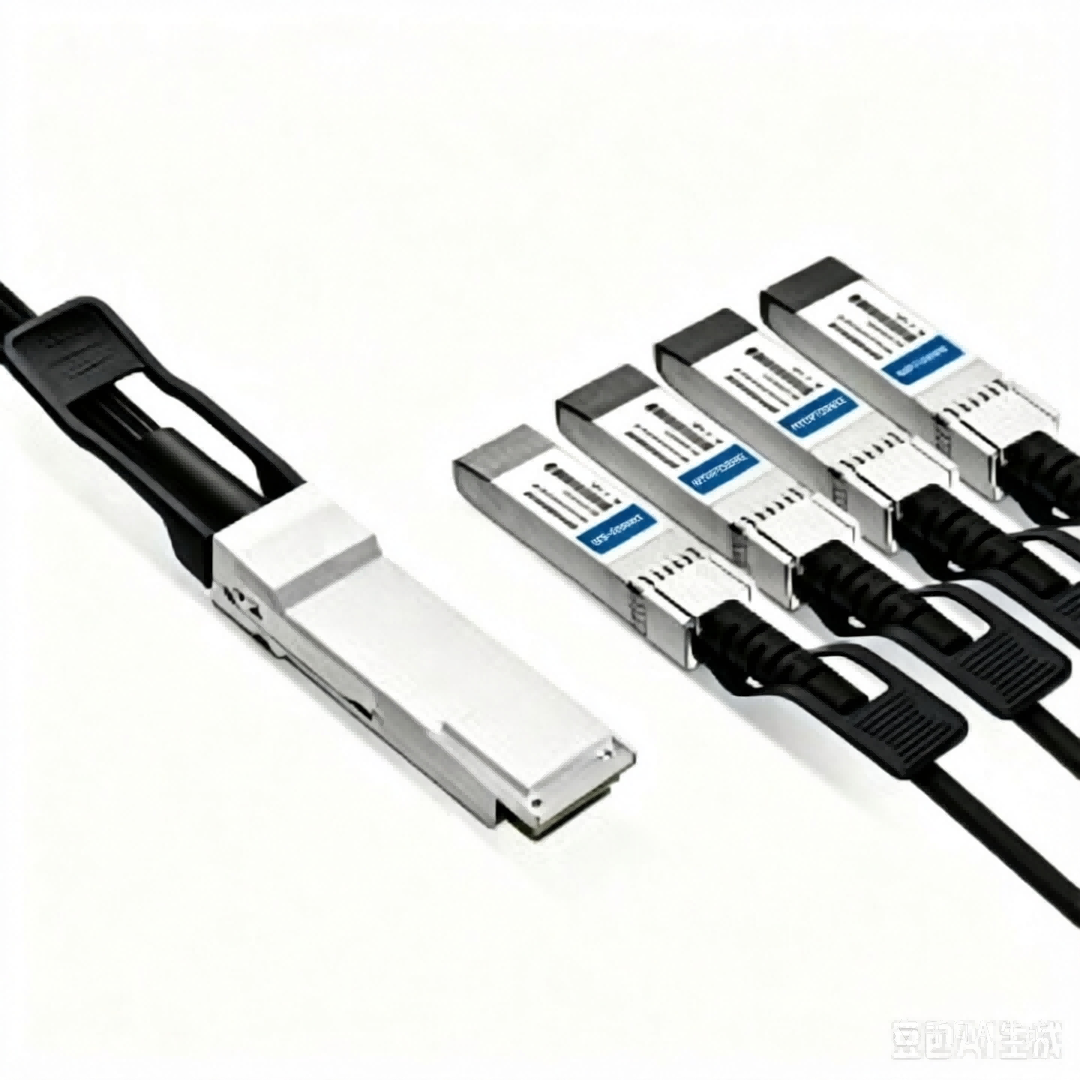

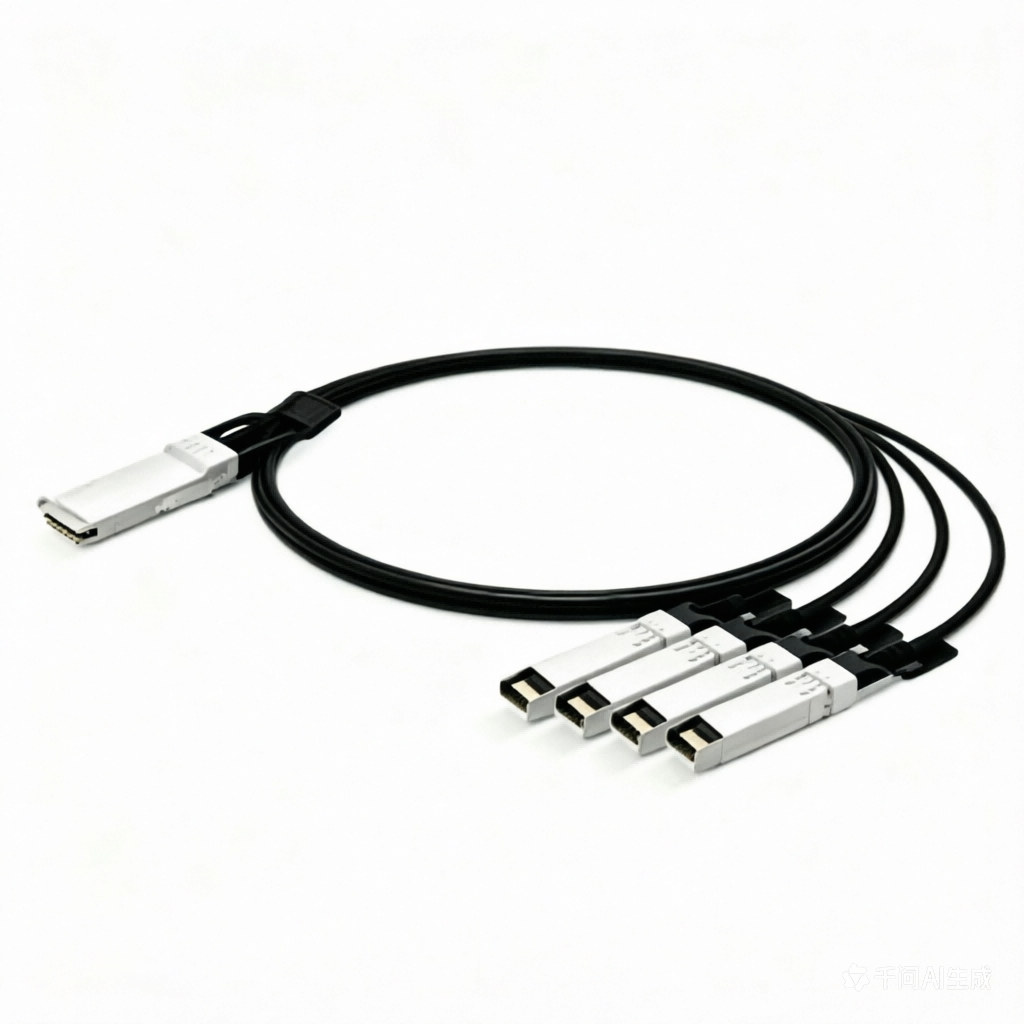

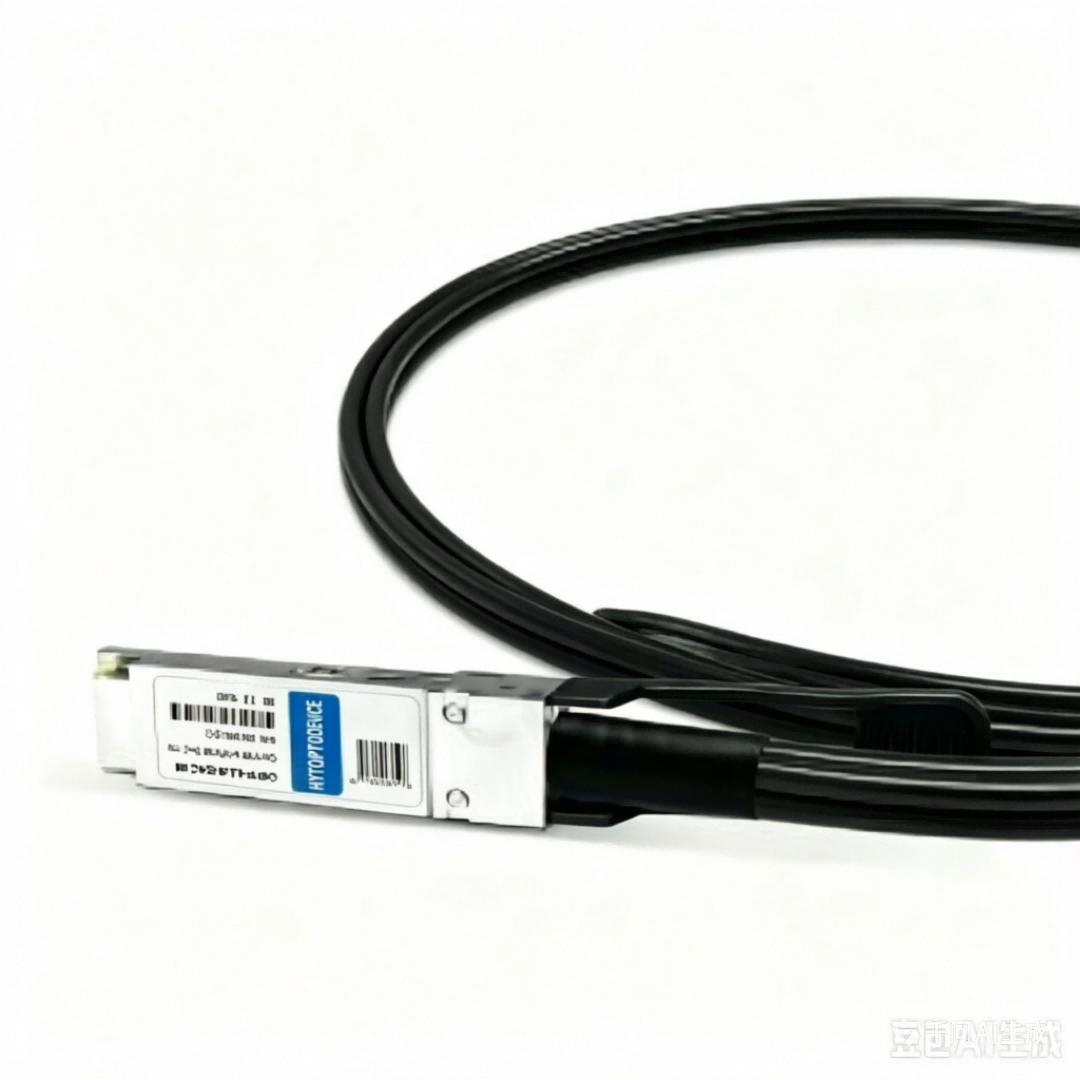

HYTOPTODEVICE 5m 100G QSFP28 to 4x25G SFP28 Direct Attach Copper DAC Twinax Cable is a drop-in replacement for Huawei QSFP-4SFP25G-CU5M. Designed following SFF-8662 MSA standard, this Direct Attach Copper DAC Twinax Cable adopts 26AWG balanced twinax copper, splitting one 100G QSFP28 port into four independent 25G SFP28 channels with zero power consumption, supporting 100GBASE-CR4 breaking out to 4×25GBASE-CR links. It is hot-swappable and pre-programmed with Huawei validated EEPROM data for reliable recognition under Huawei VRP8 firmware. It balances flexible routing and stable signal performance, widely used for Huawei CloudEngine leaf-spine fabric port expansion, AI compute rack interconnection, HPC and storage networking, and data center hardware upgrade. HYTOPTODEVICE supports spot purchase, bulk wholesale, OEM private labeling, custom EEPROM programming and custom length service for this Direct Attach Copper DAC Twinax Cable.

Key Technical Specifications

Huawei Compatible
QSFP-4SFP25G-CU5M
Vendor Name HYTOPTODEVICE
Connector QSFP28+ to 4 x SFP28 Max Data Rate 100Gbps
Cable Length 5m (16ft) Wire AWG AWG 26
Cable Type Passive Twinax Power Consumption ≤0.25W
Media Copper Operation Temperature 0~ 70 °C (32 to 158°F)
Jacket Material PVC(OFNR) Protocols IEEE 802.3, QSFP28 MSA, SFF-8665
Minimum Bend Radius 60mm Application 100G to 2x 25G Ethernet, Data Centers

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Mandatory Port Breakout Configuration: Ensure the host QSFP28 port supports channelization. Enable breakout mode (4x25G) via the switch CLI before connecting the cable.

  • Cabling Requirements: Do not exceed the minimum 50mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.

  • Port Installation Standard: Do not mix this breakout DAC with straight QSFP28 to QSFP28 DAC configuration.

  • Hot‑swap rule:Never pull or tug directly on the individual breakout legs. Always use the integrated pull-tab or bale latch when inserting or removing connectors.

  • Testing & Storage: Run sample validation on target hardware before large bulk deployment; store spare cables in dry, dust‑free and anti‑static packaging.
  • Operating Environment: 0‑70℃, indoor cabinet deployment only.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Huawei Hardware & Firmware

  • Huawei CloudEngine 6860, 6865, 8850, 16800 leaf and spine data center switches
  • Huawei CloudEngine S5732-H, S5755-H, S6750-S multi-rate uplink switches
  • Servers fitted with 25G SFP28 NIC adapters for Huawei fabric deployment
  • Firmware: VRP8 8.21+

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this 100G QSFP28 to 4 x 25G SFP28 passive DAC breakout cable can interoperate with mainstream network brands including Cisco,Arista, Intel, Juniper, Dell, Huawei and IBM, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios

• Long-reach intra-row 100G uplink breakout to 4×25G server NIC connections
• Leaf-spine fabric port expansion for data center networks
• AI server rack interconnection requiring 5-meter copper cabling
• HPC and storage cluster medium-distance twinax cabling
• Data center hardware upgrade and network migration
• Stock supply for distributors, system builders and value-added resellers


Connectivity Solutions(Applications)

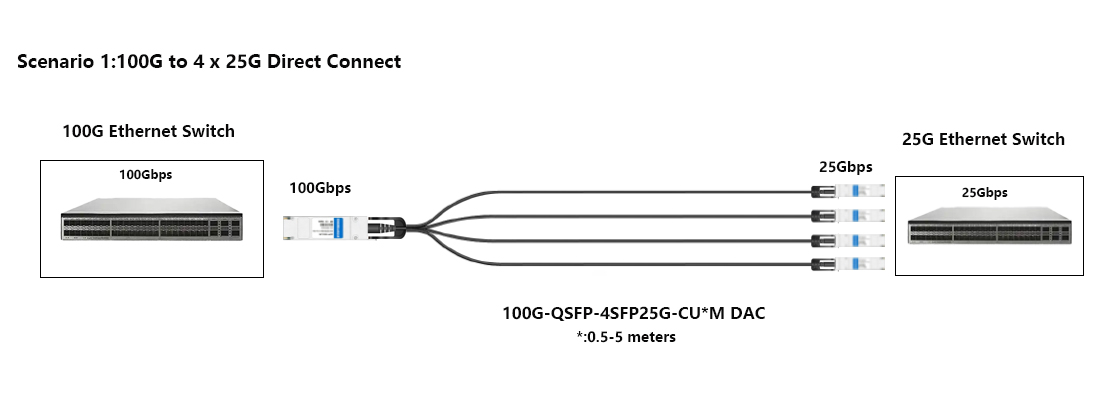

1. 100G to 4x25G Breakout Link for Switch-Switch
HYTOPTODEVICE 100G QSFP28 to 4x25G SFP28 breakout DAC cable FOR SWITCH TO SWITCH

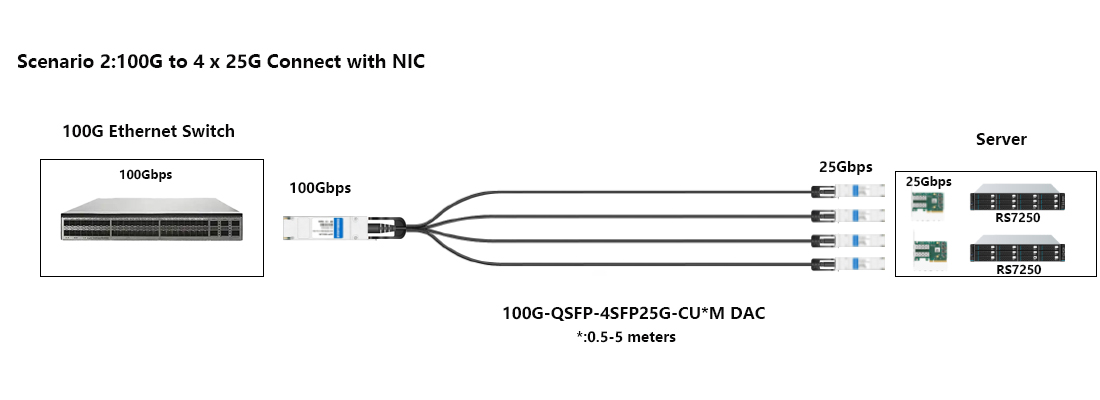

2. 100G to 4x25G Breakout Link for Switch-NIC
HYTOPTODEVICE 100G breakout twinax cable for data center


The Core Feature


1.
Near-Zero Power, Full-Speed 100G

This 100G QSFP28 passive DAC breakout cable sips no extra energy, cutting heat and cost in crowded racks while keeping low-latency 100G for in-rack or adjacent-rack runs.

hytoptodevice 100G QSFP28 to 4 x 25G SFP28 passive dac breakout cable for data center

2.Host-Device Tested for Proven Interoperability

Every unit is link-up tested on real target switch models; ports come online on first install across major vendor gear, no field tuning or replacement loops. Not sure it fits? Compatibility Video available upon request.

hytoptodevice wholesale 100G QSFP28+ to 4 sfp28 breakout twinax cable for data center

3. 100% Individually Tested for Peak Performance

Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our Test Center.

HYTOPTODEVICE  100g QSFP28 to 4 x sfp28 passive breaktout  dac cable for switches

FAQ

Q1: Can I buy this Huawei compatible breakout DAC twinax for multi-vendor mixed data center fabrics? A1: Yes, it works with breakout-capable third-party switches. HYTOPTODEVICE custom programs EEPROM on this Direct Attach Copper DAC Twinax Cable to eliminate transceiver alerts for mixed-brand deployments.

Q2: Can this QSFP28 breakout DAC twinax be plugged into older Huawei QSFP+ ports? A2: No, this Direct Attach Copper DAC Twinax Cable is engineered only for QSFP28 interfaces. QSFP+ pin definition and electrical specs differ and cannot sustain stable 25G breakout links.

Q3: If I order this 100G breakout DAC, can its tails connect to legacy 10G server network cards? A3: No, each breakout leg locks at native 25Gbps. This Direct Attach Copper DAC Twinax Cable requires 25G SFP28 ports and cannot downshift speed for older 10G adapters.

Q4: Does Huawei VRP8 require specially coded breakout DAC twinax cables to pass transceiver checks? A4: Yes, VRP8 validates transceiver EEPROM by default. HYTOPTODEVICE preloads Huawei-matching codes on this Direct Attach Copper DAC Twinax Cable you purchase to skip unsupported-transceiver warnings.

Q5: When I place a bulk order, can I deploy different 25G SFP28 NIC brands on the four breakout legs? A5: Yes, mixed-brand NICs are acceptable if they follow MSA 25GBASE-CR standards. HYTOPTODEVICE carries out cross-hardware compatibility testing to guarantee stable performance for buyers.

Q6: What fixed line rate will each individual SFP28 breakout tail deliver after cabling? A6: Each breakout channel runs at a steady 25Gbps. This Direct Attach Copper DAC Twinax Cable evenly splits the total 100G bandwidth across four independent 25G lanes.

Q7: What is the maximum reliable operating length for passive 25G breakout DAC twinax cables I can source? A7: The stable transmission limit for passive 25G twinax breakout design is 5 meters. HYTOPTODEVICE stocks this Direct Attach Copper DAC Twinax Cable in 0.5m,1m,3m and 5m standard lengths for your selection.

Q8: What latency performance will this 5m breakout DAC bring to Huawei HPC and AI clusters? A8: Typical copper twinax latency is roughly 0.6 ns per meter. This Direct Attach Copper DAC Twinax Cable has no signal amplification chips, ideal for low-latency computing workloads.

Q9: What wire gauge (AWG) is used in this cable, and does it affect flexibility? A9: Common gauges range from 26AWG to 30AWG. Thinner gauges such as 30AWG deliver better flexibility for dense cable management, while 26AWG supports runs up to 3 meters, and 24AWG is required for stable 5-meter passive links. HYTOPTODEVICE supplies the correct AWG for every Direct Attach Copper DAC Twinax Cable length you order.

Q10: Will this 25GBASE-CR passive breakout DAC automatically negotiate speed with connected devices? A10: No, passive 25GBASE-CR twinax does not support auto-negotiation. You need to manually lock both link ends to fixed 25G speed after receiving and installing this HYTOPTODEVICE breakout DAC.

Q11: What routing precautions should purchasers follow when running this 5m DAC twinax in dense Huawei racks? A11: It provides good routing flexibility, yet sharp tight bends are forbidden. Keep the 55mm minimum bend radius to protect internal twinax conductors of this Direct Attach Copper DAC Twinax Cable.

Q12: Are the four SFP28 pigtails clearly marked so my cabling team can distinguish lanes quickly? A12: Yes, each SFP28 tail features permanent laser lane marking. HYTOPTODEVICE marks every pigtail of this Direct Attach Copper DAC Twinax Cable to simplify cabling audit and fault diagnosis.

Q13: Can this 5m Huawei breakout DAC twinax bridge devices housed inside two separate server racks? A13: Yes, it supports adjacent inter-rack connections within its full 5-meter length. This Direct Attach Copper DAC Twinax Cable is built for in-row rack links instead of long cross-room cabling.

Q14: Can bulk customers request custom jacket colors for this Huawei breakout DAC twinax? A14: Black jacket is our standard stock version. HYTOPTODEVICE accepts custom color requests on bulk orders of this Direct Attach Copper DAC Twinax Cable to match your site’s color coding rules.

Q15: Can I request non-standard custom lengths if standard sizes do not match my rack layout? A15: Custom non-standard lengths are available for bulk procurement. Contact the HYTOPTODEVICE sales team for quotation and lead time when you buy custom-length Direct Attach Copper DAC Twinax Cable.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
