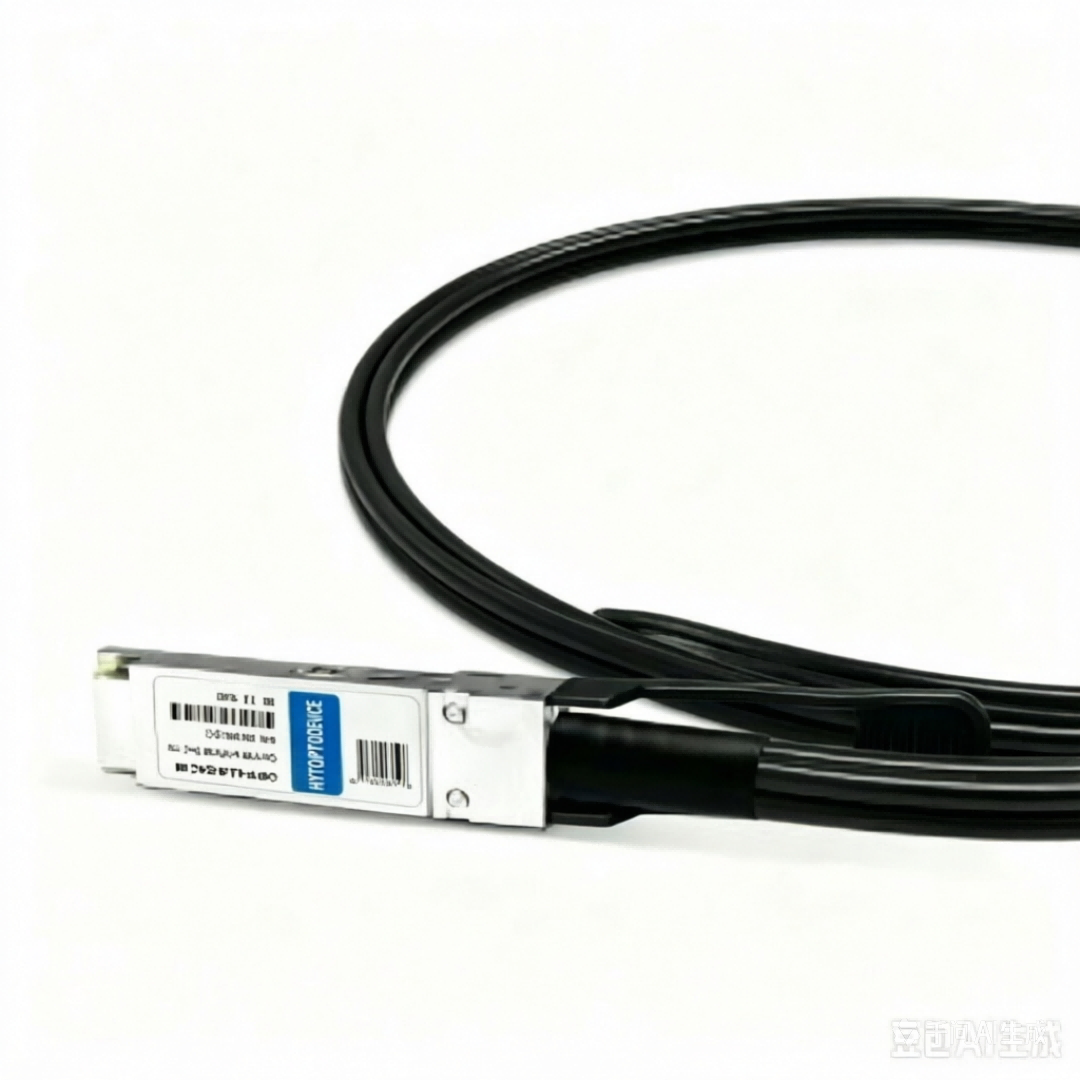

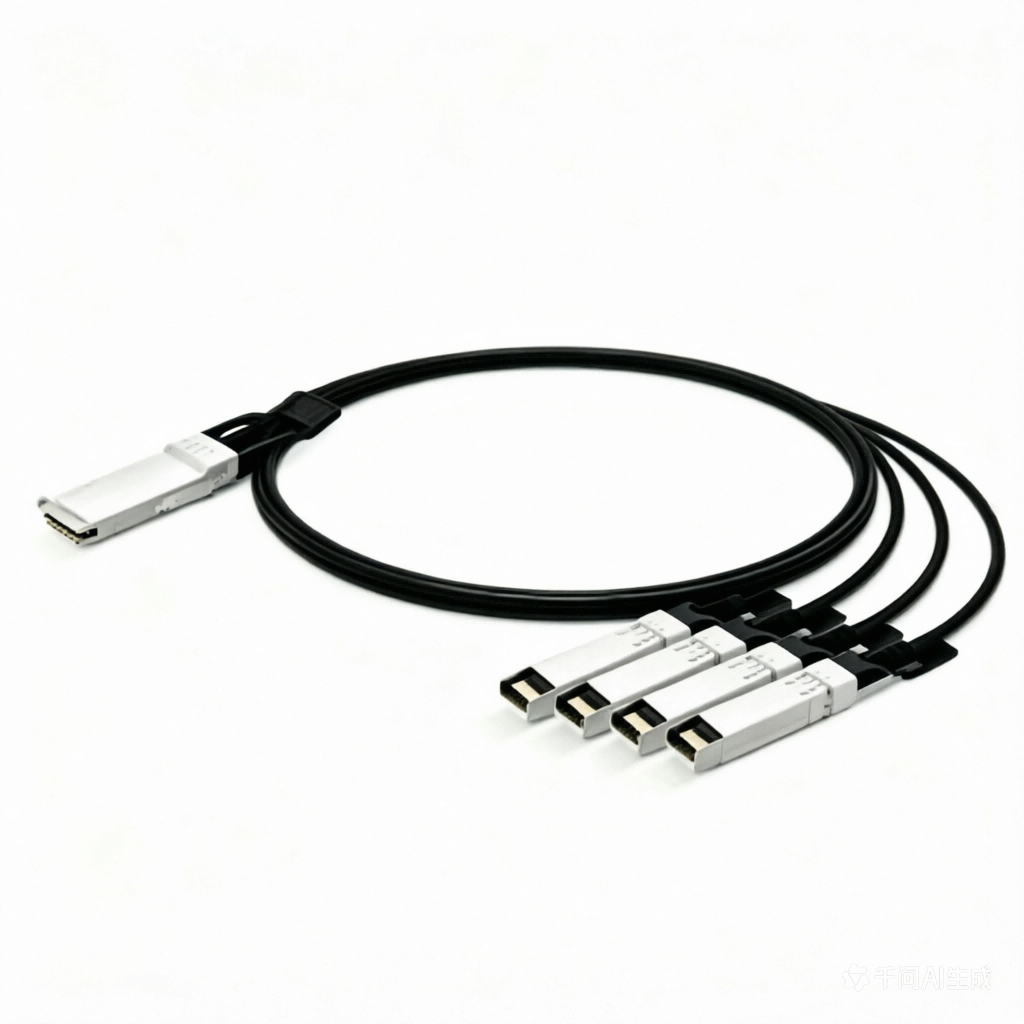

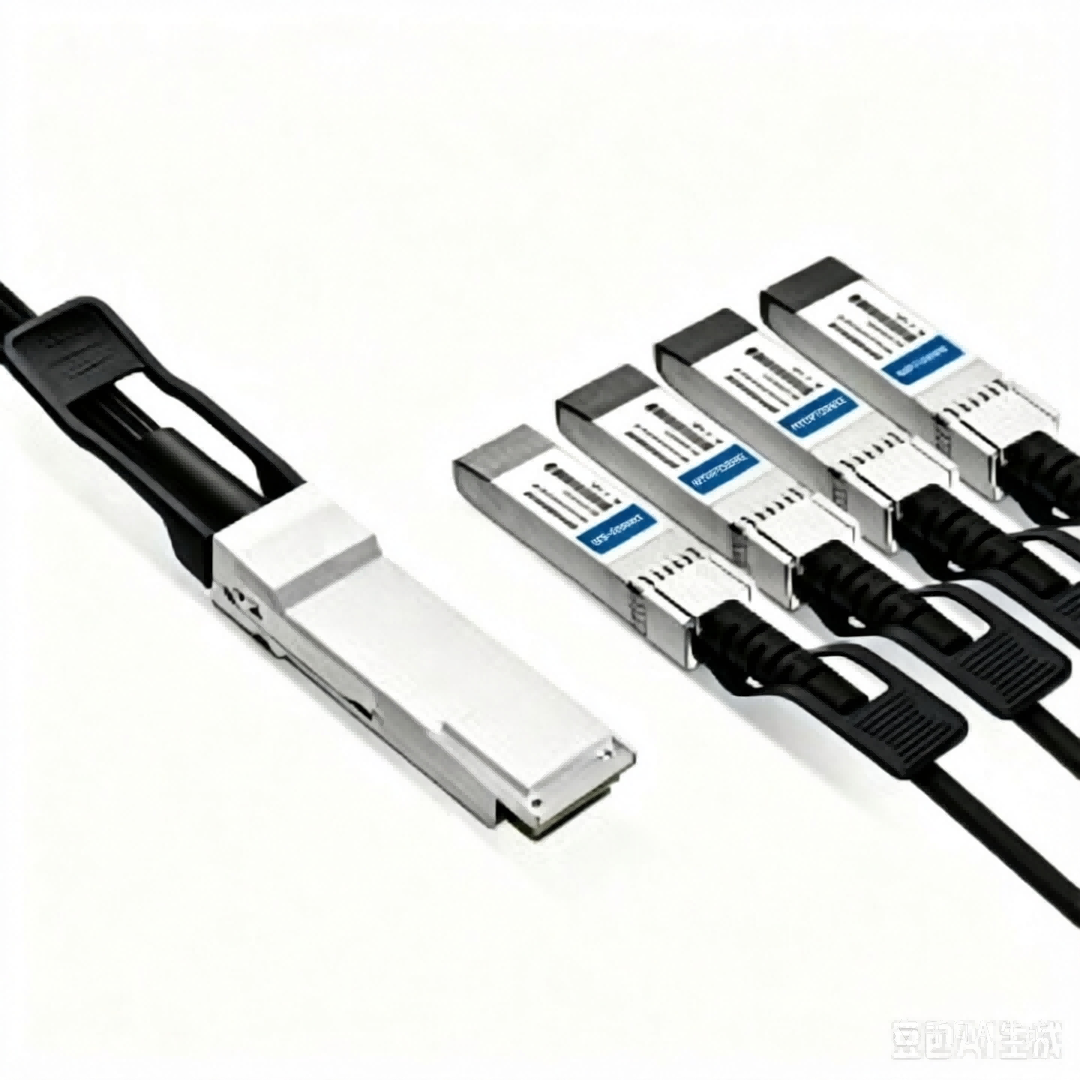

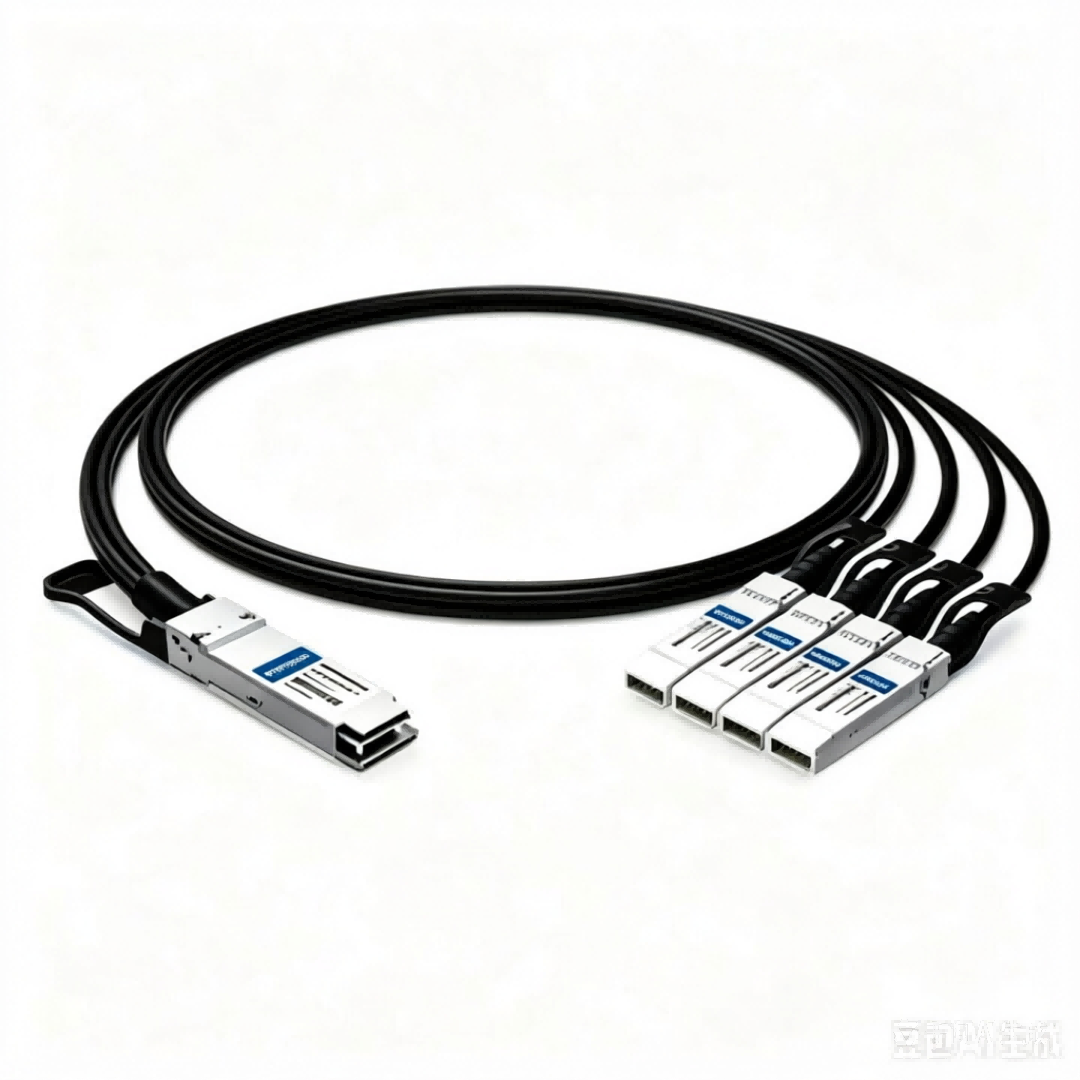

Huawei QSFP-4SFP25G-CU3M Compatible 3m(10ft) 100G QSFP28 to 4 x 25G SFP28 Passive DAC Breakout Cable Bulk Wholesale | HYTOPTODEVICE

Buy HYTOPTODEVICE passive dac breakout cable, 3m 100G QSFP28 to 4×25G SFP28 twinax, pre-coded EEPROM for Huawei VRP. Stable signal, fast lead time, bulk order, factory direct for distributors & system integrators.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-4SFP25-CU3M
2 Arista Networks  CAB-Q28-S28-3M
3 Brocade 100G-Q28-S28-C-0301
4 Huawei QSFP-4SFP25G-CU3M
5 Juniper QFX-Q-S-DAC-3M
6 Dell DAC-Q28-4SFP28-25G-3M


Description

Huawei QSFP-4SFP25G-CU3M Compatible 3m(10ft) 100G QSFP28 to 4 x 25G SFP28 Passive DAC Breakout Cable Bulk Wholesale | HYTOPTODEVICE

Product Overview

HYTOPTODEVICE 3m 100G QSFP28 to 4x25G SFP28 passive dac breakout cable serves as a direct replacement for Huawei QSFP-4SFP25G-CU3M. Built to SFF-8662 MSA standards, it adopts passive twinax copper design to deliver stable links, splitting one 100G QSFP28 port into four independent 25G SFP28 interfaces with no extra power consumption.
Hot-pluggable and pre-programmed with Huawei-matched EEPROM for seamless breakout identification under Huawei VRP platform. It is widely used for medium-distance intra-row rack cabling. HYTOPTODEVICE supports bulk purchasing, OEM private labeling, custom EEPROM coding and batch signal integrity testing with reliable delivery schedule.

Key Technical Specifications

Huawei Compatible
QSFP-4SFP25G-CU3M
Vendor Name HYTOPTODEVICE
Connector QSFP28+ to 4 x SFP28 Max Data Rate 100Gbps
Cable Length 3m (10ft) Wire AWG AWG 26
Cable Type Passive Twinax Power Consumption ≤0.25W
Media Copper Operation Temperature 0~ 70 °C (32 to 158°F)
Jacket Material PVC(OFNR) Protocols IEEE 802.3, QSFP28 MSA, SFF-8665
Minimum Bend Radius 50mm Application 100G to 2x 25G Ethernet, Data Centers

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Mandatory Port Breakout Configuration: Ensure the host QSFP28 port supports channelization. Enable breakout mode (4x25G) via the switch CLI before connecting the cable.

  • Cabling Requirements: Do not exceed the minimum 50mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.

  • Port Installation Standard: Do not mix this breakout DAC with straight QSFP28 to QSFP28 DAC configuration.

  • Hot‑swap rule:Never pull or tug directly on the individual breakout legs. Always use the integrated pull-tab or bale latch when inserting or removing connectors.

  • Testing & Storage: Run sample validation on target hardware before large bulk deployment; store spare cables in dry, dust‑free and anti‑static packaging.
  • Operating Environment: 0‑70℃, indoor cabinet deployment only.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Huawei Hardware & Firmware

  • Huawei CloudEngine CE6850, CE6857, CE6860, CE6865 data center switches
  • Huawei CloudEngine CE8850, CE8860, CE9850, CE9860 high-density spine-leaf switches
  • Huawei CloudEngine S6730-H, S6730-S, S5755-H enterprise aggregation switches
  • Huawei 2288H V5, 2288H V6, 2488H V5, 2488H V6 rack servers with 25G SFP28 NIC
  • Firmware: VRP V800R021, V800R022, V800R023

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this 100G QSFP28 to 4 x 25G SFP28 passive DAC breakout cable can interoperate with mainstream network brands including Arista, Intel, Juniper, Dell, NVIDIA Mellanox and IBM, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios

• Medium-distance intra-rack 100G uplink breakout to 4×25G server NIC links
• Leaf-spine data center fabric port density expansion
• AI computing server rack interconnection
• HPC and storage cluster medium-range copper cabling
• Data center hardware refresh and network migration
• Distributor stock preparation and system integration turnkey projects

Connectivity Solutions(Applications)

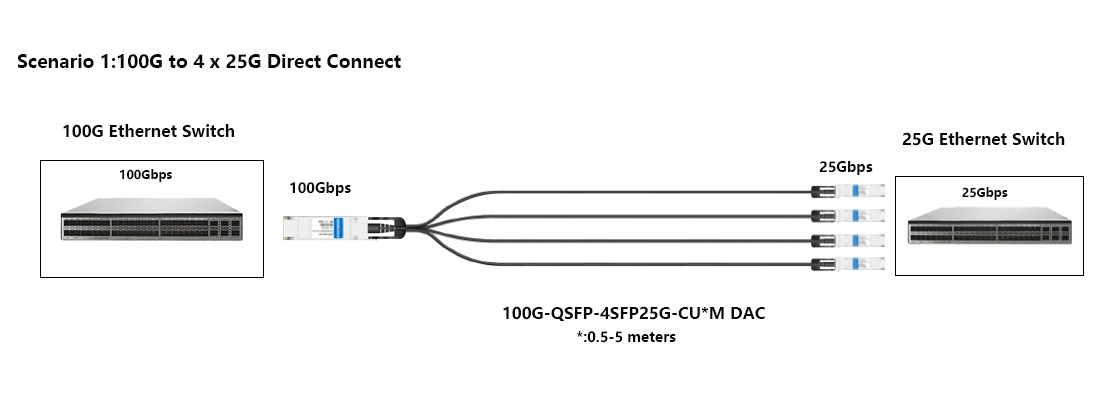

1. 100G to 4x25G Breakout Link for Switch-Switch
HYTOPTODEVICE 100G QSFP28 to 4x25G SFP28 breakout DAC cable FOR SWITCH TO SWITCH

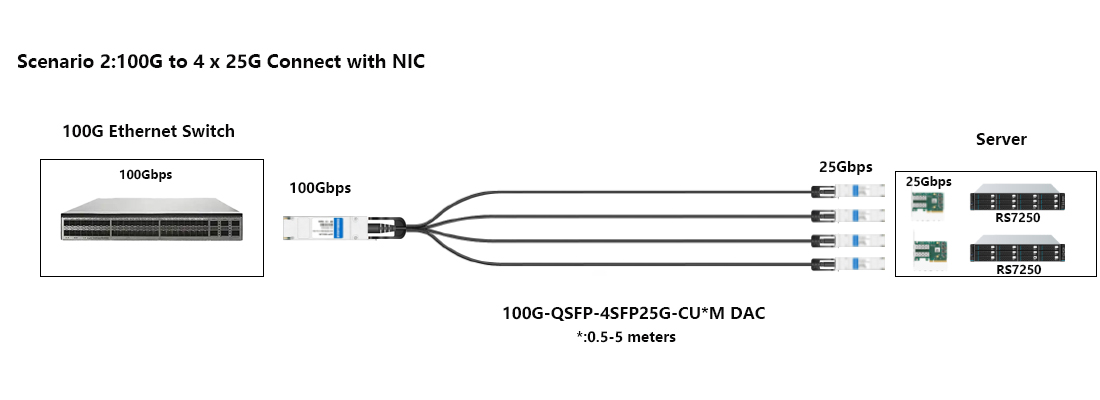

2. 100G to 4x25G Breakout Link for Switch-NIC
HYTOPTODEVICE 100G breakout twinax cable for data center


The Core Feature


1.
Near-Zero Power, Full-Speed 100G

This 100G QSFP28 passive DAC breakout cable sips no extra energy, cutting heat and cost in crowded racks while keeping low-latency 100G for in-rack or adjacent-rack runs.

hytoptodevice 100G QSFP28 to 4 x 25G SFP28 passive dac breakout cable for data center

2.Host-Device Tested for Proven Interoperability

Every unit is link-up tested on real target switch models; ports come online on first install across major vendor gear, no field tuning or replacement loops. Not sure it fits? Compatibility Video available upon request.

hytoptodevice wholesale 100G QSFP28+ to 4 sfp28 breakout twinax cable for data center

3. 100% Individually Tested for Peak Performance

Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our Test Center.

HYTOPTODEVICE  100g QSFP28 to 4 x sfp28 passive breaktout  dac cable for switches

FAQ

Q1: What makes the "QSFP-4SFP25G-CU3M" different from a standard 100G DAC cable? A1: The QSFP-4SFP25G-CU3M is a breakout cable. it features a 100G QSFP28 connector on one end. the other end is four 25G SFP28 connector.

Q2: Can I use this DAC cable to connect a Huawei switch to a switch from another brand? A2: Yes, but you need a "dual-compatible" version where one end is coded for Huawei and the other end is coded for the other brand (e.g., Cisco, Dell, or HPE).

Q3:Is the QSFP-4SFP25G-CU3M an active or passive cable? A: No, it's a passive breakout DAC cable. It contains no active signal amplification circuitry, nearly zero power consumption and low latency.

Q4: What is the maximum distance for the QSFP-4SFP25G-CU3M? A4: Its maximum physical length is 3 meter (10feet).it transports with a passive copper twinax cable.

Q5:Can I use this Huawei-coded DAC cable to connect a Huawei switch to a Cisco or HPE switch?A5:If you use a standard Huawei-coded cable, the Cisco/HPE end might reject it due to vendor locking. For cross-vendor environments, it is highly recommended to order a Dual-Vendor Coded Cable (Huawei-coded on End A, and Cisco/HPE-coded on End B) to ensure seamless plug-and-play compatibility on both sides.

Q6: Can the four SFP28 ends be connected to switches from different vendors? A6: Yes, but it requires customized multi-vendor programming. For example, we can program the 100G end for a Huawei switch and the four 25G ends for Cisco or Dell server NICs. Please specify your requirements when ordering.

Q7:Will Huawei EOS recognize this cable as genuine? A7: Yes. Our compatible breakout cables are flashed with the authentic Huawei vendor profile. The switch will recognize it as a QSFP-4SFP25G-CU3M.

Q8:Can I use this DAC cable to break out a 40G port into four 10G ports? A: No. This cable is specifically tuned and coded for 100G-to-4x25G applications. For 40G-to-10G setups, you must use a dedicated 40G breakout cable (such as the Huawei QSFP-4SFP10G-CU3M).

Q9: Will Huawei CloudEngine switches display a third-party warning flag with this cable? A9: No. Our compatible breakout DAC cable is flashed with exact Huawei vendor cryptographic signatures. The VRP operating system will read it as an original Huawei QSFP-4SFP25G-CU3M, ensuring clean port initialization.

Q10: What happens if I only plug in two or three of the 25G SFP28 ends? A10: The connected legs will work perfectly fine. The channels operate independently. The unused SFP28 ends can be left disconnected without affecting the traffic on the active legs.

Q11: What makes the "QSFP-4SFP25G-CU3M" different from a standard 100G DAC cable? A1: The QSFP-4SFP25G-CU3M is a breakout cable. it features a 100G QSFP28 connector on one end. the other end is four 25G SFP28 connector.

Q12: Can I use this DAC cable to connect a Huawei switch to a switch from another brand? A2: Yes, but you need a "dual-compatible" version where one end is coded for Huawei and the other end is coded for the other brand (e.g., Cisco, Dell, or HPE).

Q13:Is the QSFP-4SFP25G-CU3M an active or passive cable? A: No, it's a passive breakout DAC cable. It contains no active signal amplification circuitry, nearly zero power consumption and low latency.

Q14: What is the maximum distance for the QSFP-4SFP25G-CU3M? A4: Its maximum physical length is 3 meter (10feet).it transports with a passive copper twinax cable.

Q15:Can I use this Huawei-coded DAC cable to connect a Huawei switch to a Cisco or HPE switch?A5:If you use a standard Huawei-coded cable, the Cisco/HPE end might reject it due to vendor locking. For cross-vendor environments, it is highly recommended to order a Dual-Vendor Coded Cable (Huawei-coded on End A, and Cisco/HPE-coded on End B) to ensure seamless plug-and-play compatibility on both sides.

Q16: Can the four SFP28 ends be connected to switches from different vendors? A6: Yes, but it requires customized multi-vendor programming. For example, we can program the 100G end for a Huawei switch and the four 25G ends for Cisco or Dell server NICs. Please specify your requirements when ordering.

Q17:Will Huawei EOS recognize this cable as genuine? A7: Yes. Our compatible breakout cables are flashed with the authentic Huawei vendor profile. The switch will recognize it as a QSFP-4SFP25G-CU3M.

Q18:Can I use this DAC cable to break out a 40G port into four 10G ports? A: No. This cable is specifically tuned and coded for 100G-to-4x25G applications. For 40G-to-10G setups, you must use a dedicated 40G breakout cable (such as the Huawei QSFP-4SFP10G-CU3M).

Q19: Will Huawei CloudEngine switches display a third-party warning flag with this cable? A9: No. Our compatible breakout DAC cable is flashed with exact Huawei vendor cryptographic signatures. The VRP operating system will read it as an original Huawei QSFP-4SFP25G-CU3M, ensuring clean port initialization.

Q20: What happens if I only plug in two or three of the 25G SFP28 ends? A10: The connected legs will work perfectly fine. The channels operate independently. The unused SFP28 ends can be left disconnected without affecting the traffic on the active legs.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
