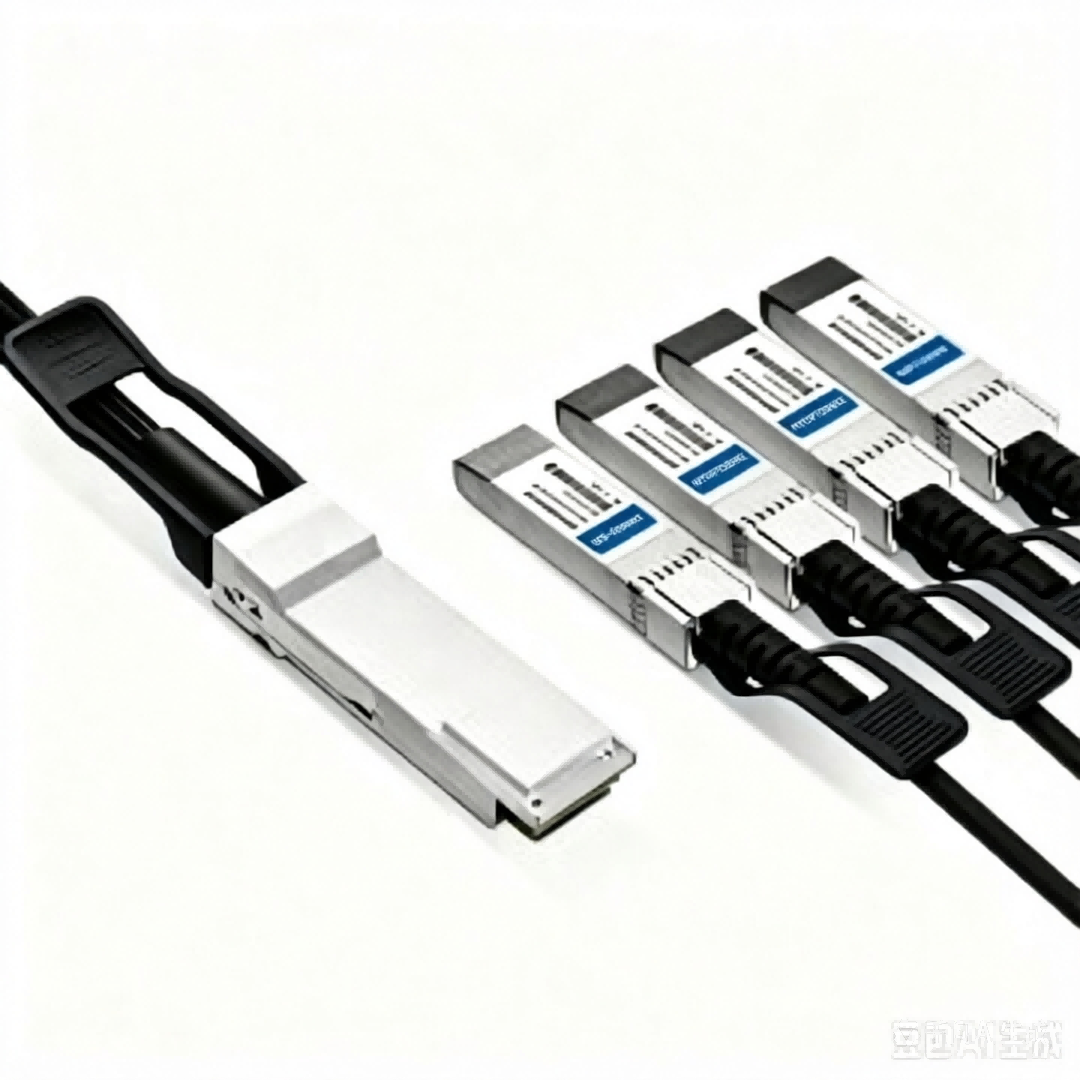

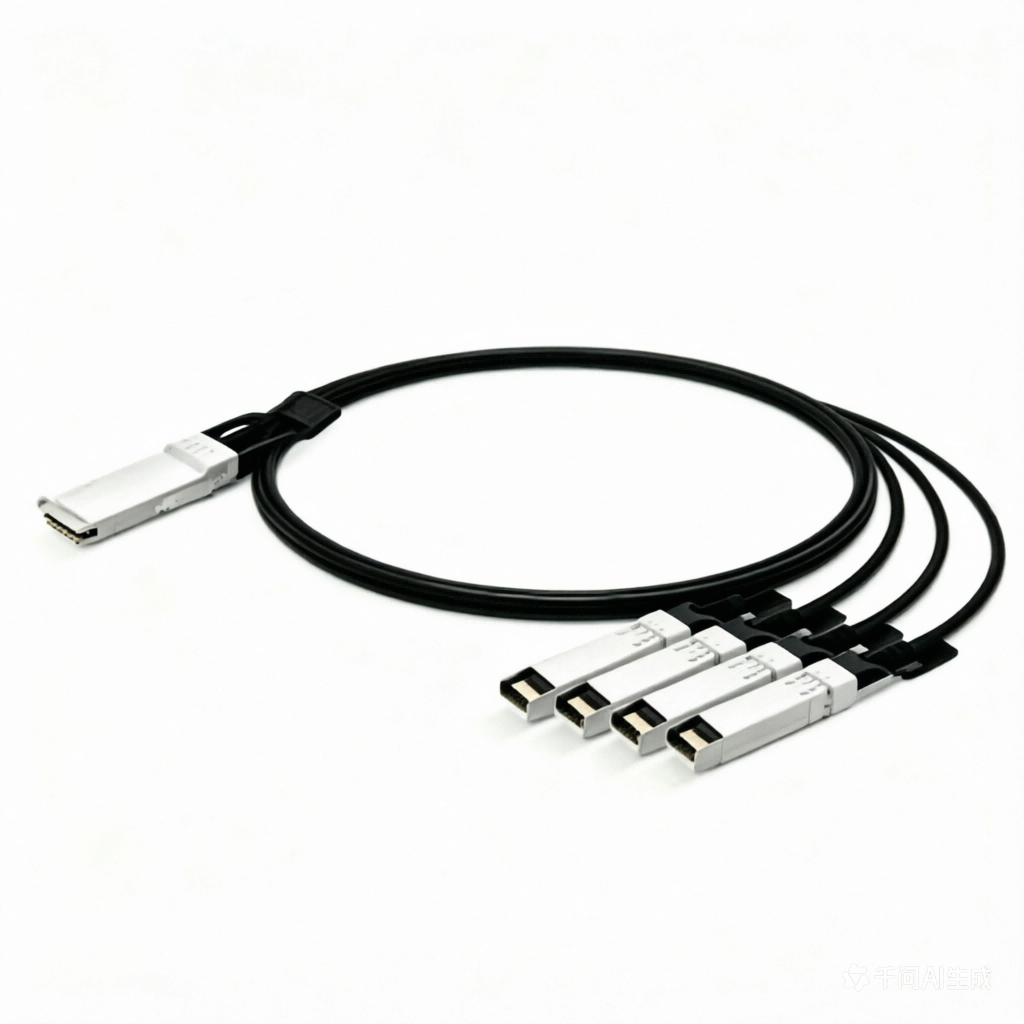

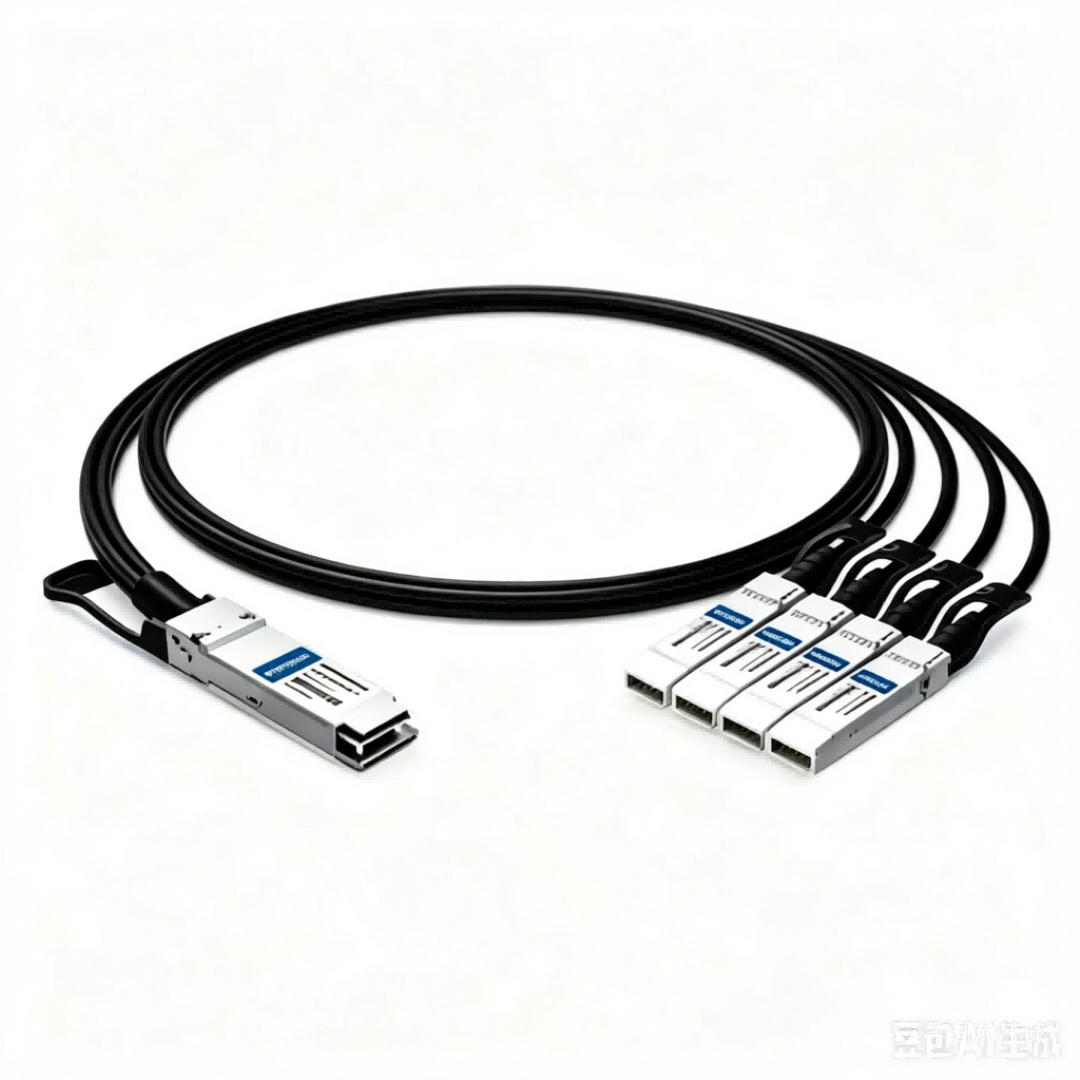

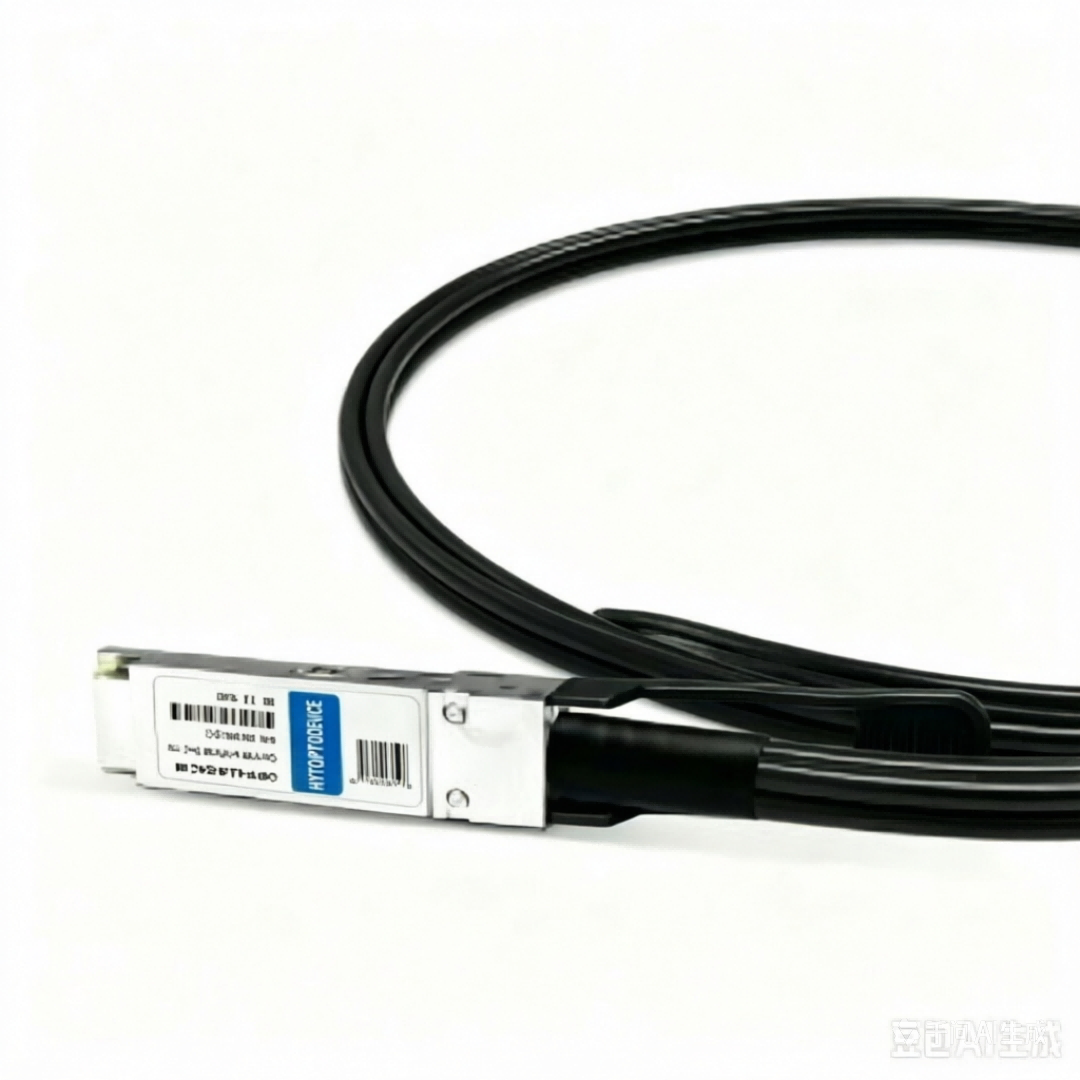

Huawei QSFP-4SFP25G-CU1M Compatible 1m (3ft) 100G QSFP28 to Four 25G SFP28 Passive Breakout Copper Twinax Cable | HYTOPTODEVICE

HYTOPTODEVICE factory supplier offers passive breakout copper twinax cable, 1m 100G QSFP28 to 4×25G SFP28 twinax, pre-programmed EEPROM for Huawei VRP system. Zero-power breakout cable, bulk wholesale for distributors and system integrators.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-4SFP25-CU1M
2 Arista Networks  CAB-Q28-S28-1M
3 Brocade 100G-Q28-S28-C-0101
4 Huawei QSFP-4SFP25G-CU1M
5 Juniper QFX-Q-S-DAC-1M
6 Dell DAC-Q28-4SFP28-25G-1M
Description

Huawei QSFP-4SFP25G-CU1M Compatible 1m (3ft) 100G QSFP28 to Four 25G SFP28 Passive Breakout Copper Twinax Cable | HYTOPTODEVICE

Product Overview

HYTOPTODEVICE 1m 100G QSFP28 to 4x25G SFP28 passive breakout copper twinax cable is plug-and-play replacement for Huawei QSFP-4SFP25G-CU1M. Built to SFF-8662 MSA standards, It adopts passive twinax copper design to deliver stable links, mapping one 100G QSFP28 port into four independent 25G SFP28 interfaces with no extra power supply required.
Hot-swap supported and pre-flashed with Huawei matching EEPROM for breakout recognition. Ideal for leaf-spine port splitting, GPU server breakout and rack density upgrade. We provide bulk wholesale, OEM private labeling and batch signal integrity testing.

Key Technical Specifications

Huawei Compatible
QSFP-4SFP25G-CU1M
Vendor Name HYTOPTODEVICE
Connector QSFP28+ to 4 x SFP28 Max Data Rate 100Gbps
Cable Length 1m (3ft) Wire AWG AWG 30
Cable Type Passive Twinax Power Consumption ≤0.25W
Media Copper Operation Temperature 0~ 70 °C (32 to 158°F)
Jacket Material PVC(OFNR) Protocols IEEE 802.3, QSFP28 MSA, SFF-8665
Minimum Bend Radius 25mm Application 100G to 2x 25G Ethernet, Data Centers

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Mandatory Port Breakout Configuration: Ensure the host QSFP28 port supports channelization. Enable breakout mode (4x25G) via the switch CLI before connecting the cable.

  • Cabling Requirements: Do not exceed the minimum 25mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.

  • Port Installation Standard: Do not mix this breakout DAC with straight QSFP28 to QSFP28 DAC configuration.

  • Hot‑swap rule:Never pull or tug directly on the individual breakout legs. Always use the integrated pull-tab or bale latch when inserting or removing connectors.

  • Testing & Storage: Run sample validation on target hardware before large bulk deployment; store spare cables in dry, dust‑free and anti‑static packaging.
  • Operating Environment: 0‑70℃, indoor cabinet deployment only.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Huawei Hardware & Firmware

  • Huawei CloudEngine 6800 series:CE6857-48S6Q-HI, CE6860, CE6885-48YS8CQ
  • Huawei CloudEngine 8800 series:CE8850-64CQ-EI, CE8860-4C-EI
  • Huawei CloudEngine 9800 series:CE9860-4C-EI
  • Firmware:VRP V200R019, V200R020, V300R020

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this 100G QSFP28 to 4 x 25G SFP28 passive breakout DAC cable can interoperate with mainstream network brands including Arista, Intel, Juniper, Dell, NVIDIA Mellanox and IBM, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios

• 100G port breakout to four 25G server uplinks
• Leaf-spine fabric port density expansion
• AI GPU rack intra-rack interconnection
• HPC cluster high-speed short-range links
• Data center hardware upgrade and migration
• Distributor stock and system integration projects

Connectivity Solutions(Applications)

1. 100G to 4x25G Breakout Link for Switch-Switch
HYTOPTODEVICE 100G QSFP28 to 4x25G SFP28 breakout DAC cable FOR SWITCH TO SWITCH


2. 100G to 4x25G Breakout Link for Switch-NIC
HYTOPTODEVICE 100G breakout twinax cable for data center


The Core Feature


1.
Near-Zero Power, Full-Speed 100G

This 100G QSFP28 passive breakout DAC sips no extra energy, cutting heat and cost in crowded racks while keeping low-latency 100G for in-rack or adjacent-rack runs.

hytoptodevice 100G passive breakout direct attach copper CABLE for data center

2.Host-Device Tested for Proven Interoperability

Every unit is link-up tested on real target switch models; ports come online on first install across major vendor gear, no field tuning or replacement loops. Not sure it fits? Compatibility Video available upon request.

hytoptodevice wholesale 100G QSFP28+ to 4 sfp28 breakout twinax cable for data center

3. 100% Individually Tested for Peak Performance

Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our Test Center.

HYTOPTODEVICE  100g QSFP28 to 4 x sfp28 passive breaktout  dac cable for switches

FAQ

Q1: What is the reliable transmission range for this Huawei passive breakout copper twinax cable? A: The rated maximum reach for this passive breakout copper twinax cable is 1 meter. Passive twinax breakout has tight signal loss constraints, so HYTOPTODEVICE supplies this 1m version for short intra-rack breakout connections.

Q2: Will the four split 25G sub-links fail to activate without breakout configuration on Huawei VRP? A: Yes, separate 25G interfaces cannot come online without breakout commands. Huawei VRP needs dedicated breakout settings to split one QSFP28 port into four 25G ports, and our preloaded EEPROM supports this function.

Q3: Can this passive breakout copper twinax cable connect Huawei switches to 25G SFP28 NICs from other manufacturers? A: Yes, cross-brand connectivity works when remote 25G ports follow MSA standards. HYTOPTODEVICE tests every lane of this passive breakout copper twinax cable to pair with mainstream server network adapters and switches.

Q4: Can integrators rewrite the built-in breakout EEPROM data of this HYTOPTODEVICE passive breakout copper twinax cable? A: Standard stocked passive breakout copper twinax cables are pre-coded and locked for stable operation. We accept custom requirements and can provide coding tools, software and technical support upon request.

Q5: Can Huawei VRP firmware updates cause recognition issues for third-party passive breakout copper twinax cable? A: Compatibility risks may occur after major firmware releases with transceiver validation updates. HYTOPTODEVICE maintains updated breakout EEPROM profiles and validates against mainstream VRP versions to reduce risks, and we offer recoding service.

Q6: What information should buyers provide to HYTOPTODEVICE for accurate EEPROM programming of this Huawei compatible breakout cable? A: Please share switch model, VRP firmware version, breakout mode requirement and target part number. HYTOPTODEVICE will complete breakout validation before shipment.

Q7: What shielding structure is used in this passive breakout copper twinax cable to minimize crosstalk between four 25G lanes? A: Each 25G twinax pair features independent shielding plus overall braid and foil shielding. This dual-layer structure suppresses crosstalk and EMI interference between lanes in dense rack wiring.

Q8: Does HYTOPTODEVICE run per-lane signal integrity tests on every batch of passive breakout copper twinax cable before delivery? A: Yes, each production batch runs TDR and eye diagram testing across all four 25G lanes. HYTOPTODEVICE rejects cables with lane imbalance to guarantee stable breakout transmission.

Q9: Are the four SFP28 pull tabs of this passive breakout copper twinax cable durable for frequent hot plug in Huawei CloudEngine racks? A: Our pull tabs use reinforced plastic overmolding and strain relief. Each SFP28 branch is independently reinforced to withstand repeated plug-and-unplug operations in dense data center racks.

Q10: Does the outer jacket of HYTOPTODEVICE passive breakout copper twinax cable meet LSZH low-smoke zero-halogen specifications for data centers? A: Yes, the jacket material meets LSZH requirements for data center aisle deployment. All HYTOPTODEVICE passive breakout copper twinax cables follow standard fire safety specifications.

Q11: What cost savings can distributors achieve when purchasing this passive breakout copper twinax cable instead of separate optical modules? A: Typically you can save 40%–70% compared with purchasing one 100G optical transceiver plus four 25G optical modules for short rack breakout. This passive breakout copper twinax cable removes extra optical component costs.

Q12: Which deployment scenario suits this passive breakout copper twinax cable better than fiber breakout assemblies? A: Choose passive breakout copper twinax cable for intra-rack links ≤1m requiring ultra-low latency and zero power draw. Fiber breakout solutions fit longer distances or scenarios needing electrical isolation.

Q13: What warranty and RMA terms apply to HYTOPTODEVICE Huawei QSFP-4SFP25G-CU1M compatible passive breakout copper twinax cable? A: HYTOPTODEVICE provides a 5-year warranty covering manufacturing defects. If breakout recognition fails caused by our EEPROM profile, free RMA replacement is available after troubleshooting confirmation.

Q14: What lead time and MOQ are available for custom EEPROM programmed passive breakout copper twinax cable from HYTOPTODEVICE? A: Standard stocked passive breakout copper twinax cables ship quickly. Custom EEPROM coding orders support flexible MOQ. Contact HYTOPTODEVICE sales for accurate lead time and project schedule.

Q15: Are HYTOPTODEVICE Huawei compatible passive breakout copper twinax cable compliant with RoHS, CE, FCC and MSA industry standards? A: Yes, all HYTOPTODEVICE QSFP28 passive breakout copper twinax cables are MSA compliant, RoHS, CE and FCC certified for global data center and enterprise network deployment.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
