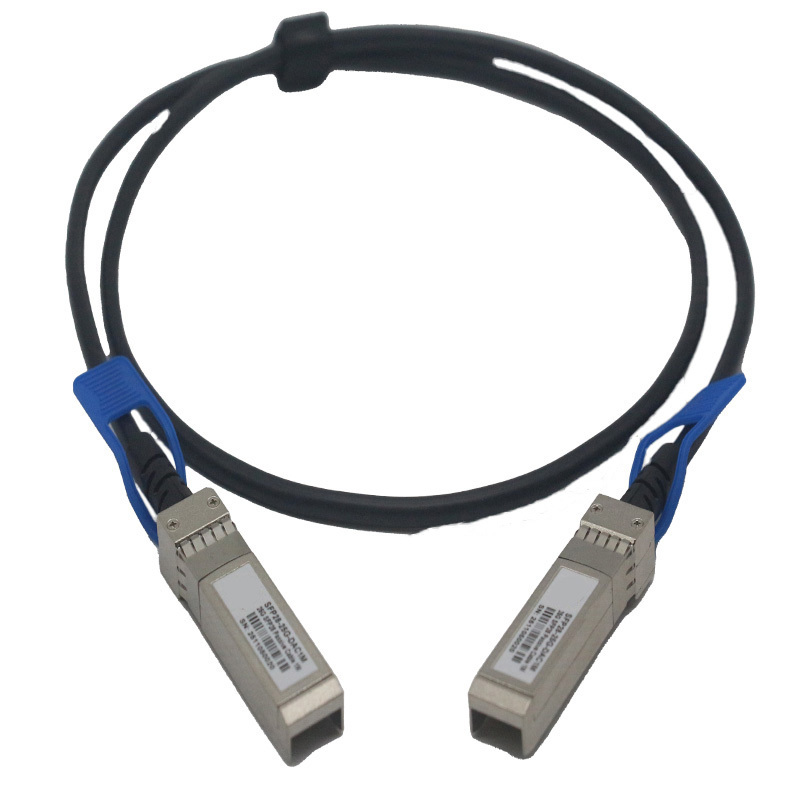

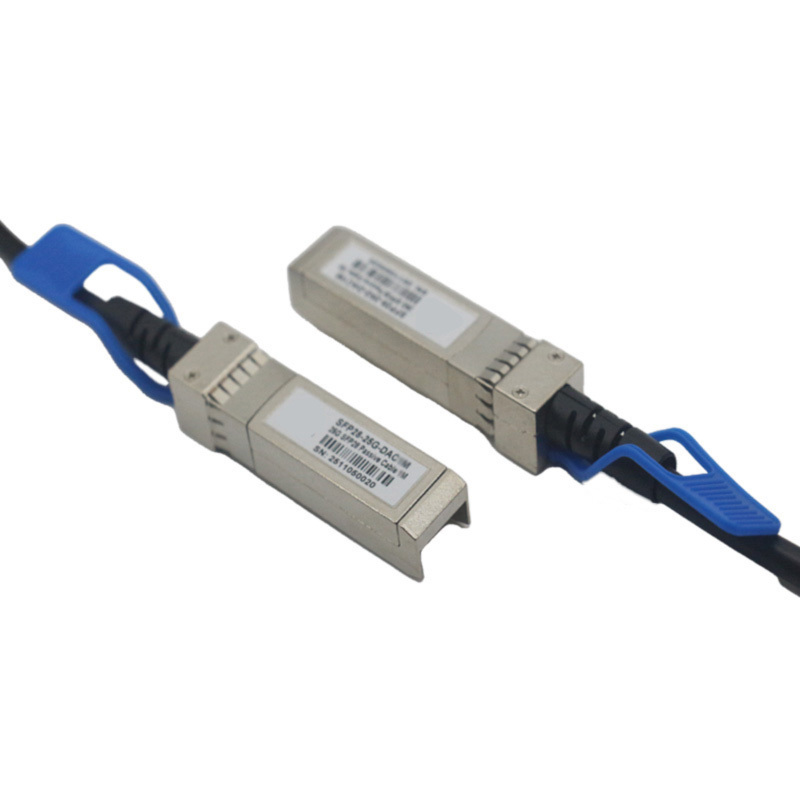

HPE 844474-B21 Compatible 25G SFP28 to SFP28 DAC Cable 1m (3ft) | 25GBASE-CR Passive Direct Attach Copper Twinax Cable | HYTOPTODEVICE

HYTOPTODEVICE, reliable manufacturer and factory supplier, provides low-latency, zero-power 25G SFP28 to SFP28 dac cable. This 1m passive twinax direct attach copper cable is a drop-in replacement for HPE 844474-B21, pre-encoded with matched EEPROM for HPE networking OS. Suitable for bulk purchase by wholesalers, resellers and system integrators, OEM customization is available.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco SFP-H25G-CU1M
2 Arista Networks CAB-S-S-25G-1M
3 Dell DAC-SFP-25G-1M
4 EdgeCore  ET7302-DAC-1M
5 H3C SFP-25G-D-CAB-1M
6 HPE 844474-B21
7 Juniper JNP-25G-DAC-1M
8 NVIDIA(Mellanox)  MCP2M00-A001
Description

HPE 844474-B21 Compatible 25G SFP28 to SFP28 DAC Cable 1m | 25G SFP28 to SFP28 dac cable Bulk Wholesale HYTOPTODEVICE

Product Overview

HYTOPTODEVICE’s 1m 25G SFP28 to SFP28 dac cable works seamlessly as the alternative part for HPE 844474-B21. It complies with 25GBASE-CR, SFF-8402 and IEEE 802.3by standards, supporting 25.78125Gbps short-distance intra-rack transmission. It runs without power supply and supports hot swapping. Preloaded with HPE-specific EEPROM data, this cable delivers warning-free plug-and-play under HPE network operating systems. FEC is not required for this 1-meter passive link. We keep stock ready, and support sample testing plus OEM services for suppliers, distributors and project integrators.

Key Product Parameters

 HPE Compatible  844474-B21       Vendor Name HYTOPTODEVICE
Connector SFP28 to SFP28 Max Data Rate 25Gbps
Cable Length 1m (3ft) Wire AWG AWG 30
Cable Type Passive Twinax Power Consumption ≤0.5W
Media Copper Operation Temperature 0~ 70 °C (32 to 158°F)
Jacket Material PVC(OFNR) Protocols IEEE 802.3, SFP28 MSA, SFF-8402, Infiniband, EIA 364-1000
Minimum Bend Radius 21mm Application 25G Ethernet, Data Center, 5G Wireless

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Mandatory Port Setting: Host SFP28 port must enable 25GBASE mode; link negotiation failure will happen if forced to optical mode.

  • Cabling Requirements: Do not exceed the minimum 21mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.

  • Port Installation Standard: Works only with standard SFP28  25G ports; cannot be inserted into SFP or XFP slots. Disable the host’s third-party transceiver lock policy in advance if required.

  • Maintenance Specification: Hot‑swap supported, grip the pull tab instead of pulling the cable body during plug/unplug to prevent internal conductor damage.

  • Testing & Storage: Run sample validation on target hardware before large bulk deployment; store spare cables in dry, dust‑free and anti‑static packaging.
  • Operating Environment: This commercial-grade cable operates reliably within 0℃‑70℃; avoid installation beside high-heat power modules.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated HPE Hardware & Firmware

Zero-warning plug-and-play on HPE switches and server platforms:

  • HPE FlexFabric 5945, 5950 series leaf-spine data center switches
  • HPE ProLiant DL360, DL380 and Apollo GPU servers fitted with SFP28 NICs
  • HPE Synergy fabric interconnect modules

Universal Compatibility: All HPE gear equipped with native SFP28 ports supporting 25GBASE-CR.

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this 25G SFP28 DAC cable can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and Fortinet, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios

• 1-meter intra-rack ToR to server links for HPE data center fabrics
• Low-latency connections for hyper-converged storage and HPC clusters
• Compact cabling inside high-density server racks
• Budget-friendly upgrade replacement for existing HPE 25G copper links
• Bulk sourcing for wholesalers, distributors and system integration projects


Connectivity Solutions(Applications)

1. 25G to 25G Direct Link for Switch-Switch
25g sfp28 passive dac cable for switch to switch
2. 25G to 25G Direct Link for Switch-NIC
hytoptodevice 25g sfp28 passive copper twinax cable for switch to NIC
The Core Feature


1.
Cost-Effective Ultra-Short Connectivity

Using twinax copper, the 25gb SFP28 Passive DAC replaces a fiber pair and two optical transceivers, significantly cutting interconnect cost for short-reach links — plug-and-play, no modules required.

HYTOPTODEVICE bulk factory wholesale 25G SFP28 DAC cable

2. Ultra-Low Power, Maximum Energy Efficiency

The passive 25g SFP28 passive DAC cable draws lower power consumption, reducing heat and energy costs in dense racks, while delivering a cost-effective, high-speed and low-latency 25G link for short-reach connections — within a rack or across adjacent racks.

bulk factory wholesale 25G SFP28 DAC cable WITH LOW power from hytoptodevice

3.Host-Device Tested for Proven Interoperability

Every SFP28 passive twinax copper cable is rigorously tested for compatibility in the target switch environment, so you can deploy with confidence — no surprises, no downtime. Not sure it fits? Compatibility Video available upon request.

compatible 25g sfp28 direct attach copper cable for data center

4. 100% Individually Tested for Peak Performance

Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our Test Center.

HYTOPTODEVICE 25G sfp28  dac cable with comprehensive factory testing stable performance for  platforms bulk wholesale orders


FAQ

Q1: Can this 25G SFP28 to SFP28 dac cable negotiate 25G speed on older HPE SFP+ 10G ports?
A: No, it locks at 25.78125Gbps. SFP+ hardware lacks the electrical specs for 25G negotiation. Both sides need native SFP28 interfaces.

Q2: Is FEC configuration necessary for this 1m 25G SFP28 to SFP28 dac cable on HPE switches?
A: FEC is unnecessary here. A 1-meter passive copper link retains sufficient signal margin to keep BER stable. FEC is reserved for troubleshooting longer copper runs.

Q3: Do I need special management profile changes after installing this 25G SFP28 to SFP28 dac cable in HPE fabrics?
A: No, the link will come online automatically with HPE-programmed EEPROM. We recommend small-scale sample testing before full cluster deployment.

Q4: Can I join multiple 25G SFP28 to SFP28 dac cables together to extend connection range?
A: No. Chaining passive twinax segments degrades signal quality and triggers excessive bit errors. Direct point-to-point port connection is required.

Q5: For short rack connections, why select a passive 25G SFP28 to SFP28 dac cable instead of optical transceivers?
A: Passive twinax delivers superior total cost ownership: near-zero power consumption, no optical conversion delay and lower unit price. Fiber optics fit inter-rack long-distance transmission.

Q6: Does HYTOPTODEVICE perform TDR and eye diagram inspection on batches of this 25G SFP28 to SFP28 dac cable?
A: We apply batch sampling inspection instead of 100% single-unit testing, paired with validation on HPE hardware, to control impedance drift and intermittent link flapping risks for bulk buyers.

Q7: Will deploying this third-party 25G SFP28 to SFP28 dac cable invalidate the OEM warranty of HPE network hardware?
A: It will not automatically void your device warranty. Warranty coverage is only excluded if cable defects cause permanent physical damage to switch ports. HYTOPTODEVICE supplies compliance test documents for resellers.

Q8: What conductor gauge is used for this HPE 844474-B21 compatible 25G SFP28 to SFP28 dac cable?
A: It adopts flexible 30AWG twinax copper. This gauge balances routing flexibility in dense racks and meets the electrical specification for 1m 25GBASE-CR links.

Q9: Is hot removal safe for this 25G SFP28 to SFP28 dac cable when the HPE switch stays powered on?
A: Yes, it follows the SFF-8402 hot-swap specification. Gold-plated contacts pass repeated insertion and extraction cycles for non-stop data center operation.

Q10: What is the average field failure rate of factory-validated 25G SFP28 to SFP28 dac cable from HYTOPTODEVICE?
A: Our field RMA rate remains below 0.3%. Multi-stage QC workflows reduce after-sales support overhead for wholesalers, distributors and integrators.

Q11: Are custom-length 25G SFP28 to SFP28 dac cables eligible for return if clients order incorrect lengths?
A: Custom non-standard lengths are non-refundable unless factory defective. We confirm all technical parameters before production and support pre-order sample evaluation.

Q12: How are these 25G SFP28 to SFP28 dac cables packaged for international bulk shipments?
A: Each cable gets dust protection caps, loosely coiled, sealed inside anti-static bags and packed into foam-lined cartons to shield pins and internal twinax conductors during transit.

Q13: How do I diagnose “No-Link / Port-Down” faults of this 25G SFP28 to SFP28 dac cable on HPE platforms?
A: Re-seat both connectors and verify the port speed is locked to 25GBASE-CR. Swap with a validated HYTOPTODEVICE cable to separate cable failure, port fault or transceiver lock issues. Technical troubleshooting docs are available for bulk customers.

Q14: What is the correct cleaning method for contaminated contact pins of a 25G SFP28 to SFP28 dac cable?
A: Use dedicated SFP28 copper contact cleaning sticks. Avoid rough cloths or heavy alcohol spraying. Fit dust caps immediately once the cable is not in use.

Q15: Why do BER faults appear several hours after the 25G SFP28 to SFP28 dac cable link establishes?
A: This symptom usually stems from thermal expansion shifting contact pressure or marginal signal quality. HYTOPTODEVICE runs thermal cycle screening to filter unstable units for reliable round-the-clock HPE fabric operation.

Packaging & Custom OEM Solutions
  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
