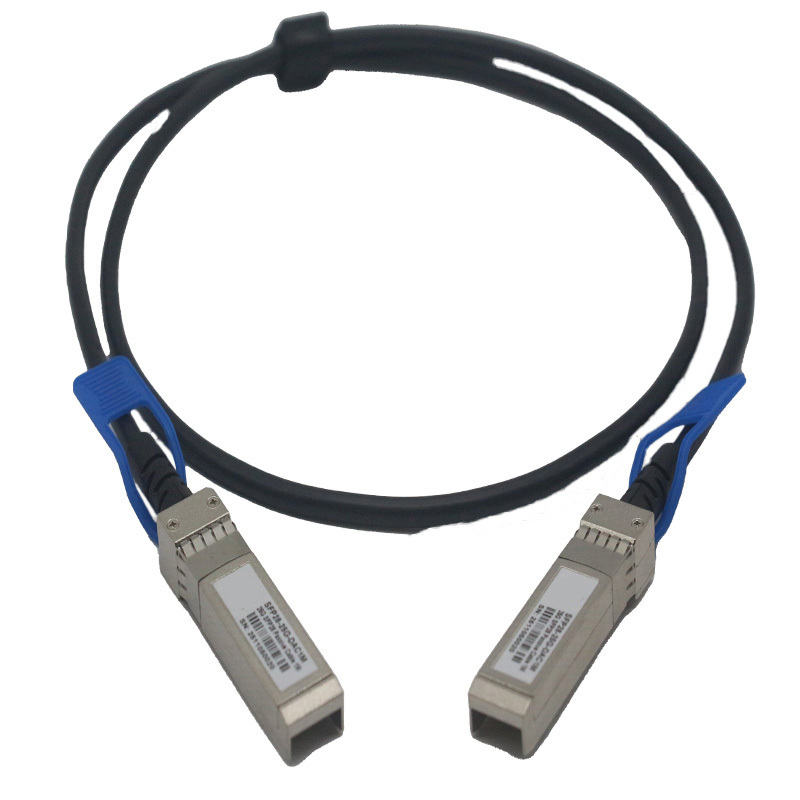

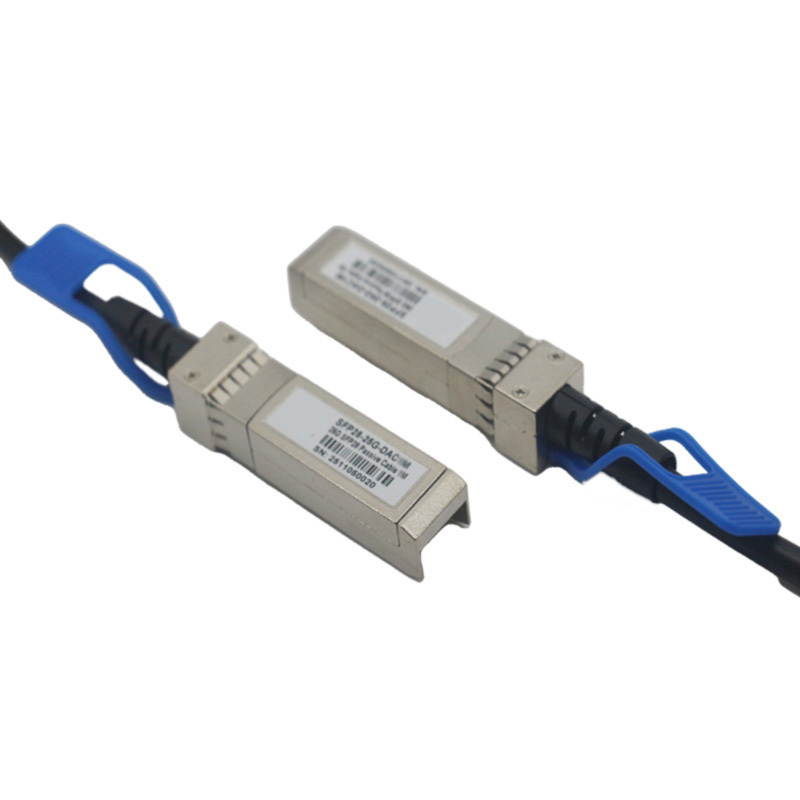

H3C SFP-25G-D-CAB-2M-A Compatible 25G SFP28 to SFP28 Passive DAC Cable 2m (7ft) | 25GBASE-CR Direct Attach Copper Twinax Cable | HYTOPTODEVICE

HYTOPTODEVICE is a trusted factory supplier for bulk purchase of passive DAC twinax cables. This 2m 25GBASE-CR Cisco compatible 25G SFP28 passive DAC cable supports stable 25G transmission rate, SFP28 form factor, validated Cisco compatibility and short intra-rack transmission distance. Buy 25G SFP28 DAC cable for Cisco data center leaf-spine networking.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco SFP-H25G-CU2M
2 Arista Networks CAB-S-S-25G-2M
3 Dell DAC-SFP-25G-2M
4 H3C  SFP-25G-D-CAB-2M-A
5 Juniper JNP-25G-DAC-2M
6 NVIDIA(Mellanox) MCP2M00-A002
Description

H3C SFP-25G-D-CAB-2M-A Compatible 25G SFP28 Passive DAC Cable 2m (7ft) | 25GBASE-CR Direct Attach Copper Twinax Cable | HYTOPTODEVICE

Product Overview

HYTOPTODEVICE 2m passive dac cable is a drop-in replacement for H3C SFP-25G-D-CAB-2M-A. It complies with 25GBASE-CR, SFF-8402 and IEEE 802.3by standards to deliver steady 25.78125Gbps short-distance intra-rack links with standard SFP28 form factor. This passive direct attach copper twinax cable draws zero power and supports hot swap.
We preload H3C-matched EEPROM signatures to reduce transceiver warning logs on Comware platforms. Available for quick purchase, sample verification and OEM service for distributors and system integrators.

Key Product Parameters

H3C Compatible   SFP-25G-D-CAB-2M-A   Vendor Name HYTOPTODEVICE
Connector SFP28 to SFP28 Max Data Rate 25Gbps
Cable Length 2m (7ft) Wire AWG AWG 30
Cable Type Passive Twinax Power Consumption ≤0.5W
Media Copper Operation Temperature 0~ 70 °C (32 to 158°F)
Jacket Material PVC(OFNR) Protocols IEEE 802.3, SFP28 MSA, SFF-8402, Infiniband, EIA 364-1000
Minimum Bend Radius 21mm Application 25G Ethernet, Data Center, 5G Wireless

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Mandatory Port Setting: Host SFP28 port must enable 25GBASE mode; link negotiation failure will happen if forced to optical mode.

  • Cabling Requirements: Do not exceed the minimum 21mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.

  • Port Installation Standard: Works only with standard SFP28  25G ports; cannot be inserted into SFP or XFP slots. Disable the host’s third-party transceiver lock policy in advance if required.

  • Maintenance Specification: Hot‑swap supported, grip the pull tab instead of pulling the cable body during plug/unplug to prevent internal conductor damage.

  • Testing & Storage: Run sample validation on target hardware before large bulk deployment; store spare cables in dry, dust‑free and anti‑static packaging.
  • Operating Environment: This commercial-grade cable operates reliably within 0℃‑70℃; avoid installation beside high-heat power modules.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated H3C Hardware & Firmware

  • H3C S6850, S6825, S6880, S9850 series switches running Comware
  • H3C S5560X, S6530X, S6550X leaf switches with native SFP28 ports
  • H3C server NIC and blade fabric modules equipped with SFP28 interfaces

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this 25G SFP28 Passive DAC cable can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and Fortinet, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios
  • Intra-rack leaf-to-server connections for H3C Comware leaf-spine fabrics
  • Low-latency NVMe over Fabrics storage cluster interlinks
  • Virtualization hypervisor networking on rack servers paired with H3C switches
  • HPC cluster node interconnection inside server cabinets
  • Server backup and replication networking
  • Direct replacement for original H3C SFP-25G-D-CAB-2M-A passive dac cable
  • High-density rack internal switch stacking links

Connectivity Solutions(Applications)

1. 25G to 25G Direct Link for Switch-Switch
25g sfp28 passive dac cable for switch to switch
2. 25G to 25G Direct Link for Switch-NIC
hytoptodevice 25g sfp28 passive copper twinax cable for switch to NIC
The Core Feature

1. Cost-Effective Ultra-Short Connectivity

Using twinax copper, the 25gb SFP28 Passive DAC replaces a fiber pair and two optical transceivers, significantly cutting interconnect cost for short-reach links — plug-and-play, no modules required.

HYTOPTODEVICE bulk factory wholesale 25G SFP28 DAC cable

2. Ultra-Low Power, Maximum Energy Efficiency

The 25g SFP28 passive DAC cable draws lower power consumption, reducing heat and energy costs in dense racks, while delivering a cost-effective, high-speed and low-latency 25G link for short-reach connections — within a rack or across adjacent racks.

bulk factory wholesale 25G SFP28 DAC cable WITH LOW power from hytoptodevice

3.Host-Device Tested for Proven Interoperability

Every SFP28 passive twinax copper cable is rigorously tested for compatibility in the target switch environment, so you can deploy with confidence — no surprises, no downtime. Not sure it fits? Compatibility Video available upon request.

compatible 25g sfp28 direct attach copper cable for data center

4. 100% Individually Tested for Peak Performance

Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our Test Center.

HYTOPTODEVICE 25G sfp28  dac cable with comprehensive factory testing stable performance for  platforms bulk wholesale orders


FAQ

Q1: Will this H3C compatible passive dac cable sustain full 25G line rate under Comware OS? A: Yes, this HYTOPTODEVICE passive dac cable supports full 25.78125Gbps line rate. It is pre-programmed with H3C EEPROM profile and validated on Comware for stable 25GBASE-CR links.

Q2: What is the maximum reliable transmission distance supported by this 25G SFP28 passive dac cable? A: The rated maximum reach for 25G SFP28 passive dac cable is 5 meters. This 2m cable stays well within copper signal loss budget for H3C same-rack deployments.

Q3: Can this passive dac cable build cross-brand links between H3C switches and NVIDIA ConnectX NICs? A: Cross-brand interconnection works reliably with unified 25GBASE-CR and matching FEC settings. This passive dac cable follows MSA specs for mixed-vendor data center fabrics.

Q4: What is the core difference between SFP28 and SFP+ form factor for passive dac cable? A: SFP28 form factor supports up to 25G signaling while SFP+ only reaches 10G. This passive dac cable uses SFP28 housing to match modern H3C 25G ports.

Q5: What kind of link fault will appear if this passive dac cable runs longer than 5 meters? A: 25G twinax copper signal attenuates sharply beyond the limit. Length over 5m triggers CRC errors and link flapping; longer connections need fiber optical cables.

Q6: Which business applications gain the most latency advantage using this passive dac cable on H3C fabrics? A: NVMe storage, virtualization and HPC clusters get the most benefit. This HYTOPTODEVICE passive dac cable delivers consistent low latency for these H3C workloads.

Q7: Can this 2m passive dac cable be used for direct point-to-point links between two servers? A: Direct server-to-server interconnection is fully supported with proper port configuration. This passive dac cable works well for storage replication and cluster sync within a single rack.

Q8: How does AWG wire gauge influence signal performance for 2m passive dac cable deployment? A: 30AWG offers flexible routing for 2m runs, while 26AWG retains better loss margin close to 5m. This cable adopts 30AWG twinax optimized for H3C rack cabling layout.

Q9: Will Comware firmware upgrade affect the identification of this passive dac cable? A: MSA-compliant passive dac cable remains compatible after routine Comware firmware updates. Preloaded H3C EEPROM maintains stable recognition on mainstream releases.

Q10: When should AOC fiber cable replace passive dac cable in H3C data center design? A: Select active optical cables for cross-rack links or distances above 5 meters. Passive dac cable is zero-power and cost-effective for short intra-rack 25G connections.

Q11: How much latency reduction can passive dac cable deliver compared with optical transceiver links? A: Passive dac cable cuts roughly 30–60ns latency by removing optical-electrical conversion. This improvement is valuable for latency-sensitive storage and computing.

Q12: Can this SFP28 passive dac cable negotiate 25G speed on legacy SFP+ 10G ports of H3C devices? A: 25G negotiation is impossible on SFP+ ports due to different electrical specifications. Both ends require native SFP28 ports to run this passive dac cable at full 25G.

Q13: Can QSFP28 breakout 4×25G DAC substitute this SFP28 passive dac cable on H3C SFP28 ports? A: Breakout DAC uses separate pin mapping and split logic. It cannot replace this standard SFP28-to-SFP28 point-to-point passive dac cable.

Q14: What compatibility verification tests does HYTOPTODEVICE run for this H3C passive dac cable before shipment? A: Each batch runs BER scanning, link-up and hot-swap validation on H3C Comware switches. Testing confirms EEPROM detection and steady 25G performance.

Q15: What deployment restrictions should buyers know before bulk purchasing passive dac cable for H3C fabrics? A: Passive dac cable is designed exclusively for short intra-rack copper links. It is not suitable for inter-row or long-distance cross-room transmission.


Packaging & Custom OEM Solutions
  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
