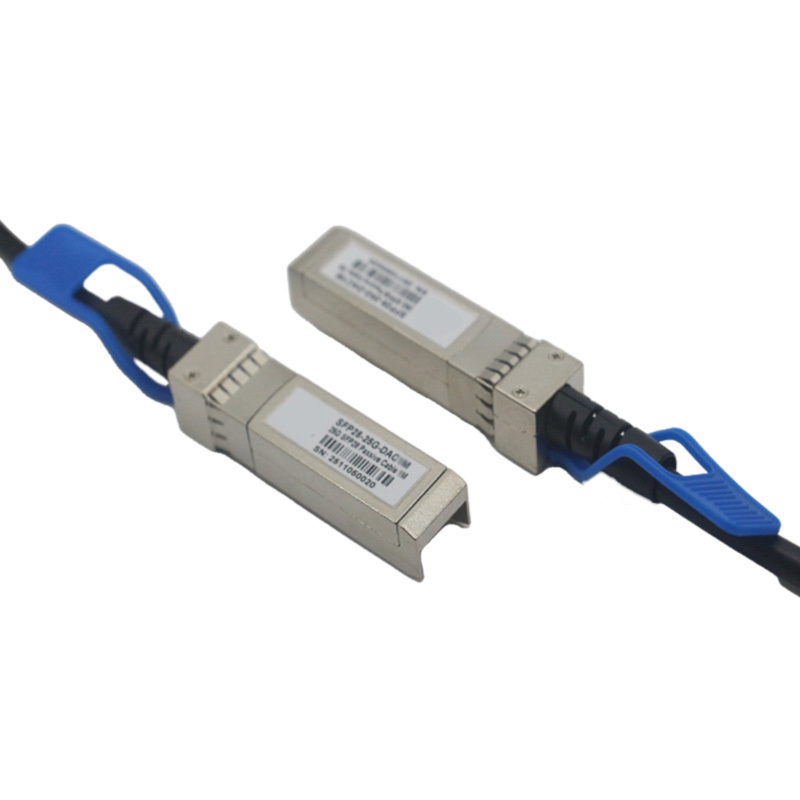

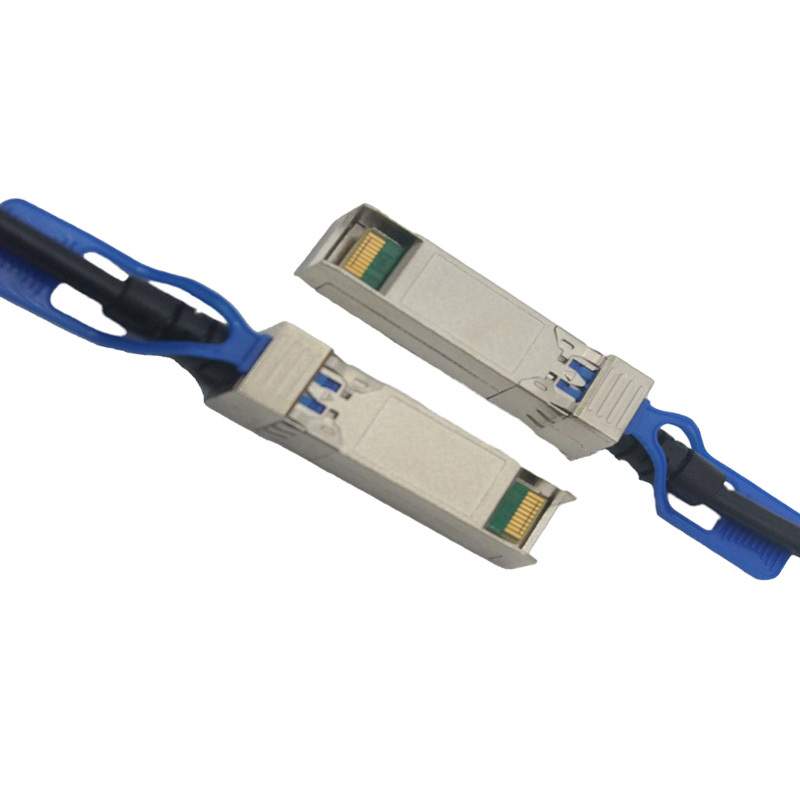

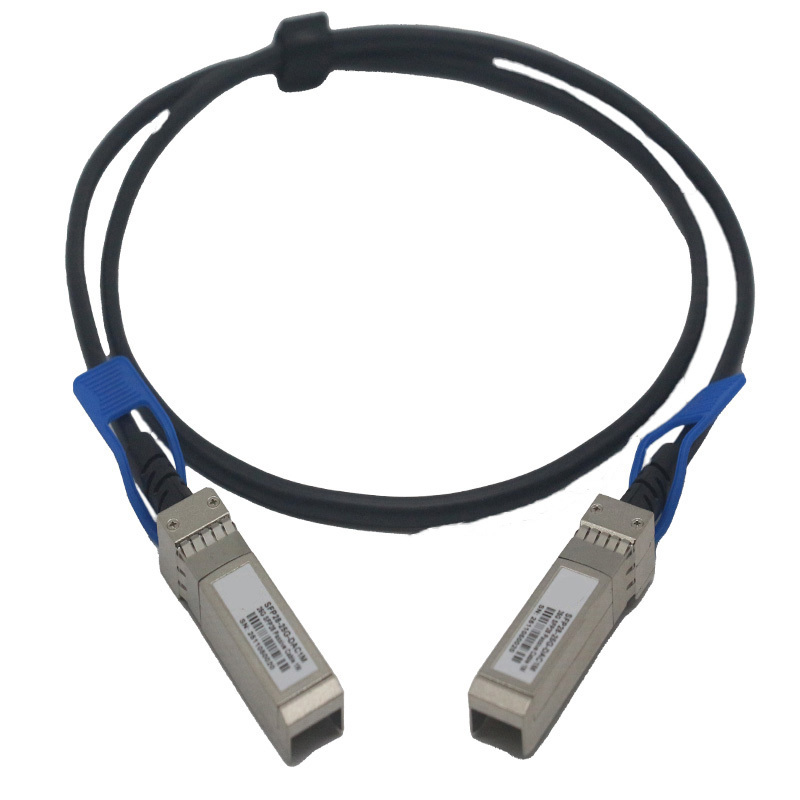

H3C SFP-25G-D-CAB-1M Compatible 25G SFP28 Passive DAC Cable 1m (3ft) | 20GBASE-CR Direct Attach Copper Twinax Cable | HYTOPTODEVICE

HYTOPTODEVICE, reliable manufacturer supplier factory, supplies low‑latency zero‑power 25G SFP28 passive dac cable. H3C SFP-25G-D-CAB-1M replacement 1m twinax cable, pre‑coded EEPROM for H3C Comware OS. Bulk order for wholesaler, distributors, integrators, OEM available.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco SFP-H25G-CU1M
2 Arista Networks CAB-S-S-25G-1M
3 Dell DAC-SFP-25G-1M
4 EdgeCore  ET7302-DAC-1M
5 H3C SFP-25G-D-CAB-1M
6 HPE 844474-B21
7 Juniper JNP-25G-DAC-1M
8 NVIDIA(Mellanox)  MCP2M00-A001
Description

H3C SFP-25G-D-CAB-1M Compatible 25G SFP28 Passive DAC Cable 1m | 25G SFP28 passive dac cable Bulk Wholesale HYTOPTODEVICE

Product Overview

HYTOPTODEVICE 1m 25G SFP28 passive dac cable is drop‑in replacement for H3C SFP-25G-D-CAB-1M. Compliant with 25GBASE‑CR, SFF‑8402, IEEE 802.3by, delivers 25.78125Gbps intra‑rack transmission, zero‑power and hot‑swap supported. Pre‑loaded H3C‑matched EEPROM for alarm‑free plug‑and‑play under Comware OS, no mandatory FEC needed. In stock, sample & OEM options for manufacturer supplier factory, wholesaler, distributors, integrators.

Key Product Parameters

H3C Compatible  SFP-25G-D-CAB-1M       Vendor Name HYTOPTODEVICE
Connector SFP28 to SFP28 Max Data Rate 25Gbps
Cable Length 1m (3ft) Wire AWG AWG 30
Cable Type Passive Twinax Power Consumption ≤0.5W
Media Copper Operation Temperature 0~ 70 °C (32 to 158°F)
Jacket Material PVC(OFNR) Protocols IEEE 802.3, SFP28 MSA, SFF-8402, Infiniband, EIA 364-1000
Minimum Bend Radius 21mm Application 25G Ethernet, Data Center, 5G Wireless

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Mandatory Port Setting: Host SFP28 port must enable 25GBASE mode; link negotiation failure will happen if forced to optical mode.

  • Cabling Requirements: Do not exceed the minimum 21mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.

  • Port Installation Standard: Works only with standard SFP28  25G ports; cannot be inserted into SFP or XFP slots. Disable the host’s third-party transceiver lock policy in advance if required.

  • Maintenance Specification: Hot‑swap supported, grip the pull tab instead of pulling the cable body during plug/unplug to prevent internal conductor damage.

  • Testing & Storage: Run sample validation on target hardware before large bulk deployment; store spare cables in dry, dust‑free and anti‑static packaging.
  • Operating Environment: This commercial-grade cable operates reliably within 0℃‑70℃; avoid installation beside high-heat power modules.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated H3C Hardware & Firmware

Zero‑alarm plug‑and‑play on H3C switches running Comware:

  • H3C S6800, S6880, S9826 series leaf-spine switches
  • H3C LSWM124TG2H interface cards
  • Servers with SFP28 NIC for H3C data center fabrics

Universal Compatibility: All H3C hardware with native SFP28 ports supporting 25GBASE‑CR.

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this 25G SFP28 DAC cable can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and Fortinet, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios

• 1m intra‑rack ToR‑server links for H3C Comware leaf‑spine fabrics
• Low‑latency HPC and hyper‑converged cluster connections
• Dense rack unit‑to‑unit cabling
• Cost‑saving H3C data‑center upgrade replacement
• Bulk procurement for manufacturer supplier factory, wholesaler, distributors, integrators


Connectivity Solutions(Applications)

1. 25G to 25G Direct Link for Switch-Switch
25g sfp28 passive dac cable for switch to switch
2. 25G to 25G Direct Link for Switch-NIC
hytoptodevice 25g sfp28 passive copper twinax cable for switch to NIC
The Core Feature


1.
Cost-Effective Ultra-Short Connectivity

Using twinax copper, the 25gb SFP28 Passive DAC replaces a fiber pair and two optical transceivers, significantly cutting interconnect cost for short-reach links — plug-and-play, no modules required.

HYTOPTODEVICE bulk factory wholesale 25G SFP28 DAC cable

2. Ultra-Low Power, Maximum Energy Efficiency

The passive 25g SFP28 passive DAC cable draws lower power consumption, reducing heat and energy costs in dense racks, while delivering a cost-effective, high-speed and low-latency 25G link for short-reach connections — within a rack or across adjacent racks.

bulk factory wholesale 25G SFP28 DAC cable WITH LOW power from hytoptodevice

3.Host-Device Tested for Proven Interoperability

Every SFP28 passive twinax copper cable is rigorously tested for compatibility in the target switch environment, so you can deploy with confidence — no surprises, no downtime. Not sure it fits? Compatibility Video available upon request.

compatible 25g sfp28 direct attach copper cable for data center

4. 100% Individually Tested for Peak Performance

Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our Test Center.

HYTOPTODEVICE 25G sfp28  dac cable with comprehensive factory testing stable performance for  platforms bulk wholesale orders


FAQ

Q1: Can this 1m 25G SFP28 passive dac cable run 25G on H3C 10G SFP+ ports?
A: No, it runs fixed 25.78125Gbps. Without multi‑rate negotiation support, SFP+ ports will not establish link. Both ports must be native SFP28.

Q2: Is FEC mandatory for this 1m passive DAC under H3C Comware?
A: No. 1‑meter 25GBASE‑CR passive link has sufficient signal margin to maintain stable BER without FEC. FEC is reserved for troubleshooting longer copper links.

Q3: Do I need extra Comware CLI configuration for HPC clusters?
A: No, link auto‑comes up after insertion with pre‑matched H3C EEPROM. Sample validation before mass deployment is recommended.

Q4: Can I join multiple passive DACs together to extend cabling distance?
A: No. Cascading passive twinax breaks signal integrity and creates excessive bit errors. Direct port‑to‑port connection is required.

Q5: What is the benefit to pick passive DAC over SFP28 fiber optics for short H3C rack links?
A: Passive twinax delivers better TCO: near‑zero power, no optical conversion latency and lower component cost. Fiber transceivers suit cross‑rack long‑distance links.

Q6: Does HYTOPTODEVICE run TDR and eye‑diagram sampling on each production batch?
A: Not testing every single cable, but batch sampling plus H3C target platform validation, controlling impedance and link flapping risk for wholesale buyers.

Q7: Will this third‑party DAC void H3C OEM hardware warranty?
A: It will not auto‑void warranty. Warranty exclusion only applies when cable defects physically damage switch ports. HYTOPTODEVICE supplies test docs for distributors.

Q8: What AWG wire is used for this H3C SFP-25G-D-CAB-1M replacement DAC?
A: 30AWG flexible twinax copper. It is lightweight and easy to route in dense racks while satisfying 1‑meter 25GBASE‑CR electrical specs.

Q9: Is hot‑swap safe on powered H3C S6800/S6880 switches?
A: Yes, SFF‑8402 compliant hot‑swap design. Gold‑plated contacts pass repeated plug tests for live Comware data‑center operation.

Q10: What is the typical defective rate for factory‑tested HYTOPTODEVICE DAC lots?
A: Field RMA rate stays below 0.3%. Multi‑stage QC reduces after‑sales support workload for wholesaler, distributors, integrators.

Q11: Are custom‑length DACs returnable if buyers submit wrong length orders?
A: Custom non‑standard lengths are non‑returnable unless factory defective. We confirm specs before production and offer sample evaluation.

Q12: How are DACs packed for cross‑border wholesale shipment?
A: Each cable fitted with dust caps, loosely coiled, packed in anti‑static bag plus cushioned carton to protect pins and internal twinax conductors.

Q13: Troubleshooting “No‑Link / Port‑Down” on H3C Comware?
A: Reseat connectors, confirm port is set to 25GBASE‑CR. Swap with verified HYTOPTODEVICE DAC to separate cable, port or firmware lock issues. Troubleshooting guides available for bulk clients.

Q14: How should technicians clean contaminated copper contacts of SFP28 DAC?
A: Use dedicated SFP28 copper contact cleaning sticks. Avoid rough cloth or excessive alcohol spray. Keep dust caps on unused spare cables.

Q15: Why BER faults only surface several hours after link comes online?
A: Usually caused by thermal expansion shifting connector contact pressure or marginal signal integrity. HYTOPTODEVICE thermal‑cycle screening filters marginal units to ensure stable 24/7 H3C fabric operation.

Packaging & Custom OEM Solutions
  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.
