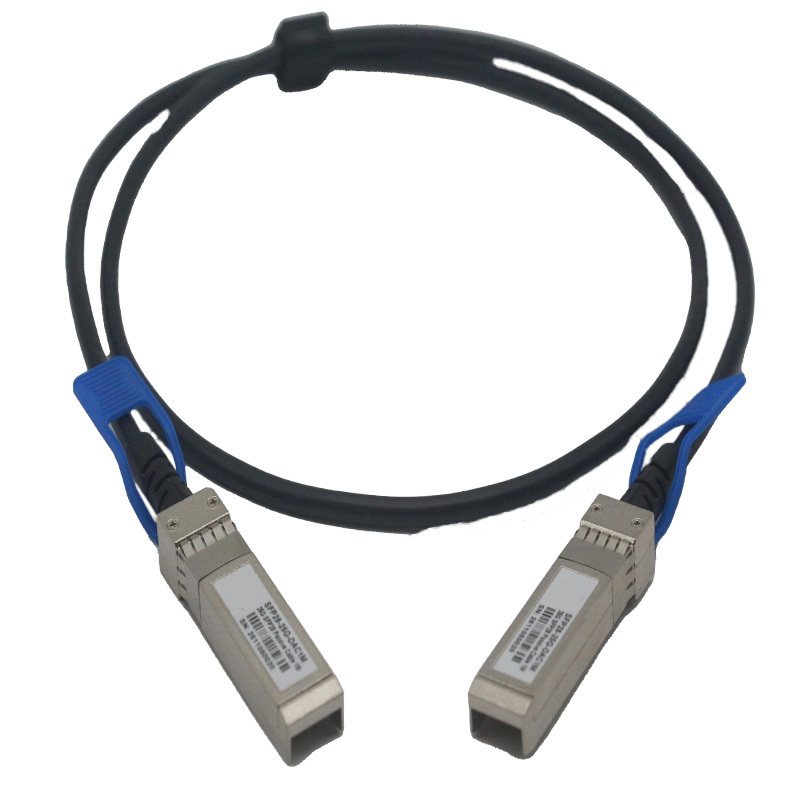

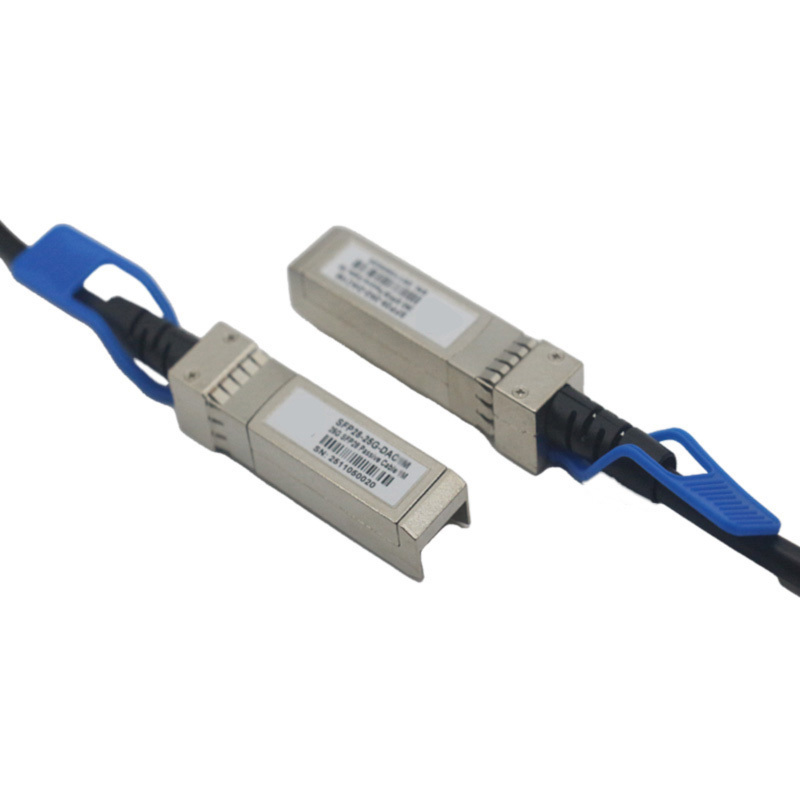

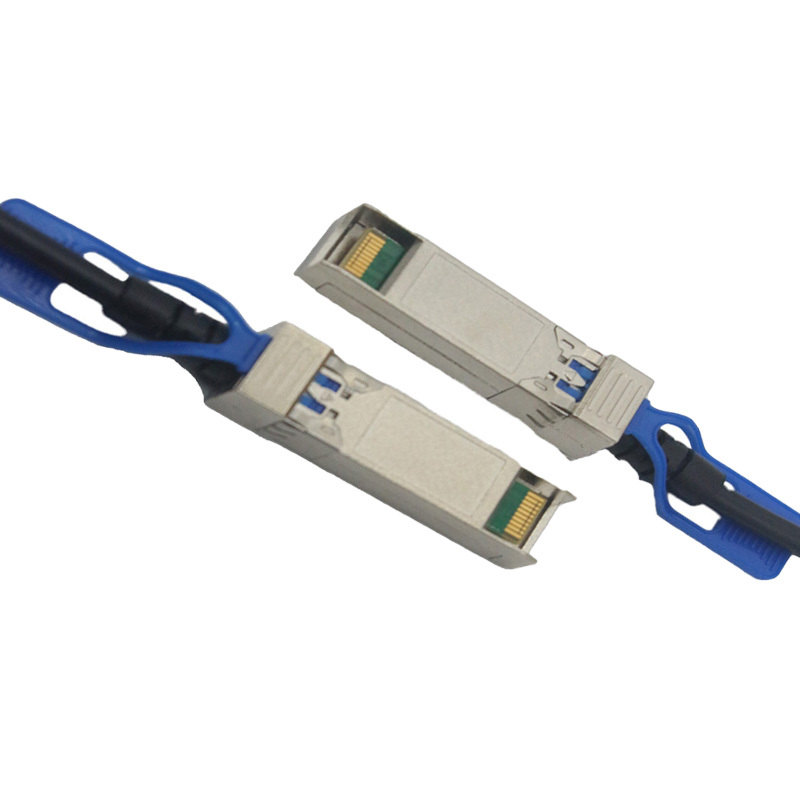

EdgeCore ET7302-DAC-1M Compatible 25G QSFP28 Passive DAC Cable 1m | 25GBASE-CR Copper Twinax Bulk Wholesale | HYTOPTODEVICE
Product Overview
HYTOPTODEVICE 1m 25G QSFP28 passive dac cable is drop‑in replacement for EdgeCore ET7302-DAC-1M. Compliant with 25GBASE‑CR, SFF‑8436, IEEE 802.3by, delivers 25.78125Gbps intra‑rack transmission, zero‑power and hot‑swap supported. Pre‑loaded Edgecore‑matched EEPROM for alarm‑free plug‑and‑play under SONiC / ONIE open NOS, no mandatory FEC needed. In stock, sample & OEM options for manufacturer supplier factory, wholesaler, distributors, integrators.
Key Product Parameters
| EdgeCore Compatible |
ET7302-DAC-1M |
Vendor Name |
HYTOPTODEVICE |
| Connector |
SFP28 to SFP28 |
Max Data Rate |
25Gbps |
| Cable Length |
1m (3ft) |
Wire AWG |
AWG 30 |
| Cable Type |
Passive Twinax |
Power Consumption |
≤0.5W |
| Media |
Copper |
Operation Temperature |
0~ 70 °C (32 to 158°F) |
| Jacket Material |
PVC(OFNR) |
Protocols |
IEEE 802.3, SFP28 MSA, SFF-8402, Infiniband, EIA 364-1000 |
| Minimum Bend Radius |
21.25mm |
Application |
25G Ethernet, Data Center, 5G Wireless |
For detailed technical specifications, please refer to the Datasheet
Usage Guidelines & Best Practices
-
Mandatory Port Setting: Host SFP28 port must enable 25GBASE mode; link negotiation failure will happen if forced to optical mode.
-
Cabling Requirements: Do not exceed the minimum 21mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.
-
Port Installation Standard: Works only with standard SFP28 25G ports; cannot be inserted into SFP or XFP slots. Disable the host’s third-party transceiver lock policy in advance if required.
-
Maintenance Specification: Hot‑swap supported, grip the pull tab instead of pulling the cable body during plug/unplug to prevent internal conductor damage.
- Testing & Storage: Run sample validation on target hardware before large bulk deployment; store spare cables in dry, dust‑free and anti‑static packaging.
For detailed operation instructions, please refer to the User Guide.
Full Compatibility List & Supported Devices
1. Validated EdgeCore Hardware & Firmware
Zero‑alarm plug‑and‑play on Edgecore open switches running SONiC / ONIE:
- EdgeCore AS5812, AS6712, AS6812 leaf‑spine switches
- EdgeCore AS7326, AS7426 high-density multi-rate switches
- Servers with QSFP28 NIC for Edgecore open fabric deployments
Universal Compatibility: All Edgecore hardware with native QSFP28 ports supporting 25GBASE‑CR.
2. Multi-Brand Cross Interoperability
Built on universal MSA open standards, this 25G SFP28 DAC cable can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and Fortinet, for mixed-vendor rack stacking and server fabric expansion.
3. Free Value-Added Services
-
Custom firmware for multi-device compatibility
-
Support sample testing before bulk orders for project pre-verification
-
Private-label customization and professional deployment guidanc
-
Strict batch consistency quality control
- Free custom EEPROM programming for special and legacy network environments
- Free EEPROM rewriting (Tools Included) with 24/7 Tech Support
Primary Application Scenarios
• 1m intra‑rack ToR‑server links for Edgecore SONiC leaf‑spine fabrics
• Low‑latency HPC and hyper‑converged cluster connections
• Dense rack unit‑to‑unit cabling for open networking racks
• Cost‑saving Edgecore open switch upgrade replacement
• Bulk procurement for manufacturer supplier factory, wholesaler, distributors, integrators
Connectivity Solutions(Applications)
1. 25G to 25G Direct Link for Switch-Switch
2. 25G to 25G Direct Link for Switch-NIC
The Core Feature
1. Cost-Effective Ultra-Short Connectivity
Using twinax copper, the 25gb SFP28 Passive DAC replaces a fiber pair and two optical transceivers, significantly cutting interconnect cost for short-reach links — plug-and-play, no modules required.

2. Ultra-Low Power, Maximum Energy Efficiency
The passive 25g SFP28 passive DAC cable draws lower power consumption, reducing heat and energy costs in dense racks, while delivering a cost-effective, high-speed and low-latency 25G link for short-reach connections — within a rack or across adjacent racks.

3.Host-Device Tested for Proven Interoperability
Every SFP28 passive twinax copper cable is rigorously tested for compatibility in the target switch environment, so you can deploy with confidence — no surprises, no downtime. Not sure it fits?
Compatibility Video available upon request.
4. 100% Individually Tested for Peak Performance
Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our
Test Center.

FAQ
Q1: Can this 1m 25G QSFP28 passive dac cable run 25G on Edgecore 10G SFP+ ports?
A: No, it runs fixed 25.78125Gbps. Without multi‑rate negotiation support, SFP+ ports will not establish link. Both ports must be native QSFP28.
Q2: Is FEC mandatory for this 1m passive DAC under Edgecore SONiC?
A: No. 1‑meter 25GBASE‑CR passive link has sufficient signal margin to maintain stable BER without FEC. FEC is reserved for troubleshooting longer copper links.
Q3: Do I need extra SONiC configuration for open HPC clusters?
A: No, link auto‑comes up after insertion with pre‑matched Edgecore EEPROM. Sample validation before mass deployment is recommended.
Q4: Can I join multiple passive DACs together to extend cabling distance?
A: No. Cascading passive twinax breaks signal integrity and creates excessive bit errors. Direct port‑to‑port connection is required.
Q5: What is the benefit to pick passive DAC over QSFP28 fiber optics for short Edgecore rack links?
A: Passive twinax delivers better TCO: near‑zero power, no optical conversion latency and lower component cost. Fiber transceivers suit cross‑rack long‑distance links.
Q6: Does HYTOPTODEVICE run TDR and eye‑diagram sampling on each production batch?
A: Not testing every single cable, but batch sampling plus Edgecore target platform validation, controlling impedance and link flapping risk for wholesale buyers.
Q7: Will this third‑party DAC void Edgecore OEM hardware warranty?
A: It will not auto‑void warranty. Warranty exclusion only applies when cable defects physically damage switch ports. HYTOPTODEVICE supplies test docs for distributors.
Q8: What AWG wire is used for this Edgecore ET7302-DAC-1M replacement DAC?
A: 30AWG flexible twinax copper. It is lightweight and easy to route in dense open racks while satisfying 1‑meter 25GBASE‑CR electrical specs.
Q9: Is hot‑swap safe on powered Edgecore AS-series open switches?
A: Yes, SFF‑8436 compliant hot‑swap design. Gold‑plated contacts pass repeated plug tests for live SONiC data‑center operation.
Q10: What is the typical defective rate for factory‑tested HYTOPTODEVICE DAC lots?
A: Field RMA rate stays below 0.3%. Multi‑stage QC reduces after‑sales support workload for wholesaler, distributors, integrators.
Q11: Are custom‑length DACs returnable if buyers submit wrong length orders?
A: Custom non‑standard lengths are non‑returnable unless factory defective. We confirm specs before production and offer sample evaluation.
Q12: How are DACs packed for cross‑border wholesale shipment?
A: Each cable fitted with dust caps, loosely coiled, packed in anti‑static bag plus cushioned carton to protect pins and internal twinax conductors.
Q13: Troubleshooting “No‑Link / Port‑Down” on Edgecore SONiC?
A: Reseat connectors, confirm port is set to 25GBASE‑CR. Swap with verified HYTOPTODEVICE DAC to separate cable, port or firmware lock issues. Troubleshooting guides available for bulk clients.
Q14: How should technicians clean contaminated copper contacts of QSFP28 DAC?
A: Use dedicated QSFP28 copper contact cleaning sticks. Avoid rough cloth or excessive alcohol spray. Keep dust caps on unused spare cables.
Q15: Why BER faults only surface several hours after link comes online?
A: Usually caused by thermal expansion shifting connector contact pressure or marginal signal integrity. HYTOPTODEVICE thermal‑cycle screening filters marginal units to ensure stable 24/7 Edgecore fabric operation.
Packaging & Custom OEM Solutions
-
ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.
-
Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
- Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
- 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
- ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
- Ample stock, fast global DHL/FedEx shipping in 3–5 working days
- Free pre-sales engineering support for custom EEPROM & private label firmware
- Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order
“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia
Quality Certification & Compliance
At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.
We adhere to rigorous standards for our SFP modules and network solutions:
-
ISO 9001: Certified quality management and production consistency.
-
CE & FCC: Fully compliant for seamless Global Market Access.
-
RoHS: Committed to environmental responsibility and hazardous material control.
-
Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.
Certified Quality. Global Standards. Guaranteed Performance.

Rigorous Industrial Product Testing

100% 3rd Party Compatible

Partial Test Demonstration
