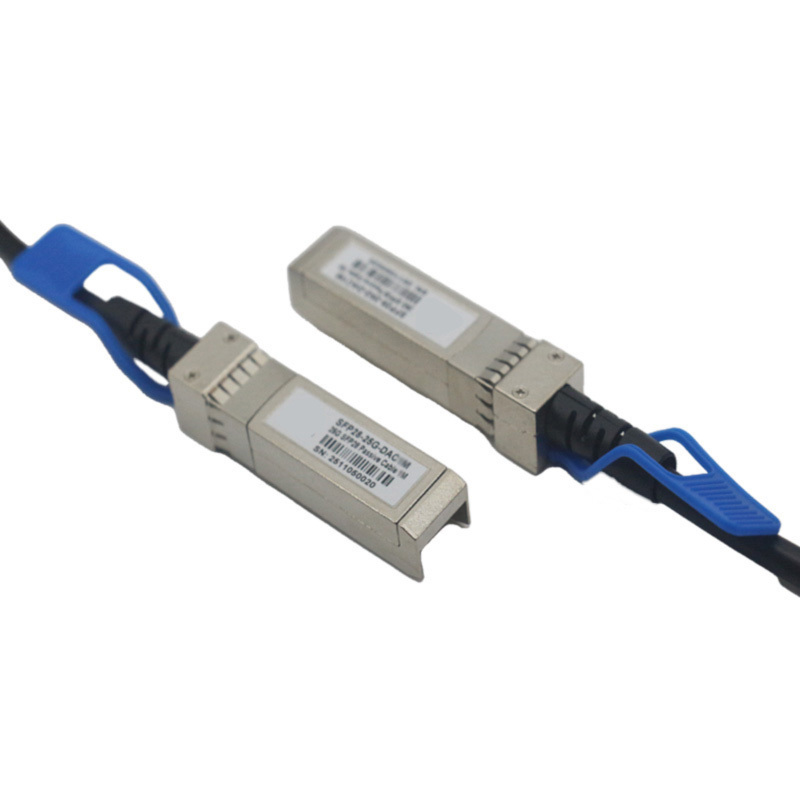

Dell DAC-SFP-25G-0.5M Compatible 25G SFP28 to SFP28 DAC Cable 50cm (1.6ft) Passive Direct Attach Copper Twinax Cable-HYTOPTODEVICE

The HYTOPTODEVICE DAC-SFP-25G-0.5M DAC SFP28 25G is 100% verified for "Plug-and-Play" operation with:

• Dell Networking S-Series (25GbE): S5048F-ON, S5148F-ON, S5224F-ON, S5248F-ON, and S5296F-ON.

• Dell Networking Z-Series: Z9264F-ON and Z9432F-ON (25G breakouts or native 25G ports).

• Dell PowerEdge Servers: R650, R750, R660, R760, and XE9680 equipped with 25G SFP28 NICs (NVIDIA/Mellanox, Broadcom, or Intel).

• Dell PowerStore & Unity XT: High-speed 25G front-end connectivity.

• Operating Systems: Fully supported in Dell OS10. Identified natively as DAC-SFP-25G-0.5M in the CLI for seamless monitoring and diagnostics.

• Ultra-High-Density ToR Links: Connecting 25G server ports to the switch immediately above or below it in the rack. The 0.5m length minimizes cable clutter and improves airflow.

• AI & Machine Learning Clusters: Providing a low-latency 25Gbps path for GPU-heavy compute nodes where every microsecond of port-to-port latency counts.

• 25G Switch Stacking: Linking S5248F-ON switches in a high-bandwidth management or data stack over a short distance.

• Hyper-Converged Infrastructure (HCI): Ideal for Dell VxRail or PowerFlex nodes requiring 25Gbps backplane throughput for storage synchronization.

Connectivity Solutions(Applications)：

Scenarios 1:25G-to-25G Link for Switch-to-Switch

Scenarios 2:25G-to-25G Link for Switch-to-Server

FAQ for Dell DAC-SFP-25G-0.5M Compatible DAC SFP28 25G Cable

Q1:Is this 25G SFP28 cable natively backward compatible with 10G SFP+ ports? A:Although SFP28 and SFP+ connectors are physically identical, standard SFP28 25G DAC is programmed as high-speed devices. Most ports that support only 10G cannot recognize 25G-coded cables due to a mismatch in EEPROM identifiers. Most Dell S-Series 25G ports support dual-speed operation at 10G and 25G.

Q2:How far can I run a SFP28 25G DAC cable?A:Because DAC cables are made of dual-core copper wire, they are relatively heavy and experience signal attenuation at a faster rate than fiber optic cables; therefore, the actual transmission distance for SFP28 25G DAC cable is limited to 7 meters or less.

Q3:What is the power consumption of this passive SFP28 25G DAC compared to 25G SR optics? A: HYTOPTODEVICE passive 25G DAC consumes near zero power (≤0.5W) and generates no heat. By comparison, a pair of 25G SR fiber optical transceivers consumes approximately 1.5W to 2.0W of power. For a rack containing 48 servers, switching to the HYTOPTODEVICE 25G DAC can save nearly 100W of power and significantly reduce the cooling load.

Q4:We have both Intel and Broadcom NICs in our PowerEdge R750. Will this work for both??A:Yes. The 25G SFP28 interface is standardized. As long as the network card is a Dell-branded or Dell-certified 25G adapter (such as the Intel XXV710 or Broadcom 57414), HYTOPTODEVICE SFP28 25G cables provide seamless “plug-and-play” connectivity. We have tested our cables with two mainstream controller types to ensure broad hardware compatibility.

Q5:Does 25G SFP28 DAC use Multi-mode or Single-mode fiber?A:Neither. The DAC(Direct-Attach Copper) is a copper cable. using a twinaxial copper architecture (Twinax) to transmit electrical signals directly, no light signals.There are not lasers or optical glass in DAC cable,  it is much cheaper than fiber optics.

Q6:Where to buy 25G SFP28 DAC cable?A:There are many factories that produce and sell  passive DAC, but DAC manufacturer china HYTOPTODEVICE is the excellent provider: a source factory, fully controllable process, reliable performance, 100% compatible, sufficient inventory, fast delivery.

Q7:Is 25G SFP28 DAC hot-swappable?A:HYTOPTODEVICE SFP28 25G DAC is hot-pluggable, hot Pluggable SFP28 Compliant.you can plug or unplug the passive DAC, while the device is powered on without damaging the hardware.

Q8:who makes the best 25G SFP28 DAC cable?A: Transceiver Manufacturer China HYTOPTODEVICE is the excellent provider.Sorce factory,reliable quality, 100% compatibiltiy.fast delivery and quick response.HYTOPTODEVICE send a tool that allows you to re-program the compatibility of your cables yourself.

Q9:What is the difference between 24AWG and 26AWG for a 5-meter 25G SFP28 DAC cable？A: The main difference lies in signal integrity. 24 AWG cables have a larger cross-sectional area, which significantly reduces resistance. For a 5-meter SFP+ copper cable, the eye diagram of a 24 AWG cable is “clearer” than that of a 26 AWG cable, thereby providing better electromagnetic interference shielding and more stable performance in high-density, high-interference data center environments.

Q10:What is the difference between "Passive" and "Active" DAC?There are distinct differences between Passive and Active DAC.The Passive DAC has no signal amplification. its lengths is under 7m. With zero power consumptions,it cost is cheaper. The Active DAC contains a chip to boost the signal. Used for slightly longer copper runs (up to 10m-15m) and is generally thinner/more flexible.

Q11:Can I plug a 25G DAC into a 10G SFP port?A:No. SFP28 (25G) ports can often accept 10G transceivers, but a 10G SFP port cannot scale up to recognize a 25G DAC cable. You should Make sure the cable speed matches the port with the lowest rated speed.
