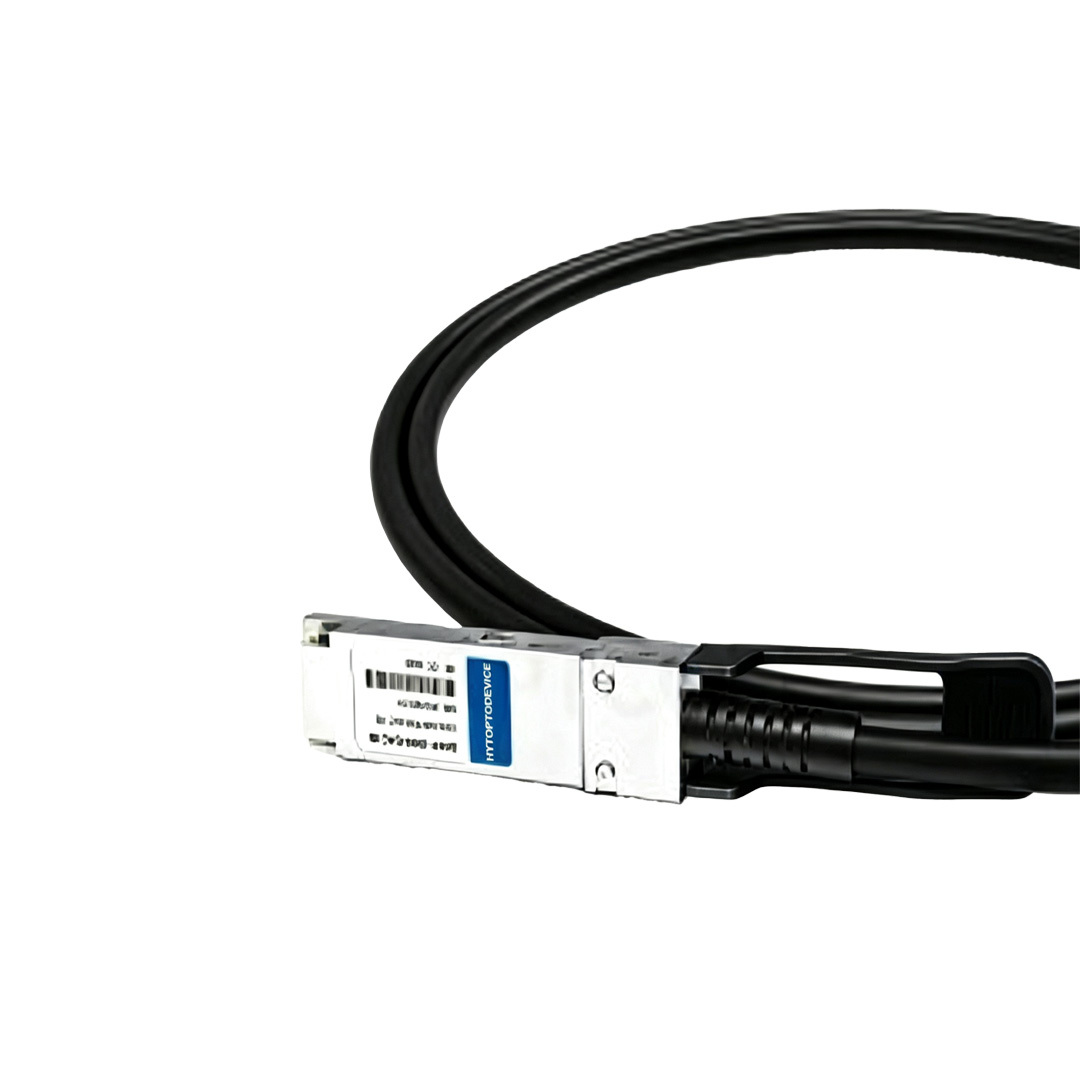

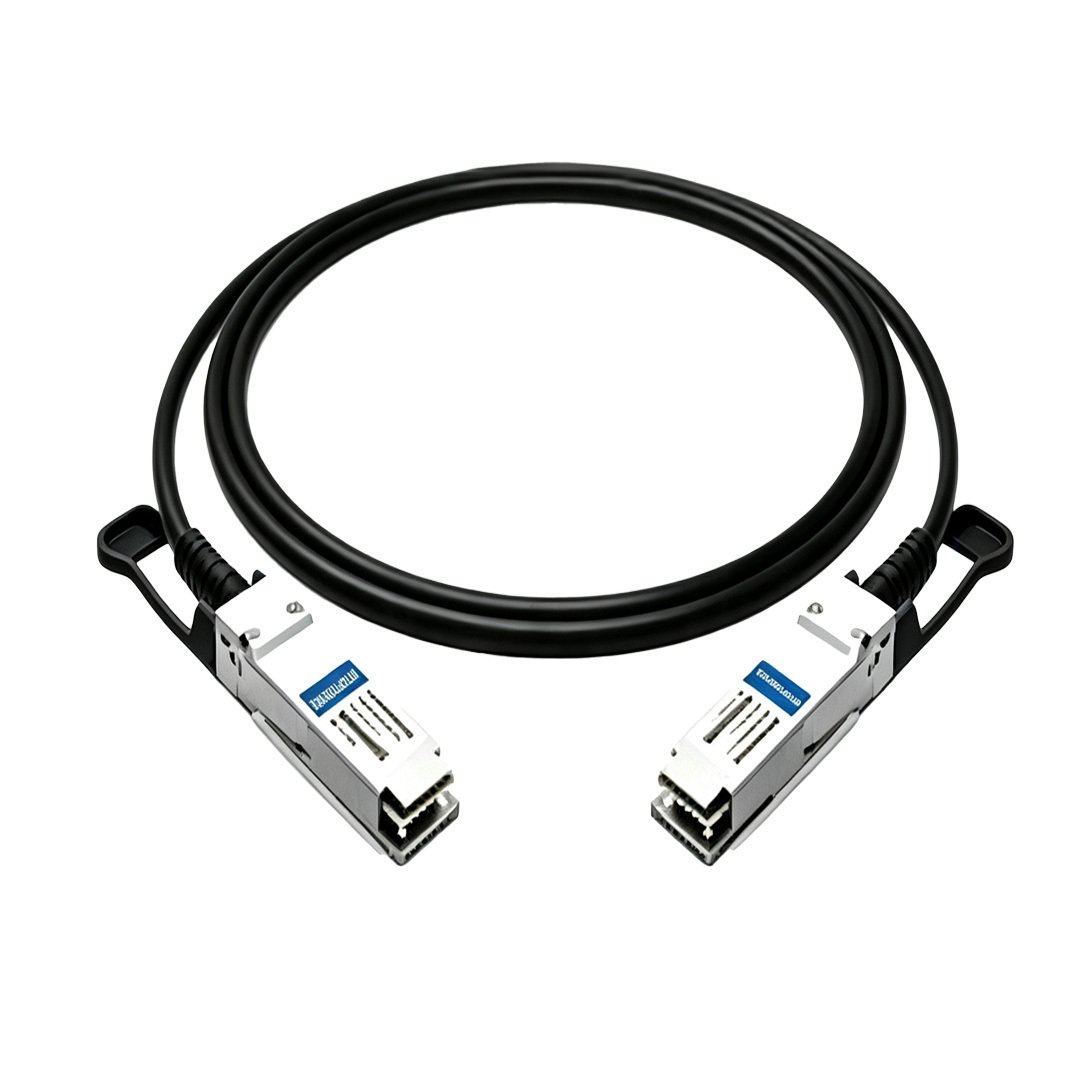

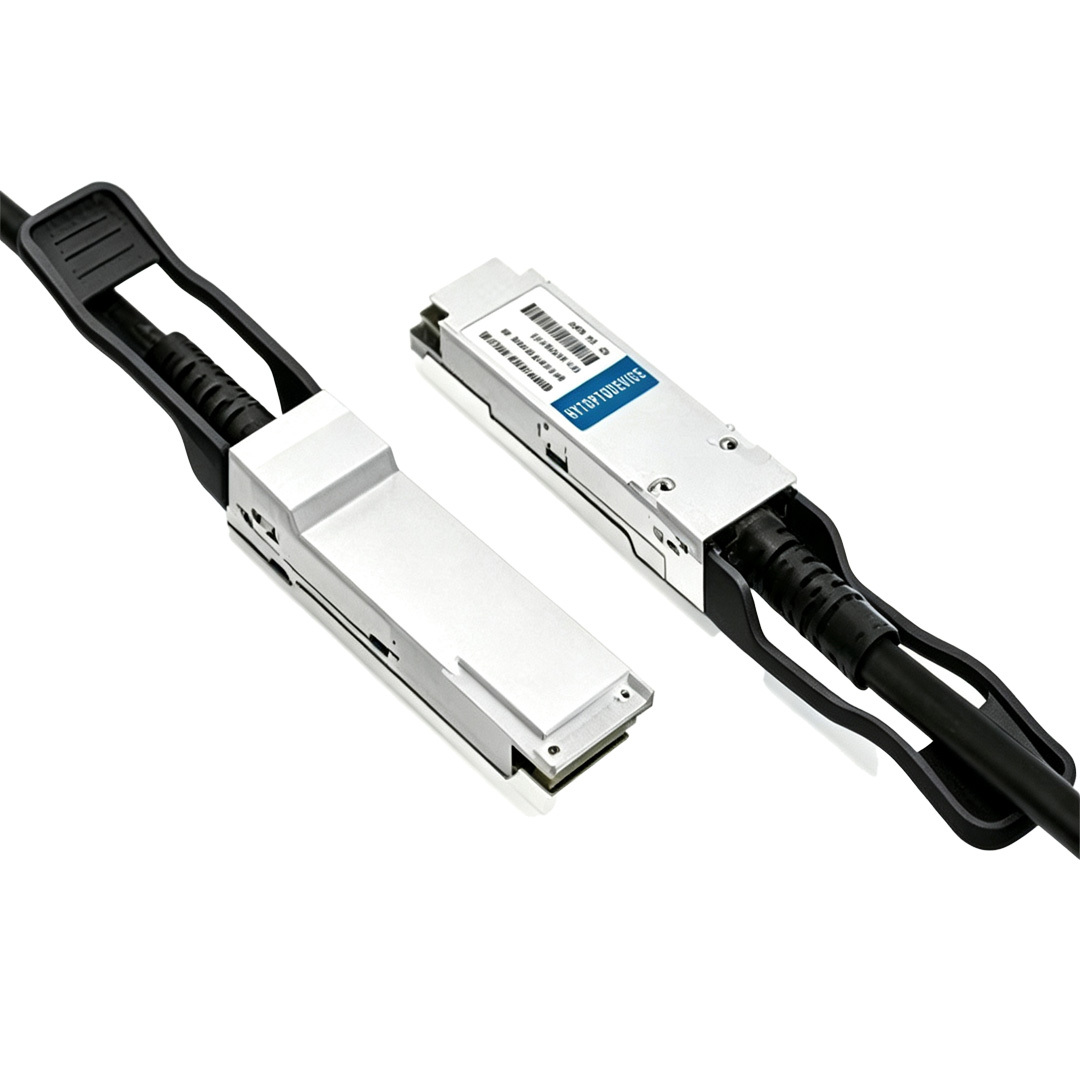

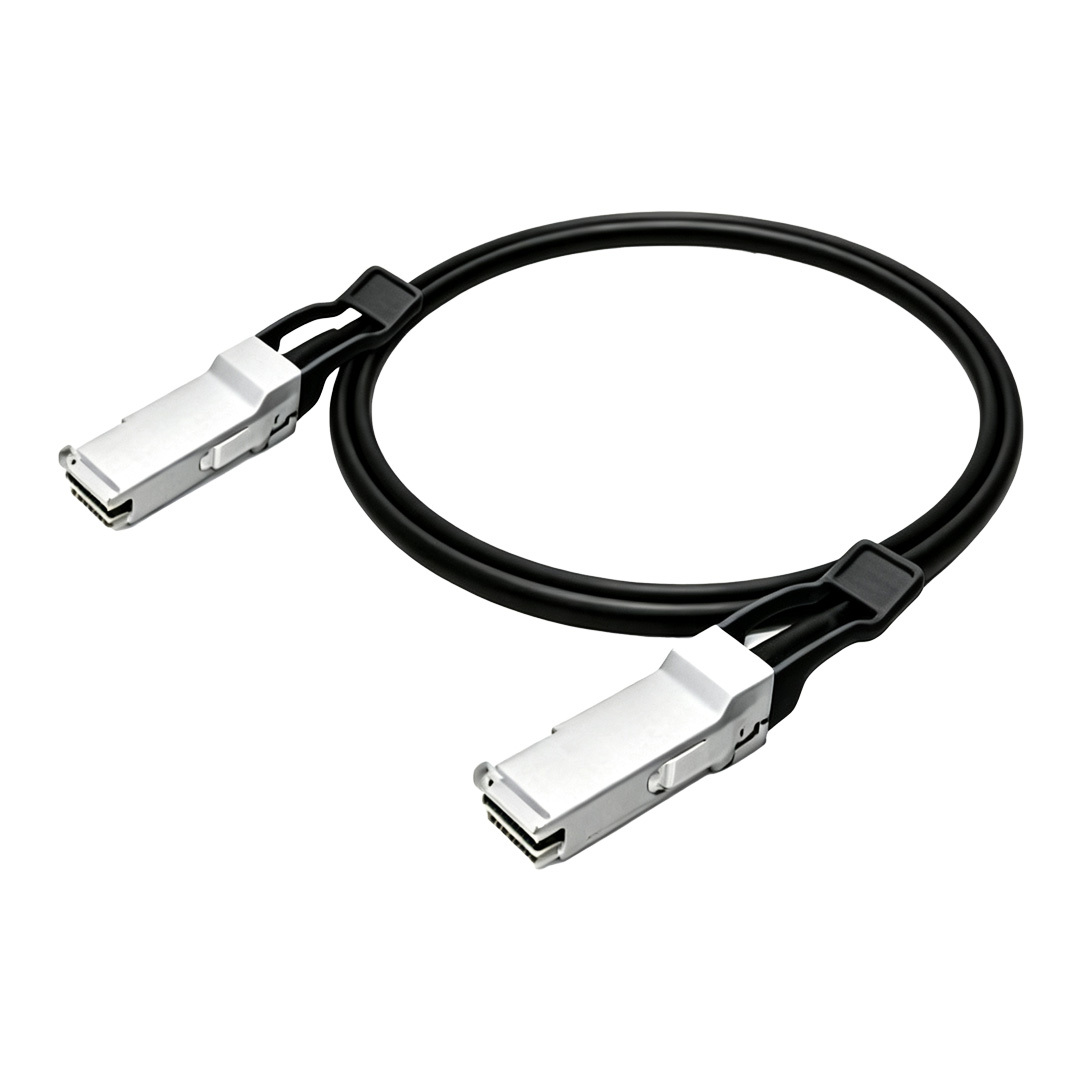

Dell DAC-Q28-100G-3M Compatible 3m (10ft) 100G QSFP28 Passive DAC Copper Twinax Cable | HYTOPTODEVICE

HYTOPTODEVICE factory supplier delivers reliable 100G QSFP28 passive dac copper twinax cable, featuring low power consumption, high-speed direct-attach and compact cabling. Built with premium low-loss twinax copper, this 3m Dell DAC-Q28-100G-3M compatible QSFP28 cable is pre-coded for Dell SmartFabric OS10. Bulk order this high-performance DAC for low-latency intra-rack leaf-spine networking, HPC, AI clusters and low-risk 400G data center expansion.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-100G-CU3M
2 Arista Networks  CAB-Q-Q-100G-3M
3 Juniper QFX-QSFP28-DAC-3M
4 Brocade 100G-Q28-Q28-C-0301
5 Dell  DAC-Q28-100G-3M
6 Huawei QSFP28-100G-CU3M
Description

Dell DAC-Q28-100G-3M Compatible 3m (10ft) 100G QSFP28 Passive DAC Copper Twinax Cable | 100GBASE-CR4 Copper Twinax | HYTOPTODEVICE

Poduct Overview

HYTOPTODEVICE 3m 100G QSFP28 passive dac copper twinax cable is a plug-and-play drop-in replacement for Dell DAC-Q28-100G-3M. Manufactured to SFF-8662 and IEEE 802.3bj MSA standards, it leverages premium low-loss twinax copper material to sustain stable 100GBASE-CR4 high-speed transmission between paired QSFP28 ports. This high-speed direct-attach cable stands out for low power consumption, high-speed direct-attach and compact cabling. Its passive design draws zero power, eliminates extra transceiver electronics, and the slim 30AWG twinax construction simplifies dense rack routing. It supports hot swap and ultra-low latency, ideal for leaf-spine fabrics, AI compute, HPC and storage networking. We keep sufficient stock of this 100G QSFP28 passive dac copper twinax cable for wholesalers, distributors and system integrators building Dell SmartFabric OS10-based data center fabrics. Every cable is pre-programmed with Dell-matched EEPROM signatures to eliminate unsupported transceiver warning logs. Sample testing, bulk orders and OEM private label services are available for Dell solution partners.

Key Technical Specifications

Dell Compatible
DAC-Q28-100G-3M
Vendor Name HYTOPTODEVICE
Connector QSFP28 to QSFP28 Max Data Rate 100Gbps
Cable Length 3m (10ft) Wire AWG AWG 26
Cable Type Passive Twinax Power Consumption ≤0.5W
Media Copper Operation Temperature 0~ 70 °C (32 to 158°F)
Jacket Material PVC(OFNR) Protocols QSFP28 MSA, SFF-8662, IEEE 802.3
Minimum Bend Radius 50mm Application 100 Gigabit Ethernet

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Mandatory Port Setting: Host QSFP28 port must enable 100GBASE-CR4 mode; link negotiation failure will happen if forced to optical mode.

  • Cabling Requirements: Do not exceed the minimum 50mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.

  • Port Installation Standard: Works only with standard QSFP28 100G ports; cannot be inserted into SFP+ or XFP slots. Disable the host’s third-party transceiver lock policy in advance if required.

  • Maintenance Specification: Hot‑swap supported, grip the pull tab instead of pulling the cable body during plug/unplug to prevent internal conductor damage.

  • Testing & Storage: Run sample validation on target hardware before large bulk deployment; store spare cables in dry, dust‑free and anti‑static packaging.
  • Operating Environment: This commercial-grade cable operates reliably within 0℃‑70℃; avoid installation beside high-heat power modules.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Dell Hardware & Firmware

  • Dell PowerSwitch S5200 series:S5212F-ON, S5224F-ON, S5232F-ON, S5248F-ON, S5296F-ON
  • Dell PowerSwitch Z series:Z9100-ON, Z9264F-ON, Z9332F-ON, Z9432F-ON, Z9664F-ON
  • Dell PowerSwitch N3200 series:N3248TE-ON (with QSFP28 uplink ports)
  • Dell MX modular fabric:MX5108n, MX9116n (MX7000 blade chassis switches)
  • Dell PowerEdge Servers with 100G QSFP28 NIC:R650, R6525, R750, R7525, C6520, C6525
  • Firmware:Dell SmartFabric OS10 10.4.x, 10.5.x, 10.6.x

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this 100G QSFP28 passive copper twinax cable can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios
  • Dell PowerSwitch leaf-spine 100G fabric intra-rack interconnection
  • Short-range links between storage arrays and Dell top-of-rack switches
  • Direct replacement for original Dell DAC-Q28-100G-3M 100G QSFP28 passive copper twinax cable
  • Hyper-converged infrastructure and distributed storage backend cabling
  • Low latency 100G links for virtualization and AI compute racks
  • Bulk stock purchase for distributors and Dell data center solution partners
  • Upgrade and expand data center for 400G migration

Connectivity Solutions(Applications)

1. 100G to 100G Direct Link for Switch-Switch
HYTOPTODEVICE QSFP-100G-CU1M compatible  100G QSFP28 passive DAC copper twinax cable in stock for wholesale buyers


2. 100G to 100G Direct Link for Switch-NIC
 100G QSFP28 passive DAC copper twinax cable for data center integrators


3.
Upgrade Solution for 400G Data Center Network





The Core Feature

1. Cost-Effective Ultra-Short Connectivity

Using twinax copper, the 100G passive copper cable replaces a fiber pair and two optical transceivers, significantly cutting interconnect cost for short-reach links — plug-and-play, no modules required.

2. Ultra-Low Power, Maximum Energy Efficiency

The 100g qsfp28 passive copper twinax cable draws near-zero power, reducing heat and energy costs in dense racks, while delivering a cost-effective, low-latency 100G link for short-reach connections — within a rack or across adjacent racks.


3.Host-Device Tested for Proven Interoperability

Every 100g passive copper twinax cable is rigorously tested for compatibility in the target switch environment, so you can deploy with confidence — no surprises, no downtime. Not sure it fits? Compatibility Video available upon request.

hytoptodevice wholesale 40G QSFP+ twinax cable for data center

4. 100% Individually Tested for Peak Performance

Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our Test Center.

HYTOPTODEVICE  QSFP+ to QSFP+ 40g qsfp+ dac cable for switches

FAQ

Q1: What signal margin considerations apply when selecting a 3-meter 100G QSFP28 passive dac copper twinax cable for Dell OS10? A: 3m is still within the 5-meter MSA limit for 100GBASE-CR4, yet extra copper length raises high-frequency attenuation compared to shorter 1m/2m versions. HYTOPTODEVICE 100G QSFP28 passive dac copper twinax cable uses refined low-loss conductors to preserve sufficient signal budget for Dell SmartFabric deployments.

Q2: Why choose passive copper twinax over active retimer DAC for fixed 3-meter rack-to-switch connections? A: Passive twinax has no powered signal chips, so it consumes zero watts and lowers component failure risk. Active DAC relies on built-in electronics that draw continuous power. HYTOPTODEVICE high-speed direct-attach DAC removes active circuits for dependable short-reach 100G links.

Q3: Is this compact 3m 100G QSFP28 passive dac copper twinax cable suitable for connections between separate rack rows? A: This 100G QSFP28 passive dac copper twinax cable is not built for cross-row inter-rack links. It works only for adjacent racks or ToR to EoR connections with total path length under 5m. Cross-row cabling often exceeds the copper reach limit and increases EMI exposure. HYTOPTODEVICE recommends AOC or fiber transceivers for long cross-row inter-rack links.

Q4: Under what conditions will network planners prefer AOC instead of 3m passive twinax DAC on Dell fabrics? A: Copper twinax has inherent frequency-related attenuation, while AOC converts electrical signals to light to escape copper distance restrictions. Optical links also isolate payload from electrical noise inside racks. HYTOPTODEVICE supplies both low-power 100G QSFP28 passive dac copper twinax cable and matching AOC for mixed-distance fabric design.

Q5: Can frequent temperature cycling inside dense Dell PowerSwitch racks degrade twinax DAC signal performance gradually? A: Repeated hot and cold cycles increase copper resistance over time and shrink usable signal margin. HYTOPTODEVICE 100G QSFP28 passive dac copper twinax cable passes rigorous thermal cycling validation between 0°C and 70°C to sustain stable links inside hot AI and HPC racks.

Q6: What causes OS10 to raise unsupported transceiver alerts when generic third-party DACs are plugged into Dell switches? A: Dell SmartFabric OS10 reads vendor identifiers stored inside cable EEPROM during port initialization. Unmatched identifier data triggers warning logs and may block link negotiation. Every HYTOPTODEVICE 100G QSFP28 passive dac copper twinax cable is pre-flashed and validated for Dell OS10 to avoid these compatibility alerts.

Q7: Can a single 100G QSFP28 passive dac copper twinax cable be programmed for Dell on one end and another brand on the opposite connector? A: Our standard 100G QSFP28 passive dac copper twinax cable does not support asymmetric dual-brand EEPROM coding. Matching vendor signatures on both ends are required for reliable port handshake. Reach out to the HYTOPTODEVICE sales team for custom EEPROM development for multi-vendor fabric setups.

Q8: What diagnostic metrics can OS10 retrieve from this 100G QSFP28 passive dac copper twinax cable? A: Only universal MSA DOM data is accessible; Dell proprietary telemetry channels do not function on passive copper assemblies with no optical chips. HYTOPTODEVICE preloads standard MSA DOM records so OS10 can read cable identity and basic diagnostic counters.

Q9: How large is the latency gap between 3m 100G QSFP28 passive dac copper twinax cable and fiber cabling? A: Passive twinax DAC delivers marginally lower latency than fiber links. Electrical signals travel faster in solid copper twinax than light through glass fiber, with typical latency difference below 1ns. Low-latency HYTOPTODEVICE high-speed direct-attach DAC suits low-latency AI training and HPC workloads.

Q10: How well does the shielded twinax structure reject EMI when routed alongside high-current power cables? A: Full shielding greatly reduces noise pickup, but copper media remains more vulnerable than fiber when placed near power harnesses. HYTOPTODEVICE 100G QSFP28 passive dac copper twinax cable uses complete shielded construction to meet global EMC and EMI compliance standards.

Q11: What error trends signal slow signal degradation on a 3m low-loss 100G QSFP28 passive dac copper twinax cable? A: Performance decline normally shows up as steadily rising CRC error counters before unexpected link drop. A compressed signal eye triggers random bit flips logged as CRC faults. If these errors appear, confirm the HYTOPTODEVICE 100G QSFP28 passive dac copper twinax cable follows rated length and bend specifications.

Q12: What permanent damage occurs if the cable is bent tighter than the specified minimum bend radius? A: Bending below the 5× outer-diameter minimum bend radius permanently warps differential twinax pairs, creating impedance discontinuities and persistent bit errors. Careful cable routing protects your HYTOPTODEVICE compact cabling DAC from invisible mechanical damage.

Q13: What airflow impact comes from bundling several 3m 100G QSFP28 passive dac copper twinax cables in one cable tray? A: Thick copper bundles block front-to-back airflow and trap heat around Dell switch ports, raising component operating temperature. HYTOPTODEVICE adopts slim 30AWG twinax to reduce bundle thickness and preserve airflow in high-density rack layouts.

Q14: Where does heat come from when deploying zero-power 100G QSFP28 passive dac copper twinax cable on Dell PowerSwitch hardware? A: The passive DAC itself generates almost no heat due to zero-power operation. All thermal load comes from the host switch ASIC and QSFP28 port electronics, not the copper cable. HYTOPTODEVICE connector shells use thermally balanced plastic to support normal port cooling.

Q15: For Dell 3-meter intra-rack leaf-spine AI clusters, what core advantages make passive twinax DAC preferable to AOC? A: It delivers low power consumption, compact cabling and lower hardware cost for runs under 5 meters without active electronics. HYTOPTODEVICE high-speed direct-attach DAC is a cost-effective pick for dense Dell leaf-spine, storage and AI rack deployments.

Q16: How does power consumption compare between passive twinax DAC, active retimer DAC and pairs of 100G optical transceivers? A: 100G QSFP28 passive dac copper twinax cable consumes 0W. Active retimer DAC draws roughly 1–2W per end, while a matched pair of optical transceivers normally consumes 3–6W total. Zero-power HYTOPTODEVICE 100G QSFP28 passive dac copper twinax cable cuts rack power draw and reduces overall data center TCO

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order
