| NO. | Brand | Compatible P/N | Transceiver Type |
| 1 | Cisco | QSFP-4SFP25-CU1M | |
| 2 | Arista Networks | CAB-Q28-S28-1M | |
| 3 | Brocade | 100G-Q28-S28-C-0101 | |
| 4 | Huawei | QSFP-4SFP25G-CU1M | |
| 5 | Juniper | QFX-Q-S-DAC-1M | |
| 6 | Dell | DAC-Q28-4SFP28-25G-1M |
| Cisco Compatible |

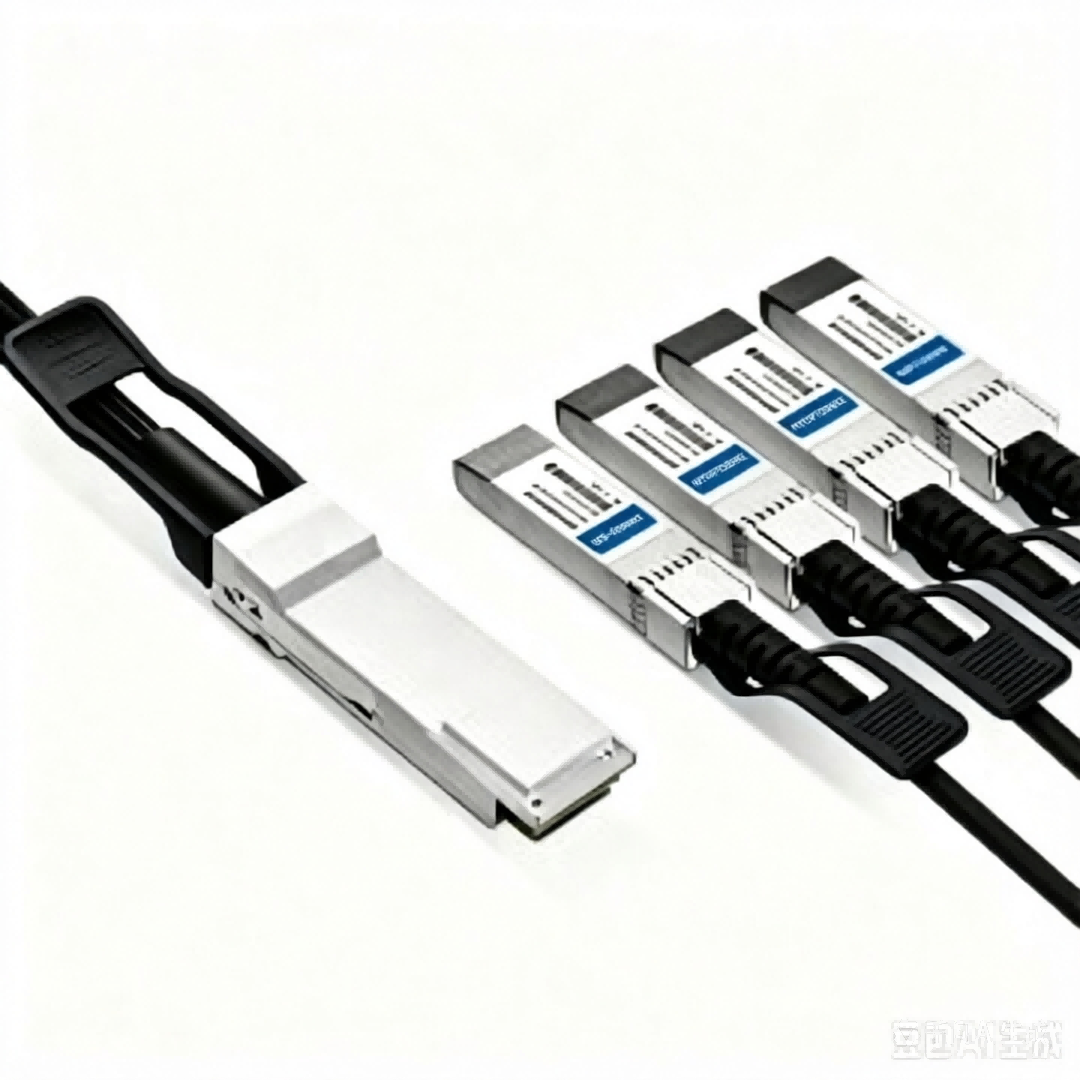

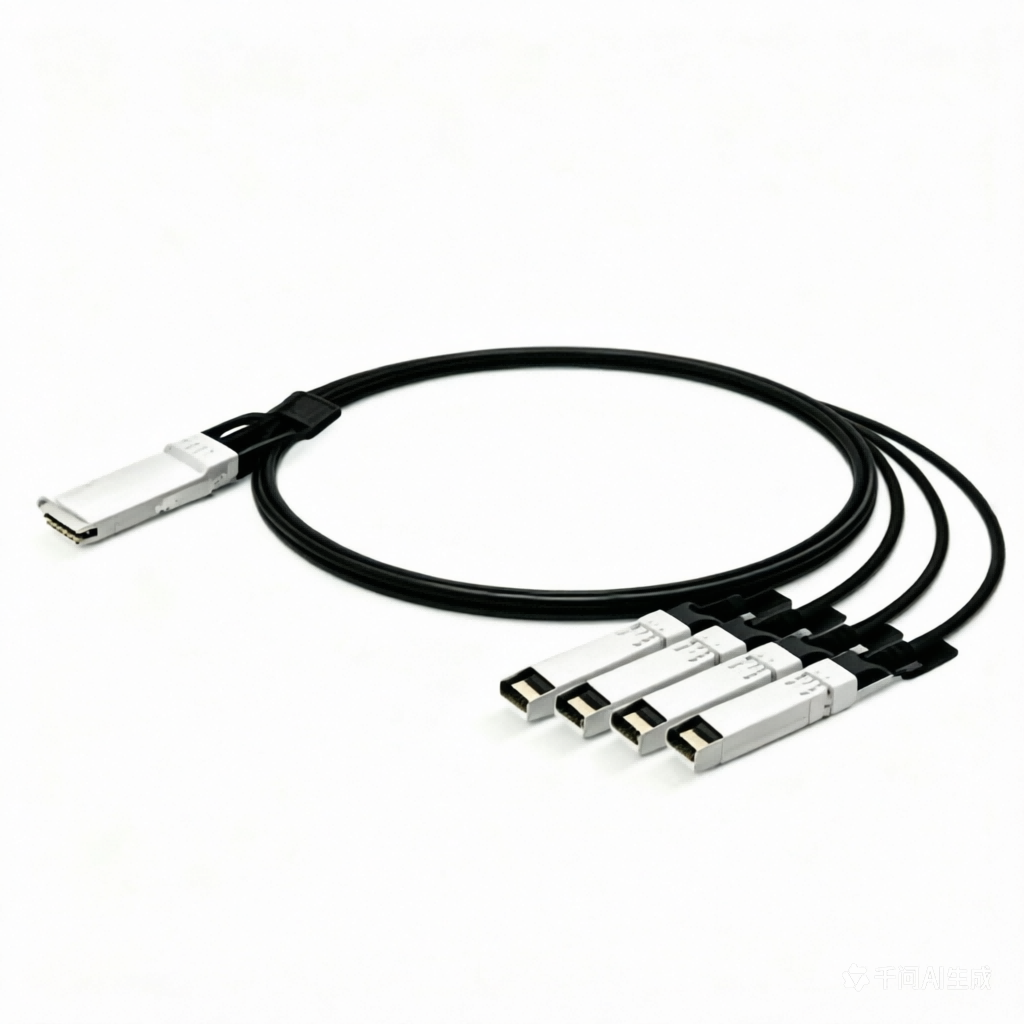

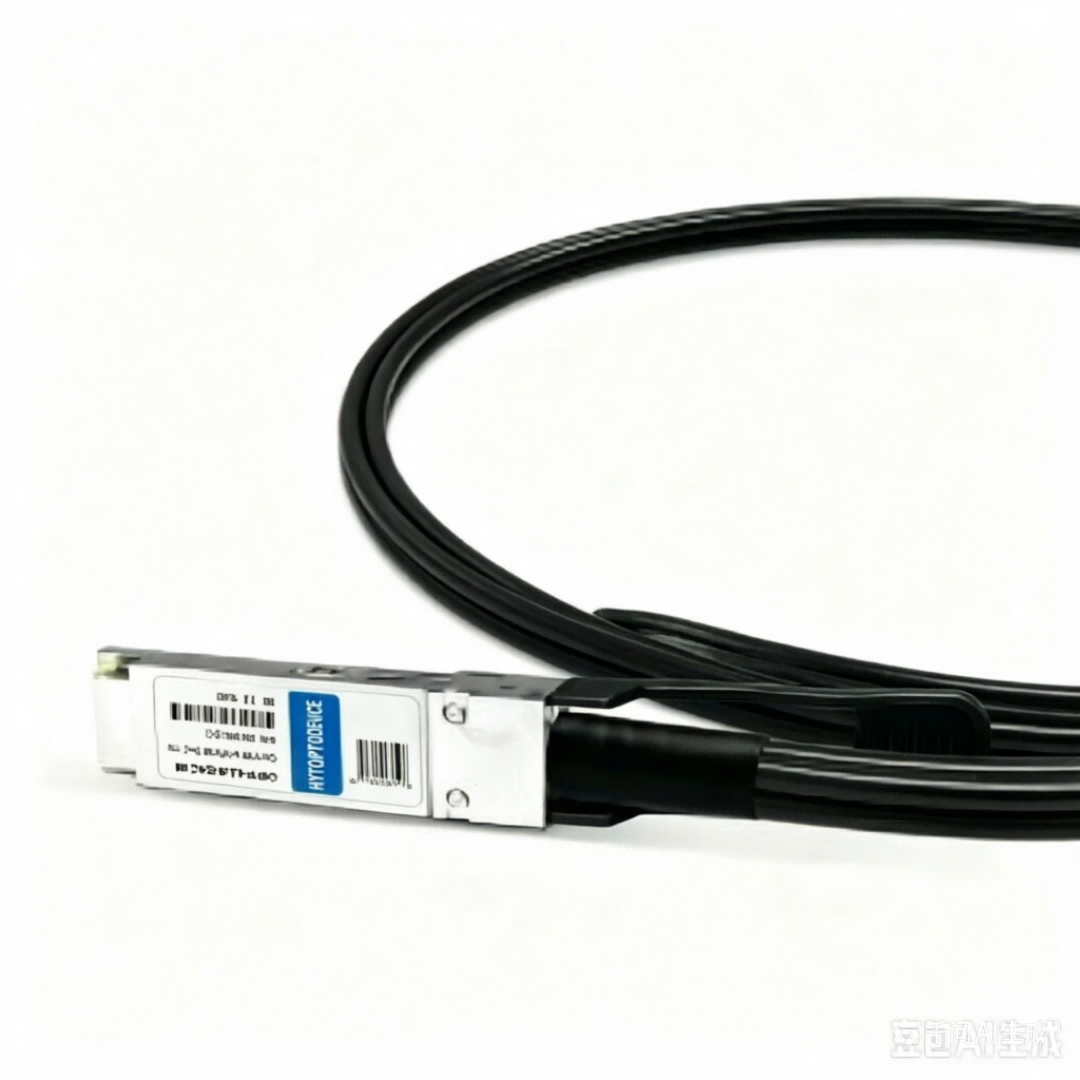

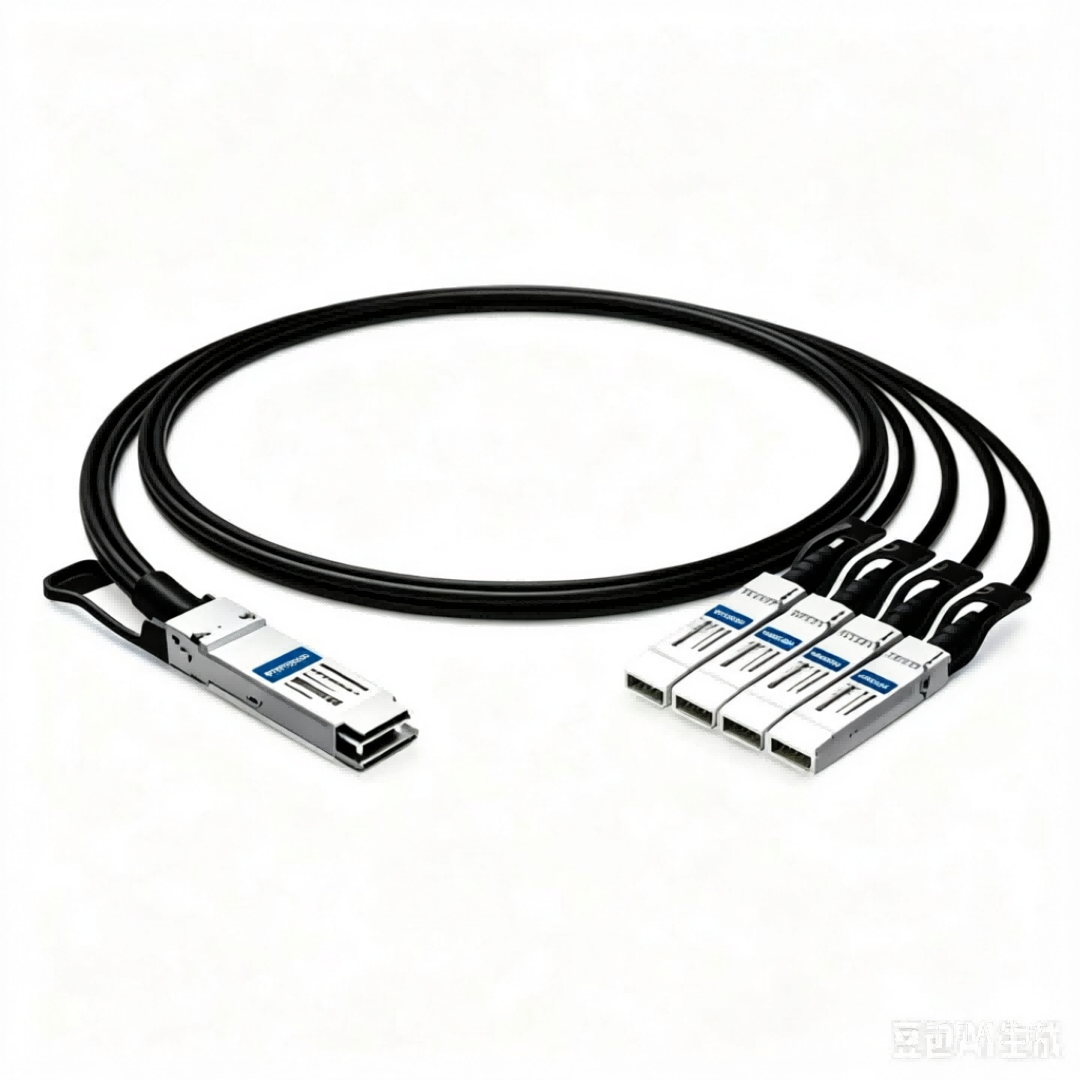

QSFP-4SFP25-CU1M
|
Vendor Name | HYTOPTODEVICE |
| Connector | QSFP28+ to 4 x SFP28 | Max Data Rate | 100Gbps |
| Cable Length | 1m (3ft) | Wire AWG | AWG 30 |
| Cable Type | Passive Twinax | Power Consumption | ≤0.25W |
| Media | Copper | Operation Temperature | 0~ 70 °C (32 to 158°F) |
| Jacket Material | PVC(OFNR) | Protocols | IEEE 802.3, QSFP28 MSA, SFF-8665 |
| Minimum Bend Radius | 25mm | Application | 100G to 2x 25G Ethernet, Data Centers |
Usage Guidelines & Best Practices
Mandatory Port Breakout Configuration: Ensure the host QSFP28 port supports channelization. Enable breakout mode (4x25G) via the switch CLI before connecting the cable.
Cabling Requirements: Do not exceed the minimum 25mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.
Port Installation Standard: Do not mix this breakout DAC with straight QSFP28 to QSFP28 DAC configuration.
Hot‑swap rule:Never pull or tug directly on the individual breakout legs. Always use the integrated pull-tab or bale latch when inserting or removing connectors.
Operating Environment: 0‑70℃, indoor cabinet deployment only.
For detailed operation instructions, please refer to the User Guide.
Full Compatibility List & Supported Devices

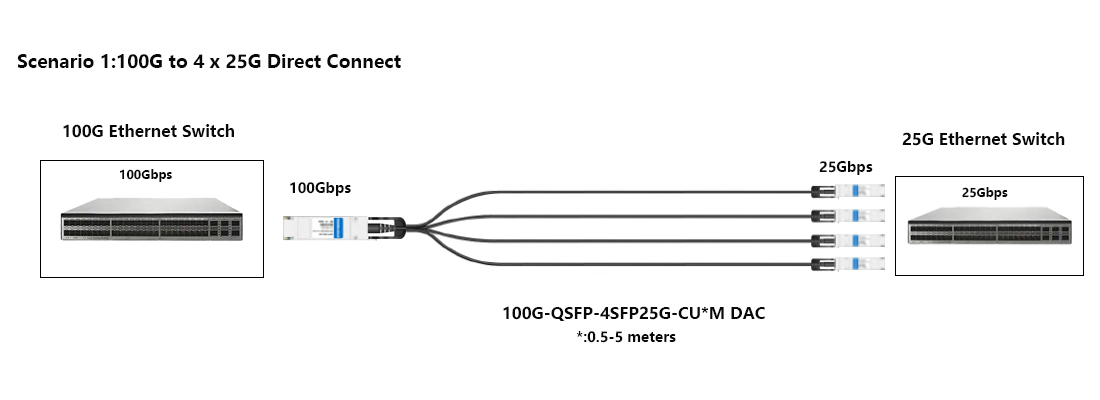

Built on universal MSA open standards, this 100G QSFP28 to 4 x 25G SFP28 passive breakout DAC cable can interoperate with mainstream network brands including Arista, Intel, Juniper, Dell, NVIDIA Mellanox and IBM, for mixed-vendor rack stacking and server fabric expansion.





Q1: What is the maximum operating distance for this Cisco QSFP-4SFP25-CU1M compatible passive dac breakout cable, and what is the limit for the same cable family? A1: This specific Cisco coded passive dac breakout cable is factory calibrated for 1-meter links. The same 100G QSFP28 to 4×25G passive breakout DAC family can reach up to 5 meters with properly selected 24AWG copper. HYTOPTODEVICE offers 1m,3m and 5m options for different cabling plans.
Q2: Will Cisco NX-OS bring up four 25G breakout lanes automatically without breakout CLI setup? A2: No, sub-interfaces will not activate without breakout configuration. Cisco NX-OS requires dedicated breakout commands to split one QSFP28 port to four 25G ports, and our preloaded EEPROM supports this function.

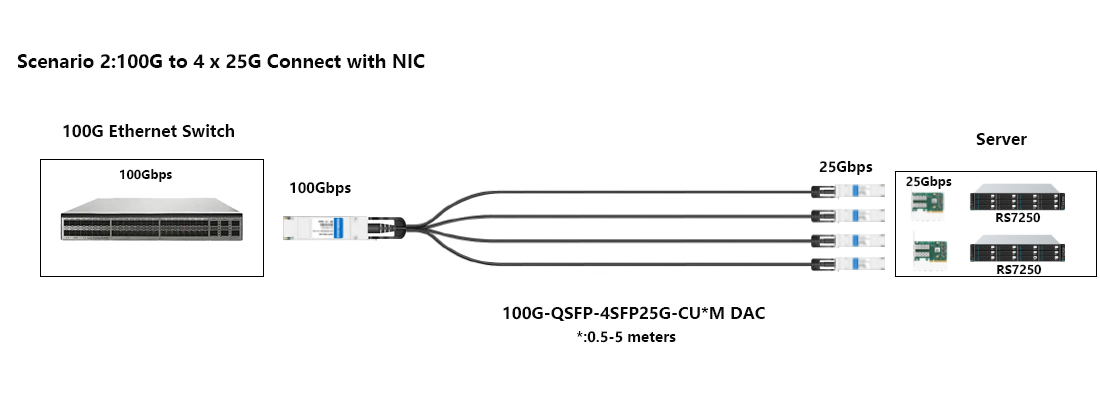

Q3: Can this passive dac breakout cable connect Cisco Nexus switches to third-party 25G SFP28 server NICs? A3: Yes, cross-brand links work when remote 25G ports follow MSA standards. HYTOPTODEVICE validates all four lanes of this passive dac breakout cable for mainstream server adapters and switches.
Q4: Can network integrators rewrite the breakout EEPROM profile inside this HYTOPTODEVICE passive dac breakout cable? A4: Standard stocked passive dac breakout cables are pre-flashed and locked for stability. We accept custom EEPROM requests and can supply coding software and remote technical guidance.
Q5: Can NX-OS firmware upgrades cause transceiver recognition failures for third-party passive dac breakout cable? A5: Compatibility issues may appear after major firmware releases that update transceiver whitelist rules. HYTOPTODEVICE keeps EEPROM profiles updated and validates against mainstream NX-OS builds; recoding service is available if needed.
Q6: What information should buyers submit to HYTOPTODEVICE for correct EEPROM programming of this Cisco breakout cable for bulk purchase? A6: Please share switch model, NX-OS firmware version, breakout mode requirement and target Cisco part number. HYTOPTODEVICE completes breakout testing before shipment for bulk orders.
Q7: What shielding construction is used on this 3m passive dac breakout cable to minimize crosstalk between four 25G lanes? A7: Each 25G twinax pair has individual shielding plus overall braid and foil shielding. This dual-layer design suppresses crosstalk and EMI noise in dense rack wiring layouts.
Q8: Does HYTOPTODEVICE run lane-by-lane signal integrity testing for each batch of passive dac breakout cable before delivery? A8: Yes, each batch runs TDR and eye diagram tests across all four 25G lanes. HYTOPTODEVICE rejects units with lane imbalance to guarantee stable breakout performance.
Q9: Are the four SFP28 pull tabs of this passive dac breakout cable durable for repeated hot swap cycles in Cisco Nexus racks? A9: Our pull tabs use reinforced plastic overmolding and integrated strain relief. Each SFP28 branch is independently reinforced for frequent plug/unplug in high-density data center racks.
Q10: Does the outer jacket of HYTOPTODEVICE passive dac breakout cable meet LSZH low-smoke zero-halogen requirements? A10: Yes, the cable jacket complies with LSZH specifications for data center aisle deployment. All HYTOPTODEVICE passive dac breakout cables follow global fire safety standards.
Q11: What procurement savings can bulk buyers get choosing this passive dac breakout cable instead of separate optical transceivers? A11: Normally buyers save 40%–70% versus buying one 100G optical module plus four separate 25G optical modules for short copper breakout links. This passive dac breakout cable eliminates extra optical component costs.
Q12: Which use case suits this 3m passive dac breakout cable better than fiber breakout assemblies? A12: Select passive dac breakout cable for intra-rack links up to 3m where ultra-low latency and zero power consumption are priorities. Fiber breakout assemblies fit longer runs or applications requiring electrical isolation.
Q13: Can I use this Cisco-coded DAC cable to connect a Cisco switch to a Arista or HPE switch? A13: If you use a standard Cisco-coded cable, the Arista/HPE end might reject it due to vendor locking. For cross-vendor environments, it is highly recommended to order a Dual-Vendor Coded passive dac breakout cable (Cisco-coded on End A, and Arista/HPE-coded on End B) to ensure seamless plug-and-play compatibility on both sides.
Q14: Can I use this cable for a 40G port breaking down to 4x10G? A14: No. The internal electrical layout, wire tuning, and physical EEPROM configurations are optimized strictly for 100G-to-4x25G signaling. For 40G-to-10G applications, you must use a dedicated QSFP-4SFP10G-CU3M cable.
Q15: Why should I choose a 3-meter cable over a 1-meter cable? A15: A 1-meter passive dac breakout cable is typically restricted to connections within the same server rack (Top-of-Rack). A 3-meter length provides the necessary physical span to route cables neatly through cable trays to reach devices located in adjacent or nearby racks (Middle-of-Row or inter-rack patching).
Q16: Does this passive DAC breakout cable consume a lot of power? A16: No. Our Direct Attach Copper (DAC) cables are passive and consume near-zero power (<0.25W per end), that is far more energy-efficient than fiber optical transceivers or AOCs.
Q17: What should I do if my Cisco switch shows an "unsupported transceiver" error? A17: First check that you have applied the correct breakout CLI command for your Cisco platform. If the warning persists, the EEPROM signature may not match your firmware version. Reach out to HYTOPTODEVICE for a recoded passive dac breakout cable matched to your NX-OS or IOS-XE release.
Q18: Does this cable support hot-swapping? A18: Yes. it is hot-pluggable. The passive dac breakout cable is fully compliant with SFF-8665 and SFF-8402 standards. You can plug it in or remove it while switches and servers are live and running without risking electrical damage.
Packaging & Custom OEM Solutions
ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.
Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
