| NO. | Brand | Compatible P/N | Transceiver Type |
| 1 | Cisco | QSFP-100G-CU2M | |
| 2 | Arista Networks | CAB-Q-Q-100G-2M | |
| 3 | Juniper | QFX-QSFP28-DAC-2M | |
| 4 | Brocade | 100G-Q28-Q28-C-0201 | |
| 5 | Dell | DAC-Q28-100G-2M | |
| 6 | Huawei | QSFP28-100G-CU2M |
| Cisco Compatible |

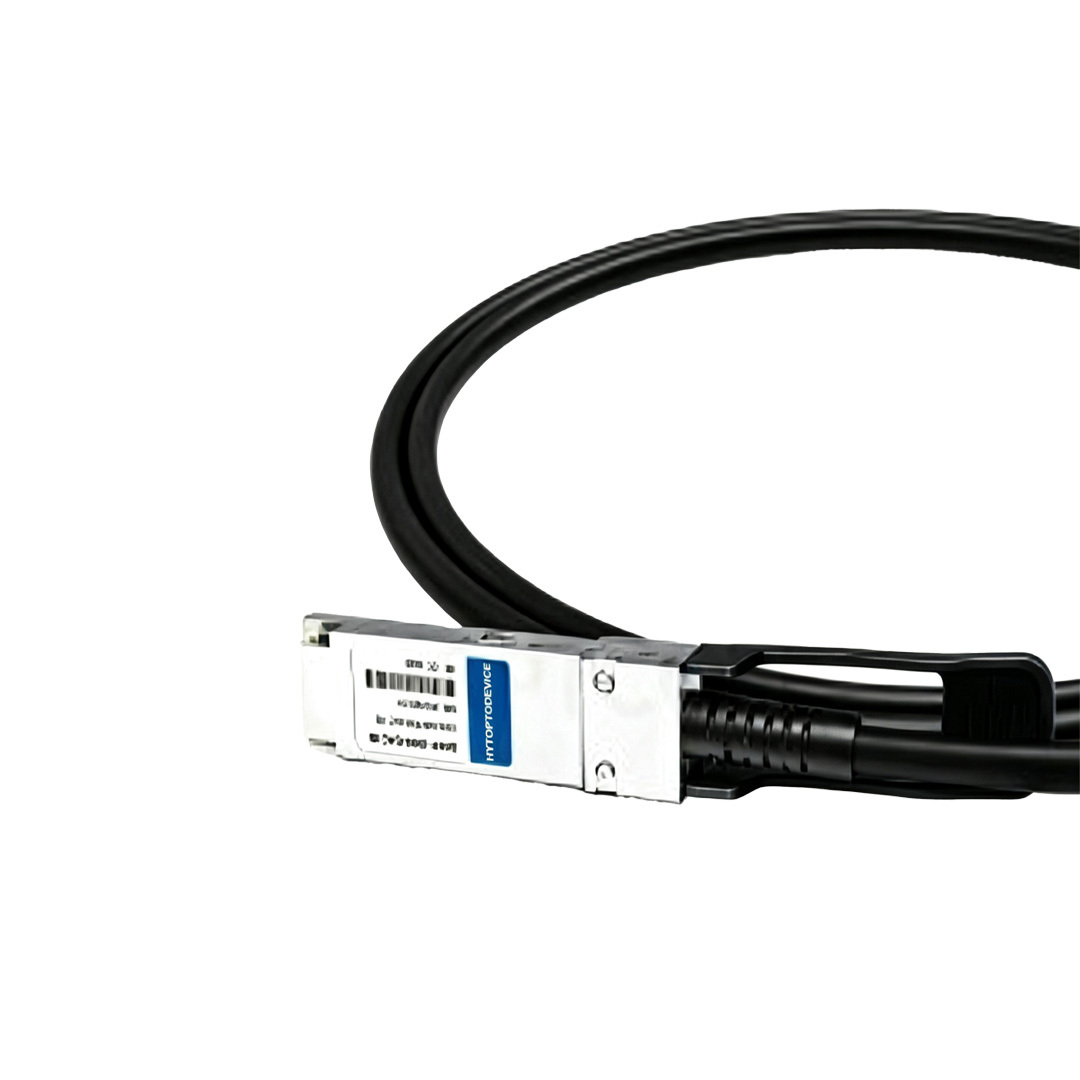

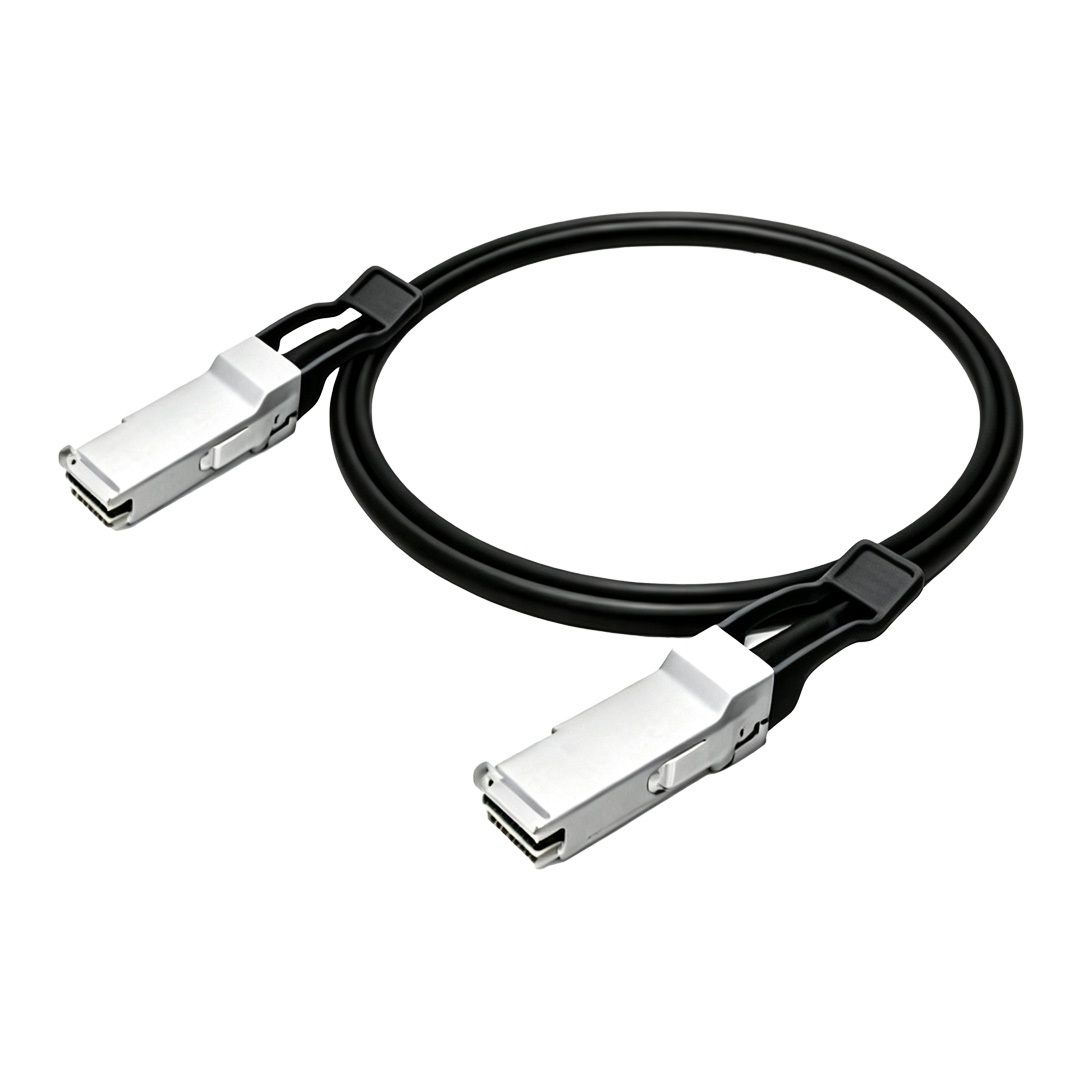

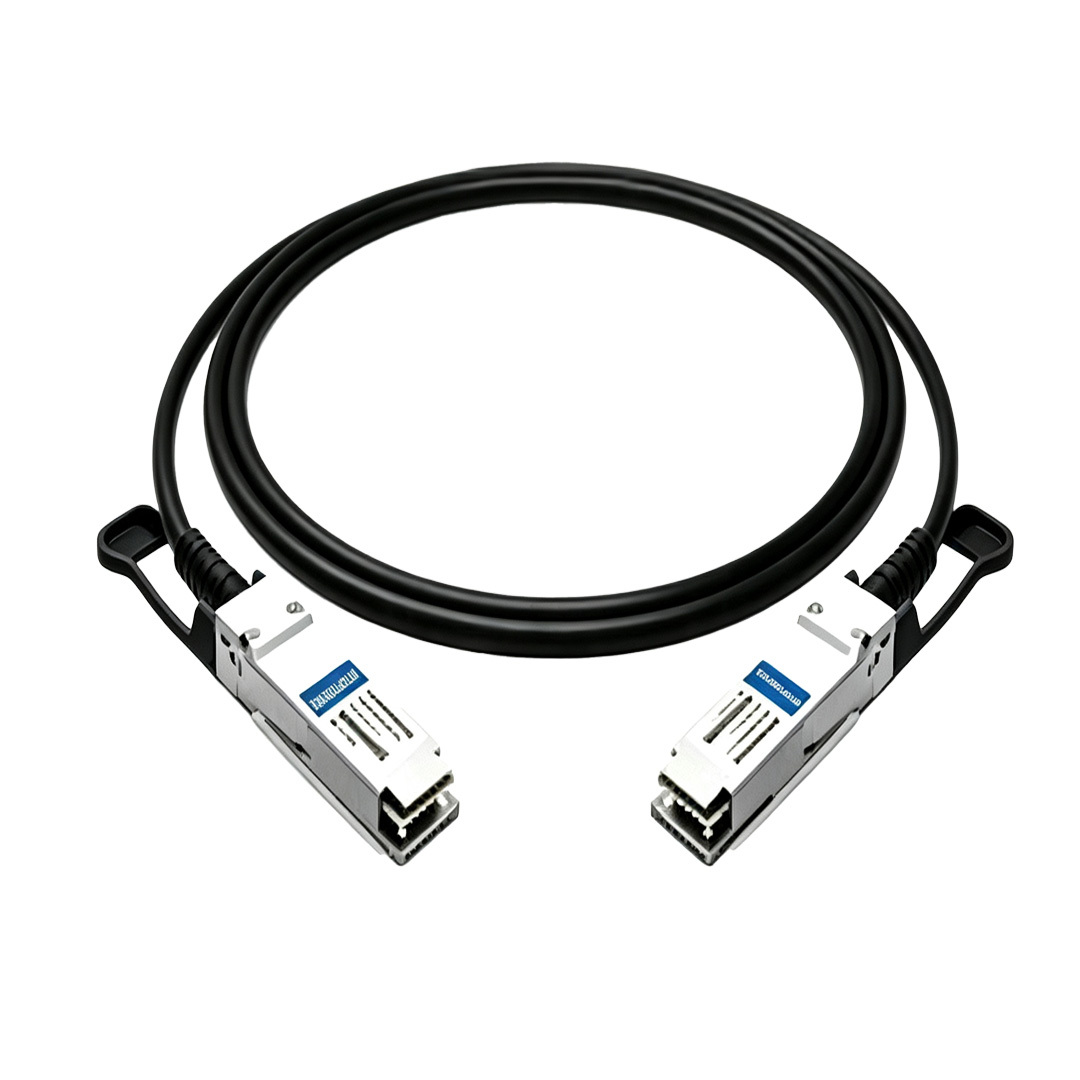

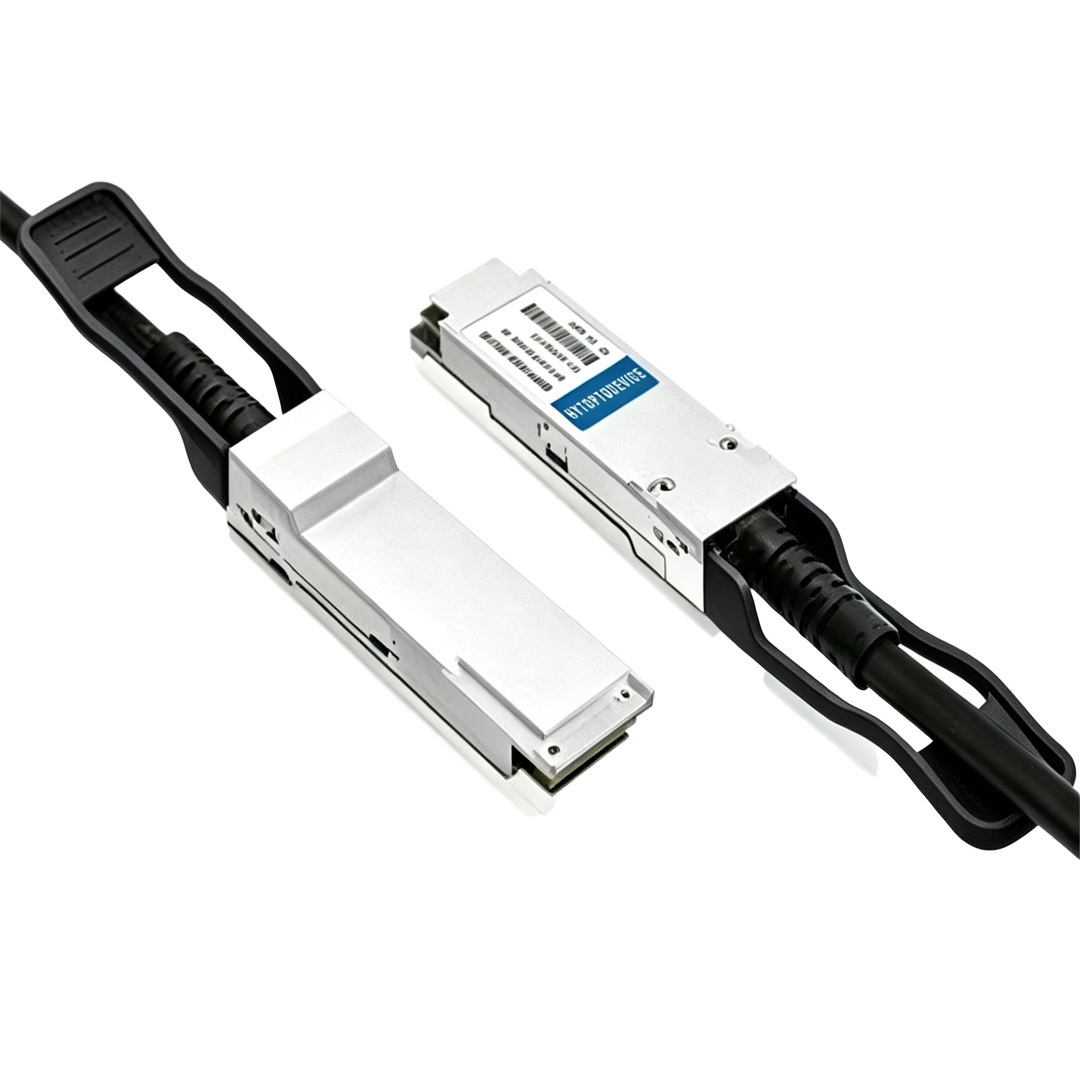

QSFP-100G-CU2M
|
Vendor Name | HYTOPTODEVICE |
| Connector | QSFP28 to QSFP28 | Max Data Rate | 100Gbps |
| Cable Length | 2m (7ft) | Wire AWG | AWG 30 |
| Cable Type | Passive Twinax | Power Consumption | ≤0.5W |
| Media | Copper | Operation Temperature | 0~ 70 °C (32 to 158°F) |
| Jacket Material | PVC(OFNR) | Protocols | QSFP28 MSA, SFF-8662, IEEE 802.3 |
| Minimum Bend Radius | 35mm | Application | 100 Gigabit Ethernet |
Usage Guidelines & Best Practices
Mandatory Port Setting: Host QSFP28 port must enable 100GBASE-CR4 mode; link negotiation failure will happen if forced to optical mode.
Cabling Requirements: Do not exceed the minimum 35mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.
Port Installation Standard: Works only with standard QSFP28 100G ports; cannot be inserted into SFP+ or XFP slots. Disable the host’s third-party transceiver lock policy in advance if required.
Maintenance Specification: Hot‑swap supported, grip the pull tab instead of pulling the cable body during plug/unplug to prevent internal conductor damage.
Operating Environment: This commercial-grade cable operates reliably within 0℃‑70℃; avoid installation beside high-heat power modules.
For detailed operation instructions, please refer to the User Guide.
Full Compatibility List & Supported Devices
Built on universal MSA open standards, this 100G QSFP28 passive copper twinax cable can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, for mixed-vendor rack stacking and server fabric expansion.







Q1: What electrical parameters decide the maximum reliable transmission distance for a 100G QSFP28 passive dac cable? A: High-frequency signal attenuation and strict differential impedance control define the distance limit. HYTOPTODEVICE 100G QSFP28 passive dac cable complies with MSA standards and supports stable links up to 5 meters.
Q2: What is the key structural difference between 100G QSFP28 passive dac cable and active retimer DAC? A: Passive dac cable has no built-in signal recovery chips and maxes out at 5m, while active DAC integrates retimers and equalizers to extend transmission distance to 7–10m. HYTOPTODEVICE supplies both solutions for different rack layout demands.
Q3: What symptoms will appear if I run a 100G QSFP28 passive dac cable beyond its rated length? A: Over-length deployment causes unstable links, accumulating CRC error counters or unexpected link down. High-frequency copper loss rises rapidly once exceeding design limits. Every HYTOPTODEVICE 100G QSFP28 passive dac cable carries clear length marking to avoid improper use.
Q4: Is a 100G QSFP28 passive dac cable suitable for connections between switches in separate server rows? A: Passive dac cable is not recommended for cross-row cabling, as inter-row runs usually exceed the 5m limit. AOC or fiber is a better choice; HYTOPTODEVICE 100G QSFP28 passive dac cable is optimized for intra-rack short connections.
Q5: Can 2m 100G QSFP28 passive dac cable create harmful signal reflection on 100G Ethernet links? A: Precisely impedance-matched passive dac cable suppresses unwanted signal reflection. HYTOPTODEVICE performs eye diagram testing for each batch of 100G QSFP28 passive dac cable to guarantee consistent signal quality.
Q6: Will unprogrammed generic 100G QSFP28 passive dac cable be recognized normally on locked Cisco, Arista or Juniper platforms? A: Generic uncoded DAC cables often trigger unsupported transceiver alerts on vendor-locked switches. HYTOPTODEVICE preloads matched EEPROM signatures for NX-OS, EOS and Junos for plug-and-play deployment.
Q7: What tools do I need to reprogram the EEPROM of a 100G QSFP28 passive dac cable on site? A: A dedicated EEPROM programmer and supporting coding software are required for local flashing. HYTOPTODEVICE can provide the programmer kit, software and remote technical support. Most bulk buyers pick pre-coded cables to save labor and avoid coding mistakes.
Q8: Will using third-party 100G QSFP28 passive dac cable automatically void the OEM warranty of Cisco Nexus switches? A: Most OEMs will not void the entire hardware warranty merely for compatible third-party DAC, but hardware damage caused by defective cabling may not be covered. Factory-tested HYTOPTODEVICE 100G QSFP28 passive dac cable reduces this deployment risk.
Q9: Why does Cisco firmware upgrade sometimes stop identifying third-party 100G QSFP28 passive dac cable? A: Major firmware releases often strengthen transceiver authentication checks and require updated EEPROM profiles. HYTOPTODEVICE continuously updates signature libraries to match new NX-OS and IOS-XE firmware versions.
Q10: What information should I provide to the supplier for accurate pre-coding for my Cisco fabric? A: Prepare switch model, running firmware release and target Cisco part number. Share these details with HYTOPTODEVICE, and we will pre-program your 100G QSFP28 passive dac cable before bulk shipment.
Q11: What BER performance can I get from factory inspected 100G QSFP28 passive dac cable? A: HYTOPTODEVICE 100G QSFP28 passive dac cable maintains BER below 1×10⁻¹² under full 100G bandwidth load, meeting standard data center requirements. Batch signal testing ensures stable low-error leaf-spine fabric operation.
Q12: Why cannot this 100G QSFP28 passive dac cable work with PAM4 signaling? A: This passive dac cable is designed for 25G NRZ lanes of 100GBASE-CR4 and lacks the electrical bandwidth for PAM4. HYTOPTODEVICE can offer PAM4-capable cable options for 400G projects upon request.
Q13: How is shielding constructed to reduce crosstalk inside a 100G QSFP28 passive dac cable? A: Our 100G QSFP28 passive dac cable adopts individual foil shielding for each twinax pair plus an outer braided shield. Dual shielding suppresses crosstalk and EMI inside dense server racks.
Q14: Are active DAC cables fitted with retimer chips and have higher failure rates than 100G QSFP28 passive dac cable? A: Active DAC relies on retimer chips for signal recovery. Extra semiconductor components bring higher failure risk than pure copper passive design. HYTOPTODEVICE recommends passive dac cable for short rack links for better long-term reliability.
Q15: What is the minimum allowable bend radius for this 100G QSFP28 passive dac cable? A: The minimum safe bend radius for HYTOPTODEVICE 100G QSFP28 passive dac cable is 35 mm. Bending smaller than this value deforms internal conductors and raises bit error rates over long runtime.
