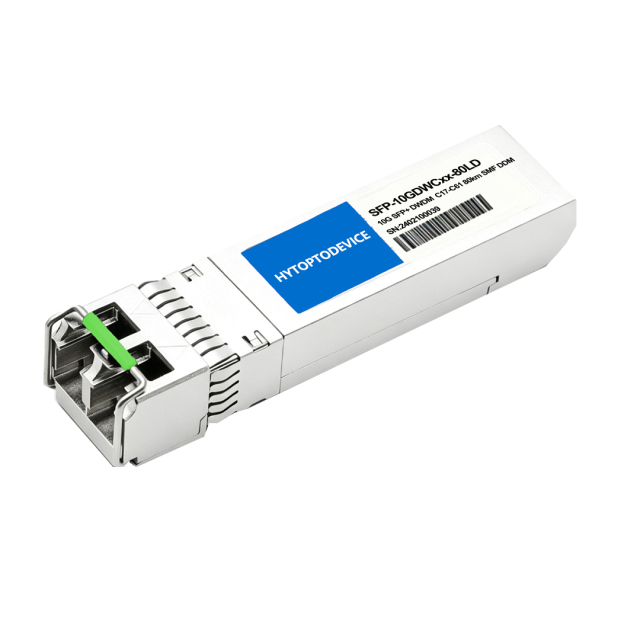

Cisco DWDM-SFP10G-59.79 Compatible 10G DWDM SFP+ Transceiver | 1559.79nm C22 100GHz, 80km Single Mode, APD Receiver, DOM MonitoringProduct Overview
HYTOPTODEVICE Cisco DWDM-SFP10G-59.79 Compatible 10G DWDM SFP+ Transceiver is carrier-grade long-reach optical module designed for Cisco metro backbone, OTN transport and enterprise long-span DWDM networks. Compliant with SFP+ MSA and 10GBASE-DWDM ITU-T G.694.1 standards, this 10G DWDM SFP+ Transceiver operates on standard C22 1559.79nm wavelength with 100GHz channel spacing, delivering stable 10.3125Gbps full-duplex transmission up to 80km over G.652/G.655 single-mode fiber.
Pre-flashed with dedicated Cisco adaptive EEPROM firmware, our 10G DWDM SFP+ Transceiver guarantees zero-alarm plug-and-play operation on all Cisco IOS and IOS-XE platforms. Equipped with industrial EML laser, fast-response TEC cooling and high-gain APD receiver, this 10G DWDM SFP+ Transceiver delivers outstanding wavelength locking performance, sensitive weak signal reception and strong anti-interference capacity. Every 10G DWDM SFP+ Transceiver completes 100% wavelength calibration, high-low temperature aging and real-machine compatibility testing, providing cost-effective, reliable long-haul transmission for large-scale multi-channel DWDM multiplexing projects.
Key Technical Specifications
Each 10G DWDM SFP+ Transceiver undergoes strict carrier-grade QC procedures, covering photoelectric performance testing, precise wavelength calibration and temperature cycle aging screening. Standard factory testing ensures ultra-low bit error rate, stable wavelength locking and durable 7×24-hour continuous operation for commercial and carrier DWDM network environments.
| Cisco Compatible |
DWDM-SFP10G-59.79 |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP+ |
Max Data Rate |
11.0957Gbps |
| Wavelength |
1559.79nm |
Max Distance |
80km |
| Connector |
Simplex LC |
Transmitter Type |
DWDM EML |
| Cable Type |
SMF |
Receiver Type |
APD |
| TX Power |
-1~+5.0dBm |
Receiver Sensitivity |
< -23dBm |
| Max. Power Consumption |
≤1.7W |
DOM/DDM |
Fully Supported |
| Protocols |
SFP+ MSA, SFF-8472, IEEE 802.3ae, RoHS Compliant |
Operation Temperature |
0 to 70°C (32 to 158°F) |
Usage Guidelines & Laser Safety
Operators must wear ESD anti-static wrist straps during 10G DWDM SFP+ Transceiver installation to avoid static damage to internal optical chips and circuits. Never observe powered LC ports directly, as invisible infrared laser may cause permanent eye injury. For testing distances below 10km, install 15–20dB optical attenuators to prevent APD receiver saturation and signal distortion. Clean fiber end faces thoroughly before docking to reduce insertion loss. Reserve sufficient cabinet airflow for densely deployed 10G DWDM SFP+ Transceivers to avoid thermal accumulation and wavelength drift. Regularly check DOM monitoring data for proactive network maintenance.
When the Cisco compatible 10G DWDM SFP+ transceiver is used in short distance transmission, please match it with the appropriate attenuator according to the table.

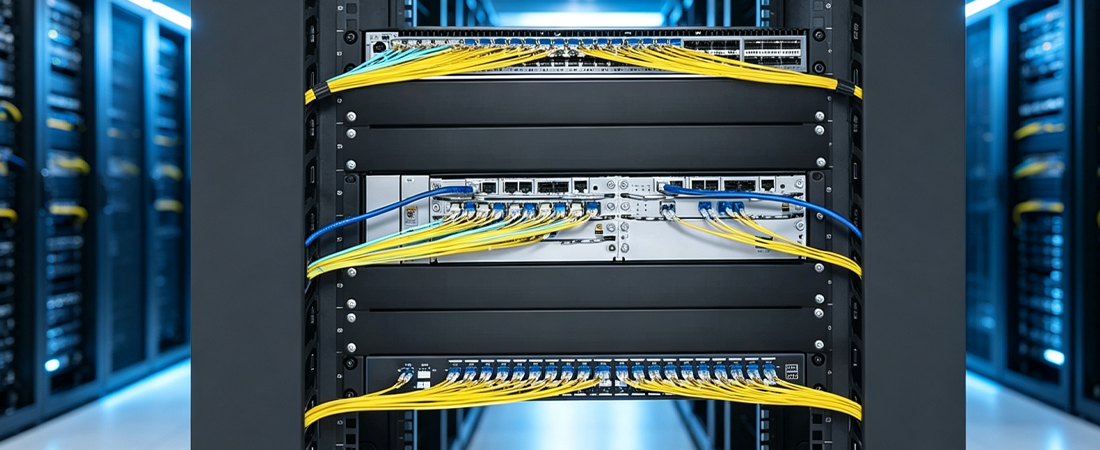

Full Compatibility List & Supported Network Hardware
1.Native Cisco Platform Compatibility
HYTOPTODEVICE Cisco DWDM-SFP10G-59.79 compatible 10G DWDM SFP+ Transceiver features pre-flashed official Cisco adaptive firmware, completely eliminating gbic-invalid and unsupported transceiver alarms. It supports full DOM data identification and zero-packet-loss operation without manual configuration, achieving seamless compatibility with mainstream Cisco network hardware.
Supported Cisco Hardware Models:
- Cisco Catalyst 3650 Series Switches
- Cisco Catalyst 3850 Series Switches
- Cisco Catalyst 9200/9300 Series Switches
- Cisco ISR 4000/4300/4400 Enterprise Routers
- Cisco ASR 1000 Series Aggregation Routers
- Cisco Nexus 7000/9000 Data Center Core Switches
- Cisco OTN/ONS DWDM Service Platforms
2.Multi-Brand Cross Compatibility
This 10G DWDM SFP+ Transceiver covers two full compatibility categories to match nearly all mainstream network hardware on the market: Open-Brand Compatibility and Locked-Brand Compatibility. Open-Brand series includes MikroTik, Ubiquiti, TP-Link, D-Link, Zyxel, Fortinet, Ruijie and other universal SFP slot devices, which realize plug-and-play running without any firmware rewriting. Locked-Brand series covers Cisco, Arista, Juniper, H3C, Huawei, HP/Aruba, Dell, Brocade, Intel and other vendor-locked switches and routers, which require customized professional firmware adaptation to complete stable identification and normal service operation. At HYTOPTODEVICE, we build an independent professional compatibility testing laboratory, where more than 150 types of mainstream brand switches, routers and optical transport equipment run continuous cyclic compatibility tests all year round. We can provide official compatibility test videos and full verification reports to fully guarantee stable multi-brand hybrid networking performance of our 10G DWDM SFP+ Transceiver.
3. Free Custom EEPROM & Bulk OEM Service
We offer free Cisco firmware optimization, precise wavelength offset calibration and dual-vendor coding for bulk orders of 10G DWDM SFP+ Transceivers. Support private label printing, personalized parameter tuning and tiered bulk discounts, serving global optical module distributors, system integrators and telecom engineering purchasers.
Primary Application Scenarios
This 1559.79nm C22-channel 10G DWDM SFP+ Transceiver is specialized for long-span multi-wavelength DWDM transmission, widely deployed in carrier and enterprise Cisco network infrastructure:
1. Cross-city Metro DWDM Backbone Trunks: Realize high-efficiency multi-wavelength multiplexing with this 10G DWDM SFP+ Transceiver to save fiber resources and stabilize long-distance trunk transmission.
2. Data Center Cross-region Interconnection: This 10G DWDM SFP+ Transceiver supports 80km low-latency private line transmission for data synchronization and cross-base disaster recovery backup.
3. Enterprise Cross-park Long-distance Uplinks: Deploy high-stability 10G DWDM SFP+ Transceiver to solve long-span transmission bottlenecks for multi-branch enterprise core networks.
4. Remote Broadband Backhaul Networks: Utilize DWDM wavelength division technology of the 10G DWDM SFP+ Transceiver to expand long-distance broadband coverage with limited fiber resources.
5. Carrier OTN & Smart City Aggregation Links: This carrier-grade 10G DWDM SFP+ Transceiver provides reliable high-speed 10G transmission for OTN equipment and remote monitoring aggregation nodes.
Connectivity Solutions(Applications)
1.80km Long-haul 10G DWDM Transmission for OTN Platform
Deploy paired Cisco-compatible 1559.79nm 10G DWDM SFP+ Transceivers on standard OTN chassis. Leverage the module’s high-gain APD receiver and abundant power budget margin to achieve stable 80km long-distance 10G signal transmission, ideal for carrier-grade cross-city metropolitan backbone network construction.

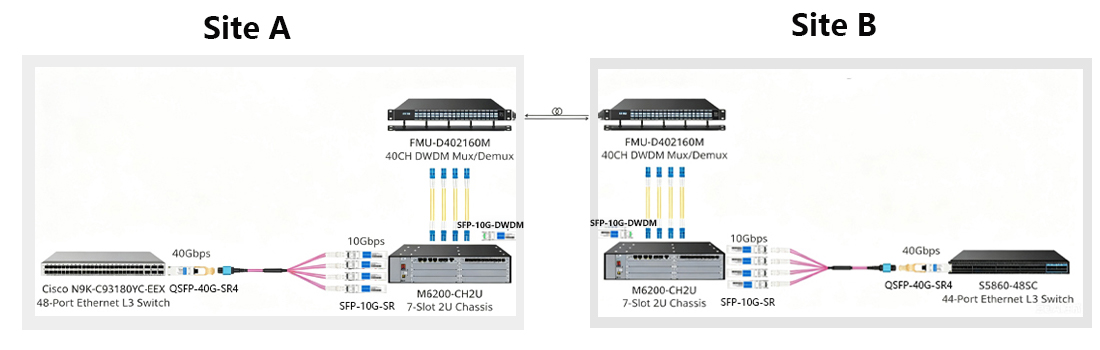

2. 100GHz Grid Multi-channel DWDM Mux Demux Networking
Match this C22 100GHz fixed-grid 10G DWDM SFP+ Transceiver with standard passive MUX/DEMUX devices. Multiple 10G service signals are multiplexed on a single fiber for simultaneous transmission, greatly improving fiber utilization and reducing long-haul network deployment and operation costs.
Features

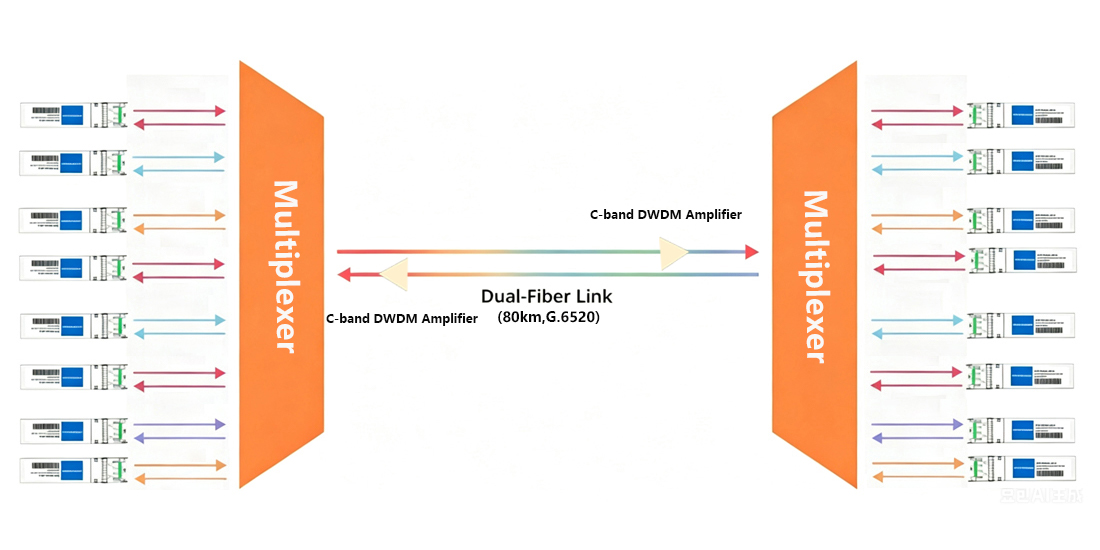

1. High Capacity Long-haul DWDM Transmission
This high-quality 10G DWDM SFP+ Transceiver is precisely tuned for the 1559.79nm C22 channel, supporting stable multi-wavelength DWDM multiplexing up to 80km. With excellent chromatic dispersion tolerance and low signal distortion, the 10G DWDM SFP+ Transceiver minimizes bit error rates on long single-mode fiber spans, maximizing existing fiber utilization for cross-city metro backbone and carrier OTN transmission networks.

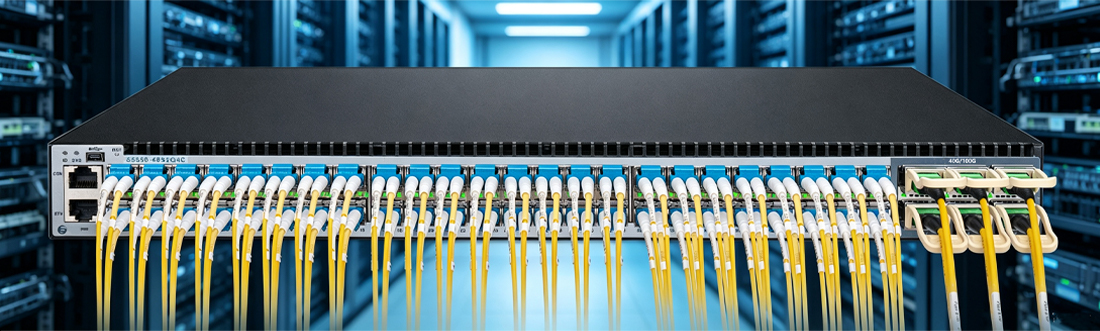

2.Stable 10G Connectivity for Data Center
Equipped with upgraded high-gain APD receiver chips, this bulk deployable long-haul 10G DWDM SFP+ Transceiver delivers superior weak signal capture capability compared with ordinary PIN modules. It effectively identifies severely attenuated optical signals after 80km transmission, eliminating link flapping and intermittent disconnections. This feature ensures stable 10G service continuity for long-span, high-loss fiber networking environments inside large-scale data center clusters.
3. Premium Module Built with Famous MACOM Mainstream Chips
This low power 10G DWDM SFP+ Transceiver adopts mainstream mature MACOM brand core chips as the core optical and electrical processing unit. Matched with optimized circuit layout and independent TEC heat dissipation structure, the chip set delivers stable high-speed signal output, strong anti-electromagnetic interference and excellent temperature adaptability, maintaining precise wavelength locking under complex variable-temperature long-distance DWDM transmission conditions.
4. Full Cisco Zero-alarm Interoperability
Pre-flashed with professional Cisco native firmware, this C22 channel 10G DWDM SFP+ Transceiver achieves zero-alarm, zero-error operation on all mainstream Cisco switches and routers. We provide free custom EEPROM dual-vendor coding for bulk orders, supporting adaptive identification for massive mainstream open-brand and locked-brand network devices. Equipped with a professional independent compatibility laboratory, we run long-term cyclic tests on more than 150 types of mainstream network equipment. We can provide official compatibility test video materials and verification reports to support project review and customer audit needs, fully adapting to multi-brand hybrid networking and large-scale batch deployment scenarios.
5.Strict Quality Screening with Complete Test Records
All third-party compatible 10G DWDM SFP+ Transceivers undergo multi-stage rigorous reliability testing, including high-precision wavelength calibration, professional photoelectric performance inspection, and high-low temperature cycle aging and real-machine compatibility verification. Each finished 10G DWDM transciver module comes with complete standardized qualified test records. For bulk order customers, we can provide detailed official product shipment quality reports to support project filing, quality inspection and engineering acceptance.
FAQ
Q1: How does this 80km 10G DWDM SFP+ Transceiver manage chromatic dispersion over long single-mode fiber spans?
A1: Our HYTOPTODEVICE 1559.79nm C22 10G DWDM SFP+ Transceiver uses industrial EML laser with optimized spectral linewidth design to counteract chromatic dispersion at full 80km transmission distance. Precision factory calibration eliminates signal distortion caused by CD, delivering error-free stable 10G transmission without extra dispersion compensation modules for metro DWDM trunk links.
Q2: Can this Cisco compatible 10G DWDM SFP+ Transceiver reliably capture heavily attenuated weak fiber signals?
A2: This HYTOPTODEVICE long-reach 10G DWDM SFP+ Transceiver integrates high-gain APD receiver chips specially tuned for weak signal reception. It efficiently picks up low-power optical signals after 80km fiber loss, effectively removing link flapping and intermittent packet loss for high-loss long-span cabling systems.
Q3: How much reserved optical power budget margin does this C22 channel 10G DWDM SFP+ Transceiver supply for field fiber loss?
A3: HYTOPTODEVICE engineers reserve abundant optical power budget margin on this 10G DWDM SFP+ Transceiver during component design. The sufficient allowance covers fiber attenuation, splicing loss and LC connector insertion loss, ensuring stable transmission even on aged, high-loss field fiber lines without extra optical amplifiers.
Q4: What long-term wavelength stability performance can users expect from carrier-grade 10G DWDM SFP+ Transceiver with TEC cooling?
A4: Equipped with fast-response built-in TEC thermal locking system, our HYTOPTODEVICE 10G DWDM SFP+ Transceiver maintains ultra-stable 1559.79nm center wavelength after years of continuous running. Strict ITU 100GHz grid calibration prevents wavelength drift and adjacent channel crosstalk under fluctuating cabinet temperature environments.
Q5: Will this fixed-channel 10G DWDM SFP+ Transceiver work seamlessly with standard passive fixed-wavelength DWDM Mux and Demux hardware?
A5: HYTOPTODEVICE C22 10G DWDM SFP+ Transceiver fully complies with standard ITU-T 100GHz grid specifications, achieving perfect plug-and-play compatibility with all mainstream fixed-wavelength Mux/Demux units. Every module completes real-machine multiplex interoperability testing before shipment with no extra adapters required.
Q6: Will Cisco operating systems display unsupported transceiver alarms when deploying this third-party 10G DWDM SFP+ Transceiver?
A6: All HYTOPTODEVICE 10G DWDM SFP+ Transceivers come pre-flashed with dedicated Cisco adaptive EEPROM firmware. Our customized coding completely eliminates "Unsupported Transceiver", gbic-invalid and other system warning prompts on all Cisco IOS and IOS-XE switch platforms, realizing true zero-alarm operation.
Q7: Will host switch firmware updates break transmission performance of this hot-pluggable 10G DWDM SFP+ Transceiver?
A7: This HYTOPTODEVICE carrier-grade 10G DWDM SFP+ Transceiver operates independently on the physical optical layer, separated from switch system software logic. No link drop, packet loss or abnormal alarms will occur during any Cisco switch OS firmware upgrade, guaranteeing uninterrupted core backbone 10G services.
Q8: Does bulk deployable 10G DWDM SFP+ Transceiver integrate automatic thermal protection circuits to avoid overheating damage?
A8: Every HYTOPTODEVICE 10G DWDM SFP+ Transceiver features intelligent built-in over-temperature protection circuits. When poor cabinet ventilation or dense deployment triggers abnormal temperature surges, the module automatically adjusts laser operating power to lower thermal load and prevent internal optical component burnout.
Q9: Will continuous high-temperature cabinet operation reduce the service life of APD-based 10G DWDM SFP+ Transceiver?
A9: HYTOPTODEVICE adds optimized TEC heat dissipation and thermal protection logic to all our 10G DWDM SFP+ Transceivers. Even under long-term high-temperature cabinet environments, the automatic temperature control system stabilizes internal chip operating status and effectively avoids shortened service life caused by persistent overheating.
Q10: What full set of factory reliability tests does each long-haul 10G DWDM SFP+ Transceiver pass before shipment delivery?
A10: Each HYTOPTODEVICE 10G DWDM SFP+ Transceiver undergoes full multi-stage standardized testing before leaving the factory, including wavelength calibration, photoelectric performance inspection, high-low temperature cycle aging, 80km link simulation and multi-brand compatibility verification. We can provide complete qualified test records and official shipment reports for all bulk orders.

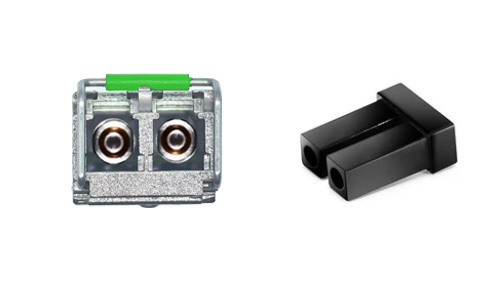

Q11: Are the duplex LC UPC ports on this 10G DWDM SFP+ Transceiver designed with anti-drop structure to stop accidental line disconnections?
A11: HYTOPTODEVICE equips this 10G DWDM SFP+ Transceiver with upgraded industrial reinforced snap-lock LC connectors. The high-tension buckle design delivers firm clamping force to resist vibration, cable pulling and daily equipment movement, avoiding loose contact and accidental fiber disconnection during long-term running.
Q12: Can system integrators get tiered volume price discounts for large metro network rollout bulk orders of 10G DWDM SFP+ Transceiver?
A12: HYTOPTODEVICE offers clear tiered bulk discount policies for all large-scale metro network rollout projects purchasing our 10G DWDM SFP+ Transceivers. The larger your order quantity, the more favorable unit price we provide, and we support long-term framework cooperation pricing for global distributors and telecom integrators.
Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
- Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
- 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
- ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
- Ample stock, fast global DHL/FedEx shipping in 3–5 working days
- Free pre-sales engineering support for custom EEPROM & private label firmware
- Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order
“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia
Quality Certification & Compliance
At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.
We adhere to rigorous standards for our SFP modules and network solutions:
-
ISO 9001: Certified quality management and production consistency.
-
CE & FCC: Fully compliant for seamless Global Market Access.
-
RoHS: Committed to environmental responsibility and hazardous material control.
-
Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.
Certified Quality. Global Standards. Guaranteed Performance.
Rigorous Industrial Product Testing
100% 3rd Party Compatible
Partial Test Demonstration
