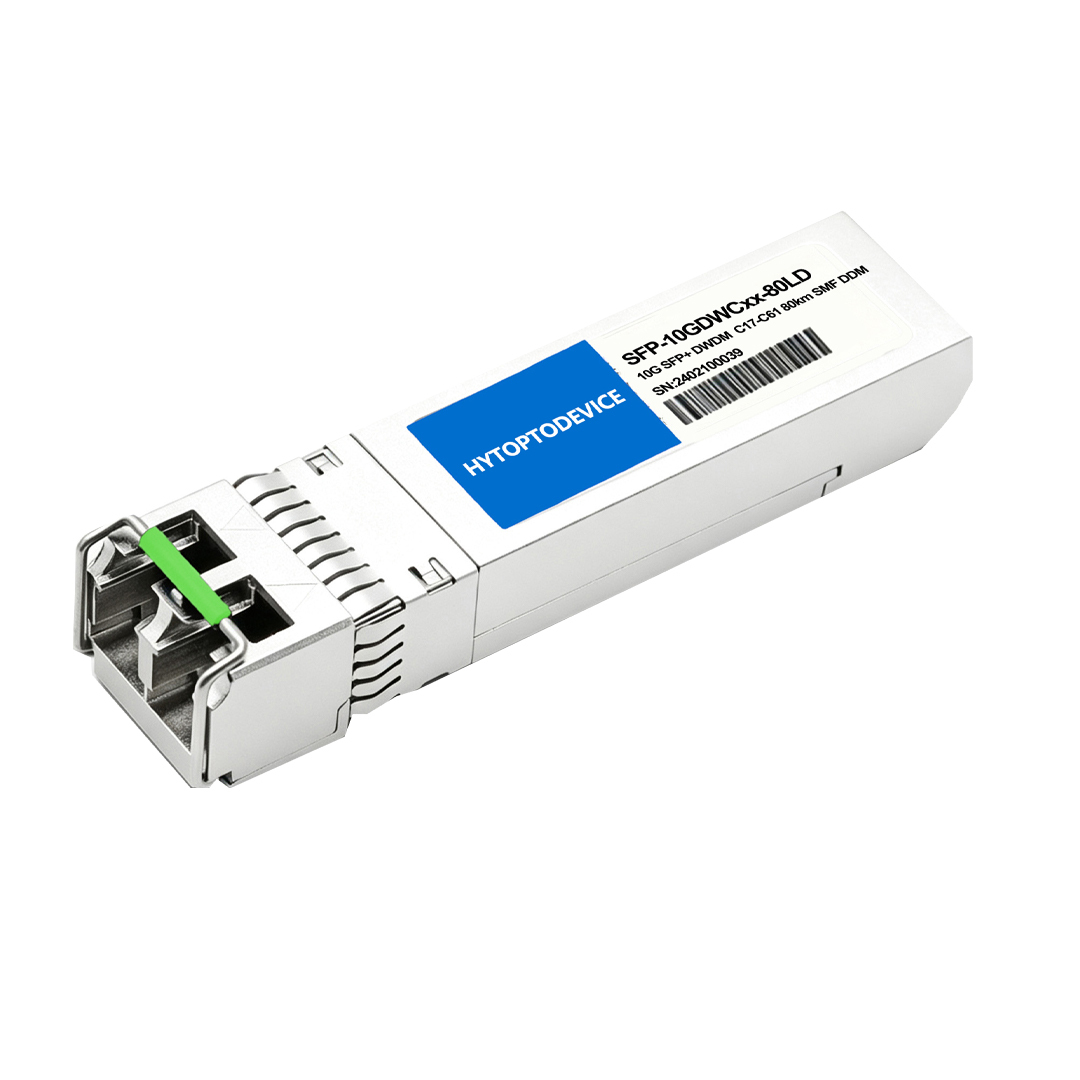

Cisco DWDM-SFP10G-41.35 Compatible 10G SFP+ DWDM 80km Transceiver | 1541.35nm C45 100GHz,Single Mode, APD Receiver, DOM Monitoring
Product Overview
HYTOPTODEVICE Cisco DWDM-SFP10G-41.35 Compatible 10G SFP+ DWDM Transceiver is a carrier-grade, long-reach optical module tailored for Cisco metro backbones, OTN transport, and enterprise long-distance DWDM networks. Compliant with SFP+ MSA and ITU-T G.694.1 standards, this transceiver operates on the 1541.35nm wavelength (C-Band, CH45) with a 100GHz fixed channel spacing, delivering stable 10.3125Gbps full-duplex transmission up to 80km over single-mode fiber (G.652/G.655).
Preloaded with exclusive Cisco adaptive EEPROM firmware, it achieves seamless, zero-alarm plug-and-play operation across all Cisco IOS and IOS-XE platforms. Featuring an industrial-grade EML laser, fast-response TEC thermal management, and a high-gain APD receiver, the module delivers outstanding wavelength locking precision, exceptional weak-signal sensitivity, and robust anti-interference capabilities. Every unit undergoes 100% wavelength calibration, thermal aging cycles, and real-switch compatibility testing, providing a cost-effective, durable long-haul solution for large-scale, multi-channel DWDM multiplexing deployments.
Key Technical Specifications
The HYTOPTODEVICE Cisco compatible 10G SFP+ DWDM transceiver is engineered to meet the stringent performance requirements of high-capacity optical networks. Built with premium optoelectronic components, this module ensures exceptional wavelength stability, optimized power budgets, and reliable long-haul data transmission. Below are the detailed optical, electrical, and physical specifications for this CH45 1541.35nm 80km module.
| Cisco Compatible |
DWDM-SFP10G-41.35 |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP+ |
Max Data Rate |
11.0957Gbps |
| Wavelength |
1541.35nm |
Max Distance |
80km |
| Connector |
Simplex LC |
Transmitter Type |
DWDM EML |
| Cable Type |
SMF |
Receiver Type |
APD |
| TX Power |
-1~+5.0dBm |
Receiver Sensitivity |
< -23dBm |
| Max. Power Consumption |
≤1.7W |
DOM/DDM |
Fully Supported |
| Protocols |
SFP+ MSA, SFF-8472, IEEE 802.3ae, RoHS Compliant |
Operation Temperature |
0 to 70°C (32 to 158°F) |
Usage Guidelines & Laser Safety
-
ESD Protection: Operators must wear a properly grounded ESD anti-static wrist strap during installation to prevent electrostatic discharge from damaging the sensitive internal optical chips and circuits.
-
Laser Safety Warning: NEVER look directly into the powered optical ports or connected fiber faces. The invisible infrared laser radiation emitted from this CH45 (1541.35nm) transceiver can cause permanent and irreversible eye injury.
-
Receiver Overload Protection: This module features a high-gain APD receiver. For short-distance loopbacks or links under 10km, an appropriate optical attenuator (typically 15–20dB) MUST be installed before connecting to the RX port. Failure to do so will cause receiver saturation, signal distortion, or permanent hardware burnout.
-
Optical Cleanliness: Ensure all fiber patch cord end-faces are thoroughly cleaned using professional fiber cleaners before docking to minimize insertion loss and prevent optical interface contamination.
-
Thermal Management: Maintain sufficient cabinet airflow and ventilation when deploying modules in high-density DWDM environments to prevent heat accumulation, which can trigger wavelength drift or thermal degradation.
-
Proactive Monitoring: Regularly monitor Digital Optical Monitoring (DOM) parameters (such as TX/RX power, temperature, and bias current) via the system CLI to proactively identify potential link risks.
Short-Distance Deployment Notice: When using this Cisco-compatible 10G SFP+ DWDM 80km transceiver for short-distance transmission, please refer to the attenuation reference table below to select the appropriate optical attenuator.
Full Compatibility List & Supported Network Hardware
1.Native Cisco Platform Compatibility
HYTOPTODEVICE Cisco DWDM-SFP10G-41.35 compatible 10G SFP+ DWDM transceiver ships with pre-flashed official Cisco adaptive firmware, fully eliminating gbic-invalid and unsupported transceiver warning alerts. It supports full DOM diagnostic data recognition and zero packet-loss operation without manual terminal configuration, delivering seamless interoperability with all mainstream Cisco network hardware platforms.
Supported Cisco Hardware Models:
- Cisco Catalyst 3650 Series Switches
- Cisco Catalyst 3850 Series Switches
- Cisco Catalyst 9200/9300 Series Switches
- Cisco ISR 4000/4300/4400 Enterprise Routers
- Cisco ASR 1000 Series Aggregation Routers
- Cisco Nexus 7000/9000 Data Center Core Switches
- Cisco OTN/ONS DWDM Service Platforms
2.Multi-Brand Cross Compatibility
This 10G SFP+ DWDM Transceiver covers two complete compatibility categories to fit nearly all mainstream network hardware available on the market: Open-Brand Compatibility and Locked-Brand Compatibility. Open-Brand category includes MikroTik, Ubiquiti, TP-Link, D-Link, Zyxel, Fortinet, Ruijie and other universal SFP slot devices, which realize plug-and-play running without any firmware modification. Locked-Brand category covers Cisco, Arista, Juniper, H3C, Huawei, HP/Aruba, Dell, Brocade, Intel and other vendor-locked switches and routers, which require customized professional firmware rewriting to complete stable identification and normal service operation.
At HYTOPTODEVICE, we build an independent professional compatibility testing laboratory, where more than 150 types of mainstream brand switches, routers and optical transport equipment run continuous cyclic compatibility tests all year round. We can provide official compatibility test videos and full verification reports to fully guarantee stable multi-brand hybrid networking performance of our 10G SFP+ DWDM Module.
3. Free Custom EEPROM & Bulk OEM Service
We provide complimentary Cisco firmware optimization, precise wavelength offset calibration and dual-vendor coding services for bulk orders of 10G SFP+ DWDM Transceivers. Custom private label printing, personalized parameter adjustment and tiered bulk discount policies are available, serving global optical module distributors, system integrators and telecom engineering procurement clients worldwide.
Primary Application Scenarios
This 1541.35nm C45-channel 10G SFP+ DWDM transceiver is purpose-built for long-distance multi-wavelength DWDM transmission, widely deployed within carrier and enterprise Cisco network infrastructure:
- Cross-city Metro DWDM Backbone Trunks: Deploy this 10G SFP+ DWDM transceiver to enable high-efficiency multi-wavelength multiplexing, conserve fiber resources and stabilizeModule long-distance urban trunk transmission.
- Data Center Cross-region Interconnection: This 10G SFP+ DWDM supports stable 80km low-latency private line transmission for cross-site data synchronization and offsite disaster recovery backup systems.
- Enterprise Cross-park Long-distance Uplinks: Integrate this high-stability 10G SFP+ DWDM transceiver to resolve persistent long-span transmission bottlenecks for multi-branch corporate core networks.
- Remote Broadband Backhaul Networks: Leverage the DWDM wavelength division functionality of the 10G SFP+ DWDM transceiver to expand long-distance broadband coverage while utilizing limited fiber infrastructure.
- Carrier OTN & Smart City Aggregation Links: This carrier-grade 10G SFP+ DWDM transceiver delivers consistent high-speed 10G transmission support for OTN transport hardware and remote smart city monitoring aggregation nodes.
Connectivity Solutions(Applications)
1.80km Long-haul 10G DWDM Transmission for OTN Platform
Install matched pairs of Cisco-compatible 1541.35nm 10G SFP+ DWDM transceivers onto standard 2U OTN chassis hardware. Leverage the module’s high-gain APD receiver and generous optical power budget margin to deliver stable 80km long-distance 10G signal transmission, perfectly suited for carrier-grade cross-city metropolitan backbone network construction projects.
2. 100GHz Grid Multi-channel DWDM Mux Demux Networking
Pair this C45 100GHz fixed-grid 10G SFP+ DWDM transceiver with industry-standard passive MUX/DEMUX multiplexing hardware. Multiple independent 10G data services are multiplexed onto a single fiber cable for simultaneous transport, drastically boosting fiber utilization efficiency and cutting long-haul network deployment and recurring operational expenses.
Features
1. High Capacity Long-haul DWDM Transmission
Tuned exclusively to the 1541.35nm C45 wavelength band, this carrier-grade 10G SFP+ DWDM transceiver supports steady multi-channel DWDM multiplexing across full 80km fiber spans. Designed with superior chromatic dispersion resistance and minimal signal distortion characteristics, the module drastically reduces bit error occurrences on long single-mode fiber routes, helping operators maximize existing fiber assets for cross-city metro backbones and carrier OTN transmission systems.
2.Stable 10G Connectivity for Data Center
Engineered for mission-critical environments, our cisco compatible 10G SFP+ DWDM CH17 to CH61 optics deliver rock-solid, ultra-low latency connectivity. Designed to withstand the thermal and bandwidth demands of modern data centers, they ensure zero-packet-loss performance and 24/7 network uptime for your core aggregation and backbone links.
3. Powered by MACOM Core Architecture
At the heart of our 10G SFP+ DWDM 80km transceiver lies the industry-leading MACOM chipset. This premium internal architecture delivers exceptional signal integrity and high-speed data processing capabilities. By integrating MACOM’s advanced silicon technology, the module ensures ultra-low jitter, optimal power efficiency, and rock-solid performance even in high-density, continuous-load network environments.
4. Full Cisco Zero-alarm Interoperability
Pre-flashed with native Cisco firmware, this 10G SFP+ DWDM transceiver ensures 100% alarm-free and error-free operation across all mainstream Cisco switches and routers. For volume deployments, we offer complimentary custom EEPROM dual-vendor coding, enabling adaptive identification across diverse open and locked hardware environments.
Backed by our independent interoperability lab, each module undergoes rigorous cyclic testing across 150+ network platforms. To streamline your project reviews and customer audits, we provide official compatibility test videos and verification reports—making it the ideal choice for multi-brand hybrid networking and large-scale deployments.
5.Strict Quality Screening with Complete Test Records
Every third-party compatible 10G SFP+ DWDM transceiver undergoes rigorous, multi-stage reliability testing—including high-precision wavelength calibration, professional photoelectric performance inspection, thermal cycling aging, and real-machine compatibility verification. Each finished module is delivered with complete, standardized test records. For bulk orders, we provide detailed official Product Quality Reports (PQRs) to seamlessly support your project filing, quality inspections, and engineering acceptance.
FAQ
Q1: How does HYTOPTODEVICE 10G SFP+ DWDM Transceiver offset chromatic dispersion (CD) interference over an 80km single-mode fiber link?
A1: Our HYTOPTODEVICE 1541.35nm C45 10G SFP+ DWDM Transceiver adopts industrial EML laser with ultra-narrow spectral width as the core light source. Supported by high-precision factory wavelength locking calibration, the internal optical structure effectively suppresses chromatic dispersion distortion generated during long-distance signal transmission. It delivers error-free stable 80km transmission without extra external dispersion compensation modules, perfectly matching metro long-span DWDM backbone deployment needs.
Q2: What laser hardware is built into HYTOPTODEVICE 10G SFP+ DWDM Transceiver to sustain consistent long-distance transmission stability?
A2: This 1541.35nm C45 10G SFP+ DWDM Transceiver integrates industrial-grade EML laser matched with built-in TEC constant temperature locking modules. Real-time thermal regulation restrains laser wavelength drift and power fluctuation caused by years of continuous operation. Strict factory aging calibration guarantees steady optical power output, maintaining uniform transmission performance for long-term 80km fiber links without signal attenuation.
Q3: What optical return loss (ORL) tolerance standard can this C45 10G SFP+ DWDM Transceiver withstand without signal performance decline?
A3: Each 1541.35nm C45 10G SFP+ DWDM Transceiver undergoes dedicated optical isolation calibration to meet strict telecom-grade ORL resistance requirements. The internal anti-reflection optical design counteracts reflected light signals triggered by poor fiber splices and mismatched LC connectors. It avoids signal oscillation and sudden BER spikes brought by excessive return loss, adapting to complex field wiring with inconsistent connector quality.
Q4: Can this 10G SFP+ DWDM Transceiver work normally with DWDM systems adopting 50GHz grid spacing?
A4: The 1541.35nm C45 10G SFP+ DWDM Transceiver fully complies with ITU-T 100GHz wavelength grid specifications, the mainstream standard for conventional DWDM rack equipment. It cannot realize stable matching with 50GHz ultra-dense grid Mux/Demux hardware; mismatched channel spacing will cause severe wavelength crosstalk and signal interference, so it only applies to standard 100GHz grid multiplexing network architectures.
Q5: How precise are the real-time monitoring data collected by DDMI and DOM digital diagnostic functions of this 10G SFP+ DWDM Transceiver?
A5: The built-in DDMI/DOM monitoring chip of our 1541.35nm C45 10G SFP+ DWDM Transceiver receives full-range factory calibration for all monitoring indicators, including transmit/receive optical power, internal operating temperature and laser bias current. The error deviation of all live detection data is limited within industrial allowable tolerance ranges, providing reliable reference data for daily network monitoring and early hidden fault troubleshooting.
Q6: What peak power consumption will this C45-channel 10G SFP+ DWDM Transceiver reach under full-load continuous operation?
A6: Our 1541.35nm C45 10G SFP+ DWDM Transceiver adopts low-power optimized laser and circuit layout. Its maximum power draw under full working load strictly complies with SFP+ MSA power supply limit standards. It will not bring excessive power burden to switch slots under 24/7 nonstop operation, preventing unexpected power protection shutdown of network equipment in densely loaded rack environments.
Q7: Does HYTOPTODEVICE 10G SFP+ DWDM Transceiver come with embedded intelligent over-temperature protection circuits as standard?
A7: The 1541.35nm C45 10G SFP+ DWDM Transceiver integrates dedicated over-temperature protection circuits cooperating with TEC active heat dissipation modules. Once the internal working temperature exceeds the preset safety threshold, the transceiver will automatically reduce laser operating power to lower heat generation. This protective mechanism avoids burnout of internal optical chips and circuit boards, securing uninterrupted stable operation inside fully populated switch racks.
Q8: Are the LC optical ports of this 10G SFP+ DWDM Transceiver protected against dust and surface scratches during delivery and on-site handling?
A8: Every HYTOPTODEVICE 1541.35nm C45 10G SFP+ DWDM Transceiver is equipped with custom tight-fitting LC dust caps right after production. Combined with fully sealed anti-static shockproof individual packaging, the optical end faces are fully isolated from floating dust, fingerprint oil stains and abrasion during transportation, warehouse storage and field installation, retaining original factory optical transmission performance.
Q9: Will customers face hidden extra charges for specialized EEPROM brand coding or dedicated reprogramming tools for this transceiver?
A9: HYTOPTODEVICE provides totally free custom EEPROM brand adaptation and firmware rewriting services for all bulk orders of the 1541.35nm C45 10G SFP+ DWDM Transceiver. We never charge hidden service fees, equipment rental fees or calibration surcharges for compatibility programming work. Our in-house technical lab is equipped with complete professional reprogramming tools, and all coding adjustment work is fully covered in the base product price.
Q10: Can this 10G SFP+ DWDM Transceiver be deployed in outdoor communication nodes or industrial harsh temperature environments?
A10: The standard commercial-grade 1541.35nm C45 10G SFP+ DWDM Transceiver supports a working temperature range of 0℃~70℃, designed for indoor data center and central office rack deployment. For outdoor nodes or industrial sites with wide temperature fluctuations, we supply customized industrial-temperature variants with expanded operating temperature ranges to adapt to harsh outdoor and industrial installation scenarios.
