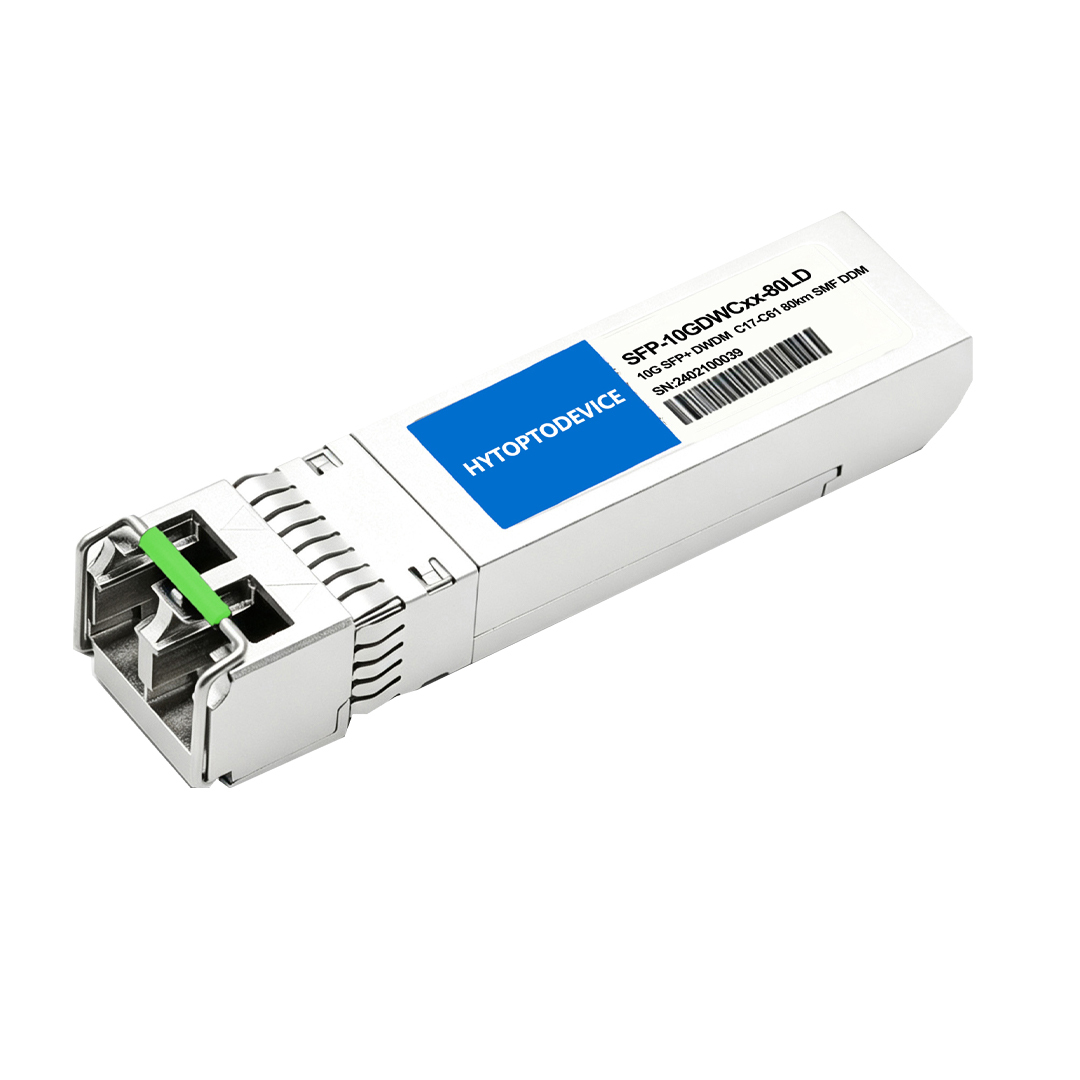

• hytoptodevice C48 1538.98nm Cisco compatible 10G SFP+ DWDM optical transceiver module

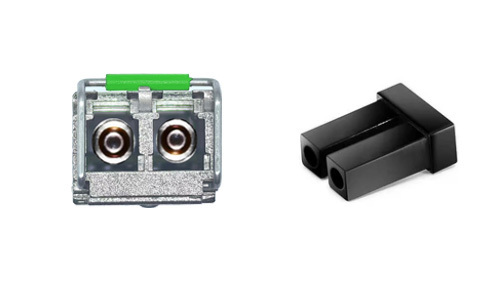

  • Close-up shot showing duplex LC UPC port of C48 DWDM 10G SFP+ transceiver module

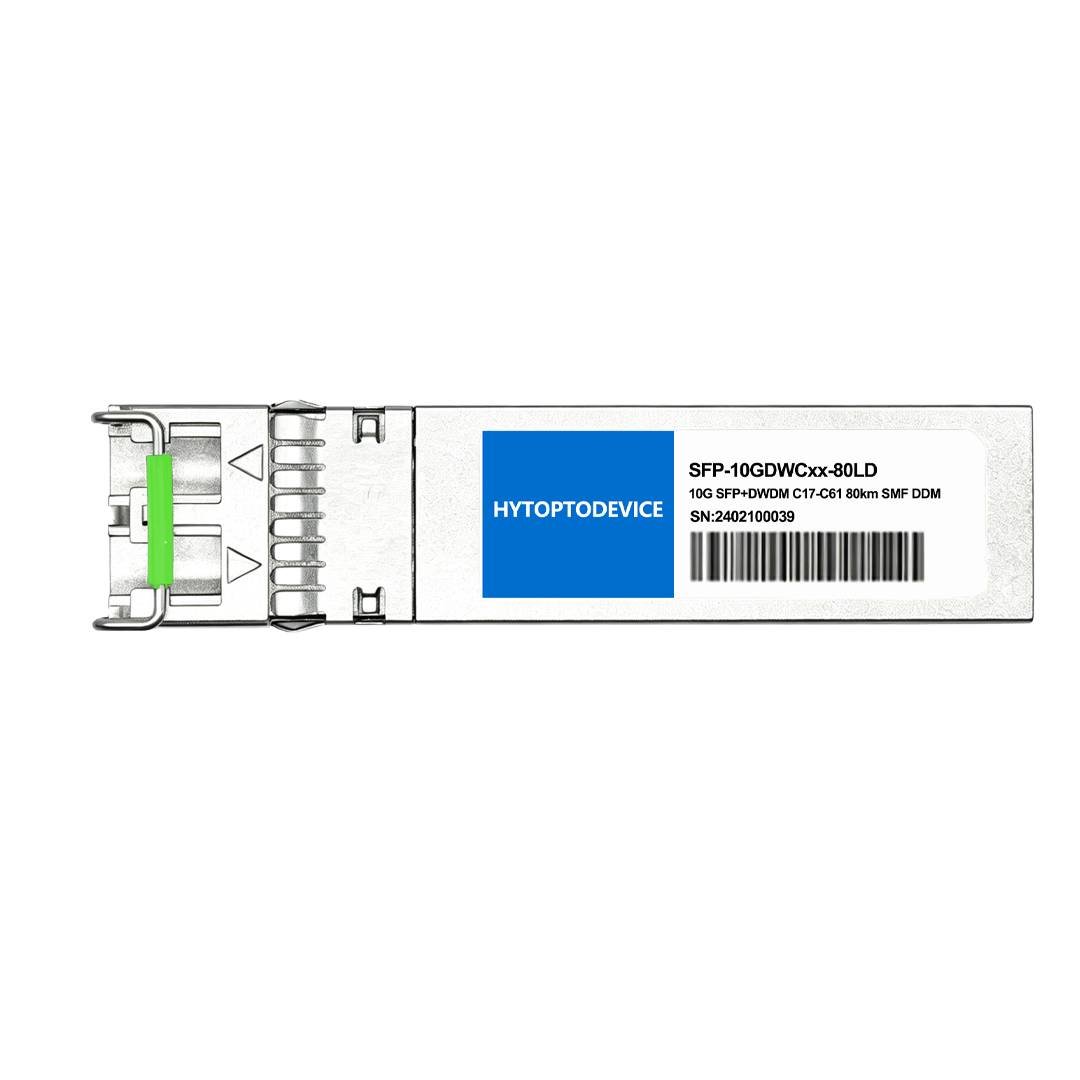

  • DOM monitoring enabled Cisco DWDM-SFP10G-38.98 replacement 80km DWDM SFP+ marking detail
  • Multi-channel DWDM transmission rack equipped with 1538.98nm C48 10G SFP+ DWDM 80km transceiver
  •  80km APD receiving chip on C48 10G SFP+ DWDM optic from hytoptodevice
  • hytoptodevice C48 1538.98nm Cisco compatible 10G SFP+ DWDM optical transceiver module
  • Close-up shot showing duplex LC UPC port of C48 DWDM 10G SFP+ transceiver module
  • DOM monitoring enabled Cisco DWDM-SFP10G-38.98 replacement 80km DWDM SFP+ marking detail
  • Multi-channel DWDM transmission rack equipped with 1538.98nm C48 10G SFP+ DWDM 80km transceiver
  •  80km APD receiving chip on C48 10G SFP+ DWDM optic from hytoptodevice

Cisco DWDM-SFP10G-38.98 Compatible 10G SFP+ DWDM 80km Transceiver | 1538.98nm C48 100GHz SMF APD DOM | HYTOPTODEVICE

High-Quality Cisco DWDM-SFP10G-38.98 compatible 10G SFP+ DWDM 80km transceiver operating at 1538.98nm C48 100GHz ITU grid, supporting full single-mode long-distance transport with high-sensitivity APD receiver and real-time DOM digital diagnostics. Factory calibrated wavelength, built-in TEC cooling, zero-alarm Cisco compatibility, full multi-brand firmware customization for metro DWDM and OTN backbone networks.Support bulk wholesale and private label, custom EEPROM coding to global importers and distributors.
NO. Brand  Compatible P/N Remarks
1 Cisco DWDM-SFP10G-38.98
2 Arista Networks  SFP-10G-DW-38.98
3 Brocade  10G-SFPP-ZRD-1538.98
4 Ciena  DWDM-SFP10G-38.98-80
5 Extreme  DWDM-SFP10G-38.98
6 Dell Force10  DWDM-SFP10G-38.98
7 H3C  DWDM-SFP10G-38.98-80
8 HPE  DWDM-SFP10G-38.98-80
9 Juniper  SFPP-10G-DW48
10 Netgear  DWDM-SFP10G-38.98
Description

Cisco DWDM-SFP10G-38.98 Compatible 10G SFP+ DWDM 80km Transceiver | 1538.98nm C48 100GHz,Single Mode, APD Receiver, DOM Monitoring

Product Overview

HYTOPTODEVICE Cisco DWDM-SFP10G-38.98 Compatible 10G SFP+ DWDM 80km Transceiver is a carrier-grade, long-reach optical module tailored for Cisco metro backbones, OTN transport, and enterprise long-distance DWDM networks. Compliant with SFP+ MSA and ITU-T G.694.1 standards, this transceiver operates on the 1538.98nm wavelength (C-Band, CH48) with a 100GHz fixed channel spacing, delivering stable 10.3125Gbps full-duplex transmission up to 80km over single-mode fiber (G.652/G.655).

Preloaded with exclusive Cisco adaptive EEPROM firmware, it achieves seamless, zero-alarm plug-and-play operation across all Cisco IOS and IOS-XE platforms. Featuring an industrial-grade EML laser, fast-response TEC thermal management, and a high-gain APD receiver, the module delivers outstanding wavelength locking precision, exceptional weak-signal sensitivity, and robust anti-interference capabilities. Every unit undergoes 100% wavelength calibration, thermal aging cycles, and real-switch compatibility testing, providing a cost-effective, durable long-haul solution for large-scale, multi-channel DWDM multiplexing deployments.

Key Technical Specifications

Cisco  Compatible DWDM-SFP10G-38.98 Vendor Name HYTOPTODEVICE
Form Factor SFP+ Max Data Rate 11.0957Gbps
Wavelength 1538.98nm Max  Distance 80km
Connector Simplex LC Transmitter Type DWDM EML
Cable Type SMF Receiver Type APD
TX Power 0~+4.0dBm Receiver Sensitivity < -23dBm
Max. Power Consumption ≤1.7W Receiver Overload  -7dBm
Protocols SFP+ MSA, SFF-8472, IEEE 802.3ae, RoHS Compliant Operation Temperature 0 to 70°C (32 to 158°F)

For detailed technical specifications, please refer to the Datasheet

Usage Guidelines & Laser Safety

Operators must wear ESD anti-static wrist straps when installing this Cisco-compatible SFP+ 10G DWDM Transceiver. Never stare directly into powered LC optical ports, invisible 1550nm infrared laser can cause permanent retinal damage. For bench loopback testing with fiber spans under 10km, install 12–15dB fixed optical attenuators to prevent APD receiver saturation(ensuring the received power<-7dBm). Always clean fiber end-faces before mating connectors; tiny dust particles break DWDM channel power balance and induce long-term laser degradation. Reserve sufficient cabinet airflow around densely populated SFP+ 10G DWDM Transceiver slots to eliminate wavelength drift from thermal buildup. Regularly export basic DOM monitoring data via Cisco CLI to track laser bias current and link attenuation trends for proactive network maintenance.
For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Network Hardware

1.Native Cisco Platform Compatibility

HYTOPTODEVICE Cisco DWDM-SFP10G-38.98 compatible 10G SFP+ DWDM 80km transceiver ships with pre-flashed official Cisco adaptive firmware, fully eliminating gbic-invalid and unsupported transceiver warning alerts. It supports full DOM diagnostic data recognition and zero packet-loss operation without manual terminal configuration, delivering seamless interoperability with all mainstream Cisco network hardware platforms.
Supported Cisco Hardware Models:
  • Cisco Catalyst 3650 Series Switches
  • Cisco Catalyst 3850 Series Switches
  • Cisco Catalyst 9200/9300 Series Switches
  • Cisco ISR 4000/4300/4400 Enterprise Routers
  • Cisco ASR 1000 Series Aggregation Routers
  • Cisco Nexus 7000/9000 Data Center Core Switches
  • Cisco OTN/ONS DWDM Service Platforms

2.Multi-Brand Cross Compatibility

This MSA-standard SFP+ 10G DWDM Transceiver supports cross-vendor deployment. Open-source brand switches & routers achieve plug-and-play operation directly; locked-brand hardware supports customized EEPROM re-flashing to bypass vendor authentication limits for hybrid DWDM network integration.

3.Value-Added Services

  • Custom EEPROM programming for multi-platform compatibility

  • Pre-bulk sample testing for project validation

  • Private label customization and deployment guides

  • Strict batch quality control

  • EEPROM configuration for legacy network environments

  • Free EEPROM recoding plus 24/7 technical support


Primary Application Scenarios

This 1538.98nm C48-channel 10G SFP+ DWDM 80km transceiver is purpose-built for long-distance multi-wavelength DWDM transmission, widely deployed within carrier and enterprise Cisco network infrastructure:
  1. Cross-city Metro DWDM Backbone Trunks: Deploy this 10G SFP+ DWDM transceiver to enable high-efficiency multi-wavelength multiplexing, conserve fiber resources and stabilizeModule long-distance urban trunk transmission.
  2. Data Center Cross-region Interconnection: This 10G SFP+ DWDM  supports stable 80km low-latency private line transmission for cross-site data synchronization and offsite disaster recovery backup systems.
  3. Enterprise Cross-park Long-distance Uplinks: Integrate this high-stability 10G SFP+ DWDM transceiver to resolve persistent long-span transmission bottlenecks for multi-branch corporate core networks.
  4. Remote Broadband Backhaul Networks: Leverage the DWDM wavelength division functionality of the 10G SFP+ DWDM transceiver to expand long-distance broadband coverage while utilizing limited fiber infrastructure.
  5. Carrier OTN & Smart City Aggregation Links: This carrier-grade 10G SFP+ DWDM transceiver delivers consistent high-speed 10G transmission support for OTN transport hardware and remote smart city monitoring aggregation nodes.


Connectivity Solutions(Applications)

1.80km Long-haul 10G DWDM Transmission for OTN Platform

80km OTN long-haul c48 10G SFP+ DWDM ZR Transceiver connectivity
2. 100GHz Grid Multi-channel DWDM Mux Demux Networking
 100GHz grid DWDM Mux Demux with c48 80km 10G SFP+ DWDM transceiver

Features

1. High Capacity Long-haul DWDM Transmission
Tuned exclusively to the 1538.98nm C48 wavelength band, this carrier-grade 10G SFP+ DWDM 80km transceiver supports steady multi-channel DWDM multiplexing across full 80km fiber spans. Designed with superior chromatic dispersion resistance and minimal signal distortion characteristics, the module drastically reduces bit error occurrences on long single-mode fiber routes, helping operators maximize existing fiber assets for cross-city metro backbones and carrier OTN transmission systems.

hytoptodevice High capacity long-haul c48 DWDM transmission 10G sfp+ DWDM Transceiver  80km

2.Stable 10G Connectivity for Data Center

Engineered for mission-critical environments, our cisco compatible 10G SFP+ DWDM CH17 to CH61 optics deliver rock-solid, ultra-low latency connectivity. Designed to withstand the thermal and bandwidth demands of modern data centers, they ensure zero-packet-loss performance and 24/7 network uptime for your core aggregation and backbone links.

hytoptodevice Low power c48 10G sfp+ DWDM 80km Transceiver for data center

3.
Powered by MACOM Core Architecture
At the heart of our 10G SFP+ DWDM 80km transceiver lies the industry-leading MACOM chipset. This premium internal architecture delivers exceptional signal integrity and high-speed data processing capabilities. By integrating MACOM’s advanced silicon technology, the module ensures ultra-low jitter, optimal power efficiency, and rock-solid performance even in high-density, continuous-load network environments.

hytoptodevice c48 SFP+dwdm ZR transceiver internal MACOM core chip dissection diagram

4. Full Cisco Zero-alarm Interoperability

Pre-flashed with native Cisco firmware, this 10G SFP+ DWDM transceiver ensures 100% alarm-free and error-free operation across all mainstream Cisco switches and routers. For volume deployments, we offer complimentary custom EEPROM dual-vendor coding, enabling adaptive identification across diverse open and locked hardware environments.Specific Compatibility Video available upon request.

hytoptodevice Cisco devices compatibility testing for c48 10G SFP+ DWDM 80KM transceiver

5.Strict Quality Screening with Complete Test Records
Every third-party compatible 10G SFP+ DWDM transceiver undergoes rigorous, multi-stage reliability testing—including high-precision wavelength calibration, professional photoelectric performance inspection, thermal cycling aging, and real-machine compatibility verification. Each finished module is delivered with complete, standardized test records. For bulk orders, we provide detailed official Product Quality Reports (PQRs) to seamlessly support your project filing, quality inspections, and engineering acceptance.Curious how? Tour the Test Center.

High reliability bulk c47 10G SFP+ DWDM 80KM Transceiver module from hytoptodevice


FAQ

Q1: How does HYTOPTODEVICE 10G SFP+ DWDM 80km Transceiver manage chromatic dispersion (CD) effects over the full 80km fiber span?
A1: Our HYTOPTODEVICE 1538.98nm C48 10G SFP+ DWDM 80km Transceiver adopts narrow-spectrum EML laser paired with factory precision wavelength locking design. The optimized optical waveform suppresses chromatic dispersion distortion produced during long-distance signal transmission. It delivers stable error-free 80km single-mode transmission without needing external dispersion compensation devices, perfectly matching metro long-haul DWDM trunk deployment requirements.

Q2: Is the receiving end of this C48 10G SFP+ DWDM 80km Transceiver sensitive enough to capture attenuated weak optical signals?

A2: This transceiver equips high-gain APD receiver chip with professionally calibrated receiving sensitivity. Even after long-distance fiber attenuation creates faint light signals, the receiver can accurately identify low-power optical inputs without frame loss or bit error surges. It maintains stable signal reception on aged, high-loss field fiber links with heavy splicing and connector loss.

Q3: Can the integrated TEC thermoelectric cooler respond rapidly when sudden temperature surges occur inside the module?

A3: The built-in TEC cooling unit of the 1538.98nm C48 10G SFP+ DWDM 80km Transceiver features real-time fast-response temperature sensing logic. Once internal temperature rises sharply, the TEC instantly adjusts cooling power to stabilize laser operating temperature. It avoids wavelength drift and power fluctuation caused by abrupt thermal changes, locking consistent optical output under volatile rack temperature conditions.

Q4: Does this 10G SFP+ DWDM 80km Transceiver support DWDM systems that adopt 50GHz channel grid spacing?

A4: The 1538.98nm C48 transceiver strictly follows ITU-T standard 100GHz wavelength grid specifications, which is the mainstream standard for conventional DWDM multiplexing racks. It cannot achieve stable matching with 50GHz ultra-dense grid Mux/Demux hardware; mismatched channel spacing will trigger severe cross-channel crosstalk and signal interference, so it only fits standard 100GHz grid multiplex network architectures.

Q5: Does HYTOPTODEVICE 10G SFP+ DWDM 80km Transceiver support customizable dual-vendor EEPROM coding?

A5: All 1538.98nm C48 10G SFP+ DWDM 80km Transceiver units support full dual-vendor firmware customization. Our technical team can pre-flash dual-brand identification data before shipment, enabling the optic to be recognized normally on two different mainstream brand switch platforms simultaneously without manual CLI configuration adjustments on site.

Q6: Will DDMI digital diagnostic functions generate false alarm notifications within my network management system?

A6: The DDMI monitoring chip on this C48 transceiver undergoes full-range factory calibration for all power, temperature and current indicators. Alarm threshold parameters are set strictly per industrial telecom standards, effectively filtering transient data fluctuations. False alarms triggered by instantaneous signal jitter are greatly minimized, delivering reliable real-time monitoring without unnecessary network alert noise.

Q7: Does this 10G SFP+ DWDM 80km Transceiver integrate native intelligent over-temperature protection circuits?

A7: The 1538.98nm C48 transceiver combines TEC active heat dissipation with dedicated over-temperature protection circuitry. Once internal working temperature exceeds the predefined safety threshold, the device automatically reduces laser operating power to cut heat generation. This built-in safeguard prevents burnout of internal optical chips and circuit boards during continuous high-temperature rack operation.

Q8: Will prolonged high-temperature running inside switch racks shorten the total service lifespan of this long-reach optical transceiver?

A8: Our 1538.98nm C48 10G SFP+ DWDM 80km Transceiver uses upgraded heat-conductive housing and wide-temperature resistant electronic components. The intelligent thermal protection mechanism suppresses long-term thermal aging of laser chips and PCB boards. Even under nonstop operation in high-temperature cabinet environments, it retains complete transmission performance and avoids premature service failure.

Q9: Are the LC optical end faces of this transceiver fully shielded from dust, oil stains and scratches during delivery and field handling?

A9: Every HYTOPTODEVICE 1538.98nm C48 transceiver is fitted with tight-fitting LC dust caps right after assembly. Paired with fully sealed anti-static shockproof individual packaging, the optical ports are fully isolated from floating dust, fingerprint grease and surface abrasion during transportation, warehouse storage and on-site installation, preserving original factory optical performance.

Q10: Does this 10G SFP+ DWDM 80km Transceiver fully comply with universal SFP+ MSA dimensional and mechanical specifications?

A10: This 1538.98nm C48 transceiver is manufactured and 100% validated in accordance with global unified SFP+ MSA SFF-8431/SFF-8472 standards. Its overall outline, pin layout, port position and locking latch structure all match universal SFP+ dimension benchmarks, enabling smooth hot-swap insertion without jamming or loose seating on all MSA-compliant switches and routers.
