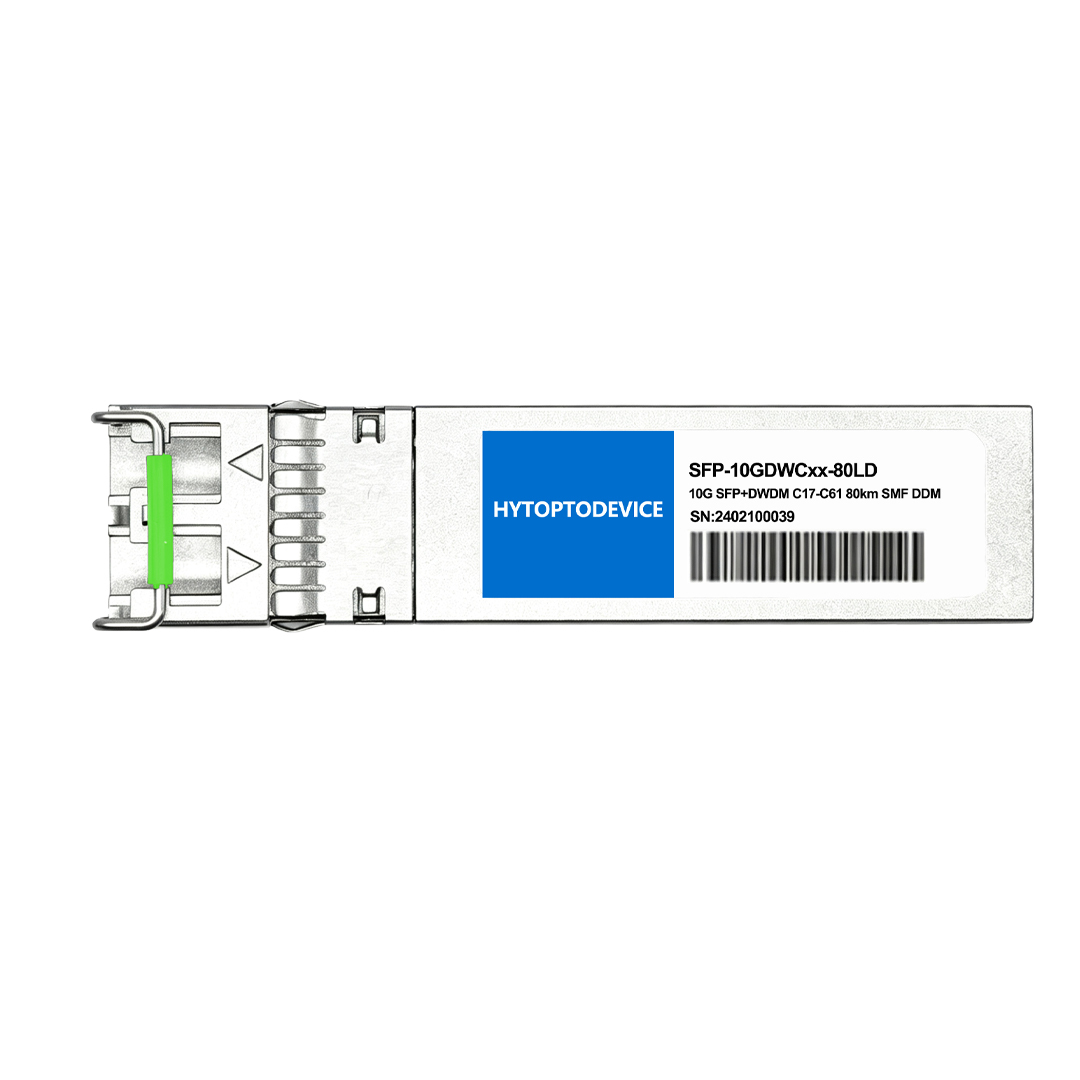

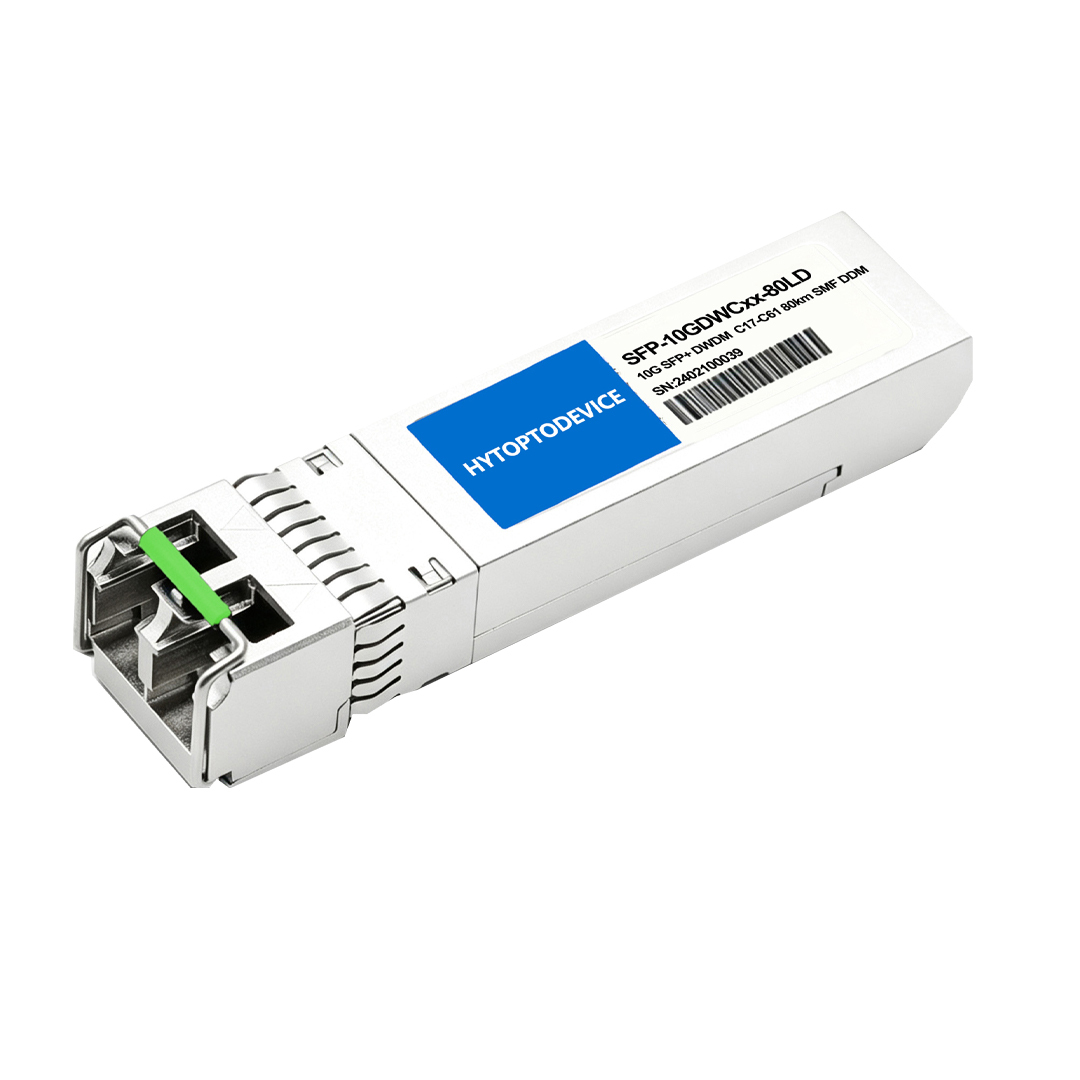

Cisco DWDM-SFP10G-36.61 Compatible 10G DWDM SFP 80km Transceiver | 1536.61nm C51 100GHz, Single Mode, APD Receiver, DOM MonitoringProduct Overview
HYTOPTODEVICE Cisco DWDM-SFP10G-36.61 Compatible 10G DWDM SFP 80km Transceiver is a carrier-grade, long-reach optical module engineered for Cisco metro backbones, OTN transport, and enterprise long-span DWDM networks. Compliant with SFP+ MSA and ITU-T G.694.1 standards, this transceiver operates on the 1536.61nm wavelength (C-Band, CH51) with 100GHz channel spacing, delivering stable 10.3125Gbps full-duplex data transmission up to 80km over single-mode fiber (G.652/G.655).
Pre-flashed with dedicated Cisco adaptive EEPROM firmware, it guarantees seamless, zero-alarm plug-and-play interoperability across all Cisco IOS and IOS-XE platforms. Featuring an industrial-grade EML laser, fast-response TEC cooling, and a high-gain APD receiver, the module delivers outstanding wavelength locking precision, exceptional weak-signal sensitivity, and robust anti-interference performance. Each unit undergoes 100% wavelength calibration, thermal aging, and real-switch testing to provide a cost-effective, reliable long-haul solution for large-scale, multi-channel DWDM multiplexing projects.
Key Technical Specifications
| Cisco Compatible |
DWDM-SFP10G-36.61 |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP+ |
Max Data Rate |
11.0957Gbps |
| Wavelength |
1536.61nm |
Max Distance |
80km |
| Connector |
Simplex LC |
Transmitter Type |
DWDM EML |
| Cable Type |
SMF |
Receiver Type |
APD |
| TX Power |
0~+4.0dBm |
Receiver Sensitivity |
< -23dBm |
| Max. Power Consumption |
≤1.7W |
Receiver Overload |
-7dBm |
| Protocols |
SFP+ MSA, SFF-8472, IEEE 802.3ae, RoHS Compliant |
Operation Temperature |
0 to 70°C (32 to 158°F) |
For detailed technical specifications, please refer to the Datasheet
Usage Guidelines & Laser Safety
Operators must wear ESD anti-static wrist straps when installing this Cisco-compatible SFP+ 10G DWDM Transceiver. Never stare directly into powered LC optical ports, invisible 1550nm infrared laser can cause permanent retinal damage. For bench loopback testing with fiber spans under 10km, install 12–15dB fixed optical attenuators to prevent APD receiver saturation(ensuring the received power<-7dBm). Always clean fiber end-faces before mating connectors; tiny dust particles break DWDM channel power balance and induce long-term laser degradation. Reserve sufficient cabinet airflow around densely populated SFP+ 10G DWDM Transceiver slots to eliminate wavelength drift from thermal buildup. Regularly export basic DOM monitoring data via Cisco CLI to track laser bias current and link attenuation trends for proactive network maintenance.
For detailed operation instructions, please refer to the User Guide.
Full Compatibility List & Supported Network Hardware
1.Native Cisco Platform Compatibility
HYTOPTODEVICE Cisco DWDM-SFP10G-36.61 compatible 10G DWDM SFP 80KM Transceiver features pre-flashed official Cisco adaptive firmware, completely eliminating gbic-invalid and unsupported transceiver alarms. It supports full DOM data identification and zero-packet-loss operation without manual configuration, achieving seamless compatibility with mainstream Cisco network hardware.
Supported Cisco Hardware Models:
- Cisco Catalyst 3650 Series Switches
- Cisco Catalyst 3850 Series Switches
- Cisco Catalyst 9200/9300 Series Switches
- Cisco ISR 4000/4300/4400 Enterprise Routers
- Cisco ASR 1000 Series Aggregation Routers
- Cisco Nexus 7000/9000 Data Center Core Switches
- Cisco OTN/ONS DWDM Service Platforms
2.Multi-Brand Cross Compatibility
This MSA-standard SFP+ 10G DWDM Transceiver supports cross-vendor deployment. Open-source brand switches & routers achieve plug-and-play operation directly; locked-brand hardware supports customized EEPROM re-flashing to bypass vendor authentication limits for hybrid DWDM network integration.
3.Value-Added Services
-
Custom EEPROM programming for multi-platform compatibility
-
Pre-bulk sample testing for project validation
-
Private label customization and deployment guides
-
Strict batch quality control
-
EEPROM configuration for legacy network environments
-
Free EEPROM recoding plus 24/7 technical support
Primary Application Scenarios
This 1536.61nm C51-channel 10G DWDM SFP 80KM Transceiver is specialized for long-span multi-wavelength DWDM transmission, widely deployed in carrier and enterprise Cisco network infrastructure:
1. Cross-city Metro DWDM Backbone Trunks: Realize high-efficiency multi-wavelength multiplexing with this Transceiver to save fiber resources and stabilize long-distance trunk transmission.
2. Data Center Cross-region Interconnection: This Transceiver supports 80km low-latency private line transmission for data synchronization and cross-base disaster recovery backup.
3. Enterprise Cross-park Long-distance Uplinks: Deploy high-stability Transceiver to solve long-span transmission bottlenecks for multi-branch enterprise core networks.
4. Remote Broadband Backhaul Networks: Utilize DWDM wavelength division technology of the 10G DWDM SFP+ Transceiver to expand long-distance broadband coverage with limited fiber resources.
5. Carrier OTN & Smart City Aggregation Links: This carrier-grade 10G DWDM SFP 80KM Transceiver provides reliable high-speed 10G transmission for OTN equipment and remote monitoring aggregation nodes.
Connectivity Solutions(Applications)
1.80km Long-haul 10G DWDM Transmission for OTN Platform
2. 100GHz Grid Multi-channel DWDM Mux Demux Networking

Features
1. High Capacity Long-haul DWDM Transmission
This high-quality 10G DWDM SFP 80KM Transceiver is precisely tuned for the 1536.61nm C51 channel, supporting stable multi-wavelength DWDM multiplexing up to 80km. With excellent chromatic dispersion tolerance and low signal distortion, the 10G DWDM SFP 80KM Transceiver minimizes bit error rates on long single-mode fiber spans, maximizing existing fiber utilization for cross-city metro backbone and carrier OTN transmission networks.

2.Stable 10G Connectivity for Data Center
Equipped with upgraded high-gain APD receiver chips, this bulk deployable long-haul 10G DWDM SFP 80KM Transceiver delivers superior weak signal capture capability compared with ordinary PIN modules. It effectively identifies severely attenuated optical signals after 80km transmission, eliminating link flapping and intermittent disconnections. This feature ensures stable 10G service continuity for long-span, high-loss fiber networking environments inside large-scale data center clusters.
3. Powered by MACOM Core Architecture
At the heart of our 10G SFP+ DWDM transceiver lies the industry-leading MACOM chipset. This premium internal architecture delivers exceptional signal integrity and high-speed data processing capabilities. By integrating MACOM’s advanced silicon technology, the module ensures ultra-low jitter, optimal power efficiency, and rock-solid performance even in high-density, continuous-load network environments.

4. Full Cisco Zero-alarm InteroperabilityFactory pre-flashed with authentic Cisco native firmware, the C51 channel 10G DWDM SFP 80KM transceiver maintains zero alarms and error-free transmission when deployed on all mainstream Cisco switching and routing platforms. Complimentary bespoke dual-vendor EEPROM coding services are included for bulk purchases, delivering adaptive device recognition compatibility with a full spectrum of popular open-standard and vendor-locked network hardware.Specific Compatibility Video available upon request.

5.Strict Quality Screening with Complete Test Records
All third-party compatible 10G DWDM SFP 80KM Transceivers undergo multi-stage rigorous reliability testing, including high-precision wavelength calibration, professional photoelectric performance inspection, and high-low temperature cycle aging and real-machine compatibility verification. Each finished 10G DWDM transciver module comes with complete standardized qualified test records. For bulk order customers, we can provide detailed official product shipment quality reports to support project filing, quality inspection and engineering acceptance.
Curious how? Tour the Test Center.

FAQ
Q1: How does HYTOPTODEVICE 10G DWDM SFP 80km Transceiver tackle chromatic dispersion (CD) distortion over the full 80km single-mode fiber span?
A1: Our HYTOPTODEVICE 1536.61nm C51 10G DWDM SFP 80km Transceiver adopts industrial EML laser with ultra-narrow spectral width as the core light source. Combined with high-precision factory wavelength locking calibration, the internal optical design effectively offsets chromatic dispersion distortion generated during long-distance signal transmission. It delivers stable error-free 80km data transmission without extra external dispersion compensation modules, perfectly fitting metro long-haul DWDM backbone construction demands.
Q2: Is the receiving end of this C51 10G DWDM SFP 80km Transceiver sensitive enough to capture severely attenuated weak optical signals?
A2: This transceiver is equipped with high-gain APD receiver chips calibrated to high telecom-grade sensitivity standards. Even after long-distance fiber loss greatly weakens light signals, the receiver can accurately identify low-power optical input without frame loss or sudden BER surges. It maintains stable signal reception on aging, high-loss field fiber with numerous splicing points and LC connector insertion loss.
Q3: Can the built-in TEC thermoelectric cooler respond instantly once abrupt temperature spikes occur inside the transceiver?
A3: The integrated TEC cooling unit of the 1536.61nm C51 10G DWDM SFP 80km Transceiver adopts real-time fast-response temperature sensing logic. Once internal temperature rises sharply, the TEC immediately adjusts cooling power to stabilize laser operating temperature. It restrains wavelength drift and power fluctuation caused by sudden thermal changes, locking consistent optical output under volatile rack temperature environments.
Q4: Does this 10G DWDM SFP 80km Transceiver support DWDM systems adopting 50GHz channel grid spacing?
A4: The 1536.61nm C51 transceiver strictly complies with ITU-T standard 100GHz wavelength grid specifications, the mainstream standard for traditional DWDM rack equipment. It cannot achieve stable matching with 50GHz ultra-dense grid Mux/Demux hardware; mismatched channel spacing will trigger severe wavelength crosstalk and signal interference, so it only adapts to standard 100GHz grid multiplexing network architectures.
Q5: Does HYTOPTODEVICE 10G DWDM SFP 80km Transceiver support customizable dual-vendor EEPROM coding?
A5: All 1536.61nm C51 10G DWDM SFP 80km Transceiver units support full dual-brand firmware customization. Our technical team can pre-flash dual-vendor identification data before shipment, enabling the optic to be normally recognized on two different mainstream brand switch platforms simultaneously without tedious on-site CLI configuration adjustments.
Q6: Will DDMI digital diagnostic functions generate false alarm notifications on your network management system?
A6: The DDMI monitoring chip on this C51 transceiver undergoes full-range factory calibration for all optical power, temperature and laser bias current indicators. Alarm threshold parameters are set strictly per telecom industry standards to filter transient data fluctuations. False alarms induced by instantaneous signal jitter are largely eliminated, providing reliable real-time monitoring without redundant network alert noise.
Q7: Does this 10G DWDM SFP 80km Transceiver integrate native intelligent over-temperature protection circuits?
A7: The 1536.61nm C51 transceiver combines TEC active heat dissipation with dedicated over-temperature protection circuitry. Once internal working temperature exceeds the preset safety threshold, the transceiver automatically reduces laser operating power to cut heat output. This built-in safeguard prevents burnout of internal optical chips and circuit boards during continuous high-temperature rack operation.
Q8: Will prolonged high-temperature running inside switch racks shorten the total service lifespan of this long-reach optical transceiver?
A8: Our 1536.61nm C51 10G DWDM SFP 80km Transceiver adopts upgraded heat-conductive housing and wide-temperature resistant electronic components. The intelligent thermal protection mechanism suppresses long-term thermal aging of laser chips and PCB boards. Even under nonstop operation in high-temperature cabinet environments, it retains complete transmission performance and avoids premature service failure.

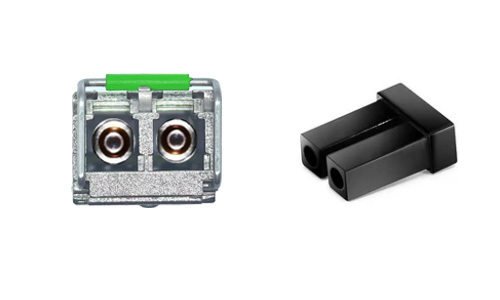

Q9: Are the LC optical end faces of this transceiver fully shielded from dust, oil stains and scratches during delivery and field handling?
A9: Every HYTOPTODEVICE 1536.61nm C51 transceiver is fitted with custom tight-fitting LC dust caps right after assembly. Paired with fully sealed anti-static shockproof individual packaging, the optical ports are fully isolated from floating dust, fingerprint grease and surface abrasion during transportation, warehouse storage and on-site installation, preserving original factory optical transmission performance.
Q10: Does this 10G DWDM SFP 80km Transceiver fully comply with universal SFP+ MSA dimensional and mechanical specification benchmarks?
A10: This 1536.61nm C51 transceiver is manufactured and 100% validated in accordance with global unified SFP+ MSA SFF-8431/SFF-8472 standards. Its overall outline, pin layout, port position and locking buckle structure all match universal SFP+ dimension benchmarks, enabling smooth hot-swap insertion without jamming or loose seating on all MSA-compliant switches and routers.
Packaging & Custom OEM Solutions
-
ESD Protection & Fast Shipping: Every module is sealed in an ESD-safe bag and ready for same-day dispatch from stock.
-
Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
- Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
- 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
- ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
- Ample stock, fast global DHL/FedEx shipping in 3–5 working days
- Free pre-sales engineering support for custom EEPROM & private label firmware
- Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order
“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia
Quality Certification & Compliance
At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.
We adhere to rigorous standards for our SFP modules and network solutions:
-
ISO 9001: Certified quality management and production consistency.
-
CE & FCC: Fully compliant for seamless Global Market Access.
-
RoHS: Committed to environmental responsibility and hazardous material control.
-
Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.
