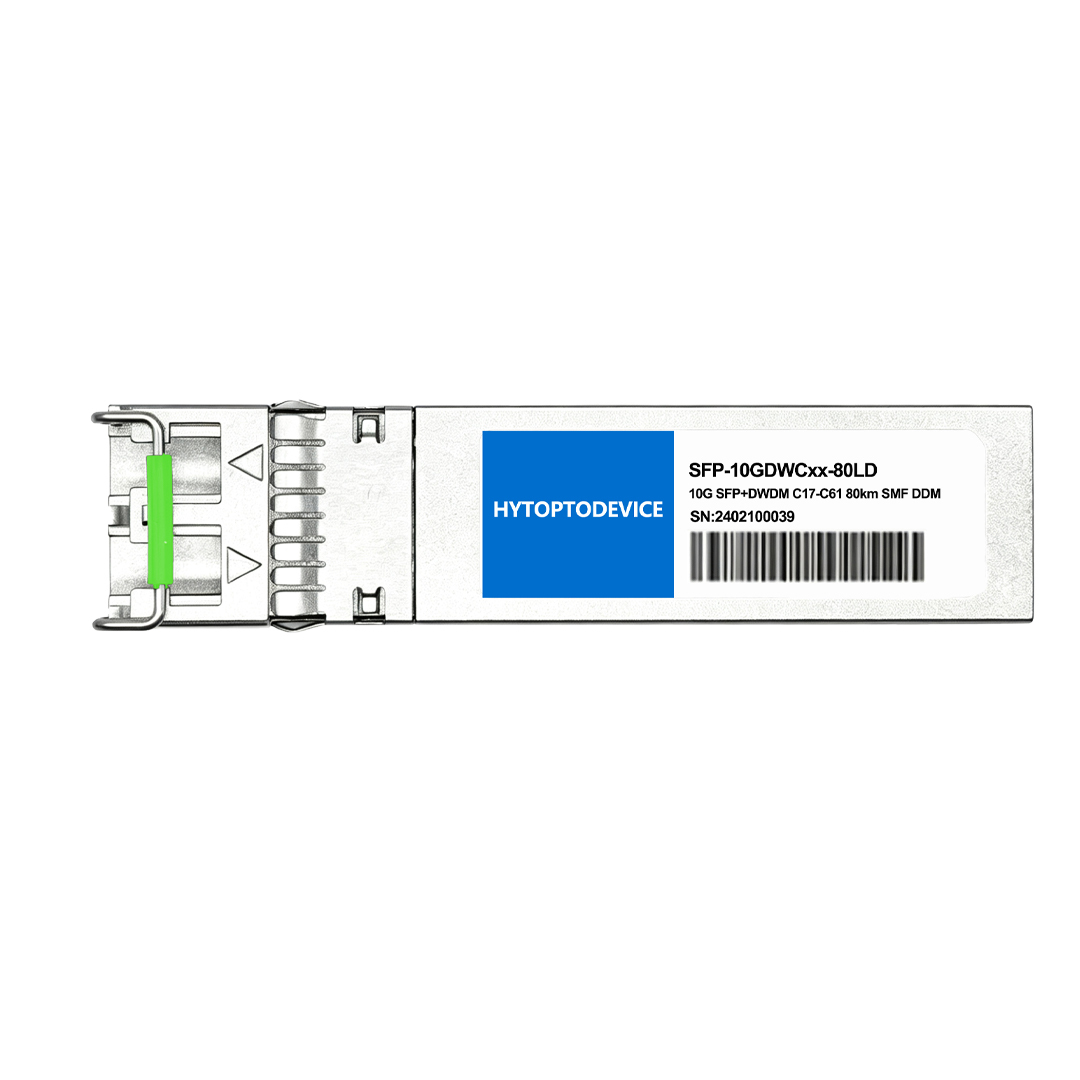

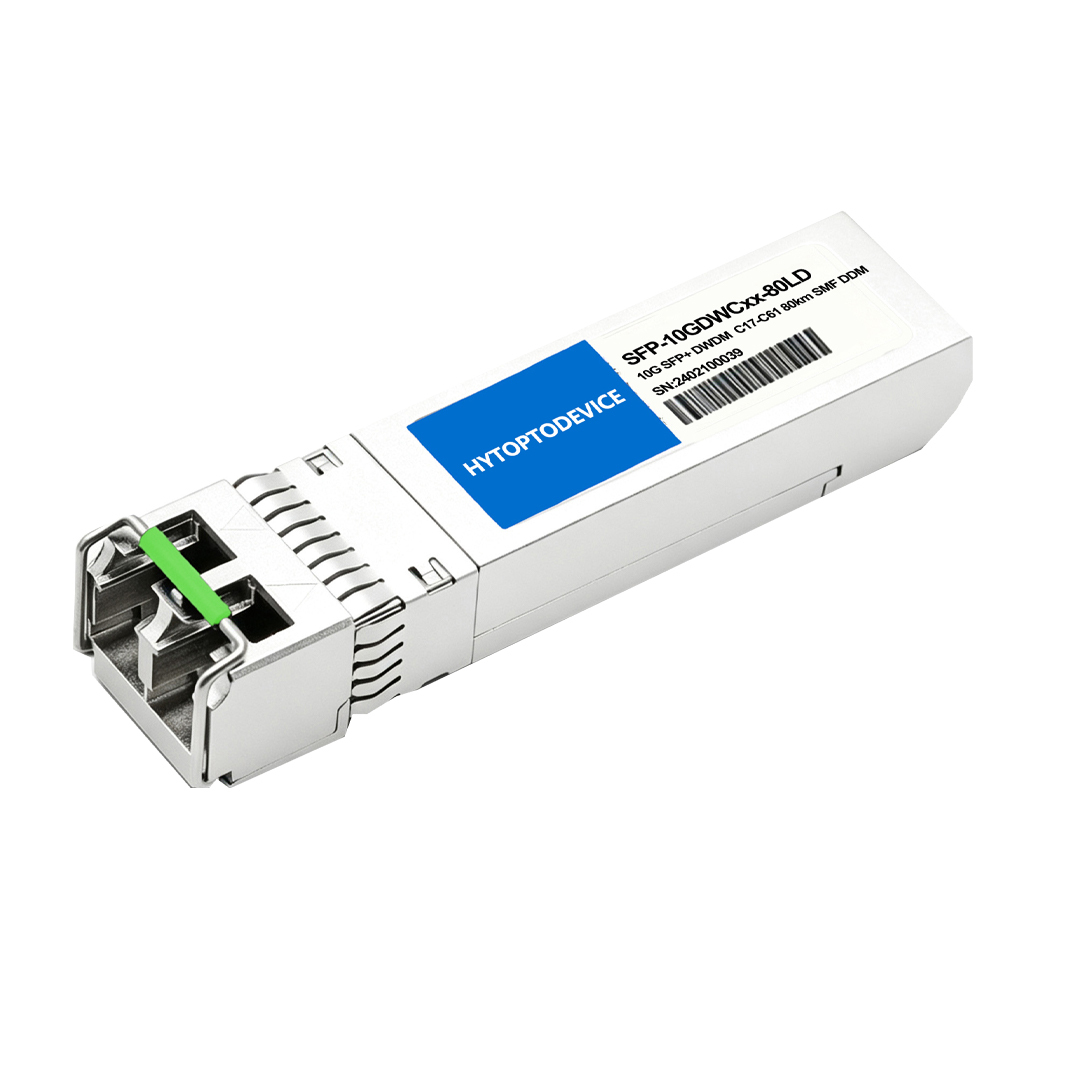

Cisco DWDM-SFP10G-29.55 Compatible 10G DWDM SFP 80km Module | 1529.55 nm C60 100GHz, Single Mode, APD Receiver, DOM MonitoringProduct Overview
HYTOPTODEVICE Cisco DWDM-SFP10G-29.55 Compatible 10G DWDM SFP 80km Module is a carrier-grade, long-reach optical transceiver engineered for Cisco metro backbones, OTN transport, and enterprise long-span networks. Compliant with SFP+ MSA and ITU-T G.694.1 standards, this module operates on the 1529.55nm wavelength (C-Band, CH60) with 100GHz channel spacing, delivering stable 10.3125Gbps full-duplex data transmission up to 80km over SMF (G.652/G.655).
Pre-flashed with dedicated Cisco adaptive EEPROM firmware, it guarantees seamless, zero-alarm plug-and-play interoperability across all Cisco IOS and IOS-XE platforms. Featuring an industrial-grade EML laser, fast-response TEC cooling, and a high-gain APD receiver, the transceiver ensures precise wavelength locking, exceptional weak-signal sensitivity, and robust anti-interference performance. Each unit undergoes 100% wavelength calibration, thermal aging, and real-switch testing to provide a cost-effective, highly reliable solution for large-scale, high-density DWDM multiplexing projects.
Key Technical Specifications
| Cisco Compatible |
DWDM-SFP10G-29.55 |
Vendor Name |
HYTOPTODEVICE |
| Form Factor |
SFP+ |
Max Data Rate |
11.0957Gbps |
| Wavelength |
1529.55 nm |
Max Distance |
80km |
| Connector |
Simplex LC |
Transmitter Type |
DWDM EML |
| Cable Type |
SMF |
Receiver Type |
APD |
| TX Power |
0~+4.0dBm |
Receiver Sensitivity |
< -23dBm |
| Max. Power Consumption |
≤1.7W |
Receiver Overload |
-7dBm |
| Protocols |
SFP+ MSA, SFF-8472, IEEE 802.3ae, RoHS Compliant |
Operation Temperature |
0 to 70°C (32 to 158°F) |
For detailed technical specifications, please refer to the Datasheet
Usage Guidelines & Laser Safety
Operators must wear ESD anti-static wrist straps when installing this Cisco-compatible SFP+ 10G DWDM Transceiver. Never stare directly into powered LC optical ports, invisible 1550nm infrared laser can cause permanent retinal damage. For bench loopback testing with fiber spans under 10km, install 12–15dB fixed optical attenuators to prevent APD receiver saturation(ensuring the received power<-7dBm). Always clean fiber end-faces before mating connectors; tiny dust particles break DWDM channel power balance and induce long-term laser degradation. Reserve sufficient cabinet airflow around densely populated SFP+ 10G DWDM Transceiver slots to eliminate wavelength drift from thermal buildup. Regularly export basic DOM monitoring data via Cisco CLI to track laser bias current and link attenuation trends for proactive network maintenance.
For detailed operation instructions, please refer to the User Guide.
Full Compatibility List & Supported Network Hardware
1.Native Cisco Platform Compatibility
HYTOPTODEVICE Cisco DWDM-SFP10G-29.55 compatible 10G DWDM SFP 80km module features pre-flashed official Cisco adaptive firmware, completely eliminating gbic-invalid and unsupported transceiver alarms. It supports full DOM data identification and zero-packet-loss operation without manual configuration, achieving seamless compatibility with mainstream Cisco network hardware.
Supported Cisco Hardware Models:
- Cisco Catalyst 3650 Series Switches
- Cisco Catalyst 3850 Series Switches
- Cisco Catalyst 9200/9300 Series Switches
- Cisco ISR 4000/4300/4400 Enterprise Routers
- Cisco ASR 1000 Series Aggregation Routers
- Cisco Nexus 7000/9000 Data Center Core Switches
- Cisco OTN/ONS DWDM Service Platforms
2.Multi-Brand Cross Compatibility
This MSA-standard SFP+ 10G DWDM Transceiver supports cross-vendor deployment. Open-source brand switches & routers achieve plug-and-play operation directly; locked-brand hardware supports customized EEPROM re-flashing to bypass vendor authentication limits for hybrid DWDM network integration.
3.Value-Added Services
-
Custom EEPROM programming for multi-platform compatibility
-
Pre-bulk sample testing for project validation
-
Private label customization and deployment guides
-
Strict batch quality control
-
EEPROM configuration for legacy network environments
-
Free EEPROM recoding plus 24/7 technical support
Primary Application Scenarios
This 1529.55nm C60-channel 10G DWDM SFP 80km Module is specialized for long-span multi-wavelength DWDM transmission, widely deployed in carrier and enterprise Cisco network infrastructure:
1. Cross-city Metro DWDM Backbone Trunks: Realize high-efficiency multi-wavelength multiplexing with this module to save fiber resources and stabilize long-distance trunk transmission.
2. Data Center Cross-region Interconnection: This module supports 80km low-latency private line transmission for data synchronization and cross-base disaster recovery backup.
3. Enterprise Cross-park Long-distance Uplinks: Deploy high-stability module to solve long-span transmission bottlenecks for multi-branch enterprise core networks.
4. Remote Broadband Backhaul Networks: Utilize DWDM wavelength division technology of the Module to expand long-distance broadband coverage with limited fiber resources.
5. Carrier OTN & Smart City Aggregation Links: This carrier-grade 10G DWDM SFP 80km Module provides reliable high-speed 10G transmission for OTN equipment and remote monitoring aggregation nodes.
Connectivity Solutions(Applications)
1.80km Long-haul 10G DWDM Transmission for OTN Platform
2. 100GHz Grid Multi-channel DWDM Mux Demux Networking

Features
1. High Capacity Long-haul DWDM Transmission
This high-quality 10G DWDM SFP 80km Module is precisely tuned for the 1529.55 nm C60 channel, supporting stable multi-wavelength DWDM multiplexing up to 80km. With excellent chromatic dispersion tolerance and low signal distortion, the 10G DWDM SFP 80km module minimizes bit error rates on long single-mode fiber spans, maximizing existing fiber utilization for cross-city metro backbone and carrier OTN transmission networks.

2.Stable 10G Connectivity for Data Center
Equipped with upgraded high-gain APD receiver chips, this bulk deployable long-haul 10G DWDM SFP 80km module delivers superior weak signal capture capability compared with ordinary PIN modules. It effectively identifies severely attenuated optical signals after 80km transmission, eliminating link flapping and intermittent disconnections. This feature ensures stable 10G service continuity for long-span, high-loss fiber networking environments inside large-scale data center clusters.

3. Premium Module Built with Famous MACOM Mainstream Chips
This low power 10G DWDM SFP 80km Module adopts mainstream mature MACOM brand core chips as the core optical and electrical processing unit. Matched with optimized circuit layout and independent TEC heat dissipation structure, the chip set delivers stable high-speed signal output, strong anti-electromagnetic interference and excellent temperature adaptability, maintaining precise wavelength locking under complex variable-temperature long-distance DWDM transmission conditions.

4. Full Cisco Zero-alarm Interoperability
Pre-flashed with professional Cisco native firmware, this C60 channel 10G DWDM SFP 80km module achieves zero-alarm, zero-error operation on all mainstream Cisco switches and routers. We provide free custom EEPROM dual-vendor coding for bulk orders, supporting adaptive identification for massive mainstream open-brand and locked-brand network devices.
Specific Compatibility Video available upon request.

5.Strict Quality Screening with Complete Test Records
All third-party compatible 10G DWDM SFP 80km Modules undergo multi-stage rigorous reliability testing, including high-precision wavelength calibration, professional photoelectric performance inspection, and high-low temperature cycle aging and real-machine compatibility verification. Each finished 10G DWDM module comes with complete standardized qualified test records. For bulk order customers, we can provide detailed official product shipment quality reports to support project filing, quality inspection and engineering acceptance.
Curious how? Tour the Test Center.

FAQ
Q1: Can this single-channel DWDM module be deployed within a BIDI bi-directional transmission architecture?
A1: This 1529.55nm C60 DWDM SFP module is engineered for unidirectional single-wavelength transmission and cannot support standalone BIDI operation. BIDI systems require paired transceivers with internal wavelength multiplexing structures for separated transmit and receive wavelengths. If clients need bidirectional long-distance transmission solutions, we can supply matched dedicated BIDI optical transceiver models separately.
Q2: Is professional technical support available if fiber communication links fail to establish normal connectivity after module installation?
A2: We deliver full-lifecycle free technical support for all purchasers of our 1529.55nm C60 modules. Our professional engineering team offers remote troubleshooting guidance via email, video calls or online text to diagnose root causes of link failures, including compatibility conflicts, wiring errors and parameter mismatches. For complex on-site faults, we provide detailed fault analysis reports and targeted resolution plans at zero extra cost.
Q3: How consistent can the module’s central wavelength remain after years of uninterrupted 24/7 continuous operation?
A3: This C60 module integrates real-time TEC thermoelectric coolers paired with ultra-precise factory wavelength locking calibration before shipment. Intelligent thermal adjustment dynamically stabilizes laser operating temperature, drastically limiting central wavelength deviation caused by long-term heat accumulation and component aging. Long-term reliability tests confirm wavelength drift stays strictly within ITU-T standard limits to avoid cross-channel crosstalk risks in multi-channel DWDM rack systems.
Q4: Will mainstream switch operating systems pop up "Unsupported Transceiver" warning alerts when identifying this third-party 10G DWDM SFP module?
A4: All 1529.55nm C60 modules support free custom EEPROM firmware programming for mainstream switch brands including Cisco, Juniper, Fortinet and more. Our pre-flashed brand identification data enables seamless hardware recognition, completely eliminating unsupported transceiver error prompts on switch OS. No complicated manual CLI configuration adjustments are required after field installation.
Q5: How will the operating status of this 10G DWDM SFP 80km Module perform during switch firmware upgrade workflows?
A5: The 1529.55nm C60 module boasts reliable hot-swap compatibility and consistent hardware identification logic. While the switch executes firmware update tasks, the transceiver will temporarily pause data forwarding without unexpected crash or permanent hardware lockup. Once the upgrade process finishes, the switch will automatically re-detect the module and restore full 10G transmission bandwidth without manual reinsertion.
Q6: Are the LC optical ports of this module fully shielded from dust, fingerprint grease and surface abrasion during transit and on-site handling?
A6: Every HYTOPTODEVICE 1529.55nm C60 module is fitted with tight-fitting dedicated LC dust caps right after assembly. Matched with fully sealed anti-static shockproof individual packaging, the optical end faces are fully isolated from floating dust, oil stains and scratches during transportation, warehouse storage and field installation, retaining original factory optical transmission performance.
Q7: Is the module’s metal latching buckle robust enough to withstand frequent repeated plug-and-pull hot swap operations?
A7: The latching component of the 1529.55nm C60 module adopts reinforced high-toughness metal alloy with optimized structural design. Each unit undergoes thousands of cyclic insertion and extraction durability tests during factory inspection. The latch maintains firm locking force without loosening or fracture after long-term frequent hot swapping, preventing loose module seating inside switch slots.
Q8: Are there any hidden extra fees for specialized brand EEPROM coding or dedicated professional reprogramming equipment for this module?
A8: HYTOPTODEVICE provides 100% free custom brand EEPROM adaptation and firmware rewriting services for all bulk orders of the 1529.55nm C60 module. We never charge hidden service fees, equipment rental fees or calibration surcharges for compatibility programming work. Our in-house technical lab owns complete professional reprogramming tools, and all coding adjustment work is fully covered in the base product price.
Q9: What production lead time can bulk buyers expect for large-volume orders of this C60 DWDM module?
A9: HYTOPTODEVICE maintains stable sufficient raw material stock for the 1529.55nm C60 10G DWDM SFP 80km Module. Standard large batch orders without custom firmware coding requirements have a regular lead time of 7–10 working days. Orders needing dual-brand reprogramming or special customized packaging take roughly 12–15 working days, and priority production scheduling can be arranged for urgent project orders upon negotiation.
Q10: Do users need to deploy an external optical attenuator for short-distance fiber testing with this 80km long-reach DWDM module?
A10: The 1529.55nm C60 long-reach module delivers high transmit optical power designed for full 80km fiber spans. When testing on short fiber runs under 10km, excessive incoming light power may trigger receiver overload and sudden bit error spikes. We recommend matching a standard optical attenuator for short-distance lab testing to protect the internal APD receiver chip and ensure stable signal reception.
Packaging & Custom OEM Solutions
-
ESD Protection & Fast Shipping: Every module is sealed in an ESD-safe bag and ready for same-day dispatch from stock.
-
Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
- Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
- 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
- ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
- Ample stock, fast global DHL/FedEx shipping in 3–5 working days
- Free pre-sales engineering support for custom EEPROM & private label firmware
- Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order
“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia
Quality Certification & Compliance
At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.
We adhere to rigorous standards for our SFP modules and network solutions:
-
ISO 9001: Certified quality management and production consistency.
-
CE & FCC: Fully compliant for seamless Global Market Access.
-
RoHS: Committed to environmental responsibility and hazardous material control.
-
Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.
Certified Quality. Global Standards. Guaranteed Performance.

Rigorous Industrial Product Testing

100% 3rd Party Compatible

Partial Test Demonstration
