Brocade 100G-Q28-Q28-C-0201 Compatible 2m (7ft) 100G QSFP28 Passive DAC Cable | HYTOPTODEVICE

HYTOPTODEVICE factory supplier delivers reliable 100G QSFP28 passive dac cable, featuring low power consumption, high-speed direct-attach and compact cabling. Built with premium low-loss twinax copper, this 2m Brocade 100G-Q28-Q28-C-0201 compatible QSFP28 cable is pre-coded for Brocade Fabric OS. Bulk order this high-performance DAC for low-latency intra-rack leaf-spine networking, HPC, AI clusters and low-risk 400G data center expansion.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-100G-CU2M
2 Arista Networks  CAB-Q-Q-100G-2M
3 Juniper QFX-QSFP28-DAC-2M
4 Brocade 100G-Q28-Q28-C-0201
5 Dell  DAC-Q28-100G-2M
6 Huawei QSFP28-100G-CU2M
Description

Brocade 100G-Q28-Q28-C-0201 Compatible 2m (7ft) 100G QSFP28 Passive DAC Cable | 100GBASE-CR4 Copper Twinax Bulk Wholesale | HYTOPTODEVICE

Product Overview

HYTOPTODEVICE 2m 100G QSFP28 passive dac cable is a plug-and-play drop-in replacement for Brocade 100G-Q28-Q28-C-0201. Manufactured to SFF-8662 and IEEE 802.3bj MSA standards, it leverages premium low-loss twinax copper material to sustain stable 100GBASE-CR4 high-speed transmission between paired QSFP28 ports. This high-speed direct-attach cable stands out for low power consumption, high-speed direct-attach and compact cabling. Its passive design draws zero power, eliminates extra transceiver electronics, and the slim 30AWG twinax construction simplifies dense rack routing. It supports hot swap and ultra-low latency, ideal for leaf-spine fabrics, AI compute, HPC and storage networking. We keep sufficient stock of this 100G QSFP28 passive dac cable for wholesalers, distributors and system integrators building Brocade Fabric OS-based data center fabrics. Every cable is pre-programmed with Brocade-matched EEPROM signatures to eliminate unsupported transceiver warning logs. Sample testing, bulk orders and OEM private label services are available for Brocade solution partners.

Key Technical Specifications

Brocade Compatible
 100G-Q28-Q28-C-0201
Vendor Name HYTOPTODEVICE
Connector QSFP28 to QSFP28 Max Data Rate 100Gbps
Cable Length 2m (7ft) Wire AWG AWG 30
Cable Type Passive Twinax Power Consumption ≤0.5W
Media Copper Operation Temperature 0~ 70 °C (32 to 158°F)
Jacket Material PVC(OFNR) Protocols QSFP28 MSA, SFF-8662, IEEE 802.3
Minimum Bend Radius 35mm Application 100 Gigabit Ethernet

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Mandatory Port Setting: Host QSFP28 port must enable 100GBASE-CR4 mode; link negotiation failure will happen if forced to optical mode.

  • Cabling Requirements: Do not exceed the minimum 35mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.

  • Port Installation Standard: Works only with standard QSFP28 100G ports; cannot be inserted into SFP+ or XFP slots. Disable the host’s third-party transceiver lock policy in advance if required.

  • Maintenance Specification: Hot‑swap supported, grip the pull tab instead of pulling the cable body during plug/unplug to prevent internal conductor damage.

  • Testing & Storage: Run sample validation on target hardware before large bulk deployment; store spare cables in dry, dust‑free and anti‑static packaging.
  • Operating Environment: This commercial-grade cable operates reliably within 0℃‑70℃; avoid installation beside high-heat power modules.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Brocade Hardware & Firmware

  • Brocade SLX series:SLX 9150, SLX 9250, SLX 9540, SLX 9640, SLX 9850
  • Brocade VDX series:VDX 6740, VDX 6760, VDX 8770 (100G line card supported)
  • Brocade ICX series:ICX 7850-32C, ICX 7850-48F, ICX 7850-48C
  • Brocade SAN Directors & Storage Switches:X6-4, X6-8, G720, G730, G748
  • Firmware:Brocade Fabric OS v8.2.x, v9.0.x, v9.1.x, v9.2.x

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this 100G QSFP28 passive direct attach copper cable can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios
  • Brocade leaf-spine 100G fabric intra-rack high-speed interconnection
  • Short-distance links between storage arrays and Brocade top-of-rack switches
  • Direct replacement for original Brocade 100G-Q28-Q28-C-0101 100G QSFP28 Passive direct attach copper cable
  • Hyper-converged infrastructure and distributed storage backend cabling
  • Low latency 100G links for virtualization clusters and AI compute racks
  • Stock replenishment purchase for IT distributors and Brocade data center solution partners
  • Upgrade and expand data center for 400G migration

Connectivity Solutions(Applications)

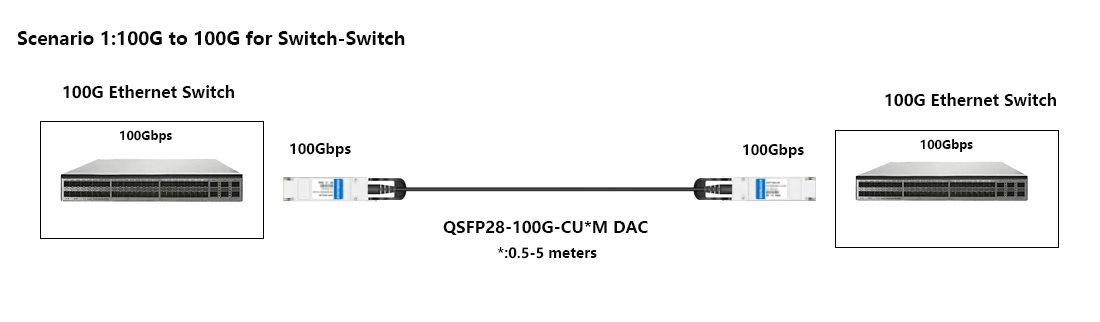

1. 100G to 100G Direct Link for Switch-Switch
HYTOPTODEVICE QSFP-100G-CU1M compatible  100G QSFP28 passive DAC copper twinax cable in stock for wholesale buyers

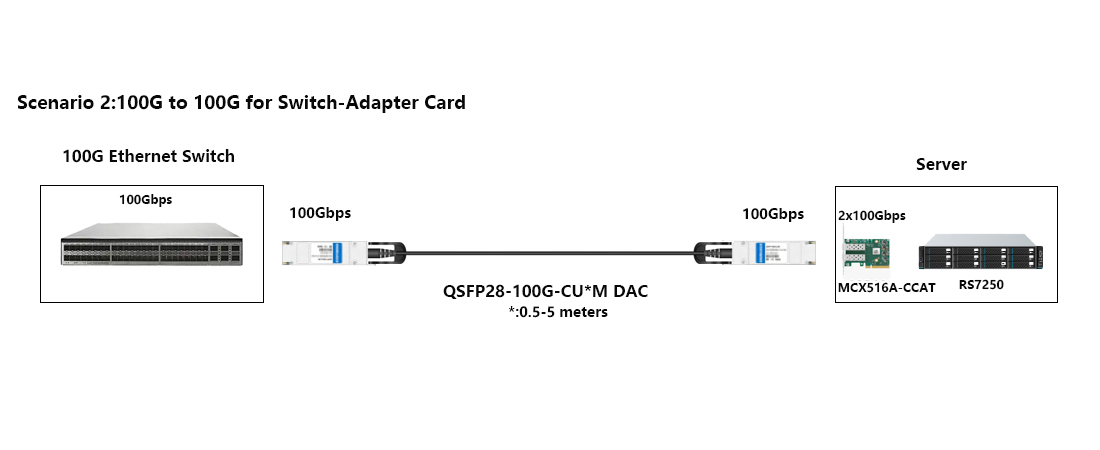

2. 100G to 100G Direct Link for Switch-NIC
 100G QSFP28 passive DAC copper twinax cable for data center integrators


3.
Upgrade Solution for 400G Data Center Network





The Core Feature

1. Cost-Effective Ultra-Short Connectivity

Using twinax copper, the 100G passive copper cable replaces a fiber pair and two optical transceivers, significantly cutting interconnect cost for short-reach links — plug-and-play, no modules required.

2. Ultra-Low Power, Maximum Energy Efficiency

The 100g qsfp28 passive copper twinax cable draws near-zero power, reducing heat and energy costs in dense racks, while delivering a cost-effective, low-latency 100G link for short-reach connections — within a rack or across adjacent racks.

QSFP+ form factor 40g qsfp+ dac cable with low power consumption

3.Host-Device Tested for Proven Interoperability

Every 100g passive copper twinax cable is rigorously tested for compatibility in the target switch environment, so you can deploy with confidence — no surprises, no downtime. Not sure it fits? Compatibility Video available upon request.

hytoptodevice wholesale 40G QSFP+ twinax cable for data center

4. 100% Individually Tested for Peak Performance

Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our Test Center.

HYTOPTODEVICE  QSFP+ to QSFP+ 40g qsfp+ dac cable for switches

FAQ

Q1: Why is low-loss twinax copper the preferred conductor material for 100G QSFP28 passive dac cable? A: Low-loss twinax copper controls high-frequency skin-effect and dielectric attenuation at 25G signaling rates, preserving a clear signal eye. Ordinary copper introduces heavy signal roll-off and unstable links at the same length. HYTOPTODEVICE 100G QSFP28 passive dac cable adopts premium twinax copper to maintain consistent signal quality for 100GBASE-CR4.

Q2: What is the maximum supported reach of a standard 100G QSFP28 passive dac cable under MSA 100GBASE-CR4 specification? A: MSA defines 5 meters as the reliable upper limit for passive copper 100G QSFP28 links. Beyond this distance, copper attenuation will drop signal margin below receiver thresholds. HYTOPTODEVICE high-speed direct-attach DAC covers all standard lengths up to 5m; longer connections require active retimer DAC or fiber AOC.

Q3: Can compact 100G QSFP28 passive dac cable be deployed to connect racks separated across different equipment aisles? A: Compact 100G QSFP28 passive dac cable is not suitable for cross-aisle inter-rack links. They only work for adjacent racks or top-of-rack (ToR) to end-of-row (EoR) switches within close proximity (under 5 meters). Longer inter-rack runs often exceed the 5m passive DAC limit and bring extra crosstalk and EMI risk. HYTOPTODEVICE recommends AOC or fiber transceivers for cross-room or long-distance inter-rack data center connections.

Q4: What core limitations make 100G QSFP28 passive dac cable less suitable than AOC for links longer than 5 meters? A: Copper twinax suffers frequency-dependent signal loss that cannot be eliminated passively, while AOC converts electrical signals to light to break copper distance limits. Optical paths also isolate traffic from electrical rack interference. HYTOPTODEVICE supplies both low-power 100G QSFP28 passive dac cable and matching AOC for mixed-distance fabric builds.

Q5: How do hot zone temperature changes inside AI racks impact the signal stability of 100G QSFP28 passive dac cable? A: Higher ambient temperature raises copper resistance and amplifies signal attenuation, shrinking the available link budget. HYTOPTODEVICE 100G QSFP28 passive dac cable passes full thermal cycle validation across 0°C to 70°C for steady operation inside hot HPC and AI racks.

Q6: What triggers unsupported transceiver warnings on Brocade Fabric OS when using aftermarket DAC cables? A: Brocade Fabric OS checks the vendor identifier stored inside cable EEPROM during port initialization. Unmatched EEPROM data triggers alert messages and may block link negotiation. Every HYTOPTODEVICE 100G QSFP28 passive dac cable is pre-flashed and validated for Brocade Fabric OS to eliminate compatibility warnings.

Q7: Can one single 100G QSFP28 passive dac cable carry two different vendor EEPROM codes on opposite ends? A: Our standard 100G QSFP28 passive dac cable does not support asymmetric dual-vendor EEPROM programming. Matching signatures on both connectors are required for stable port handshake. Contact HYTOPTODEVICE sales for custom EEPROM development for multi-vendor fabric designs.

Q8: What diagnostic data can Fabric OS operators read from a 100G QSFP28 passive dac cable? A: Only universal MSA DOM parameters are accessible; proprietary Brocade telemetry functions do not apply to passive copper assemblies with no optical chips. HYTOPTODEVICE preloads standard MSA DOM records so Brocade Fabric OS can read cable identity and basic diagnostic metrics.

Q9: What latency advantage can passive 100G QSFP28 dac cable deliver versus fiber cabling for short intra-rack connections? A: 100G QSFP28 passive dac cable delivers slightly lower latency than fiber links. Electrical signals travel faster in solid twinax copper than light inside glass fiber, with typical latency gap below 1ns. Low-latency HYTOPTODEVICE high-speed direct-attach DAC fits AI training and low-latency HPC clusters well.

Q10: How does the shielding structure of 100G QSFP28 passive dac cable perform beside high-current power cables? A: Full twinax shielding suppresses EMI pickup significantly, though copper is still more sensitive than fiber when routed alongside power cabling. HYTOPTODEVICE 100G QSFP28 passive dac cable uses complete shielded construction to satisfy global EMC and EMI compliance standards.

Q11: What early error symptoms indicate signal degradation on low-loss 100G QSFP28 passive dac cable? A: Gradual signal decay normally appears as steadily climbing CRC error counters before sudden link loss. A compressed signal eye window creates random bit flips logged as CRC faults. If these errors occur, confirm your HYTOPTODEVICE 100G QSFP28 passive dac cable follows rated length and bend specifications.

Q12: Why is strict bend control critical for preserving the performance of 100G QSFP28 passive dac cable? A: Bending below the 5× outer-diameter minimum bend radius permanently distorts differential twinax pairs, causing impedance discontinuity and persistent bit errors. Careful cable management protects your HYTOPTODEVICE compact cabling DAC from invisible mechanical damage.

Q13: What thermal risks arise from bundling multiple 100G QSFP28 passive dac cable in dense cable trays? A: Large copper cable bundles block front-to-back airflow and trap heat around switch ports, raising component operating temperatures. HYTOPTODEVICE uses slim 30AWG twinax for its 100G QSFP28 passive dac cable to reduce bundle volume and preserve rack airflow.

Q14: Where does heat originate when deploying low-power 100G QSFP28 passive dac cable on Brocade switches? A: The passive DAC assembly itself produces nearly no heat due to zero-power operation. Almost all thermal load comes from the host switch ASIC and QSFP28 port hardware, not the copper cable. HYTOPTODEVICE connector shells use thermally balanced plastic to support normal port cooling.

Q15: For dense Brocade storage and leaf-spine racks, what benefits make 100G QSFP28 passive dac cable preferable over AOC? A: It provides low power consumption, compact cabling and lower hardware cost for runs under 5 meters, with zero active components. HYTOPTODEVICE high-speed direct-attach DAC is a cost-effective selection for dense Brocade storage, leaf-spine and AI rack deployments.

Q16: How does power draw compare among passive twinax 100G QSFP28 dac cable, active retimer DAC and 100G optical transceiver pairs? A: 100G QSFP28 passive dac cable consumes 0W. Active retimer DAC draws roughly 1–2W per end, while a matched pair of optical transceivers normally consumes 3–6W total. Zero-power HYTOPTODEVICE 100G QSFP28 passive dac cable cuts rack power draw and reduces overall data center TCO.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
