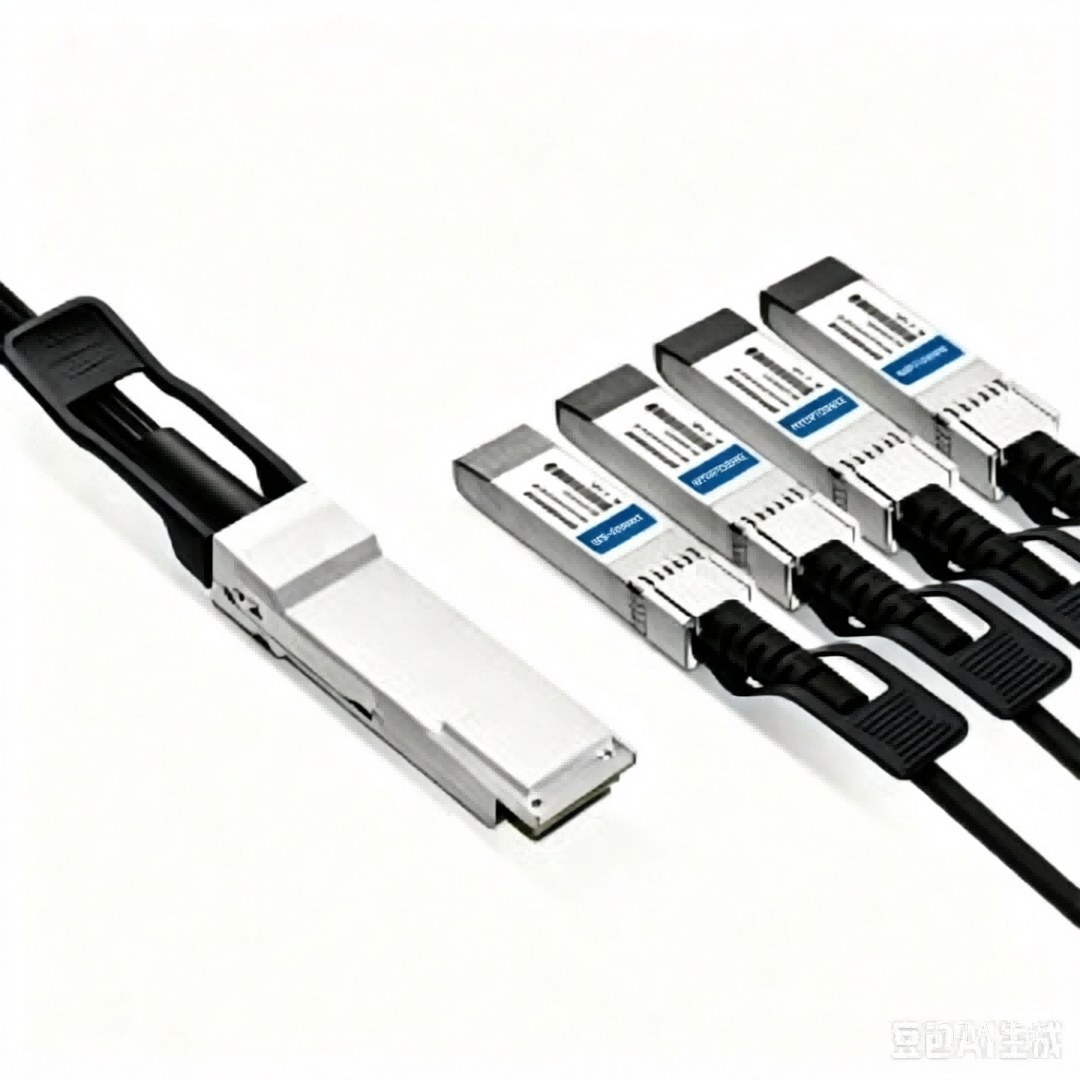

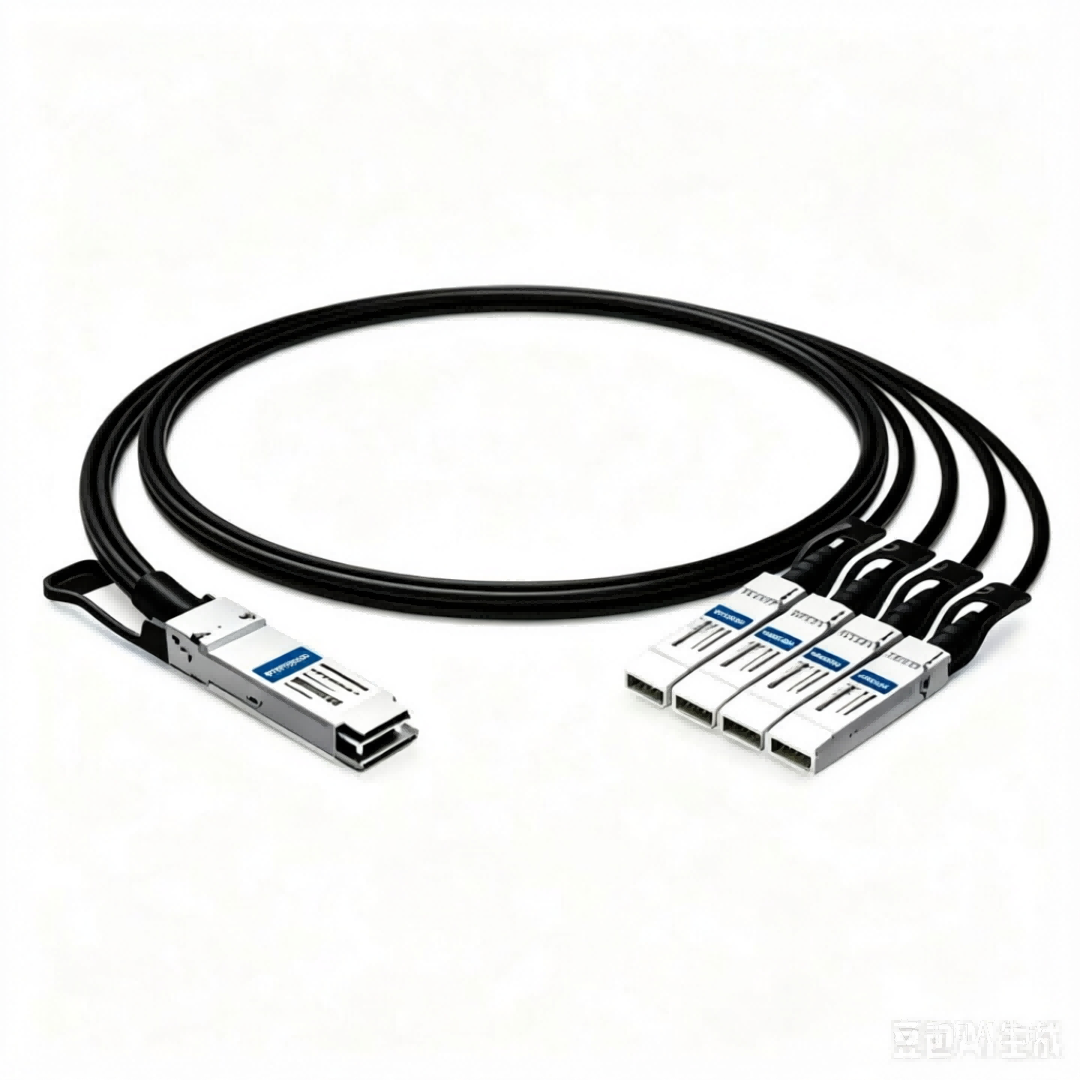

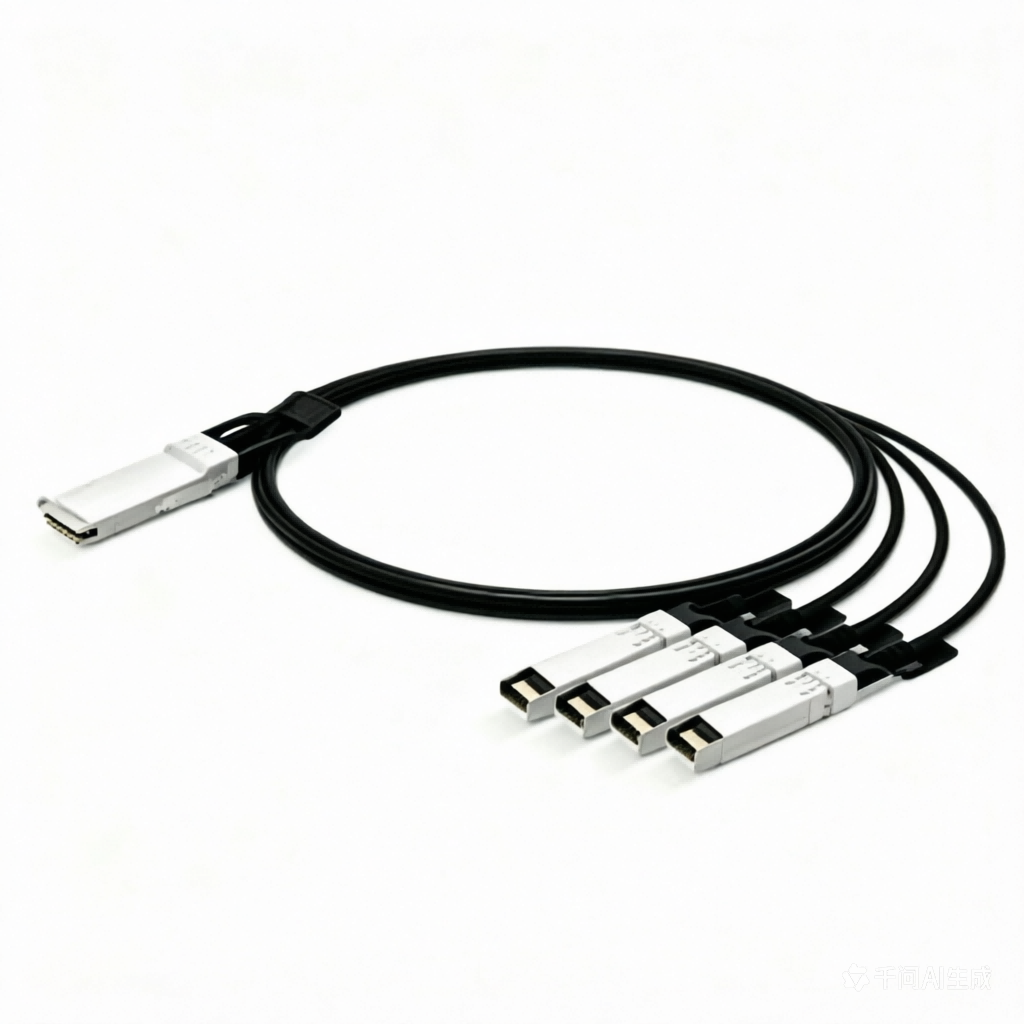

Arista CAB-Q28-S28-5M Compatible 5m (16ft) 100G QSFP28 to 4 x 25G SFP28 Passive Copper Twinax Breakout Cable | HYTOPTODEVICE

Buy HYTOPTODEVICE passive copper twinax breakout cable, 5m 100G QSFP28 to 4×25G SFP28 twinax, pre-coded EEPROM for Arista EOS. In stock for fast shipment, factory direct price, bulk purchase available for distributors, resellers and system integrators.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-4SFP25-CU5M
2 Arista Networks  CAB-Q28-S28-5M
3 Brocade 100G-Q28-S28-C-0501
4 Huawei QSFP-4SFP25G-CU5M
5 Juniper QFX-Q-S-DAC-5M
Description

Arista CAB-Q28-S28-5M Compatible 5m (16ft) 100G QSFP28 to 4 x  25G SFP28 Passive Copper Twinax Breakout Cable | HYTOPTODEVICE

Product Overview

HYTOPTODEVICE 5m 100G QSFP28 to 4x25G SFP28 passive copper twinax breakout cable is a direct replacement for Arista CAB-Q28-S28-5M. Built following SFF-8662 MSA standard, this passive copper twinax breakout cable adopts 26AWG low-loss twinax copper, splitting one 100G QSFP28 port into four independent 25G SFP28 channels at 0W power consumption, supporting 100GBASE-CR4 to 4×25GBASE-CR transmission. It is hot-swappable and pre-flashed with Arista validated EEPROM signature for stable recognition on Arista EOS 4.24.2F and newer firmware. This cable is widely deployed for Arista leaf-spine fabric port expansion, AI computing rack interconnection, HPC and storage cluster cabling, data center network upgrade. HYTOPTODEVICE supports spot purchase, bulk wholesale, OEM private labeling, custom EEPROM programming and custom length service for this passive copper twinax breakout cable.

Key Technical Specifications

Arista Compatible
CAB-Q28-S28-5M
Vendor Name HYTOPTODEVICE
Connector QSFP28+ to 4 x SFP28 Max Data Rate 100Gbps
Cable Length 5m (16ft) Wire AWG AWG 26
Cable Type Passive Twinax Power Consumption ≤0.25W
Media Copper Operation Temperature 0~ 70 °C (32 to 158°F)
Jacket Material PVC(OFNR) Protocols IEEE 802.3, QSFP28 MSA, SFF-8665
Minimum Bend Radius 60mm Application 100G to 2x 25G Ethernet, Data Centers

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Mandatory Port Breakout Configuration: Ensure the host QSFP28 port supports channelization. Enable breakout mode (4x25G) via the switch CLI before connecting the cable.

  • Cabling Requirements: Do not exceed the minimum 50mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.

  • Port Installation Standard: Do not mix this breakout DAC with straight QSFP28 to QSFP28 DAC configuration.

  • Hot‑swap rule:Never pull or tug directly on the individual breakout legs. Always use the integrated pull-tab or bale latch when inserting or removing connectors.

  • Testing & Storage: Run sample validation on target hardware before large bulk deployment; store spare cables in dry, dust‑free and anti‑static packaging.
  • Operating Environment: 0‑70℃, indoor cabinet deployment only.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Arista Hardware & Firmware

  • Arista 7050X3, 7060SX2, 7060CX, 7280R, 7300X3 leaf and spine switches
  • Arista 7500R, 7500R3 modular high-capacity chassis switches
  • Arista DCS-7050SX3, DCS-7280SR series data center switches
  • Servers with 25G SFP28 NICs for Arista fabric deployment
  • Firmware: Arista EOS 4.24.2F and newer

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this 100G QSFP28 to 4 x 25G SFP28 passive DAC breakout cable can interoperate with mainstream network brands including Arista, Intel, Juniper, Dell, NVIDIA Mellanox and IBM, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios

• Long-reach intra-row 100G uplink breakout to 4×25G server NIC connections
• Leaf-spine fabric port expansion for  data center networks
• AI server rack interconnection requiring 5-meter copper cabling
• HPC and storage cluster medium-distance twinax cabling
• Data center hardware upgrade and network migration
• Stock supply for distributors, system builders and value-added resellers


Connectivity Solutions(Applications)

1. 100G to 4x25G Breakout Link for Switch-Switch
HYTOPTODEVICE 100G QSFP28 to 4x25G SFP28 breakout DAC cable FOR SWITCH TO SWITCH


2. 100G to 4x25G Breakout Link for Switch-NIC
HYTOPTODEVICE 100G breakout twinax cable for data center


The Core Feature


1.
Near-Zero Power, Full-Speed 100G

This 100G QSFP28 passive DAC breakout cable sips no extra energy, cutting heat and cost in crowded racks while keeping low-latency 100G for in-rack or adjacent-rack runs.

hytoptodevice 100G QSFP28 to 4 x 25G SFP28 passive dac breakout cable for data center

2.Host-Device Tested for Proven Interoperability

Every unit is link-up tested on real target switch models; ports come online on first install across major vendor gear, no field tuning or replacement loops. Not sure it fits? Compatibility Video available upon request.

hytoptodevice wholesale 100G QSFP28+ to 4 sfp28 breakout twinax cable for data center

3. 100% Individually Tested for Peak Performance

Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our Test Center.

HYTOPTODEVICE  100g QSFP28 to 4 x sfp28 passive breaktout  dac cable for switches

FAQ

Q1: Can I purchase this Arista compatible breakout twinax cable for mixed-vendor data center fabrics? A1: Yes, it works with breakout-enabled multi-brand switches. HYTOPTODEVICE custom programs the EEPROM on this passive copper twinax breakout cable to clear transceiver warnings when you buy for multi-vendor deployments.

Q2: Will this QSFP28 breakout twinax cable fit legacy QSFP+ ports on older Arista hardware? A2: No, this passive copper twinax breakout cable is designed exclusively for QSFP28 interfaces. QSFP+ electrical characteristics and pin layout differ and cannot sustain reliable 25G breakout links.

Q3: If I buy this 100G breakout cable, can I connect its pigtails to 10G server NICs? A3: No, each breakout tail locks at native 25Gbps. This passive copper twinax breakout cable requires 25G SFP28 ports and lacks speed downshift capability for 10G adapters.

Q4: Do I need special coded breakout twinax cables for Arista EOS transceiver validation? A4: Yes, Arista EOS checks transceiver EEPROM by default. HYTOPTODEVICE preloads matching Arista signatures on this passive copper twinax breakout cable you purchase to avoid unsupported transceiver alerts.

Q5: When I place an order, can I use different 25G SFP28 NIC brands on the four breakout legs? A5: Yes, mixed-brand NICs are allowed as long as they comply with MSA 25GBASE-CR standards. HYTOPTODEVICE runs cross-hardware compatibility tests so buyers get consistent stable performance.

Q6: What fixed line rate will each SFP28 breakout port deliver after installation? A6: Each breakout channel runs at steady 25Gbps. This passive copper twinax breakout cable evenly splits the 100G total bandwidth across four independent 25G lanes.

Q7: What is the maximum stable distance for passive 25G twinax breakout cables I can buy? A7: The reliable transmission limit for passive 25G twinax breakout design is 5 meters. HYTOPTODEVICE stocks this passive copper twinax breakout cable in 0.5m,1m,3m and 5m standard lengths for your selection.

Q8: What latency can I expect when buying this 5m breakout twinax for Arista HPC and AI clusters? A8: Copper twinax latency averages roughly 0.6 ns per meter. This passive copper twinax breakout cable has no signal-boosting chips, making it ideal for low-latency computing workloads.

Q9: What wire gauge (AWG) is used in this cable, and does it affect flexibility? A9: Common gauges range from 26AWG to 30AWG. Thinner gauges such as 30AWG deliver better flexibility for dense cable management, while 26AWG supports runs up to 3 meters, and 24AWG is required for stable 5-meter passive links. HYTOPTODEVICE supplies the correct AWG for every passive copper twinax breakout cable length you order.

Q10: Does this 25GBASE-CR passive breakout twinax support auto speed negotiation? A10: No, passive 25GBASE-CR twinax does not support auto-negotiation. You have to manually lock both sides to fixed 25G speed after you receive and deploy this HYTOPTODEVICE breakout cable.

Q11: What routing limits should buyers follow when running this 5m twinax cable inside dense Arista racks? A11: It has moderate routing flexibility, yet sharp tight bends are not permitted. Maintain the 55mm minimum bend radius to protect internal twinax conductors of this passive copper twinax breakout cable.

Q12: Are the four SFP28 pigtails clearly marked so my cabling team can identify lanes easily? A12: Yes, each SFP28 pigtail carries permanent laser lane marking. HYTOPTODEVICE marks every tail of this passive copper twinax breakout cable to simplify your cabling audit and fault troubleshooting.

Q13: Can this 5m Arista breakout twinax cable connect hardware across two separate server racks? A13: Yes, it supports inter-rack connections within its full 5-meter span. This passive copper twinax breakout cable fits adjacent rack links instead of long-distance cross-building cabling.

Q14: Can bulk buyers request custom jacket colors for this Arista breakout twinax cable? A14: Black jacket is our standard stock version. HYTOPTODEVICE accepts custom color requests when you place bulk orders of this passive copper twinax breakout cable to match your site’s color coding rules.

Q15: Can I order non-standard custom lengths if standard sizes do not fit my rack layout? A15: Custom non-standard lengths are available for bulk purchase. Contact the HYTOPTODEVICE sales team for quotation and lead time when you buy custom-length passive copper twinax breakout cable.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
