Arista CAB-Q28-S28-1M Compatible 1m (3ft) 100G QSFP28 to Four 25G SFP28 DAC Breakout Cable | HYTOPTODEVICE

HYTOPTODEVICE factory supplier provides 100G QSFP28 to 4x25G SFP28 passive breakout DAC cable, 1m twinax, pre-programmed EEPROM for Arista EOS. Zero-power breakout cable, bulk wholesale for distributors and system integrators.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-4SFP25-CU1M
2 Arista Networks  CAB-Q28-S28-1M
3 Brocade 100G-Q28-S28-C-0101
4 Huawei QSFP-4SFP25G-CU1M
5 Juniper QFX-Q-S-DAC-1M
6 Dell DAC-Q28-4SFP28-25G-1M
Description

Arista CAB-Q28-S28-1M Compatible 1m (3ft) 100G QSFP28 to Four 25G SFP28 DAC Breakout Cable | HYTOPTODEVICE

Product Overview

HYTOPTODEVICE 1m 100G QSFP28 to 4x25G SFP28 passive breakout DAC cable is plug-and-play replacement for Arista CAB-Q28-S28-1M. Built to SFF-8662 MSA standards, It adopts passive twinax copper design to deliver stable links, mapping one 100G QSFP28 port into four independent 25G SFP28 interfaces with no extra power supply required. Hot-swap supported and pre-flashed with Arista matching EEPROM for EOS breakout recognition. Ideal for leaf-spine port splitting, GPU server breakout and rack density upgrade. We provide bulk wholesale, OEM private labeling and batch signal integrity testing.

Key Technical Specifications

Arista Compatible
CAB-Q28-S28-1M
Vendor Name HYTOPTODEVICE
Connector QSFP28+ to 4 x SFP28 Max Data Rate 100Gbps
Cable Length 1m (3ft) Wire AWG AWG 30
Cable Type Passive Twinax Power Consumption ≤0.25W
Media Copper Operation Temperature 0~ 70 °C (32 to 158°F)
Jacket Material PVC(OFNR) Protocols IEEE 802.3, QSFP28 MSA, SFF-8665
Minimum Bend Radius 25mm Application 100G to 2x 25G Ethernet, Data Centers

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Mandatory Port Breakout Configuration: Ensure the host QSFP28 port supports channelization. Enable breakout mode (4x25G) via the switch CLI before connecting the cable.

  • Cabling Requirements: Do not exceed the minimum 25mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.

  • Port Installation Standard: Do not mix this breakout DAC with straight QSFP28 to QSFP28 DAC configuration.

  • Hot‑swap rule:Never pull or tug directly on the individual breakout legs. Always use the integrated pull-tab or bale latch when inserting or removing connectors.

  • Testing & Storage: Run sample validation on target hardware before large bulk deployment; store spare cables in dry, dust‑free and anti‑static packaging.
  • Operating Environment: 0‑70℃, indoor cabinet deployment only.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Arista Hardware & Firmware

  • Arista 7060CX series:7060CX-32S, 7060CX2-32S
  • Arista 7280SR series:7280SR3-48YC8, 7280SR2-48C6
  • Arista 7500R fabric series:7500R-48YC8
  • Arista DCS-7050CX3-32S
  • Firmware:EOS 4.27, 4.28, 4.29, 4.30

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this 100G QSFP28 to 4 x 25G SFP28 passive breakout DAC cable can interoperate with mainstream network brands including Arista, Intel, Juniper, Dell, NVIDIA Mellanox and IBM, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios

• 100G port breakout to four 25G server uplinks
• Leaf-spine fabric port density expansion
• AI GPU rack intra-rack interconnection
• HPC cluster high-speed short-range links
• Data center hardware upgrade and migration
• Distributor stock and system integration projects

Connectivity Solutions(Applications)

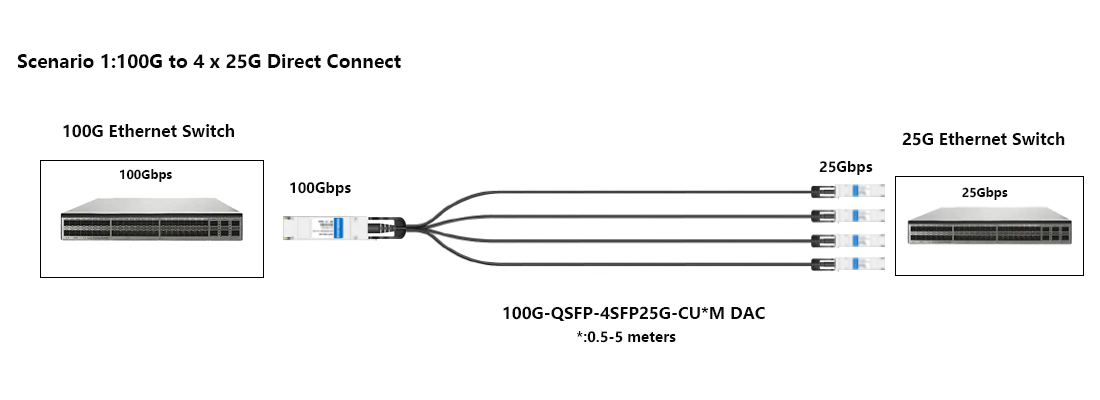

1. 100G to 4x25G Breakout Link for Switch-Switch
HYTOPTODEVICE 100G QSFP28 to 4x25G SFP28 breakout DAC cable FOR SWITCH TO SWITCH

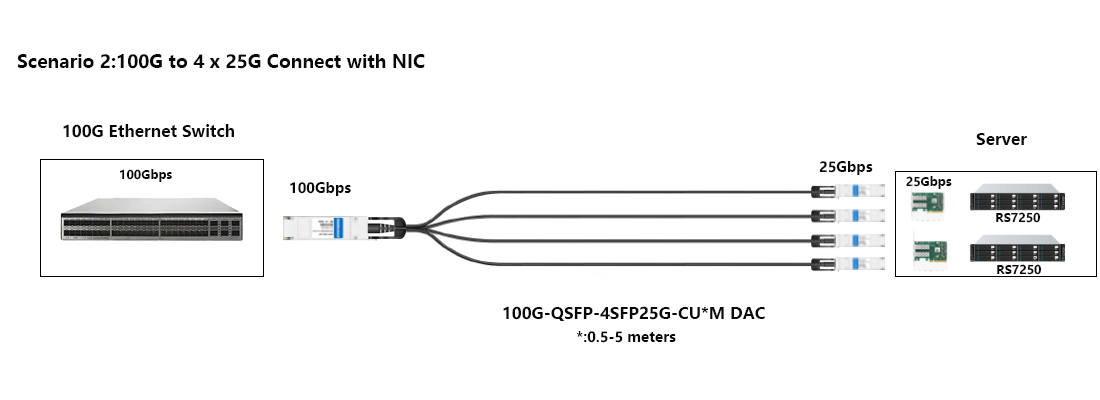

2. 100G to 4x25G Breakout Link for Switch-NIC
HYTOPTODEVICE 100G breakout twinax cable for data center


The Core Feature


1.
Near-Zero Power, Full-Speed 100G

This 100G QSFP28 passive breakout DAC sips no extra energy, cutting heat and cost in crowded racks while keeping low-latency 100G for in-rack or adjacent-rack runs.

hytoptodevice 100G passive breakout direct attach copper CABLE for data center

2.Host-Device Tested for Proven Interoperability

Every unit is link-up tested on real target switch models; ports come online on first install across major vendor gear, no field tuning or replacement loops. Not sure it fits? Compatibility Video available upon request.

hytoptodevice wholesale 100G QSFP28+ to 4 sfp28 breakout twinax cable for data center

3. 100% Individually Tested for Peak Performance

Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our Test Center.

HYTOPTODEVICE  100g QSFP28 to 4 x sfp28 passive breaktout  dac cable for switches

FAQ

Q1: What makes the "CAB-Q28-S28-1M" different from a standard 100G DAC cable? A1: The CAB-Q28-S28-1M is a breakout cable. it features a 100G QSFP28 connector on one end. the other end is four 25G SFP28 connector.

Q2: Can I use this DAC cable to connect a Arista switch to a switch from another brand? A2: Yes, but you need a "dual-compatible" version where one end is coded for Arista and the other end is coded for the other brand (e.g., Cisco, Dell, or HPE).

Q3:Is the CAB-Q28-S28-1M an active or passive cable? A: No, it's a passive breakout copper cable. It contains no active signal amplification circuitry, boasts extremely high reliability, excellent power consumption (almost 0W), and outstanding latency.

Q4: What is the maximum distance for the CAB-Q28-S28-1M? A4: Its maximum physical length is 1 meter (3.3 feet).it transports with a passive copper cable.

Q5:Can I use this Arista-coded DAC cable to connect a Arista switch to a Cisco or HPE switch?A5:If you use a standard Arista-coded cable, the Cisco/HPE end might reject it due to vendor locking. For cross-vendor environments, it is highly recommended to order a Dual-Vendor Coded Cable (Arista-coded on End A, and Cisco/HPE-coded on End B) to ensure seamless plug-and-play compatibility on both sides.

Q6: Can this breakout cable be used for 10G or 40G applications? A6: No. Their Signal Architecture Mismatch, the EEPROM Coding also differ.This breakout cable is specifically optimized for 100G-to-4x25G configurations.

Q7:Will Arista EOS recognize this cable as genuine? A7: Yes. Our compatible breakout cables are flashed with the authentic Arista vendor profile. The switch will recognize it as a CAB-Q28-S28-1M.

Q8:What is the power consumption for DAC breakout cable? A8: Our Direct Attach Copper (DAC) breakout cables are passive, it consume near-zero power (<0.1W per end), that is far more energy-efficient than fiber optical transceivers or AOCs.

Q9: Can the four SFP28 ends be plugged into different switches? A9: Yes, provided the four destination switches or servers are within the physical reach of the 1-meter breakout legs. They operate as four completely independent 25G channels.

Q10:Does this breakout cable support hot-swapping? A10: Yes. it support hot-pluggable.The breakout cable is fully compliant with SFF-8665 and SFF-8402 standards. you can plug it in or remove it while switches and servers are running, without any damage.

Q11: What lead time and MOQ options are available for custom EEPROM programmed HYTOPTODEVICE breakout DAC cables? A: Standard stocked breakout DACs ship quickly. Custom EEPROM coded orders have flexible MOQ, we try our best to accommodate customer demands. Contact HYTOPTODEVICE sales for exact MOQ and schedule for your custom project.

Q12: Are HYTOPTODEVICE Cisco compatible breakout DAC cables compliant with RoHS, CE, FCC and MSA industry specifications? A: Yes, all HYTOPTODEVICE QSFP28 breakout DAC cables are MSA compliant, RoHS, CE and FCC certified, suitable for global data center and enterprise network deployment.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
