Arista Networks OSFP-400G-VSR4 Compatible 400GBASE-VSR4 OSFP 400G 850nm 50m Flat Top PAM4 MPO-12 DDM MMF Optical Transceiver Module-HYTOPTODEVICE

Name: Arista Networks OSFP-400G-VSR4 Compatible 400GBASE-VSR4 OSFP 400G 850nm 50m Flat Top PAM4 MPO-12 DDM MMF Optical Transceiver Module-HYTOPTODEVICE
Brand: Shenzhen Hytoptodevice Technology & Service Co.,Ltd
Availability: InStock
Rating: 5 (1 reviews)

Compatible:

NO.	Brand	Compatible P/N	Remarks
1	NVIDIA	MMA4Z00-NS400
2	Arista Networks	OSFP-400G-VSR4
3	HYTOPTODEVICE	OSFP-400G-SR4

GET A QUOTE

Description

Product Detail：

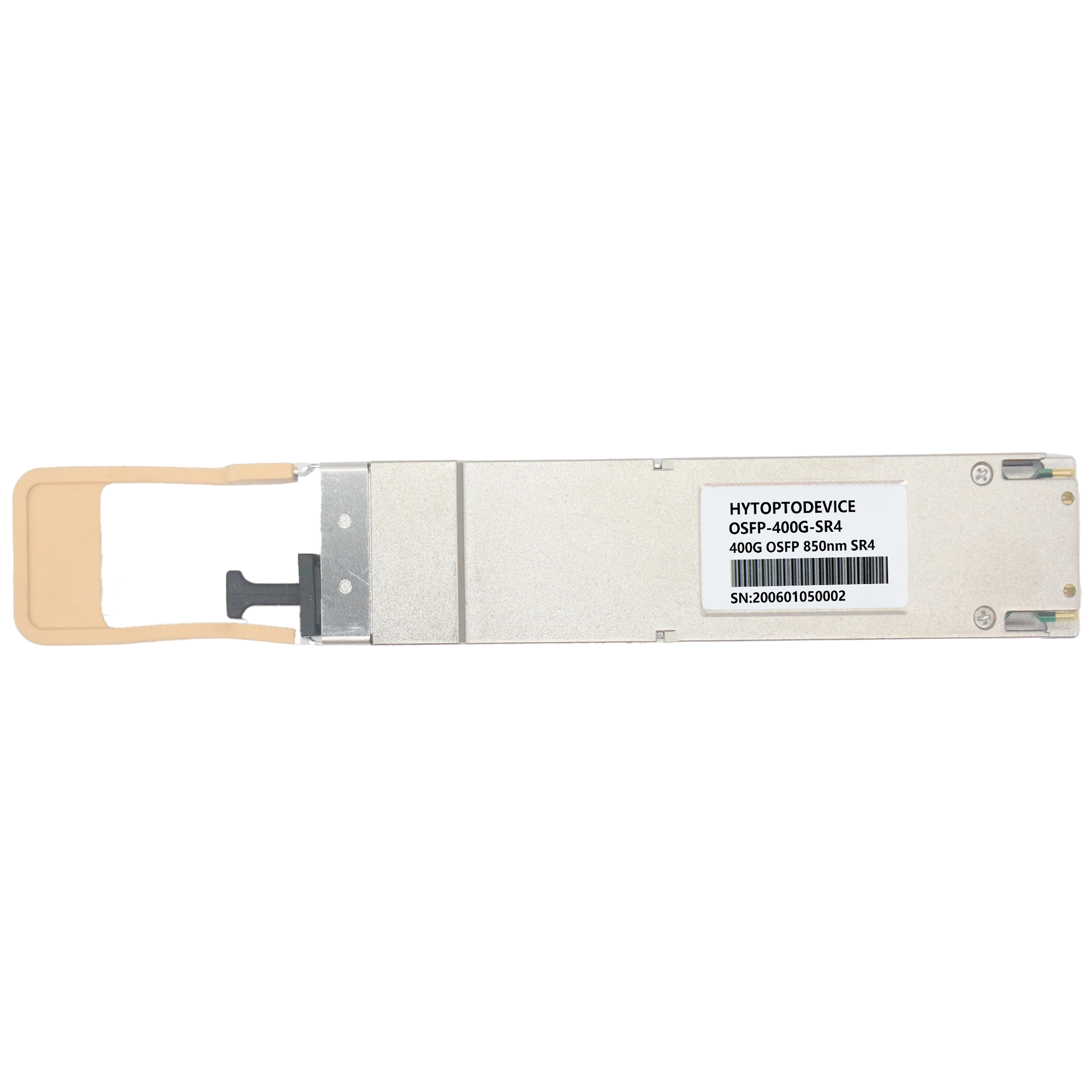

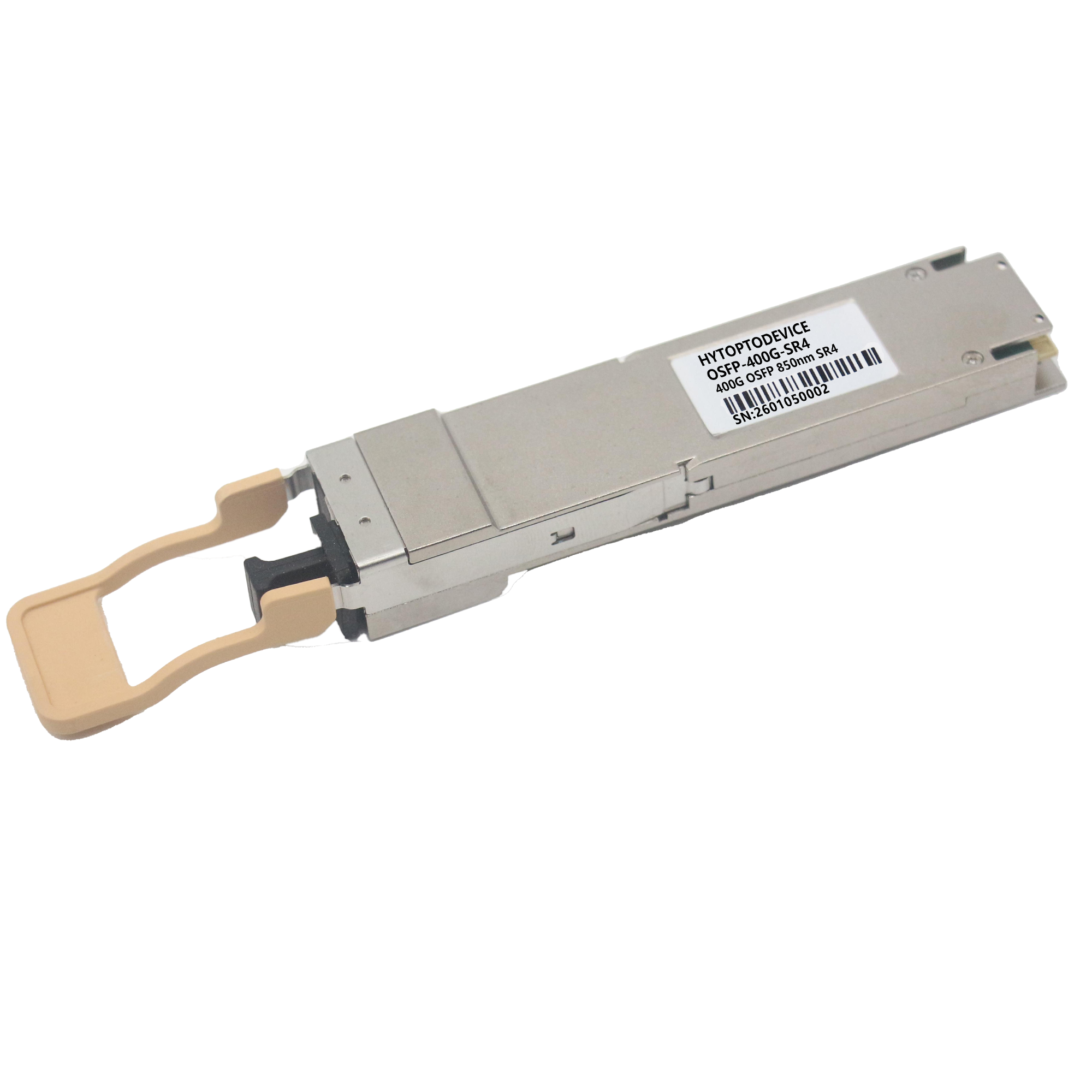

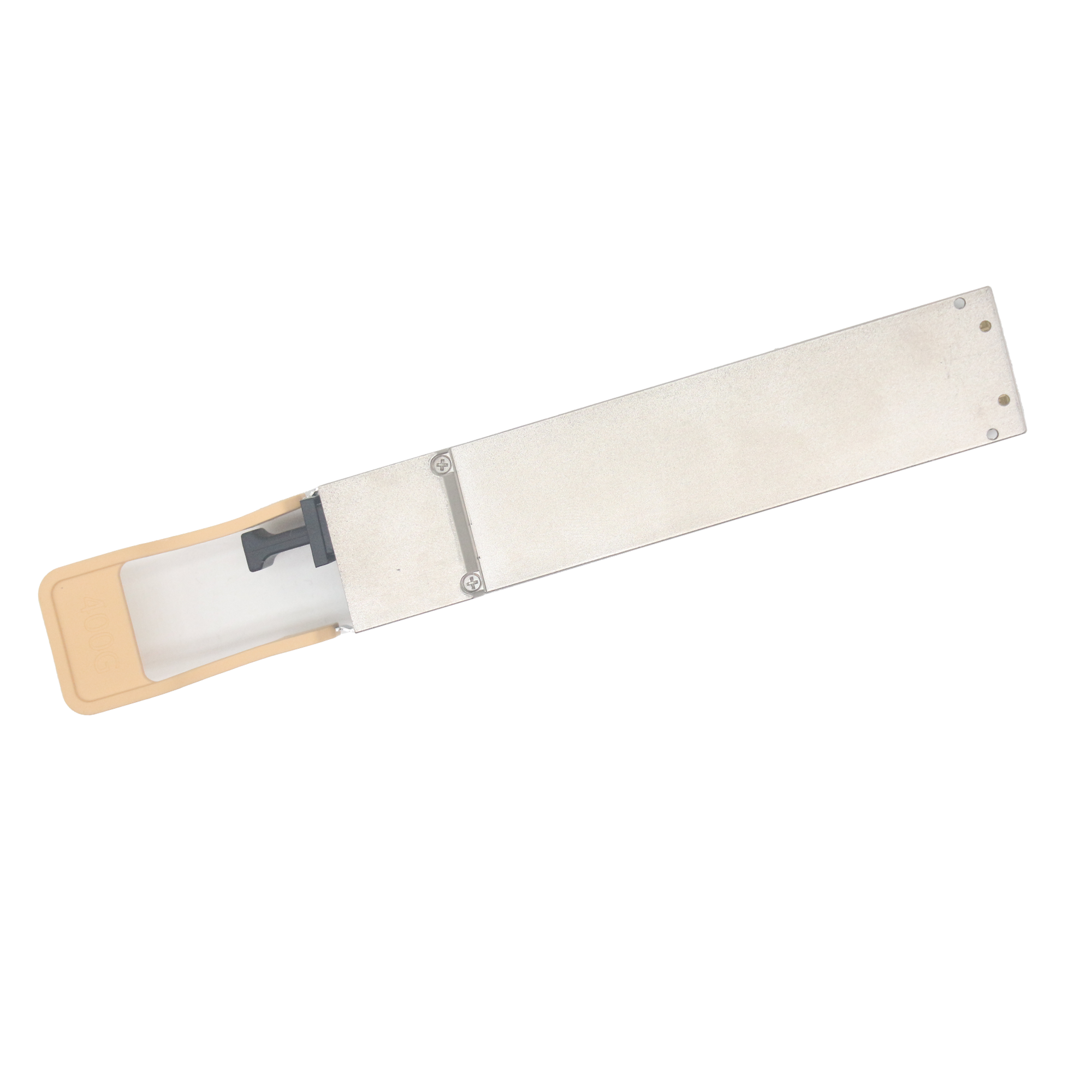

HYTOPTODEVICE Arista Networks OSFP-400G-VSR4 Compatible | 400G OSFP 850nm 50m Flat Top Optical Transceiver Module
The HYTOPTODEVICE OSFP-400G-VSR4 is a premium Arista compatible 400GBASE-VSR4 OSFP optical transceiver module designed for high-density 400G Ethernet, Data Center Interconnect (DCI), and InfiniBand Interconnects. Operating at 400Gb/s (4x100G PAM4), this "Very Short Reach" (VSR) 400G OSFP module is specifically engineered for high-bandwidth, ultra-low-latency communication in hyperscale AI and cloud environments.Fully compliant with OSFP MSA, IEEE 802.3bs, and IEEE 802.3ck protocols, it leverages high-stability 850nm VCSEL lasers and top-tier core chipsets to deliver reliable data transmission over OM4 multimode fiber (MMF) up to 50 meters (and 30m over OM3). Designed with flat-top housing for optimized thermal management, this commercial-grade (0°C to 70°C) module features integrated Digital Optical Monitoring (DOM). HYTOPTODEVICE guarantees 100% interoperability with Arista 7060X4 and 7800R3 platforms, providing a stable long-term supply and rapid delivery for mission-critical networking infrastructure.

Compatibility and Supported Devices
The HYTOPTODEVICE Arista OSFP-400G-VSR4 pluggable transceiver is precision-coded for 100% seamless integration with:

Arista 7060X4 Series: 7060PX4-32 and other high-density 400G OSFP switches.
Arista 7800R3 Series: Modular platforms with 400G/800G OSFP line cards.
Arista 7050X4 Series: Feature-rich campus and data center 400G switches.
Interoperability: Tested for cross-platform performance in mixed Arista, Cisco, and NVIDIA/Mellanox ConnectX-7 environments.

Primary Application Scenarios

400G Ethernet Networking: Enabling cost-effective, high-speed spine-to-leaf and Top-of-Rack (ToR) switch connections in Arista-powered hyperscale data centers.
InfiniBand Interconnects: Optimized for InfiniBand NDR fabrics, supporting massive data throughput for GPU-to-GPU clusters in AI and deep learning environments.
Data Center Interconnect (DCI): Providing reliable, very short-reach connectivity between compute nodes and flash storage arrays at 400Gbps speeds.
HPC Computing Interconnects: Ideal for high-performance computing clusters requiring low-latency parallel 100G PAM4 optical lanes over multimode fiber.

Key Product Parameters

NVIDIA Compatible	MMA4Z00-NS400	Vendor Name	HYTOPTODEVICE
Form Factor	OSFP	Max Data Rate	425Gbps
Wavelength	850nm	Max Distance	30m on OM3/50m on OM4
Modulation Format	PAM4	Host Required	FEC
Connector	MPO-12 (APC)	Voltage Supply	3.3V
Cable Type	MMF	DDM Support	Yes
Transmitter Type	850nm VCSEL	Receiver Type	PIN
TX Power	-4.6~+4.0dBm	Receiver Sensitivity	< -4.6dBm
Operation Temperature	0 to 70°C (32 to 158°F)	Maximum Power Consumption	< 8W
Protocols	OSFP MSA, IEEE 802.3bs	Application	400G Ethernet, Data Center Interconnect, Infiniband Interconnects

Connectivity Solutions(Applications）：

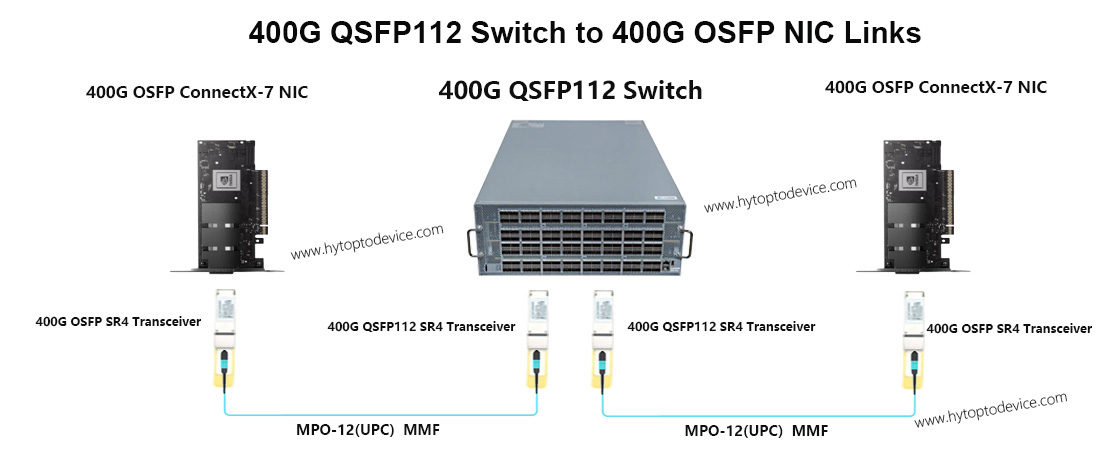

Scenarios 1:

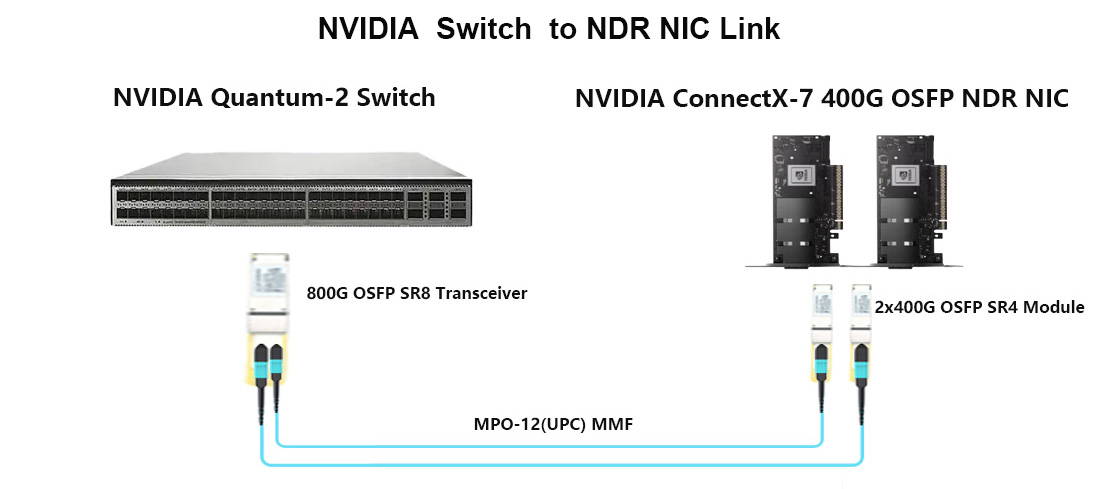

Scenarios 2:

FAQ for NVIDIA MMA4Z00-NS400 Compatible SFP+Transceivers

Q1:What is OSFP-400G-SR4? A:The 400G OSFP SR4 is a hot pluggable optical transceiver module with a speed of 400Gbps, a wavelength of 850nm, and a transmission distance of up to 100m with OM4 MMF. It is ideal for data centre, 400G Ethernet and Infiniband Interconnects.

Q2:What is the maximum transmission distance of the 400G OSFP SR4 transceiver?A:HYTOPTODEVICE OSFP 400G SR4 module supports the maxium transmitting distance of up to 50m with OM4 MMF.

Q3:How is the 400G OSFP SR4 compatibility with MMF fiber?A:The OSFP-400G-SR4 optical transceiver is fully compatible with MMF Fiber, it has a maximum transmission distance of up to 50 meters with OM4 MMF.

Q4:What is the 800G SR8 vs 400G SR4 transceiver comparison?A:Both the OSFP 800G SR8 and OSFP 400G SR4 are MMF optic modules with a wavelength of 850nm and a transmission distance up to 50m (OM4 MMF). The difference is that the 800G SR8 doubles the 800G speed by using eight 100Gbps channels, while the 400G SR4 has a speed of 400Gbps and uses four 100Gbps channels.

Q5:What are the power consumption and cooling requirements for the 400G SR4 modules?A:The power consumption of an 400G SRF optical transceiver is generally around 6-9W, depending on the specific model.adequate cooling is required to maintain the performance and lifespan of optical transceivers.

Q6:Where to buy 400G OSFP SR4 multimode optical transceiver?A:There are many manufacturers that produce and sell 400G fiber optical modules, but HYTOPTODEVICE is the excellent manufacturer: a source factory, fully controllable process, reliable performance, 100% compatible, sufficient inventory, fast delivery, and quick response.

Q7:The link is "Up" but I have high packet loss. Why? A:There could be two reasons,1. Dirty connectors:tiny dust particles can obstruct signal transmission. Please use fiber optic cleaner to clean the connector. 2. Fiber optic cable bending: avoid severe bending of the fiber optic cable.

Q8:Is the 400G SR8 backward compatible with lower-speed modules,such as 100G?A:Yes,The 400G SR4 is backward compatible with lower-speed optical transceivers, such as 200G,100G and 50G, but the performance will be reduced.

Q9:How do HYTOPTODEVICE ensure 400G OSFP SR4 module compatibility with network switch?A:Ensuring 100% compatibility, optical modules must be coded to match the switch's requirements. Source-factory HYTOPTODEVICE was equipped with various high-speed switch,the brands include such as Cisco,NVIDIA,Huawei. highly professional in coding equipment for various brands to ensure they are recognized and running in your device.

Q10:Is OSFP-400G-SR4 hot-swappable?A:HYTOPTODEVICE fiber transceiver modules are hot-pluggable, hot Pluggable OSFP MSA Compliant.you can plug or unplug the optical transceiver, while the device is powered on without damaging the hardware.

Q11:Why is the Flat Top (OSFP-RHS) design necessary?A: The 400G OSFP SR4 use the Flat Top OSFP design for optimized thermal management, it is very important for adapter cards (like ConnectX-7), that use the riding heat sink on the connector cage for cooling, so that the pluggable transceiver stays within the 0°C to 70°C (32 to 158°F) operating temperature range.
