| NO. | Brand | Compatible P/N | Transceiver Type |
| 1 | Cisco | QSFP-100G-CU5M | |
| 2 | Arista Networks | CAB-Q-Q-100G-5M | |
| 3 | Juniper | QFX-QSFP28-DAC-5M | |
| 4 | Brocade | 100G-Q28-Q28-C-0501 | |
| 5 | Dell | DAC-Q28-100G-5M | |
| 6 | Huawei | QSFP28-100G-CU5M |
| Arista Compatible |

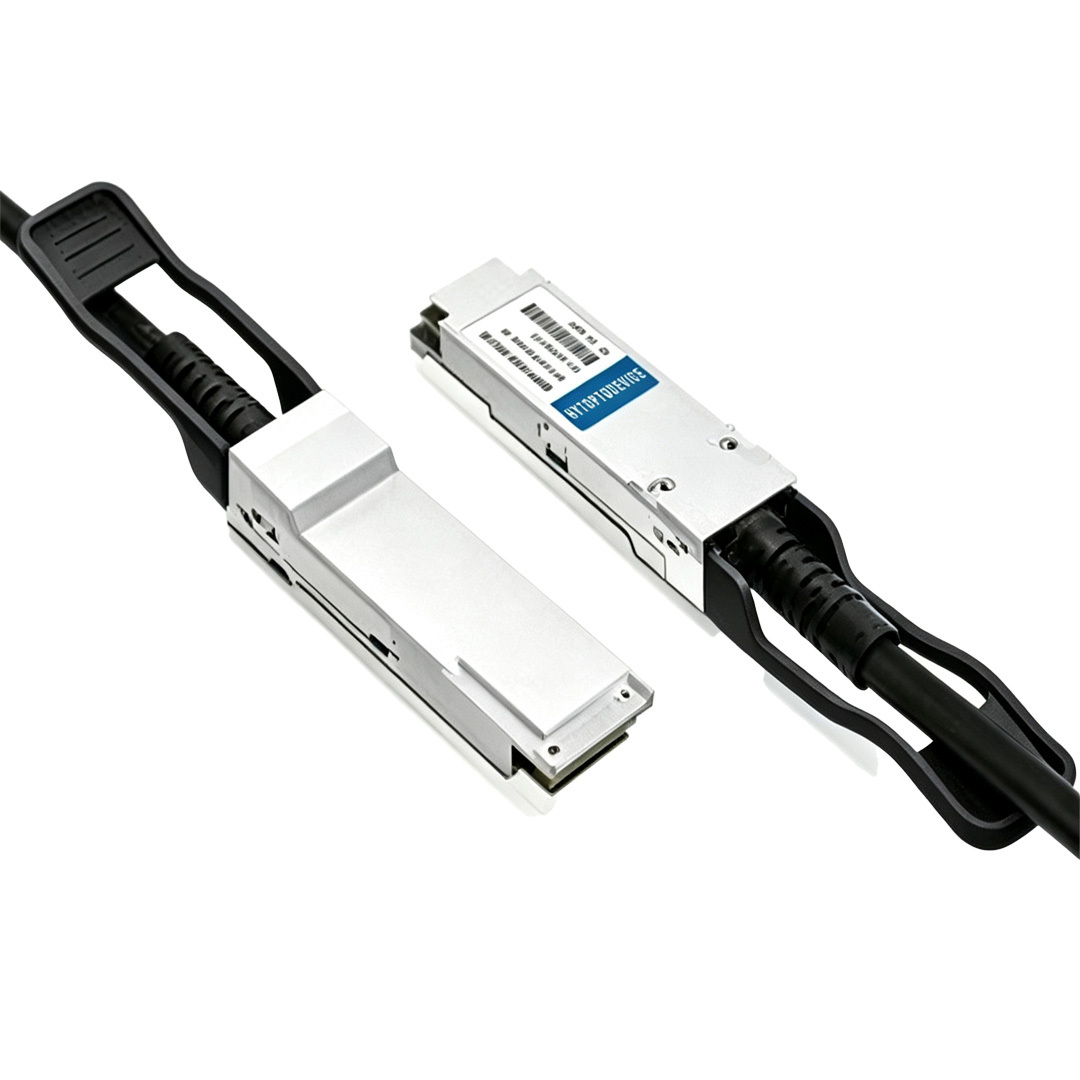

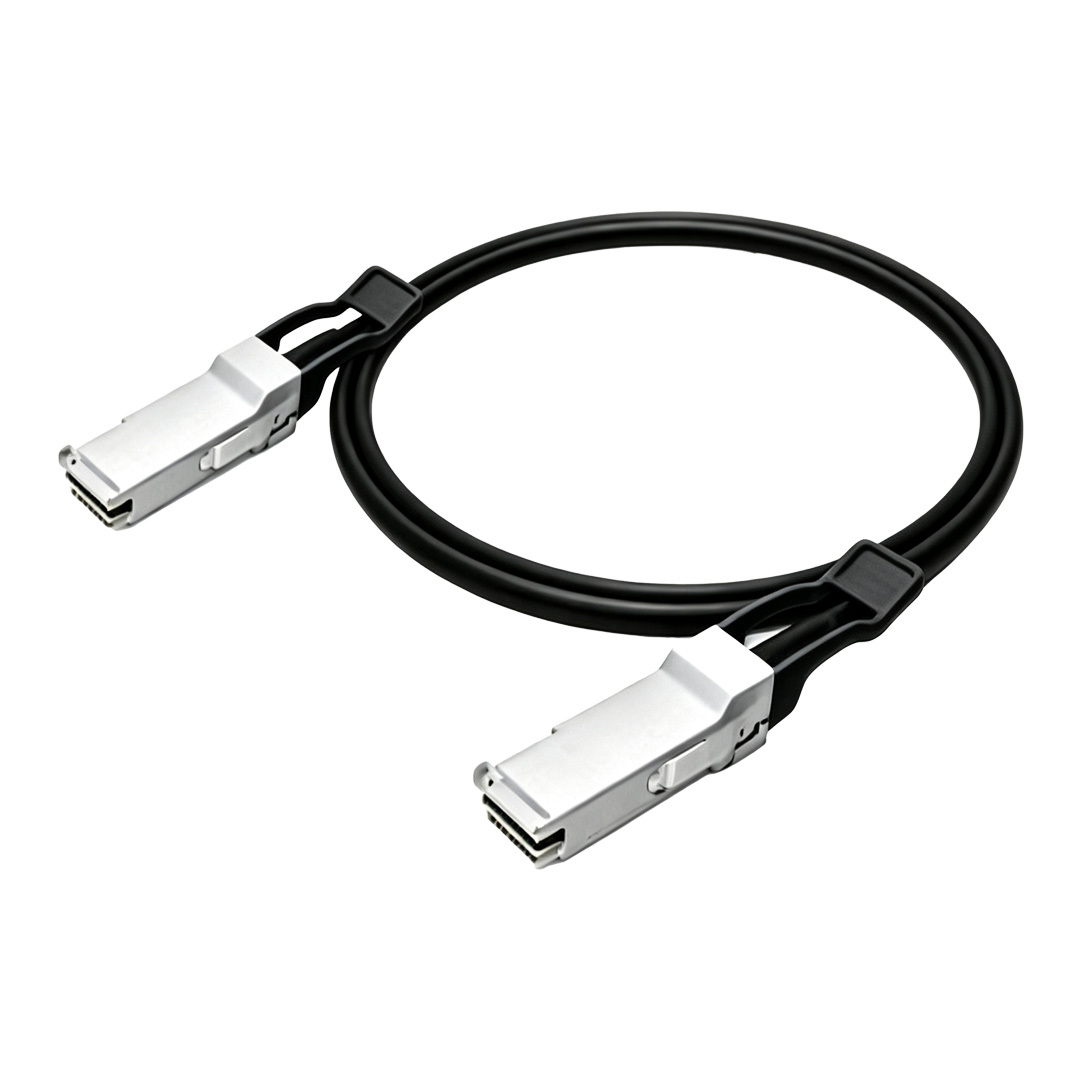

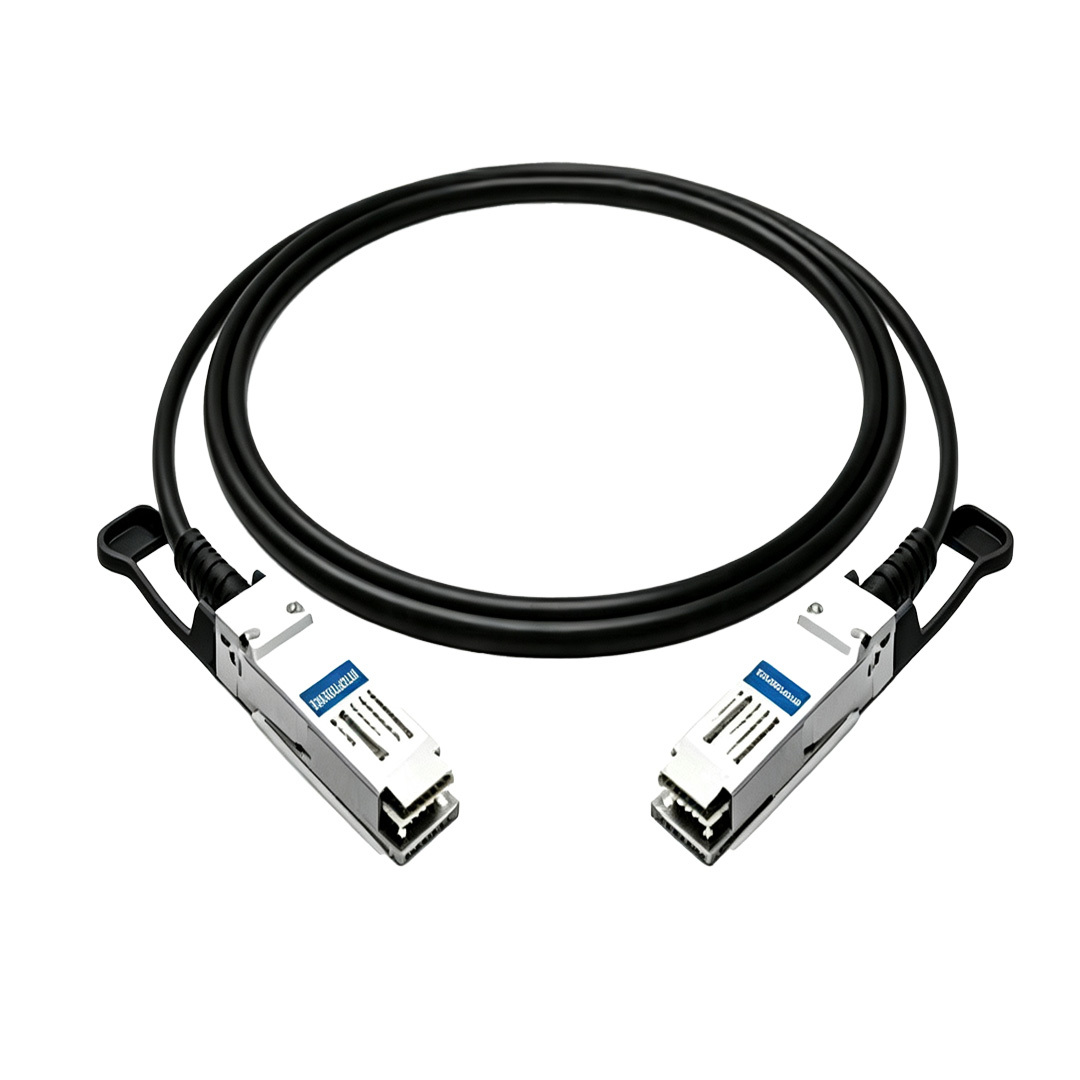

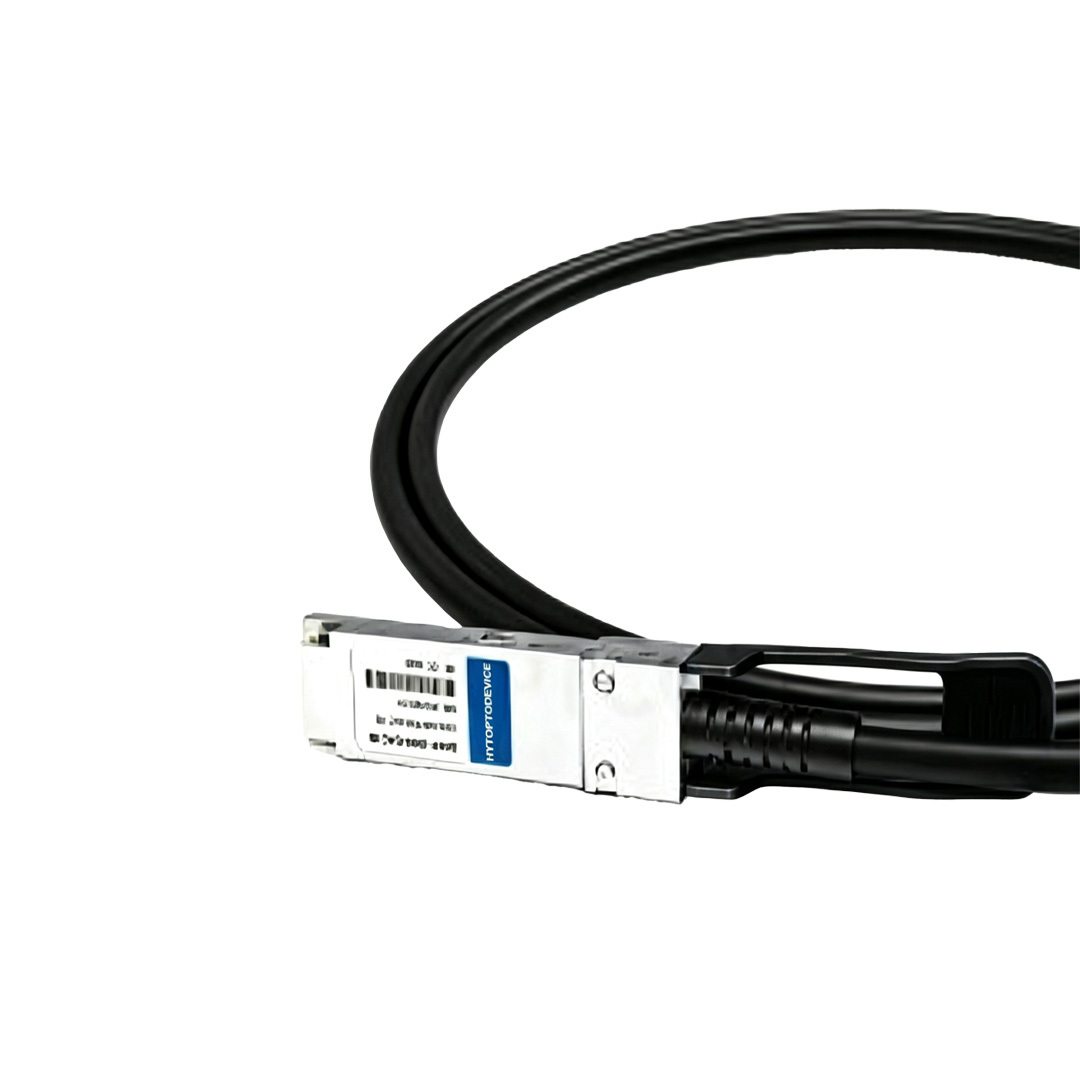

CAB-Q-Q-100G-5M
|
Vendor Name | HYTOPTODEVICE |
| Connector | QSFP28 to QSFP28 | Max Data Rate | 100Gbps |
| Cable Length | 5m (16ft) | Wire AWG | AWG 26 |
| Cable Type | Passive Twinax | Power Consumption | ≤0.5W |
| Media | Copper | Operation Temperature | 0~ 70 °C (32 to 158°F) |
| Jacket Material | PVC(OFNR) | Protocols | QSFP28 MSA, SFF-8662, IEEE 802.3 |
| Minimum Bend Radius | 50mm | Application | 100 Gigabit Ethernet |
Usage Guidelines & Best Practices
Mandatory Port Setting: Host QSFP28 port must enable 100GBASE-CR4 mode; link negotiation failure will happen if forced to optical mode.
Cabling Requirements: Do not exceed the minimum 50mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.
Port Installation Standard: Works only with standard QSFP28 100G ports; cannot be inserted into SFP+ or XFP slots. Disable the host’s third-party transceiver lock policy in advance if required.
Maintenance Specification: Hot‑swap supported, grip the pull tab instead of pulling the cable body during plug/unplug to prevent internal conductor damage.
Operating Environment: This commercial-grade cable operates reliably within 0℃‑70℃; avoid installation beside high-heat power modules.
For detailed operation instructions, please refer to the User Guide.
Full Compatibility List & Supported Devices
Built on universal MSA open standards, this 100G QSFP28 passive copper twinax cable can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, for mixed-vendor rack stacking and server fabric expansion.







Q1: What is the maximum working length of HYTOPTODEVICE 100G QSFP28 passive twinax DAC? A: The industry maximum reach for 100GBASE-CR4 passive QSFP28 DAC is 5 meters. It is limited by copper insertion loss and crosstalk at 25G per lane, so HYTOPTODEVICE passive twinax DACs are offered in 0.5m,1m,1.5m,2m,3m,5m options within this limit.
Q2: Can exceeding the marked cable length trigger link faults on my Arista EOS switch? A: Yes, link failures or CRC errors are very likely. Exceeding rated length pushes signal loss past the chip’s equalization budget. HYTOPTODEVICE only supplies DACs matched to the labeled length to avoid such instability.
Q3: Will short HYTOPTODEVICE 100G QSFP28 DAC versions introduce unwanted signal reflection? A: Properly manufactured short passive DACs do not create reflection problems. HYTOPTODEVICE controls impedance tightly at 100Ω differential, and our short variants pass return loss testing to keep reflections within MSA specs.
Q4: Am I able to rewrite the EEPROM profile of HYTOPTODEVICE 100G QSFP28 DAC cables onsite? A: Standard off-the-shelf HYTOPTODEVICE DACs are pre-coded and locked for stability. We support customer requirements. We can supply coding tools, software and related services, and even provide remote guidance for you.
Q5: Can Arista EOS firmware upgrades break compatibility with third-party 100G QSFP28 DAC? A: It happens occasionally on major OS releases when vendors tighten EEPROM validation rules. HYTOPTODEVICE keeps EEPROM profiles updated and validates against mainstream firmware versions to reduce this risk. We can assist customers with recoding when necessary.
Q6: What details should I send HYTOPTODEVICE to get an Arista-compatible DAC pre-configured correctly? A: We need switch brand, exact model, OS version, and required PN to match the EEPROM. Share these details with HYTOPTODEVICE, and we will pre-test the profile before dispatch.
Q7: What shielding construction does HYTOPTODEVICE use on its 100G QSFP28 DAC to suppress crosstalk? A: Individually shielded twinaxial (SFP/QSFP twinax) copper pairs surrounded by an overall braid and foil shield prevent near-end and far-end crosstalk. This dual-layer design suppresses crosstalk and EMI for HYTOPTODEVICE high-speed DACs.
Q8: Does HYTOPTODEVICE run full high-frequency signal integrity tests before shipping 100G QSFP28 DAC batches? A: Yes, every production batch runs TDR, insertion loss, return loss and crosstalk sampling. HYTOPTODEVICE rejects units out of spec to guarantee consistent signal integrity for 100G links.
Q9: How robust are the pull tabs fitted on HYTOPTODEVICE 100G QSFP28 DAC for repeated hot swap? A: Our pull tabs use reinforced plastic overmolding and strain relief. Under normal hot-swap operation, they resist breakage; HYTOPTODEVICE designs them for repeated plug/unplug in dense data center racks.
Q10: Is the outer jacket of HYTOPTODEVICE 100G QSFP28 DAC suitable for data center fire regulation? A: Yes, the jacket material meets LSZH low-smoke zero-halogen requirements, suitable for data center aisle deployment. All HYTOPTODEVICE DAC jackets follow standard fire safety specifications.
Q11: How much budget saving can I achieve replacing optical links with HYTOPTODEVICE 100G QSFP28 DAC? A: Typically you can save 40%–70% versus paired QSFP28 optics plus fiber patch cords for short rack links. HYTOPTODEVICE passive DAC removes optical component costs for same-rack leaf-spine connections.
Q12: What scenario favors HYTOPTODEVICE 100G passive DAC over QSFP28 transceivers plus fiber jumpers? A: Pick passive DAC for intra-rack links ≤5m where low latency, zero power and lower cost matter. Choose fiber optics when runs exceed 5m or you need isolation between racks or buildings.
Q13: What warranty and RMA coverage come with HYTOPTODEVICE compatible Arista 100G DAC cables? A: HYTOPTODEVICE provides a 5-year warranty for manufacturing defects. If pre-coded cables fail compatibility due to our EEPROM profile, we support free RMA replacement after troubleshooting confirmation.
Q14: What lead time and order flexibility apply for custom EEPROM coded HYTOPTODEVICE 100G QSFP28 DAC? A: Standard stocked DACs ship quickly. Custom EEPROM coded orders have flexible MOQ, we try our best to accommodate customer demands. Contact HYTOPTODEVICE sales for exact MOQ and schedule for your custom project.
Q15: Are HYTOPTODEVICE Arista compatible 100G QSFP28 DAC cables certified to global MSA and safety standards? A: Yes, all HYTOPTODEVICE QSFP28 passive DAC cables are MSA compliant, RoHS, CE and FCC certified, suitable for global data center and enterprise network deployment.
Packaging & Custom OEM Solutions
ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.
Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

Why Network Engineers Choose HYTOPTODEVICE
HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.
