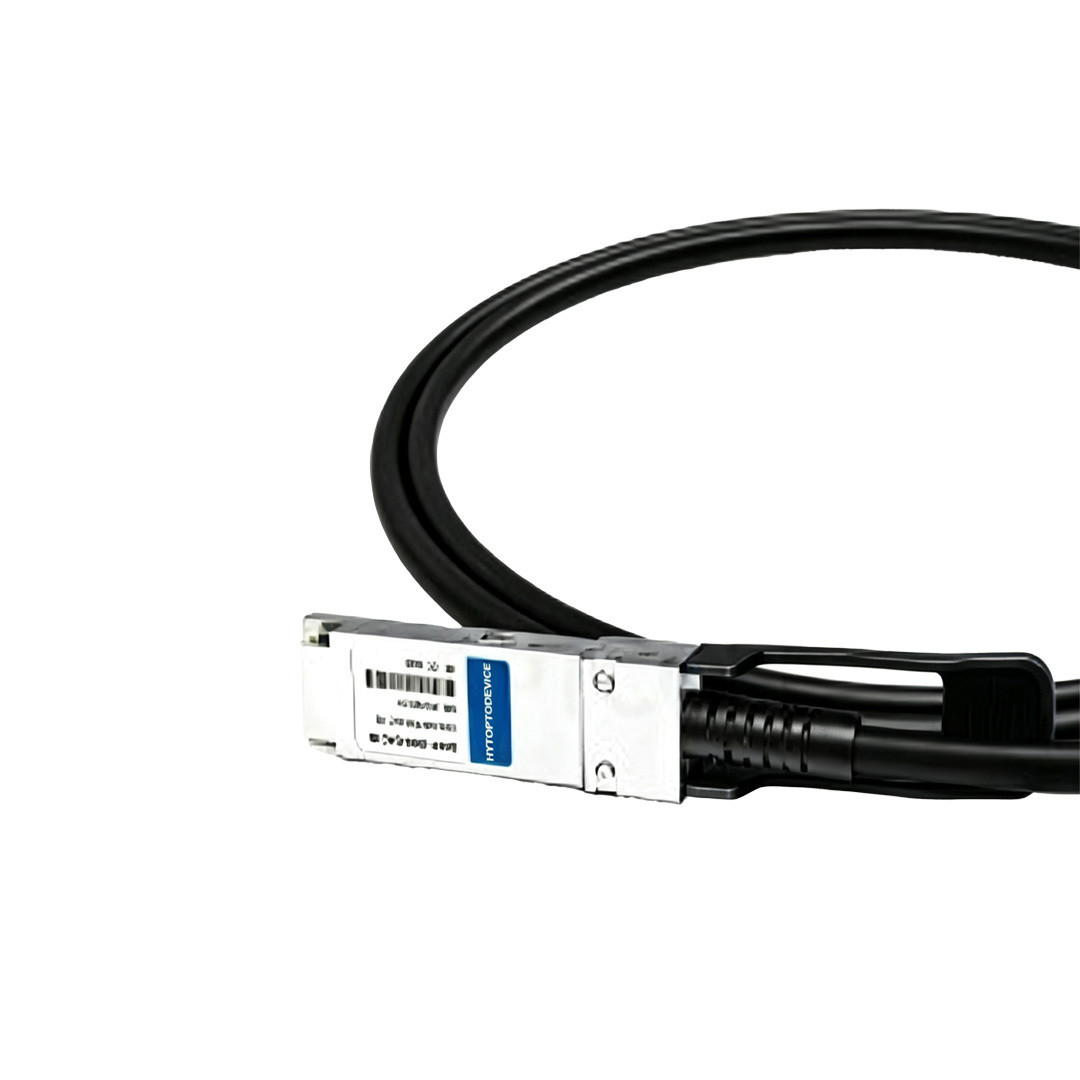

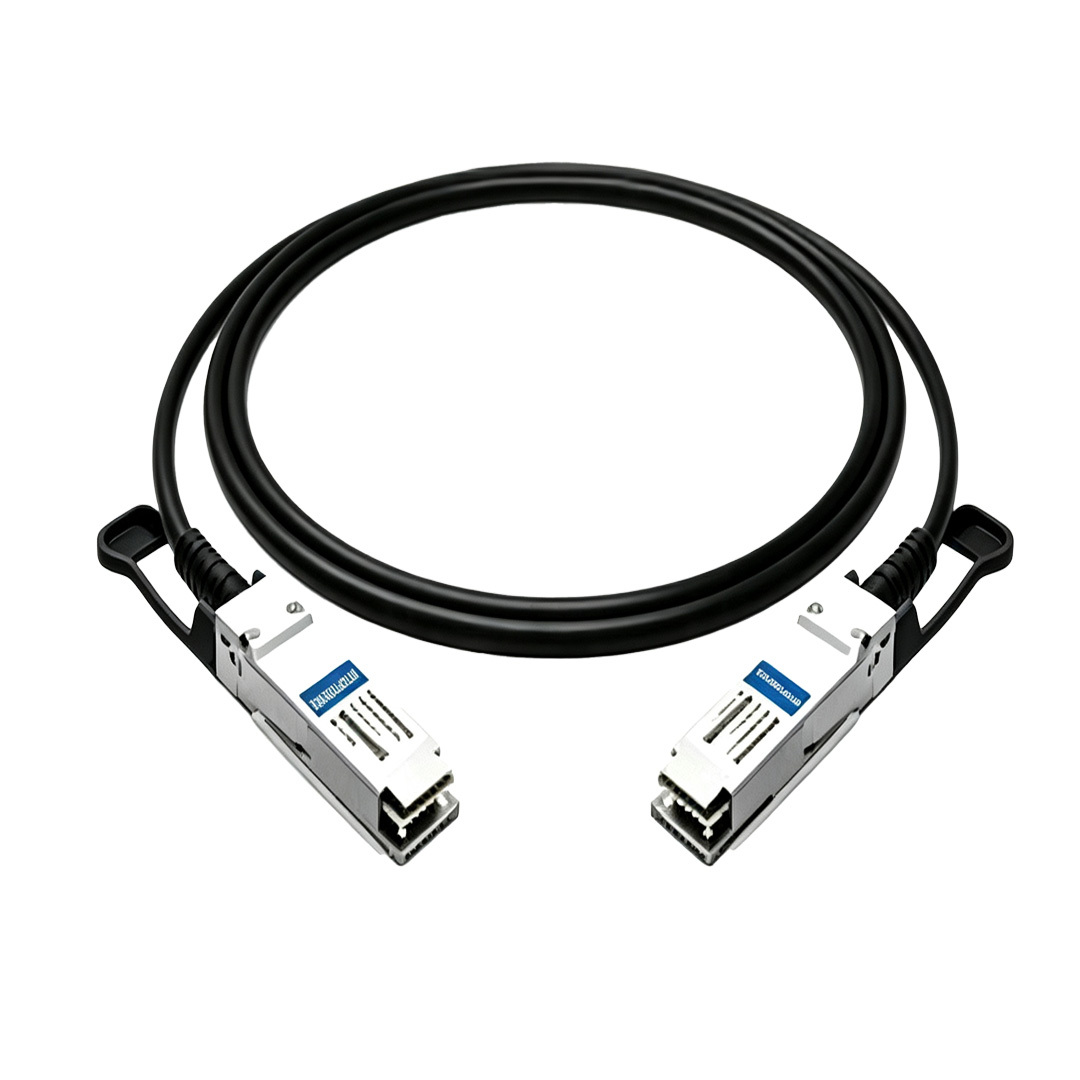

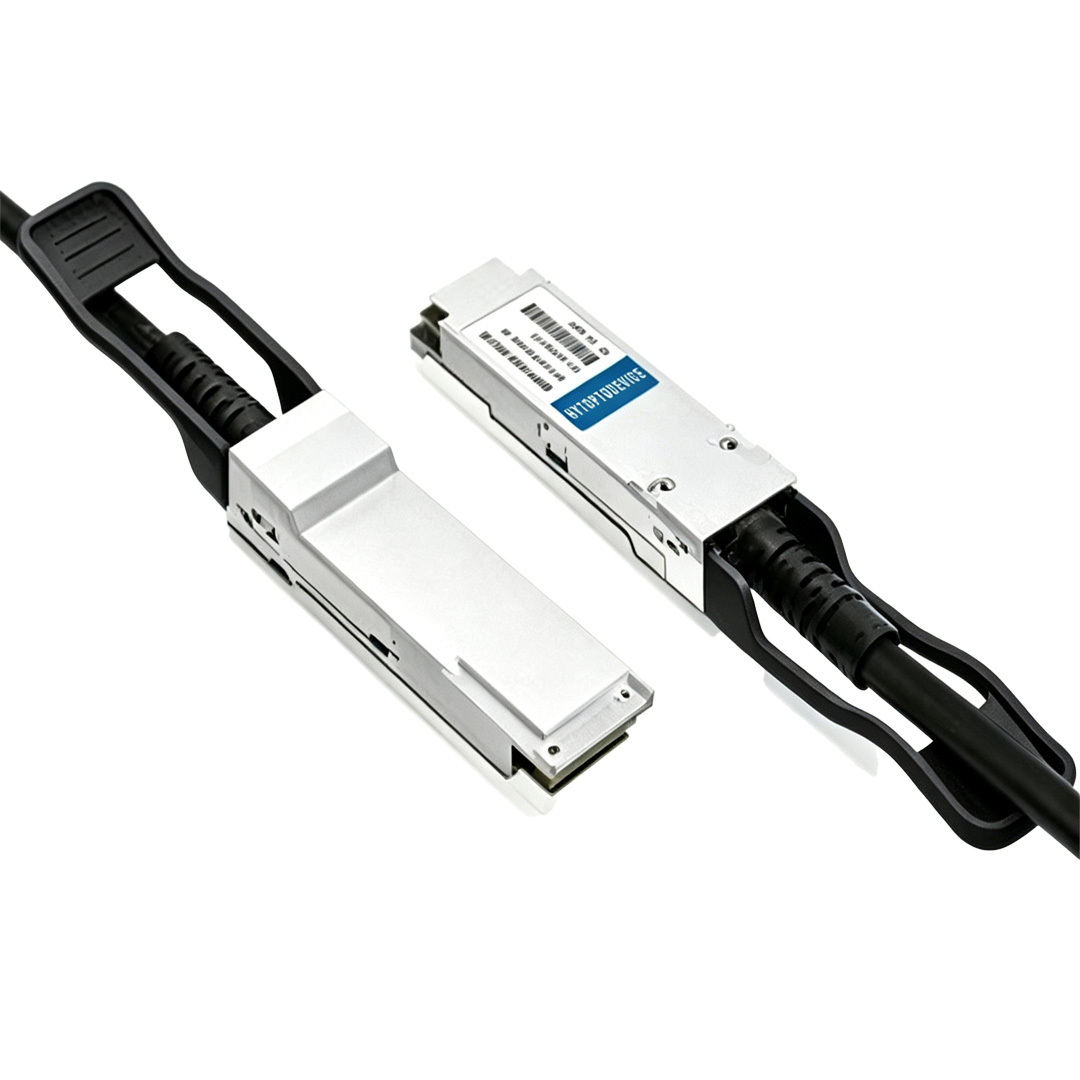

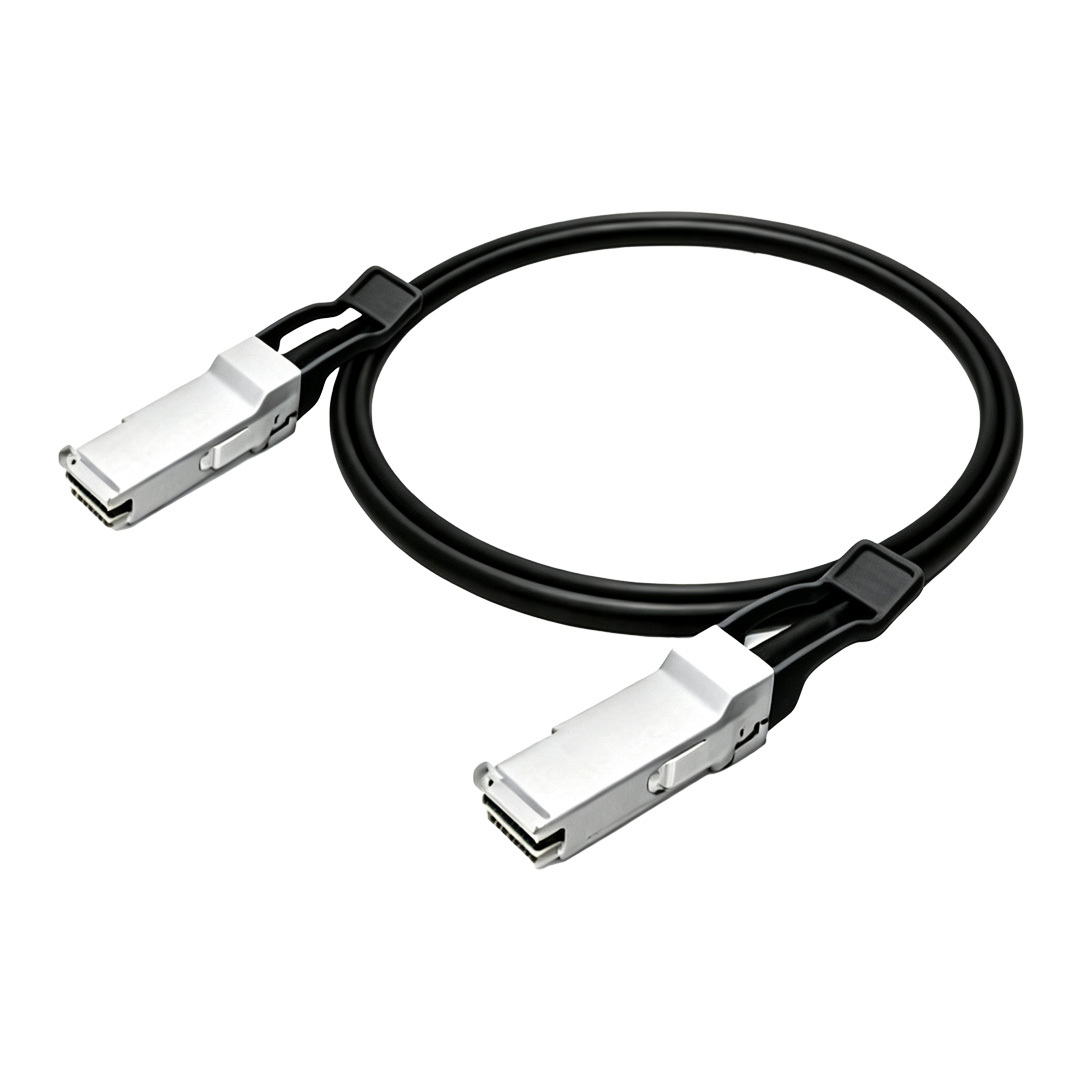

Arista CAB-Q-Q-100G-3M Compatible 3m (10ft) 100G QSFP28 Passive DAC Copper Twinax Cable | HYTOPTODEVICE

HYTOPTODEVICE factory supplier provides reliable 100G QSFP28 passive DAC copper twinax cable, zero-power, low insertion loss, pre-coded EEPROM for Arista EOS. This 3m Arista CAB-Q-Q-100G-3M compatible QSFP28 twinax cable supports 100GBASE-CR4. Bulk purchase for leaf-spine fabric, AI cluster and HPC deployment.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-100G-CU3M
2 Arista Networks  CAB-Q-Q-100G-3M
3 Juniper QFX-QSFP28-DAC-3M
4 Brocade 100G-Q28-Q28-C-0301
5 Dell  DAC-Q28-100G-3M
6 Huawei QSFP28-100G-CU3M
Description

Arista CAB-Q-Q-100G-3M Compatible 3m (10ft) 100G QSFP28 Passive DAC Copper Twinax Cable | HYTOPTODEVICE

Product Overview

HYTOPTODEVICE 3m 100G QSFP28 passive DAC copper twinax cable is a plug-and-play replacement for Arista CAB-Q-Q-100G-3M. Designed per SFF-8662 and IEEE 802.3bj MSA standards, it adopts premium low-loss twinax copper for stable 100GBASE-CR4 transmission between two QSFP28 ports. This direct attach cable delivers low power consumption, ultra-low latency and compact cabling. Passive architecture draws zero power without extra transceiver chips. Slim 30AWG twinax jacket simplifies dense rack routing and supports hot swap. It fits leaf-spine fabrics, AI computing, HPC and storage networking. We keep stock for wholesalers, distributors and system integrators deploying Arista EOS fabrics. Every cable is pre-programmed with Arista-matched EEPROM signature to eliminate unsupported transceiver alerts. Batch testing, bulk shipment and OEM private label are available for Arista solution partners.

Key Technical Specifications

Arista Compatible
CAB-Q-Q-100G-3M
Vendor Name HYTOPTODEVICE
Connector QSFP28 to QSFP28 Max Data Rate 100Gbps
Cable Length 3m (10ft) Wire AWG AWG 26
Cable Type Passive Twinax Power Consumption ≤0.5W
Media Copper Operation Temperature 0~ 70 °C (32 to 158°F)
Jacket Material PVC(OFNR) Protocols QSFP28 MSA, SFF-8662, IEEE 802.3
Minimum Bend Radius 50mm Application 100 Gigabit Ethernet

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Mandatory Port Setting: Host QSFP28 port must enable 100GBASE-CR4 mode; link negotiation failure will happen if forced to optical mode.

  • Cabling Requirements: Do not exceed the minimum 50mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.

  • Port Installation Standard: Works only with standard QSFP28 100G ports; cannot be inserted into SFP+ or XFP slots. Disable the host’s third-party transceiver lock policy in advance if required.

  • Maintenance Specification: Hot‑swap supported, grip the pull tab instead of pulling the cable body during plug/unplug to prevent internal conductor damage.

  • Testing & Storage: Run sample validation on target hardware before large bulk deployment; store spare cables in dry, dust‑free and anti‑static packaging.
  • Operating Environment: This commercial-grade cable operates reliably within 0℃‑70℃; avoid installation beside high-heat power modules.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Arista Hardware & Firmware

  • Arista 7050CX3 series:7050CX3-32S, 7050CX3M-32S
  • Arista 7060CX / 7060CX2 / 7060CX3:7060CX2-32S, 7060CX3-64S
  • Arista 7280R / 7280SR / 7280SR3:7280R-48YC8, 7280SR3-48YC8
  • Arista 7500R chassis series:7504R,7508R,7512R with QSFP28 line cards
  • Firmware:Arista EOS 4.26.1F, 4.28.2F, 4.30.1F, 4.32.2F

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this 100G QSFP28 passive copper twinax cable can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios
  • Intra-rack leaf-spine 100G fabric interconnection
  • AI computing and GPU cluster short-range links
  • HPC high-performance computing networking
  • Storage array and top-of-rack switch connection
  • 400G data center upgrade and migration
  • Distributor stock and system integration projects

Connectivity Solutions(Applications)

1. 100G to 100G Direct Link for Switch-Switch
HYTOPTODEVICE QSFP-100G-CU1M compatible  100G QSFP28 passive DAC copper twinax cable in stock for wholesale buyers


2. 100G to 100G Direct Link for Switch-NIC
 100G QSFP28 passive DAC copper twinax cable for data center integrators


3.
Upgrade Solution for 400G Data Center Network





The Core Feature

1. Cost-Effective Ultra-Short Connectivity

Using twinax copper, the 100G passive copper cable replaces a fiber pair and two optical transceivers, significantly cutting interconnect cost for short-reach links — plug-and-play, no modules required.

2. Ultra-Low Power, Maximum Energy Efficiency

The 100g qsfp28 passive copper twinax cable draws near-zero power, reducing heat and energy costs in dense racks, while delivering a cost-effective, low-latency 100G link for short-reach connections — within a rack or across adjacent racks.


3.Host-Device Tested for Proven Interoperability

Every 100g passive copper twinax cable is rigorously tested for compatibility in the target switch environment, so you can deploy with confidence — no surprises, no downtime. Not sure it fits? Compatibility Video available upon request.

hytoptodevice wholesale 40G QSFP+ twinax cable for data center

4. 100% Individually Tested for Peak Performance

Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our Test Center.

HYTOPTODEVICE  QSFP+ to QSFP+ 40g qsfp+ dac cable for switches

FAQ

Q1: How does 3m insertion loss impact link training and RS-FEC requirement on Arista EOS? A: 3m is still inside MSA 5m loss budget for 100GBASE-CR4, but longer copper raises insertion loss vs 1m/2m variants. HYTOPTODEVICE 100G QSFP28 passive DAC copper twinax cable uses tightly controlled low-loss conductors to help EOS finish link training smoothly with standard RS-FEC.

Q2: Why choose passive twinax DAC instead of active retimer DAC for Arista leaf-spine rack links? A: Passive twinax contains no powered retimer chips and consumes zero watts, lowering power expense and component failure risk. Active DAC relies on powered ICs for signal compensation. HYTOPTODEVICE direct attach DAC is ideal for stable short 100G fabric connections.

Q3: Can this compact 3m 100G QSFP28 passive DAC copper twinax cable be used for cross-row rack interconnections? A: This cable is not designed for cross-row inter-rack runs. It only suits adjacent racks or ToR to EoR links with total path under 5m. Cross-row cabling often exceeds copper reach and increases EMI risk. HYTOPTODEVICE recommends AOC or fiber transceivers for long cross-row connections.

Q4: When should network architects select AOC instead of 3m passive twinax DAC in Arista EVPN fabrics? A: Copper twinax suffers frequency-dependent attenuation and EMI susceptibility. AOC converts electrical signals to light and removes copper distance limits. HYTOPTODEVICE supplies both 100G QSFP28 passive DAC copper twinax cable and matching AOC for mixed-distance fabric planning.

Q5: Can long-term high cabinet temperature gradually degrade signal performance of this twinax DAC? A: Sustained high ambient temperature increases copper resistance and reduces usable signal margin over months. HYTOPTODEVICE 100G QSFP28 passive DAC copper twinax cable passes thermal aging test between 0°C and 70°C for reliable EVPN fabric operation.

Q6: Why does generic unprogrammed DAC trigger “unrecognized transceiver” logs on Arista EOS? A: EOS reads vendor EEPROM ID during port initialization. Mismatched signature triggers warning logs and may block link negotiation. Each HYTOPTODEVICE 100G QSFP28 passive DAC copper twinax cable is pre-flashed and validated for Arista EOS to skip these alerts.

Q7: Can one single 100G QSFP28 passive DAC copper twinax cable be coded Arista on one end and another brand on the other end? A: Our standard cable does not support asymmetric dual-brand EEPROM programming. Both connectors need matching vendor IDs for stable handshake. Contact HYTOPTODEVICE sales team for custom EEPROM service for multi-vendor fabrics.

Q8: What diagnostic telemetry can Arista EOS retrieve from this passive QSFP28 DAC? A: Only standard MSA DOM parameters are available. Arista exclusive proprietary telemetry functions do not work on chip-free passive copper. HYTOPTODEVICE preloads MSA DOM data so EOS can read cable identity and basic performance counters.

Q9: What latency difference can be measured between this 3m twinax DAC and fiber links on Arista GPU clusters? A: Passive twinax DAC delivers marginally lower latency than fiber links. Electrical signals travel faster in solid copper twinax than light inside fiber, typical difference below 1ns. Low-latency HYTOPTODEVICE DAC suits latency-sensitive AI and HPC workloads.

Q10: How well does the full shielded twinax jacket suppress EMI near high-current power cables? A: Complete copper shielding effectively reduces coupled electrical noise, though copper is less immune than fiber next to power harnesses. HYTOPTODEVICE 100G QSFP28 passive DAC copper twinax cable meets global EMC and EMI compliance standards.

Q11: What error trends indicate slow signal degradation on this 3m low-loss twinax DAC? A: Degradation usually appears as slowly climbing CRC counters before sudden link drop. A compressed signal eye window creates random bit flips logged as CRC faults. If errors appear, verify the cable follows rated length and bend specifications.

Q12: What permanent damage happens if the cable is bent tighter than the minimum bend radius? A: Bending below 5× outer diameter minimum bend radius permanently distorts differential twinax pairs, causing impedance discontinuity and recurring bit errors. Careful routing protects your HYTOPTODEVICE compact DAC from invisible mechanical damage.

Q13: What thermal airflow risk comes from bundling many 3m 100G QSFP28 twinax DAC cables together? A: Thick copper bundles block front-to-back airflow and trap heat around Arista switch ports, raising component temperature. HYTOPTODEVICE uses slim 30AWG twinax to minimize bundle thickness and preserve rack airflow.

Q14: Where does heat originate when using this zero-power passive DAC on Arista CX and R series switches? A: The passive DAC itself generates nearly no heat. All thermal load comes from the host switch ASIC and QSFP28 port electronics, not the copper cable. HYTOPTODEVICE connector shells use thermally balanced plastic for normal port cooling.

Q15: For Arista 3-meter intra-rack AI and storage fabrics, why is passive twinax DAC preferred over AOC? A: It provides zero power draw, compact routing and lower hardware cost for links under 5 meters without active chips. HYTOPTODEVICE direct attach DAC is a cost-effective choice for dense Arista leaf-spine, storage and AI rack deployments.

Q16: How do power consumption numbers compare for passive twinax DAC, active retimer DAC and paired 100G optical transceivers? A: 100G QSFP28 passive DAC copper twinax cable consumes 0W. Active retimer DAC draws roughly 1–2W per end, while a matched transceiver pair normally consumes 3–6W total. Zero-power HYTOPTODEVICE DAC reduces rack power draw and overall data center TCO.
