| NO. | Brand | Compatible P/N | Transceiver Type |
| 1 | Cisco | QSFP-100G-CU1M | |
| 2 | Arista Networks | CAB-Q-Q-100G-1M | |
| 3 | Juniper | QFX-QSFP28-DAC-1M | |
| 4 | Brocade | 100G-Q28-Q28-C-0101 | |
| 5 | Dell | DAC-Q28-100G-1M | |
| 6 | Huawei | QSFP28-100G-CU1M | |
| 7 | H3C | QSFP-100G-D-CAB-1M | |
| 8 | HPE BladeSystem | 845404-B21 |
| Arista Compatible |

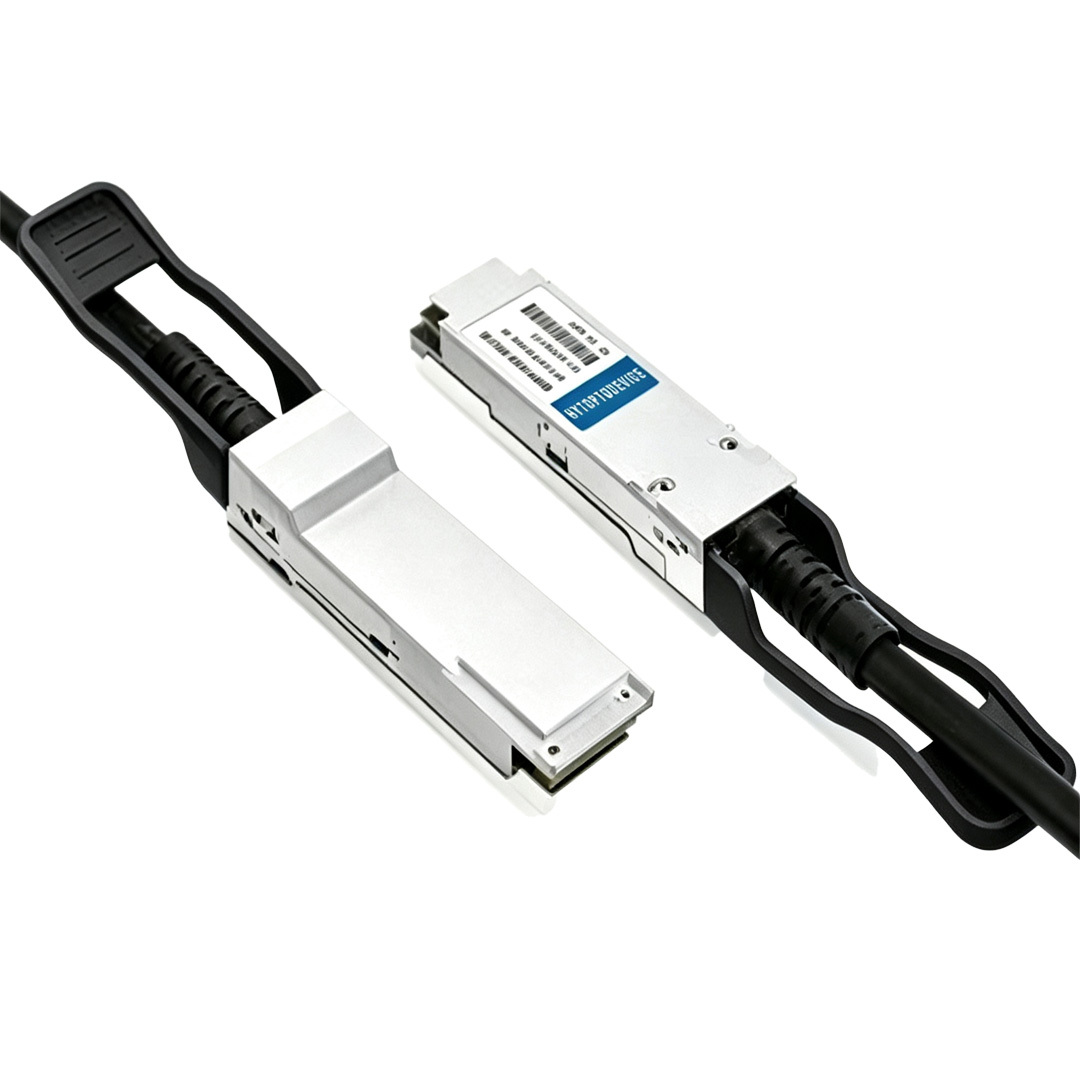

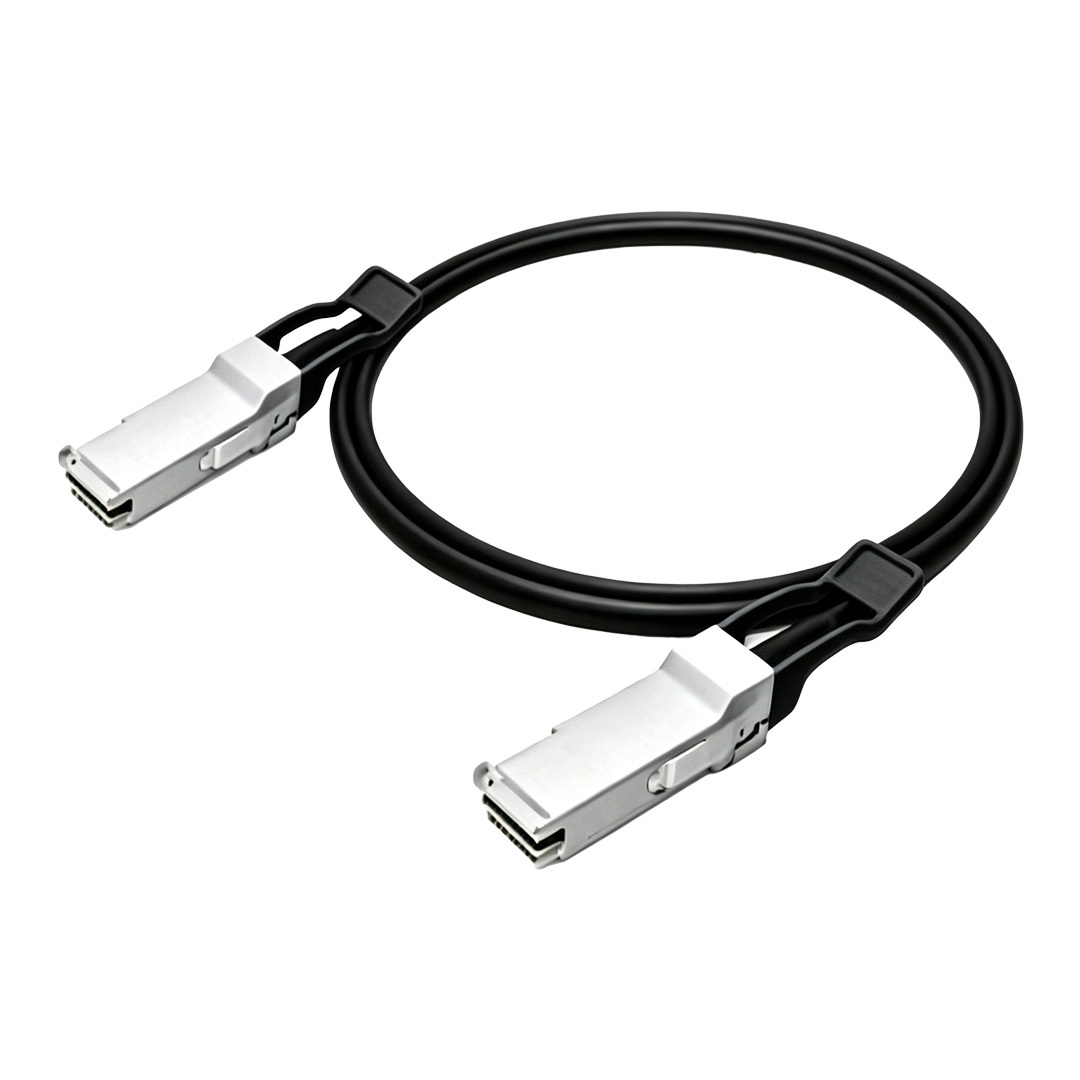

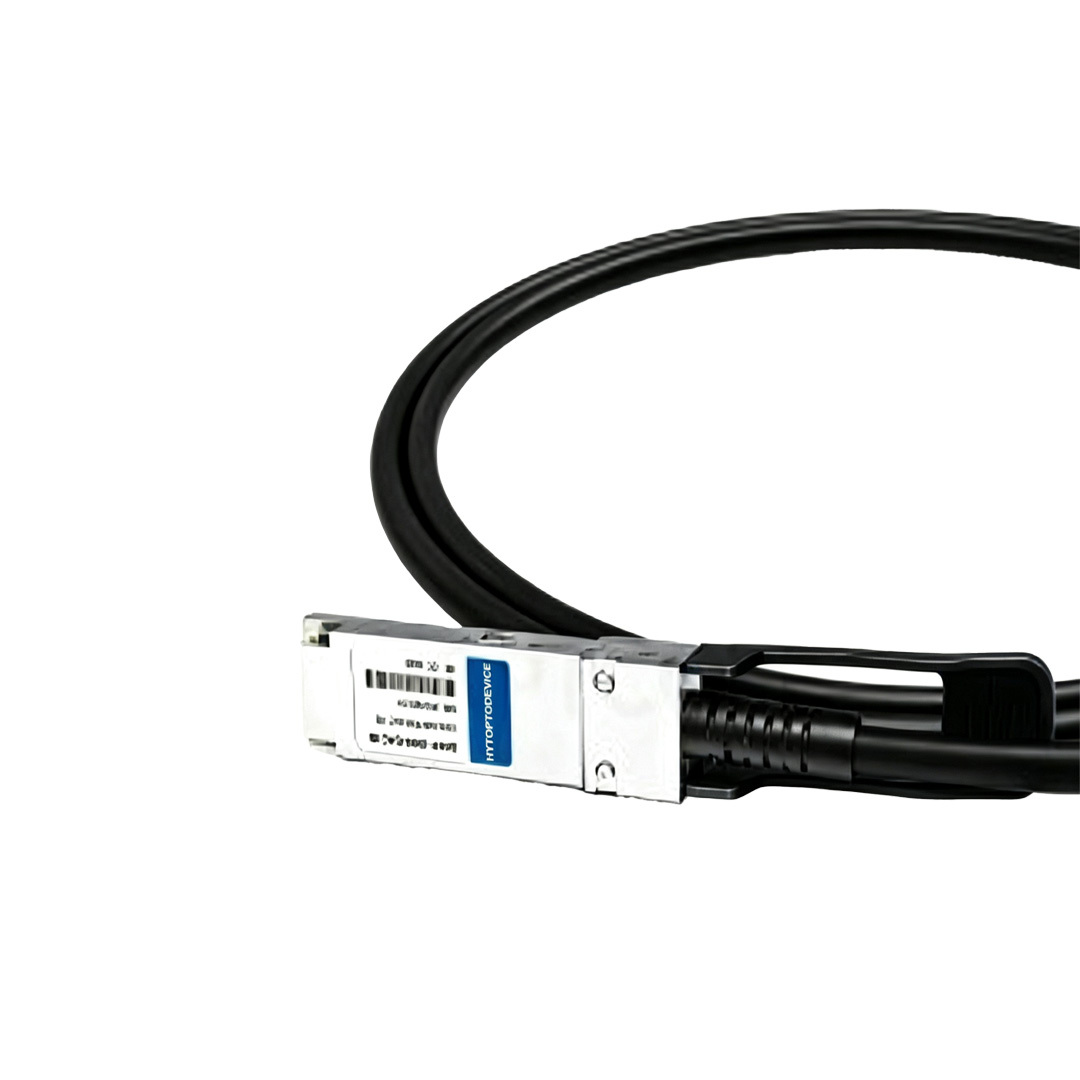

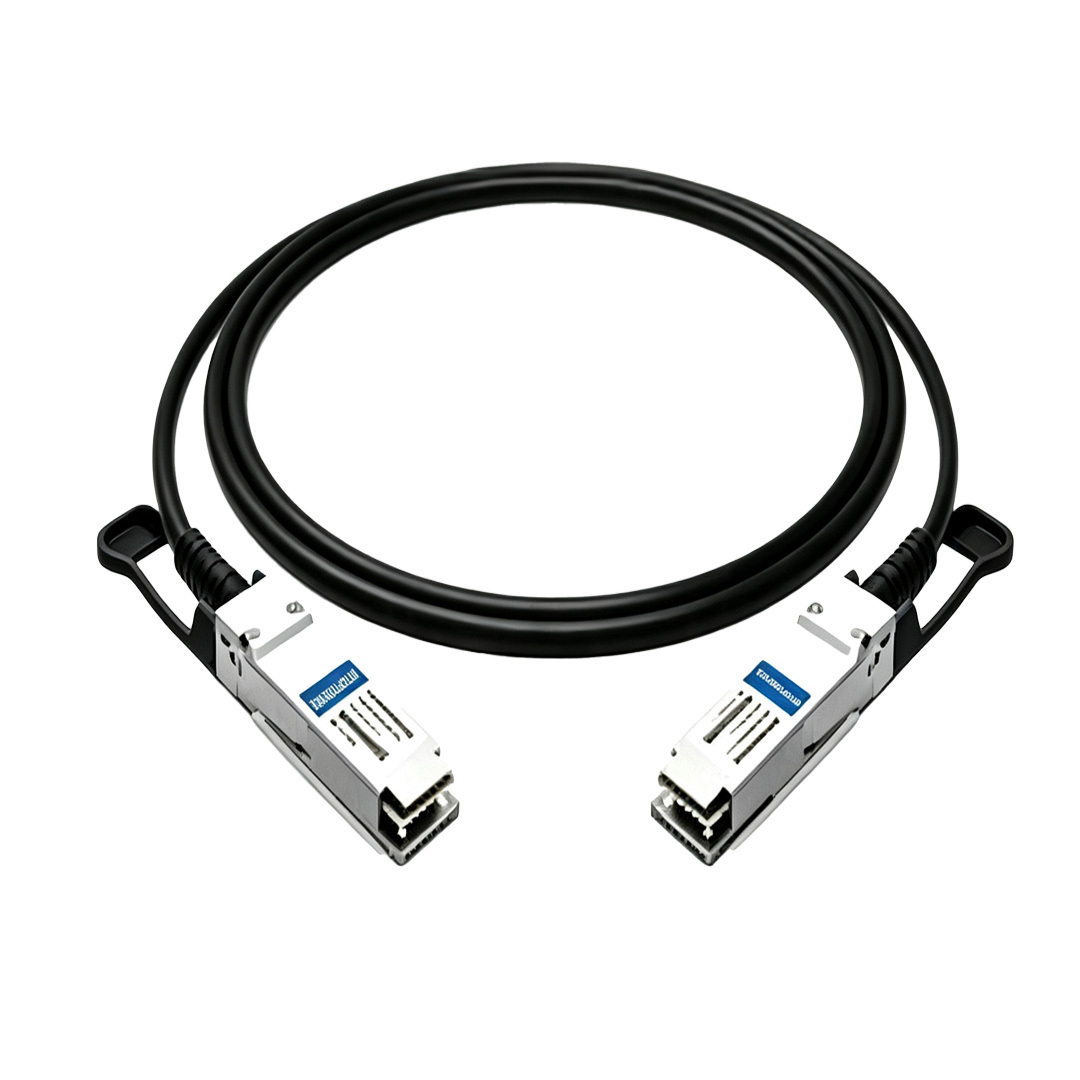

CAB-Q-Q-100G-1M
|
Vendor Name | HYTOPTODEVICE |
| Connector | QSFP28 to QSFP28 | Max Data Rate | 100Gbps |
| Cable Length | 1m (3ft) | Wire AWG | AWG 30 |
| Cable Type | Passive Twinax | Power Consumption | ≤0.5W |
| Media | Copper | Operation Temperature | 0~ 70 °C (32 to 158°F) |
| Jacket Material | PVC(OFNR) | Protocols | QSFP28 MSA, SFF-8662, IEEE 802.3 |
| Minimum Bend Radius | 35mm | Application | 100 Gigabit Ethernet |
Usage Guidelines & Best Practices
Mandatory Port Setting: Host QSFP28 port must enable 100GBASE-CR4 mode; link negotiation failure will happen if forced to optical mode.
Cabling Requirements: Do not exceed the minimum 35mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.
Port Installation Standard: Works only with standard QSFP28 100G ports; cannot be inserted into SFP+ or XFP slots. Disable the host’s third-party transceiver lock policy in advance if required.
Maintenance Specification: Hot‑swap supported, grip the pull tab instead of pulling the cable body during plug/unplug to prevent internal conductor damage.
Operating Environment: This commercial-grade cable operates reliably within 0℃‑70℃; avoid installation beside high-heat power modules.
For detailed operation instructions, please refer to the User Guide.
Full Compatibility List & Supported Devices
Built on universal MSA open standards, this 100G QSFP28 passive copper twinax cable can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, for mixed-vendor rack stacking and server fabric expansion.







Q1: What limits the maximum run length of a 100G QSFP28 passive DAC copper cable? A: Signal attenuation and impedance constraints define the max reach for passive 100G DAC. HYTOPTODEVICE 100G QSFP28 passive dac cable follows MSA electrical specs and supports up to 5m for reliable intra-rack 100GBASE-CR4 transmission.
Q2: Why do passive and active 100G QSFP28 DACs differ so much in supported cabling distance? A: Passive DAC has no built-in signal compensation and tops out at 5m, while active DAC integrates retimers and equalizers inside connectors to extend reach to 7m or 10m. HYTOPTODEVICE supplies both types so buyers can match cable performance to their rack layout.
Q3: What risks appear when deploying a 100G passive DAC beyond its rated cable length? A: Exceeding the rated length will trigger unstable links, CRC errors or unexpected link flaps. Copper signal loss increases rapidly past the design threshold. Every HYTOPTODEVICE 100G QSFP28 passive dac cable carries clear length marking to avoid wrong installation.
Q4: Is a 100G QSFP28 passive DAC suitable for interconnecting hardware in separate server rows? A: Passive 100G DAC is not a good fit for cross-row connections, as inter-row cabling normally exceeds the 5m maximum limit. AOC or fiber links work better here; HYTOPTODEVICE passive DACs are optimized for within-rack short links.
Q5: Can short 100G QSFP28 DAC lengths like 0.5m and 1m introduce unwanted signal reflection? A: Properly manufactured short 100G passive DAC maintains consistent differential impedance and avoids harmful reflection. HYTOPTODEVICE runs eye diagram validation for each batch of short 100G QSFP28 passive dac cable to guarantee signal quality.
Q6: Will unprogrammed generic 100G QSFP28 DACs be recognized seamlessly on locked Arista, Cisco or Juniper switches? A: Uncoded generic DACs usually raise unsupported transceiver alerts on vendor-locked switch platforms. HYTOPTODEVICE pre-writes EEPROM signatures matched for Arista EOS, Cisco NX-OS and Junos to achieve plug-and-play deployment.
Q7: What tools do I need if I plan to rewrite DAC EEPROM coding by myself onsite? A: You need a dedicated EEPROM programmer plus supporting software to modify DAC firmware. HYTOPTODEVICE can provide the optical programmer tool and coding software, and deliver remote technical guidance as needed. Most clients choose pre-coded cables to save labor and prevent coding faults.
Q8: Does installing third-party 100G QSFP28 DACs automatically void my switch OEM hardware warranty? A: Most major network OEMs do not void the whole warranty just for using compatible third-party DACs, but hardware damage caused by defective cabling may be excluded. Tested HYTOPTODEVICE 100G QSFP28 passive dac cable reduces this deployment risk for enterprise purchasers.
Q9: Why do some switch firmware upgrades break compatibility with third-party 100G DACs? A: Major firmware releases sometimes tighten transceiver authentication rules, which require updated EEPROM profiles from your cable supplier. HYTOPTODEVICE continuously updates our signature library to keep compatibility with new EOS, NX-OS and Junos firmware builds.
Q10: What details should I send to the cable vendor to guarantee perfect switch compatibility before shipment? A: Prepare your switch brand, exact model number, running firmware release and target compatible OEM part number. Send these specs to HYTOPTODEVICE, and we will pre-program your 100G QSFP28 passive dac cable to fit your environment before dispatch.
Q11: What BER level can I expect from your factory-tested 100G QSFP28 passive DAC cables? A: HYTOPTODEVICE 100G QSFP28 passive dac cable maintains BER below 1×10⁻¹² under full bandwidth load, meeting standard data center performance requirements. Every batch undergoes signal testing to sustain stable low-error leaf-spine fabric operation.
Q12: Why cannot this 100G QSFP28 passive DAC work with PAM4 signaling for newer high-speed links? A: This passive DAC is engineered for 25G NRZ lanes used in 100GBASE-CR4 and lacks electrical characteristics for PAM4 modulation. HYTOPTODEVICE supplies separate PAM4-capable cable options for 400G network projects on request.
Q13: What shielding construction is implemented to isolate high-speed lanes and suppress crosstalk? A: Our 100G QSFP28 passive dac cable uses individual foil shielding for each twinax pair plus an overall braided shield layer. This dual shielding design controls crosstalk and EMI in densely packed 100G server racks.
Q14: Are active 100G DAC cables built with retimer or DSP chips, and do they have higher failure rates? A: Active 100G DAC relies on internal retimer chips for signal recovery and amplification. Extra semiconductor components create more failure points compared with all-copper passive designs. HYTOPTODEVICE recommends passive DAC for short rack links for better long-term reliability.
Q15: What is the minimum bend radius requirement for your 100G QSFP28 passive DAC cables? A: The minimum safe bend radius for HYTOPTODEVICE 100G QSFP28 passive dac cable is 35 mm. Bending tighter than this value deforms internal conductors and increases bit error rates over long run times.
