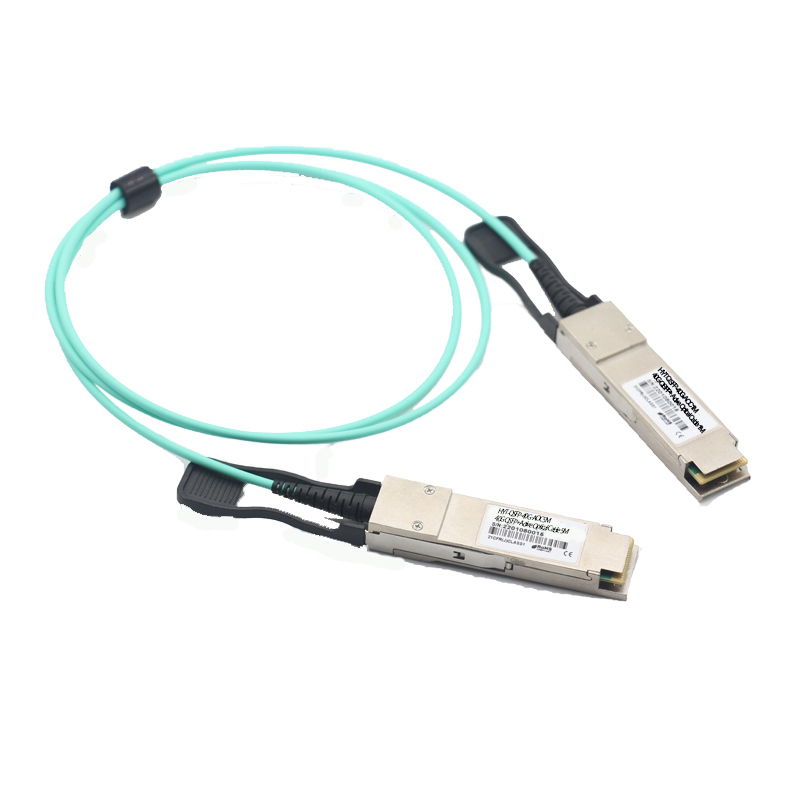

QSFP-H40G-AOC5M  Cisco Compatible 40G QSFP+ TO QSFP+ Active Optical Cable 5m(16ft) Bulk Wholesale | HYTOPTODEVICE

HYTOPTODEVICE supplies QSFP+ Active Optical Cable 40G 5m, Cisco QSFP-H40G-AOC5M compatible 5m 40G QSFP+ AOC, 40GBASE-SR4 parallel multimode fiber, EMI immune, hot pluggable, DDM monitoring supported. Private label and custom EEPROM programming available, ideal for data center leaf-spine uplink, HPC cluster and storage SAN interconnection, bulk wholesale, sample available, flexible MOQ.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-H40G-AOC5M
2 Arista Networks AOC-Q-Q-40G-5M
3  Dell (Force10) CBL-QSFP-40GE-5M
4 Juniper Networks  JNP-40G-AOC-5M
5 NVIDIA/Mellanox  MFS4R12CB-005
6 H3C QSFP-40G-D-AOC-5M
7 Extreme  40GB-F05-QSFP
8 Brocade  40G-QSFP-QSFP-AOC-0501
Description

QSFP-H40G-AOC5M Cisco Compatible 40G QSFP+ TO QSFP+ Active Optical Cable 5m(16ft) Bulk Wholesale | HYTOPTODEVICE


Product Overview

This QSFP+ Active Optical Cable 40G 5m is a Cisco compatible 5m QSFP+ to QSFP+ active optical cable, fully coded to match Cisco QSFP-H40G-AOC5M. Built with 850nm VCSEL parallel optical engine, it delivers stable 40Gbps full-duplex transmission, free from electromagnetic interference, perfect for medium-range rack-to-rack interconnection inside data centers. HYTOPTODEVICE supports private label and custom EEPROM programming, pre-tested AOC with bulk order support and fast sample delivery.

Key Technical Specifications

Cisco Compatible
QSFP-40G-AOC5M
Vendor Name HYTOPTODEVICE
Connector QSFP+ to QSFP+ Max Data Rate 40Gbps
Operating Wavelength 850nm Fiber Cable OM3 MMF
Cable Length 5m (16ft) Power Consumption ≤1.4W
Jacket Material OFNP Operation Temperature 0~ 70 °C (32 to 158°F)
Minimum Bend Radius 30mm Protocols 10G/40Gigabit Ethernet or Fibre Channel
Application
InfinibandQDR/DDR/SDR,40G Ethernet,Data Center,Fibre
Channel
Warranty 5 Years

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Handle connectors by latch only; avoid pulling the cable jacket.
  • Respect minimum bend radius; prevent sharp bends causing optical loss.
  • Keep away from high heat and switch exhaust airflow.
  • Maintain clean connector contacts; use proper optical cleaning tools.
  • Set port speed to 40G before installation, follow vendor port config guide.
  • Do not cut, splice or modify the AOC assembly.
  • Route loosely; avoid over-tight cable ties.
  • Periodically check DDM readings for link health monitoring.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Cisco Hardware & Firmware

  • Cisco Nexus 9000 Series: N9K-C93180YC-EX, N9K-C9372PX, N9K-C9396PX, N9K-C93108TC-EX
  • Cisco Nexus 7000 Series: N7K-F348XP-25, N7K-M348XP-25L
  • Cisco Catalyst 9500 Series: C9500-16X, C9500-24X, C9500-32C
  • Cisco UCS 6300 / 6400 Fabric Interconnects: UCS-FI-6332, UCS-FI-6454
  • Cisco MDS 9000 Series: MDS 9706, MDS 9710, MDS 9250i
  • Cisco ASR 1000 Series: ASR1001-X, ASR1002-X
  • Cisco NCS 5500 Series: NCS-5501-SE, NCS-5502-SE

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this QSFP+ Active Optical Cable 40G 5m can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios
  • Data center leaf-spine 40G uplink interconnection
  • High performance computing HPC cluster networking
  • Storage area network SAN and server rack connectivity
  • Enterprise high-density switch interlinks
  • 40G Ethernet fabric deployment

Connectivity Solutions(Applications)

1. 40G to 40G Direct Link for Switch-Switch
hytoptodevice 40g qsfp+ active optical cable  link for switch to switch

2. 40G to 40G Direct Link for Switch-NIC
hytoptodevice, 40g qsfp+ to qsfp+ active fiber optic cable supplier


The Core Feature

1. Simplified Short-Reach Interconnect

Using AOC way replaces traditional solution, makes short-reach easy, no cleaning, lower total cost. perfect for In-rack & adjacent-rack links.

hytoptodevie compatible 40g qsfp+ aoc active optical cable for 40G Ethernet upgrade

2. High Density & Low Power 40G Connectivity for Data Center

Lightweight fiber construction and low power consmuption, easy for high-density cable management in data center.


3.Pre-Tested on Real Switches

Each 40G QSFP+  AOC cable is validated on actual host switches before delivery — instant link-up, zero surprises, zero downtime, guaranteeing flawless operation.


4. 100% Unit-Level Testing — Zero Sampling

Every single unit is individually validated for optical compliance and long-term stability before packing — no batch sampling, no shortcuts, no exceptions. Unit after unit, the performance stays identical. Take a virtual tour of our Test Center.

HYTOPTODEVICE, 40G QSFP+  AOC active fiber optic cable manufacturer, test every cable before shipment



FAQS

Q1: What distance range can this 40G QSFP+ AOC solution support for data center links? A: Standard 40G QSFP+ AOC products can cover transmission lengths from 1m up to 100m using OM3 or OM4 multimode fiber. HYTOPTODEVICE QSFP+ Active Optical Cable 40G 5m works well for medium inter-rack links and intra-rack connections where copper DAC suffers from severe signal attenuation.

Q2: Can this Cisco compatible 5m 40G AOC be deployed in outdoor or unconditioned storage rooms? A: No, regular data center-grade AOC such as our Cisco QSFP-H40G-AOC5M compatible QSFP+ Active Optical Cable 40G 5m is designed only for indoor climate-controlled environments within 0°C–70°C. Outdoor installation needs armored rugged fiber cables paired with separate transceivers.

Q3: What damage risks exist when pulling this AOC hard during cabling layout? A: No, AOC structures cannot withstand large pulling tension. Excessive force on the outer jacket while routing may separate internal fiber cores from the transceiver module, please carefully deploy our Cisco compatible QSFP+ Active Optical Cable 40G 5m on site.

Q4: Will adjacent power cables create signal interference for this 40G QSFP+ AOC? A: No. AOC transmits data via light signals over glass fiber instead of electrical signals, so it is fully resistant to EMI and RFI interference. This feature keeps our QSFP+ Active Optical Cable 40G 5m stable in densely cabled power cabinets.

Q5: Is QSFP+ Active Optical Cable 40G 5m suitable for low-latency HPC and trading cluster connections? A: Yes. Its low latency, lightweight structure and anti-interference characteristics make HYTOPTODEVICE QSFP+ Active Optical Cable 40G 5m a preferred solution for HPC clusters and data center core backbone connections.

Q6: What should I check before running third-party 40G AOC on Cisco switching platforms? A: You need to select the variant pre-coded for your target switch brand when placing orders. Uncoded or wrongly programmed cables may trigger port shutdown. Our Cisco compatible QSFP+ Active Optical Cable 40G 5m comes with pre-written EEPROM matching Cisco IOS requirements.

Q7: Could firmware upgrades on Cisco switches cause compatibility issues for aftermarket 40G AOC? A: Premium AOC built with MSA-compliant EEPROM chips can withstand most routine minor firmware upgrades. Rare strict vendor security patches may block non-original modules. Every QSFP-H40G-AOC5M compatible QSFP+ Active Optical Cable 40G 5m from us follows MSA specs for better firmware compatibility.

Q8: Can onsite technicians rewrite the EEPROM on this AOC to match other switch vendors later? A: No, ordinary AOC cannot be easily reflashed on-site without professional programming hardware. You should confirm the required compatibility before ordering. HYTOPTODEVICE can provide corresponding technical support according to customer requirements, including coding boards and coding software for EEPROM programming.

Q9: Do open networking operating systems like SONiC support MSA-compliant 40G QSFP+ AOC? A: Yes. Open networking operating systems usually do not enforce strict vendor lock-in restrictions. Generic or openly coded AOC can plug and play smoothly. Our Cisco compatible QSFP+ Active Optical Cable 40G 5m also delivers stable performance on open-source network OS platforms.

Q10: Do both ends of this direct 40G AOC link need matching EEPROM configuration? A: Yes, the EEPROM configuration on each cable end must match the switch model it connects to. Our sales team can verify coding requirements for your Cisco switches when you place bulk orders for QSFP+ Active Optical Cable 40G 5m.

Q11: Which rack environment factors will trigger overheating of QSFP+ AOC transceivers? A: The built-in thermal design maintains normal operation within the rated 0°C–70°C range. Sealed racks with zero airflow will raise transceiver temperature rapidly. You can monitor DDM metrics of our QSFP+ Active Optical Cable 40G 5m to prevent overheating risks.

Q12: Will prolonged high ambient temperature shorten the service life of 40G QSFP+ AOC? A: Long-term operation near or above the 70°C upper limit will gradually degrade the internal laser diode and reduce service life. Our QSFP+ Active Optical Cable 40G 5m passes full temperature cycling testing to guarantee long operating lifespan.

Q13: Are low-power 40G AOC options available for energy-saving data center builds? A: Yes. Advanced CMOS chipset designs help cut power consumption. Our Cisco QSFP-H40G-AOC5M compatible QSFP+ Active Optical Cable 40G 5m controls power draw below 1.4W to support energy-efficient data center builds.

Q14: What internal harm can squeezing or heavy pressure bring to a QSFP+ active optical cable? A: Yes. Squeezing or stepping on the AOC may crack internal glass fibers and break the data path, even if no obvious damage appears on the outer jacket. Proper cable management is essential to protect our QSFP+ Active Optical Cable 40G 5m.

Q15: How many plug cycles can the pull tab latch on these 40G QSFP+ AOC connectors support? A: Standard pull-release latches are designed for routine data center maintenance, supporting roughly 50–100 insertion cycles. Rough pulling may break the latch assembly. Every QSFP+ Active Optical Cable 40G 5m from HYTOPTODEVICE goes through latch inspection before shipment.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

HYTOPTODEVICE HIGHT-QUALITY package for 25G SFP28 ACTIVE OPTICAL CABLE


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center


Application and Manufacturing Process
