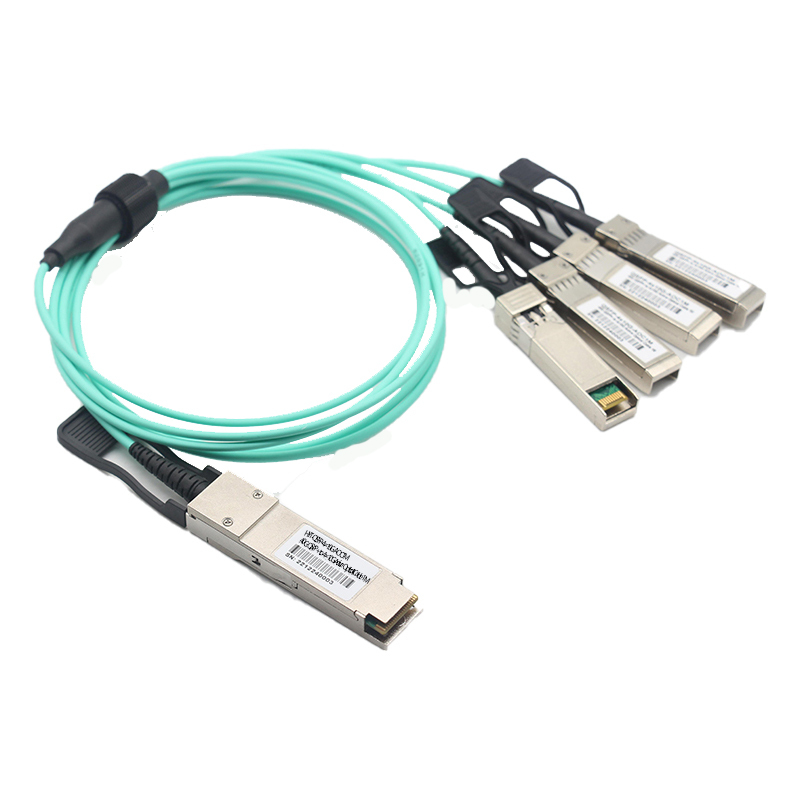

Cisco QSFP-4X10G-AOC30M Compatible 40G QSFP+ to Four 10G SFP+ Breakout Active Optical Cable 30m(98ft) Bulk Wholesale | HYTOPTODEVICE

HYTOPTODEVICE is a trusted 40G QSFP+ BREAKOUT active optical cable 30m supplier, supplying Cisco QSFP-4X10G-AOC30M compatible 30m 40G QSFP+ to four 10G SFP+ breakout AOC. It splits one 40G port into four independent 10G lanes, built with 850nm multimode fiber, EMI immune, hot pluggable and DDM monitoring supported. Custom EEPROM programming and private label are available. Perfect for long-distance inter-rack data center connections, HPC cluster and SAN deployment. Samples are available with flexible MOQ for bulk wholesale.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco  QSFP-4X10G-AOC30M
2 Arista Networks QSFP-4X10G-AOC30M
3  Dell  CBL-QSFP-4X10G-AOC30M
4 Juniper Networks  JNP-QSFP-AOCBO-30M
5 Extreme 10GB-4-F30-QSFP
6 H3C QSFP-4X10G-D-AOC-30M
7 Brocade  40G-QSFP-4SFP-AOC-3001
Description

Cisco QSFP-4X10G-AOC30M Compatible 40G QSFP+ to Four 10G SFP+ Breakout Active Optical Cable 30m(98ft) Bulk Wholesale | HYTOPTODEVICE

Product Overview

HYTOPTODEVICE acts as a reliable 40G QSFP+ BREAKOUT active optical cable 30m supplier. This Cisco QSFP-4X10G-AOC30M compatible 30m breakout AOC turns a single 40G QSFP+ port into four separate 10G SFP+ channels, adopting 850nm VCSEL multimode fiber for stable long-span transmission within climate-controlled data centers. It is well suited for long cross-rack cabling demands. We support private label, custom EEPROM programming, sample evaluation and bulk wholesale. All cables pass full performance testing before shipment.

Key Technical Specifications

Cisco Compatible
 QSFP-4X10G-AOC30M
Vendor Name HYTOPTODEVICE
Connector QSFP+ to 4 SFP+ Max Data Rate 40Gbps
Operating Wavelength 850nm Fiber Cable OM3 MMF
Cable Length 30m (98ft) Power Consumption ≤1.4W
Jacket Material OFNP Operation Temperature 0~ 70 °C (32 to 158°F)
Minimum Bend Radius 30mm Protocols 10G/40Gigabit Ethernet or Fibre Channel
Application
InfinibandQDR/DDR/SDR,40G Ethernet,Data Center,Fibre
Channel
Warranty 5 Years

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Mandatory Port Breakout Configuration: Ensure the host QSFP+ port supports channelization. Enable breakout mode (4x10G) via the switch CLI before connecting the cable.

  • Cabling Requirements: Do not exceed the minimum 30mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.

  • Port Installation Standard: Do not mix this breakout AOC with straight QSFP+ to QSFP+ AOC configuration.

  • Hot‑swap rule:Never pull or tug directly on the individual breakout legs. Always use the integrated pull-tab or bale latch when inserting or removing connectors.

  • Testing & Storage: Run sample validation on target hardware before large bulk deployment; store spare cables in dry, dust‑free and anti‑static packaging.
  • Operating Environment: 0‑70℃, indoor cabinet deployment only.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Cisco Hardware & Firmware

  • Cisco Nexus 9000 Series: N9K-C93180YC-FX, N9K-C93240YC-FX2
  • Cisco Nexus 5000/5500 Series: N5K-C5596UP, N5K-C5548UP
  • Cisco Nexus 3000 Series: N3K-C3232C, N3K-C3172PQ
  • Cisco UCS 6400 Fabric Interconnects: UCS-FI-6454
  • Cisco MDS 9000 Series: MDS 9706, MDS 9250i
  • Cisco Catalyst 9500 Series: C9500-32C, C9500-48Y4C

2. Multi-Brand Cross Interoperability

 Built on MSA open standards, this 40G QSFP+ BREAKOUT active optical cable supports mixed-vendor networking devices. can interoperate with mainstream network brands including Arista, Brocade, Juniper, Dell, H3C and Fortinet, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios
  • Long inter-rack 40G to 4×10G breakout uplink in data centers
  • HPC cluster server node aggregation
  • SAN storage network port expansion
  • Enterprise switch fabric 10G server access
  • Leaf-spine long-range breakout interconnection

Connectivity Solutions(Applications)

1. 40G to 4x10G Breakout Link for Switch-Switch
hytoptodevice compatible qsfp to four sfp+ active optical breakout cables for 40g switch to swtich

The Core Feature

1. High Density & Low Power 40G Connectivity for Data Center

Lightweight fiber construction and low power consmuption, easy for high-density cable management in data center.



2.Host-Device Tested for Proven Interoperability

Each 40G QSFP+  AOC breakout cable is validated on actual host switches before delivery — instant link-up, zero surprises, zero downtime, guaranteeing flawless operation. Not sure it fits? Compatibility Video available upon request.


3. 100% Individually Tested for Peak Performance

Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our Test Center.

HYTOPTODEVICE  40g QSFP+ to 4 x sfp+ passive dac cable for switches

FAQ

Q1: What bend radius rules should I follow when routing these 30m breakout fiber tails in the server rack? A: Maintain a minimum bend radius of roughly 30mm. Any tighter bending will crack internal glass fibers and permanently damage the link of this 40G QSFP+ BREAKOUT active optical cable 30m from our supplier.

Q2: Can this long 40G breakout AOC run full duplex 40Gbps bandwidth simultaneously across all four 10G lanes? A: Yes, it supports full wire-speed 40Gbps aggregate throughput in bidirectional transmission, with four independent 10G channels running at full speed without bandwidth drop.

Q3: Will the 30-meter cable length bring signal jitter and hurt the stability of optical transmission? A: No. Built-in CDR chips inside optical modules suppress jitter automatically, keeping BER at an ultra-low level for reliable long-distance data center transmission.

Q4: Is it possible to set different working speeds on each SFP+ breakout leg of this 40G fanout AOC? A: No. The 40G QSFP+ port is fixed to split into four 10G channels. Individual breakout ports cannot run at 1G or 25G speeds separately.

Q5: What system logs tell me there is an EEPROM coding mismatch on Cisco compatible breakout AOC? A: Typical warning alerts include "Unsupported transceiver detected", "Security checksum error", or "Unqualified optic detected", which indicate incorrect vendor programming.

Q6: Can these 10G SFP+ breakout leads work with legacy 1G SFP ports on older Cisco switches? A: No. SFP+ hardware is designed for native 10G operation and cannot auto-negotiate down to match 1G SFP interface speeds.

Q7: What will happen if I accidentally insert the 40G QSFP+ main plug into a 100G QSFP28 port? A: QSFP+ follows 40G electrical specifications. It cannot establish stable links inside a 100G QSFP28 port unless you deploy special down-conversion adapters.

Q8: Which Cisco switch commands can verify all four breakout sub-channels are properly identified? A: You can run CLI commands such as show interface status or show inventory to check and confirm all four breakout sub-interfaces appear on the port list.

Q9: Can I cascade multiple breakout AOC cables together to extend the cabling distance for my data center project? A: No. Active optical breakout cables cannot be daisy-chained. Series connection breaks the optical path and causes total link failure.

Q10: What troubleshooting actions should I take if only three breakout links come online after installation? A: Check the switch channelization configuration, reseat each SFP+ connector firmly, and review DOM diagnostic data to find the faulty lane.

Q11: Can heavy squeezing or stepping on the cable jacket destroy the internal fiber strands of this breakout AOC? A: Yes. Crushing force can fracture internal glass fibers. The outer jacket may look intact while the optical transmission path is permanently damaged.

Q12: Will this 30m long breakout AOC bring extra weight and trigger port sag on Cisco switch cages? A: No. AOC fanout cables are far lighter than copper breakout alternatives, removing mechanical strain and port sag issues on switch hardware.

Q13: Can technicians splice and repair this AOC on site if the cable gets pinched or cut during installation? A: No. Transceivers are pre-integrated with the cable assembly. Field splicing is impossible, and damaged AOC units need full replacement.

Q14: What after-sales support can I get if the bulk breakout AOC arrives with wrong vendor EEPROM coding? A: As your 40G QSFP+ BREAKOUT active optical cable 30m supplier, HYTOPTODEVICE offers exchange, return or re-programming service for coding compatibility issues upon delivery.

Q15: Can I order custom non-standard lengths instead of standard stocked sizes for my large data center project? A: Standard lengths including 1m,3m,5m,10m,15m,20m,30m,50m are kept in stock. Custom lengths are available for enterprise orders subject to MOQ rules.


Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.



Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order
