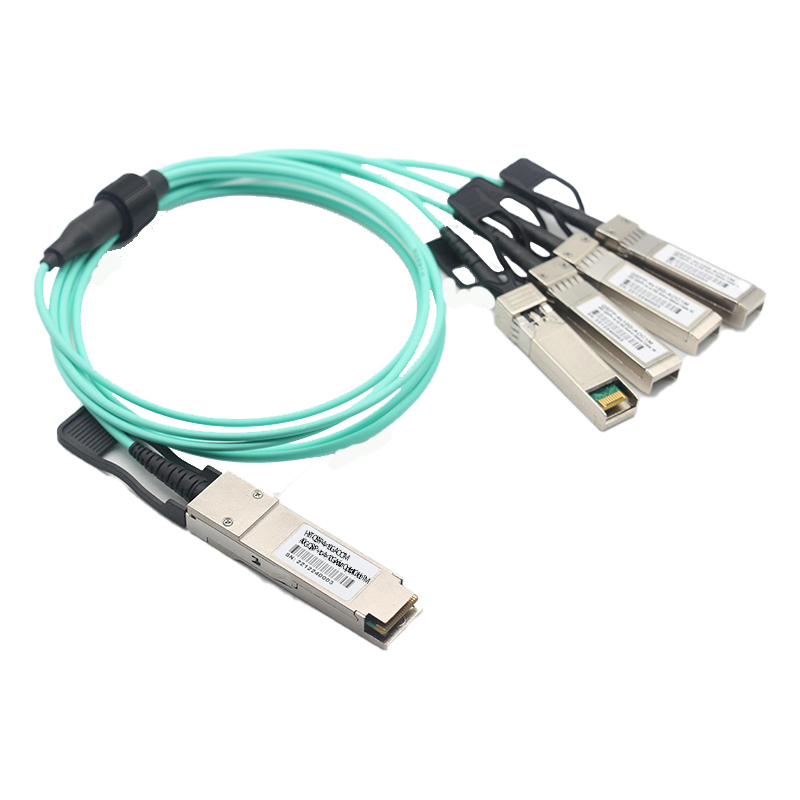

Cisco QSFP-4X10G-AOC1M Compatible 40G QSFP+ to Four SFP+ Active Optical Breakout Cable 1m(3ft) Bulk Wholesale | HYTOPTODEVICE

HYTOPTODEVICE supplies cisco qsfp to four sfp+ active optical breakout cables, Cisco QSFP-4X10G-AOC1M compatible 1m 40G QSFP+ to four SFP+ breakout AOC, 40G split into 4×10G lanes, 850nm multimode fiber, EMI immune, hot pluggable with DDM monitoring. Custom EEPROM programming and private label available, ideal for data center port breakout, server aggregation and SAN interconnection. Factory bulk wholesale, sample available and flexible MOQ.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco  QSFP-4X10G-AOC1M
2 Arista Networks QSFP-4X10G-AOC1M
3  Dell  CBL-QSFP-4X10G-AOC1M
4 Juniper Networks  JNP-QSFP-AOCBO-1M
5 Fortinet FG-TRAN-QSFP-4XSFP
6 H3C QSFP-4X10G-D-AOC-1M
7 Brocade  40G-QSFP-4SFP-AOC-0101
Description

Cisco QSFP-4X10G-AOC1M Compatible 1m 40G QSFP+ to Four SFP+ Active Optical Breakout Cable | HYTOPTODEVICE

Product Overview

HYTOPTODEVICE is a factory provider of cisco qsfp to four sfp+ active optical breakout cables. This Cisco QSFP-4X10G-AOC1M compatible 1m breakout AOC splits one 40G QSFP+ port into four 10G SFP+ channels, adopting 850nm VCSEL multimode fiber for stable transmission. It fits short intra-rack cabinet deployment. We support private label and custom EEPROM programming. All cables pass full testing before shipment, with sample support and direct factory wholesale

Key Technical Specifications

Cisco Compatible
 QSFP-4X10G-AOC1M
Vendor Name HYTOPTODEVICE
Connector QSFP+ to 4 SFP+ Max Data Rate 40Gbps
Operating Wavelength 850nm Fiber Cable OM3 MMF
Cable Length 1m (3ft) Power Consumption ≤1.4W
Jacket Material OFNP Operation Temperature 0~ 70 °C (32 to 158°F)
Minimum Bend Radius 30mm Protocols 10G/40Gigabit Ethernet or Fibre Channel
Application
InfinibandQDR/DDR/SDR,40G Ethernet,Data Center,Fibre
Channel
Warranty 5 Years

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Mandatory Port Breakout Configuration: Ensure the host QSFP+ port supports channelization. Enable breakout mode (4x10G) via the switch CLI before connecting the cable.

  • Cabling Requirements: Do not exceed the minimum 30mm bend radius, avoid sharp folding, heavy extrusion or long-term tension on the cable assembly.

  • Port Installation Standard: Do not mix this breakout AOC with straight QSFP+ to QSFP+ AOC configuration.

  • Hot‑swap rule:Never pull or tug directly on the individual breakout legs. Always use the integrated pull-tab or bale latch when inserting or removing connectors.

  • Testing & Storage: Run sample validation on target hardware before large bulk deployment; store spare cables in dry, dust‑free and anti‑static packaging.
  • Operating Environment: 0‑70℃, indoor cabinet deployment only.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Cisco Hardware & Firmware

  • Cisco Nexus 9000 Series: N9K-C93180YC-FX, N9K-C93240YC-FX2
  • Cisco Nexus 5000/5500 Series: N5K-C5596UP, N5K-C5548UP
  • Cisco Nexus 3000 Series: N3K-C3232C, N3K-C3172PQ
  • Cisco UCS 6400 Fabric Interconnects: UCS-FI-6454
  • Cisco MDS 9000 Series: MDS 9706, MDS 9250i
  • Cisco Catalyst 9500 Series: C9500-32C, C9500-48Y4C

2. Multi-Brand Cross Interoperability

 Built on MSA open standards, this cisco qsfp to four sfp+ active optical breakout cables supports mixed-vendor networking devices. can interoperate with mainstream network brands including Arista, Brocade, Juniper, Dell, H3C and Fortinet, for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios

  • Intra-rack & short inter-rack 40G to 4×10G breakout uplink in data centers
  • HPC cluster server node aggregation
  • SAN storage network port expansion
  • Enterprise switch fabric 10G server access
  • Leaf-spine medium-distance breakout interconnection

Connectivity Solutions(Applications)

1. 40G to 4x10G Breakout Link for Switch-Switch
hytoptodevice compatible qsfp to four sfp+ active optical breakout cables for 40g switch to swtich

The Core Feature

1. High Density & Low Power 40G Connectivity for Data Center

Lightweight fiber construction and low power consmuption, easy for high-density cable management in data center.



2.Host-Device Tested for Proven Interoperability

Each 40G QSFP+  AOC breakout cable is validated on actual host switches before delivery — instant link-up, zero surprises, zero downtime, guaranteeing flawless operation. Not sure it fits? Compatibility Video available upon request.


3. 100% Individually Tested for Peak Performance

Every single unit is tested individually — no sampling, no shortcuts — to ensure optical compliance and continuous operational stability. Curious how we do it? Take a virtual tour of our Test Center.

HYTOPTODEVICE  40g QSFP+ to 4 x sfp+ passive dac cable for switches

FAQ

Q1: What is the main function of this 40G QSFP+ to four SFP+ breakout AOC?
A: It splits one 40G QSFP+ port into four independent 10G SFP+ links. This cisco qsfp to four sfp+ active optical breakout cables helps expand port count without extra transceivers for server access.

Q2: Can this breakout AOC be used outdoors or in uncontrolled environments?
A: No. This HYTOPTODEVICE breakout AOC is only for indoor climate-controlled data centers (0℃~70℃), without armored or waterproof protection.

Q3: Must I enable breakout mode on Cisco switches for this cable?
A: Yes. Breakout configuration commands are required under NX-OS/IOS; otherwise the four 10G branches cannot link up.

Q4: Can I set different speeds on the four SFP+ breakout tails?
A: Not recommended. This breakout AOC is calibrated for synchronized 10G lanes. Mismatched speed settings will cause link instability.

Q5: Does this 40G breakout AOC comply with MSA standards?
A: Yes. Optical and electrical interfaces follow SFF MSA specs for reliable interoperability with standard ports.

Q6: What to check first if one 10G channel fails to link?
A: Check breakout mode, EEPROM coding, connector seating and DDM optical power. Dirty end faces on individual pigtails often cause single-channel failure.

Q7: Is this integrated breakout AOC the same as a breakout transceiver plus patch cords?
A: No. It is an all-in-one active optical assembly, saving cabinet space and simplifying cable management.

Q8: Does each 10G channel support jumbo frames?
A: Yes. Every 10G channel forwards Ethernet frames transparently, supporting 9000-byte jumbo frames without packet loss.

Q9: Will bending or squeezing the split pigtails damage internal fiber?
A: Yes. Sharp bends or compression can crack internal glass fiber and lead to permanent signal loss on that channel.

Q10: Is breakout AOC lighter than copper breakout DAC?
A: Yes. Fiber AOC is much lighter, reducing port stress and sag risk on switch cages.

Q11: When should I choose copper breakout DAC instead?
A: Copper breakout DAC works better for ultra-short runs, with zero power consumption and lower cost. AOC is preferred for EMI-heavy cabinets.

Q12: When to use separate breakout transceiver plus fiber patch cords?
A: Separate optics and patch cords suit patch panel routing, or when you only need to replace one damaged fiber run.

Q13: How to test all four 10G channels before production deployment?
A: Test on staging switches, confirm all links stay up, check zero CRC errors and verify DOM readings for each channel.

Q14: What support do you offer for incompatible EEPROM coding?
A: HYTOPTODEVICE provides EEPROM re-programming, exchange and technical support for cisco qsfp to four sfp+ active optical breakout cables.

Q15: How is the power consumption compared with four standalone SFP+ transceivers?
A: This unified breakout AOC consumes under 1.4W total, saving power and producing less heat than four separate 10G SFP+ optics.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.



Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
