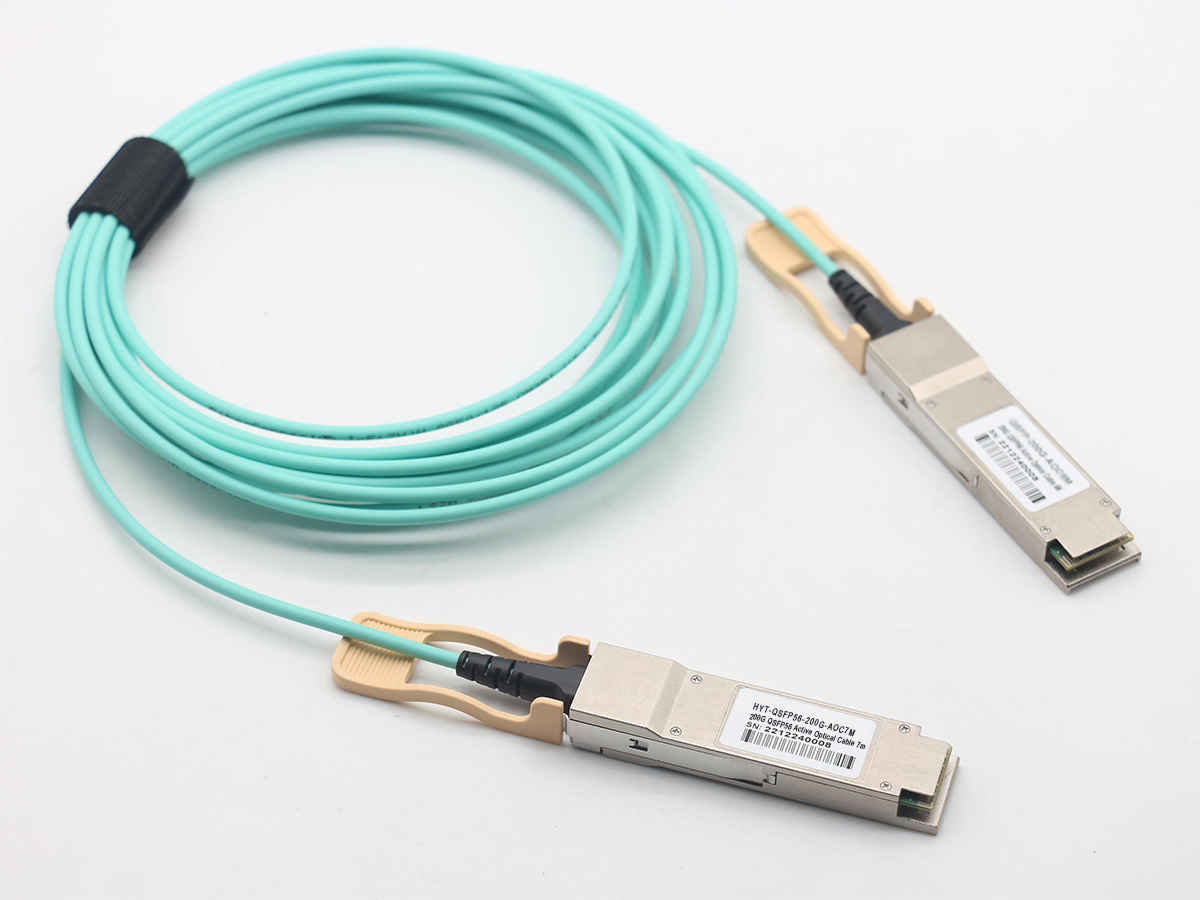

7m(23ft) Cisco Compatible 200G QSFP56 to QSFP56 PAM4 AOC Cable Bulk Wholesale | HYTOPTODEVICE

HYTOPTODEVICE offers wholesale 200g qsfp56 aoc. 7m Cisco compatible 200G QSFP56 to QSFP56 PAM4 AOC, EMI immune, DDM monitoring supported. Custom EEPROM, private label, sample available, flexible MOQ for bulk wholesale.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP56-200G-AOC7M
2 Arista Networks A-Q200-Q200-7M
3 HPE Aruba QSFP56-200G-AOC7M
4 Intel QSFP56-200G-AOC7M
5 NVIDIA/Mellanox MFS1S00-V007E
6 H3C QSFP56-200G-AOC7M
Description

7m(23ft) Cisco Compatible 200G QSFP56 to QSFP56 PAM4 AOC Cable Bulk Wholesale | HYTOPTODEVICE


Product Overview

HYTOPTODEVICE provides reliable wholesale 200g qsfp56 aoc for AI GPU clusters and data center contractors. This 7m Cisco compatible 200G QSFP56 to QSFP56 PAM4 active optical cable delivers full 200G PAM4 bandwidth for medium cross-rack interconnection. Built with 850nm VCSEL OM4 multimode fiber, it fits leaf-spine networking fabrics, high-performance AI servers and SAN storage interlinks. We support sample testing, custom EEPROM programming, OEM private labeling and flexible MOQ for bulk orders. Every cable passes full line-rate PAM4 burn-in testing before delivery.

Key Technical Specifications

Cisco Compatible
QSFP56-200G-AOC7M
Vendor Name HYTOPTODEVICE
Connector QSFP56 to QSFP56 Max Data Rate 200Gbps
Operating Wavelength 850nm Fiber Cable OM4 MMF
Cable Length 7m (23ft) Power Consumption ≤4.5W
Host Required FEC Operation Temperature 0~ 70 °C (32 to 158°F)
Minimum Bend Radius 30mm Protocols IEEE 802.3, QSFP56 MSA, SFF-8665, SFF-8636
Application
200G-SR4 Ethernet
Warranty 5 Years

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Handle connectors by latch only; avoid pulling the cable jacket.
  • Respect minimum bend radius; prevent sharp bends causing optical loss.
  • Keep away from high heat and switch exhaust airflow.
  • Maintain clean connector contacts; use proper optical cleaning tools.
  • Set port speed to 200G before installation, follow vendor port config guide.
  • Do not cut, splice or modify the AOC assembly.
  • Route loosely; avoid over-tight cable ties.
  • Periodically check DDM readings for link health monitoring.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Cisco Hardware & Firmware

  • Cisco Nexus 9000 Series
  • Cisco Nexus 9800 Series
  • Cisco UCS C-Series Servers
  • Cisco MDS Storage Switches
  • Cisco Catalyst 9600 Series

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this wholesale 200g qsfp56 aoc supports mixed-vendor networking hardware. It can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, suitable for mixed-vendor rack stacking and AI server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios
  • Medium cross-rack 200G PAM4 uplink in AI and high-density data centers
  • HPC & AI computing cluster server interconnection
  • High-speed SAN storage network links
  • Leaf-spine architecture medium-range fabric interconnection
  • 200G server to switch cross-rack connection

Connectivity Solutions(Applications)

1. 200G to 200G Direct Link for Switch-Switch
hytoptodevice 200g qsfp56 aoc for switch to switch link

2. 200G to 200G Direct Link for Switch-NIC
200g qsfp56 active optical cable link for switch to NIC


The Core Feature

1. Direct Substitute for 200G QSFP56 SR4

All-in-one AOC replaces standalone SR4 modules. No extra fiber assembly, simpler deployment for 200G leaf-spine connections.

HYTOPTODEVICE efficient 200g qsfp56 aoc solution replace traditonal one

2. High Bandwidth, Low Latency & Low Power

Supports full 200G bandwidth with minimized signal delay. Optimized power design cuts thermal load for short and dense rack deployment.

high bandwidth and low power 200g qsfp56 aoc supply from hytoptodevice

3.Host Validated with Proven Multi-Vendor Interoperability

Full compatibility testing on host equipment, eliminates integration risks for 200G QSFP56 connections.


4. Full Pre-production Testing for Consistent Quality

Every cable undergoes comprehensive testing before shipment to guarantee stable quality.

HYTOPTODEVICE, 200G QSFP56 to qsfp56  AOC active fiber optic cable manufacturer, test every cable before shipment



FAQS

Q1: Can this 7m Cisco 200G QSFP56 AOC link up with QSFP28 equipped network switches? A: No. QSFP56 and QSFP28 have different electrical pin definitions. This Cisco compatible 200G QSFP56 AOC from our wholesale 200g qsfp56 aoc lineup cannot connect to legacy QSFP28 ports, an important note for data center upgrade planning.

Q2: Does this 7-meter active optical cable run on PAM4 modulation? A: Yes. This AOC is designed for native 200G PAM4 signaling at 850nm wavelength. Our 7m Cisco compatible AOC leverages PAM4 encoding to reach full 200G throughput, ideal for wholesale buyers building medium-distance GPU cluster interconnections.

Q3: Can you customize EEPROM data to match the requirement of different switch brands? A: Yes. Custom EEPROM configuration is available for bulk wholesale orders. HYTOPTODEVICE programs the EEPROM for Cisco and other mainstream platforms to skip vendor alert popups for this wholesale 200g qsfp56 aoc.

Q4: Is real-time DDM/DOM diagnostic reading available on this 200G AOC? A: Yes. DDM/DOM function is fully enabled on both ends. Network engineers can check live optical power, module temperature and supply voltage of this 7m 200G QSFP56 AOC to simplify regular data center health audits.

Q5: What FEC configuration delivers stable and error-free 200G transmission? A: RS-FEC is recommended for reliable 200G links. This Cisco compatible AOC performs best with RS-FEC activated on Cisco switches, lowering transmission error risks for continuous AI training and HPC workloads.

Q6: What is the maximum transmission distance supported by this OM4 200G QSFP56 AOC type? A: The maximum reach for OM4 multimode 200G QSFP56 AOC is 100m. This 7m stock model from our wholesale 200g qsfp56 aoc range fits medium cross-rack deployments, and longer cable options are available on request.

Q7: What BER performance can wholesale purchasers expect from this 200G AOC? A: BER is guaranteed ≤1e-15 after FEC correction. Every unit in our wholesale 200g qsfp56 aoc stock passes BER testing before shipment to satisfy strict error transmission standards for financial and HPC networking environments.

Q8: Will prolonged heat exposure degrade the internal optical fiber of this AOC over its service life? A: No, when operated within the 0~70℃ rated temperature range. The internal glass fiber features stable thermal properties. If kept away from sustained overheating, this 200G QSFP56 AOC maintains steady performance for years of continuous data center operation.

Q9: What fiber grade is incorporated inside this QSFP56 to QSFP56 AOC assembly? A: It uses OM4 multimode fiber paired with 850nm VCSEL. This standard fiber specification delivers consistent signal quality for our Cisco compatible 200G QSFP56 AOC, widely selected by wholesale buyers sourcing multimode 200G active optical cables.

Q10: Does this cable support automatic rate negotiation between 100G and 200G switch interfaces? A: No. This AOC is fixed-rate 200G PAM4. It cannot auto-negotiate down to 100G speed, so network architects need to verify both connected ports support 200G when placing wholesale orders for this 200g qsfp56 aoc.

Q11: Why select 200G AOC instead of 200G DAC copper cable for cross-rack cabling? A: AOC works better for medium cross-rack layouts. Copper DAC is limited by crosstalk and short reach, while this lightweight Cisco compatible AOC comes with EMI immunity and flexible routing for dense AI server cabinets.

Q12: Is an integrated AOC easier to deploy than separate transceivers plus MPO fiber patch cords? A: Yes. AOC is a pre-assembled all-in-one optical assembly. It removes extra fiber splicing and manual patching work, making our HYTOPTODEVICE 200G QSFP56 AOC a time-saving choice for fast wholesale data center rollouts.

Q13: When managing high-density racks, is AOC easier for cable routing than rigid twinax DAC? A: Yes. AOC has a smaller outer diameter than stiff twinax copper DAC. This 7m Cisco compatible AOC simplifies cable routing and improves internal airflow inside tightly packed server racks.

Q14: What minimum bend radius must installers observe during cable routing work? A: Minimum bend radius is 30mm. Bending tighter than this threshold will introduce extra optical loss. Installation teams must follow this specification during cabling projects for this 200G QSFP56 AOC.

Q15: How careful must installation crews be to avoid harming the internal optical fiber core? A: It has moderate toughness but cannot withstand sharp impacts or crushing. The internal glass fiber may crack under heavy pulling or squeezing. Our HYTOPTODEVICE 200G QSFP56 AOC works reliably with gentle handling, while rough installation will damage the optical path.


Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

HYTOPTODEVICE HIGHT-QUALITY package for 25G SFP28 ACTIVE OPTICAL CABLE


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
