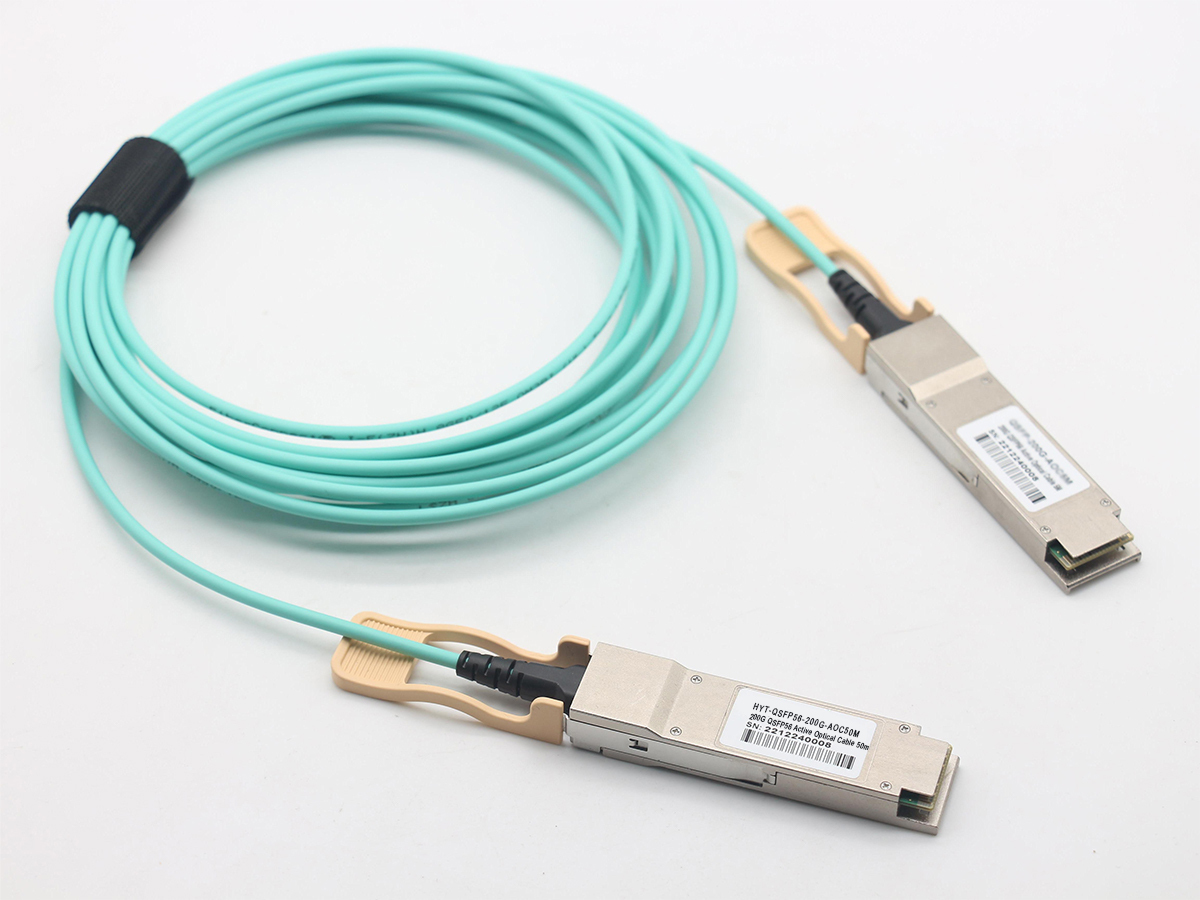

50m(164ft) Cisco Compatible 200G QSFP56 to QSFP56 Active Optical Cable PAM4 Bulk Wholesale | HYTOPTODEVICE

HYTOPTODEVICE supplies cisco 200g qsfp56 active optical cable 50m. This Cisco compatible 50m 200G QSFP56 PAM4 AOC supports Ethernet and InfiniBand HDR100, EMI immune, DDM monitoring available. Custom EEPROM, private label, sample available, flexible MOQ for bulk wholesale.HYTOPTODEVICE supplies cisco 200g qsfp56 active optical cable 50m. This Cisco compatible 50m 200G QSFP56 PAM4 AOC supports Ethernet and InfiniBand HDR100, EMI immune, DDM monitoring available. Custom EEPROM, private label, sample available, flexible MOQ for bulk wholesale.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP56-200G-AOC50M
2 Arista Networks A-Q200-Q200-50M
3 HPE Aruba QSFP56-200G-AOC50M
4 Intel QSFP56-200G-AOC50M
5 NVIDIA/Mellanox MFS1S00-V50E
6 H3C QSFP56-200G-AOC50M
Description

50m(164ft) Cisco Compatible 200G QSFP56 to QSFP56 Active Optical Cable PAM4 Bulk Wholesale | HYTOPTODEVICE


Product Overview

HYTOPTODEVICE provides reliable cisco 200g qsfp56 active optical cable 50m for data center buyers. This Cisco compatible 50m 200G QSFP56 to QSFP56 PAM4 active optical cable delivers full 200G PAM4 bandwidth, compatible with both Ethernet and InfiniBand HDR100. Adopting OM4 multimode fiber, it works well for cross-row and inter-room connections in large data centers and GPU HPC clusters. We support sample testing, custom EEPROM programming, OEM private labeling and flexible MOQ for bulk wholesale. Every cable passes full line-rate PAM4 burn-in testing before shipment.

Key Technical Specifications

Cisco Compatible
QSFP56-200G-AOC50M
Vendor Name HYTOPTODEVICE
Connector QSFP56 to QSFP56 Max Data Rate 200Gbps
Operating Wavelength 850nm Fiber Cable OM4 MMF
Cable Length 50m (164ft) Power Consumption ≤4.5W
Host Required FEC Operation Temperature 0~ 70 °C (32 to 158°F)
Minimum Bend Radius 30mm Protocols IEEE 802.3, QSFP56 MSA, SFF-8665, SFF-8636
Application
200G-SR4 Ethernet
Warranty 5 Years

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Handle connectors by latch only; avoid pulling the cable jacket.
  • Respect minimum bend radius; prevent sharp bends causing optical loss.
  • Keep away from high heat and switch exhaust airflow.
  • Maintain clean connector contacts; use proper optical cleaning tools.
  • Set port speed to 200G before installation, follow vendor port config guide.
  • Do not cut, splice or modify the AOC assembly.
  • Route loosely; avoid over-tight cable ties.
  • Periodically check DDM readings for link health monitoring.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Cisco Hardware & Firmware

  • Cisco Nexus 9000 Series
  • Cisco Nexus 9800 Series
  • Cisco UCS C-Series Servers
  • Cisco MDS Storage Switches
  • Cisco Catalyst 9600 Series

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this cisco 200g qsfp56 active optical cable 50m supports mixed-vendor networking hardware. It interoperates smoothly with Arista, NVIDIA, H3C, Juniper, Dell and other mainstream brands, ideal for mixed-brand rack stacking and HPC fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios
  • Long-distance cross-row & inter-room 200G PAM4 uplink in large Ethernet data centers
  • HPC cluster interconnection via InfiniBand HDR100
  • Long span 200G SAN storage high-speed links
  • Leaf-spine architecture extended fabric interconnection
  • 200G adapter to switch long-range cross-room connections

Connectivity Solutions(Applications)

1. 200G to 200G Direct Link for Switch-Switch
hytoptodevice 200g qsfp56 aoc for switch to switch link

2. 200G to 200G Direct Link for Switch-NIC
200g qsfp56 active optical cable link for switch to NIC


The Core Feature

1. Direct Substitute for 200G QSFP56 SR4

All-in-one AOC replaces standalone SR4 modules. No extra fiber assembly, simpler deployment for 200G leaf-spine connections.

HYTOPTODEVICE efficient 200g qsfp56 aoc solution replace traditonal one

2. High Bandwidth, Low Latency & Low Power

Supports full 200G bandwidth with minimized signal delay. Optimized power design cuts thermal load for short and dense rack deployment.

high bandwidth and low power 200g qsfp56 aoc supply from hytoptodevice

3.Host Validated with Proven Multi-Vendor Interoperability

Full compatibility testing on host equipment, eliminates integration risks for 200G QSFP56 connections.


4. Full Pre-production Testing for Consistent Quality

Every cable undergoes comprehensive testing before shipment to guarantee stable quality.

HYTOPTODEVICE, 200G QSFP56 to qsfp56  AOC active fiber optic cable manufacturer, test every cable before shipment



FAQS

Q1: Can QSFP56 AOC transceivers fit QSFP-DD ports and maintain stable 200G links? A: No. QSFP56 and QSFP-DD differ in physical size and pin definition. This cisco 200g qsfp56 active optical cable 50m cannot plug into QSFP-DD slots, a key reminder for operators upgrading mixed-form-factor fabrics.

Q2: Is it possible to split this direct 200G AOC into two separate 100G signal channels? A: No. This non-breakout straight AOC is designed for single-channel transmission. It transmits one unified 200G PAM4 stream and cannot be split into dual 100G links. Contact HYTOPTODEVICE if you need breakout AOC solutions for your deployment.

Q3: Will this AOC trigger unknown module warning notifications on Cisco switching and adapter hardware? A: It will not trigger alerts with our custom EEPROM programming service. HYTOPTODEVICE calibrates module profile data to match Cisco hardware for this cisco 200g qsfp56 active optical cable 50m, simplifying large-scale rack rollout.

Q4: Is this 50m Cisco compatible 200G QSFP56 AOC only designed for Ethernet networking? A: No. This AOC complies with MSA PAM4 specifications and supports both Ethernet and InfiniBand HDR100, offering flexible deployment options for hybrid data center and HPC environments.

Q5: Can this 200G QSFP56 AOC establish reliable high-speed links between multi-vendor network devices? A: Yes. Built on MSA open standards, this cisco 200g qsfp56 active optical cable 50m provides stable cross-vendor interoperability to connect Cisco, Arista, NVIDIA, Dell and other compatible hardware for mixed-brand fabric construction.

Q6: How does the latency of QSFP56 AOC compare with DAC and standalone optical transceivers in high-speed compute networks? A: AOC latency is slightly higher than DAC, approximately 5–10 ns. This minor opto-electrical conversion delay barely affects Ethernet leaf-spine and InfiniBand HPC workloads, while this 50m AOC delivers much longer reach than copper DAC alternatives.

Q7: What is the power consumption of each end of this 200G AOC, and how does it compare with competing mid-range AOC products? A: Power consumption is 4.5W per end. Our HYTOPTODEVICE 200G QSFP56 AOC adopts optimized circuit design, reducing thermal pressure in dense GPU and server racks compared with many competing AOCs.

Q8: Will electromagnetic interference from nearby power cables disrupt the 200G signal transmitted over this AOC? A: No. Data transmits via light through glass fiber instead of copper conductors. This Cisco compatible AOC is fully EMI immune, suitable for routing near power supplies in high-density, electrically noisy rack spaces.

Q9: What bandwidth capacity can each individual lane support on this 200G QSFP56 active optical cable? A: Each lane supports 50Gbps PAM4. Four parallel lanes combine to reach the full 200G aggregate bandwidth of this cisco 200g qsfp56 active optical cable 50m for compute and storage interconnections.

Q10: Will different OM4 AOC lengths create obvious signal attenuation gaps on 200G PAM4 links? A: Optical loss rises gently with length within OM4’s rated working range. Attenuation stays within acceptable link budget limits; our 50m wholesale stock maintains clean signals for cross-row and inter-room uplinks.

Q11: What advantages make factory pre-terminated AOC a better choice than separate transceivers plus fiber patch cords for medium-long cabling runs? A: Factory-terminated AOC eliminates field splicing risks and cuts installation time. For runs under 100m, this AOC solution works great for large data centers, and HYTOPTODEVICE is your reliable supplier for bulk procurement of this cisco 200g qsfp56 active optical cable 50m.

Q12: If one transceiver end gets damaged, can I replace only that faulty head instead of changing the whole 50m AOC? A: No. The AOC is a sealed integrated optical assembly. Once one transceiver end fails, the entire cable needs replacement. HYTOPTODEVICE keeps stable stock and fast lead times for replacement orders.

Q13: What minimum bend radius should installers follow when routing this 50m AOC through cable trays and server racks? A: The minimum bend radius is 30mm. Bending tighter than this limit will introduce extra optical attenuation. Installers must comply with this cabling requirement for this Cisco compatible 50m AOC.

Q14: Is the pull-tab latch durable enough for frequent hot plugging during regular data center and HPC maintenance cycles? A: It is built for heavy-duty usage. The pull tab is reinforced for repeated plug-and-unplug cycles. Our AOC uses sturdy latch tabs to withstand regular hot swapping in GPU clusters.

Q15: How does the weight of this 50m 200G AOC compare with twinax DAC cables of the same length for rack cabling layouts? A: AOC is much lighter than equivalent twinax DAC. Optical fiber has far lower density than copper, lowering port load and simplifying cable management in densely packed server halls.


Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

HYTOPTODEVICE HIGHT-QUALITY package for 25G SFP28 ACTIVE OPTICAL CABLE


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center


Application and Manufacturing Process
