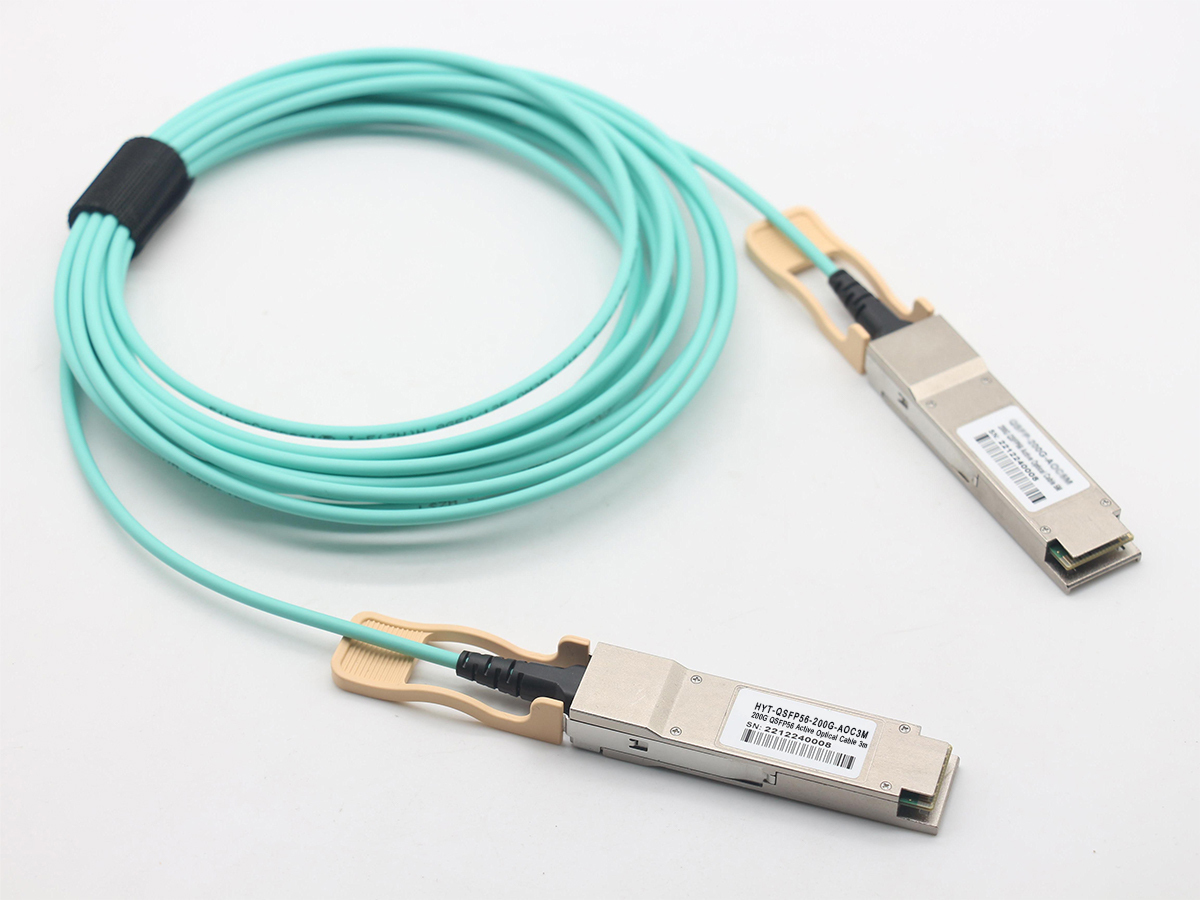

3m(10ft) Cisco Compatible 200G QSFP56 to QSFP56 PAM4 AOC Cable Supply | HYTOPTODEVICE

HYTOPTODEVICE provides reliable 200g qsfp56 aoc supply. 3m Cisco compatible 200G QSFP56 to QSFP56 PAM4 AOC, EMI immune, DDM monitoring supported. Custom EEPROM, private label, sample available, flexible MOQ for bulk wholesale.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP56-200G-AOC3M
2 Arista Networks A-Q200-Q200-3M
3 HPE Aruba QSFP56-200G-AOC3M
4 Intel QSFP56-200G-AOC3M
5 NVIDIA/Mellanox MFS1S00-V003E
6 H3C QSFP56-200G-AOC3M
Description

3m(10ft) Cisco Compatible 200G QSFP56 to QSFP56 PAM4 AOC Cable Supply | HYTOPTODEVICE


Product Overview

HYTOPTODEVICE delivers trusted 200g qsfp56 aoc supply for global AI computing clusterS, data center integrators and Network wholesaler. This 3m Cisco compatible 200G QSFP56 to QSFP56 PAM4 active optical cable supports full 200G PAM4 bandwidth for short cross-rack high-speed interconnection. Built with 850nm VCSEL OM4 multimode fiber, it fits leaf-spine fabrics, GPU AI servers and high-performance storage networking. We offer sample testing, custom EEPROM programming, OEM private labeling and flexible MOQ for bulk orders. Every cable undergoes full line-rate PAM4 burn-in testing before shipment.

Key Technical Specifications

Cisco Compatible
QSFP56-200G-AOC3M
Vendor Name HYTOPTODEVICE
Connector QSFP56 to QSFP56 Max Data Rate 200Gbps
Operating Wavelength 850nm Fiber Cable OM4 MMF
Cable Length 3m (10ft) Power Consumption ≤4.5W
Host Required FEC Operation Temperature 0~ 70 °C (32 to 158°F)
Minimum Bend Radius 30mm Protocols IEEE 802.3, QSFP56 MSA, SFF-8665, SFF-8636
Application
200G-SR4 Ethernet
Warranty 5 Years

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Handle connectors by latch only; avoid pulling the cable jacket.
  • Respect minimum bend radius; prevent sharp bends causing optical loss.
  • Keep away from high heat and switch exhaust airflow.
  • Maintain clean connector contacts; use proper optical cleaning tools.
  • Set port speed to 200G before installation, follow vendor port config guide.
  • Do not cut, splice or modify the AOC assembly.
  • Route loosely; avoid over-tight cable ties.
  • Periodically check DDM readings for link health monitoring.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Cisco Hardware & Firmware

  • Cisco Nexus 9000 Series
  • Cisco Nexus 9800 Series
  • Cisco UCS C-Series Servers
  • Cisco MDS Storage Switches
  • Cisco Catalyst 9600 Series

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this product from our 200g qsfp56 aoc supply supports mixed-vendor networking hardware. It can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, suitable for mixed-vendor rack stacking and AI server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios
  • Short intra-rack 200G PAM4 uplink in AI and high-density data centers
  • HPC & AI computing cluster server interconnection
  • High-speed SAN storage network links
  • Leaf-spine architecture short-range fabric interconnection
  • 200G server to switch direct connection

Connectivity Solutions(Applications)

1. 200G to 200G Direct Link for Switch-Switch
hytoptodevice 200g qsfp56 aoc for switch to switch link

2. 200G to 200G Direct Link for Switch-NIC
200g qsfp56 active optical cable link for switch to NIC


The Core Feature

1. Direct Substitute for 200G QSFP56 SR4

All-in-one AOC replaces standalone SR4 modules. No extra fiber assembly, simpler deployment for 200G leaf-spine connections.

HYTOPTODEVICE efficient 200g qsfp56 aoc solution replace traditonal one

2. High Bandwidth, Low Latency & Low Power

Supports full 200G bandwidth with minimized signal delay. Optimized power design cuts thermal load for short and dense rack deployment.

high bandwidth and low power 200g qsfp56 aoc supply from hytoptodevice

3.Host Validated with Proven Multi-Vendor Interoperability

Full compatibility testing on host equipment, eliminates integration risks for 200G QSFP56 connections.


4. Full Pre-production Testing for Consistent Quality

Every cable undergoes comprehensive testing before shipment to guarantee stable quality.

HYTOPTODEVICE, 200G QSFP56 to qsfp56  AOC active fiber optic cable manufacturer, test every cable before shipment



FAQS

Q1: Can this 200G QSFP56 AOC interoperate with existing QSFP28 network switches? A: No. QSFP56 and QSFP28 use different electrical pin layouts. This Cisco compatible 200G QSFP56 AOC from our 200g qsfp56 aoc supply cannot establish links with legacy QSFP28 ports, a key point for teams upgrading old rack infrastructure.

Q2: Is PAM4 modulation supported by this 3m Cisco compatible AOC? A: Yes. This cable is engineered for 200G PAM4 at 850nm wavelength. Our 3m Cisco compatible AOC relies on PAM4 encoding to reach full 200G throughput, perfect for buyers sourcing high-bandwidth AI cluster interconnects.

Q3: Do you provide tailored EEPROM coding for specific switch brands during bulk procurement? A: Yes. Custom EEPROM configuration is available for bulk purchases. HYTOPTODEVICE calibrates the EEPROM for Cisco and other mainstream platforms so this AOC avoids vendor firmware alerts as part of our 200g qsfp56 aoc supply.

Q4: Can I read digital diagnostic data via DDM/DOM on this 200G AOC? A: Yes. DDM/DOM is fully functional on both ends. Network engineers can check real-time optical power, temperature and voltage of this 3m 200G QSFP56 AOC to simplify daily data center health audits.

Q5: What FEC setting should I turn on for stable 200G link operation? A: RS-FEC is recommended for reliable 200G links. This Cisco compatible AOC performs best with RS-FEC activated on Cisco switches, reducing error risk for continuous GPU training workloads in HPC environments.

Q6: What distance limit can this type of 200G QSFP56 AOC reach with OM4 fiber? A: The maximum reach for OM4 multimode 200G QSFP56 AOC is 100m. This 3m stock model from our 200g qsfp56 aoc supply suits short cross-rack runs, and longer options are available for larger fabric layouts.

Q7: What level of bit error rate can buyers expect from this 200G active optical cable? A: BER is guaranteed ≤1e-15 after FEC. Every unit in our 200g qsfp56 aoc supply passes BER testing before shipment to satisfy strict error-free transmission requirements for financial and HPC networks.

Q8: Will long-term heat exposure degrade the internal fiber of this AOC over years of use? A: No, when operated within 0~70℃ rated temperature. The internal glass fiber has stable thermal properties. If kept away from sustained overheating, this 200G QSFP56 AOC maintains steady performance for years of data center operation.

Q9: Which fiber medium is integrated inside this QSFP56 to QSFP56 AOC assembly? A: It adopts OM4 multimode fiber paired with 850nm VCSEL. This standard fiber ensures consistent signal quality for our Cisco compatible 200G QSFP56 AOC, widely selected by buyers sourcing multimode 200G active optical cables.

Q10: Does this cable support rate auto-negotiation between 100G and 200G ports? A: No. This AOC is fixed-rate 200G PAM4. It cannot auto-negotiate down to 100G, so network planners need to verify both switch ports support 200G when ordering this product from our 200g qsfp56 aoc supply.

Q11: What advantages make 200G AOC a better pick compared with 200G DAC copper cables? A: AOC is more suitable for cross-rack routing. Copper DAC has crosstalk issues and tight distance limits, while this lightweight Cisco compatible AOC features EMI immunity and flexible routing for dense AI server cabinets.

Q12: Is the all-in-one AOC design easier to deploy than separate transceivers plus MPO patch cords? A: Yes. An AOC is an all-in-one pre-assembled optical solution. It removes separate fiber splicing and patching work, making our HYTOPTODEVICE 200G QSFP56 AOC a time-saving option for fast data center deployment.

Q13: For crowded racks, is AOC more manageable for cable routing than twinax DAC? A: Yes. AOC has a smaller outer diameter than rigid twinax copper DAC. This 3m Cisco compatible AOC streamlines cable routing and improves airflow inside tightly packed server racks.

Q14: What minimum bend radius must be followed during cable installation? A: Minimum bend radius is 30mm. Bending below this threshold creates extra optical loss. Installation crews must follow this specification during cabling jobs for this 200G QSFP56 AOC.

Q15: How careful do installers need to be to avoid damaging the optical core during routing? A: Moderately durable but not resistant to sharp impact. Internal glass fiber can crack under heavy pulling or crushing. Our HYTOPTODEVICE 200G QSFP56 AOC tolerates careful handling, yet rough installation will damage the optical path.


Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

HYTOPTODEVICE HIGHT-QUALITY package for 25G SFP28 ACTIVE OPTICAL CABLE


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center


Application and Manufacturing Process
