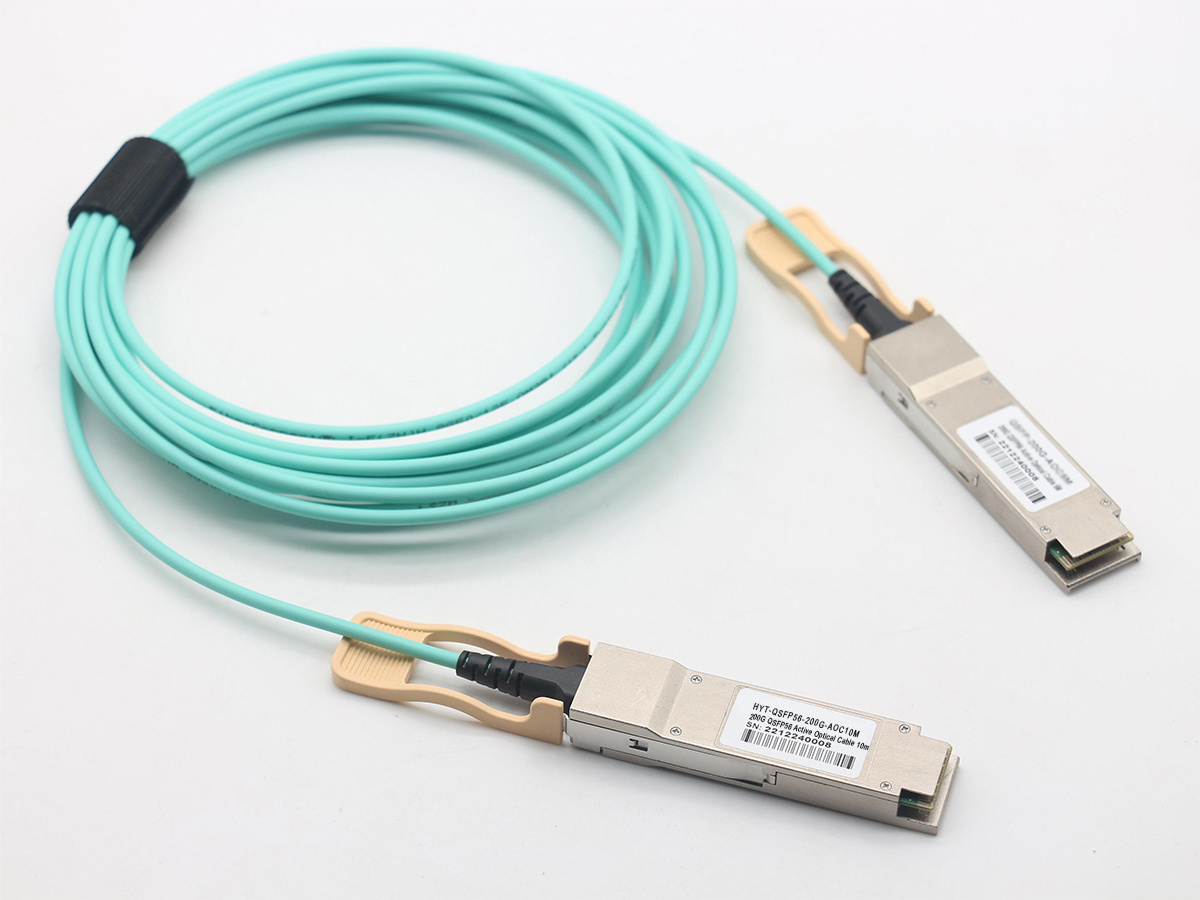

10m(33ft) Cisco Compatible 200G QSFP56 to QSFP56 AOC Active Optical Cable Bulk Wholesale | HYTOPTODEVICE

HYTOPTODEVICE supplies premium 200g qsfp56 aoc active optical cable. 10m Cisco compatible 200G QSFP56 to QSFP56 PAM4 AOC, EMI immune, DDM monitoring supported. Custom EEPROM, private label, sample available, flexible MOQ for bulk wholesale.10m(33ft) Cisco Compatible 200G QSFP56 to QSFP56 AOC Active Optical Cable Bulk Wholesale
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP56-200G-AOC10M
2 Arista Networks A-Q200-Q200-10M
3 HPE Aruba QSFP56-200G-AOC10M
4 Intel QSFP56-200G-AOC10M
5 NVIDIA/Mellanox MFS1S00-V010E
6 H3C QSFP56-200G-AOC10M
Description

10m(33ft) Cisco Compatible 200G QSFP56 to QSFP56 AOC Active Optical Cable Bulk Wholesale | HYTOPTODEVICE


Product Overview

HYTOPTODEVICE offers reliable 200g qsfp56 aoc active optical cable for AI GPU clusters and data center system integrators. This 10m Cisco compatible 200G QSFP56 to QSFP56 PAM4 active optical cable delivers full 200G PAM4 bandwidth for long cross-rack interconnection. Built with 850nm VCSEL OM4 multimode fiber, it suits leaf-spine fabrics, high-density AI servers and SAN storage interconnections. We support sample testing, custom EEPROM programming, OEM private labeling and flexible MOQ for bulk orders. Every cable passes full line-rate PAM4 burn-in testing before shipment.

Key Technical Specifications

Cisco Compatible
QSFP56-200G-AOC10M
Vendor Name HYTOPTODEVICE
Connector QSFP56 to QSFP56 Max Data Rate 200Gbps
Operating Wavelength 850nm Fiber Cable OM4 MMF
Cable Length 10m (33ft) Power Consumption ≤4.5W
Host Required FEC Operation Temperature 0~ 70 °C (32 to 158°F)
Minimum Bend Radius 30mm Protocols IEEE 802.3, QSFP56 MSA, SFF-8665, SFF-8636
Application
200G-SR4 Ethernet
Warranty 5 Years

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Handle connectors by latch only; avoid pulling the cable jacket.
  • Respect minimum bend radius; prevent sharp bends causing optical loss.
  • Keep away from high heat and switch exhaust airflow.
  • Maintain clean connector contacts; use proper optical cleaning tools.
  • Set port speed to 200G before installation, follow vendor port config guide.
  • Do not cut, splice or modify the AOC assembly.
  • Route loosely; avoid over-tight cable ties.
  • Periodically check DDM readings for link health monitoring.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Cisco Hardware & Firmware

  • Cisco Nexus 9000 Series
  • Cisco Nexus 9800 Series
  • Cisco UCS C-Series Servers
  • Cisco MDS Storage Switches
  • Cisco Catalyst 9600 Series

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this 200g qsfp56 aoc active optical cable supports mixed-vendor networking hardware. It can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, suitable for mixed-vendor rack stacking and AI server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios
  • Long cross-rack 200G PAM4 uplink in AI and high-density data centers
  • HPC & AI computing cluster server interconnection
  • High-speed SAN storage network links
  • Leaf-spine architecture long-range fabric interconnection
  • 200G server to switch cross-rack connection

Connectivity Solutions(Applications)

1. 200G to 200G Direct Link for Switch-Switch
hytoptodevice 200g qsfp56 aoc for switch to switch link

2. 200G to 200G Direct Link for Switch-NIC
200g qsfp56 active optical cable link for switch to NIC


The Core Feature

1. Direct Substitute for 200G QSFP56 SR4

All-in-one AOC replaces standalone SR4 modules. No extra fiber assembly, simpler deployment for 200G leaf-spine connections.

HYTOPTODEVICE efficient 200g qsfp56 aoc solution replace traditonal one

2. High Bandwidth, Low Latency & Low Power

Supports full 200G bandwidth with minimized signal delay. Optimized power design cuts thermal load for short and dense rack deployment.

high bandwidth and low power 200g qsfp56 aoc supply from hytoptodevice

3.Host Validated with Proven Multi-Vendor Interoperability

Full compatibility testing on host equipment, eliminates integration risks for 200G QSFP56 connections.


4. Full Pre-production Testing for Consistent Quality

Every cable undergoes comprehensive testing before shipment to guarantee stable quality.

HYTOPTODEVICE, 200G QSFP56 to qsfp56  AOC active fiber optic cable manufacturer, test every cable before shipment



FAQS

Q1: Will form factor and physical dimension differences cause fit issues between QSFP56 AOC and QSFP-DD ports? A: Yes. QSFP56 and QSFP-DD have distinct housing sizes and pin arrangements. This Cisco compatible 200g qsfp56 aoc active optical cable cannot insert into QSFP-DD slots, a critical point for buyers planning mixed-form-factor data center upgrades.

Q2: Can I configure this straight 200G QSFP56 AOC to split into dual independent 100G data streams? A: No. This is a non-breakout direct 200G AOC assembly. It transmits one unified 200G PAM4 signal and cannot separate into two 100G links; contact HYTOPTODEVICE if you need breakout-style 200G AOC solutions.

Q3: Is there a high chance this AOC will trigger unrecognized module alerts on Cisco enterprise switches? A: It will not trigger warnings with our custom EEPROM programming service. HYTOPTODEVICE calibrates module information to match Cisco platforms for this 200g qsfp56 aoc active optical cable, simplifying large-scale rack deployment.

Q4: Can this Cisco 200G QSFP56 AOC support InfiniBand HDR and HDR100 high-speed transmission? A: It works reliably for HDR100 200G transmission on matching QSFP56 ports. This 10m Cisco compatible AOC follows MSA electrical specifications, ideal for hybrid Ethernet and InfiniBand HDR100 HPC cluster interconnections.

Q5: Does this 200G QSFP56 AOC support cross-brand interconnection between different vendor network devices? A: Yes. Designed around MSA open standards, this 200g qsfp56 aoc active optical cable delivers stable cross-vendor interoperability to connect Cisco, Arista, Dell and other compatible hardware for multi-brand fabric builds.

Q6: How does the transmission latency of QSFP56 AOC compare with DAC cables and standalone optical transceivers? A: AOC latency is slightly higher than DAC, roughly 5–10 ns. The small optical-electrical conversion delay is negligible for most AI and HPC workloads, while this 10m AOC provides far longer reach than copper DAC alternatives.

Q7: What is the power draw of each end of this 200G QSFP56 AOC, and how does it compare with competing products? A: Power consumption is 4.5W per end. Our HYTOPTODEVICE 200G QSFP56 AOC features optimized circuitry, delivering lower power consumption than many competing AOC models to reduce rack heat load.

Q8: Will electromagnetic interference from nearby power cables degrade the signal quality of this AOC? A: No. Data travels via light over glass fiber instead of copper conductors. This Cisco compatible AOC is fully EMI immune, making it suitable for routing near power supplies in high-density and electrically noisy rack environments.

Q9: What is the maximum bandwidth each individual lane can support on this 200G QSFP56 AOC? A: Each lane supports 50Gbps PAM4. Four parallel lanes combine to deliver the full 200G aggregate bandwidth of this 200g qsfp56 aoc active optical cable for AI compute and storage interconnections.

Q10: Does cable length difference bring obvious signal attenuation when comparing long and short OM4 AOC variants? A: Optical loss rises marginally with length within OM4’s rated transmission range. The attenuation remains well within acceptable limits; our 10m stock model maintains clean signals for cross-rack leaf-spine uplinks.

Q11: What advantages make integrated AOC a better choice than purchasing two separate 200G transceivers plus fiber patch cords? A: Factory pre-terminated AOC reduces installation steps and potential failure points. For short-distance transmission runs below 30 meters, the AOC solution is highly recommended for data center operators, and our HYTOPTODEVICE 200G QSFP56 AOC is a cost-effective option for bulk rollout.

Q12: If one transceiver connector is damaged, can I just replace the faulty end instead of swapping the whole cable? A: No. The AOC is a sealed integrated optical assembly. If one transceiver end fails, the entire cable needs replacement. HYTOPTODEVICE maintains fast lead times for replacement orders of this 200g qsfp56 aoc active optical cable.

Q13: What minimum bend radius should installers follow when routing this 200G QSFP56 AOC in tight rack spaces? A: The minimum bend radius is 30mm. Bending tighter than this threshold will create extra optical attenuation, installers must follow this specification during cabling for this 10m Cisco compatible AOC.

Q14: Is the pull-tab latch design prone to breakage during frequent hot plugging and maintenance? A: No. The pull tab is reinforced for repeated plug-and-unplug cycles. Our 200g qsfp56 aoc active optical cable uses robust latch tabs to withstand regular hot swapping during data center maintenance.

Q15: How does the weight of a long-length 200G AOC compare to twinax DAC cables of the same length? A: AOC is significantly lighter than equivalent twinax DAC. Optical fiber is much less dense than copper, so even longer AOCs cut port strain and streamline cable management in tall, densely packed server racks.


Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

HYTOPTODEVICE HIGHT-QUALITY package for 25G SFP28 ACTIVE OPTICAL CABLE


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
