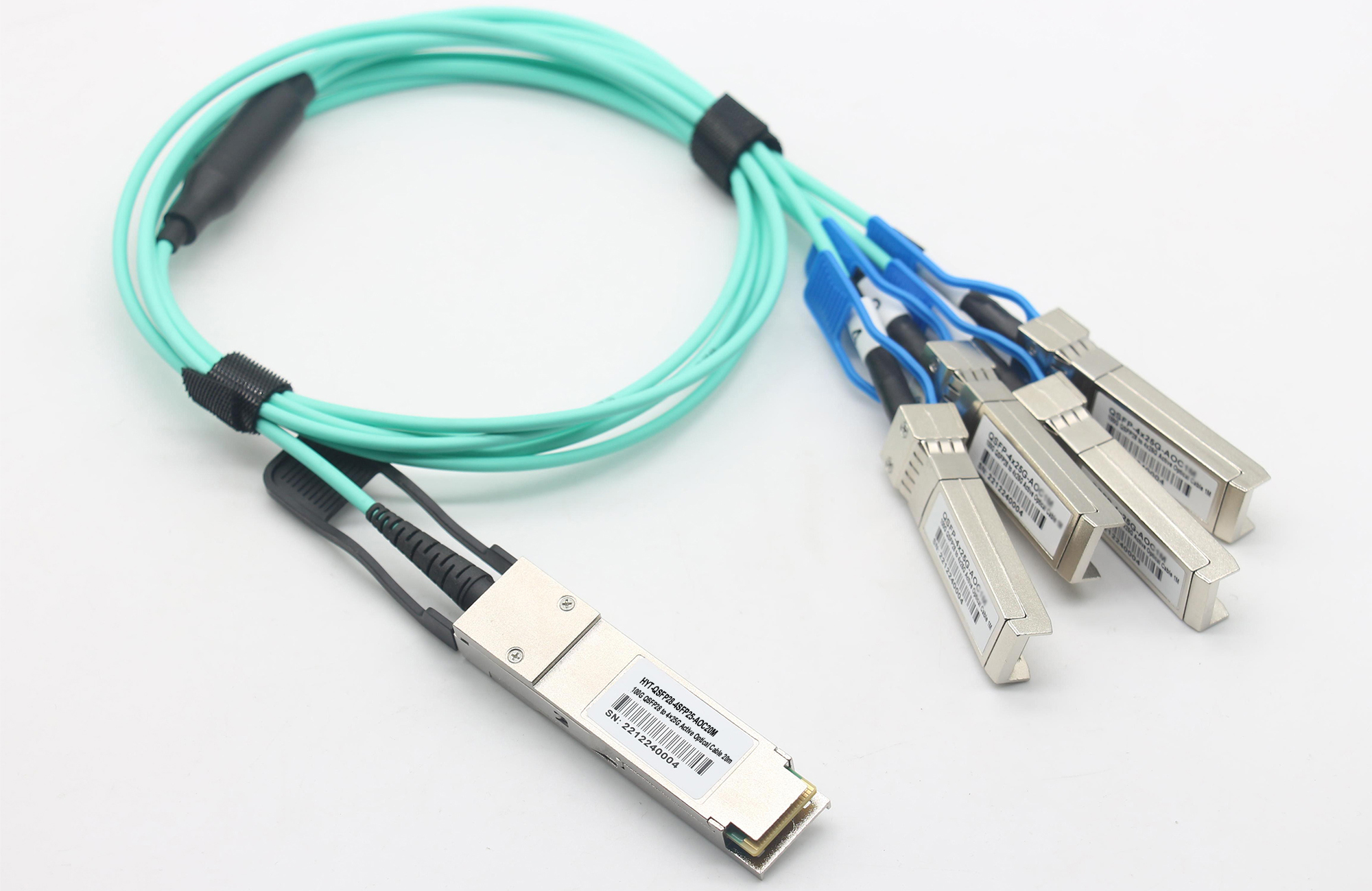

Cisco QSFP-4SFP25G-AOC20M Compatible 100G QSFP28 to SFP28 AOC Cable Supply 20m(66ft) | HYTOPTODEVICE

HYTOPTODEVICE delivers trusted 100G QSFP28 to SFP28 Breakout AOC Cable Supply. Cisco QSFP-4SFP25G-AOC20M compatible 20m 100G QSFP28 to 4×25G SFP28 breakout AOC, EMI immune, DDM supported. Custom EEPROM, private label, sample available, flexible MOQ for bulk wholesale.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-4SFP25G-AOC20M
2 Arista Networks  AOC-Q-4S-100G-20M
3  Dell  AOC-Q28-4SFP28-25G-20M
4 Juniper Networks  JNP-100G-AOCBO-20M
5 NVIDIA/Mellanox  MFA7A50-C020
6 H3C QSFP28-4SFP28-AOC-20M
7 Brocade   100G-Q28-S28-AOC-2001
Description

Cisco QSFP-4SFP25G-AOC20M Compatible 100G QSFP28 to SFP28 AOC Cable Supply 20m(66ft) | HYTOPTODEVICE


Product Overview

HYTOPTODEVICE offers stable 100G QSFP28 to SFP28 Breakout AOC Cable Supply for global data center integrators and operators. This Cisco QSFP-4SFP25G-AOC20M compatible 20m breakout AOC converts one 100G QSFP28 port into four independent 25G SFP28 channels, built with 850nm VCSEL multimode fiber to support mid-long cross-rack interconnections in leaf-spine networks and HPC computing clusters. We support sample evaluation, custom EEPROM coding, private label OEM service and flexible MOQ for bulk purchasing. Every cable passes full line-rate burn-in testing before shipment.

Key Technical Specifications

Cisco Compatible
QSFP-4SFP25G-AOC20M
Vendor Name HYTOPTODEVICE
Connector QSFP28 to 4 x SFP28 Max Data Rate 100Gbps
Operating Wavelength 850nm Fiber Cable OM3 MMF
Cable Length 20m (66ft) Power Consumption 2.2W (QSFP28 End)
0.8W (SFP28 Per End)
Jacket Material OFNP Operation Temperature 0~ 70 °C (32 to 158°F)
Minimum Bend Radius 30mm Protocols QSFP28 MSA, SFP28 MSA
Application
25G/100G Ethernet, InfiniBand QDR
Warranty 5 Years

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Handle connectors by latch only; avoid pulling the cable jacket.
  • Respect minimum bend radius; prevent sharp bends causing optical loss.
  • Keep away from high heat and switch exhaust airflow.
  • Maintain clean connector contacts; use proper optical cleaning tools.
  • Set port speed to 100G before installation, follow vendor port config guide.
  • Do not cut, splice or modify the AOC assembly.
  • Route loosely; avoid over-tight cable ties.
  • Periodically check DDM readings for link health monitoring.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Cisco Hardware & Firmware

  • Cisco Nexus 9000 Series: N9K-C93180YC-FX, N9K-C93240YC-FX2
  • Cisco Nexus 3000 / 3500 Series
  • Cisco UCS 6500 Series Fabric Interconnects
  • Cisco MDS 9700 Series Storage Switches
  • Cisco Catalyst 9600 Series

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this Cisco compatible QSFP28 breakout cable from our QSFP28 to SFP28 Breakout AOC Cable Supply supports mixed-vendor networking hardware. It can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, ideal for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios
  • Long cross-rack 100G to 4×25G breakout uplink in high-density data centers
  • HPC cluster server node aggregation
  • SAN storage network high-speed port expansion
  • Leaf-spine architecture cross-rack interconnection
  • Enterprise 25G server access aggregation

Connectivity Solutions(Applications)

1. 100G to 4 x 25G Direct Link for Switch-Switch

hytoptodevice 100g qsfp28 to four sfp28 breakout cable for data center

2. 100G to 4 x 25G Link for Switch-NIC

hytoptodevice 100g qsfp28 breakout cable for data center


The Core Feature

1. High Density & Low Power 100G Connectivity for Data Center

Lightweight fiber construction and low power consmuption, easy for high-density cable management in data center.

hytoptodevice low power consumption 100g qsfp28 breakout cable for data center

2.Pre-Tested on Real Switches

Each 100G QSFP28  breakout cable is validated on actual host switches before delivery — instant link-up, zero surprises, zero downtime, guaranteeing flawless operation.

hytoptodevice 100g qsfp28 to 4x25G SFP28 aoc breakout cable

3. 100% Unit-Level Testing — Zero Sampling

Every single unit is individually validated for optical compliance and long-term stability before packing — no batch sampling, no shortcuts, no exceptions. Unit after unit, the performance stays identical. Take a virtual tour of our Test Center.

HYTOPTODEVICE, 100G QSFP28  AOC active optical cable manufacturer



FAQS

Q1: Can this 20m Cisco compatible breakout AOC maintain stable links on multi-brand switches for medium-scale data center rollout? A: Yes. This product from our 100G QSFP28 to SFP28 Breakout AOC Cable Supply follows MSA specs. HYTOPTODEVICE provides customized EEPROM coding to guarantee compatibility across Cisco, Arista, Dell and Juniper switches.

Q2: Are bulk 20m 100G breakout AOCs manufactured according to official MSA optical and mechanical specifications? A: Yes. Our breakout AOC strictly complies with SFF-8636 MSA standards. Standardized structure ensures smooth hot plug and stable optical performance for wholesale deployment of our 100G QSFP28 to SFP28 Breakout AOC Cable Supply.

Q3: Can I insert this 100G QSFP28 breakout AOC into a legacy 40G QSFP+ switch port to build a valid network connection? A: No. QSFP28 and QSFP+ adopt different electrical pin definitions. This 20m AOC cannot negotiate valid links without dedicated speed conversion transceivers in our 100G QSFP28 to SFP28 Breakout AOC Cable Supply catalog.

Q4: Which cabling type is more suitable for 20-meter cross-rack links, breakout AOC or copper DAC? A: AOC is the practical option for 20m runs. Copper DAC suffers serious signal attenuation at this distance, while our HYTOPTODEVICE breakout AOC from the 100G QSFP28 to SFP28 Breakout AOC Cable Supply is EMI immune and keeps steady 25G speed per channel.

Q5: When should network designers select MTP trunk fiber instead of plug-and-play 100G breakout AOC for rack interconnection? A: Choose MTP trunk for frequently adjusted, long-distance cabling layouts. This 20m QSFP28 breakout AOC from our 100G QSFP28 to SFP28 Breakout AOC Cable Supply works great for fixed plug-and-play 100G to 4×25G fanout connections.

Q6: Why can’t 100G DAC twinax reach the same transmission distance as this breakout AOC in our 100G QSFP28 to SFP28 Breakout AOC Cable Supply? A: 100G signals run at higher frequencies with obvious crosstalk. Copper twinax cannot sustain signal integrity over medium-long distances, while this 20m breakout AOC uses optical transmission to overcome copper distance limitations.

Q7: How to avoid connector strain damage when routing this 1-to-4 SFP28 breakout cable between separated server racks? A: Use cable trays and reserve slack loops. Route four SFP28 pigtails separately, keep 30mm minimum bend radius, and protect the fanout point of this 100G QSFP28 to SFP28 Breakout AOC Cable Supply product.

Q8: What is the power consumption gap between 100G to 4×25G DAC and breakout AOC for mid-long cross-rack links? A: DAC consumes nearly zero power. Our 20m AOC from 100G QSFP28 to SFP28 Breakout AOC Cable Supply draws 2.2W at the QSFP28 host end and 0.8W for each SFP28 breakout end to support stable optical-electrical conversion.

Q9: Will network performance degrade if some SFP28 breakout ports are left unused during installation? A: No. Active channels keep running at full 25G speed. We recommend dust caps on idle SFP28 ports to protect optical interfaces of this bulk cable from our 100G QSFP28 to SFP28 Breakout AOC Cable Supply.

Q10: What quality checks are carried out before breakout AOC delivery to wholesale buyers? A: We run DDM calibration, line-rate burn-in and loopback error testing. Every unit from our 100G QSFP28 to SFP28 Breakout AOC Cable Supply stock passes full inspection before shipment.

Q11: Are third-party compatible breakout AOCs reliable enough for enterprise data center mass deployment? A: Qualified third-party AOCs can match OEM performance. Our wholesale breakout AOC within the 100G QSFP28 to SFP28 Breakout AOC Cable Supply lineup uses MSA-compliant components and custom EEPROM programming to remove switch firmware warning alerts.

Q12: Can this 20m 100G breakout AOC support low-latency block storage traffic for SAN replication jobs? A: Yes. It maintains ultra-low bit error rate. This Cisco compatible breakout AOC from our 100G QSFP28 to SFP28 Breakout AOC Cable Supply delivers stable transmission for SAN replication and large-volume storage data transfer.

Q13: What warranty support is available for bulk orders of this QSFP28 breakout AOC cable? A: We provide long-term warranty support for wholesale purchases. Manufacturing defects on this 20m breakout AOC from our 100G QSFP28 to SFP28 Breakout AOC Cable Supply range qualify for replacement or EEPROM reconfiguration service from HYTOPTODEVICE.

Q14: Can bulk buyers request custom unequal breakout leg lengths for special rack layout requirements? A: Yes. HYTOPTODEVICE accepts custom breakout leg length requests within our 100G QSFP28 to SFP28 Breakout AOC Cable Supply program. Contact our sales team for custom specs and MOQ details.

Q15: What certifications are required for breakout AOC cables exported to overseas data center customers? A: RoHS, CE and FCC are essential certifications. Our wholesale breakout AOC from 100G QSFP28 to SFP28 Breakout AOC Cable Supply holds these certificates to meet global environmental and EMC compliance requirements for data center deployment.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

HYTOPTODEVICE HIGHT-QUALITY package for 25G SFP28 ACTIVE OPTICAL CABLE


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center


Application and Manufacturing Process
