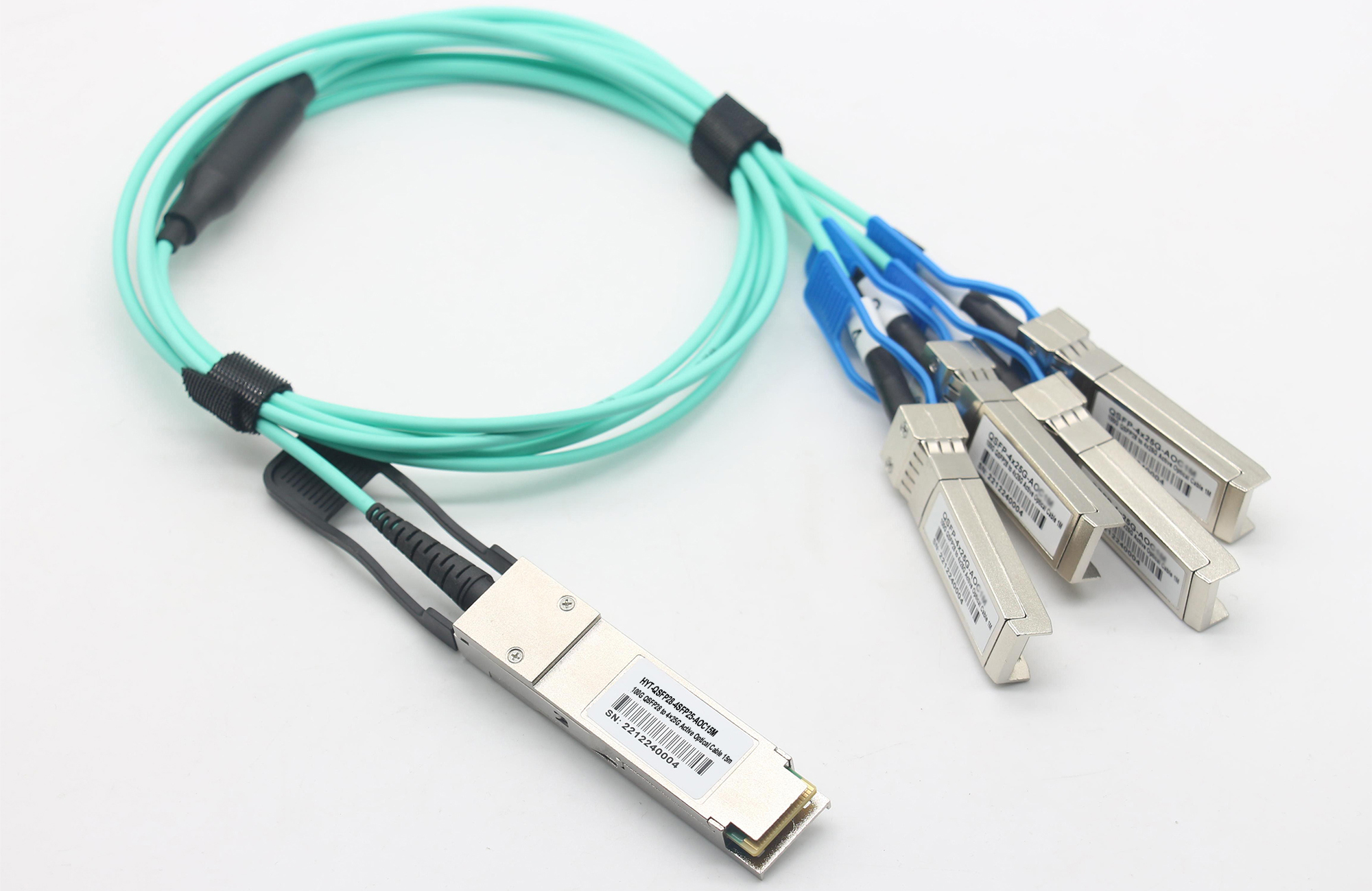

Cisco QSFP-4SFP25G-AOC15M Compatible 100G QSFP28 to SFP28 Breakout AOC Cable Wholesale 15m(49ft) | HYTOPTODEVICE

HYTOPTODEVICE provides reliable qsfp28 to sfp28 breakout aoc cable wholesale. Cisco QSFP-4SFP25G-AOC15M compatible 15m 100G QSFP28 to 4×25G SFP28 breakout AOC, EMI immune, DDM supported. Custom EEPROM, private label, sample available, flexible MOQ for bulk orders.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-4SFP25G-AOC10M
2 Arista Networks  AOC-Q-4S-100G-10M
3  Dell  AOC-Q28-4SFP28-25G-10M
4 Juniper Networks  JNP-100G-AOCBO-10M
5 NVIDIA/Mellanox  MFA7A50-C010
6 H3C QSFP28-4SFP28-AOC-10M
7 Brocade   100G-Q28-S28-AOC-1001
Description

Cisco QSFP-4SFP25G-AOC15M Compatible 100G QSFP28 to SFP28 Breakout AOC Cable Wholesale 15m(49ft) | HYTOPTODEVICE


Product Overview

HYTOPTODEVICE delivers dependable qsfp28 to sfp28 breakout aoc cable wholesale for global data center operators and system integrators. This Cisco QSFP-4SFP25G-AOC15M compatible 15m breakout AOC splits one 100G QSFP28 port into four independent 25G SFP28 channels, built with 850nm VCSEL multimode fiber to support long cross-rack interconnections in leaf-spine fabrics and HPC clusters. We offer sample testing, custom EEPROM programming, private label OEM service and flexible MOQ for bulk purchasing. Every cable completes full line-rate burn-in testing before delivery.

Key Technical Specifications

Cisco Compatible
QSFP-4SFP25G-AOC15M
Vendor Name HYTOPTODEVICE
Connector QSFP28 to 4 x SFP28 Max Data Rate 100Gbps
Operating Wavelength 850nm Fiber Cable OM3 MMF
Cable Length 15m (49ft) Power Consumption 2.2W (QSFP28 End)
0.8W (SFP28 Per End)
Jacket Material OFNP Operation Temperature 0~ 70 °C (32 to 158°F)
Minimum Bend Radius 30mm Protocols QSFP28 MSA, SFP28 MSA
Application
25G/100G Ethernet, InfiniBand QDR
Warranty 5 Years

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Handle connectors by latch only; avoid pulling the cable jacket.
  • Respect minimum bend radius; prevent sharp bends causing optical loss.
  • Keep away from high heat and switch exhaust airflow.
  • Maintain clean connector contacts; use proper optical cleaning tools.
  • Set port speed to 100G before installation, follow vendor port config guide.
  • Do not cut, splice or modify the AOC assembly.
  • Route loosely; avoid over-tight cable ties.
  • Periodically check DDM readings for link health monitoring.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Cisco Hardware & Firmware

  • Cisco Nexus 9000 Series: N9K-C93180YC-FX, N9K-C93240YC-FX2
  • Cisco Nexus 3000 / 3500 Series
  • Cisco UCS 6500 Series Fabric Interconnects
  • Cisco MDS 9700 Series Storage Switches
  • Cisco Catalyst 9600 Series

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this Cisco compatible QSFP28 breakout cable from our qsfp28 to sfp28 breakout aoc cable wholesale lineup supports mixed-vendor networking hardware. It can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, ideal for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios
  • Long cross-rack 100G to 4×25G breakout uplink in high-density data centers
  • HPC cluster server node aggregation
  • SAN storage network high-speed port expansion
  • Leaf-spine architecture cross-rack interconnection
  • Enterprise 25G server access aggregation

Connectivity Solutions(Applications)

1. 100G to 4 x 25G Direct Link for Switch-Switch

hytoptodevice 100g qsfp28 to four sfp28 breakout cable for data center

2. 100G to 4 x 25G Link for Switch-NIC

hytoptodevice 100g qsfp28 breakout cable for data center


The Core Feature

1. High Density & Low Power 100G Connectivity for Data Center

Lightweight fiber construction and low power consmuption, easy for high-density cable management in data center.

hytoptodevice low power consumption 100g qsfp28 breakout cable for data center

2.Pre-Tested on Real Switches

Each 100G QSFP28  breakout cable is validated on actual host switches before delivery — instant link-up, zero surprises, zero downtime, guaranteeing flawless operation.

hytoptodevice 100g qsfp28 to 4x25G SFP28 aoc breakout cable

3. 100% Unit-Level Testing — Zero Sampling

Every single unit is individually validated for optical compliance and long-term stability before packing — no batch sampling, no shortcuts, no exceptions. Unit after unit, the performance stays identical. Take a virtual tour of our Test Center.

HYTOPTODEVICE, 100G QSFP28  AOC active optical cable manufacturer



FAQS

Q1: Can this 15m Cisco compatible breakout AOC run stably on multi-vendor switches for data center expansion projects? A: Yes. This unit from our qsfp28 to sfp28 breakout aoc cable wholesale range follows MSA specifications. HYTOPTODEVICE provides customized EEPROM coding to ensure seamless compatibility across Cisco, Arista, Dell and Juniper switching platforms.

Q2: Are bulk 15m 100G breakout AOCs engineered to meet official MSA optical and mechanical standards? A: Yes. Our breakout AOC strictly complies with SFF-8636 MSA requirements. Standardized form factor ensures smooth hot plug and consistent optical performance for large-scale deployment of our qsfp28 to sfp28 breakout aoc cable wholesale products.

Q3: Can I plug this 100G QSFP28 breakout AOC into a legacy 40G QSFP+ switch port to establish a data link? A: No. QSFP28 and QSFP+ feature different electrical pin assignments. This 15m AOC cannot negotiate valid connections without dedicated speed conversion transceivers in our qsfp28 to sfp28 breakout aoc cable wholesale catalog.

Q4: Which cabling option works better for 15-meter cross-rack links: breakout AOC or copper DAC? A: AOC is the reliable choice for 15m runs. Copper DAC suffers severe signal attenuation at this length, while our HYTOPTODEVICE breakout AOC from the qsfp28 to sfp28 breakout aoc cable wholesale stock is EMI immune and maintains steady 25G speed per channel.

Q5: When should infrastructure engineers select MTP trunk fiber instead of plug-and-play 100G breakout AOC for rack interconnection? A: Choose MTP trunk for reconfigurable, longer-distance cabling layouts. This 15m QSFP28 breakout AOC from our qsfp28 to sfp28 breakout aoc cable wholesale offering suits fixed plug-and-play 100G to 4×25G fanout connections.

Q6: Why is the maximum reach of 100G DAC twinax shorter than traditional 10G DAC cables? A: 100G signaling operates at higher frequencies with greater crosstalk. Copper twinax fails to preserve signal integrity over extended distances, while this 15m breakout AOC within our qsfp28 to sfp28 breakout aoc cable wholesale portfolio uses optical transmission to bypass copper distance limits.

Q7: How to prevent connector tension damage when routing a 1-to-4 SFP28 breakout cable across multiple server racks? A: Use cable trays and reserve slack loops. Route four SFP28 pigtails separately, maintain 30mm minimum bend radius, and protect the fanout point of this qsfp28 to sfp28 breakout aoc cable wholesale product.

Q8: What is the power consumption difference between 100G to 4×25G DAC and breakout AOC for cross-rack interconnections? A: DAC draws nearly zero power. Our 15m AOC from qsfp28 to sfp28 breakout aoc cable wholesale consumes 2.2W at the QSFP28 host end and 0.8W for each SFP28 breakout end to support stable optical-electrical conversion.

Q9: Will transmission speed drop if some SFP28 breakout ports remain unused during deployment? A: No. Active channels keep running at full 25G speed. We recommend dust caps on idle SFP28 ports to protect optical interfaces of this bulk breakout AOC from our qsfp28 to sfp28 breakout aoc cable wholesale supply.

Q10: What quality tests are performed before breakout AOC shipment to wholesale buyers? A: We carry out DDM calibration, line-rate burn-in and loopback error testing. Every unit from our qsfp28 to sfp28 breakout aoc cable wholesale inventory passes full inspection before dispatch.

Q11: Are third-party compatible breakout AOCs suitable for enterprise data center mass rollout? A: Qualified third-party AOCs deliver OEM-comparable performance. Our wholesale breakout AOC in qsfp28 to sfp28 breakout aoc cable wholesale adopts MSA-compliant components and custom EEPROM programming to eliminate switch firmware warning alerts.

Q12: Can this 15m 100G breakout AOC support low-latency block storage traffic in SAN environments? A: Yes. It maintains ultra-low bit error rate. This Cisco compatible breakout AOC from our qsfp28 to sfp28 breakout aoc cable wholesale lineup supports reliable SAN replication and high-volume storage data transfer.

Q13: What warranty terms apply to bulk orders of this QSFP28 breakout AOC cable? A: We provide long-term warranty support for wholesale purchases. Manufacturing defects on this 15m breakout AOC from our qsfp28 to sfp28 breakout aoc cable wholesale range qualify for replacement or EEPROM reconfiguration service from HYTOPTODEVICE.

Q14: Can wholesale buyers request custom unequal breakout leg lengths for unique rack layout designs? A: Yes. HYTOPTODEVICE accepts custom breakout leg length requests within our qsfp28 to sfp28 breakout aoc cable wholesale program. Reach out to our sales team for custom specs and MOQ details.

Q15: Which global certifications are required for breakout AOC cables exported to overseas data center clients? A: RoHS, CE and FCC are essential certifications. Our wholesale breakout AOC from qsfp28 to sfp28 breakout aoc cable wholesale holds these certificates to satisfy global environmental and EMC compliance requirements for data center deployment.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

HYTOPTODEVICE HIGHT-QUALITY package for 25G SFP28 ACTIVE OPTICAL CABLE


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center


Application and Manufacturing Process
