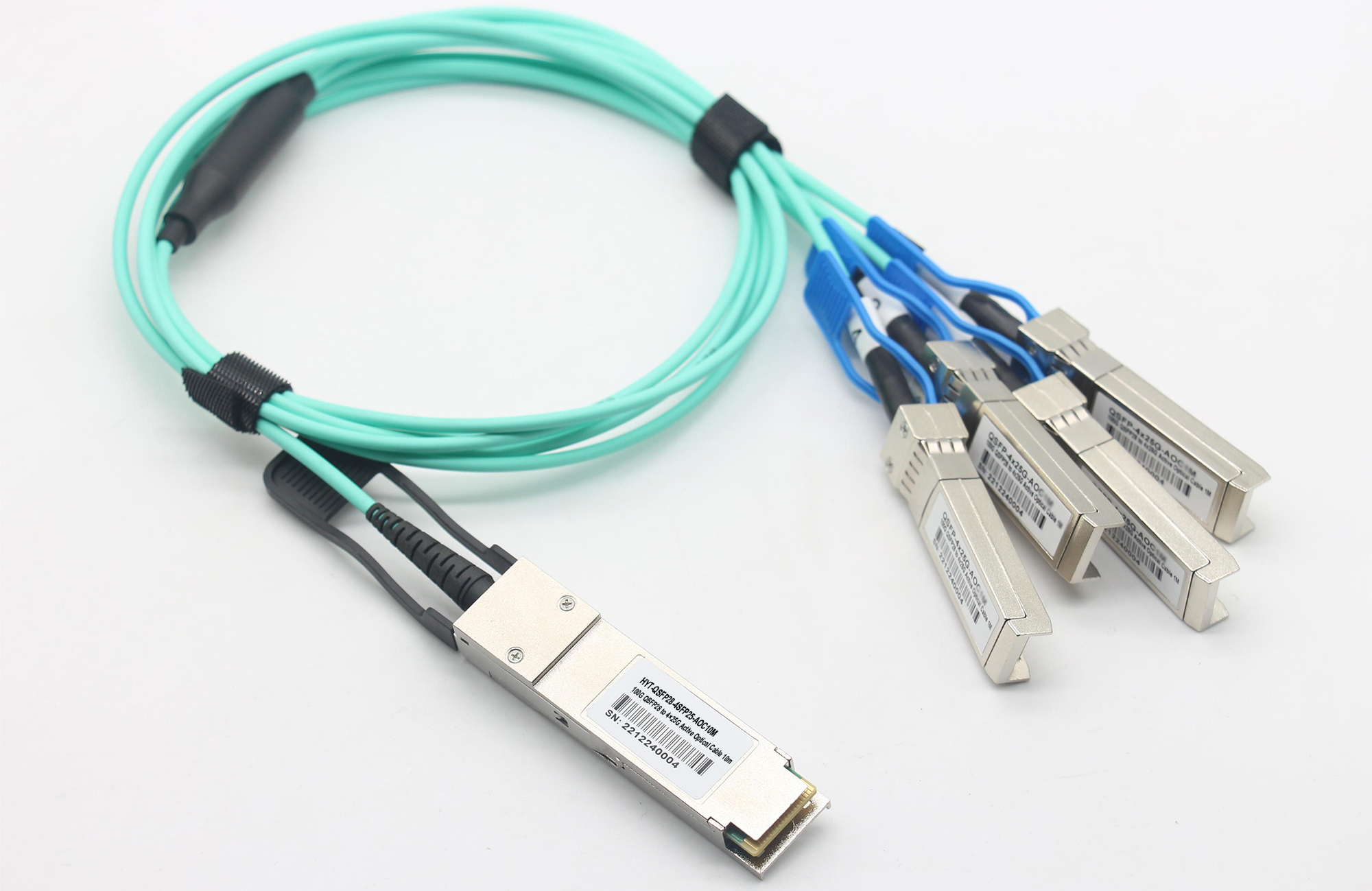

Cisco QSFP-4SFP25G-AOC10M Compatible 100G QSFP28 to SFP28 Breakout AOC Cable Supply 10m(33ft) | HYTOPTODEVICE

HYTOPTODEVICE delivers reliable QSFP28 to SFP28 Breakout AOC Cable Supply. Cisco QSFP-4SFP25G-AOC10M compatible 10m 100G QSFP28 to 4×25G SFP28 breakout AOC, EMI immune, DDM supported. Custom EEPROM, private label, sample available, flexible MOQ for bulk wholesale.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-4SFP25G-AOC10M
2 Arista Networks  AOC-Q-4S-100G-10M
3  Dell  AOC-Q28-4SFP28-25G-10M
4 Juniper Networks  JNP-100G-AOCBO-10M
5 NVIDIA/Mellanox  MFA7A50-C010
6 H3C QSFP28-4SFP28-AOC-10M
7 Brocade   100G-Q28-S28-AOC-1001
Description

Cisco QSFP-4SFP25G-AOC10M Compatible 100G QSFP28 to SFP28 Breakout AOC Cable Supply 10m(33ft) | HYTOPTODEVICE


Product Overview

HYTOPTODEVICE offers stable QSFP28 to SFP28 Breakout AOC Cable Supply for global data center buyers. This Cisco QSFP-4SFP25G-AOC10M compatible 10m breakout AOC converts one 100G QSFP28 port into four independent 25G SFP28 channels, built with 850nm VCSEL multimode fiber for long cross-rack connections in leaf-spine networks and HPC clusters. We support sample evaluation, custom EEPROM coding, private label OEM service and flexible MOQ for bulk purchasing. Every cable passes full line-rate burn-in testing before shipment.

Key Technical Specifications

Cisco Compatible
QSFP-4SFP25G-AOC10M
Vendor Name HYTOPTODEVICE
Connector QSFP28 to 4 x SFP28 Max Data Rate 100Gbps
Operating Wavelength 850nm Fiber Cable OM3 MMF
Cable Length 10m (33ft) Power Consumption 2.2W (QSFP28 End)
0.8W (SFP28 Per End)
Jacket Material OFNP Operation Temperature 0~ 70 °C (32 to 158°F)
Minimum Bend Radius 30mm Protocols QSFP28 MSA, SFP28 MSA
Application
25G/100G Ethernet, InfiniBand QDR
Warranty 5 Years

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Handle connectors by latch only; avoid pulling the cable jacket.
  • Respect minimum bend radius; prevent sharp bends causing optical loss.
  • Keep away from high heat and switch exhaust airflow.
  • Maintain clean connector contacts; use proper optical cleaning tools.
  • Set port speed to 100G before installation, follow vendor port config guide.
  • Do not cut, splice or modify the AOC assembly.
  • Route loosely; avoid over-tight cable ties.
  • Periodically check DDM readings for link health monitoring.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Cisco Hardware & Firmware

  • Cisco Nexus 9000 Series: N9K-C93180YC-FX, N9K-C93240YC-FX2
  • Cisco Nexus 3000 / 3500 Series
  • Cisco UCS 6500 Series Fabric Interconnects
  • Cisco MDS 9700 Series Storage Switches
  • Cisco Catalyst 9600 Series

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this Cisco compatible QSFP28 breakout cable from our QSFP28 to SFP28 Breakout AOC Cable Supply supports mixed-vendor networking hardware. It can interoperate with mainstream network brands including Arista, H3C, Juniper, Dell, NVIDIA Mellanox and more, ideal for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios
  • Long cross-rack 100G to 4×25G breakout uplink in high-density data centers
  • HPC cluster server node aggregation
  • SAN storage network high-speed port expansion
  • Leaf-spine architecture cross-rack interconnection
  • Enterprise 25G server access aggregation

Connectivity Solutions(Applications)

1. 100G to 4 x 25G Direct Link for Switch-Switch

hytoptodevice 100g qsfp28 to four sfp28 breakout cable for data center

2. 100G to 4 x 25G Link for Switch-NIC

hytoptodevice 100g qsfp28 breakout cable for data center


The Core Feature

1. High Density & Low Power 100G Connectivity for Data Center

Lightweight fiber construction and low power consmuption, easy for high-density cable management in data center.

hytoptodevice low power consumption 100g qsfp28 breakout cable for data center

2.Pre-Tested on Real Switches

Each 100G QSFP28  breakout cable is validated on actual host switches before delivery — instant link-up, zero surprises, zero downtime, guaranteeing flawless operation.

hytoptodevice 100g qsfp28 to 4x25G SFP28 aoc breakout cable

3. 100% Unit-Level Testing — Zero Sampling

Every single unit is individually validated for optical compliance and long-term stability before packing — no batch sampling, no shortcuts, no exceptions. Unit after unit, the performance stays identical. Take a virtual tour of our Test Center.

HYTOPTODEVICE, 100G QSFP28  AOC active optical cable manufacturer



FAQS

Q1: Can this 10m Cisco compatible breakout AOC work reliably on multi-brand switches for data center expansion projects? A: Yes. This product from our QSFP28 to SFP28 Breakout AOC Cable Supply follows MSA specs. HYTOPTODEVICE provides customized EEPROM coding to guarantee compatibility across Cisco, Arista, Dell and Juniper switches.

Q2: Do bulk 10m 100G breakout AOCs meet official MSA optical and mechanical requirements? A: Yes. Our breakout AOC strictly complies with SFF-8636 MSA standards. Standardized structure ensures smooth hot plug and stable optical performance for large-scale wholesale deployment of our QSFP28 to SFP28 Breakout AOC Cable Supply.

Q3: Can I connect this 100G QSFP28 breakout AOC into a legacy 40G QSFP+ switch port to build a link? A: No. QSFP28 and QSFP+ adopt different electrical pin definitions. This 10m AOC cannot negotiate valid links without dedicated speed conversion transceivers, even within our QSFP28 to SFP28 Breakout AOC Cable Supply lineup.

Q4: Which cabling option fits 10-meter cross-rack connections: breakout AOC or copper DAC? A: AOC is the only practical choice for 10m links. Copper DAC has severe signal attenuation at this distance, while our HYTOPTODEVICE breakout AOC from the QSFP28 to SFP28 Breakout AOC Cable Supply is EMI immune and maintains stable 25G speed on each channel.

Q5: When should network designers choose MTP trunk fiber instead of plug-and-play 100G breakout AOC for rack interconnection? A: Pick MTP trunk for reconfigurable, longer-distance cabling layouts. This 10m QSFP28 breakout AOC from our QSFP28 to SFP28 Breakout AOC Cable Supply is ideal for fixed plug-and-play 100G to 4×25G fanup connections.

Q6: Why is the maximum transmission distance of 100G DAC twinax much shorter than traditional 10G DAC cables? A: 100G signals run at higher frequencies with obvious crosstalk. Copper twinax cannot preserve signal integrity over long distances, while our 10m breakout AOC in the QSFP28 to SFP28 Breakout AOC Cable Supply uses optical transmission to break copper distance limits.

Q7: How to avoid connector strain damage when laying a 1-to-4 SFP28 breakout cable across multiple server racks? A: Use cable trays and reserve slack loops. Route four SFP28 pigtails separately, keep 30mm minimum bend radius, and protect the fanout point of this QSFP28 to SFP28 Breakout AOC Cable Supply product.

Q8: What is the power consumption gap between 100G to 4×25G DAC and breakout AOC for cross-rack links? A: DAC consumes nearly zero power. Our 10m AOC from QSFP28 to SFP28 Breakout AOC Cable Supply draws 2.2W at the QSFP28 host end and 0.8W for each SFP28 breakout end to sustain stable optical-electrical conversion.

Q9: Will throughput drop if I leave part of the SFP28 breakout ports unused in my deployment? A: No. Active channels keep running at full 25G speed. We suggest installing dust caps on idle SFP28 ports to protect optical interfaces of this bulk breakout AOC from our QSFP28 to SFP28 Breakout AOC Cable Supply.

Q10: What quality inspections will be carried out before breakout AOC delivery to wholesale buyers? A: We perform DDM calibration, line-rate burn-in and loopback error testing. Every unit from our QSFP28 to SFP28 Breakout AOC Cable Supply passes full inspection before shipment.

Q11: Are third-party compatible breakout AOCs suitable for enterprise data center mass rollout? A: Qualified third-party AOCs can reach OEM-level performance. Our wholesale breakout AOC within QSFP28 to SFP28 Breakout AOC Cable Supply uses MSA-compliant components and custom EEPROM programming to eliminate switch firmware warning alerts.

Q12: Can this 10m 100G breakout AOC support low-latency block storage traffic in SAN environments? A: Yes. It maintains ultra-low bit error rate. This Cisco compatible breakout AOC in our QSFP28 to SFP28 Breakout AOC Cable Supply delivers reliable transmission for SAN replication and high-volume storage data.

Q13: What warranty policy applies to bulk procurement of this QSFP28 breakout AOC cable? A: We provide long-term warranty support for wholesale orders. Manufacturing defects on this 10m breakout AOC from our QSFP28 to SFP28 Breakout AOC Cable Supply are eligible for replacement or EEPROM reconfiguration service from HYTOPTODEVICE.

Q14: Can bulk buyers request custom unequal breakout leg lengths for special rack layout requirements? A: Yes. HYTOPTODEVICE accepts custom breakout leg length requests within our QSFP28 to SFP28 Breakout AOC Cable Supply program. Contact our sales team for custom specs and MOQ details.

Q15: What certifications are required for breakout AOC cables exported to overseas data center clients? A: RoHS, CE and FCC are essential certifications. Our wholesale breakout AOC from QSFP28 to SFP28 Breakout AOC Cable Supply holds these certificates to meet global environmental and EMC compliance requirements for data center deployment.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

HYTOPTODEVICE HIGHT-QUALITY package for 25G SFP28 ACTIVE OPTICAL CABLE


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center


Application and Manufacturing Process
