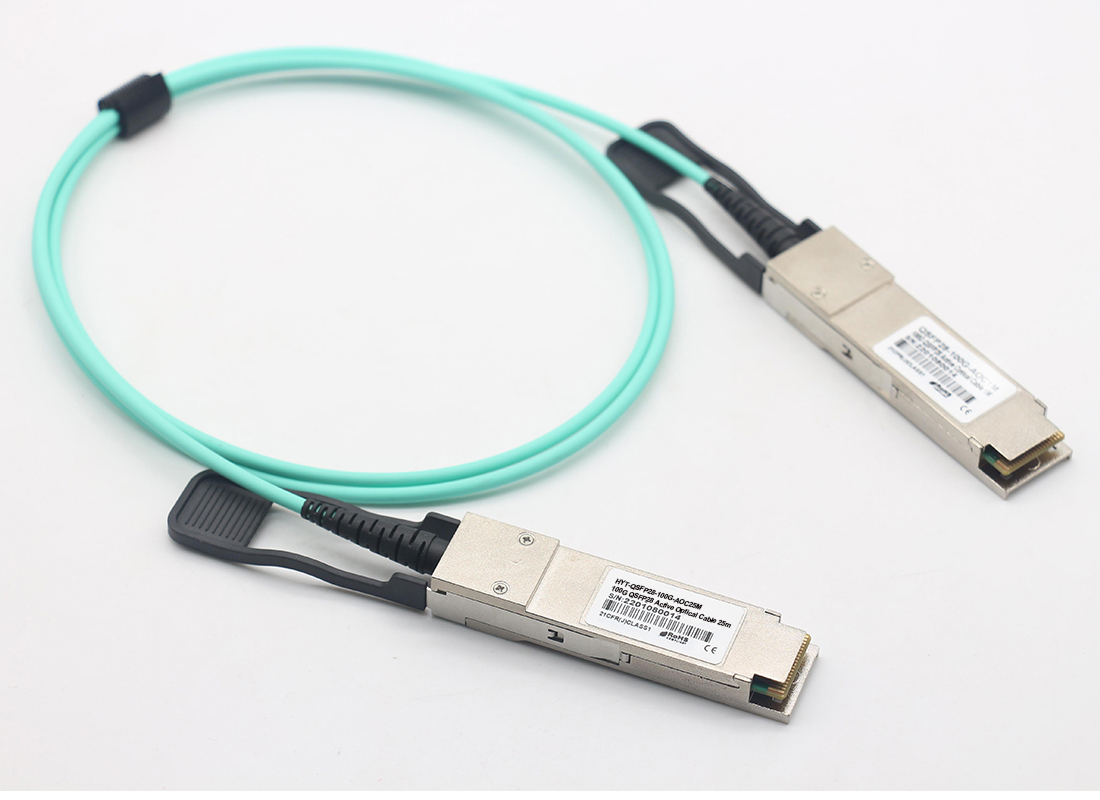

 Cisco QSFP-100G-AOC25M Compatible 100G QSFP28 Active Optical Cable 25m(82ft) Bulk Factory Wholesale | HYTOPTODEVICE

HYTOPTODEVICE supplies cisco compatible 100g qsfp28 active fiber optic cable 25m, Cisco QSFP-100G-AOC25M compatible 25m 100G QSFP28 AOC, built with 100GBASE-SR4 multimode fiber, EMI immune, hot pluggable with DDM monitoring. Custom EEPROM programming and private label available, suitable for large data center inter-row uplinks, HPC cluster and SAN interconnection. Factory direct bulk wholesale, sample available and flexible MOQ.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-100G-AOC10M
2 Arista Networks AOC-Q-Q-100G-10M
3  Dell  AOC-QSFP28-100G-10M
4 Juniper Networks  JNP-QSFP28-AOC-10M
5 NVIDIA/Mellanox  MFA1A00-C010
6 H3C QSFP-100G-D-AOC-10M
7 Brocade  QSFP28-100G-AOC-10M
Description

Cisco QSFP-100G-AOC25M Compatible 100G QSFP28 Active Optical Cable 25m(82ft) Bulk Factory Wholesale | HYTOPTODEVICE


Product Overview

As a professional factory provider of cisco compatible 100g qsfp28 active fiber optic cable 25m, HYTOPTODEVICE manufactures this Cisco matched 25m QSFP28 to QSFP28 active optical cable, pre-coded to match Cisco QSFP-100G-AOC25M specifications. It adopts 850nm VCSEL parallel optical design, delivering stable 100Gbps full-duplex transmission with strong anti-interference performance. The 25m length is ideal for long cross-row cabling across multiple server bays in large data center fabrics. We support OEM private label and custom EEPROM configuration. All cables are fully inspected before shipment, with fast sample support and factory direct bulk wholesale terms.

Key Technical Specifications

Cisco Compatible
QSFP-100G-AOC25M
Vendor Name HYTOPTODEVICE
Connector QSFP28 to QSFP28 Max Data Rate 100Gbps
Operating Wavelength 850nm Fiber Cable OM3 MMF
Cable Length 25m (82ft) Power Consumption ≤2.2W
Jacket Material OFNP Operation Temperature 0~ 70 °C (32 to 158°F)
Minimum Bend Radius 30mm Protocols IEEE 802.3 bm, SFF-8665
Application
100G Ethernet
Warranty 5 Years

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Handle connectors by latch only; avoid pulling the cable jacket.
  • Respect minimum bend radius; prevent sharp bends causing optical loss.
  • Keep away from high heat and switch exhaust airflow.
  • Maintain clean connector contacts; use proper optical cleaning tools.
  • Set port speed to 100G before installation, follow vendor port config guide.
  • Do not cut, splice or modify the AOC assembly.
  • Route loosely; avoid over-tight cable ties.
  • Periodically check DDM readings for link health monitoring.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Cisco Hardware & Firmware

  • Cisco Nexus 9000 Series: N9K-C93180YC-FX, N9K-C93240YC-FX2, N9K-C9336C-FX2
  • Cisco Nexus 3000 Series: N3K-C3232C, N3K-C31108PC-V
  • Cisco Catalyst 9500 Series: C9500-32C, C9500-48Y4C
  • Cisco UCS 6400 Fabric Interconnects: UCS-FI-6454
  • Cisco MDS 9000 Series: MDS 9706, MDS 9710
  • Cisco NCS 5400 / NCS 5500 Series: NCS-5501, NCS-540

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this cisco compatible 100g qsfp28 active optical cable 25m from our factory can interoperate with mainstream network hardware for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios

● Ultra-long inter-row 100G interconnection in large data center
● High performance computing HPC cluster cross-bay interlinks
● Storage area network SAN and long-distance server rack uplink
● Enterprise high-density switch fabric extended interconnections
● 100G Ethernet leaf-spine long-reach deployment

Connectivity Solutions(Applications)

1. 100G to 100G Direct Link for Switch-Switch
HYTOPTODEVICE 100G QSFP28 AOC CABLE FOR SWITCH to SWITCH

2. 100G to 100G Direct Link for Switch-NIC
QSFP28 100G active optical cable supplier by HYTOPTODEVICE


The Core Feature

1. 100G QSFP28 AOC — Plug In, Done

Factory-terminated and sweep-tested at both ends. Install in-rack or next-rack links in minutes — no end-face cleaning, no extra transceiver pair. Fewer parts, lower cost per port.

2. More Ports Per Rack, Less Draw Per Port

Thin fiber keeps dense patching under control in the data center; low-power links hand the saved power and cooling budget back to other equipment.

high density and low power consumption 100G QSFP28 AOC active optical cable

3.Pre-Tested on Real Switches

Every 100G QSFP28 AOC is burned in on live host switches, so the link comes up on first insert in your own rack. No tuning, no guesswork, no downtime.

valdated compatibility for 100g qsfp28 aoc

4. 100% Unit-Level Testing — Zero Sampling

Every single unit is individually validated for optical compliance and long-term stability before packing — no batch sampling, no shortcuts, no exceptions. Unit after unit, the performance stays identical. Take a virtual tour of our Test Center.

HYTOPTODEVICE, 40G QSFP+  AOC active fiber optic cable manufacturer, test every cable before shipment



FAQS

Q1: What transmission range can I get from a 100G QSFP28 AOC assembly?

A: 100G QSFP28 AOC solutions support reach from 1m up to 100m when paired with OM3 or OM4 multimode fiber, making this cisco compatible 100g qsfp28 active fiber optic cable 25m well suited for long intra-rack and cross-rack high-speed links inside data centers.

Q2: Can I deploy this 100G QSFP28 AOC cable outside or in uncontrolled ambient environments?

A: No. Standard enterprise-grade AOCs including our HYTOPTODEVICE 25m 100G AOC are engineered exclusively for indoor climate-controlled spaces between 0°C and 70°C, without armored jackets or weatherproof protection for outdoor exposure.

Q3: Is it feasible to run these 100G QSFP28 AOCs to connect switches on separate floors in a data center?

A: It works if your required span falls within the available AOC length options (max 100m). For multi-floor or building-to-building runs, standalone transceivers plus structured fiber cabling are generally a more practical choice.

Q4: Is split vendor coding supported if one end connects to Cisco and the other to Arista hardware?

A: Yes. HYTOPTODEVICE can deliver custom split EEPROM coding for this cisco compatible 100g qsfp28 active fiber optic cable 25m, so each connector properly handshakes with its respective brand of switch during direct interconnection.

Q5: Do these 100G AOC cables follow official MSA specifications?

A: Yes. Electrical and mechanical interfaces comply with SFF-8665 QSFP28 MSA standards, guaranteeing consistent interoperability across qualified hardware.

Q6: What causes the link to stay down once I plug in this 100G AOC cable?

A: Common triggers include port speed misconfiguration, disabled FEC, mismatched EEPROM vendor coding, or loose connector seating. Verify these items first for quick troubleshooting on your Cisco switch setup.

Q7: Can this standard QSFP28 to QSFP28 AOC split one 100G port into four independent 25G SFP28 channels?

A: Standard point-to-point 100G AOCs cannot fan out signals. If you require 4×25G breakout connectivity, you need a dedicated 100G QSFP28 to 4x 25G SFP28 breakout AOC instead.

Q8: Does this 100G QSFP28 AOC support jumbo frame transmission such as 9000-byte MTU?

A: Yes. This HYTOPTODEVICE active optical cable passes Ethernet frames transparently, supporting jumbo frames and standard frame sizes with no packet fragmentation.

Q9: Will internal fiber strands be damaged if the AOC cable is stepped on accidentally?

A: Yes. Crushing or stepping on the cable can fracture internal glass fibers, which breaks the optical path, even if there is no obvious damage visible on the outer jacket.

Q10: Are 100G AOC cables heavy enough to sag and stress switch ports?

A: No. AOCs are far lighter than copper DAC alternatives. This cisco compatible 100g qsfp28 active fiber optic cable 25m adds minimal mechanical load and eliminates port sag on switch cages.

Q11: When should passive copper DAC be selected instead of a 100G AOC?

A: Choose passive DAC when your link distance is within 2–3 meters. At 100G rates, copper reach is limited, yet DACs cost less, draw zero power and feature higher physical ruggedness for short links.

Q12: What scenario favors separate transceivers plus fiber patch cords over integrated AOC?

A: Separate optics and patch cords are better for routing through patch panels, mixing variable lengths, or replacing individual damaged fiber cords without swapping the whole cable assembly.

Q13: How can I test this 100G AOC and confirm functionality before production deployment?

A: Perform bench testing on staging switches, confirm stable link status, check interface counters for zero CRC errors, and review DOM readings to validate healthy optical power levels.

Q14: What support is available if I receive the wrong vendor coding for compatibility?

A: HYTOPTODEVICE offers flexible exchange, re-programming and return support for bulk and sample orders, solving compatibility issues when vendor coding does not match your network hardware.

Q15: How does integrated 100G AOC reduce power draw compared to separate modular optics?

A: Integrated AOC assemblies like our cisco compatible 100g qsfp28 active fiber optic cable 25m have optimized power budgets, consuming less power and producing less heat than pairs of standalone transceivers plus patch fiber.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

HYTOPTODEVICE HIGHT-QUALITY package for 25G SFP28 ACTIVE OPTICAL CABLE


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center
