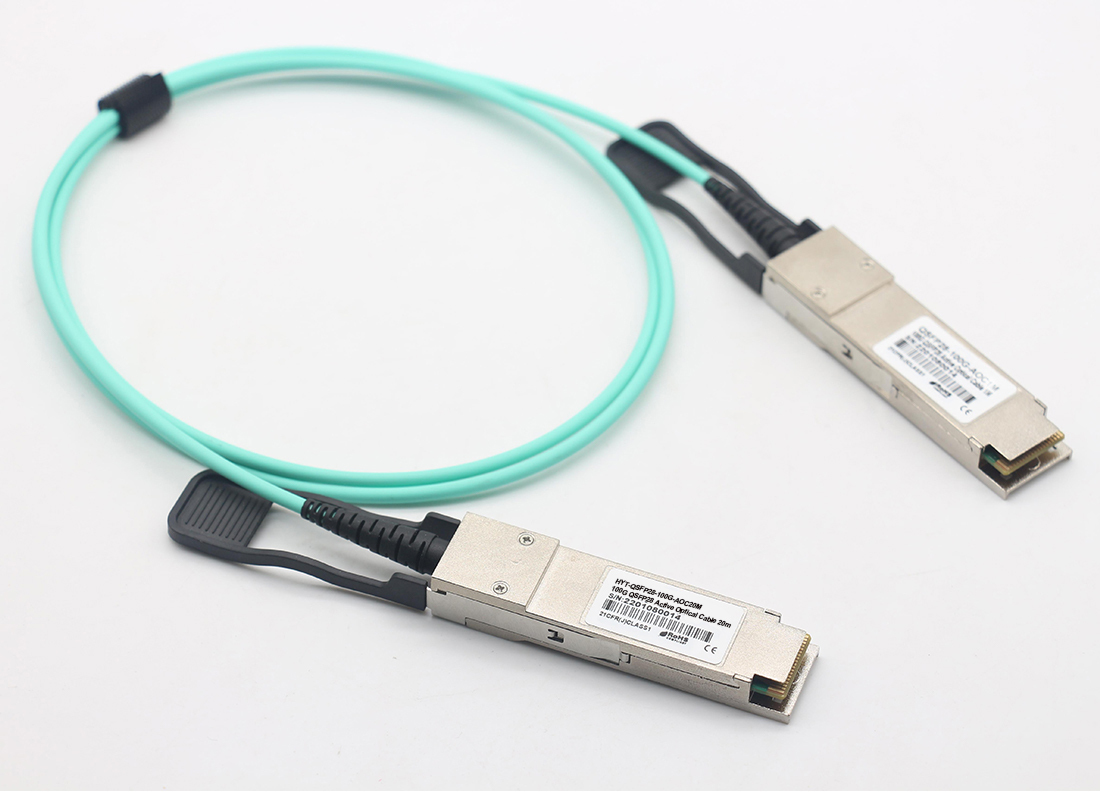

 Cisco QSFP-100G-AOC20M Compatible 100G QSFP28 AOC Active Optical Cable 20m(66ft) Bulk Wholesale | HYTOPTODEVICE

HYTOPTODEVICE supplies cisco compatible qsfp28 100g aoc active optical cable 20m, Cisco QSFP-100G-AOC20M compatible 20m 100G QSFP28 AOC, built with 100GBASE-SR4 multimode fiber, EMI immune, hot pluggable with DDM monitoring. Custom EEPROM programming and private label options available, ideal for large data center inter-row uplinks, HPC clusters and SAN connectivity. Bulk wholesale, sample orders and flexible MOQ supported.
NO. Brand  Compatible P/N Transceiver Type
1 Cisco QSFP-100G-AOC20M
2 Arista Networks AOC-Q-Q-100G-20M
3  Dell  AOC-QSFP28-100G-20M
4 Juniper Networks  JNP-QSFP28-AOC-20M
5 NVIDIA/Mellanox  MFA1A00-C020
6 H3C QSFP-100G-D-AOC-20M
7 Brocade  QSFP28-100G-AOC-20M
Description

 Cisco QSFP-100G-AOC20M Compatible 100G QSFP28 AOC Active Optical Cable 20m(66ft) Bulk Wholesale | HYTOPTODEVICE


Product Overview

As a trusted manufacturer of cisco compatible qsfp28 100g aoc active optical cable 20m, HYTOPTODEVICE offers this Cisco-matched 20m QSFP28 to QSFP28 active optical cable, pre-programmed to align with Cisco QSFP-100G-AOC20M specifications. Adopting 850nm VCSEL parallel optical architecture, it delivers stable 100Gbps full-duplex transmission with outstanding anti-interference capability. The 20m length fits long inter-row cabling across separate racks and server bays in expansive data center fabrics. We support OEM private labeling and custom EEPROM configuration. Every cable undergoes comprehensive factory performance validation, with quick sample lead times and flexible bulk purchasing terms.

Key Technical Specifications

Cisco Compatible
QSFP-100G-AOC20M
Vendor Name HYTOPTODEVICE
Connector QSFP28 to QSFP28 Max Data Rate 100Gbps
Operating Wavelength 850nm Fiber Cable OM3 MMF
Cable Length 20m (66ft) Power Consumption ≤2.2W
Jacket Material OFNP Operation Temperature 0~ 70 °C (32 to 158°F)
Minimum Bend Radius 30mm Protocols IEEE 802.3 bm, SFF-8665
Application
100G Ethernet
Warranty 5 Years

For detailed technical specifications, please refer to the Datasheet


Usage Guidelines & Best Practices

  • Handle connectors by latch only; avoid pulling the cable jacket.
  • Respect minimum bend radius; prevent sharp bends causing optical loss.
  • Keep away from high heat and switch exhaust airflow.
  • Maintain clean connector contacts; use proper optical cleaning tools.
  • Set port speed to 100G before installation, follow vendor port config guide.
  • Do not cut, splice or modify the AOC assembly.
  • Route loosely; avoid over-tight cable ties.
  • Periodically check DDM readings for link health monitoring.

For detailed operation instructions, please refer to the User Guide.


Full Compatibility List & Supported Devices

1. Validated Cisco Hardware & Firmware

  • Cisco Nexus 9000 Series: N9K-C93180YC-FX, N9K-C93240YC-FX2, N9K-C9336C-FX2
  • Cisco Nexus 3000 Series: N3K-C3232C, N3K-C31108PC-V
  • Cisco Catalyst 9500 Series: C9500-32C, C9500-48Y4C
  • Cisco UCS 6400 Fabric Interconnects: UCS-FI-6454
  • Cisco MDS 9000 Series: MDS 9706, MDS 9710
  • Cisco NCS 5400 / NCS 5500 Series: NCS-5501, NCS-540

2. Multi-Brand Cross Interoperability

Built on universal MSA open standards, this cisco compatible qsfp28 100g aoc active optical cable 20m from our factory can interoperate with mainstream network hardware for mixed-vendor rack stacking and server fabric expansion.

3. Free Value-Added Services

  • Custom firmware for multi-device compatibility
  • Support sample testing before bulk orders for project pre-verification
  • Private-label customization and professional deployment guidanc
  • Strict batch consistency quality control
  • Free custom EEPROM programming for special and legacy network environments
  • Free EEPROM rewriting (Tools Included) with 24/7 Tech Support

Primary Application Scenarios

● Long inter-row 100G interconnection in large-scale data centers
● High performance computing HPC cluster cross-bay interconnection
● Storage area network SAN and server rack uplink deployment
● Enterprise high-density switch fabric long-distance interconnections
● 100G Ethernet leaf-spine extended mid-reach deployment

Connectivity Solutions(Applications)

1. 100G to 100G Direct Link for Switch-Switch
HYTOPTODEVICE 100G QSFP28 AOC CABLE FOR SWITCH to SWITCH

2. 100G to 100G Direct Link for Switch-NIC
QSFP28 100G active optical cable supplier by HYTOPTODEVICE


The Core Feature

1. 100G QSFP28 AOC — Plug In, Done

Factory-terminated and sweep-tested at both ends. Install in-rack or next-rack links in minutes — no end-face cleaning, no extra transceiver pair. Fewer parts, lower cost per port.

2. More Ports Per Rack, Less Draw Per Port

Thin fiber keeps dense patching under control in the data center; low-power links hand the saved power and cooling budget back to other equipment.

high density and low power consumption 100G QSFP28 AOC active optical cable

3.Pre-Tested on Real Switches

Every 100G QSFP28 AOC is burned in on live host switches, so the link comes up on first insert in your own rack. No tuning, no guesswork, no downtime.

valdated compatibility for 100g qsfp28 aoc

4. 100% Unit-Level Testing — Zero Sampling

Every single unit is individually validated for optical compliance and long-term stability before packing — no batch sampling, no shortcuts, no exceptions. Unit after unit, the performance stays identical. Take a virtual tour of our Test Center.

HYTOPTODEVICE, 40G QSFP+  AOC active fiber optic cable manufacturer, test every cable before shipment



FAQS

Q1: How does signal latency of this 20m cisco compatible qsfp28 100g aoc active optical cable compare to copper DAC connections? A: This cisco compatible qsfp28 100g aoc active optical cable 20m only introduces minimal nanosecond-scale latency from electro-optical conversion hardware. This tiny delay will not disrupt HPC, cloud and enterprise data center traffic delivered by HYTOPTODEVICE.

Q2: What damage may occur if I sharply bend this 20m 100G AOC and ignore the minimum bend radius requirement? A: This 100G AOC model follows a 30mm minimum bend radius specification. Sharp bends beyond this limit can fracture internal glass fibers and permanently cut off 100G signal transmission of our 20m Cisco compatible AOC.

Q3: Will running this 100G AOC alongside power distribution cables inside racks trigger signal interference? A: No. Data transmits via light pulses inside glass fiber instead of electrical signals. The cisco compatible qsfp28 100g aoc active optical cable 20m supplied by HYTOPTODEVICE is fully protected against electromagnetic interference.

Q4: Are extra-long 20m 100G QSFP28 AOC connections prone to signal jitter and bit error issues? A: No. Onboard CDR signal recovery chips inside transceivers continuously condition high-speed signals, sustaining ultra-low bit error rates for our 20m Cisco compatible AOC within complex multi-vendor fabric environments.

Q5: Can unprogrammed third-party 100G AOC work plug-and-play on Cisco and NVIDIA Mellanox switches without transceiver fault alerts? A: You must select EEPROM coding matched to your target hardware at the time of order. Incorrect coding will trigger unsupported transceiver warnings. HYTOPTODEVICE preconfigures this cisco compatible qsfp28 100g aoc active optical cable 20m for Cisco hardware compatibility.

Q6: Could Cisco firmware updates make this aftermarket 20m 100G QSFP28 AOC stop working? A: MSA-compliant EEPROM chips fitted on our 20m Cisco compatible AOC work reliably with most routine firmware upgrades. Rare strict vendor security patches may block third-party hardware, and we provide recoding support for bulk purchasers.

Q7: Do these 100G AOC units operate with white-box switches loaded with SONiC or Cumulus Linux open network operating systems? A: Yes. Open-source network operating systems rarely enforce rigid vendor lock-in restrictions. Our cisco compatible qsfp28 100g aoc active optical cable 20m supports plug-and-play installation on open networking switches.

Q8: Does each connector end of this 20m direct-attach 100G AOC require separate EEPROM tuning? A: Yes. Each QSFP28 connector end must carry EEPROM data matching the switch or server port it plugs into. HYTOPTODEVICE completes dual-end EEPROM programming for this cable based on your interconnection layout.

Q9: Is manual FEC activation on switch ports required to keep stable transmission for this extended-length 100G AOC? A: Most long-distance 100G fabric links require Reed-Solomon FEC enabled on switch ports to guarantee stable transmission. Exact settings depend on your switch vendor and link length for this cisco compatible qsfp28 100g aoc active optical cable 20m.

Q10: What CLI commands help confirm whether a Cisco switch successfully identifies this 20m 100G QSFP28 AOC transceiver? A: You may run commands including show interface transceiver or show inventory to verify module recognition status. This 20m Cisco compatible AOC supports full DDM reporting for convenient link health audits.

Q11: What troubleshooting actions resolve random link flapping after installing this 20m long inter-row 100G AOC? A: Inspect switch interface error counters, validate FEC parameter configuration, examine and clean optical contact surfaces, and analyze DOM telemetry to spot abnormal optical power readings on our cisco compatible qsfp28 100g aoc active optical cable 20m.

Q12: Does 100G QSFP28 AOC consume more power than passive twinax DAC cables? A: Yes. Laser and signal conversion circuits on both ends consume power, typically 2.0W to 3.5W per cable assembly, while passive copper DAC uses zero power. Our 20m Cisco compatible AOC adheres to standard industry power specifications.

Q13: Can inadequate rack airflow trigger overheating faults on the integrated transceivers of this long 100G AOC? A: The cisco compatible qsfp28 100g aoc active optical cable 20m operates reliably within 0°C–70°C. Enclosed racks with poor ventilation will push transceiver temperatures outside rated limits and create unstable links.

Q14: How robust are the pull tabs and latch assemblies on the QSFP28 connectors of this 20m 100G AOC? A: Standard pull-release latches are rated for 50–100 regular hot-swap cycles. Pulling the cable jacket instead of the dedicated tab will damage the latch. Every 20m Cisco compatible AOC from HYTOPTODEVICE passes latch durability testing prior to shipment.

Q15: Can field technicians splice or repair a cut or crushed 20m 100G QSFP28 AOC on site? A: No. Embedded transceivers are factory assembled with compact optical components. Field splicing is impossible, and damaged cables need full replacement. HYTOPTODEVICE provides replacement cisco compatible qsfp28 100g aoc active optical cable 20m for large data center deployments.

Packaging & Custom OEM Solutions

  • ESD Protection & Fast Shipping: Every transceiver is sealed in an ESD-safe bag and ready for same-day dispatch from stock.

  • Custom OEM & Branding: We provide logo printing, private labeling, and custom packaging to help distributors and integrators build their brand—no factory investment required.

HYTOPTODEVICE HIGHT-QUALITY package for 25G SFP28 ACTIVE OPTICAL CABLE


Why Network Engineers Choose HYTOPTODEVICE

HYTOPTODEVICE has supplied over 5000,000 optical transceiver modules to data centers, ISPs, and enterprise networks across 100+ countries since 2011. Every module undergoes a 72-hour burn-in test and full DDM/DOM validation before shipment.

  • Up to 70% cost savings vs OEM, transparent pricing & flexible bulk rates, supported quality returns
  • 100% real-device compatible with Cisco, Huawei,Dell,Juniper, and Arista
  • ISO 9001:2015 Shenzhen factory, full lineup: 1.25G/10G/25G/40G/100G/200G/400G/800G/1.6T transceivers
  • Ample stock, fast global DHL/FedEx shipping in 3–5 working days
  • Free pre-sales engineering support for custom EEPROM  & private label firmware
  • Real switch test videos available for pre-purchase review; inspection & shipping videos provided per order


“Phenomenal performance. We deployed 200 HYTOPTODEVICE SFP modules to replace Cisco OEMs in our backbone network. Result? Zero compatibility issues and a 60% reduction in costs. Highly recommended for mission-critical networks."— Senior Network Engineer, Regional Telecom, Australia


Quality Certification & Compliance

 At HYTOPTODEVICE, our quality commitment is backed by industry-standard validations. From fiber optical transceiver manufacturing to final visual inspection, from IQC、IPQC、FQC to OQC, our processes ensure global compliance and reliability.

We adhere to rigorous standards for our SFP modules and network solutions:

  • ISO 9001: Certified quality management and production consistency.

  • CE & FCC: Fully compliant for seamless Global Market Access.

  • RoHS: Committed to environmental responsibility and hazardous material control.

  • Proven Reliability: Rigorous testing to reduce compliance risk and ensure safety.

Certified Quality. Global Standards. Guaranteed Performance.




Rigorous Industrial Product Testing

   hytoptodevice check device and equiptment for optical transceiver module

100% 3rd Party Compatible
testing device for hytoptodevice 10g sfp+ bidi optical module
Partial Test Demonstration
hytoptodevice compatible optical transceiver module for ethernet,data center


Application and Manufacturing Process
